The Display Collection
1. iPad enclosures & displays 1. Pop up graphic displays
2. Modular displays 2. Roll up banner displays
3. AV display solutions 3. Literature presenters
iPad enclosures and display solutions
simple, elegant and easy to use
iPad sales continue to grow with hundreds of millions sold worldwide. These products are used to interact with audiences
within the office, showroom, retail, visitor centres and events. Marketers have recognised the benefits and are increasingly
turning to the simple and intuitive interactivity an iPad provides to communicate to a multitude of audiences.
Our range of iPad enclosures provide a secure, stylish and versatile method for the safe utilisation of iPad’s in public
environments. The iPad enclosures affix to table tops, display stands or walls providing easy access to the touch screen whilst
protecting the unit from damage and theft.
The iPad itself has set new standards in the use of materials and quality of production. At Eurostand we have taken the same
approach to manufacture by using high quality materials and production methods to produce products so good that we are
confident in offering a 5 year guarantee across the iPad range.
iPad enclosures & display
iPad is a trademark of Apple Inc., registered in the U.S. and other countries.
3
simple, elegant and easy to use
iPad display curve
The iPad curve is our entry level free standing unit and enclosure
designed for quick and easy assembly. As with all our iPad
products, where simple fast delivery of messages are key to your
communication, they are an ideal solution. Designed to be versatile
and practical whilst safely securing the iPads.
iPad enclosures & displays - iPad display curve
iPad display curve
• Designed for use with iPad 2, 3 , 4,
iPad Air 1 & 2
• Durable silver grey coated steel enclosure
and matching floor stand
• iPad powered from inbuilt battery
• Black high gloss acrylic fascia
• Push button security lock with key release
• Versatile enclosure tilts through 120° and
fully rotates 360°
• Home button recess allowing Guided
Access on iOS 6 and above
iPad, USB Cable and Power Adaptor not included
4
iPad display curve
• Maximum overall dimensions 370mm diameter x 1210mm(h)
• Packaging weight 9.2kg, carton dimensions 1060(w) x 390(d) x 90mm(h)
iPad Air conversion kit • Optional enclosure lock & cable security cord with two keys
The iPad Air conversion kit is supplied
with all iPad display curve systems
Black high gloss
Headphone acrylic fascia
jack/lead hole
Rear facing
iPad enclosures & displays - iPad display curve
camera aperture
Forward facing
camera aperture
Push lock/key
security
Speaker Recess for
opening home button
Stylish steel post and
solid base plate
Tilts Rotates
120° 360°
5
versatile design offering cable iPad multi display holder
management solution The iPad multi display range allows the iPad to
be connected to a power supply and is perfect at
events where longer use may be required or for
permanent display within retail, showroom and
visitor centre environments.
All products within the range boast a cable
management system and come supplied with a
power lead for immediate use.
iPad enclosures & displays - multi display holder
iPad multi display holder
• Designed for use with iPad 2, 3 , 4, iPad Air 1 and 2
• Contemporary styling with robust steel holder
• Available in textured black or white finish
• Attractive high gloss acrylic fascia
• Discreet management to point of exit of USB charging
cable, adaptor and power lead
• Integral chrome push button security lock with two keys
supplied
• Home button recess allows perfect balance between iPad
access and security (see Guided Access instructions)
• Comprehensive range of holder apertures for extensive
iPad functionality
• Holder rotates and swivels 350º
• Holder tilts 90º except on post and wall mounted versions
• UK 3 pin plug to figure 8 power lead supplied to connect to
iPad adaptor - 1 year guarantee
• Optional enclosure security lock and cable
iPad, USB Cable and Power Adaptor not included
6
iPad Air conversion kit
The iPad Air conversion kit is supplied
Swivels
350° Tilts Rotates
with all multi display holders
90° 350°
Headphone
jack/lead hole
Rear facing
camera aperture
Forward facing
camera aperture
Post mount
hole
iPad enclosures & displays - multi display holder
Cable
management
Vesa 75 and 100
mount holes
Security slot for
enclosure lock
and cable
Push lock/key
security
Speaker
opening
Recess for home button
7
power features and security
Cable management
iPad enclosures & displays - cable management and security
Apple USB charging cable concealed within Apple USB cable passes through holder Apple USB cable connects to Apple white 3m figure 8 power lead and UK 3 pin plug
enclosure behind iPad before exiting through support head, then down column tube adaptor, which in turn connects to figure 8 (supplied) exit stand for connection to
centre hole power lead (supplied) appropriate power supply
Optional enclosure security lock and cable
1.8m premium quality enclosure lock and Lasso security cord to appropriate position Alternatively lasso security cord to nearby For secure locking of iPad enclosure follow
cable with 2 keys on display stand. Not recommended for iPad stationary object to prevent removal of the instruction guide supplied
Column and Podium stands complete iPad display stand
iPad, USB Cable and Power Adaptor not included
8
versatile mount solutions
iPad enclosures & displays - iPad mounting solutions
* iPad post mount iPad wall mount * iPad counter mount
• iPad holder and Centro interface mounting bracket • iPad holder and Vesa mount tilting bracket • Available in textured black or white finish
supplied with security locking screws supplied • iPad holder with continuous power supply
• Available in textured black or white finish • Available in textured black or white finish • Assembles to most standard work surfaces subject to
• Holder rotates 360º • Holder can be mounted portrait or landscape appropriate hole preparation
• No swivel movement or tilt action • Easy tilt adjustment +17º to -10º • Standard screw fixing set supplied
• Overall holder dimensions • No rotation or swivel movement • Overall holder dimensions
• Portrait: 206(w) x 58(d) x 294mm(h) • Overall holder dimensions • Portrait: 206(w) x 95(d) x 322mm(h)
• Landscape: 294(w) x 58(d) x 206mm(h) • Portrait: 206(w) x 80(d) x 294mm(h) • Landscape: 294(w) x 95(d) x 277mm(h)
• Packaged weight: 3kg • Landscape: 294(w) x 80(d) x 206mm(h) • Packaged weight: 3kg
• Packaged weight: 3kg
*iPad post mount and iPad counter mount enclosure excludes Centro hardware shown in images.
9
iPad enclosures & displays - portable iPad display systems solutions for every imaginable display environment
iPad column iPad podium iPad versa 1 iPad versa 2
• Post and base with versatile iPad holder • Single post, base and acrylic podium table with • Twin posts, base, acrylic podium table, 2 x • Twin posts, base, acrylic podium table, 2 x
• Available in textured black or white finish versatile iPad holder linking profiles and A4 brochure holder linking profiles and 2 x A4 brochure holders
• Continuous iPad power supply • Available in textured black or white finish • Available in textured black or white finish • Available in textured black or white finish
• Combined post height 1265mm • Continuous iPad power supply • Continuous iPad power supply • Continuous iPad power supply
• Maximum overall dimensions – 464(w) x 425(d) • Table height 1014mm • Table height 1010mm and iPad combined post • Table height 1010mm and iPad combined post
x 1595(h) • Maximum overall dimensions – 500(w) x 445(d) height 1265mm height 1265mm
• Packaged weight: 15kg (carton) or 24kg (case) x 1340mm(h) • Maximum overall dimensions - 800(w) x 500(d) • Maximum overall dimensions - 800(w) x 500(d)
• Packaged weight: 15kg (carton) or 24kg (case) x 1595mm(h) x 1595mm(h)
• See further options in Concept displays
• Packaged weight: 20kg (carton) or 29kg (case) • Packaged weight: 20kg (carton) or 29kg (case)
iPads and graphics are not included. Heavy duty steel base finished silver with rubber foot pads - 464mm diameter
10iPad enclosures & displays - portable iPad display systems
iPad pos iPad duo iPad quad
• Multiple post set with 3 x acrylic display podium Coloured acrylic features • Single post, base and support arm with 2 x • Single post, base and cross shaped support arm
tables available in, neon blue, red, versatile iPad holders with 4 x versatile iPad holders
• Available in textured black or white finish and green or frost. • Available in textured black or white finish • Available in textured black or white finish
• Continuous iPad power supply • Continuous iPad power supply • Continuous iPad power supply
• Table heights 510mm, 775mm, 1010mm and • Support arm height 1039mm • Cross support arm height 1039mm
iPad combined post height 1265mm • Maximum overall dimensions: 499(w) x 445(d) • Maximum overall dimensions: 612(w) x 612(d)
• Maximum overall dimensions - 915(w) x x 1365mm(h) x 1365mm(h)
1000(d) x 1590mm(h) • Packaged weight: 19kg (carton) or 28kg (case) • Packaged weight: 26kg (carton) or 35kg (case)
• Packaged weight: 20kg (carton) or 29kg (case)
Special ship safe carton or optional moulded wheeled trolley case. All stands supplied dismantled for ease of transportation
11iPad enclosures & displays - iPad & graphic display combined attract, promote, inform and interact
Screw clips
+ =
iPad column
Concept utilising iPad column and
single panel with 3 clips (CiPA/1) or More visibility
twin panel with 6 clips (CiPA/1 x 2)
The simple addition of easy-fit screw clips and graphic panels magnify the iPad
column’s brilliance as an interactive multimedia display, unleashing a powerful
promotional opportunity. Branding and messaging can be used to drive and
enhance the iPad user experience as well as increase visibility from a distance
iPads and graphics are not included.
12iPad enclosures & displays - iPad & graphic display combined
Thumb screw
+ =
iPad column
Concept utilising iPad column and single panel
with 2 thumbscrews (CiPA /2) or double sided Greater impact
panels with 4 thumbscrews (CiPA/2 x 2)
The easy-fit face thumb screw kit enables the iPad column to work even harder
with the addition of graphic panels for tailored branding. This enhances the
fully-interactive multimedia capabilities of the iPad making it the perfect solution
for wayfinding, menus, seminars, exhibitions and demonstrations.
13iPad enclosures & displays - personalise your iPad enclosure help reinforce promotion and brand

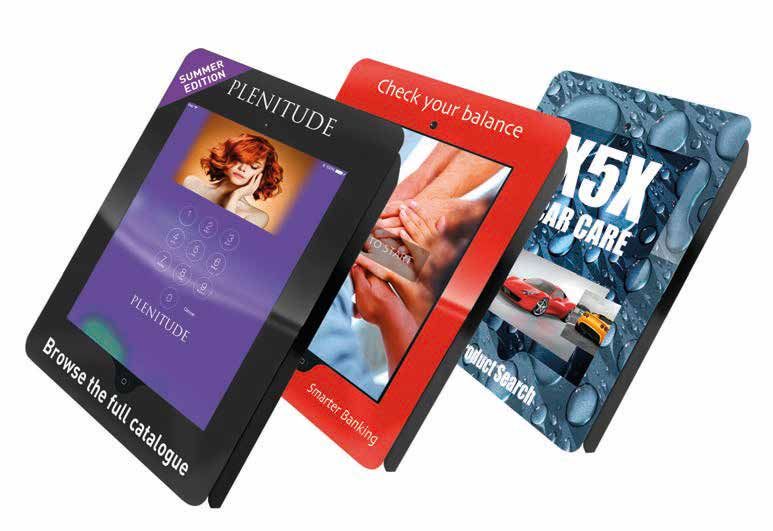

iPad enclosure personalisation
All our iPad products are supplied with a high
gloss black acrylic fascia. If you wish to brand the
fascia using corporate colours, logos and messages
or use imagery printed to the fascia these options
are available on request.
Cut file graphic template for either grey / black
backed vinyl or printing directly on flatbed printer
available
14handy hints and transportation
Guided Access - Lock your iPad home button
In iOS 6 and above, you can limit an iPad to one app by disabling the ‘home button’ access and restrict touch
screen input on certain areas enabling the iPad to be left unattended. Only available on iPad 2 and above.
• Go to Settings
• Tap General
iPad enclosures & displays - IPad hints and transportation
• Scroll down to Accessibility
• Scroll down to Guided Access
• Tap Guided Access
• Switch Guided Access to on and Set Passcode if not already set
• Go to an app with a scrolling picture, triple click on the Home Button and press Start in the top right-hand side
Home Button of screen. Your screen is now locked
• To unlock - Triple click the home button, enter your passcode and in the top left-hand side click End.
iPad packaging
• Specially manufactured double wall transit carton and
Centro wheeled trolley internal fittings for ease of shipment worldwide of
individual iPad stands
• Stylish and durable moulded plastic case with rubber
• Each carton supplied twin strapped with
wheels
metal seals for convenient and safe handling
• Detachable lid with moulded handle and 3 lockable
• Carton dimensions - 1030(w) x 500(d) x
latches
225mm(h)
• Convenient side carry handle
• See individual stands spec for packaged
• Overall dimensions 520(w) x 440(d) x 1130mm(h) weights
• Nominal net weight including tube without graphics 8.9kg
• Optional laminated folding top available in beech or black
with padded bag
• Converts to counter display with simple application of graphic wrap
• Quality assured - 12 months guarantee
15Centro RotrLink modular display systems
fast and easy modular display solutions, twist and lock connection
The Centro portable modular display range has been extremely successful as clients can assemble the robust systems themselves.
Until now we have provided a locking system secured with the use of a single Allen Key. The reason for this approach was to
maintain strength and provide systems that will last. For the past few years we have been working to reduce the use of tools for
assembly whilst maintaining the strength and durability of the connections.

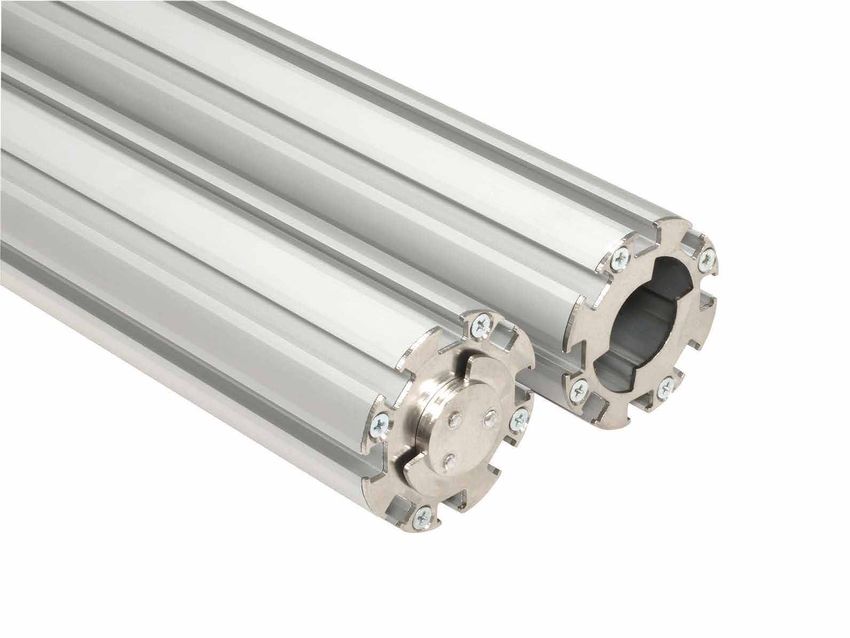

The new Centro RotrLink twist and lock technology maintains the strength of the product whilst dramatically reducing assembly
time by simply twisting and locking certain components together. The quality of the materials used to manufacture the locks
means any Centro modular system can be assembled and dismantled over and over again whilst maintaining its strength.
Our continued confidence in the build quality and long term reliability of these display systems is reflected in the 5 year guarantee
we offer across the entire range.
Modular displays
17three step
linking system
Centro Rotrlink
The Centro Rotrlink twist and lock technology
allows fast and easy installation, providing clients
peace of mind that they will be able to build
small or large modular displays with ease
Modular displays - Centro RotrLink systems
90º
1. 2. 3.
18Centro Rotrlink
New unique and innovative RotrLink modular
display system maintains the strength of the
product whilst dramatically reducing assembly
time
Modular displays - Centro RotrLink systems
1.
2.
15
º
3.
19fast and easy twist and lock connection RotrLink System
Printed 5mm rigid panel
Printed banner material
750mm 1500mm 2250mm
(C1K/75) (C1K/150) (C1K/225)
Standard kits - dimensions stated are visible graphic widths for rigid panel graphics
Coloured acrylic features, neon blue, red and green or frost.
Modular displays - Centro 1 RotrLink
Centro wheeled trolley
• Display hardware for both options
fit within single trolley case
• Graphic tube within trolley case can
only accommodate banner graphic
Centro 1 Accessories available
• New unique and innovative RotrLink modular • Range of coloured contemporary acrylic post • Curved counter kit - white top only
display system caps and accessories • Podium set - table top colour to match post cap
• Substantially reduced assembly time • Standard overall height without lighting 2021mm • Brochure holder set - colour to match post cap
• Suitable for rigid PVC panel or banner media • Maximum footprint • Screen monitor and iPad mounting kits
with horizontal pockets • 750mm - 1006(w) x 380mm(d) • Choice of 50w or 150w lighting for rigid panel display
• Robust anodised aluminium 8-way posts and • 1500mm - 1756(w) x 380mm(d) • CHLC light bracket required for banner graphic display - 150w light
unique silver steel bases
• 2250mm - 2506(w) x 380mm(d) CHCL bracket
20RotrLink System
With optional spacer bars 750mm 1500mm 2250mm
(C2KS/75) (C2KS/150) (C2KS/225)
Modular displays - Centro 2 straight RotrLink
Standard kits - dimensions stated are visible graphic widths
Coloured acrylic features, neon blue, red and green or frost.
Centro wheeled trolley
• Display hardware and graphics fit within
single trolley case
Centro 2 straight Accessories available
• New unique and innovative RotrLink modular • Range of coloured contemporary acrylic post • Curved counter kit - white top only
display system caps and accessories • Podium set - table top colour to match post cap
• Substantially reduced assembly time • Standard overall height without lighting 2021mm • Brochure holder set - colour to match post cap
• Suitable for single or double-sided seamless • Maximum footprint with optional space bars • Screen monitor and iPad mounting kits
magnetic graphic panel drop(s) • 750mm - 1226(w) x 380mm(d) • Choice of 50w or 150w lighting
• Robust anodised aluminium 8-way posts and • 1500mm - 1976(w) x 380mm(d) • Optional spacer bar kit
unique silver steel bases
• 2250mm - 2726(w) x 380mm(d)
21rapid display assembly RotrLink System
With optional spacer bars
750mm 1500mm 2250mm
(C2KC/75) (C2KC/150) (C2KC/225)
Modular displays - Centro 2 curved RotrLink
Standard kits - dimensions stated are visible graphic widths
Coloured acrylic features, neon blue, red and green or frost.
Centro wheeled trolley
• Display hardware and graphics fit within
single trolley case
Centro 2 curved Accessories available
• New unique and innovative RotrLink modular • Range of coloured contemporary acrylic post • Curved counter kit - white top only
display system caps and accessories • Podium set - table top colour to match post cap
• Substantially reduced assembly time • Standard overall height without lighting 2021mm • Brochure holder set - colour to match post cap
• Suitable for single or double-sided seamless • Maximum footprint with optional space bars • Screen monitor and iPad mounting kits
magnetic graphic panel drop(s) • 750mm - 1263(w) x 378mm(d) • Choice of 50w or 150w lighting
• Robust anodised aluminium 8-way posts and • 1500mm - 2007(w) x 393mm(d) • Optional spacer bar kit
unique silver steel bases
• 2250mm - 2695(w) x 567mm(d)
22RotrLink System
Without spacer bars
750mm 750mm 750mm 750mm 750mm 750mm
(C3KS/75) (C3KS/150) (C3KS/225)
Standard kits (dimensions stated are visible graphic widths)
Coloured acrylic features, neon blue, red and green or frost.
Modular displays - Centro 3 RotrLink
Centro wheeled trolley
• Display hardware and graphics
for C3KS/75 fit within single trolley
case
• Display hardware and graphics for
C3KS/150 & C3KS/225 requires two
Centro 3 Accessories available trolley cases
• New unique and innovative RotrLink modular • Range of coloured contemporary acrylic post caps and • Curved counter kit - white top only
display system accessories • Podium set - table top colour to match post cap
• Substantially reduced assembly time • Standard overall height without lighting 2021mm • Brochure holder set - colour to match post cap
• Suitable for single or double-sided seamless • Maximum footprint • Screen monitor and iPad mounting kits
magnetic graphic panel drop(s) • 750mm (1 x 750mm) - 1226(w) x 380mm(d) • Choice of 50w or 150w lighting
• Robust anodised aluminium 8-way posts and • 1500mm (2 x 750mm) - 2269(w) x 380mm(d)
unique silver steel bases
• 2250mm (3 x 750mm) - 3312(w) x 380mm(d)
23stylish and versatile display combinations
Centro display pod
• Innovative multifunctional product display unit which can be
used in a variety of combinations including ‘fully closed’ dual
aspect viewing
• Featuring ingenious RotrLink post/base & post/post connection
• The uniquely shaped 8mm thick ‘green edge’ acyclic shelves
supported by chrome adjustable shelf brackets will each
accept 12kg of evenly distributed product
• Generous individual display spaces - 616(w) x 300(d) x
360mm(h)
• Maximum overall stand dimensions - 868(w) x 380(d) x
2016mm(h)
Modular displays - display pod
• Includes 4 off 3mm Foamex header and base panels for promotional graphic display/corporate information
• Supplied with 8 off ‘glass clear’ 2mm polycarbonate infill panels to shield and protect display products
• Individual panels can be replaced with printed graphics to create a distinctive visual backdrop
• 4mm hex key and cross head screw driver supplied for complete assembly
• Compatible with entire Centro range
• Ship safe durable carton measurements – 2 x 1030(w) x 500(d) x 210mm(h)
• Gross weight of both cartons 34kg
• Display Pod requires dismantling for transportation and storage
RotrLink System
Centro wheeled trolley
• Optional 2 off moulded
wheeled trolley cases
24Modular displays - display pod
• Display pod ‘fully open’ providing dual • Display pod ‘open one side’ providing • Display pod ‘fully closed’ providing single • Display pod ‘creative use’ of all possibilities
aspect viewing single aspect viewing with option of aspect viewing with option of graphic back providing unique double-sided option
• Allows products to be handled from both graphic back drop panels drop panels • Allows products and graphics to be viewed in
sides of stand • Allows display products to be handled • Supplied viewing panels shield and protect a variety of ways
display products
25Centro counter kit
Centro podium kit • Elegant high quality anodised aluminium
curved modular counter
• Ergonomically designed acrylic top available in neon blue, red
and green or frost • Freestanding display with pearl white laminate
counter top supplied
• Contemporary design to enhance visual impact of modular
display system • Featuring ingenious new RotrLink post/base
connection
• Special non-scratch, clear surface coating
• Overall height of 1025mm
• Clamps securely to Centro system post in a variety of positions
• Footprint 1092(w) x 440mm(d)
• Podium top dimensions 500(w) x 443mm(dia)
• Net weight 19.1kg
• Optional laminated folding top
available in beech or black with
padded bag
Modular displays - accessories
Centro wheeled trolley
• Stylish and durable moulded plastic case with rubber wheels
• Detachable lid with moulded handle and 3 lockable latches
• Convenient side carry handle
• White lined tube 254mm dia. x 980mm (holds 4 x 1990mm
graphics)
• Overall dimensions 520(w) x 440(d) x 1130mm(h)
• Nominal net weight including tube without graphics 8.9kg
• Converts to counter display with simple application of
graphic wrap
• Quality assured - 12 months guarantee
26Centro door frame
• Innovative 1900(h) x 750mm(w) hinged door
design for 5 to 7mm thick rigid panels
• Modular anodised aluminium construction with
door handle, quarter turn lock and 2 keys
• 4mm hex key and cross head screw driver
supplied for complete assembly
• Compatible with the entire Centro range Halogen lamp Spotlight
• Featuring RotrLink post/base & post/post • 150w silver halogen lamp • 50w silver low voltage spotlights
connection • Stylish design with 360° pivoting head • Contemporary perforated lamp cover
• Low profile threshold door bar complies with • Power lead 3m long • Vertically tilting head design
Heath & Safety requirements
• In-line transformer and power lead 3m long
Brochure holder set
• Colour co-ordinated acrylic A4 portrait
brochure holder
• Available in neon blue, green and red,
Modular displays - accessories
or standard frost
• Thermoformed one piece acrylic to
maximise strength
• Simple ‘hook over’ style fitting
4mm hex key Screen mounting kit
• High strength nylon handle • Special expanding bracket clamp with
heavy-duty screws to secure screen to post
• Ergonomic handle for
maximum grip and comfort • Uncomplicated assembly with 5mm hex
key supplied
• Maximum screen size 22 inches - for the
option of mounting larger screens see the
Centro Theatre kits in AV section
27Centro audio visual solutions
maximise the impact of your screen content
Most businesses now have multimedia presentations to support the communication of services, promotions and products. The
Centro multimedia range provides the portability of modular graphic display units with the systems to hold a variety of multimedia
screens and supporting technologies. Clients may have invested in screens for use at larger exhibitions or events and wish to
utilise the hardware and content they have created at smaller events. Centro AV displays provide the perfect solution to enhance
the investment the client has made.
The robust modular systems are ideal to support large and sometimes heavy pieces of equipment dismantled will fit into easily
transportable cases for use across multiple events.
AV display solutions
29performance with style RotrLink System
Coloured acrylic features, neon blue, red and green or frost.
AV display solutions - multimedia kits
Centro wheeled trolley
• Each kit requires two wheeled
trolley cases
Accessories available
• Curved counter kit - white top only
• Podium set - table top colour to match post cap
Centro multimedia display
• Brochure holder set - colour to match post cap
• Innovative modular graphic stands providing two screen height • Fewer component parts providing reduced
• Screen monitor and iPad mounting kits
positions and universal mounting bracket for either 32” or 42” assembly times - 4mm hex key supplied
LED/LCD screen • Choice of 50w or 150w lighting
• Compatible with entire Centro range
• New unique RotrLink connection with anodised aluminium • Overall height without lighting 2019mm
8-way posts and matching silver steel bases
Please note screen and graphics not included
30Kit 1 Kit 2 Kit 3
• Podium table included • Podium table included • Footprint - 2885mm(w) x
for stand stability for stand stability 518mm(d)
• Footprint - 1206(w) x • Footprint - 1765(w) x • Overall graphic
521mm(d) 521mm(d) dimensions - centre panel
• Overall graphic 1 x 1990mm (h) x 950(w)
• Overall graphic
dimensions - 2 x 1990(h) and outer panels 2 x
dimensions - 1990(h) x
x 750mm(w) 1990(h) x 750mm(w)
950mm(w)
AV display solutions - multimedia kits
Kit 4 Kit 4 Alternative Layout
• Footprint - 3254(w) x 380mm(d) • Footprint - 2652(w) x 1106mm(d)
• Overall graphic dimensions - centre & • Overall graphic dimensions - centre &
outer panels 3 x 1990(h) x 950mm(w) outer panels 3 x 1990(h) x 950mm(w)
Please note screen and graphics not included
31Pop up graphic display systems
easy, fast, lightweight and practical the pop up remains popular
When simplicity is what the client is looking for pop up displays deliver portability, easy assembly and a large visual impact. A pop
up system offers great versatility with many different combinations for any type of presentation. We’ve made major improvements
to make these systems even more usable, including fully magnetised connections, improved graphic hanging kit and new heavy
duty wheeled trolley bag for pop up counters.
What a pop up display provides is great flexibility. Illustrated are many different configurations for curved, straight or even hybrid
systems.
We’ve upgraded the counter range with the pop up and mini pop up counter tops coming in a range of colours. We’ve also
re-engineered important features to improve the load bearing capabilities of both pop up counters.
Our continued confidence in the build quality and long term reliability of these display systems is reflected in the 5 year guarantee
we offer across the entire range.
Pop up graphic displays
33Pop up graphic displays - curved, straight & hybrid expand your options Straight system
Pop Up graphic display
• Versatile fully magnetic/anodised aluminium • Optional 150w lamp kit - silver finish
structure for simple quick construction with • Optional hinged laminated case top and carry bag
excellent stability across entire range
• Double-sided systems available on request
• New unique self-aligning magnetic graphic
• Overall height without lighting 2255mm, with
headers providing an impressive seamless display
lighting 2435mm
• Heavy duty moulded wheeled carry case. Front
face/end curve hanging kits, superior strength
magnetic tape and component bags all included
as standard
Curved system
Magnetic connector rods Magnetic rails Magnetic graphic hanging
342519
54932
324
324
501
3035
970
3455
970
3455 3331
324
1903
501
1987
5x3 Hybrid Pop Up
324
5x3 Curved Pop Up 5x3 Straight Pop Up 3035
324
446
3035
1903 (2x3 straight, ghost panel,
19872x3 straight) (1x3 inner curve, 3x3 straight, 1x3 inner curve,)
970
4189 3455
2671
324
Footprints of Pop Up displays
1245
324
324
Footprints of Pop Up displays 3035
513
667
4189
324
2721
4189 4105
1245
3427
329
2519
667
324
324
Scale 1:50
1245
329
324
2721
1213
4x3 Curved Pop1213
Up
2519 4x3 Straight Pop Up1253 3427 4x3 Hybrid Pop Up 4189
549
1253 (2x3 inner curve, 2x3 outer curve)
1245
324
3427
3331
970446970
549
324
3455
324
501
3427
549
324
501
3035 3455 3331
1903
2671 1987
1903 3331
1987
513446
549
3x3 Curved Pop Up
3035 3x3displays
Straight Pop Up 3x3 Hybrid Pop Up
Pop up graphic displays - curved, straight & hybrid
446
Footprints of Pop Up
324
2671 (1x3 inner curve, 1x3 straight, 1x3 outer curve) 3331
4105
324
4189
324
2671
513
446
324
Scale 1:50
667
329
1245 1245
513
324
667
4189
2721 4105
2519
1213 2721 2671
Scale 1:50 4105
1253
2519
513
Scale 1:50 3427
2x3 Curved Pop Up 2x3 Straight Pop Up
3427 4105
324
549
549 324
Scale 1:50
324
501
970
3455
Optional counter top
446 970
1903 3455
3331
1987
Footprints
Footprints of
of Pop
Pop Up
Up displays
displays
3035
3035
1x3 Curved Pop Up 3331
1x3 Straight Pop Up • Hinged laminated beech top
446
2671 • Transported within carry case
324
324
329
329
324
324
324
513
667
2671 4189 • 760(w) x 470(d) x 18mm(t)
1213
1213 2721
1253
4189
1253
4105 • Net weight 4.2 kg
513
2519
1245
1245
Scale 1:50
4105
Scale 1:50 3427
324
501
324
324
501
3427
1903 1987
970
1903 3455
1987
Carry case
549
549
3035
3331 • Heavy duty moulded wheeled case with
3331
useful flat lid top and integral carry
324
446
324
324
667
446
handle
667
2671 2721
2721
2519
2671
2519 4189 • Separate halogen lamp padded storage
Halogen lamp kit
513
compartment within case lid
1245
324 513
4105
• 2 x 4105
150w silver lamps • Lockable lid - padlocks not supplied
324
Scale 1:50 3427
Scale 1:50 • Power leads 3m long • Easily converts to counter
970
3455
970
• Carry 3455
bag included • 925(h) x 670(w) x 435mm(d)
549
3035
3035
3331
324
324
446
35
4189
4189
2671robust, simple and easy to transport
Counter loading Wheeled trolley bag
• New strengthened and fully
• Uniformly distributed loading of assembled
padded one piece wheeled
kit tested to an impressive 120kg - counter
trolley bag
top 70kg and shelves 12.5kg each
• Carry handles and internal
white lined graphic tube for
improved handling, product
protection and ease of
transportation
Counter top
Pop up graphic displays - pop up counter
• Laminated counter top and shelves
available in beech, white or black
Pop Up counter
• Fully magnetic 2 x 2 anodised aluminium curved structure providing
simple quick construction with exceptional load bearing capability
and counter stability
• New self-aligning magnetic graphic header system for ease of
assembly utilising our proven one piece graphic wrap solution
• Non tilting hinged laminated counter top with discreet velcro
fastening and 2 pairs of interlocking laminated shelves - available
in beech, white or black
• Generous counter top work surface now 1385(w) x nominal
460mm(d)
• Shelf openings 385(h) x 335mm(w) for easy access
• New padded component bags with carry handles, graphic hanging
kit, superior strength magnetic tape and flexible end curve
stabiliser strips also included
• Overall dimensions 903(h) x 1385(w) x 535mm(d)
• Net weight excluding transit carton & graphic wrap 24kg
36Counter loading Counter top
• Uniformly distributed loading of assembled • Laminated counter top and
kit tested to an impressive 80kg - counter shelves available in beech,
top 42.5kg and shelves 12.5kg each white or black
Pop up graphic displays - mini pop up counter
Wheeled trolley bag
Mini Pop Up counter • New strengthened and fully padded
• Fully magnetic 1 x 3 anodised aluminium straight structure one piece wheeled trolley bag
providing simple quick construction with exceptional load bearing • Carry handles and internal white lined
capability and counter stability graphic tube for improved handling,
• Non tilting laminated counter top with discreet velcro fastening product protection and ease of
and 3 individual semi-captive laminated shelves - available in transportation
beech, white or black
• Generous counter top work surface 685(w) x 365mm(d)
• Shelf openings 285(h) x 300mm(w) for easy access
• New padded component bags with carry handles and superior
strength magnetic tape also included
• Dimensions 1025(h) x 685(w) x 365mm(d)
• Net weight excluding transit carton & graphic 18kg
37Roll up banner stands for every application
fast, easy to assemble and cost effective
Our roll up banner systems provide a cost effective, simple and fast way to display messages. Assembled in under a minute,
there is simply no easier way to create a graphic display and no alternative products that offer the transportability of an over the
shoulder carry bag.
From our entry level product the STart through to the more sophisticated DL Plus we have every need covered. Our banner stands
are manufactured from high quality materials and are designed to be used again and again. Display units can be supplied with
lighting accessories if required.
Our continued confidence in the build quality and long term reliability of these display systems is reflected in the 5 year guarantee
we offer across the entire range.
Roll up banner displays
39Roll up banner displays variety with quality, suitable for all budgets
STart ST 185 ST 1100 ST 1120
• Single image 2000(h) x 850mm(w) • Single image 2000(h) x 850mm(w) • Single image 2000(h) x 1000mm(w) • Single image 2000(h) x 1200mm(w)
• Lightweight silver anodised cassette • Silver anodised cassette with solid • Silver anodised cassette with solid • Silver anodised cassette with solid
with solid twin swivel feet swivel foot swivel foot swivel foot
• Snap lock graphic hanging profile • Snap lock graphic hanging profile • Snap lock graphic hanging profile • Snap lock graphic hanging profile
• Three-piece ‘bungee’ pole • Three-piece ‘bungee’ pole • Three-piece ‘bungee’ pole • Three-piece ‘bungee’ pole
• Padded carry bag • Deluxe padded carry bag • Deluxe padded carry bag • Deluxe padded carry bag
• Net weight 3.0kg • Net weight 4.1kg • Net weight 4.7kg • Net weight 5.3kg
40Spotlight – low voltage
• Low voltage – 50w
• Full pivot head
• Cable management clip
• In-line transformer and power lead 3m
long
Roll up banner displays
• Carry bag included
• Compatible with all single sided roll ups
ST 285 DL solo DL 2
• Twin images 2000(h) x 850mm(w) • Single image 2000(h) x 850mm(w) • Twin images 2000(h) x 850mm(w)
• Silver anodised cassette with chrome hoop swivel • Deluxe silver anodised cassette with levelling • Deluxe silver anodised/blue cassette with
foot screws levelling screws
• Snap lock graphic hanging profile • Polished end plates • Snap lock graphic hanging profile
• Three-piece ‘bungee’ pole • Snap lock graphic hanging profile • Three-piece ‘bungee’ pole
• Deluxe padded carry bag • Deluxe padded carry bag • Deluxe padded carry bag
• Net weight 5.4kg • Internationally registered design • Net weight 7.9kg
• Net weight 5.4kg
41link together for greater impact DL Plus
Not only is our DL Plus graphic display professional and smart
but it’s also cleverly adaptable. Used individually, the single
units will assert a commanding presence in any application. This
system reveals its true colours when individual roll ups are linked
together to form a visually-imposing display which is stylish,
elegant and impossible to ignore.
End caps
Roll up banner displays - DL Plus single units
Standard Optional colours
Chrome Black, blue and red
Spotlight – low voltage
• Single system image 2000mm(h) x 850mm(w) • Deluxe padded carry bag • Low voltage – 50w
• Deluxe silver anodised cassette with levelling screws • Internationally registered design • Full pivot head
• Chrome end caps with optional coloured end caps • Optional low voltage spotlight • Cable
available • Optional magnetic joining cap with link profile management clip
• 3 piece ‘fine tune’ adjustable height bungee pole • Net weight 5.4kg • In-line transformer
with discreet moulded top and power lead 3m long
• Snap lock graphic hanging profile with discreet end • Carry bag included
caps
The roll-up stand is protected by granted European Registered Design number 1843-0001
42• Optional magnetic joining
cap with link profile
Roll up banner displays - DL Plus linked units
Pole with discreet moulded top Magnetic joining cap Rear view link profile
• Unique, magnetically linkable cassette and • Narrow 26mm gap between linked graphics
graphic hanging profile allows you to link 2, - less than 2% of image area
3 or more units together • Double system graphic width - 1726mm
• Discreet moulded magnetic joining base • Triple system graphic width - 2602mm
plate
• Discreet silver anodised link profile with
lockable connector bar
The multiple stand is the subject of pending protection under European patent application number 09178238.3
43portable literature dispensers
Literature presenters
ST Literature DL 1 Literature DL 2 Literature DL 3 Literature
• Bright chrome, rapid-erect system • Framed acrylic presenters A4 portrait • Framed acrylic presenters A4 landscape • Framed acrylic presenters A3 landscape
• 3 A4 portrait, clear acrylic dispensers - DL1/A4P - DL2/A4L - DL3/A3L
229(w) x 355(h) x 32mm(d) • Footprint 280(w) x 350(d) x • Footprint 360(w) x 260(d) x • Footprint 480(w) x 350(d) x
• Footprint 260(w) x 275(d) x 1550mm(h) 1315mm(h) 1500mm(h)
1250mm(h) • Deluxe, double-sided rapid-erect alloy • Deluxe, double-sided rapid-erect alloy • Deluxe, double-sided rapid-erect alloy
• Heavy-duty padded carry bag system system system
• Net weight 5.0kg • Stylish alloy carry case with padded • Stylish alloy carry case with padded • Stylish alloy carry case with padded
interior interior interior
• Net weight 7.6kg • Net weight 8.4kg • Net weight 11.2kg
45London Office:
2-3 Black Swan Yard
London Bridge
London
SE1 3XW
tel: 020 7234 0300
Nottingham Office:
Unit 2-3
Robin Hood Industrial Estate
Alfred Street South
Nottingham
NG3 1GE
tel: 0115 9417318You can also read
