Commercial Product Line
Bell 206L4 Bell 407 / 407GX
Bell 429 Bell 412 Bell 525 Relentless
Bell Helicopter Copyright 2013
Company Proprietary
6
Industry Leading Technology
• From the model 47 to the V-22 Osprey, Bell continues to
Superior Design lead the Rotorcraft industry
• The Bell BasiX-ProTM avionics suite is the first helicopter
WAAS & LPV glass cockpit with standard WAAS & LPV approach
• The 429 increased internal gross weight exemplifies
429 IIGW our commitment to our customers for continuous
improvement
• State-of-the-art Garmin G1000HTM glass cockpit
407 Glass Cockpit
• Bell continues to design new aircraft to meet the
525 Relentless customers specific needs
• First Helicopter certified to MSG-3 standards. The same
Maintainability standard as commercial airliners
Bell Helicopter Copyright 2013
Company Proprietary
The Bell 429 – Superior Technology
Delivering speed, range,
and hover performance
with advanced cockpit
technology
• Class leading speed of
150kts/278kmh at max
cruise
• Class leading passenger
cabin volume of
204ft3/5.78m3
• Single pilot IFR with
WAAS capability
• Fully integrated glass
cockpit with 3-axis
autopilot
Bell Helicopter Copyright 2013
Company Proprietary
The Bell 412 – Rugged Reliability
Dependable in the most
extreme environments
while delivering value
• Large cabin seating 13
passengers,
reconfigurable for
numerous missions
• Single pilot IFR with
dual digital flight
controls
• Range capability of
356nm/659km and
endurance of 3.7 hours
Bell Helicopter Copyright 2013
Company Proprietary
Customer Support and Service
Providing 24/7/365 Global Customer Support
• Industry standard for support
#1 in Customer Support 18 years
in a row – Professional Pilot
• Largest support network
– 120+ approved facilities in 32+ countries
• Service Offerings
– Maintenance Repair – Composite
and Overhaul Panels
– Component Repair – Customizing
and Overhaul – Electronic
– Pilot and Maintenance Maintenance
Training Tracking
– Engine Overhaul – Avionics
– Blade Repair – Warranty
– Depot-level – Spare Parts
Maintenance – Field Reps
Bell Helicopter Copyright 2013
Company Proprietary
Modern Aircraft:
Serve as Effective
Platforms
For Countless Public
Safety Operations
Firefighting
Relief / Long-line
Airborne Law Enforcement
Search & Rescue Aerial Security Medivac
Bell Helicopter Copyright 2013
Company Proprietary
Worldwide Parapublic Installed Base Growth
1100 a/c added to the fleet in
the last 25 years
Source: Ascend Online, February 2013
Bell Helicopter Copyright 2013
Company Proprietary
Multiple Mission Capability

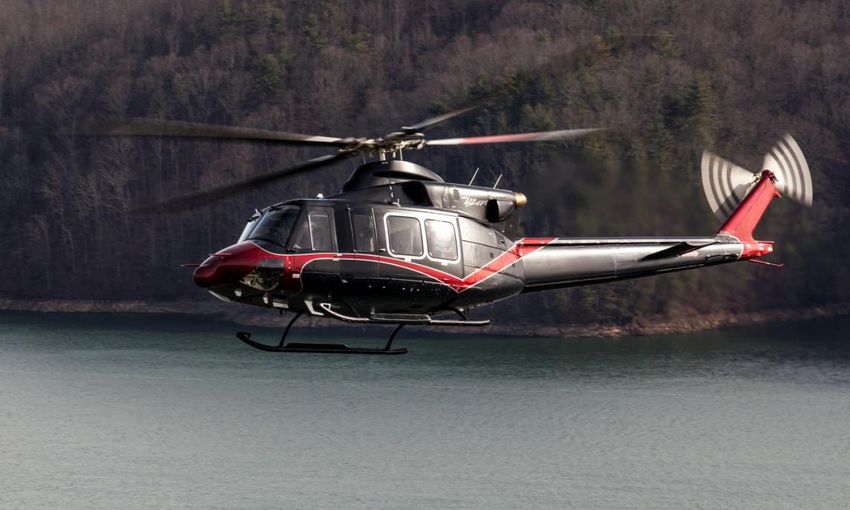

BELL 412EP/BELL 412EPI
Components and systems included on all helicopter models are subject to U.S. export
regulations, and some items may require USG authorization prior to export.
Bell Helicopter Copyright 2013
Company ProprietaryBell 412 offers an expansive cabin for cargo
and/or personnel with excellent hot & high
performance
Key Features:
• All composite, on-condition four-
blade rotor system, with 8.6 ft (2.6
m) rotor clearance and elastomeric
bearings to help dampen vibrations
• Proven Pratt & Whitney PT6T-3D
Twin Pac® engines with 25 million
flight hours in more than 2,000
aircraft world wide
• Cabin floor space of 54 ft2 (5 m2)
• Dual digital automatic flight control
system with available IFR option
• Category A/JAR OPS3 capable with
installed optional equipment
• BLR Strake and FastFinTM for
improved hover, cross-wind and
hot & high performance
Bell Helicopter Copyright 2013
Company Proprietary19
Multiple Mission Flexibility to Meet
Your Needs
• Easily
reconfigured for:
– Utility
– Medevac/HEMS
– Firefighting
– Search & Rescue
– Transport
– Disaster Relief
– Cargo Transport
Bell Helicopter Copyright 2013
Company Proprietary20
Utility / Medevac
• Certification for single-pilot
IFR with autopilot to reduce
work load and fatigue
• Seating for up to 13
passengers with two pilots
• Wide opening doors to
accommodate hoist operations
or litter loading or a forklift
with two-ton lifting capability
• Room for equipment and
supplies in 28-cubic foot (0.79
m3) baggage compartment
• Highest dispatch reliability of
any twin engine helicopter
Bell Helicopter Copyright 2013
Company ProprietaryCritical Care – Dual Patient
Bell Helicopter Copyright 2013
Company Proprietary22
Firefighting with Simplex Model 304
• Water capacity 369 gal (1398 lt)
• Foam capacity 30 gal (112 lt)
• Tank Assembly 371 lb (168 kg)
• Hover refill pump 73 lb (33kg)
• Hover refill pump rate 300 GPM
(1136 lt/min)
Bell Helicopter Copyright 2013
Company Proprietary23
Firefighting – Simplex Model 304A
Simplex Model 304A Fire
Attack System
• FAA STC, ENAC, JACB, EASA, &
DGAC Certification
• No Airframe Alteration Required
• Repair, Installation and
Removal
– Tank weight: 168 kg
– Water Capacity: 1397 liters
– Foam Capacity: 112 liters
– Hover Refill Pump Rate:
1700 liters per minute
– SMC 24 hours / 7 days a
week customer support
Bell Helicopter Copyright 2013
Company ProprietarySimplex Model 304A Fire Attack System
LA City Firefighting San Diego Firefighting
Department Department
Bell Helicopter Copyright 2013
Company Proprietary25
Simplex Model 304A Fire Attack System
Bell Helicopter Copyright 2013
Company ProprietaryFirefighting- Simplex Model 504
• Power-assisted
articulating spray
boom
• Foam-dispensing
nozzle tip (20 m
projection)
• Infra-red camera
• Laser range finder
• Direct drive motor
• Pump and generator
assembly
Bell Helicopter Copyright 2013
Company Proprietary27
Search & Rescue
• Search Light
• Multi-sensor camera system
• 600 lb Hoist Capability
• 4,500 lb External Cargo Hook
Capability
• Fast Rope & Repelling
*Some systems may require approval of U.S.
Bell Helicopter Copyright 2013
Company Proprietary
Government prior to U.S. export.Optional Rescue Hoists
External Rescue Hoist
Internal Rescue Hoist 600 Pound / 272 Kilogram Capacity
600 Pound / 272 Kilogram Capacity Electrical Power, No Duty Cycle
Electrical Power, No Duty Cycle One Cabin Location
Four Cabin Locations
Bell Helicopter Copyright 2013
Company ProprietaryBell 412EP The Most Rugged &
Reliable Aircraft in its Class
Wide opening doors,
Rugged Construction
The highest dispatch reliability
of any twin engine aircraft
Installed fleet
of more than
700 helicopters
Introducing the 412EPI
Integrated Glass Cockpit and Improved
Engine Performance
Bell Helicopter Copyright 2013
Company ProprietaryUnsurpassed Mission Flexibility
Search and Rescue Oil and Gas Transportation
Fire Fighting Emergency Medical Services
Bell Helicopter Copyright 2013
Company ProprietaryParapublic Mission
THE BELL 429
Components and systems included on all helicopter models are subject to U.S. export
regulations, and some items may require USG authorization prior to export.
Bell Helicopter Copyright 2013
Company Proprietary32
The Bell 429 sets a new standard for
the Parapublic Solution
• Exceptional speed, range, and
loiter capability for a higher
level of mission execution &
accomplishment
• Large reconfigurable,
contiguous cabin to meet any
routine or tactical mission
requirement
• Excellent field of view and
ambient lighting
• Precise control for cruise and
hover
• Ideal for patrol, tactical
operations and as an airborne
command & control platform
Bell Helicopter Copyright 2013
Company Proprietary33
The Bell 429 offers Multi Mission
Flexibility & Capability
• Airborne Command & Control
Platform, Patrol & Surveillance
– Superior hover performance
– Multi Sensor Camera Systems*
– Digital recording capability*
– Microwave downlink system*
– Greater stand off distances and
enhanced visual vantage point
• Special Operations
• Large cabin area and side doors are
ideal for any Tactical Operations.
• Fast rope and rappelling*
• Search and Rescue
– State-of-the-art single pilot IFR
and WAAS capabilities
– 600 lb. Hoist, HEC certified*
– Dual Cargo Hook, HEC certified*
• Critical Incident Response /
Disaster Relief
HEC – Human External Cargo
Bell Helicopter Copyright 2013 * Optional Accessory
Company Proprietary Kits34
Large Unobstructed, flat floored cabin
was designed for your mission success
• 204 ft3 (5.78 m3)
contiguous cabin quickly
configurable to meet
any routine or tactical
mission requirement
• Fast & Efficient loading
and unloading of
personnel and
equipment thru either
61.9 inches (157 cm)
unobstructed side
opening or optional aft
clamshell doors
61.9 inches of unobstructed opening
32 inches with hinged door closed
• Large cabin windows
offering excellent field
of view and ambient
lighting
Bell Helicopter Copyright 2013
Company Proprietary35
Search Light and Camera Options
Multi Sensor Camera NightSun or
System Meeker Trakkabeam Mount
mount
Bell Helicopter Copyright 2013
Company Proprietary36
Tailboom Mounted Searchlight
Trakkabeam with Meeker /
Airfilm Dovetail Mount
Bell Helicopter Copyright 2013
Company Proprietary37
Rear Clamshell Doors (Optional)
• Large rear access
opening for cargo or
litter loading
• Unobstructed Access
• “Snug” to aircraft
when open
• When opened, doors
provide a safe work
zone around the rear
of the helicopter
Excellent compatibility with the Public Safety community
Bell Helicopter Copyright 2013
Company Proprietary38

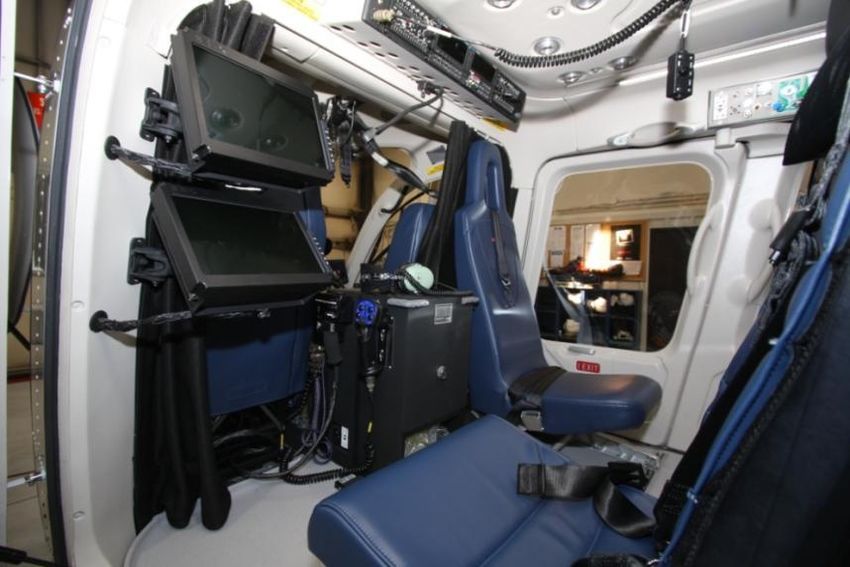

Multi-role Parapublic Interior
Bell Helicopter Copyright 2013
Company Proprietary39
Multi-role Parapublic Interior
Bell Helicopter Copyright 2013
Company Proprietary40
Certified to Human External Cargo
(HEC) FAR Class D Operations
• Rescue Hoist
– Goodrich 600 lb (272 Kg)
• Cable foul sensor system &
symmetrical braking
• Includes rappelling ring for
rappelling/fast rope
operations
• Continuous duty cycle
• 429's hoist is certified to Hoist Performance
the latest FAR requirements
Lowering Speed 260 ft/min
intended to increase system
and operational safety Raising Speed 250 ft/min
Bell Helicopter Copyright 2013
Company ProprietaryDouble Hook
Human External Cargo (HEC)
• Detachable mounting
structure and hooks
• Dual Activation Device
(DAD) compliant
• Primary cargo hook for
both HEC and NHEC
loads
• Secondary cargo hook
for only HEC loads
Bell Helicopter Copyright 2013
Company ProprietaryReady for any mission: Air Zermatt’s Bell 429
42
Bell Helicopter Copyright 2013
Company Proprietary43
Large, open cabin offers flexibility for
treating patients’ varied needs
204 ft3 (5.78 m3) contiguous
cabin can accommodate:
– Two patients and two
medical crew or
– One patient and up to
three medical crew or
– A neo-natal EMS unit and
up to three medical crew
Bell Helicopter Copyright 2013
Company Proprietary44
The Bell 429 offers Multi Mission
Flexibility & Capability
• Multi-Mission Flexibility
– HEMS Scene
o Single Patient
o Dual Patient
– Inter-Hospital Transfer Single Patient Configuration
– Neo-Natal Transport
o Three medical crew
o Two medical crew and
parent
– Disaster Response
• Quick change litter options
• Six interior Dual Patient Configuration
arrangements/loading
solutions delivered to date
– Side Loading
– Aft Loading through
optional Clam Shell Doors
Isolette Transport Configuration
Bell Helicopter Copyright 2013
Company Proprietary45
Bell 429 affords unobstructed full body
access to the patient
• Medical attendant at the
patient’s head provides
optimal medical treatment
– Resuscitation (CPR)
– Intubation
• 3rd medical attendant can sit
upright, stay belted in seat
with full body access
– Enables assessment of
condition of patient(s)
o Patient’s illness
o Patient’s injury
o Prioritize treatment needed
• Ambient & cabin lighting
provides great visibility for
attendants
Bell Helicopter Copyright 2013
Company Proprietary46
Significant forward/aft cabin space maximizes
patient access, treatment & comfort
• Excellent full-body patient access
• Reconfigurable, medical side-wall
certified for large selection of medical
equipment
• Certified for litter patients to be sitting up
or elevated during Taxi/Take-off/Landing
• Ample space for large girth patients
• Minimum concerns with claustrophobic
patients
Bell Helicopter Copyright 2013
Company ProprietaryArray of Mission Equipment carried in
Bell 429
Bell Helicopter Copyright 2013
Company ProprietarySide Loading: Hinged & sliding door provide
61.9 inches (157 cm) of unobstructed opening
Bell Helicopter Copyright 2013
Company Proprietary49
Clamshell Doors1 provides ingress & egress
options for HEMS mission flexibility
• Open doors are snug to aircraft
– Unobstructed access
– Approached from the side of the
aircraft not aft under the tailboom
• Structural flat floors matches litter
height
• Straight edge floor deck for smooth
loading
• One door may be closed during
loading/unloading to minimize
weather impact to cabin
1. Clamshell Doors are an optional kit
Bell Helicopter Copyright 2013
Company Proprietary2012 Top 20 Parapublic Operators
US CUSTOMS AND BORDER PROTECTION (USA) 26 66 4 2 98
UNITED STATES COAST GUARD (USA) 94 94
CARABINIERI (ITALY) 35 14 29 78
GUARDIA DI FINANZA (ITALY) 34 15 22 71
BUNDESPOLIZEI FLUGDIENST (GERMANY) 25 20 20 65
POLIZIA DI STATO (ITALY) 28 9 24 61
GENDARMERIE NATIONALE (FRANCE) 28 14 15 57
JAPAN COAST GUARD (JAPAN) 3 38 46 5
GUARDIA CIVIL (SPAIN) 35 8 43
COLOMBIAN NATIONAL POLICE (COLOMBIA) 3 8 17 13 41
ROYAL THAI BORDER POLICE (THAILAND) 1 13 19 33 • Total = 910 a/c for Top 20
SOUTH AFRICAN POLICE AIR WING (S. AFRICA) 3 15 12 1 31 Operators
PERUVIAN NATIONAL POLICE (PERU) 131 24 29
IRANIAN POLICE AVIATION (IRAN) 13 14 27 • Top 20 Operators (3% of all
TURKISH NATIONAL POLICE (TURKEY) 13 11 24 580 Parapublic operators)
HELLENIC AIR FORCE (GREECE) 12 12 24 represent
TURKISH GENDARMERIE GENERAL COMMAND (TURKEY) 2 2114 23
TRAFICO - MINISTERIO DEL INTERIOR (SPAIN) 8 1 22
35% of worldwide
SPANISH NATIONAL POLICE (SPAIN) 2 19 22 Parapublic fleet
CANADIAN COAST GUARD (CANADA) 3 14 4 21
0 20 40 60 80 100
SLS LLS LT INT MED-SING MT HVY
Source: Ascend Online, February 2013
50
Bell Helicopter Copyright 2013
Company Proprietary2012 Top 20 HEMS Operators
AIR METHODS CORP (UNITED STATES) 135 56 54 3 248
AIR EVAC LIFETEAM (UNITED STATES) 2 122 1 125
PHI AIR MEDICAL (UNITED STATES) 25 23 3 7 58
ADAC LUFTRETTUNG GMBH (GERMANY) 28 17 45
MED-TRANS CORP (UNITED STATES) 20 22 1 43
SECURITE CIVILE (FRANCE) 4 35 39
METRO AVIATION INC (LOUISIANA) (UNITED STATES)
DRF - GERMAN AIR RESCUE (MULTI-NATIONAL (EUROPE))
11 19 7 37
21 14 35
• Total = 887 a/c for Top 20
INAER AVIATION ITALIA SPA (ITALY) 1 13 12 7 33 Operators
INAER HELICOPTER ESPANA (SPAIN) 19 27 28
ORNGE AIR (CANADA) 23 23 • Top 20 Operators (5% of
POLISH MEDICAL AIR RESCUE (POLAND) 23 23 all 420 HEMS operators)
STAT MEDEVAC (UNITED STATES) 14 8 22
HELIKOPTER AIR TRANSPORT GMBH (AUSTRIA) 22 22
represent 47% of
BOND AIR SERVICES (UNITED KINGDOM) 1821 121 worldwide HEMS fleet
SKYLINE HAVACILIK (TURKEY) 19
REACH AIR MEDICAL SERVICES (UNITED STATES) 611
111 18
REGA SWISS AIR AMBULANCE (SWITZERLAND) 6 17
CALSTAR (UNITED STATES) 13 3 16
EAGLEMED LLC (UNITED STATES) 13 2 15
0 50 100 150 200 250 300
SLS LLS LT INT MT
Source: Ascend Online, February 2013
51
Bell Helicopter Copyright 2013
Company Proprietary52
Parapublic and HEMS Operations
• Growing trend in the use of helicopters for
parapublic and HEMS operations
internationally
• Bell Helicopter works with operators and
end-users to develop equipment and
procedures
• Specialized Missions that save lives
Bell Helicopter Copyright 2013
Company Proprietary53
Canadian Government and Bell Helicopter
• Work closely around the world
• Access to Training with existing agencies
who operate Bell products
Bell Helicopter Copyright 2013
Company ProprietaryTHANK YOU
Bell Helicopter Copyright 2013
Company ProprietaryYou can also read
