ulrich medical® Tourniquets
Combining ease of use with safety
plication
Secure ap
cks
with 2 cli
Tourniquets 1
100 years of reliability and German precision
Tourniquets by ulrich medical® stand for quality
“Made in Germany.”
They are the successful result of systematic
development activities and many years of experience
in medical technology.
For almost 100 years, we have done our best every
day for our customers and for patient health with our
proprietary and innovative products.
Leading-edge technology and competence from
one source
Easy handling in the OR environment and a
comprehensive safety concept for maximum patient
safety are characteristic of all ulrich medical®
tourniquets.
Thanks to our competent, motivated customer service
team, ulrich medical® customers always receive
individual, attentive support on site.
This includes:
Comprehensive consultation
Free trial periods
Device instruction and support in the OR
Repair service
Seamless processes and fast delivery times
2 Tourniquets
Content Page
The new, innovative generation of ulrich medical® tourniquets 4
Secure application with 2 clicks 6
Maximum application quality 8
Maximum mobility 8
Maximum variability 9
Clever and unique details 10
Quality × 3 11
Overview of the Devices 12
Technical Data 13
Mechanical and autodynamic tourniquets 14
balbina – The compact one
™
16
nurek – The independent one
™
17

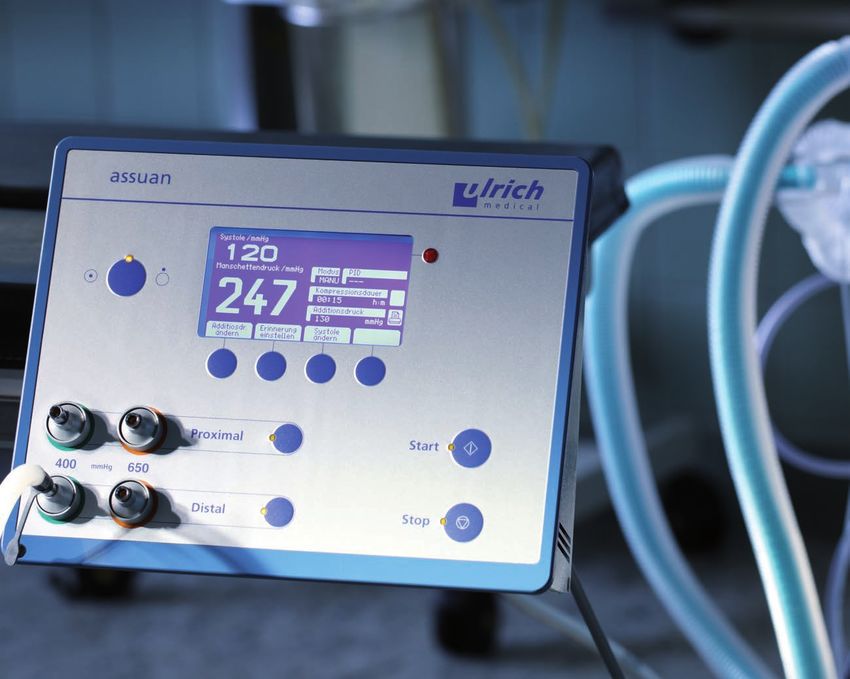

assuan – The professional one
™
18
Overview of the Devices 20
Technical Data 21
Accessories for ulrich medical® tourniquets 22

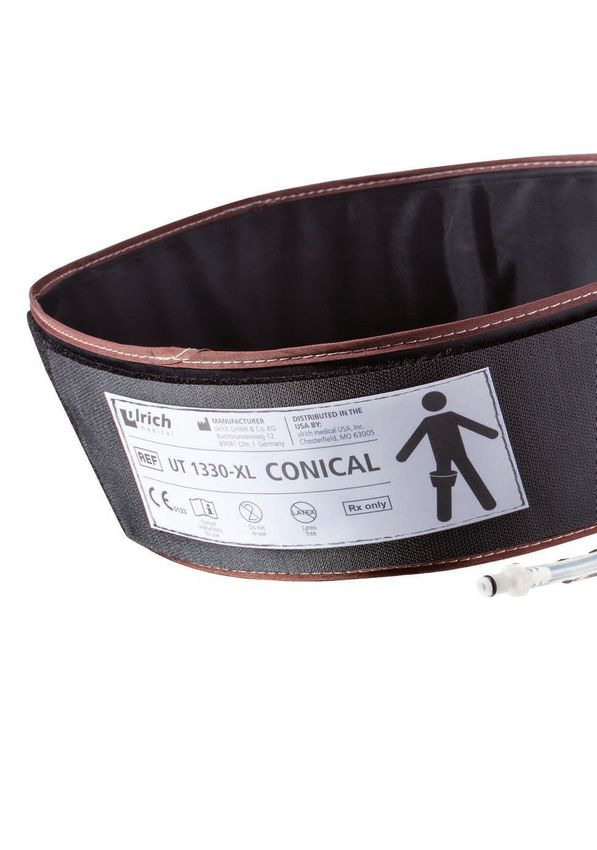

ulrich medical disposable cuffs
®
24
ulrich medical multi-use cuffs
®
26
Tubing and adapter 30
Mobile stands 32
Protocol printer 33
Adjustable mounting block 33
Tourniquets 3
4 Tourniquets
Immediately available. Ready for use quickly.
The new, innovative generation of ulrich medical® tourniquets
My new colleague in the OR:
reliable, attentive, competent
Tourniquets 5
Secure application with 2 clicks
The new touch-screen tourniquets
For over 70 years, ulrich medical® employees have been
in close contact with physicians and users in the OR.
Their experiences form the basis of our innovations and Simple – Modern touch-screen with
developments and are the impulse for our technicians text-free and language-independent
user interface
and engineers.
This input – combined with our many years of experience
– resulted in a new generation of tourniquets with unique
ergonomy and application quality.
Three models of the new generation of ulrich medical®
tourniquets is available: With elsa™, heidi™ and sophie™,
we offer the ideal device to meet every requirement.
elsa™ – The classic one
The compact single-channel
device for all classic applications.
heidi™ – The flexible one
The adjustable 2-channel device
for maximum flexibility
Impressive – Rapid and safe inflating and
venting of the cuffs with intraoperative pressure
changes from 30 to 600 mmHg
sophie™ – The convenient one
The practical 2-channel device for
your CGS system connection
6 Tourniquets
My time savings
The new generation of ulrich medical®
tourniquets is a true innovation. The self-
explanatory operation and the modern
Multi-compatible – Ergonomic, removable and hygienic design are unique on the
carrying handle and space-saving design market.
OR nurse, Germany,
prototype tests
Hygienic – Smooth, edge-free surface
of the device for quick and absolutely
meticulous cleaning and disinfection
Efficient – Integrated cable and tubing
holders for clean and orderly storage of
accessories
e
e a n d intuitiv
l
+ Simp ve design
ati
Fast – Select and start the blood arrest + Innov mpatible
-co
application with only 2 clicks + Multi
Advanced Technology from Germany:
patented
All tourniquets are developed and or/and
produced at the Ulm site. pat. pend.
Tourniquets 7
Maximum application quality
Intuitive operation
Intelligent Well-thought-out functions, for example, the automatic start of
the timer and protocol printer guarantee ease of use and
maximum user-friendliness.
Modern The tourniquet is operated using simple, easy-to-understand
symbols on a touch-screen.
Safe The unique ulrich medical® safety design contains comprehensive
safety functions:
Self-test at device start-up
Automatic leak handling
Maintenance of cuff pressure in the event of loss of power
Maximum mobility
Available anywhere, at any time
Reliable An acoustic and visual display provides a warning in the event of a
low battery status.
Adjustable In addition to use with the rechargeable battery, the device can
also be switched over intraoperatively to mains power without
pressure fluctuations.
A compact device with rechargeable
battery and without a lot of cables –
this is just what we need:
A system-integrated solution.
OR nurse, Germany,
prototype tests My consultant
8 Tourniquets
Maximum variability

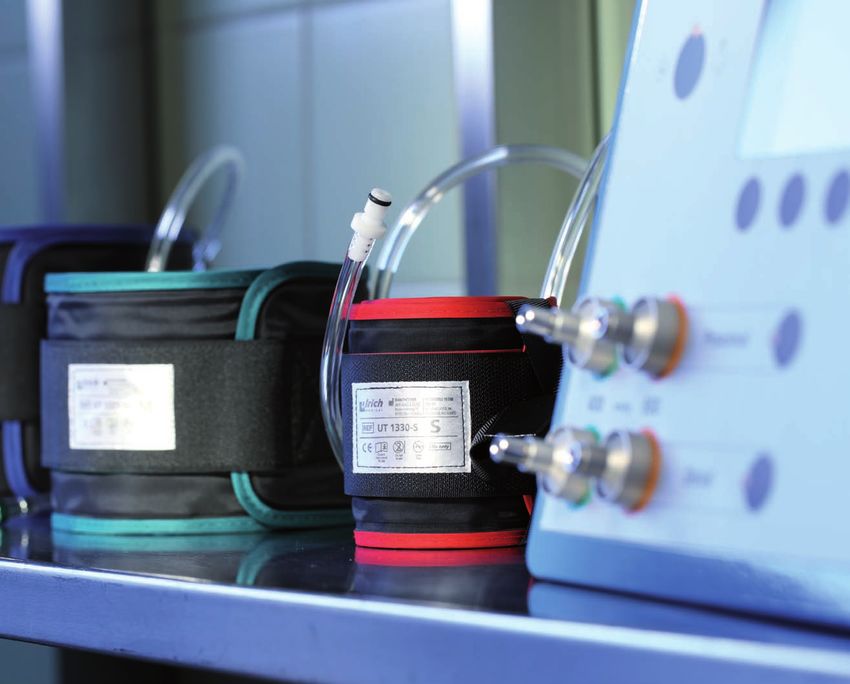

2 color-coded connections for IVRA applications
Maximal safety during
IVRA applications
2 color-coded connections as well as color-
coordinated matching on the touch-screen;
the tubing and cuffs allow simple and
uncomplicated IVRA applications.
Bilateral
With heidi™ and sophie™, simultaneous
surgery on both arms or legs or on one
arm and one leg can be performed. Both
pressure circuits work fully independently.
The corresponding data are shown visually
separated side by side.
Tourniquets 9
Clever and unique details
Multi-compatible with integrated protocol printer
Integrated protocol
printer
Available as optional
Allows automatic real-
time documentation
of all relevant blood
arrest data.
Suitable for any OR environment
The device can be mounted on a mobile stand, on a
surgical tower, on standard rails and hanging brackets.
Mobile stand Standard rail
UT 1382 Mobile stand UT 1383 Adjustable mounting
block
Surgical tower
My designer piece
10 TourniquetsQuality × 3
The ideal device for every requirement

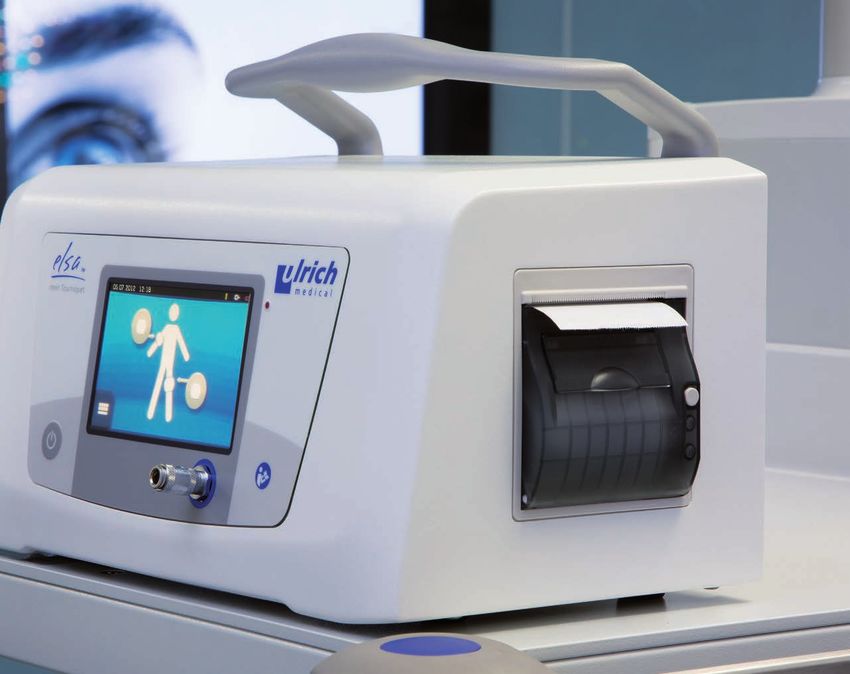

The elsa™ tourniquet can be used for all classic
tourniquet applications. An integrated rechargeable
battery and compressor allow the device to be used at any
The classic one time and any place. elsa™ is the classic tourniquet and is
optimally suitable for mounting on a mobile stand or on
the surgical tower.
Single-channel blood-arrest system
Integrated, energy-saving rechargeable battery for
surgical use without power supply for up to 4 hours
Integrated high-performance compressor for active,
fully independent use in the OR with minimal noise
Take the tourniquet wherever you need it! The heidi™
tourniquet is the mobile all-rounder for every conceivable
use. With the integrated rechargeable battery and
compressor as well as the 2 connections, heidi™ can The flexible one
meet every challenge. It is flexible amongst tourniquets
and optimally suitable for mounting on a mobile stand or
on the surgical tower.
Two-channel blood arrest system with 2 independent
displays and setting options
Integrated, energy-saving rechargeable battery for
surgical use without power supply for up to 4 hours
Integrated high-performance compressor for active,
fully independent use in the OR with minimal noise
The sophie™ tourniquet is the ideal device for blood
arrest applications via the central gas supply. sophie™ is
distinguished by its light weight and quiet operation. It is
The convenient one the convenient choice amongst tourniquets and optimally
suitable for mounting on a standard rail.
Two-channel blood arrest system with 2 independent
displays and setting options
Integrated connection for the central gas supply
(CGS)
Connection for power supply
patented
or/and
pat. pend.
Tourniquets 11Overview of the Devices
elsa™, heidi™ and sophie™
elsa™ heidi™ sophie™
Product number UT 1380-E UT 1380-H UT 1380-S
Mounting on mobile stand UT 1382
Optional protocol printer UT 1380-EP UT 1380-HP UT 1380-HP
1 Connection
2 Connections for IVRA and bilateral application
(2 different pressures can be set)
Integrated rechargeable battery for surgical use without
power supply for up to 4 hours
Integrated cable and tubing holders
Integrated compressor
Connection for central gas supply
Rubber device base ensures nonskid operation
Long-lasting seals on all joints
Optional fixation element for standard rail with
adjustable angle of inclination for ergonomic work
User-configurable countdown
User-configurable duration of blood arrest
ulrich medical® safety design
Maintenance of cuff pressure in the event of
complete loss of power
Automatic leakage handling for maximum safety
during use
Automatic pressure regulation in the event of
under- and overpressure
Pressure calibration each time the device is started up
Volume can be individually adjusted
Display brightness can be individually adjusted
Adjustable date and time
Integrated device check can be performed by the user
for rapid error analysis
12 TourniquetsTechnical Data
elsa™, heidi™ und sophie™
Neue Blutsperregeräte
elsa™ heidi™ sophie™
Power connection 100-240 VAC 100-240 VAC 100-240 VAC
50/60 Hz 50/60 Hz 50/60 Hz
Power output 40 W 40 W 40 W
MPG class IIa IIa IIa
Supply of compressed air Integrated compressor Integrated compressor 6 bar
Cuff pressure Arm and leg, Arm and leg, Arm and leg,
30 - 600 mmHg 30 - 600 mmHg 30 - 600 mmHg
Accuracy ± 3 mmHg ± 3 mmHg ± 3 mmHg
Documentation Integrated Integrated Integrated
protocol printer protocol printer protocol printer
Display Resistive touch Resistive touch Resistive touch
Microprocessor Yes Yes Yes
Dimensions (W × H × D) 300 × 145 × 160 mm 300 × 145 × 160 mm 300 × 145 × 160 mm
Weight 4.6 kg 4.6 kg 3.8 kg
Tourniquets 1314 Tourniquets
Individuality in all its diversity
Mechanical and autodynamic tourniquets
Tourniquets 15All-round protection in a small format
balbina™ – The compact one
With its compact, space-saving format,
is a
the balbina™ tourniquet is the ideal companion The balbina™
APROPOS: allest
for physicians who work in a mobile environ- vel. It is the sm
true mini-mar ket
ment. balbina™ persuades with its flexibility: iq u et av ai la ble on the mar
tou rn
It can be operated intuitively and purely pneu- to date.
matically without power. Simply attach the
device to an external compressed air supply and
it is ready for operation, quickly and effortlessly.
Space-saving, electricity-independent tourniquet
UT 1132
Simple, intuitive operation
Integrated timer for time control
Cuff pressure can be manually set in a range between
30 and 650 mmHg
Optical compressed air indicator on the user interface
shows device status
Flexible mounting on the mobile stand or standard rail
(adjustable mounting block optional)
cuff pressure can
The Manschettendruck
Der
manually
ist im
be Bereich adjusted
von 30
bisa650
in range
mmHg
between
manuell
30
einstellbar.
and 650 mmHg.
balbina™ contains
an integrated timer
for time control.
Mounting is done by means of
an adjustable mounting block,
either on a mobile stand or on
the standard rail.
16 Tourniquets2 pressure circuits – 1 nurek™
nurek™ – The independent one
The nurek™ features two separate, Two separate pressure circuits with independent pressure
independent pressure circuits for simultaneous areas for simultaneous surgery on different extremities
surgery on different extremities. Simple, intuitive operation
And operating the device is just as easy and Integrated timer for time control
intuitive as with its smaller partner, balbina™.
Manually adjustable cuff pressure in a range between
Its comprehensive safety concept makes the 30 and 400 mmHg and between 30 and 650 mmHg
nurek™ a reliable, efficient tourniquet –
Cuff pressure is retained in the event of a pressure drop
in particular for the emergency room.
Optical compressed air indicator on the user interface
shows device status
Flexible mounting on the mobile stand or standard rail
(including adjustable mounting block)
ions are
IVRA applicat
APROPOS: s™ two
p o ss ib le w ith the nurek’
also
circuits.
The cuff pressure can be manually
adjusted in a range between 30 and
400 mmHg for the green connection
point and in a range between 30 and
650 mmHg for the orange connection
point.
UT 1200
Thanks to its two separate pressure
circuits, the nurek™ can be used
for simultaneous surgery on different
extremities.
Tourniquets 17Safety with continuity:
Autodynamic blood arrest
assuan™ – The professional one
Maximum protection with a minimal amount of cuff Patented autodynamics: Automatically adjustment of the
pressure required – that is the directive of the assuan™ cuff pressure to the patient’s systolic blood pressure
tourniquet. With its patented, worldwide unique One-time setting and automatic saving of the addition
technology, the assuan™ automatically adjusts the cuff pressure
pressure to the patient‘s systolic blood pressure. No post-regulation of the cuff pressure necessary
The systole is continuously transmitted by a patient Safe and gentle blood arrest by preventing excessively high
monitor for the entire duration of the operation. cuff pressure
Easy connection of the device to all established blood
pressure monitors with non-invasive measuring function
Switching between automatic and manual operation
possible
Recording of the entire blood arrest application with real-
only
T h e a ss u an™ is the time documentation
S: ra-
APROPO d w id e th at intraope Comprehensive safety concept with automatic leak
worl the
tourniquet e c u ff pressure to detection and automatic self-test at device start-up
s th
tively adjust le. Integrated user guidance system with help text in the event
sto
patient’s sy of error messages
Maintenance of the cuff pressure in the event of a pressure
drop or loss of power
Flexible mounting on the mobile stand or standard rail
(including adjustable mounting block)
Example: Arthroscopic knee surgery using assuan™
Pressure in mmHg
The OR time can be
PRESSURE SAVINGS FOR extended by these
300 pressure savings.
THE PATIENT
CUFF PRESSURE
200 (SYSTOLE + ADDITION PRESSURE)
SYSTOLE
100
ADDITION PRESSURE
Time
18 TourniquetsPatient systole display
The cuff pressure adjusts automatically and
continuously to systolic blood pressure.
hnology
Patented tec
UT 1230-00
patented
Easy menu navigation or/and
pat. pend.
The additional pressure can be adjusted
once and automatically saved.
ulrich medical® data cables for adaptation to the patient monitor are available
upon request after clarification of the monitor type (Dräger, Philips, Siemens,
GE, etc.) (reference: Accessory list for patient monitors – Appendix A of the
assuan™ instructions for use).
Tourniquets 19Overview of the Devices
Mechanical and autodynamic tourniquets
balbina™ nurek™ assuan™
Product number UT 1132 UT 1200 UT 1230-00
Mounting on mobile stand
UT 1133 UT 1215-00 UT 1220-00
Adjustable mounting block (UT 1216-00) for mounting
optional
on standard rail (7-stage adjustment)
through additional
through adapter
IVRA application Y-connector UT
UT 1184
1367-02
Cuff pressure can be continuously set in a range
between 30 and 650 mmHg
Timer for time control
Color-coded plug-in couplings Green/Orange
Maintenance of cuff pressure in the event of
loss of power
Electricity-independent in the case of a
central gas supply system
Optical compressed air indicator on the user interface
shows device status
Two different pressure circuits for simultaneous opera-
tion on upper and lower extremities
Precise LCD digital display
Visual error messages with corrective measures
Optional protocol printer
Serial data interface for recording the blood arrest
Various language settings
Device-internal user guidance system
Automatic self-test
Autodynamics: Cuff pressure is intraoperatively adjusted
to the patient’s systolic blood pressure
Expanded leak handling
Fully automatic compensation of smaller leaks
Alarm in the event of leaky connection hoses
Alarm in the event of untight cuffs
20 TourniquetsTechnical Data
Mechanical and autodynamic tourniquets
balbina™ nurek™ assuan™
Power connection 110 - 240 V
50 / 60 Hz
Power output 50 W
MPG class IIa IIa IIa
Supply of compressed air 5 - 6 bar 5 - 6 bar 5 - 6 bar
Cuff pressure Arm and leg, orange: Arm, green: 30 - 400 mmHg Arm, green: 30 - 400 mmHg
30 - 650 mmHg leg, orange: 30 - 650 mmHg leg, orange: 30 - 650 mmHg
Accuracy ± 10 mmHg ± 10 mmHg ± 10 mmHg
Interfaces Serial data interface for
recording the blood arrest
application interface (ASCII
format)
Data interface on NIBP
patient monitors
Documentation Protocol printer
Display Analog (Manometer) Analog (Manometer) LCD
Microprocessor Yes
Dimensions (W × H × D) 135 × 236 × 150 mm 299 × 236 × 130 mm 299 × 236 × 130 mm
Weight approx. 2.6 kg approx. 4.5 kg approx. 6 kg
SI 24 months 24 months 12 months
Tourniquets 2122 Tourniquets
Accessories
A one-stop solution
Tourniquets 23The fast road to safety
ulrich medical® disposable cuffs
Reliable hygiene. Streamlined process.
Sterile packaging makes the new ulrich
medical® disposable cuffs a perfect fit for your
hygiene concept.
As a disposable product, they ensure the highest
level of hygiene safety and reliability, regardless
of hospital and surgical processes. Because they
are ready for immediate use at any time, these
disposable cuffs will maximize flexibility for your
staff members, making their jobs much easier.
Available in sizes S through L (cylindrical shape)
as well as XL (tapered shape), ulrich medical®
disposable cuffs will serve you reliably in terms
of safe hygiene, speed, cost effectiveness and
an easier workload.
Safe and compatible with
various connectors
Special ulrich medical®
measuring tape for accurately
determining the circumference
of the extremity and the optimal
cuff size
UT 1315
24 Tourniquets-free
H ig h - q u ality, latex
+
C o lo r - c o ded sizes
+
For single use – no additional time and expenses for
reprocessing in your CSSD
Tapered, narrow design – optimal fit that is gentle to
the patient (size XL)
Size XL with additional symbol to help with position-
ing of the tapered cuff
Easy to apply thanks to a Velcro closure and
additional safety band
Active prevention of a chain of MRSA microbe
transmission in the hospital
Reduces your investment budget and optimizes your
process costs
Can be applied quickly for emergency patients
Sterile packaging – no risk of cross-contamination
ulrich medical® disposable cuffs with color-coding at a glance
Description Connector Size (L × W) Product No.
Disposable cuff S Standard 495 × 85 mm UT 1330-S S
Disposable cuff S Green 495 × 85 mm UT 1331-S
Disposable cuff S Orange 495 × 85 mm UT 1332-S
Disposable cuff M Standard 600 × 100 mm UT 1330-M M
Disposable cuff M Green 600 × 100 mm UT 1331-M
Disposable cuff M Orange 600 × 100 mm UT 1332-M
Disposable cuff L Standard 710 × 120 mm UT 1330-L
L
Disposable cuff L Orange 710 × 120 mm UT 1332-L
Disposable cuff XL, tapered Standard 950 × 100 mm UT 1330-XL
Disposable cuff XL, tapered Orange 950 × 100 mm UT 1332-XL
XL
ulrich medical® measuring tape
– – UT 1315
in sizes 2XS to 3XL
Green connector: Orange connector: Standard connector:
Use on the upper Use on the lower Connection of the cuffs to
extremities extremities third-party devices*
* See page 31
Tourniquets 25Convenient high-performance quality
ulrich medical® multi-use cuffs
Maximum application quality.
Extremely gentle for patients.
Can be sterilized with
steam up to 134 °C
ulrich medical multi-use cuffs consist of comfortable high-
®
tech synthetic fibers. This is what makes the cuffs unique.
They can be sterilized with steam and can therefore be
reused without hesitation.
The cuffs can be placed with optimal fit thanks to the
elasticity of the material.
Since the individual components of the cuffs can be
disassembled, a long life cycle and high degree of efficiency
is guaranteed. Available in sizes 2XS to 3XL, ulrich medical®
multi-use cuffs are your optimal partner for maximum
application quality and a high degree of patient comfort,
particularly during long surgical procedures.
Standard connector for use of the ulrich
Simple use
medical® tourniquet cuffs with third-party
with Velcro fastener
devices*
Black inner lining, resistant to
UT 1351 clinical contamination
Cleaning comb to quickly and
easily clean the cuffs
26 Tourniquets * See page 312 XS XS S M L XL 2XL 3XL
Conformance of
ulrich medical® cuffs
All ulrich medical® cuffs are tested for biological skin
tolerance and safety according to current standard DIN EN
ISO 10993. They offer the highest possible degree of
protection from possible biological risks during use.
In accordance with standard EN ISO 17664, we provide
users with information on reprocessing our medical device.
This guarantees safe multiple use of the cuffs with
simultaneous maximum patient protection.
The minimum overlap is marked for
secure cuff placement
Very comfortable to wear, with
reduced risk of decubitus ulcers
h - q u a li t y , latex-free
+ Hig
rilization
+ Easy ste
ded sizes
+ Color-co
Tourniquets 27ulrich medical® multi-use cuffs
with color-coding at a glance
Designation Connector Connections Size (L × W) Product No.
Cuff 2XS Green Single port 250 mm × 55 mm UT 1314-2XS
Cuff 2XS Orange Single port 250 mm × 55 mm UT 1317-2XS
Cuff 2XS Standard Single port 250 mm × 55 mm UT 1321-2XS
Cuff 2XS Standard Dual port 250 mm × 55 mm UT 1322-2XS
Cuff XS Green Single port 290 mm × 70 mm UT 1314-XS
Cuff XS Orange Single port 290 mm × 70 mm UT 1317-XS
Cuff XS Standard Single port 290 mm × 70 mm UT 1321-XS
Cuff XS Standard Dual port 290 mm × 70 mm UT 1322-XS
Cuff S Green Single port 495 mm × 85 mm UT 1314-S
Cuff S Orange Single port 495 mm × 85 mm UT 1317-S
Cuff S Standard Single port 495 mm × 85 mm UT 1321-S
Cuff S Standard Dual port 495 mm × 85 mm UT 1322-S
Cuff IVRA-I Green Single port 500 mm × 150 mm UT 1314-IVRA-I
Cuff IVRA-I Orange Single port 500 mm × 150 mm UT 1317-IVRA-I
Cuff IVRA-I Standard Single port 500 mm × 150 mm UT 1321-IVRA-I
Cuff IVRA-I Standard Dual port 500 mm × 150 mm UT 1322-IVRA-l
Cuff M Green Single port 600 mm × 100 mm UT 1314-M
Cuff M Orange Single port 600 mm × 100 mm UT 1317-M
Cuff M Standard Single port 600 mm × 100 mm UT 1321-M
Cuff M Standard Dual port 600 mm × 100 mm UT 1322-M
Cuff L Orange Single port 710 mm × 120 mm UT 1317-L
Cuff L Standard Single port 710 mm × 120 mm UT 1321-L
Cuff L Standard Dual port 710 mm × 120 mm UT 1322-L
Cuff XL Orange Single port 950 mm × 150 mm UT 1317-XL
Cuff XL Standard Single port 950 mm × 150 mm UT 1321-XL
Cuff XL Standard Dual port 950 mm × 150 mm UT 1322-XL
Cuff 2XL Orange Single port 1,090 mm × 100 mm UT 1317-2XL
Cuff 2XL Standard Single port 1,090 mm × 100 mm UT 1321-2XL
Cuff 2XL Standard Dual port 1,090 mm × 100 mm UT 1322-2XL
Cuff 3XL Orange Single port 1,310 mm × 120 mm UT 1317-3XL
Cuff 3XL Standard Single port 1,310 mm × 120 mm UT 1321-3XL
Cuff 3XL Standard Dual port 1,310 mm × 120 mm UT 1322-3XL
ulrich medical® measuring tape in sizes 2XS to 3XL UT 1315
Cleaning comb for Velcro fasteners UT 1351
28 TourniquetsReplacement parts
Bladder Cloth cover Foil
Size (L × W) Product No. Size (L × W) Product No. Size (L × W) Product No.
200 mm × 25 mm UT 1314-2XS-B 250 mm × 55 mm UT 1314-2XS-C
200 mm × 25 mm UT 1317-2XS-B 250 mm × 55 mm UT 1317-2XS-C
200 mm × 25 mm UT 1321-2XS-B 250 mm × 55 mm UT 1321-2XS-C
200 mm × 25 mm UT 1322-2XS-B 250 mm × 55 mm UT 1322-2XS-C
240 mm × 45 mm UT 1314-XS-B 290 mm × 70 mm UT 1314-XS-C 270 mm × 47 mm UT 132x-XS-F
240 mm × 45 mm UT 1317-XS-B 290 mm × 70 mm UT 1317-XS-C 270 mm × 47 mm UT 132x-XS-F
240 mm × 45 mm UT 1321-XS-B 290 mm × 70 mm UT 1321-XS-C 270 mm × 47 mm UT 132x-XS-F
240 mm × 45 mm UT 1322-XS-B 290 mm × 70 mm UT 1322-XS-C 270 mm × 47 mm UT 132x-XS-F
420 mm × 65 mm UT 1314-S-B 495 mm × 85 mm UT 1314-S-C 470 mm × 65 mm UT 132x-S-F
420 mm × 65 mm UT 1317-S-B 495 mm × 85 mm UT 1317-S-C 470 mm × 65 mm UT 132x-S-F
420 mm × 65 mm UT 1321-S-B 495 mm × 85 mm UT 1321-S-C 470 mm × 65 mm UT 132x-S-F
420 mm × 65 mm UT 1322-S-B 495 mm × 85 mm UT 1322-S-C 470 mm × 65 mm UT 132x-S-F
420 mm × 65 mm UT 1314-S-B 500 mm × 150 mm UT 1314-IVRA-I-C 470 mm × 65 mm UT 132x-S-F
420 mm × 65 mm UT 1317-S-B 500 mm × 150 mm UT 1317-IVRA-I-C 470 mm × 65 mm UT 132x-S-F
420 mm × 65 mm UT 1321-S-B 500 mm × 150 mm UT 1321-IVRA-I-C 470 mm × 65 mm UT 132x-S-F
420 mm × 65 mm UT 1322-S-B 500 mm × 150 mm UT 1322-IVRA-I-C 470 mm × 65 mm UT 132x-S-F
510 mm × 80 mm UT 1314-M-B 600 mm × 100 mm UT 1314-M-C 560 mm × 80 mm UT 132x-M-F
510 mm × 80 mm UT 1317-M-B 600 mm × 100 mm UT 1317-M-C 560 mm × 80 mm UT 132x-M-F
510 mm × 80 mm UT 1321-M-B 600 mm × 100 mm UT 1321-M-C 560 mm × 80 mm UT 132x-M-F
510 mm × 80 mm UT 1322-M-B 600 mm × 100 mm UT 1322-M-C 560 mm × 80 mm UT 132x-M-F
600 mm × 100 mm UT 1317-L-B 710 mm × 120 mm UT 1317-L-C 670 mm × 100 mm UT 132x-L-F
600 mm × 100 mm UT 1321-L-B 710 mm × 120 mm UT 1321-L-C 670 mm × 100 mm UT 132x-L-F
600 mm × 100 mm UT 1322-L-B 710 mm × 120 mm UT 1322-L-C 670 mm × 100 mm UT 132x-L-F
810 mm × 130 mm UT 1317-XL-B 950 mm × 150 mm UT 1317-XL-C 910 mm × 130 mm UT 132x-XL-F
810 mm × 130 mm UT 1321-XL-B 950 mm × 150 mm UT 1321-XL-C 910 mm × 130 mm UT 132x-XL-F
810 mm × 130 mm UT 1322-XL-B 950 mm × 150 mm UT 1322-XL-C 910 mm × 130 mm UT 132x-XL-F
1,000 mm × 80 mm UT 1317-2XL-B 1,090 mm × 100 mm UT 1317-2XL-C 1,050 mm × 80 mm UT 132x-2XL-F
1,000 mm × 80 mm UT 1321-2XL-B 1,090 mm × 100 mm UT 1321-2XL-C 1,050 mm × 80 mm UT 132x-2XL-F
1,000 mm × 80 mm UT 1322-2XL-B 1,090 mm × 100 mm UT 1322-2XL-C 1,050 mm × 80 mm UT 132x-2XL-F
1,200 mm × 100 mm UT 1317-3XL-B 1,310 mm × 120 mm UT 1317-3XL-C 1,270 mm × 100 mm UT 132x-3XL-F
1,200 mm × 100 mm UT 1321-3XL-B 1,310 mm × 120 mm UT 1321-3XL-C 1,270 mm × 100 mm UT 132x-3XL-F
1,200 mm × 100 mm UT 1322-3XL-B 1,310 mm × 120 mm UT 1322-3XL-C 1,270 mm × 100 mm UT 132x-3XL-F
Please refer to the comprehensive instructions for use for the
Green connector: Orange connector: Standard connector:
Use on the upper Use on the lower Connection of the cuffs to cuffs for more information about the measuring tape and
extremities extremities third-party devices* correct cuff placement.
* See page 31
Tourniquets 29Tubing and adapter
for ulrich medical® tourniquet cuffs
Connection tubings
Device – cuff
Third-party
balbina™
devices*
assuan™
sophie™
nurek™
heidi™
elsa™
Product No. Connection hose Connector Length
UT 1274-300 For single-port cuffs Green 3m
Sterilizable
UT 1274-500 For single-port cuffs Green 5m
UT 1277-300 For single-port cuffs Orange 3m
UT 1277-500 For single-port cuffs Orange 5m
UT 1321-300 For single-port cuffs Standard 3m
Unsterilizable
UT 1321-500 For single-port cuffs Standard 5m
UT 1322-300 For dual-port cuffs Standard 3m
UT 1322-500 For dual-port cuffs Standard 5m
UT 1278-500 For IVRA Orange 5m
Connection hoses
for central gas supply (CGS)
™
™
™
balbina
nurek™
assuan
sophie
Product No. Description Model Length
UT 1270-080 Pressure connection for CGS Neutral color 0.8 m
UT 1270-150 Pressure connection for CGS Neutral color 1.5 m
UT 1270-300 Pressure connection for CGS Neutral color 3m
UT 1270-500 Pressure connection for CGS Neutral color 5m
UT 1271-300 Pressure connection for CGS ISO 32 3m
UT 1271-500 Pressure connection for CGS ISO 32 5m
UT 1272-150 CGS-NIST tubing Neutral color 1.5 m
UT 1272-300 CGS-NIST tubing Neutral color 3m
UT 1273-150 CGS-NIST tubing ISO 32 1.5 m
UT 1273-300 CGS-NIST tubing ISO 32 3m
30 TourniquetsAdapter for ulrich medical® cuffs For third-party devices with:
on third-party devices*
screw
standard connector
Figure Product No. Description thread
Screw thread (male) –
UT 1186
plug-in coupling, orange (female)
Standard connector (male) –
UT 1188
plug-in coupling, orange (female)
Adapter for ulrich medical® tourniquets For ulrich medical® tourniquets:
balbina™
nurek™
Figure Product No. Description to serial no. 0.221996
Luer lock (female) –
UT 1182
plug-in coupling, green (female)
Luer lock (female) –
UT 1183
plug-in coupling, orange (female)
Orange connector (male) –
UT 1184
plug-in coupling, green (female)
Adapters for third-party cuffs For third-party cuffs with:
on ulrich medical® tourniquets
Female screw standard
Figure Product No. Description Luer lock thread connector
Green connector (male) –
UT 1180
Luer-lock (male)
Orange connector (male) –
UT 1181
Luer-lock (male)
Orange connector (male) –
UT 1185
screw thread (female)
Orange connector (male) –
UT 1187
standard connector (female)
* e.g. Zimmer, VBM and other standard connections Tourniquets 31Mobile stands
for ulrich medical® tourniquets
Mobile stand for
elsa™, heidi™, sophie™: UT 1382
Includes: Convenient basket for storing cuffs and
accessories (tubing, cable)
Dimensions: Height with device: 1,115 mm
Diameter of device base: 420 mm
420 × 420 × 1,115 mm
(W × D × H; height incl. device)
Weight: 10.4 kg
Mobile stand for assuan™: UT 1220-00
Mobile stand for nurek™: UT 1215-00
Includes: Stainless-steel wire basket and standard rail
For UT 1220-00: including Schuko multiple socket
outlets device with switch and grounding pin
Dimensions: 560 × 520 × 870 mm (W × D × H)
Weight: approx. 10 kg
Replacement UT 1221-40 stainless steel wire basket
parts: UT 1221-22 including Schuko multiple socket
outlets device with switch and grounding pin
Mobile stand for balbina™: UT 1133
Includes: Standard rail
Optional: UT 1364 stainless steel wire basket
Dimensions: 600 × 600 × 850 mm (W × D × H)
Weight: approx. 4 kg
32 TourniquetsProtocol printer
elsa™, heidi™ und sophie™
elsa™ incl. protocol printer: 1380-EP
heidi™ incl. protocol printer: 1380-HP
sophie™ incl. protocol printer: 1380-SP
Functions: Automatic recording of all relevant data from
a tourniquet application
Plug & play documentation
Simple procedure for opening the protocol printer
High-speed printing (up to 50 mm/s)
LED pilot lamp display
With “Form Feed” button (paper output)
Accessories: Printer paper UT 1381-01
(paper width 58 mm)
The protocol printer can also be retrofitted at a later point in time
(UT 1381).
Contact your medical device consultant.
Adjustable mounting block
for standard rail
Mounting block for
elsa™, heidi™, sophie™: UT 1383
Functions: For mounting elsa™, heidi™, sophie™ on
horizontal standard rails in the OR
Allows position adjustment in 7 different
levels
Tourniquets 33Subject to technical changes, misprints and errors.
IS 60001011 R1/2012-09
patented
Sustaining member of the Deutsche Gesellschaft für or/and
Krankenhaushygiene e.V. (German Society for Hospital Hygiene) pat. pend.
ulrich GmbH & Co. KG l Buchbrunnenweg 12 l 89081 Ulm l Germany
Phone: +49 (0)731 9654-0 l Fax: +49 (0)731 9654-2705
tourniquets@ulrichmedical.com l www.ulrichmedical.comYou can also read
