2018 RANGE
AUTHENTIC CHARACTER Beyond trends, beyond appearances. V9 IS THE EMBODIMENT OF THE PUREST MOTO GUZZI SPIRIT. A SPIRIT THAT DOESN’T MAKE COMPROMISES. A SPIRIT THAT PROUDLY AFFIRMS WITH EVERY CHOICE: I AM THE WAY I AM. V9 IS PRECISELY THIS: AUTHENTIC IN EVERY DESIGN DETAIL, AUTHENTIC IN ITS CHOICE OF FINE COMPONENTS, AUTHENTIC IN HOW AGILELY IT REACTS TO YOUR DRIVING, AUTHENTIC IN ITS EXCITING 850 CC ENGINE TORQUE. IT IS THE MOTO GUZZI THAT WAS MISSING: SIMPLY PUT, YOUR MOTORCYCLE.

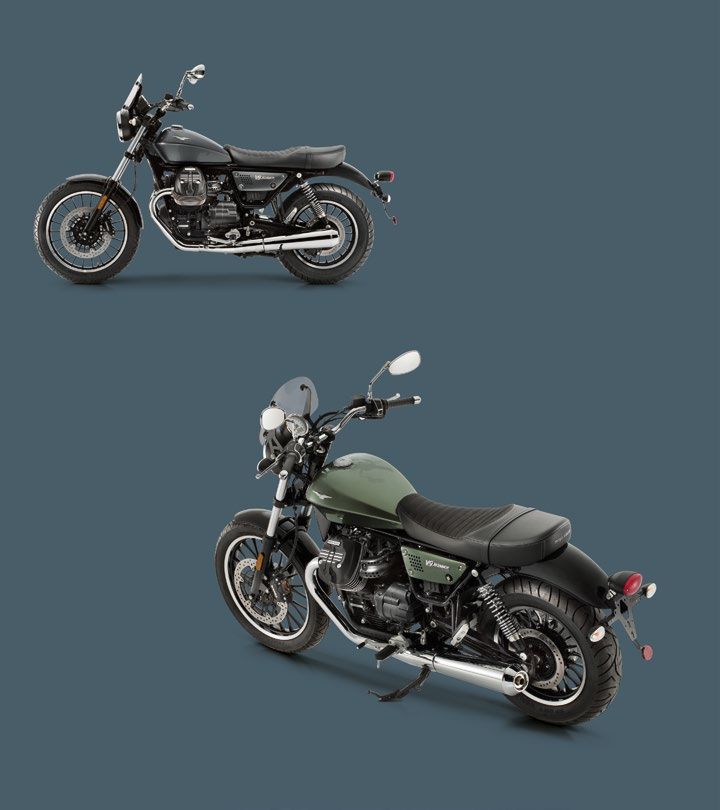

V9 ROAMER CO LO UR RA NGE
SOLID AND FINE MATERIALS WITH REFINED
FINISHES. ALL THE BEST TO GUARANTEE
SUPERIOR STYLE THAT STANDS THE TEST
OF TIME. THE 850 CC V2 ENGINE WAS
DESIGNED TO OFFER MAJOR TORQUE
RIGHT FROM THE START; COMBINED WITH
LOW MOTORCYCLE WEIGHT, IT OFFERS AN
VERDE NOBILE
INTUITIVE AND ALERT DRIVING DYNAMIC,
WITH MINIMAL EFFORT AND MAXIMUM
FUN. THE STEEL TANK IS EMBELLISHED
WITH GLOSSY PAINT, THE COLOUR OF THE
SIDE COVERS MATCHES THE FUEL TANK
AND THE ALLOY RIMS ARE PAINTED MATT
BLACK WITH DIAMOND FINISH.

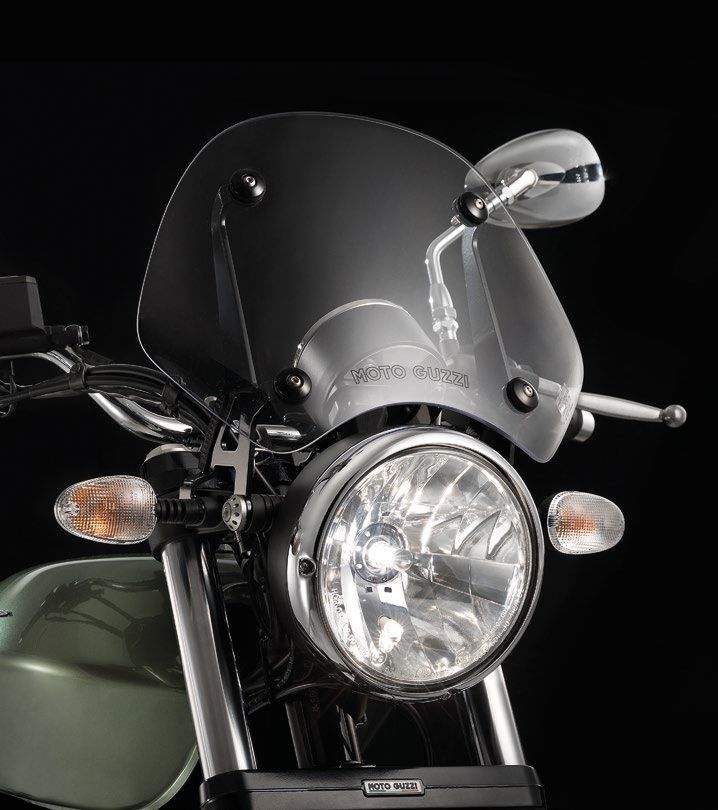

IN KEEPING WITH ITS TOURISTIC SOUL
THE V9 ROAMER OFFERS THE NEW GRIGIO ELEGANZA
WINDSHIELD, WHICH PAIRS ELEGANCE
AND PROTECTION, AS STANDARD
EQUIPMENT, WHILE THE NEW PAIR OF
REAR SHOCK ABSORBERS ALLOW FOR A
MORE COMFORTABLE RIDE EVEN FOR
TWO. ABS AND TRACTION CONTROL,
TO DRIVE IN COMPLETE SAFETY
AND ENJOY EVERY KILOMETRE.
V9 ROAMER RIDERS MUST BE ABLE TO
TRUST THEIR MOTORCYCLE AS
MUCH AS THEIR OWN INSTINCT
AND EXPERIENCE. V9 REACTS
IMMEDIATELY AND PRECISELY TO
THE DRIVER’S DRIVING STYLE.
V9 ROAMER DRIVING POSITION
LETS YOU BETTER TAKE
ADVANTAGE OF THE CHASSIS
AND AT THE SAME TIME UPS
THE SPACE AND LIVABILITY
ON THE VEHICLE. THE WIDE
AND ACCOMMODATING
SADDLE FOR THE DRIVER
AND PASSENGER AND
THE RANGE OF TRAVEL
ACCESSORIES EXALT HOW
PERFECT IT IS FOR TOURING.
V9 ROAMER D E S I G N E D D OW N TO T H E L A S T D E TA I L
RIMS WITH DIAMOND FINISH CHROMIUM-PLATED HANDLEBAR ALUMINIUM FOOTRESTS AND SUPPORTS CHROMIUM-PLATED EXHAUST
PLUS, AS STANDARD:
• TWO-CHANNEL ABS
• TWO-SETTING TRACTION CONTROL (MGCT)
• METAL FRONT AND REAR MUDGUARD
• USB PORT
• IMMOBILIZER
• 150 MM REAR TYRE
• ALUMINIUM SIDE PANELS
• SIDE COVERS MATCH VEHICLE COLOUR
THE LESS POWERFUL VERSION
STEEL TANK WITH ANALOGUE INSTRUMENT BREMBO FRONT CALIPER OF V9 ROAMER CAN ALSO BE
EAGLE IN RELIEF WITH LCD DISPLAY WITH FOUR PISTONS DRIVEN WITH AN A2 DRIVER’S LICENSE.
V9 BOBBER CO LO UR RA NGE
MOTO GUZZI INTERPRETS THE
LEGENDARY BOBBER STYLE, ESSENTIAL
AND AGGRESSIVE: THE CHROMIUM
PLATING GIVES WAY TO MATT TONES.
THE SHORT MUDGUARD AND THE TYRES
WITH HIGH SHOULDER UNDERSCORE
THE GRIT OF A REAL BOBBER. 850 CC
BLU IMPETO
TRANSVERSAL V ENGINE, UNIVERSAL
JOINT TRANSMISSION, AND STEEL
FRAME: THE ESSENCE OF MOTO GUZZI
WITH A BOBBER TWIST. THE FINE
METAL MUDGUARDS GIVE WAY TO
IMPRESSIVE TYRES, WHICH SHOULD
BE SHOWN OFF PROUDLY.

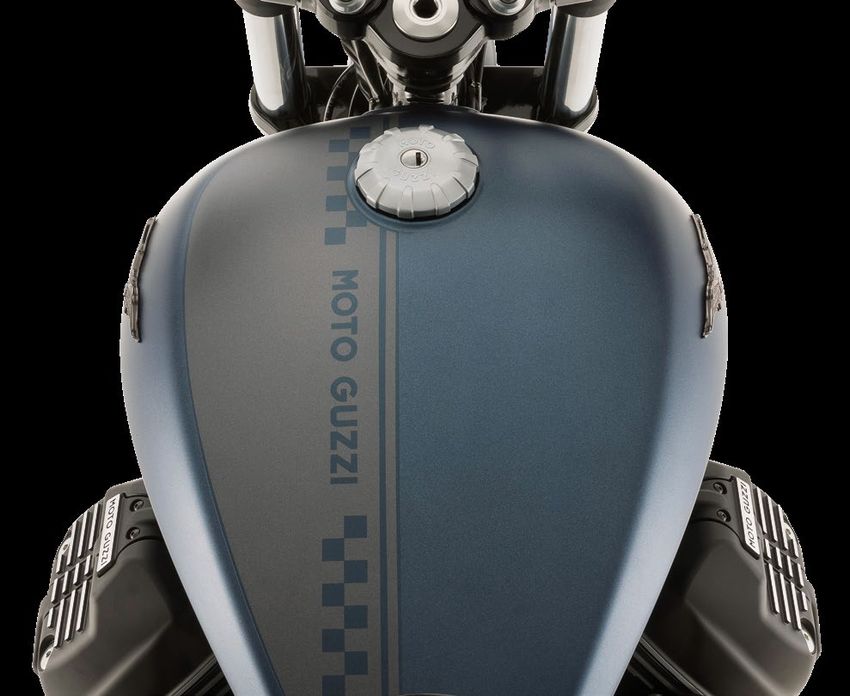

THE STEEL TANK IS COATED IN A
DARK, MATT PAINT, LIVENED UP BY NERO NOTTE
A CHEQUERBOARD PATTERN WHICH
HIGHLIGHTS THE SPORTINESS
OF THE V9 BOBBER
GRIGIO TEMPESTA
V9 BOBBER WHAT DOES AUTHENTICITY MEAN?
IT MEANS LIVING WHILE BEING
TRUE TO WHO WE REALLY ARE AND
WHAT WE WANT, WITHOUT
LETTING OURSELVES BE
INFLUENCED BY WHAT
OTHERS DO.
THANKS TO THE
SET BACK FOOTRESTS AND
THE DRAGBAR HANDLE, THE
ERGONOMICS GUARANTEE MORE
INTENT AND SPORTY DRIVING,
ENSURING MORE SPACE AND
LIVABILITY ON THE VEHICLE.
THE TWO-PERSON SADDLE,
ACCOMMODATING AND COMFY,
LETS YOU EASILY REMOVE
THE PART FOR THE
PASSENGER, TO GIVE THE
V9 BOBBER AN AUTHENTIC
ONE-SEAT LOOK.
V9 BOBBER OUT OF THE ORDINARY LOOK
ACCOMMODATING TWO-PERSON SADDLE
130/90 FRONT TYRE MATT BLACK DRAGBAR HANDLEBAR SATIN FINISHED BLACK EXHAUST
WITH REMOVABLE PASSENGER PAR
PLUS, AS STANDARD:
• TWO-CHANNEL ABS
• TWO-SETTING TRACTION CONTROL (MGCT)
• METAL FRONT AND REAR MUDGUARD
• USB PORT
• IMMOBILIZER
• 150 MM REAR TYRE
• ALUMINIUM SIDE PANELS
• BREMBO 4-PISTON FRONT CALIPER
• ALUMINIUM FOOTRESTS AND SUPPORTS
THE LESS POWERFUL
STEEL TANK ANALOGUE INSTRUMENT V9 BOBBER VERSION CAN ALSO BE
SHORT REAR MUDGUARD
WITH MATT FINISH WITH LCD DISPLAY DRIVEN WITH AN A2 DRIVER’S LICENSE.
PERSONALITY
CLOTHING AND ACCESSORIES
A RANGE OF OVER 50 ORIGINAL AD HOC ACCESSORIES, TYPE APPROVED WITH THE
VEHICLE TO GUARANTEE THE MAXIMUM RELIABILITY AND SAFETY, OFFER YOU TOP
PERSONALISATION AND MAKE YOUR V9 EVEN MORE UNIQUE.
FROM THE LEATHER SIDE BAGS MADE IN ITALY, TO THE SPORTY WINDSHIELD, TO THE
PRECIOUS ALUMINIUM “MACHINED FROM SOLID” ACCESSORIES: THE QUALITY IN THE
DETAILS AND THE STYLE CHOICES ARE TOP-NOTCH.
EXPRESS YOUR STYLE AND YOUR PASSION, COME DISCOVER THE ENTIRE RANGE OF
ACCESSORIES, HELMETS, AND CLOTHING ON OUR WEBSITE.
WWW.MOTOGUZZI.COM
COMMUNITY TECHNICAL CHARACTERISTICS
V9 ROAMER V9 BOBBER
Engine V90 4-stroke twin-cylinder V90 4-stroke twin-cylinder
Displacement 853 cc 853 cc
Bore x Stroke 84 x 77 mm 84 x 77 mm
MAX Power 40.44 kW (55 CV) @ 6,250 rpm 40.44 kW (55 CV) @ 6,250 rpm
Torque 62 Nm @ 3,000 rpm 62 Nm @ 3,000 rpm
Gearbox 6 gears 6 gears
Front suspension Traditional fork, Ø 40 mm Traditional fork, Ø 40 mm
Swingarm and double shock absorber Swingarm and double shock absorber
Rear suspension
with adjustable preload. with adjustable preload.
Single stainless steel floating disk, Single stainless steel floating disk,
Front Brake Ø 320 mm, Brembo caliper with four Ø 320 mm, Brembo caliper with four
opposing pistons. opposing pistons.
Stainless steel disc, Ø 260 mm, Stainless steel disc, Ø 260 mm,
Rear Brake
dual-piston floating caliper. dual-piston floating caliper.
Front wheel 100/90 - 19 130/90 - 16
Rear wheel 150/80 - 16 150/80 B 16
Length/Width 2,240 / 865 mm 2,185 / 840 mm
Saddle Height 818 mm 808 mm
Weight in running order* 199 Kg 199 Kg
Fuel tank capacity 15 litres (of which four litres reserve) 15 litres (of which four litres reserve)
Emission compliance EU 4 EU 4
Emissions CO2 WMTC 114 g/km 114 g/km
YOU AND YOUR MOTO GUZZI
A hymn to freedom that repeats every time you fasten your helmet Fuel consumption WMTC 4.99 l/100 km 4.99 l/100 km
and turn the key. We know that feeling, because for almost 100 years now
The company reserves the right to make technical and aesthetic changes at any time. *Weight with motorcycle ready for use, with all running fluids, without fuel
it has joined those who, like us, ride a Moto Guzzi.
Complete information on models and accessories available on www.motoguzzi.com
Join the Clan - Moto Guzzi Proud Owners. Travel light-heartedly with two years of Roadside Assistance: coverage all over Europe, towing to the nearest Moto Guzzi Service Centre, Associated Services
A new enthusiast world for all Moto Guzzi owners (for example, replacement car for up to three days, taxi, hotel). Check the conditions of the service at your Moto Guzzi dealership.
that are excited about the same things you are.
Moto Guzzi is a registered trademark of Piaggio & C. S.p.A.
Sign up now on theclan.motoguzzi.comMG/11/2017 MOTOGUZZI.COM
