2020 Utility & Leisure ATV and Side-by-Side
Achieve more. Enjoy more. Yamaha off road vehicles are designed to handle any environment and any desire. And because there’s no such thing as a typical customer, Yamaha offers you the most diverse choice of All Terrain Vehicles and Side-by-Side models. Built to work hard and play hard, these adaptable go-anywhere off roaders are ready to perform almost any role. With their rugged construction and high torque engines, the Kodiak ATVs and the Viking Side-by-Side get the job done in the harshest conditions – and their ability to haul large payloads makes them the ultimate work partners. When it’s time to relax, the Grizzly ATVs and the latest Wolverine Side-by-Side models offer the very highest levels of capability, comfort and confidence on the trail – making real adventure more accessible than ever before!
The Yamaha
Difference.
4WD CVT-type transmission Electronic Fuel Injection Electric Power Steering
Yamaha’s 4WD system let you switch between Yamaha’s Ultramatic transmission automatically The EFI system in a Yamaha utility ATV works Yamaha’s speed-sensitive EPS system greatly
drive modes, giving near instantaneous transition provides the optimum drive ratio so instant with a micro-computer to ensure that a precisely reduces the physical effort of steering while
from cruising to climbing. Depending on the power is always available. A sprag clutch metered flow of fuel/air mixture enters the also assisting the rider control the ATV when
model there is either an easy flip-over handle engages when slowing down, giving downhill engine’s combustion chamber at all times and encountering bumps and stones on the trail.
or the Yamaha - On Command® system - operated engine braking to the driven wheels, for under all conditions, to deliver an optimised This extra comfort is particularly noticeable
by a simple push button. controlled descents. mix of smooth power and economy. on longer working days.
Independent Suspension Gearbox drive selection Differential Lock
Most Yamaha ATVs and all Side-by-Sides have The CVT drive line features Manual selection Some models also feature a Differential
adjustable double A-arm independent front for Forward and Reverse. Including a High and Lock which acts on the front wheels to give
suspension, while some ATV and all Side-by-Side Low ratio options for the forward gears as well added traction in extreme conditions.
models also have independent rear suspension as a Park position which mechanically locks the
allowing each wheel to react independently gearbox to prevent the wheels turning.
to uneven terrain an optimise handling for
different riders and cargo load.
ACHIEVE
Total job satisfaction
Designed for farmers, foresters and With their proven ability to perform a variety And with its spacious 3-seat layout and
industrial users who value quality and of tasks on the most challenging terrain, pallet-size cargo bed, the Viking Side-by-Side
durability, Yamaha’s trustworthy Utility the Kodiak 700 and Kodiak 450 are some of is the easiest, quickest and most efficient
models give you the power to make a the toughest and hardest working off road way to get the job done - even in the most
wide range of daily chores easier and vehicles ever built. Rugged, reliable and inaccessible locations.
more enjoyable. comfortable, these user-friendly ATVs will
transform your working day.
The extraordinary ordinary work.

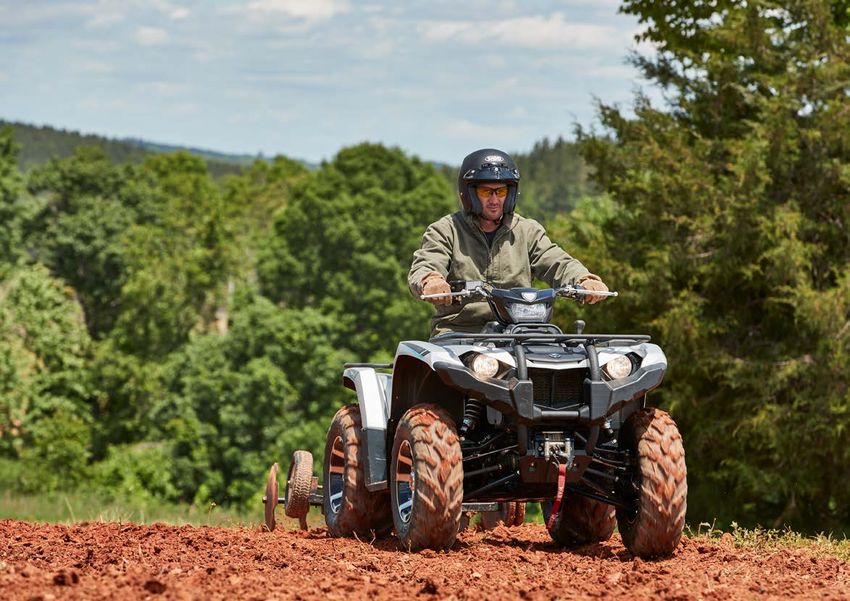

KODIAK 700 / EPS
Designed for farmers, foresters and industrial users who need a tough utility
vehicle for hard work in extreme conditions, the user-friendly Kodiak 700 KODIAK 700 EPS - Yamaha Blue KODIAK 700 EPS - Olive Green KODIAK 700 - Ridge Red Kodiak 700 - Yamaha Blue
delivers superior performance with outstanding value.
Powered by the new high torque MK II 686cc engine - and featuring a compact
chassis with a plush seat for day-long riding comfort - this extraordinary worker
can carry a 140kg payload plus rider, and tow up to 600kg.
The smooth-running Ultramatic® CVT transmission and 2WD/4WD mechanical
system make this ATV ideal for towing and all day work.
KODIAK 700 / EPS (ATV)
KODIAK 700 EPS - Olive Green
MK II 686cc SOHC engine Ultramatic® transmission Independent suspension, front disc On-Command 2WD/4WD/Diff Lock
brakes
The hard working Kodiak 700 EPS features a Equipped with High, Low, Reverse, Neutral The Kodiak 700 EPS’s compact independent The Kodiak 700 EPS models are fitted with an
powerful large capacity engine that delivers and Park modes, Yamaha’s industry-leading double wishbone A-arms and long-travel KYB easy to operate On-Command® system with
class-leading torque and power. Featuring the Ultramatic® automatic transmission is one of shocks give high levels of comfort together with 2WD/4WD and 4WD with Diff Lock for full control
2nd generation MK II 686 engine SOHC 4-valve the ATV world’s most durable and efficient CVT good manoeuvrability, and can handle the most for quick and effective switching between 2WD
cylinder head, with EFI Throttle body, fine systems. The utility oriented gearing produces extreme terrain. For durable and reliable braking and 4WD, or even full Diff Lock allowing you to
tuned ECU mapping, refined tolerances and excellent low speed pulling power and natural the Kodiak 700 is fitted with front disc brakes and choose the right option to suit the terrain and
other updates results in lower fuel consumption all-wheel engine braking feel, giving added a sealed wet rear brake. surface conditions.
increased torgue and a smoother engine confidence and control on downhills.
performance.
The extraordinary ordinary work.
KODIAK 700 EPS Alu / SE
Designed for farmers, foresters and industrial users who need a tough
utility vehicle for hard work in extreme conditions, the user-friendly Kodiak
Kodiak 700 EPS SE - Silver Metallic Kodiak 700 EPS Alu - Camo Kodiak 700 EPS Alu - Olive Green
700 EPS Alu delivers superior performance with outstanding value.
Powered by the high torque MK II 686cc engine - and featuring a compact
chassis with a plush seat for day-long riding comfort - this extraordinary
worker can carry a 140kg payload plus rider, and tow up to 600kg.
The smooth-running Ultramatic® CVT transmission and 2WD/4WD system
with Diff Lock make this ATV ideal for towing, and the Electric Power
Steering makes every working day that little bit easier.
KODIAK 700 EPS Alu / EPS SE (ATV)
Kodiak 700 EPS SE - Satin Black
MK II 686cc SOHC engine Ultramatic® transmission Independent suspension, front disc On-Command 2WD/4WD/Diff Lock
brakes
The hard working Kodiak 700 EPS Alu’s features Equipped with High, Low, Reverse, Neutral The Kodiak 700 EPS Alu’s compact independent The Kodiak 700 EPS Alu models are fitted with
a powerful large capacity engine that delivers and Park modes, Yamaha’s industry-leading double wishbone A-arms and long-travel KYB an easy to operate On-Command® system with
class-leading torque and power. Featuring the Ultramatic® automatic transmission is one of shocks give high levels of comfort together with 2WD/4WD and 4WD with Diff Lock for full control
2nd generation MK II 686 engine SOHC 4-valve the ATV world’s most durable and efficient CVT good manoeuvrability, and can handle the most for quick and effective switching between 2WD
cylinder head, with EFI Throttle body, fine- systems. The utility oriented gearing produces extreme terrain. For durable and reliable braking and 4WD, or even full Diff Lock allowing you to
tuned ECU mapping, refined tolerances and excellent low speed pulling power and natural the Kodiak 700 is fitted with front disc brakes and choose the right option to suit the terrain and
other updates results in lower fuel consumption all-wheel engine braking feel, giving added a sealed wet rear brake. surface conditions.
increased torque and a smoother engine confidence and control on downhills.
performance.A force of nature.
KODIAK 450 / EPS
Kodiak is already the leading name in the large capacity utility ATV
world. And now we’re taking the mid-sized utility class to the next level Kodiak 450 EPS Kodiak 450 Kodiak 450 Kodiak 450 Kodiak 450
with the rugged Kodiak 450. - Yamaha Blue - Camo - Yamaha Blue - Olive Green - Ridge Red
Its easy to use technology, outstanding durability and Yamaha reliability
enable the Kodiak 450 to take on the toughest jobs in extreme terrain.
The industry-leading On Command drive system allows you to switch
seamlessly between 2WD and 4WD at the push of a button - and the
Ultramatic automatic transmission makes every task more relaxing and
enjoyable.
In terms of comfort and convenience, nothing comes close! And when
work’s over, this versatile ATV adds a new dimension to your precious
leisure time.
KODIAK 450 / EPS (ATV)
Kodiak 450 EPS - Olive Green
Yamaha 421 cc EFI engine 25-inch tyres with wide tread width Long-stroke KYB gas charged front and On-Command® 2WD/4WD drive system
rear shocks
The Kodiak 450 has the power to conquer the So that you can find the optimum traction even The developed all-round independent double In hilly or slippery conditions, the Kodiak 450’s
toughest terrain thanks to its 421 cc single on the most challenging terrain the Kodiak 450 wishbone suspension gives 171 mm front wheel industry-leading On-Command® drive system
cylinder liquid-cooled engine that produces is fitted with specially developed front and rear travel and 189 mm rear wheel travel, helping to enables you to switch seamlessly over to the
plenty of smooth torque at low revs. Its Electronic tyres. Featuring an all-terrain tread pattern, make light work of extreme terrain. And with 4WD system with the push of a button. And when
Fuel Injection system ensures easy starting in hot the extra-wide AT25x8-12 front tyres and the their ability to soak up bumps, ruts and other you’re on flat or unchallenging terrain, another
or cold conditions at a range of altitudes, giving AT25x10-12 rear tyres find extra grip whether obstacles, the KYB gas-charged adjustable shocks press on the button takes you back to 2WD,
reliable and economical performance wherever you’re riding across mud, snow and rock. deliver all day riding comfort. making this mid-sized utility ATV so easy and
you go. convenient to use.A force of nature.
KODIAK 450 EPS DIFF LOCK / SE DIFF LOCK
Kodiak is already the leading name in the large capacity utility ATV
world. And now we’re taking the mid-sized utility class to the next level
Kodiak 450 EPS Diff Lock Kodiak 450 EPS Diff Lock Kodiak 450 EPS Diff Lock
with the rugged Kodiak 450 EPS DL. - Yamaha Blue - Camo - Olive Green
Its easy-to use-technology, outstanding durability and Yamaha reliability
enable the Kodiak 450 EPS DL to take on the toughest jobs in extreme
terrain. The industry-leading On Command drive system allows you to
switch seamlessly between 2WD and 4WD at the push of a button - and
the Ultramatic automatic transmission makes every task more relaxing
and enjoyable.
KODIAK 450 EPS DIFF LOCK / SE DIFF LOCK (ATV)
In terms of comfort and convenience, nothing comes close! And when
work’s over, this versatile ATV adds a new dimension to your precious
leisure time.
Kodiak 450 EPS SE Diff Lock - Silver Metallic
Yamaha 421 cc EFI engine 25-inch tyres with wide tread width Long-stroke KYB gas charged front and On-Command 2WD/4WD/Diff Lock
rear shocks
The Kodiak 450 EPS DL has the power to conquer So that you can find the optimum traction even The all-round independent double wishbone The Kodiak 450 EPS DL models are fitted with
the toughest terrain thanks to its 421 cc single on the most challenging terrain the Kodiak 450 suspension gives 171 mm front wheel travel and an easy to operate On-Command® system with
cylinder liquid cooled engine that produces plenty EPS DL is fitted with specially developed front 189 mm rear wheel travel, helping to make light 2WD/4WD and 4WD with Diff Lock for full control
of smooth torque at low revs. Its Electronic Fuel and rear tyres. Featuring an all-terrain tread work of extreme terrain. And with their ability and for quick and effective switching between
Injection system ensures easy starting in hot or pattern, the extra-wide AT25x8-12 front tyres and to soak up bumps, ruts and other obstacles, the 2WD and 4WD, or even full diff lock allowing you
cold conditions at a range of altitudes, giving the AT25x10-12 rear tyres find extra grip whether KYB gas-charged adjustable shocks deliver all day to choose the right option to suit the terrain and
reliable and economical performance wherever you’re riding across mud, snow and rock. riding comfort. surface conditions.
you go.Functionality, durability and all- terrain ability.

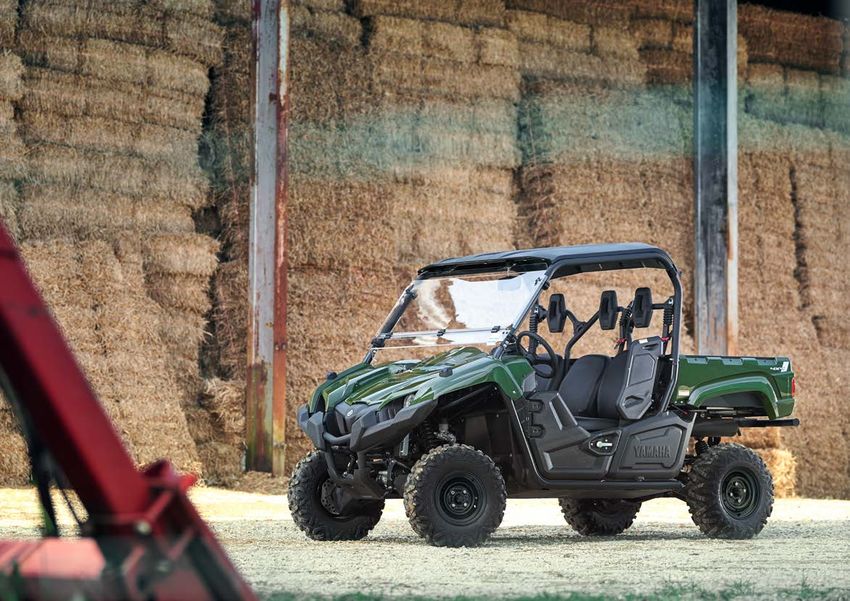

VIKING EPS
It can be tough when you’re working outdoors all-year round. You need the
best equipment and the hardest working partners to get the job done. So it’s
Viking EPS - Yamaha Blue
time to consider how the Viking can make your life a little easier!
The spacious 3-seat layout and walk-through floor ensure a comfortable
and safe drive every time for you and your colleagues. Its double wishbone
suspension is ready to take on the most rugged terrain – while the Euro-pallet
sized tipping cargo bed can carry loads up to 272 kg.
Equipped with our On-Command® drive system with 2WD, 4WD and 4WD
with Diff Lock and powered by a high-torque 686cc engine, the 3-seater Viking
could be the best purchase you ever made!
VIKING EPS (SXS)
Viking EPS - Olive Green
High-torque 686cc engine Electronic Power Steering (EPS) Electronic Fuel Injection (EFI) 3 mode On-Command® system
The high-torque 686cc single-cylinder engine Even with three passengers and a full cargo load The reliable 686cc 4-stroke single-cylinder The Viking is designed to be used on a wide variety
produces plenty of controllable power for on board, the Electronic Power Steering (EPS) engine features an advanced Electronic of surfaces and the 3-mode On-Command® system
effective off-road transportation. For added ensures that the steering feels light even when Fuel Injection system that ensures efficient offers 2WD, 4WD or 4WD with Diff Lock options
confidence on slippery downhill slopes the fully laden or when driving in heavy soils like clay. combustion for good throttle response. to suit different terrain and weather conditions.
Ultramatic® transmission features an engine When 4WD with Diff Lock is selected the EPS Together with the forged piston and pent roof The simple rotary-type switch enables the driver to
braking function – while the 2WD, 4WD and switches automatically to a second programme combustion chamber design, the EFI enables select their chosen drive mode in seconds.
Diff Lock modes can be quickly selected to suit designed to optimise the steering characteristics. the Viking engine to produce gutsy torque at
different surface conditions. low rpm with strong high rpm performance.ENJOY
Discover your world
Nothing else feels quite so good as the total Features include the industry-leading With their impressive all terrain performance
sense of freedom that comes with every Ultramatic automatic transmission with as well as user-friendly technology and
Yamaha leisure vehicle. You’ll be able to all-wheel engine braking for a smooth and outstanding ride comfort, the class-leading
discover many remote places that are out confident ride – as well as Yamaha’s highly Grizzly ATVs can help you discover the
of bounds to most other vehicles – and acclaimed On-Command® system that puts wonders of the off road world – while the
fully appreciate the world around you. you in full control by making it easy to Wolverine 4-seat and 2-seat Side-by-Side
switch between 2WD and 4WD. models enable you to share the experience
with family and friends.A force of nature.

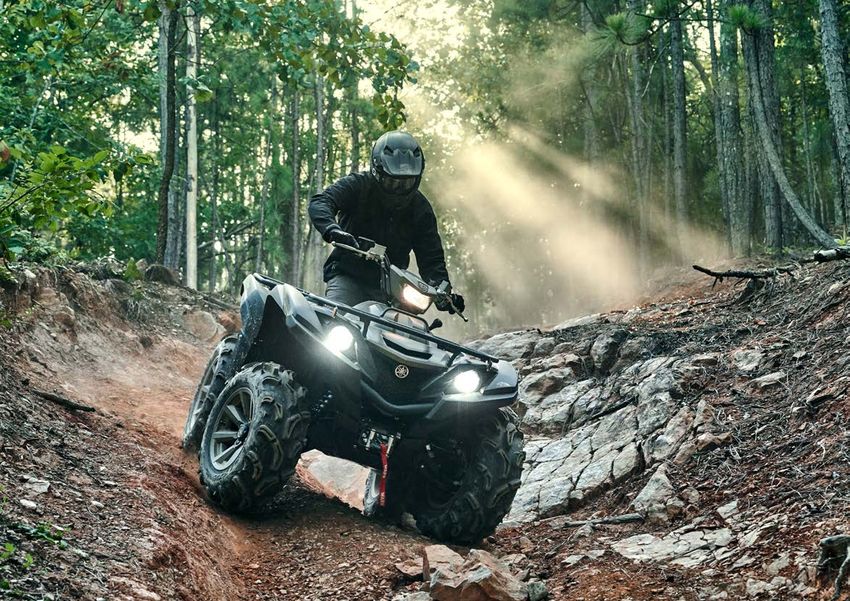

GRIZZLY 700 EPS
Yamaha’s rugged Grizzly 700 has earned a solid reputation for being the
world’s toughest ATV. By making light work of heavy jobs, this rugged Grizzly 700 EPS - Stormcloud Grey Grizzly 700 EPS - Yamaha Blue
vehicle allows you to appreciate your surroundings.
Driven by a MK II 686cc engine that delivers the power you need to do the
job efficiently, the Grizzly 700 is built to work as hard as you. Its compact
bodywork features LED lights and a halogen work light for powerful
illumination - and the 26-inch tyres give plenty of traction.
Featuring Yamaha’s Ultramatic® transmission and On-Command® drive
system - together with Electronic Power Steering (EPS model) - the Grizzly
700 gives you class-leading performance, style and functionality.
GRIZZLY 700 EPS (ATV)
Grizzly 700 EPS - Olive Green
MK II 686cc SOHC engine Ultramatic® transmission Independent suspension, disc brakes On-Command® drive system
Yamaha’s biggest ATV features a powerful large Equipped with High, Low, Reverse, Neutral The Grizzly 700’s independent suspension system The intelligent On-Command® drive system gives
capacity engine that delivers class-leading torque and Park modes, Yamaha’s industry-leading uses nitrogen gas shocks that are adjustable for you convenient push button control, allowing
and power. Featuring the 2nd generation MK II Ultramatic® automatic transmission is one of preload, allowing the rider to run various settings you to switch seamlessly and instantaneously
686 engine SOHC 4-valve cylinder head, with EFI the most durable and efficient CVT systems. to suit differing loads. This is the only model in its from 2WD to 4WD and back. Switch between
Throttle body, fine-tuned ECU mapping, refined Featuring an instant reacting gearing to tackle class featuring four wheel hydraulic disc brakes 2WD, 4WD and 4WD with Diff Lock with a simple
tolerances and other updates results in lower fuel the toughest terrains without losing the natural for outstanding, responsive braking performance. push button on the handle bar, optimising the
consumption, increased torque and a smoother all-wheel engine braking feel, giving added Grizzly 700’s performance in changing terrain and
engine performance. confidence and control on downhills. weather conditions.A force of nature.
GRIZZLY 700 EPS Alu / SE
Yamaha’s rugged Grizzly 700 EPS Alu has earned a solid reputation for being
the world’s toughest ATV. By making light work of heavy jobs, this rugged Grizzly 700 EPS Alu Grizzly 700 EPS Alu
vehicle allows you to appreciate your surroundings. - Olive Green - Camo
Driven by a MK II 686cc engine that delivers the power you need to do
the job efficiently, the Grizzly 700 EPS Alu is built to work as hard as you.
Its compact bodywork features LED lights and a halogen work light for
powerful illumination – and the 26-inch tyres give plenty of traction.
Featuring Yamaha’s Ultramatic® transmission and On-Command® drive
system – together with Electronic Power Steering – the Grizzly 700 EPS Alu
gives you class-leading performance, style and functionality.
GRIZZLY 700 EPS Alu / SE (ATV)
Grizzly 700 EPS SE - Bronze
MK II 686cc SOHC engine Ultramatic® transmission Independent suspension, disc brakes On-Command® drive system
Yamaha’s biggest ATV features a powerful large Equipped with High, Low, Reverse, Neutral The Grizzly 700’s independent suspension system The intelligent On-Command® drive system gives
capacity engine that delivers class-leading torque and Park modes, Yamaha’s industry-leading uses nitrogen gas shocks that are adjustable for you convenient push button control, allowing
and power. Featuring the 2nd generation MK Ultramatic® automatic transmission is one of preload, allowing the rider to run various settings you to switch seamlessly and instantaneously
II 686 engine SOHC 4-valve cylinder head, with the most durable and efficient CVT systems. to suit differing loads. This is the only model in its from 2WD to 4WD and back. Switch between
new EFI Throttle body, fine-tuned ECU mapping, Featuring an instant reacting gearing to tackle class featuring four wheel hydraulic disc brakes 2WD, 4WD and 4WD with Diff Lock with a simple
refined tolerances and other updates results in the toughest terrains without losing the natural for outstanding, responsive braking performance. push button on the handle bar, optimising the
lower fuel consumption, increased torque and a all-wheel engine braking feel, giving added Grizzly 700’s performance in changing terrain and
smoother engine performance. confidence and control on downhills. weather conditions.Explore more
WOLVERINE X4
Yamaha’s 2-seat Side By Side models open up a new world of adventure. And
now you can double your fun with the 4-seat Wolverine X4!
Equipped with high-back seats that are designed to accommodate 4 adults,
this is one of the most comfortable ways to get out there and explore with
your friends. Its compact chassis gives outstanding levels of agility and
maneuverability – and the powerful 850cc parallel twin cylinder engine
produces plenty of torque for easy low speed control in technical terrain.
With a smooth-running Ultramatic transmission and our switchable On-
Command drive system with 2WD/4WD/Diff Lock, the Wolverine X4 gives you
more confidence and control!
WOLVERINE X4 (SXS)
Wolverine X4 - Yamaha Blue
Powerful 850cc twin cylinder engine Compact and agile chassis Quiet and comfortable interior Self-levelling rear shocks
The 850cc parallel twin cylinder engine produces The Wolverine X4’s compact chassis features a We’ve gone to great lengths to make sure that Whether you’re riding alone or with
high levels of linear torque, giving the X4 the short wheelbase of only 2,100 mm – just 35 mm you and your passengers are able to enjoy a quiet passengers and cargo, the self-levelling rear
ability to carry 4 adults and their cargo across longer than the 2-seat Wolverine R model. And and relaxing ride. The large volume intake and suspension makes sure that every journey
technical and hilly landscapes with ease. For a with an overall length of 3,100 mm and width exhaust systems drastically reduce engine noise is comfortable. Whatever the load, this
stronger driving force at low and high speeds, the of 1,580 mm, this is one of the most versatile, and make conversations between occupants easy intelligent rear suspension system helps
crossplane concept design features a long stroke agile and easy-handling SxS models in the 4-seat to hear, while the rubber engine mounts and to maintain a consistent ride height that
together with a 270-degree crank. category. extensive chassis insulation minimise footboard enhances the overall ride quality – even on
vibration. rugged terrain.Explore more
WOLVERINE X2 R-Spec Alu
Yamaha’s 2-seat Side By Side models open up a new world of adventure.
Wolverine X2 R-Spec Alu
Equipped with high-back seats that are designed to accommodate 2 adults, - Yamaha Blue
this is one of the most comfortable ways to get out there. Its compact
chassis gives outstanding levels of agility and maneuverability – and the
powerful 850cc parallel twin cylinder engine produces plenty of torque for
easy low speed control in technical terrain.
With a smooth-running Ultramatic transmission and our switchable On-
Command drive system with 2WD/4WD/Diff Lock, the Wolverine X2 Alu
gives you more confidence and control!
WOLVERINE X2 R-Spec Alu (SxS)
Wolverine X2 - Camo
Powerful 850cc twin cylinder engine Compact and agile chassis Quiet and comfortable interior KYB Piggy Back Shocks front & rear
The 850cc parallel twin cylinder engine produces The Wolverine X2 Alu’s compact chassis features We’ve gone to great lengths to make sure that The suspension can be tuned to your personal
high levels of linear torque, giving the X2 Alu the a short wheelbase of only 2,100 mm – just 35 mm you and your passengers are able to enjoy a quiet preference and terrain condition with KYB gas
ability to carry 2 adults and their cargo across longer than the 2-seat Wolverine R model. And and relaxing ride. The large volume intake and charged piggy back shocks with Hi and Low speed
technical and hilly landscapes with ease. For a with an overall length of 3,100 mm and width of exhaust systems drastically reduce engine noise compression – and single rebound adjustment.
stronger driving force at low and high speeds, the 1,580 mm, this is one of the most versatile, agile and make conversations between occupants easy
crossplane concept design features a long stroke and easy-handling SxS models. to hear, while the rubber engine mounts and
together with a 270-degree crank. extensive chassis insulation minimise footboard
vibration.Explore more
WOLVERINE X2
New Yamaha’s 2-seat Side By Side models open up a new world of
adventure.
Equipped with high-back seats that are designed to accommodate 2 full-
size adults, this is one of the most comfortable ways to get out there. Its
compact chassis gives outstanding levels of agility and manoeuvrability
- and the powerful 850cc parallel twin cylinder engine produces plenty of
torque for easy low speed control in technical terrain.
With a smooth-running Ultramatic transmission and our switchable
On-Command drive system with 2WD/4WD/Diff Lock, the Wolverine X2
gives you more confidence and control!
WOLVERINE X2 (SXS)
Wolverine X2 - Stormcloud Grey
Powerful 850cc twin cylinder engine Compact and agile chassis Quiet and comfortable interior Speed Key
The 850cc parallel twin cylinder engine produces The Wolverine X2’s compact chassis features a We’ve gone to great lengths to make sure that With its smooth and responsive engine, seamless
high levels of linear torque, giving the X2 the short wheelbase of only 2100mm - just 35mm you and your passenger are able to enjoy a quiet Ultramatic transmission and On-Command drive
ability to carry 2 full-sized adults and their cargo longer than the 2-seat Wolverine R model. And and relaxing ride. The large volume intake and system, the Wolverine X2 is one of the most user-
across technical and hilly landscapes with ease. with an overall length of 3100mm and width of exhaust systems drastically reduce engine noise friendly Side By Side models. For added security
For a stronger driving force at low and high 1580mm, this is one of the most versatile, agile and make conversations between occupants easy there’s a removable Speed Key under the hood
speeds, the crossplane concept design features a and easy-handling SxS models. to hear - while the rubber engine mounts and that allows you to restrict the top speed to 40
long stroke together with a 270-degree crank. extensive chassis insulation minimize footboard km/h when young or inexperienced drivers are
vibration. using your vehicle.Make it yours When you’ve just chosen the right Yamaha ATV or Side-by-Side that best suits your needs, why would you want to outfit it with anything other than Yamaha Genuine Parts & Accessories? We’ve created a diverse range of quality accessories engineered specially to fit your ATV or Side-by-Side. You can expect the same level of quality and performance that goes into every Yamaha product we build. So whether you use your Yamaha ATV or Side-by-Side for work, leisure or competition, have just one or several Yamaha’s, there’s a Genuine Accessory that’s right for you.
General Hour / Tacho Meter Oil Funnel Metric Tool Kit Thumb Warmer Spot Light Kit
Utility Winch items Viking Wolverine Trailer Hitch Cargo Box Rear Gun Boot Holder Winch Cover Neoprene Seatcover - Camouflage Rock Sliders Front Bash Plate Plastic Glide Plate Gun Boot Winch Kit Rubber Floor Mats Hard Cab Enclosure System Doors ATV-TEK V-Grip™ Single Camo Seat Cover Molle Style Bag Wireless Remote Control Folding Windscreen Heater Over Fender Kit Grip Heater Kit Extension Rack Synthetic Rope Kit Center Seat Console Skidplates Wolverine x2 x4 Basket Seat Heater Front Cargo Box Multi Mount for Winch Cargo Bed Box Soft Close Cabin Kit Above is a selection of accessories for the ATV & SxS models. More accessories can be found on the Yamaha Motor website.
Your search for adventure starts here. Inside every one of us there is a real spirit of adventure and a burning desire to find out what’s over the next horizon. And with this innate thirst for discovery, there is no limit to what you can achieve and how far you can go. Yamaha’s 360 degree line up of products enables you to enjoy and share a seamless range of quality experiences on land, water or snow. And to help you find out what really revs your heart, Yamaha has created a specialist adventure portal that gives you instant access to an exciting, surprising and rewarding new world. Destination Yamaha Motor is a global online travel platform that gives every thrill-seeker the opportunity to get their adrenaline pumping and make new memories that will last forever. Working with key approved travel partners, Destination Yamaha Motor enables you to search online for the ultimate adventure be it on a motorcycle, a 4-wheeler, a WaveRunner or a snowmobile. With a truly diverse selection of trips on offer, you can find a new experience that broadens your horizons and takes you out of your comfort zone – and you can be sure that every provider has been checked and approved by Destination Yamaha Motor, meaning that you can book with total confidence. Visit www.destination-yamaha-motor.eu now and make an exciting new tomorrow with us.
Specifications
KODIAK 700 KODIAK 700 EPS KODIAK 700 EPS Alu KODIAK 700 EPS SE
Engine
Engine type Single cylinder, liquid-cooled, 4-stroke, SOHC, 4-valves Single cylinder, liquid-cooled, 4-stroke, SOHC, 4-valves Single cylinder, liquid-cooled, 4-stroke, SOHC, 4-valves Single cylinder, liquid-cooled, 4-stroke, SOHC, 4-valves
Displacement 686cc 686cc 686cc 686cc
Bore x stroke 102.0 mm x 84.0 mm 102.0 mm x 84.0 mm 102.0 mm x 84.0 mm 102.0 mm x 84.0 mm
Compression ratio 10.0 : 1 10.0 : 1 10.0 : 1 10.0 : 1
Lubrication system Wet sump Wet sump Wet sump Wet sump
Fuel system Electronic Fuel Injection Electronic Fuel Injection Electronic Fuel Injection Electronic Fuel Injection
Ignition system TCI TCI TCI TCI
Starter system Electric Electric Electric Electric
Ultramatic® V-belt with front- and rear wheel engine Ultramatic® V-belt with front- and rear wheel engine Ultramatic® V-belt with front- and rear wheel engine Ultramatic® V-belt with front- and rear wheel engine
Transmission system
braking, H/L/N/R/P braking, H/L/N/R/P braking, H/L/N/R/P braking, H/L/N/R/P
Drive system Lever operated 2WD/4WD On-Command® 2WD, 4WD, 4WD with Diff-lock On-Command® 2WD, 4WD, 4WD with Diff-lock On-Command® 2WD, 4WD, 4WD with Diff-lock
Final transmission Shaft Shaft Shaft Shaft
Chassis
Independent double wishbone, 180 mm wheel travel, 5 Independent double wishbone, 180 mm wheel travel, 5 Independent double wishbone, 180 mm wheel travel, 5
Front suspension system Independent double wishbone, 180 mm wheel travel
position preload adjustment position preload adjustment position preload adjustment
Independent double wishbone, 230 mm wheel travel, 5 Independent double wishbone, 230 mm wheel travel, 5 Independent double wishbone, 230 mm wheel travel, 5
Rear suspension system Independent double wishbone, 230 mm wheel travel
position preload adjustment position preload adjustment position preload adjustment
Front brake Dual ventilated hydraulic disc Dual ventilated hydraulic disc Dual ventilated hydraulic disc Dual ventilated hydraulic disc
Rear brake Multi-disc wet rear brake in rear gearcase Multi-disc wet rear brake in rear gearcase Multi-disc wet rear brake in rear gearcase Multi-disc wet rear brake in rear gearcase
Front tyres Maxxis MU19 AT25x8-12, E marked, steel wheels Maxxis MU19 AT25x8-12, E marked / steel wheels Maxxis MU19 AT25x8-12, E marked, aluminium wheels Maxxis MU19 AT25x8-12, E marked, aluminum wheels
Rear tyres Maxxis MU19, AT25x10-12, E marked, steel wheels Maxxis MU19, AT25x10-12, E Marked / steel wheels Maxxis MU19, AT25x10-12, E Marked, aluminium wheels Maxxis MU19, AT25x10-12, E Marked, aluminum wheels
Dimensions
Overall length 2,070 mm 2,070 mm 2,070 mm 2,070 mm
Overall width 1,180 mm 1,180 mm 1,180 mm 1,180 mm
Overall height 1,240 mm 1,240 mm 1,240 mm 1,240 mm
Seat height 860 mm 860 mm 860 mm 860 mm
Wheelbase 1,250 mm 1,250 mm 1,250 mm 1,250 mm
Minimum ground clearance 275 mm 275 mm 275 mm 275 mm
Wet weight (including full oil and
n/a n/a n/a n/a
fuel tank)
Min. turning radius 3.2m 3.2m 3.2 m 3.2m
Fuel tank capacity 18.0litres 18.0litres 18.0 litres 18.0litres
Oil tank capacity 2.6litres 2.6litres 2.6 litres 2.6litres
Loading limits
Front rack 50kg 50kg 50 kg 50kg
Rear rack 90kg 90kg 90 kg 90kg
Cargo bed n/a n/a n/a n/a
Additional features
Steering System Ackermann-type Ackermann-type with Electronic Power Steering Ackermann-type with Electronic Power Steering Ackermann-type with Electronic Power Steering
Front Mounted Winch WARN Pro-Vantage 2500 WARN Pro-Vantage 2500 WARN Pro-Vantage 2500 WARN Pro-Vantage 2500
2”Receiver Trailer style hitch, Handle bar worklight,
2”Receiver Trailer style hitch, Warning Light Indicator 2”Receiver Trailer style hitch, Handle bar worklight, 2”Receiver Trailer style hitch, Handle bar worklight,
Trailer Hitch Digital Meter, Painted Body Plastics, Aluminium casted
Panel Digital Meter Digital Meter, Aluminium casted wheels
wheels
* Specifications are subject to change without notice, in accordance with national regulations and legislations.KODIAK 450 KODIAK 450 EPS KODIAK 450 EPS DL KODIAK 450 EPS SE DL
Engine
Engine type Single cylinder, liquid-cooled, 4-stroke, SOHC Single cylinder, liquid-cooled, 4-stroke, SOHC Single cylinder, liquid-cooled, 4-stroke, SOHC Single cylinder, liquid-cooled, 4-stroke, SOHC
Displacement 421cc 421cc 421cc 421cc
Bore x stroke 84.5 mm x 75.0 mm 84.5 mm x 75.0 mm 84.5 mm x 75.0 mm 84.5 mm x 75.0 mm
Compression ratio 10.0 : 1 10.0 : 1 10.0 : 1 10.0 : 1
Lubrication system Wet sump Wet sump Wet sump Wet sump
Fuel system n/a EFI - 34mm Mikuni EFI - 34mm Mikuni EFI - 34mm Mikuni
Ignition system TCI TCI TCI TCI
Starter system Electric Electric Electric Electric
Ultramatic® V-belt with front- and rear wheel engine Ultramatic® V-belt with front- and rear wheel engine Ultramatic® V-belt with front- and rear wheel engine Ultramatic® V-belt with front- and rear wheel engine
Transmission system
braking braking, H/L/N/R/P braking, H/L/N/R/P braking, H/L/N/R/P
Drive system On-Command® 2WD/4WD On-Command® 2WD/4WD On-Command® 2WD, 4WD, 4WD with Diff-lock On-Command® 2WD, 4WD, 4WD with Diff-lock
Final transmission Shaft Shaft Shaft Shaft
Chassis
Independent double wishbone, 171 mm wheel travel, 5 Independent double wishbone, 171 mm wheel travel, 5 Independent double wishbone, 171 mm wheel travel, 5 Independent double wishbone, 171 mm wheel travel, 5
Front suspension system
position preload adjustment position preload adjustment position preload adjustment position preload adjustment
Independent double wishbone, 189 mm wheel travel, 5 Independent double wishbone, 189 mm wheel travel, 5 Independent double wishbone, 189 mm wheel travel, 5 Independent double wishbone, 189 mm wheel travel, 5
Rear suspension system
position preload adjustment position preload adjustment position preload adjustment position preload adjustment
Front brake Dual hydraulic disc Dual hydraulic disc Dual hydraulic disc Dual hydraulic disc
Rear brake Sealed oil-bathed multi-disc Sealed oil-bathed multi-disc Sealed oil-bathed multi-disc Sealed oil-bathed multi-disc
Front tyres AT25x8-12 6ply, E marked / steel wheels AT25x8-12 6ply, E marked / steel wheels AT25x8-12 6ply, E marked / steel wheels AT25x8-12 6ply, E marked, aluminum wheels
Rear tyres AT25x10-12 6ply, E marked / steel wheels AT25x10-12 6ply, E marked / steel wheels AT25x10-12 6ply, E marked / steel wheels AT25x10-12 6ply, E marked, aluminum wheels
Dimensions
Overall length 2,035 mm 2,035 mm 2,035 mm 2,035 mm
Overall width 1,180 mm 1,180 mm 1,180 mm 1,180 mm
Overall height 1,160 mm 1,160 mm 1,160 mm 1,160 mm
Seat height 855 mm 855 mm 855 mm 855 mm
Wheelbase 1,240 mm 1,240 mm 1,240 mm 1,240 mm
Minimum ground clearance 245 mm 245 mm 245 mm 245 mm
Wet weight (including full oil and
n/a n/a n/a n/a
fuel tank)
Min. turning radius 3.2m 3.2m 3.2m 3.2m
Fuel tank capacity 14litres 14 litres 14litres 14litres
Oil tank capacity 2.6litres 2.6 litres 2.6litres 2.6litres
Loading limits
Front rack 40kg 40kg 40kg 40kg
Rear rack 80kg 80kg 80kg 80kg
Cargo bed n/a n/a n/a n/a
Additional features
Steering System Ackermann-type Ackermann-type with Electronic Power Steering Ackermann-type with Electronic Power Steering Ackermann-type with Electronic Power Steering
Front Mounted Winch WARN Vrx 25 WARN Vrx 25 WARN Vrx 25 WARN Vrx 25
2”Receiver Trailer style hitch, Handle bar worklight,
2”Receiver Trailer style hitch, Handle bar worklight, 2”Receiver Trailer style hitch, Handle bar worklight,
Trailer Hitch Trailer Tab, Small Digital meter Painted Body Plastics, Aluminium casted wheels, Small
Small Digital meter Small Digital meter
Digital meter
SE Features n/a n/a n/a n/aSpecifications
GRIZZLY 700 EPS GRIZZLY 700 EPS Alu GRIZZLY 700 EPS SE
Engine
Engine type Single cylinder, liquid-cooled, 4-stroke, SOHC, 4-valves Single cylinder, liquid-cooled, 4-stroke, SOHC, 4-valves Single cylinder, liquid-cooled, 4-stroke, SOHC, 4-valves
Displacement 686cc 686cc 686cc
Bore x stroke 102.0 mm x 84.0 mm 102.0 mm x 84.0 mm 102.0 mm x 84.0 mm
Compression ratio 10.0 : 1 10.0 : 1 10.0 : 1
Lubrication system Wet sump Wet sump Wet sump
Fuel system Electronic Fuel Injection Electronic Fuel Injection Electronic Fuel Injection
Ignition system TCI TCI TCI
Starter system Electric Electric Electric
Transmission system Ultramatic® V-belt with front- and rear wheel engine braking, H/L/N/R/P Ultramatic® V-belt with front- and rear wheel engine braking, H/L/N/R/P Ultramatic® V-belt with front- and rear wheel engine braking, L/H/N/R
Drive system On-Command® 2WD/4WD/diff-lock On-Command® 2WD/4WD/diff-lock On-Command® 2WD/4WD/diff-lock
Final transmission Shaft Shaft Shaft
Chassis
Independent double wishbone, 193 mm wheel travel, 5 position preload Independent double wishbone, 193 mm wheel travel, 5 position preload Independent double wishbone, 193 mm wheel travel, 5 position preload
Front suspension system
adjustment adjustment adjustment
Independent double wishbone, 232 mm wheel travel, 5 position preload Independent double wishbone, 232 mm wheel travel, 5 position preload Independent double wishbone, 232 mm wheel travel, 5 position preload
Rear suspension system
adjustment adjustment adjustment
Front brake Dual ventilated hydraulic disc Dual ventilated hydraulic disc Dual ventilated hydraulic disc
Rear brake left hand/right foot operation, Ventilated hydraulic disc Ventilated Disc, left hand/right foot operation left hand/right foot operation, Ventilated hydraulic disc
Front tyres Maxxis MU19 AT26x8-12, E marked, steel wheels Maxxis MU19 AT26x8-12, E marked, aluminium wheels Maxxis 27” Zilla tires 27x 10-14, aluminium wheels
Rear tyres Maxxix MU19, AT26x10-12, steel wheels Maxxis MU19, AT26x10-12, E marked, aluminium wheels Maxxis 27” Zilla tires 27x 10-14, aluminium wheels
Dimensions
Overall length 2,070 mm 2,070 mm 2,070 mm
Overall width 1,230 mm 1,230 mm 1,230 mm
Overall height 1,253 mm 1,253 mm 1,253 mm
Seat height 860 mm 860 mm 860 mm
Wheelbase 1,253 mm 1,253 mm 1,253 mm
Minimum ground clearance 288 mm 288 mm 300 mm
Wet weight (including full oil and fuel
n/a n/a n/a
tank)
Min. turning radius 3.5m 3.5m 3.5 m
Fuel tank capacity 18.0litres 18.0litres 18.0 litres
Oil tank capacity 2.6litres 2.6litres 2.6 litres
Loading limits
Front rack 50kg 50kg 50 kg
Rear rack 90kg 90kg 90 kg
Cargo bed n/a n/a n/a
Additional features
Steering System Ackermann-type with Electronic Power Steering Ackermann-type with Electronic Power Steering Ackermann-type with Electric Power Steering (not for standard version)
Front Mounted Winch WARN Pro-Vantage 2500 WARN Pro-Vantage 2500 WARN Pro-Vantage 2500
Trailer Hitch 2”Receiver Trailer style hitch, Handle bar worklight, Digital Meter 2”Receiver Trailer style hitch, Handle bar worklight, Digital Meter 2”Receiver Trailer style hitch
Painted Body Plastics / Aluminium casted wheels / 27” tires &, 14” Alu
SE Features n/a n/a
wheels / Handle bar worklight / Digital Meter
Towing capacity n/a n/a n/a
Instrumentation n/a n/a n/a
* Specifications are subject to change without notice, in accordance with national regulations and legislations.Viking EPS WOLVERINE X4 WOLVERINE X2 R-Spec Alu WOLVERINE X2
Engine
Engine type Single cylinder, liquid-cooled, 4-stroke, SOHC, 4-valves liquid-cooled, 4-stroke, DOHC, Parallel Twin liquid-cooled, 4-stroke, DOHC, Parallel Twin liquid-cooled, 4-stroke, DOHC, Parallel Twin
Displacement 686cc 847cc 847cc 847cc
Bore x stroke 102.0 mm x 84.0 mm 82 mm x 80.2 mm 82 mm x 80.2 mm 82 mm x 80.2 mm
Compression ratio 10.0 : 1 10.5 : 1 10.5 : 1 10.5 : 1
Lubrication system Wet sump Dry sump Dry sump Dry sump
Mikuni fuel injection with Drive by wire, dual 36mm Mikuni fuel injection with Drive by wire, dual 36mm Mikuni fuel injection with Drive by wire, dual 36mm
Fuel system Electronic Fuel Injection
throttle bodies throttle bodies throttle bodies
Ignition system TCI TCI TCI TCI
Starter system Electric Electric Electric Electric
Transmission system Yamaha Ultramatic®, CVT, Centrifugal clutch Yamaha Ultramatic® CVT automatic V-belt Yamaha Ultramatic® CVT automatic V-belt Yamaha Ultramatic® CVT automatic V-belt
Drive system On-Command® 2WD, 4WD, 4WD with Diff-lock On-Command® 2WD, 4WD, 4WD with Diff-lock On-Command® 2WD, 4WD, 4WD with Diff-lock On-Command® 2WD, 4WD, 4WD with Diff-lock
Final transmission Shaft Shaft Shaft Shaft
Chassis
Independent Double Wishbone with Anti-Sway Bar, Independent Double Wishbone with Anti-Sway Bar, Independent Double Wishbone with Anti-Sway Bar,
Front suspension system Independent double wishbone, 205 mm wheel travel 221 mm of wheel travel with spring preload adjusta- 221 mm of wheel travel with spring preload adjusta- 221 mm of wheel travel with spring preload adjusta-
bility bility bility
Independent Double Wishbone with Anti-Sway Bar, Independent Double Wishbone with Anti-Sway Bar, Independent Double Wishbone with Anti-Sway Bar,
Rear suspension system Independent double wishbone, 205 mm wheel travel 226 mm of wheel travel with self-leveling shock 226 mm of wheel travel with self-leveling shock 226 mm of wheel travel with self-leveling shock
absorbers absorbers absorbers
Front brake Dual hydraulic disc Dual ventilated hydraulic disc Dual hydraulic disc Dual hydraulic disc
Dual ventilated hydraulic disc, Shaft mounted parking
Rear brake Dual hydraulic disc Dual hydraulic disc, Shaft mounted parking brake Dual hydraulic disc, Shaft mounted parking brake
brake
Front tyres AT25x8-12NHS MAXXIS MU75, AT26 x 8-12 Steel Wheels MAXXIS MU75, AT26 x 8-12, Aluminum Wheels MAXXIS MU75, AT26 x 8-12, Aluminum Wheels
Rear tyres AT25x10-12NHS MAXXIS MU76, AT26 x 10-12 Steel Wheels MAXXIS MU76, AT26 x 10-12, Aluminum Wheels MAXXIS MU76, AT26 x 10-12, Aluminum Wheels
Dimensions
Overall length 3,100 mm 3,100 mm 2,920 mm 2,920 mm
Overall width 1,570 mm 1,519 mm 1,500 mm 1,500 mm
Overall height 1,925 mm 1,960 mm 1,900 mm 1,900 mm
Seat height 792 mm n/a n/a n/a
Wheelbase 2,135 mm 2,100 mm 2,100 mm 2,100 mm
Minimum ground clearance 300 mm 273 mm 280 mm 280 mm
Wet weight (including full oil and fuel
613 kgs 754kg 719.5 kg 719.5 kg
tank)
Min. turning radius 4.5m 4.5m 4.5m 4.5m
Fuel tank capacity
Oil tank capacity
Loading limits
Front rack n/a n/a n/a n/a
Rear rack n/a n/a n/a n/a
Cargo bed 272kg 71kg 272 kg 272 kg
Additional features
Ackermann-type with Dual Mode Electric Power Rack and Pinion Steering Assembly with Electric Power Rack and Pinion Steering Assembly with Electric Power Rack and Pinion Steering Assembly with Electric Power
Steering System
Steering Steering Steering Steering
Front Mounted Winch n/a n/a n/a n/awww.yamaha-motor.eu follow us on: Yamaha Motor Europe N.V.
Koolhovenlaan 101
1119 NC Schiphol-Rijk
P.O.Box 75033
1117 ZN Schiphol
The Netherlands
Dealer
+ 31 20 654 6000
ATVs with engines up to 70cc are recommended for use only by riders 6 years and older and always
with adult supervision. ATVs with engines of 70 to 90cc are recommended only for use by riders
12 years and older, and always under adult supervision. ATVs with engines of 90cc or greater are
recommended for use only by riders 16 years and older. ATVs are built to operate within their design
limits. Safe towable weights, together with maximum carrying capacity are identified in the owner’s
manual if applicable. For durability, reliability, but most important of all, operator safety, under
no circumstances should the recommended capacities be exceeded. Yamaha recommends that all
ATV riders take an approved training course. For safety and training information, see your dealer
or call your Yamaha Distributor in your country. ATVs can be hazardous to operate. For your safety:
always avoid paved surfaces. ATVs are designed for unpaved surfaces only. Riding on paved surfaces
may seriously affect handling and control and can cause loss of control. Always wear a helmet, eye
protection and protective clothing. Never carry any passengers. Never engage in stunt riding. Riding
and alcohol/drugs don’t mix. Avoid excessive speed and be particularly careful on difficult terrain.
Please ‘tread lightly’: always ride in a responsible manner, respecting the environment as well as
country and local laws. The riders in this brochure are professionals: don’t attempt to emulate them.
The specification and appearance of Yamaha products will be varied from time to time without
notice, and as shown here are illustrative only and are not a contractual description of products.
Some models are shown with optional accessories. All ATVs come with a 12-month Limited Factory
Warranty. See your dealer for details.
20-DL1-UTI-EU-ENYou can also read
