A Quick Reference Guide to ergoCentric Seating Systems Freestanding Height Adjustable Work Surfaces Category 2 EXCLUSIVELY FOR: Federal Government Workspaces Supply Arrangement SA # E60PQ-140003/023/PQ
Table of contents
1 Key features to look for in a
freestanding height adjustable work surface
2 How to order
4 Table specifications
5 2-Leg expandable frames
6 2LV frames
7 2-Leg modular frames
8 3-Leg modular frames
9 Tabletop specifications
10 3" Grommet hole location
11 Optional accessory add-ons

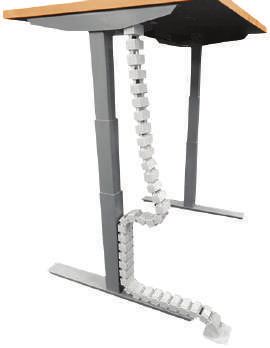

11 upCentric cable management solutions
®
12 Power & data accessories
14 Foot flexor

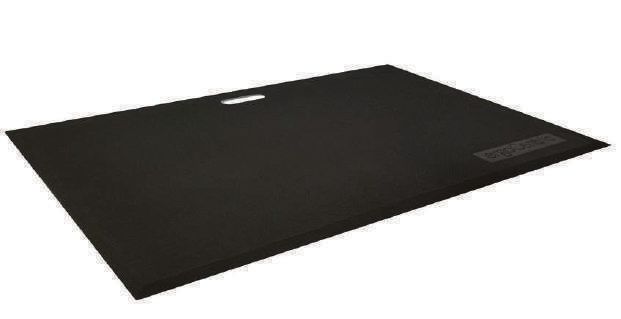

14 Anti fatigue mats

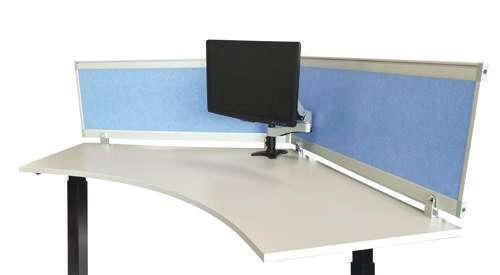

15 Acoustic privacy panels
18 Warranty information
FEATURES
Key features to look for in a
Freestanding Height Adjustable Work Surface
Height adjustable tables have become a popular choice in today’s workspaces. With so many brands and options
to choose from, a table that your clients’ needs can be challenging – we are here to help!
The upCentric® allows users to easily adjust their work surface to the appropriate height for their unique seated
posture, and alternate between seated and standing positions throughout the work day. This adjustability reduces
aches, pains, stress and tension, and improves circulation throughout the body. Moving the table is intuitive with
the easy-to-use up/down control with four position memory. The quiet motors housed in each of the table’s legs
ensure a quick, smooth transition in positions. The durable open frame design provides optimal knee clearance
and space for storage.
Here are some key features to look for when buying a Freestanding Height Adjustable Work Surface.
❶ Quick and easy installation
The upCentric is one of the simplest height adjustable tables to assemble.
Printed and video instructions make assembling the upCentric easy enough
to complete in approximately 15 minutes.
❷ Built-in safety feature
Patented anti-collision system sensor provides enhanced safety to help prevent
injury and equipment damage. When the table is in motion, if it encounters any
external resistance or unbalance in the tabletop, the gyro-sensor picks up the
disturbance immediately and enacts a safety stop.
❸ Digital display control
Four presettable memory positions. One-touch adjustment automatically
adjusts to your preset position. Minimum/maximum height adjustments
at any position. Customizable digital display settings for starting height
and converting between metric and imperial.
❹ Low power draw
The upCentric is one of the most efficient electric
height adjustable tables on the market, minimizing
operating and stand-by power draw to help you
save money.
❺ Low sound level
The upCentric is one of the quietest
height adjustable tables on the market, at 39dB.
❻ Mesh wire management sleeve included
Assists with the organization and presentation
of cables and wires in each workstation.
Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 1 / 18
HOW TO ORDER
How to order an upCentric ®
Freestanding Height Adjustable Work Surface
Step 1: Step 2:
Choose a Height Adjustable Work Surface Select frame colour
See page 3 e.g. Silver
e.g. CGSAMOD-2L-22-24X30
FRAME LAMINATE
SIZE GOCUID TABLE
COLOURS FINISH
Rectangular Tables
24" x 30" 2WSSREXXL24L30BELXX CGSAMOD-2L-22-24X30
Silver Black White*
24" x 36" 2WSSREXXL24L36BELXX CGSAMOD-2L-22-24X36 see page 9
* White is not available on modular frames.
24" x 42" 2WSSREXXL24L42BELXX CGSAMOD-2L-22-24X42
24" x 48" 2WSSREXXL24L48BELXX CGSA-2LV-22-24X48
24" x 48" 2WSSREXXL24L48BELXX CGSA-2L-22-WHITE-24X48
Step 3: Step 4:
Choose power and wire management accessories†
See page 9 See pages 11-13
† T h e c u m u l a t i v e s u m o f a l l p o w e r a n d w i r e m a n a g e m e n t a cc e s s o r i e s
e.g. Dove Grey may not exceed 30% of the Height Adjustable Work Surface purchase price.
e.g. A CGSAMOD-2L-22-24X30 table has a ceiling price of $808.31 – you may add
OPTIONS up to $242.49 (30% of $808.31) worth of accessories to that table.
HPL-High Pressure Laminate
Kensington Maple 21
Natural Pear 22
Wild Cherry 23
Figured Mahogany 24
Cocobala 25
Asian Night 26
Black 27
Designer White
Dove Grey 29
North Sea 30
Graphite 31
Natural Almond 32
Vapor Strandz 33
Studio Teak 34
Walnut Heights 35
Xanadu 36
Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 2 / 18
HOW TO ORDER
Freestanding Height Adjustable Work Surface ordering chart
FRAME
SIZE GOCUID TABLE GROMMET HOLE(S ) CEILING PRICE
COLOURS*
24" x 30" 2WSSREXXL24L30BELXX CGSAMOD-2L-22-24X30 Silver or Black 3GHC $808.31
24" x 36" 2WSSREXXL24L36BELXX CGSAMOD-2L-22-24X36 Silver or Black 3GHC $808.31
24" x 42" 2WSSREXXL24L42BELXX CGSAMOD-2L-22-24X42 Silver or Black 3GHC $808.31
24" x 48" 2WSSREXXL24L48BELXX CGSA-2LV-22-24X48 Silver or Black 3GHC $822.97
24" x 48" 2WSSREXXL24L48BELXX CGSA-2L-22-WHITE-24X48 White 3GHC $822.97
24" x 54" 2WSSREXXL24L54BELXX CGSA-2LV-22-24X54 Silver or Black 3GHL & 3GHR $837.63
24" x 54" 2WSSREXXL24L54BELXX CGSA-2L-22-WHITE-24X54 White 3GHL & 3GHR $837.63
24" x 60" 2WSSREXXL24L60BELXX CGSA-2LV-22-24X60 Silver or Black 3GHL & 3GHR $852.29
24" x 60" 2WSSREXXL24L60BELXX CGSA-2L-22-WHITE-24X60 White 3GHL & 3GHR $852.29
24" x 66" 2WSSREXXL24L66BELXX CGSA-2LV-22-24X66 Silver or Black 3GHL & 3GHR $866.94
24" x 66" 2WSSREXXL24L66BELXX CGSA-2L-22-WHITE-24X66 White 3GHL & 3GHR $866.94
24" x 72" 2WSSREXXL24L72BELXX CGSA-2LV-22-24X72 Silver or Black 3GHL & 3GHR $881.60
24" x 72" 2WSSREXXL24L72BELXX CGSA-2L-22-WHITE-24X72 White 3GHL & 3GHR $881.60
30" x 30" 2WSSREXXL30L30BELXX CGSAMOD-2L-29-30X30 Silver or Black 3GHC $834.37
30" x 36" 2WSSREXXL30L36BELXX CGSAMOD-2L-29-30X36 Silver or Black 3GHC $834.37
30" x 42" 2WSSREXXL30L42BELXX CGSAMOD-2L-29-30X42 Silver or Black 3GHC $834.37
30" x 48" 2WSSREXXL30L48BELXX CGSA-2LV-29-30X48 Silver or Black 3GHC $852.29
30" x 48" 2WSSREXXL30L48BELXX CGSA-2L-29-WHITE-30X48 White 3GHC $852.29
30" x 54" 2WSSREXXL30L54BELXX CGSA-2LV-29-30X54 Silver or Black 3GHL & 3GHR $870.74
30" x 54" 2WSSREXXL30L54BELXX CGSA-2L-29-WHITE-30X54 White 3GHL & 3GHR $870.74
30" x 60" 2WSSREXXL30L60BELXX CGSA-2LV-29-30X60 Silver or Black 3GHL & 3GHR $889.20
30" x 60" 2WSSREXXL30L60BELXX CGSA-2L-29-WHITE-30X60 White 3GHL & 3GHR $889.20
30" x 60" 2WSSREXXL30L66BELXX CGSA-2LV-29-30X66 Silver or Black 3GHL & 3GHR $907.66
30" x 60" 2WSSREXXL30L66BELXX CGSA-2L-29-WHITE-30X66 White 3GHL & 3GHR $907.66
30" x 72" 2WSSREXXL30L72BELXX CGSA-2LV-29-30X72 Silver or Black 3GHL & 3GHR $925.57
30" x 72" 2WSSREXXL30L72BELXX CGSA-2L-29-WHITE-30X72 White 3GHL & 3GHR $925.57
36" x 30" 2WSSREXXL36L30BELXX CGSAMOD-2L-29-36X30 Silver or Black 3GHC $915.26
36" x 36" 2WSSREXXL36L36BELXX CGSAMOD-2L-29-36X36 Silver or Black 3GHC $915.26
36" x 42" 2WSSREXXL36L42BELXX CGSAMOD-2L-29-36X42 Silver or Black 3GHC $915.26
36" x 48" 2WSSREXXL36L48BELXX CGSA-2LV-29-36X48 Silver or Black 3GHC $915.26
36" x 48" 2WSSREXXL36L48BELXX CGSA-2L-29-WHITE-36X48 White 3GHC $915.26
36" x 54" 2WSSREXXL36L54BELXX CGSA-2LV-29-36X54 Silver or Black 3GHL & 3GHR $981.49
36" x 54" 2WSSREXXL36L54BELXX CGSA-2L-29-WHITE-36X54 White 3GHL & 3GHR $981.49
36" x 60" 2WSSREXXL36L60BELXX CGSA-2LV-29-36X60 Silver or Black 3GHL & 3GHR $1,034.14
36" x 60" 2WSSREXXL36L60BELXX CGSA-2L-29-WHITE-36X60 White 3GHL & 3GHR $1,034.14
36" x 66" 2WSSREXXL36L66BELXX CGSA-2LV-29-36X66 Silver or Black 3GHL & 3GHR $1,054.77
36" x 66" 2WSSREXXL36L66BELXX CGSA-2L-29-WHITE-36X66 White 3GHL & 3GHR $1,054.77
36" x 72" 2WSSREXXL36L72BELXX CGSA-2LV-29-36X72 Silver or Black 3GHL & 3GHR $1,073.23
36" x 72" 2WSSREXXL36L72BELXX CGSA-2L-29-WHITE-36X72 White 3GHL & 3GHR $1,073.23
24" x 36" 2WSSDEXXL24L36BELXX CGSAMOD-3L-120-36X24 Silver or Black 3GHC $1,517.29
24" x 42" 2WSSDEXXL24L42BELXX CGSAMOD-3L-120-42X24 Silver or Black 3GHC $1,517.29
24" x 48" 2WSSDEXXL24L48BELXX CGSAMOD-3L-120-48X24 Silver or Black 3GHC $1,539.00
24" x 54" 2WSSDEXXL24L54BELXX CGSAMOD-3L-120-54X24 Silver or Black 3GHC $1,539.00
30" x 36" 2WSSDEXXL30L36BELXX CGSAMOD-3L-120-36X30 Silver or Black 3GHC $1,525.43
30" x 42" 2WSSDEXXL30L42BELXX CGSAMOD-3L-120-42X30 Silver or Black 3GHC $1,525.43
*
Codes for finishes see page 9
Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 3 / 18
TABLE SPECIFICATIONS
Table specifications
3-Leg modular frame in black

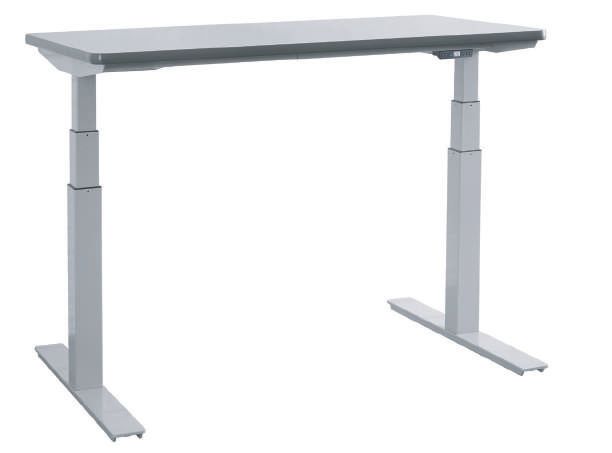

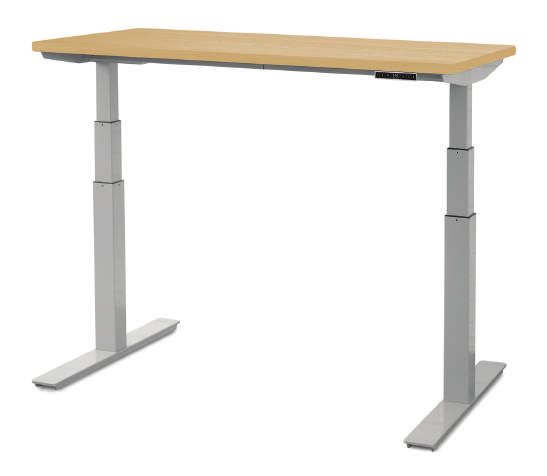

2-Leg frame in white 2-Leg modular frame in silver
Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 4 / 18
TABLE SPECIFICATIONS
Frame specifications
2-Leg
Tabletop & Frame Cross-Bar On All Frames
Frame Width
expandable frames Frame
Depth
6 ¼"
*
The height range does not include the thickness of the tabletop.
†
Refers to depth of the bracket which tabletops are mounted to.
2-Leg Rectangular Frames 2-Leg Rectangular Frames 2-Leg 22 Frame 2-Leg 29 Frame
[CGSA-2L-22 & CGSA-2L-29] [CGSA-2L-22 & CGSA-2L-29] [CGSA-2L-22] [CGSA-2L-29]
Height Range Front View Side View Side View
46"-77" 21.65" 21.65"
47.9"
26.3"
21.6"
9.4" 9.4" 13.3" 13.3"
1"
21.65" 29.5"
2.8"
2-LEG 22 FRAME 2-LEG 29 FRAME
Frame code CGSA-2L-22 CGSA-2L-29
Height range* 21.6"-47.9" 21.6"-47.9"
Width range 46"-77.3" 46"-77.3"
Depth of foot (tabletop bracket) †
21.65" (21.65") 29.5" (21.65")
Assembly time 15-25 minutes 15-25 minutes
Travel speed 1.6" per second 1.6" per second
Digital memory control buttons 4-Position memory 4-Position memory
Weight capacity 300 lbs 300 lbs
Electric TiMOTION ® motors 2 Motors 2 Motors
Max power draw 280 W 280 W
Standby power draw
TABLE SPECIFICATIONS
Frame specifications Tabletop & Frame Cross-Bar On All Frames
2LV frames
Frame Width
Frame 6 ¼"
*
The height range does not include the thickness of the tabletop. Depth
†
Refers to depth of the bracket which tabletops are mounted to.
2LV Frame 2LV Frame 2LV-22 Frame 2LV-29 Frame
[CGSA-2LV-22 & CGSA-2LV-29] [CGSA-2LV-22 & CGSA-2LV-29] [CGSA-2LV-22] [CGSA-2LV-29]
Height Range Front View Side View Side View
41"-72" 19.7" 19.7"
47.9"
26.3"
21.6"
9.4" 9.4" 13.3" 13.3"
1"
29.5"
2.8"
Frame code CGSA-2LV-22 CGSA-2LV-29
Height range* 21.6"-47.9" 21.6"-47.9"
Width range 41.3"-72.8" 41.3"-72.8"
Depth of foot (tabletop bracket) †
21.65" (19.7") 29.5" (19.7")
Assembly time 15-25 minutes 15-25 minutes
Travel speed 1.6" per second 1.6" per second
Digital memory control buttons 4-Position memory 4-Position memory
Weight capacity 220 lbs 220 lbs
Electric TiMOTION ® motors 2 Motors 2 Motors
Max power draw 180 W 180 W
Standby power draw
TABLE SPECIFICATIONS
2-Leg Modular Frames
Frame specifications
[CGSAMOD-2L-22 & CGSAMOD-2L-29]
Tabletop & Frame Top Down View
2-Leg
modular frames
21.65" 6.53"
*
The height range does not include the thickness of the tabletop.
11.89"
2-Leg Modular Frames 2-Leg Modular Frames 2-Leg 22 Modular 2-Leg 29 Modular
[CGSAMOD-2L-22 & CGSAMOD-2L-29] [CGSAMOD-2L-22 & CGSAMOD-2L-29] [CGSAMOD-2L-22] [CGSAMOD-2L-29]
Height Range Front View Side View Side View
12" 12" 21.65" 21.65"
47.9"
26.3"
21.6"
9.4" 9.4" 13.3" 13.3"
1"
21.65" 29.5"
2.8"
Frame code CGSAMOD-2L-22 CGSAMOD-2L-29
Height range* 21.6"-47.9" 21.6"-47.9"
Width range N/A N/A
Depth of foot (tabletop bracket) †
21.65" (21.65") 29.5" (21.65")
Assembly time 15-25 minutes 15-25 minutes
Travel speed 1.6" per second 1.6" per second
Digital memory control buttons 4-Position memory 4-Position memory
Weight capacity 250 lbs 250 lbs
Electric TiMOTION ® motors 2 Motors 2 Motors
Max power draw 280 W 280 W
Standby power draw
TABLE SPECIFICATIONS
Frame specifications 120º Tabletop & Frame 3-Leg Modular Frames
Top Down View
3-Leg
modular frame 21.65" 6.53"
*
The height range does not include the thickness of the tabletop.
†
Representation of the legs at 0º and 90º respectively.
3-Leg Modular Frame 3-Leg Modular Frame
[CGSAMOD-3L-120] [CGSAMOD-3L-120] 11.89"
Height Range Front View †
12" 21.65" 12"
47.9"
26.3"†
21.6"
9.4" 9.4"
1"
21.65"
2.8"
Frame code CGSAMOD-3L-120
Height range* 21.6" - 47.9"
Width range 24" Depth: 36" - 54" | 30" Depth: 36" - 42"
Depth of foot (tabletop bracket)† 21.65" (21.65")
Assembly time 20 - 30 minutes
Travel speed 1.6" per second
Digital memory control buttons 4-Position memory
Weight capacity 400 lbs
Electric TiMOTION ® motors 3 Motors
Max power draw 280 W
Standby power drawTABLE SPECIFICATIONS Tabletop s • Tabletops are constructed using 1" thick 45 lbs particle board, High Pressure Laminate and 3 mm PVC-free edge band. • All tabletops are made to exact printed dimensions. Edge Band e.g. CGSA-2LV-29-30X60 Height Adjustable Work Surface will measure to exactly 30" x 60", +/- 0.25" tolerance. Tabletop dimensions All standard tabletop sizes are exact to printed dimensions To order rd sizes, use actual required dimensions in code, eg. 29" x 71" table = CGSA-2LV-29-29X71-XX-XX High Pressure Laminates [HPL] • High Pressure Laminate tabletops are 1 1⁄ 16" thick, and are available in 16 • 10 day lead time Kensington Maple 21 Natural Pear 22 Wild Cherry 23 Figured Mahogany 24 Cocobala 25 Asian Night 26 Black 27 Designer White 28 Dove Grey 29 North Sea 30 Graphite 31 Natural Almond 32 Vapor Strandz 33 Studio Teak 34 Walnut Heights 35 Xanadu 36 Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 9 / 18
TABLE SPECIFICATIONS
3" Grommet hole locations
• 3" grommet hole with plastic grommet cover
• Positioned 4" from each edge to center of hole
• Tables with a width of 48" or smaller must have at least one hole (3GHC standard)
• Tables with a width of 54" or larger must have at least two holes (3GHL & 3GHR standard)
• 120° Wing tables must have at least two holes (3GHL & 3GHR standard)
• Grommet holes may be added or moved from the standard positions, but may not be removed
Standard locations
48" wide and smaller 54" wide and larger
120º tables
Options
Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 10 / 18OPTIONAL ACCESSORY ADD-ONS
upCentric cable management solutions
®
The cumulative sum of all power and wire management accessories may not exceed 30% of the Height Adjustable Work Surface
purchase price. e.g. A CGSAMOD-2L-22-24X30 table has a ceiling price of $808.31 – you may add up to $242.49 (30% of $808.31)
worth of accessories to that table.
upCentric cable management basket
• The upCentric cable management basket is used to route
wires through a discreet cable channel that will improve the
aesthetics in just about any room, and is a great and
way to conceal and protect cables. Lightweight and easy to handle
and install, the upCentric cable management basket is available
in three width sizes (28", 36" and 48") and two colours (black or silver).
Code Colour List Price
28" MCM28-BLACK Black $124
28" MCM28-SILVER Silver $124
36" MCM36-BLACK Black $135
36" MCM36-SILVER Silver $135
MCM28 - Use for 30", 36" and 42" wide work surfaces
48" MCM48-BLACK Black $146
MCM36 - Use for 48" and 54" wide work surfaces
48" MCM48-SILVER Silver $146 MCM48 - Use for 60" wide work surfaces and larger
Note: When using on UP-3L table, check how much
space is available on the underside of the table in
Mesh colour options
between the brackets. Outer dimensions of the tabletop
Black Silver may not always correlate to an equivalent amount of space.
upCentric cable management spine
Integrates seamlessly with the upCentric desk
and cable management basket
Protects and conceals cables at your workstation
Reduces cable clutter
Lightweight and easy to install
Adjustable with 30 vertebrae
Customized weighted base for stability
Overall length is 52" and is available in three finishes: white, silver, black
Colour Code List Price
White VWMSP-WH $119
Silver VWMSP-SL $119
Black VWMSP-BK $119
upCentric magnetic cable management spine
Allows you to connect between two of the 3 strips
of vertebrae in the standard model
Includes 7 vertebrae with a magnetic strip attached
Extra adaptor bracket for attaching the spine in-line with table leg
Colour Code List Price
White VWMSP-MAG-WH $179
Silver VWMSP-MAG-SL $179
Black VWMSP-MAG-BK $179
Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 11 / 18OPTIONAL ACCESSORY ADD-ONS
Power & data accessories
3" Power dock
• The 3" grommet power and pop-up dock can be used in anywhere that needs an easy access AC power and 5V DC 2.1 A USB
charger. Simply bore a 3" hole for installation or replace a 3" grommet with any of the Dock-200 Series. The simple touch of a
tip will release the spring-loaded lid of the 3" grommet and it will gently open up to reveal an AC outlet and USB charger.
Code Colour List Price
• 2 grounded AC outlet 15A rating DOCK200-BK Black $211
• 10' 14 AWG power cord
• 1000 joules surge protection
• 1 grounded AC outlet 15A rating DOCK270-BK Black $222
• 2 USB charging ports with shared
2.1 charging power
• 10' 14 AWG power cord
• 1000 joules surge protection
Pop-up power harness
• The power harness is mounted and enriches everyday
when in use and can be tucked away when not. The AC receptacles are
dynamically positioned for simpler power access handling.
• Note: Requires 3" bore for installation and a minimum of 12" clearance
under mounting surface to operate correctly.
• 2 AC 125V 12A TOWER01 Black $176
• Cat. 6 rated RJ45
ethernet coupler
• 6' 14 AWG power cord
• 2 AC receptacles, AC 125V 12A TOWER02 Black $176
• 2 DC 5V USB charging ports
- provides shared 4.2A of
charging power
• 6' 14 AWG power cord
Wireless charging dock
• Fits 3" grommet hole
• Sits with tabletop WC-BK Black $124
• For use with products
equipped with wireless
charging capabilities
Clamp-on power dock
• 2 AC outlets
• 5V USB charging port CD-WH White $178
CD-SA Satin Aluminum $178
Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 12 / 18OPTIONAL ACCESSORY ADD-ONS
Clamp-on power dock, black
• 2 AC outlets
• 5V USB charging port CD-STA Black $141
Power bar with 10' spiral wire
$157
Power bar with 10' spiral wire and 1' straight daisy chain plug
$178
Power bar with 10' cord
$92
Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 13 / 18OPTIONAL ACCESSORY ADD-ONS
Foot flexor
• 1 ¾" laminated MDF footplate
• Foot plate height: 3 ½"
• Dimensions: 18"w x 11 ½"d
• Inset vinyl non-slip tread, ⅝" diameter chrome plated steel tube
rubber non-slip feet
• Footplate and tubular frame are one part
Foot Flexor 3 ½" FOOTFLEXOR $133
Tall Foot Flexor 6" TALLFOOTFLEXOR $151
Anti-fatigue mats
• Work well in conjunction with standing height, height adjustable workstations, sit stand seating and stools
• Non-slip top and bottom with no-trip beveled edge
• Safe, non-toxic and latex-free (No PVC or BPAs)
• Flame resistant up to 200° C
• Dimensions: ¾" thick
• Available in black
• 1 year warranty
Item Code List Price
Anti-fatigue mat – 18" x 24" AFM-18x24 $97
Anti-fatigue mat – 36" x 24" AFM-36x24 $162
Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 14 / 18OPTIONAL ACCESSORY ADD-ONS
Acoustic privacy material options
Acoustic panels [ZIN]
•
• Sturdy, tackable, recycled plastic
• Panels are ½" thick and available in 6 colours
• 10 day lead time
Blue 01 Navy 02 Cream 03
Silver 04 Gray 05 Ash 06
Acoustic privacy panels
bracket & clamp options
Clamps
• Clamps for attaching privacy panels to tabletops
Item Code List Price
Chrome Clamp
9 N/C
(for use with framed or non-framed privacy panels)
Surface Mounted Shell Clamp - Silver
5 N/C
(for use with non-framed privacy panels only)
Surface Mounted Shell Clamp - White
6 N/C
(for use with non-framed privacy panels only) Chrome Clamp Shell Clamp
Available in silver and white
L-shaped brackets
L-shaped bracket for attaching modesty and modesty-privacy panels
Available in silver
Item Code List Price
L-shaped bracket - Silver 1 N/C
L-shaped Bracket
Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 15 / 18OPTIONAL ACCESSORY ADD-ONS
PANEL LIST
PRODUCT CODE
TYPE PRICE
Size Panel Colour Bracket Type
Acoustic privacy
PRIVACY-FRM-16X24 $361
PRIVACY-FRM-16X30 $375
PRIVACY-FRM-16X36 $389
PRIVACY-FRM-16X42
PRIVACY-FRM-16X48
$392
$477 panels – framed
PRIVACY-FRM-16X54 $506
PRIVACY-FRM-16X60 $534
PRIVACY-FRM-16X66 $618
PRIVACY-FRM-16X72 $647
PRIVACY-FRM-16X78 $701
PRIVACY-FRM-16X84 $730
PRIVACY-FRM-16X90 $773
PRIVACY-FRM-16X96 $784
PRIVACY-FRM-20X24 $396
PRIVACY-FRM-20X30 $409
Shown with
PRIVACY-FRM-20X36 $423 aluminum frames
PRIVACY-FRM-20X42 $426
PRIVACY-FRM-20X48 $521
PRIVACY-FRM-20X54 $555 • Sturdy and tackable acoustic panel
PRIVACY-FRM-20X60 $589
with aluminum frame
• Made from recycled materials
PRIVACY-FRM-20X66 $677
• Two heights and multiple widths to
PRIVACY-FRM-20X72 $712
accommodate a wide variety of table sizes
PRIVACY-FRM-20X78 $727 • Clamps mount the privacy panels on top
PRIVACY-FRM-20X84 $783 of the work surface, without screws
Acoustic PRIVACY-FRM-20X90 $857
privacy See [ZIN] See bracket
panels PRIVACY-FRM-20X96 colour options options to $871
(framed) to the right the right
PRIVACY-FRM-24X24 $430
PRIVACY-FRM-24X30 $446 Blue 01
PRIVACY-FRM-24X36 $488 Navy 02
PRIVACY-FRM-24X42 $558 Cream 03
PRIVACY-FRM-24X48 $619 Silver 04
PRIVACY-FRM-24X54 $693 Gray 05
PRIVACY-FRM-24X60 $732 Ash 06
PRIVACY-FRM-24X66 $775
PRIVACY-FRM-24X72 $802 Clamp - Chrome 9
PRIVACY-FRM-24X78 $817
PRIVACY-FRM-24X84 $827
PRIVACY-FRM-24X90 $888
PRIVACY-FRM-24X96 $925 58 ½"
PRIVACY-FRM-28X24 $453 1 ⅞"
PRIVACY-FRM-28X30 $461
15 ¾" ⅞"
PRIVACY-FRM-28X36 $527
PRIVACY-FRM-28X42 $594
PRIVACY-FRM-28X48 $637 1 5/16"
PRIVACY-FRM-28X54 $768
ex. PRIVACY-FRM-16X60
PRIVACY-FRM-28X60 $811
PRIVACY-FRM-28X66 $837
PRIVACY-FRM-28X72 $874
PRIVACY-FRM-28X78 $906
PRIVACY-FRM-28X84 $925
PRIVACY-FRM-28X90 $995
PRIVACY-FRM-28X96 $1027
Combining Panel Size + Acoustic Privacy Panel Panel Colour Bracket Type Codes $361
Colour + Bracket Codes PRIVACY-FRM-16X24 + -01 + -9 = PRIVACY-FRM-16X24-01-9
Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 16 / 18OPTIONAL ACCESSORY ADD-ONS
Acoustic privacy panels
– unframed
58 ½"
15 ¾"
9
/16"
ex. PRIVACY-ZIN-16X60
Shown with Shell Clamp
• Sturdy and tackable acoustic panel.
• Made from recycled materials
PRIVACY-ZIN-12X24 $214 • Two heights and multiple widths to
PRIVACY-ZIN-12X30 $214 accommodate a wide variety of table sizes
PRIVACY-ZIN-12X36 $214 • Shell clamps mount the privacy panels
PRIVACY-ZIN-12X42 $254
on top of the work surface, using a
wood screw
PRIVACY-ZIN-12X48 $262
PRIVACY-ZIN-12X54 $296
PRIVACY-ZIN-12X60 $311
PRIVACY-ZIN-12X66 $374
Blue 01
PRIVACY-ZIN-12X72 $388
Navy 02
PRIVACY-ZIN-12X78 $453
Cream 03
PRIVACY-ZIN-12X84 $464
Silver 04
PRIVACY-ZIN-16X24 $243
Gray 05
PRIVACY-ZIN-16X30 $243
Ash 06
PRIVACY-ZIN-16X36 $250
Acoustic privacy PRIVACY-ZIN-16X42 See [ZIN] See bracket $288
panels colour options options to Top mounted Shell Clamp - Silver 5
– unframed PRIVACY-ZIN-16X48 to the right the right $322
PRIVACY-ZIN-16X54 $343 Top mounted Shell Clamp - White 6
PRIVACY-ZIN-16X60 $362 Clamp - Chrome 9
PRIVACY-ZIN-16X66 $430
PRIVACY-ZIN-16X72 $451
PRIVACY-ZIN-16X78 $521
PRIVACY-ZIN-16X84 $548
PRIVACY-ZIN-20X24 $308
PRIVACY-ZIN-20X30 $319
PRIVACY-ZIN-20X36 $388
PRIVACY-ZIN-20X42 $410
PRIVACY-ZIN-20X48 $443
PRIVACY-ZIN-20X54 $554
PRIVACY-ZIN-20X60 $570
PRIVACY-ZIN-20X66 $648
PRIVACY-ZIN-20X72 $679
PRIVACY-ZIN-20X78 $741
PRIVACY-ZIN-20X84 $756
Combining Panel Size + Acoustic Privacy Panels – Unframed Panel Colour Bracket Type Codes $214
Colour + Bracket Codes PRIVACY-ZIN-12X24 + -01 + -5 = PRIVACY-ZIN-12X24-01-5
Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 17 / 18WARRANTY INFORMATION
Sit down. Stand up.
A healthy way to work.
Warranty
ergoCentric Seating Systems hereby warrants all of its tables and accessory products against defects and functional failure of materials.
These warranties shall not apply to any products which must be replaced because of normal wear and tear, negligence, abuse or accident,
shipping damage, or product use other than in accordance with written instructions and warnings. ergoCentric makes no warranty that any
of its products are suitable for any particular purpose and makes no other warranties, expressed or implied, other than those set forth herein.
In no event shall ergoCentric be liable in either tort or contract for any loss or direct, special, incidental, consequential or exemplary damages.
This warranty is based on the use during an eight hour work day.
Warranty claims
ergoCentric will repair or replace any product or materials, covered by this warranty, found to be defective or inferior within the
warranted period. This warranty includes the cost of labor and shipping. Claims are to be made directly to ergoCentric or to the
authorized representative from whom the product was purchased. Product or materials, for which a claim has been made, must
be made available for inspection by an authorized ergoCentric representative.
Limit of warranty
These warranties shall be valid only during the term of these warranties; and while the products herein warranted are in the possession of the
original purchaser. The original purchaser shall mean the party which purchased the products for its own use whether from ergoCentric or
an authorized ergoCentric representative.
PRODUCT WARRANTY
upCentric height adjustable frames 12 year limited warranty*
High pressure laminate tabletops 12 years
Monitor supports and cable management 10 years
Power & data accessories 3 years
*12 year warranty covers the frame structure and steel parts. Motors, wires and all electronic components 7 year warranty.
Federal Government | Workspaces Supply Arrangement | SA #E60PQ-140003/023/PQ ergocentric.com 18 / 18Sales and service
ergoCentric Seating Systems
275 Superior Blvd., Mississauga, Ontario L5T 2L6
ph: 1 866 GET ERGO | 905 696-6800
fx: 1 800 848-5190 | 905 696-0899
ergocentric.com
orders@ergocentric.com
Sales support
For a current list of our
sales support please visit:
ergocentric.com/reps
Authorized dealers
For a current list of our
authorized dealers, please visit:
ergocentric.com/government
ergoCentric
Proudly Canadian
ergoCentric® and upCentric® are registered trademarks of ergoCentric Inc.
TiMOTION® is a registered trademark of TiMOTION Technology Co. Ltd.
All other trademarks, registered trademarks and logos are the property of their respective owners.
09/01/2021 v1-SAYou can also read
