ACCORDING TO YOUR NEEDS - Fagor Industrial
HORIZONTAL
             SYMPHONY
  COOKING

                            ACCORDING
                        TO YOUR NEEDS
ACCORDING TO YOUR NEEDS - Fagor Industrial
INDEX

    ACCORDING
  TO YOUR NEEDS
        04

   PERSONALISED
     ELEMENTS
        08

      DESIGN
  OF ACCESSORIES
   AND FINISHES
        14

    A WIDE RANGE
OF MADE-TO-MEASURE
     SOLUTIONS
         18
ACCORDING TO YOUR NEEDS - Fagor Industrial
ACCORDING
                 To solve and optimise available space, Symphony offers you the
                 possibility to design and personalise your kitchen in complete
                 freedom, based on your needs, combining the different elements,
                 devices and accessories available.

TO YOUR NEEDS.
         4       5
ACCORDING TO YOUR NEEDS - Fagor Industrial
FAGOR INDUSTRIAL                                                                                                                         HORIZONTAL COOKING | SYMPHONY

                                                                                                                                               OPTIMISATION                                  MAXIMUN                                       ABSOLUTE
                                                                                                                                               OF SPACE                                      SAFETY                                        COMFORT

                                                                                                                                               Optimisation of the available space,          Maximum safety and quality thanks to          Absolute comfort as a result of the user
                                                                                                                                               allowing customers to tailor their working    full compliance with quality and hygiene      selecting and defining the best position
                                                                                                                                               areas and position the different elements     standards, the use of officially authorised   for the components used in the block,
                                                                                                                                               to their own taste. It also makes it          components, a construction in stainless       optimising and facilitating their work.
                                                                                                                                               possible to create designs that would be      steel, exterior panels with temperatures of
                                                                                                                                               impossible with conventional machinery,       less than 80ºC, the use of pilot lights and
                                                                                                                                               without having to follow any type of          gauges on all electrical elements, “table
                                                                                                                                               modular system or standard dimensions.        safety” system to prevent gas leaks, and
                                                                                                                                                                                             rounded sides and edges.

PERSONALISED                                   MADE TO                                        DESIGN OF FINISHES                               EASY TO                                       RANGE OF                                      OPTIMISED
ELEMENTS                                       MEASURE                                        ACCESORIES                                       CLEAN                                         MATERIALS                                     PERFORMANCE

The Symphony range of kitchen offers           A series designed to make optimum use          Symphony allows users to design the              Easy to clean thanks to all of the elements   A wide range of materials may be included     Possibility to include gas, electric or
you a tailored, functional and aesthetically   of the space you have available. Thanks        kitchen that is best adapted to their needs,     fitting into a single section countertop.     in the unit, made entirely from stainless     induction elements, optimising the
pleasing solution for your working needs       to its versatility in terms of its shape and   choosing between the most appropriate            Symphony elements are compact,                steel, with a 3 mm-thick countertop.          performance required in each case.
thanks to functional cooking elements          size, professionals can choose between         shape (wall mounted, island, shaped, with        without any grooves in which dirt or
such as gas burners, electric fryers, pasta    devices and machinery in different             simple supports, compact, with units, etc.),     grease can collect.
cookers controlled by thermostat, fry-tops     measurements, allowing them to work            different construction features with different
with water systems, induction hobs and         as comfortably and efficiently as possible.    finishes, and a wide range of accessories to
griddles, bains marie or solid top ranges.                                                    give the finishing touch to a perfect setup.

                                                                  6                                                                                                                                                 7
ACCORDING TO YOUR NEEDS - Fagor Industrial
PERSONALISED
  ELEMENTS
                          —

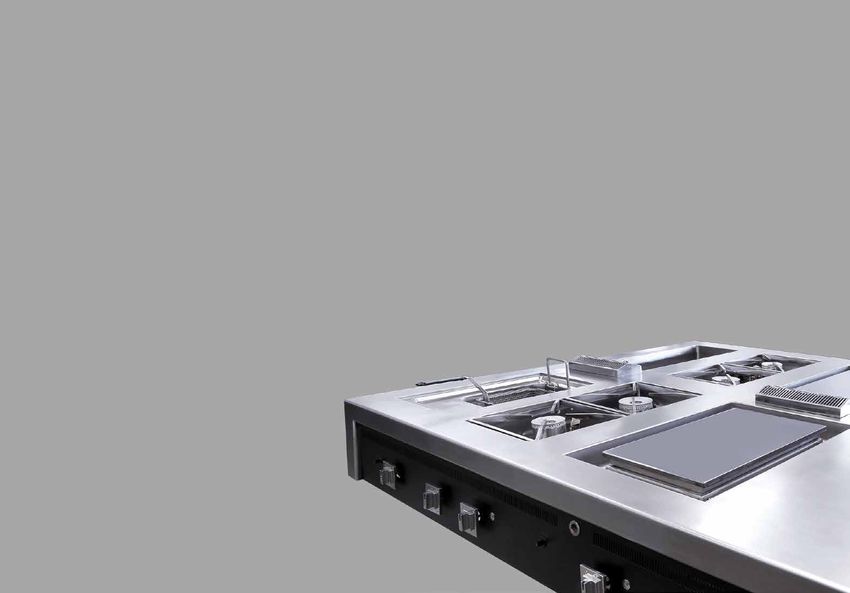

Based on the functional cooking elements, it is possible
 to include gas burners, piezo ignition systems, electric
   fryers, pasta cookers, fry-tops, induction hobs and
  griddles, and bains marie with automatic water filling.
ACCORDING TO YOUR NEEDS - Fagor Industrial
FAGOR INDUSTRIAL                                                                                                                     HORIZONTAL COOKING | SYMPHONY

01.                                           02.                                        03.                                             04.                                           05.

FRY TOP                                       COUP DE FEU                                GAS                                             INDUCTION                                     CHARCOAL
GRIDDLE                                       SOLID TOP                                  BURNERS                                         ELEMENTS                                      GRILLS

Perfect for roasting. Excellent heat          Large top with powerful burner providing   Burner with stainless steel grates (available   Induction hobs in different sizes and power   Lava rocks heated using tubular burners
distribution, ideal for preparing meats and   graduated heat surface.                    in lacquered finish), piezo ignition and drip   ratings can be included for each type of      in AISI-18/10 stainless steel. Support
fish. Drip tray around edge with water                                                   tray system with water sluice.                  requirement, together with induction woks     grate for rocks. Removable drip tray.
sluice controlled by solenoid valve.                                                                                                     and griddles, with uniform heat dispersal
                                                                                                                                         and low energy consumption.

   01                                                                  02                                                                  04

                                                                       03                                                                                                                                        05

                                                               10                                                                                                                                           11
ACCORDING TO YOUR NEEDS - Fagor Industrial
FAGOR INDUSTRIAL                                                                     HORIZONTAL COOKING | SYMPHONY

06.                                         07.                                              08.                                      09.

ELECTRIC                                    SOUS-VIDE                                        BAIN                                     PASTA
FRYERS                                      COOKER                                           MARIE                                    COOKER

Controlled by thermostat to guarantee       Thanks to its precise electronic temperature     Recipient with automatic water filling   Thermostatic control with automatic water
safety and longer oil duration, equipped    control that keeps the whole unit at the         feature. Allows GN pans to be used       filling feature, made completely of stainless
with a support to help drain off the oil.   same temperature, together with its              for preserving sauces and garnishes.     steel with integrated baskets.
Can be recessed into the surface with       circulating water system, it is an ideal
a flanged edge to prevent waste material    element for sous-vide cooking of food
from falling inside.                        sealed in airtight bags, capable of cooking at
                                            low temperatures (of between 56 and 95ºC).

  06                                                                    07                      08                                                                09

                                                               12                                                                                            13
ACCORDING TO YOUR NEEDS - Fagor Industrial
DESIGN
OF ACCESSORIES
 AND FINISHES
                      —

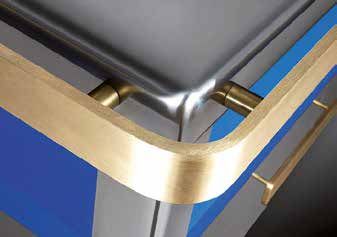

  A wide range of finishes for the countertops,
   structure, interiors and front control panels,
     together with a variety of options for the
  table support, cabinets and other accessory
   elements such as upper grates, support for
  salamander, water faucets or auxiliary plugs.
ACCORDING TO YOUR NEEDS - Fagor Industrial
FAGOR INDUSTRIAL                                                                        HORIZONTAL COOKING | SYMPHONY

01.                                         02.                                         03.                04.

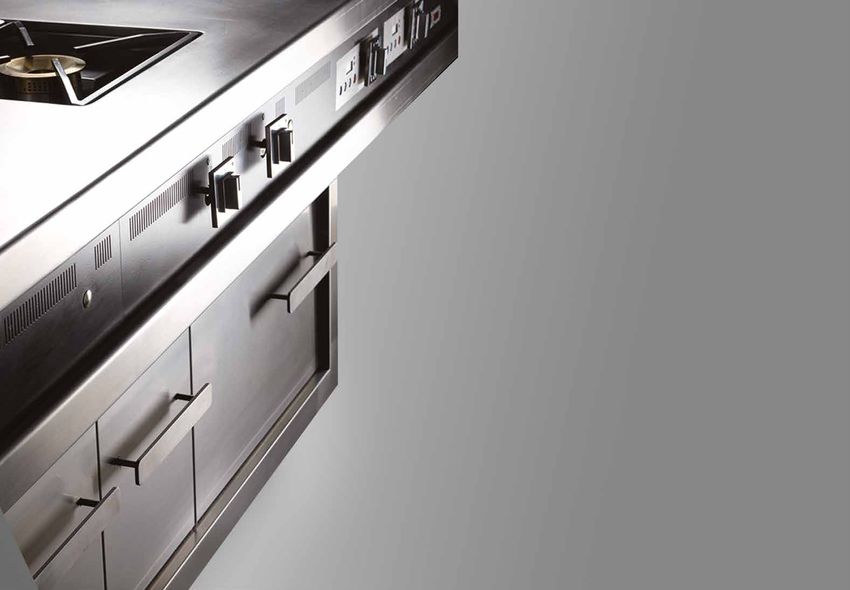

FRONT                                       TECHNICAL                                   HANDRAIL           NEUTRAL CABINETS, HOT
CONTROL PANEL                               CABINETS                                    OPTION AVAILABLE   DRAWERS FOR DISHES AND
                                                                                                           REFRIGERATED DRAWERS

Removable, in 1.5 mm stainless steel        Used to connect installations, electrical                      Heated cabinets and units to keep
sheeting (Also available lacquered in RAL   panels, taps and stopcocks. (Multi-                            plates at the right temperatures.
colours, recessed from front, with gentle   purpose cabinets also available, and/or
folds to make cleaning easier).             hollow cabinets with tray guides).

  01                                                                                                         04

  02                                                                   03

                                                              16                                                                                            17
ACCORDING TO YOUR NEEDS - Fagor Industrial
FAGOR INDUSTRIAL

                            A WIDE RANGE OF
                           MADE-TO-MEASURE
                               SOLUTIONS
                                                                   —

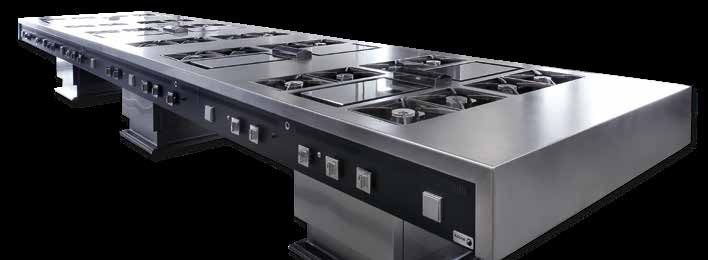

                                  A wide range of units, shapes, sizes, accessories and design
                                     finishes, capable of being integrated into a 3 mm thick
                                          one-piece jointless stainless steel surface top.

01.                             02.                                 03.                               04.

SYMPHONY                        SYMPHONY                            SYMPHONY SUPPORTED                SYMPHONY
CENTRAL                         MURAL                               ON A PEDESTAL                     ON LOW UNIT

Island-type kitchen with        Wall supported kitchen, in          In any of the wall supported      In any of the wall supported or
all-round access to the units   which the machinery and             or island versions, the worktop   island versions, the worktop is
so that cooks can work from     operational elements are            is supported on one or more       supported on a ground fixture
any side of the kitchen.        arranged in a line. Includes a      pedestals, leaving the rest of    which can be used for different
                                rear plate that serves as a trim    the space open beneath the        type of storage and support
                                and as a protective element.        working surface.                  elements: open or closed
                                                                                                      cabinets, multi-purpose units,
                                                                                                      heating or cooling units, electric
                                                                                                      ovens, or technical cabinets for
                                                                                                      connections and supplies...

EXAMPLE 01                      EXAMPLE 02                          EXAMPLE 03                        EXAMPLE 04
Island kitchen unit 1,100 mm    Wall supported kitchen              Wall supported kitchen            Central kitchen 2,000 mm
wide with two pedestals         1,000 mm wide, over a ground        1,000 mm wide on a pedestal       wide over a ground fixture,
containing technical cabinets   fixture with technical cabinets,    containing the technical          which apart from the technical
with the gas, water and         multi-purpose unit and plate        cabinets for the gas, water       cabinets contains plate warming
electricity connections.        warming drawers.                    and electricity connections.      drawers, closed multi-purpose
                                                                                                      units, open units with shelves
                                                                                                      and an electric oven.
