ACSA COLLABORATIVE PRACTICE AWARD SUBMISSION: THE FIELD OF DREAMS ECOCOMMUNITY
RESILIENCE AND SOCIAL JUSTICE AS A FRAMEWORK FOR ARCHITECTURAL EDUCATION, RESEARCH AND PRACTICE
THE FIELD OF DREAMS ECOCOMMUNITY (FOD) IS A COMMUNITY OUTREACH, TEACHING AND RESEARCH PROJECT THAT LINKS ARCHITECTURAL FACULTY AND STUDENTS WITH HABITAT FOR HUMANITY AS A NON-
PROFIT AFFORDABLE HOUSING ORGANIZATION, PROFESSIONAL PRACTITIONERS, NEIGHBORHOOD CITIZENS, JURISDICTIONS AND INDUSTRY PARTNERS, TO CREATE LEARNING AND RESEARCH OPPORTUNITIES THROUGH
RESILIENT, SUSTAINABLE AND SOCIAL JUST DESIGN AND CONSTRUCTION PROJECTS, AND TO EXTEND DESIGN EDUCATION BEYOND THE CLASSROOM INTO REGIONAL COMMUNITIES. FOD BECAME THE PRELUDE TO THE
UNIVERSITY OF UTAH’S NEW REGIONAL DESIGN+BUILD SALT LAKE [D+BSL] PROGRAM, OF WHICH THE FACULTY AUTHOR IS THE FOUNDING DIRECTOR.
TO DATE, FOD’S DESIGN, DEVELOPMENT AND RESEARCH HAS BEEN PUBLISHED AND PRESENTED AT 3 INTERNATIONAL AND 2 NATIONAL PEER-REVIEWED CONFERENCES AND NUMEROUS INVITED LECTURES THROUGHOUT
THE U.S. IT HAS BEEN ON DISPLAY AS PART OF TWO LARGER EXHIBITIONS IN LEADING LOCAL MUSEUMS AND EXHIBITIONS IN SALT LAKE CITY.
• 2021 ACSA COLLABORATIVE PRACTICE AWARD
• 2019 AIA UTAH DESIGN MERIT AWARD
AWARDS
• 2018 ALTA SUSTAINABILITY LEADERSHIP
AWARD FOR OUTSTANDING ACHIEVEMENT IN
SUSTAINABILITY COMMUNITY PARTNERSHIP,
UNIVERSITY OF UTAH
• 2018 DESIGN ARTS UTAH AWARD
01 DEVELOPMENT SITE MODEL
PROJECT CONTEXT
THE FIELD OF DREAMS ECOCOMMUNITY
A CLEAR, IMPACTFUL AND INNOVATIVE CONTRIBUTION TO SUSTAINABILITY AND SOCIALLY JUST RESILIENCE
THE FOD DEVELOPMENT OF 20 RESILIENT, SUSTAINABLE AND AFFORDABLE HOUSES AND THE LOCAL DESIGN+BUILD PROGRAM THAT RESULTED THEREFROM IS A NEW PARTNERSHIP BETWEEN REGIONAL
COMMUNITY PARTNERS AND THE UNIVERSITY OF UTAH’S SCHOOL OF ARCHITECTURE, TO RAISE AWARENESS OF CAREERS IN THE BUILD ENVIRONMENT AND TO PROVIDE OPPORTUNITIES FOR STUDENTS TO
ENGAGE IN COMMUNITY SERVICE AND CREATIVE PROJECTS AS A WAY TO PROMOTE CULTURAL DIVERSITY AND ADDRESS ISSUES OF SOCIAL INJUSTICE THROUGH ARCHITECTURE. THE INAUGURAL PROJECT
FOR THESE PARTNERSHIPS WAS THE PARTICIPATION IN THE DESIGN, DEVELOPMENT, PERMITTING PROCESS AND CONSTRUCTION OF FOD, INCLUDING A COMPREHENSIVE STUDENT CONSTRUCTION COMPONENT
DURING THE FALL 2018 SEMESTER. IN ADDITION TO PROJECT DESIGN AND RESEARCH, THE FACULTY AUTHOR, IN COLLABORATION WITH THE [COLLABORATING PARTY] AND LOCAL JURISDICTION, HOSTED
NUMEROUS PARTICIPATORY EVENTS FOR THE STUDENTS WITHIN THEIR CLASSROOM FRAMEWORK, TO EXPOSE THEM TO THE CHALLENGES OF URBAN AND ARCHITECTURAL DESIGN AND PROJECT RESEARCH,
INCLUDING CLIENT MEETINGS, CITY PLANNING MEETINGS, NEIGHBORHOOD CITIZEN PARTICIPATORY MEETINGS, WORKSHOPS, FREQUENT SITE VISITS AND MANUFACTURER VISITS. AT ALL STAGES OF FOD’S
DEVELOPMENT, A CROSS SECTION OF ARCHITECTURE STUDENTS, FACULTY, PRACTITIONERS IN ARCHITECTURE, ENGINEERING, URBAN DESIGN, AND LANDSCAPING ENGAGED IN MEANINGFUL WAYS.
STUDENT SITE VISIT STUDENT SITE VISIT STUDENT SITE VISIT STUDENT SITE VISIT
DESIGN DEVELOPMENT D+BSL STUDENT INVOLVEMENT
SCHEMATIC DESIGN RE-ZONING SUBDIVISION CD’S CONSTRUCTION
2014 Q3
PROJECT START
Q4
2015 Q1
Q2
Q3
Q4
2016 Q1
Q2
Q3
GROUNDBREAKING
OVERALL SITE
2017 Q1
PERMITTING
UNITS 9& 10
CONSTRUCTION
START 9& 10
Q4
2018 Q1
Q2
Q3
DEDICATION
OCCUPANCY
UNITS 9&10
PROJECT TIMELINE
02 STUDENT PARTICIPATION IN CITY PLANNING MEETING AFFORDABLE HOUSING DESIGN CHARETTE REVIEW PARTICIPATORY MEETINGS
PROJECT CONTEXT INTEGRATED TEAM APPROACH FOR THE FOD DEVELOPMENT OF RESILIENT, SUSTAINABLE AND AFFORDABLE HOUSES WITHIN A MICRO-COMMUNITY, THE TEAM TOOK AN INTEGRATED DESIGN APPROACH IN WHICH STAKEHOLDERS, FACULTY, STUDENTS, HABITAT FOR HUMANITY, ENGINEERS, THE BUILDING DEPARTMENT AND COMPONENT MANUFACTURERS WERE CONTINUOUSLY INVOLVED. THIS APPROACH CONSIDERABLY HELPED THE USE OF STRUCTURAL INSULATED PANELS FOR THE UNITS, A CONSTRUCTION MATERIALS THAT IS MORE OR LESS UNKNOWN ON THE REGIONAL MARKET AND THE AFFORDABLE HOUSING SEGMENT. FURTHERMORE, THE INTEGRATED TEAM APPROACH INCLUDED EXPLORATIONS OF NEW MEANS OF DENSITY, ESTABLISHING A LEVEL PLAYFIELD FOR AFFORDABILITY AND ACCESS TO RESILIENT HOUSING FOR LOWER INCOME DEMOGRAPHICS. WITH A COMMUNITY VISION IN MIND, THE FACULTY AUTHOR, IN CLOSE COLLABORATION WITH THE CLIENT, LOCAL PLANNING DEPARTMENT AND INDUSTRY PARTNERS, WENT THROUGH A LOCAL ZONING REFORM TO CHANGE DENSITY TO THE HIGHEST EXTEND POSSIBLE, ALLOWING TWICE AS MANY UNITS ON THE PROPERTY, THUS SAVING EACH UNIT ABOUT $40,000 IN LAND DEVELOPMENT COST - MONEY THAT WAS THEN UTILIZED TOWARDS A 60% HIGHER BUILDING PERFORMANCE. TWENTY, 1,500 SF, 3 BEDROOM UNITS IN 10 DUPLEXES ARE NOW BEING ERECTED AROUND A COMMUNAL MULTI-FUNCTIONAL RECREATIONAL SPACE THAT PROMOTES OUTDOOR GATHERINGS AND ACTIVITIES, SIMULTANEOUSLY OPENING TO THE NEIGHBORHOOD, THEREFORE ADDING ECONOMIC VALUE TO THE BROADER COMMUNITY. ELEVATED PLANTERS ALLOW OCCUPANTS TO GROW THEIR OWN PRODUCE, PROVIDING A RENEWABLE RESOURCE FOR QUALITY NUTRITION AND FAMILY SAVINGS, PROMOTING TRADITIONAL FAMILY VALUES OF SELF-SUFFICIENCY AND COMMUNITY RESPONSIBILITY. 80-GALLON RAINWATER TANKS/UNIT REPLACE RUNOFF AND SUPPORT PRODUCE PRODUCTION. 03 AERIAL OVERVIEW LOOKING NORTH
PROJECT CONTEXT PROJECT SCOPE & INTEGRATION
RETHINKING DENSITY AND AFFORDABLE HOUSING TEACHING RESEARCH
SIMULATION
THE PROJECT LOCATION’S METROPOLITAN AREA IS EXPERIENCING A SEVERE HOUSING CRISIS, CLASSROOM RESILIENCE
2019-20 SPIN OFF: INTEGRATION PERFORMANCE EVAL.
PREDOMINANTLY AFFECTING AFFORDABLE HOUSING, BUT STARTING TO EFFECT MARKET DESIGN+BUILD SITE VISITS ACTIVE BUILDING
RATE HOUSING TOO. WITH A POPULATION OF 2.4 MILLION, THE AREA IS HOME TO ROUGHLY SALT LAKE 3.0 DESIGN+BUILD COMPACT CORE
‘THE KUNGA PROJECT’ SALT LAKE 2.0 POST-OCCUPANCY MONIT.
80% OF THE STATE’S OVERALL POPULATION, WITH THIS NUMBER EXPECTED TO DOUBLE BY COMPLETED FALL 2020
2050. LACKING AN URBAN GROWTH BOUNDARY, A LARGE PART OF THE PROBLEM LIES IN THE
REGIONAL DESIRE FOR SOUTHWESTERN-STYLE LOW-DENSITY HOUSING WITH EXCESSIVE
SPACE STANDARDS. AS OF MID-2019, 50% OF THE AREA MEDIUM INCOME FAMILIES ARE
FOD
UNABLE TO PURCHASE HOUSES, WITH YOUNG FAMILIES ESPECIALLY AFFECTED. THE RENTAL
SITUATION IS WORSE, FORCING LOW-INCOME DEMOGRAPHICS TO SPEND UP TO 50% OF THEIR PARTICIPATORY WORK, REZONING, SUBDIVISION
ADDRESSING & SOLVING DESIGN, PERMITTING
GROSS INCOME ON MONTHLY RENTAL AND UTILITY PAYMENTS. EQUITY ISSUES WITH HVAC ENGINEERING
PROJECT SIPS PANELS CD’S
OCCUPANTS CONSTRUCTION
SUPPORT
SOCIAL JUSTICE CREATIVE
[COLLABORATING PARTY’S]
& ETHNIC EQUITY PRACTICE
ORIGINAL, SINGLE-STORY 30-YEAR
OLD STANDARD DESIGN FOD BRINGS RELIEF TO THE REGION’S HOUSING CRISIS WHILE RESPECTING LOCAL PREFERENCES IN RESIDENTIAL DESIGN. BESIDES
EXPLORING MEANS OF HIGH-PERFORMANCE RESIDENTIAL BUILDING AT AFFORDABLE COST, THE INTERVENTION IS ALSO AN
INTERPRETATION OF THE PREDOMINANT LOCAL HOUSING TYPOLOGY. THE PROJECT SHOWCASES OPPORTUNITIES TO FULFILL THE
AMERICAN DREAM, SIMULTANEOUSLY OFFERING HIGHER DENSITY COMMUNITY-ORIENTED HOUSING, SUPPORTING A COMMUNITY-
BASED LIFESTYLE AND OFFERING FOUR UNITS ON THE SAME EXPANSE AS ONE CONVENTIONAL HOUSE!
PROPOSED TWO-STORY TWIN HOMES REDUCE THE VECTORWORKS EDUCATIONAL VERSION
FOOTPRINT, FOUNDATION AND ROOF AREA BY 50%,
WITH THE OVERALL ENVELOPE AREA REDUCED BY
65% DUE TO THE ADDITIONAL SHARED PARTY WALL.
04 CONCEPT OF DENSIFICATION
EDUCATION & COMMUNITY ENGAGEMENT AS A WAY TO PROMOTE CULTURAL DIVERSITY PARTICIPATORY WORKSHOP EXPERIENCE - AUTHENTIC LEARNING EXPERIENCE THE INTENT OF CREATING PARTNERSHIPS BETWEEN REGIONAL COMMUNITY PARTNERS AND THE UNIVERSITY OF UTAH’S SCHOOL OF ARCHITECTURE IS TO RAISE AWARENESS OF CAREERS IN THE BUILD ENVIRONMENT AND TO PROVIDE OPPORTUNITIES FOR STUDENTS TO ENGAGE IN COMMUNITY SERVICE AND CREATIVE PROJECTS AS A WAY TO PROMOTE CULTURAL DIVERSITY AND ADDRESS ISSUES OF SOCIAL INJUSTICE THROUGH ARCHITECTURE. FURTHERMORE, A STRONG PRACTICAL CLASSROOM CONTENT AND PARTICIPATORY EVENTS WITH PROJECT STAKEHOLDERS, THE PLANNING COMMUNITY, NEIGHBORHOOD COMMITTEES AND THE JURISDICTION HAS A TRANSFORMATIVE IMPACT ONTO STUDENTS TO LEARN ABOUT THE PROFESSIONAL APPLICATION OF THEORETICAL ACADEMIC CONTENT. 05 STUDENT PRESENTATION IN FRONT OF THE CITY’S PLANNING DEPARTMENT TEAM
EDUCATION & COMMUNITY ENGAGEMENT AS A WAY TO PROMOTE CULTURAL DIVERSITY PARTICIPATORY WORKSHOP EXPERIENCE - AUTHENTIC LEARNING EXPERIENCE DURING THE DEVELOPMENT PROCESS, THE PROJECT WAS REPEATEDLY TAKEN INTO THE CLASSROOM TO OFFER TO THE STUDENTS DESIGN CHARETTES, BRAINSTORMING SESSIONS, CLIENT’S PROJECT DISCUSSIONS, AND TO HAVE THE STUDENTS PARTICIPATE IN NEIGHBORHOOD COMMUNITY MEETINGS, PLANNING MEETINGS AND FUNDRAISING EVENTS. NEIGHBORHOOD COMMUNITY MEETING WITH STUDENTS STUDENT AFFORDABLE HOUSING DETAIL REVIEW & DISCUSSION STUDENTS PARTICIPATE IN HABITAT FOR HUMANITY FUNDRAISING GALA 06 STUDENTS MEET HABITAT FOR HUMANITY
EDUCATION & COMMUNITY ENGAGEMENT AS A WAY TO PROMOTE CULTURAL DIVERSITY FIELD TRIPS & CONSTRUCTION EXPERIENCE - HANDS ON EXPERIENCE GRADUATE STUDENTS ON SITE FALL 2018 UNDERGRADUATE STUDENTS VISITING THE SITE SPRING 2017 07 GRADUATE STUDENTS ON SITE FALL 2017 UNDERGRADUATE STUDENTS AND VOLUNTEERS ON SITE FALL 2017
EDUCATION & COMMUNITY ENGAGEMENT AS A WAY TO PROMOTE CULTURAL DIVERSITY CLASSROOM INTEGRATION - DEVELOPING RESILIENT PRACTICES DURING AY 2018/19, FIELD OF DREAMS ECOCOMMUNITY BECAME PART OF THE UNIVERSITY’S SCHOOL OF ARCHITECTURE NEWLY ESTABLISHED LOCAL DESIGN+BUILD PROGRAM, WITH THE AUTHOR BEING THE PROGRAM’S FOUNDING DIRECTOR. THE LEADOFF COHORT OF 10 STUDENTS PARTICIPATED IN THE CONSTRUCTION AND FINALIZATION OF THE FIRST DUPLEX, WITH 9 MORE DUPLEXES AND 18 UNITS TO GO. “IT WAS EXTREMELY VALUABLE TO SEE HOW CONTRACTORS WORK WITH THE ARCHITECT AND HOW IMPORTANT IT IS TO HAVE COMPREHENSIVE PLANS. IT WAS ALSO INTERESTING TO SEE HOW LOOKING AT THE PLANS, OR LACK THEREOF, INFLUENCED THE FINAL OUTCOME. IT WAS ALSO VERY INFORMATIVE TO SEE HOW THE CONSTRUCTION DELIVERY METHOD AFFECTED THE PROJECT. FURTHERMORE, I HAVE ENJOYED LEARNING ABOUT PASSIVE HOUSES - I REALLY FEEL LIKE IT IS THE DIRECTION WE SHOULD GO IN THE FUTURE. I LOOK FORWARD TO BEING ABLE TO TAKE THE KNOWLEDGE THAT I HAVE LEARNED OVER THE TWO SEMESTERS AND ACTUALLY APPLY IT IN MY CAREER.” - ZACH HESLOP, D+BSL M.ARCH GRADUATE STUDENT 08 EDUCATIONAL OUTREACH - ARCHITECTURE STUDENTS ON SITE
EDUCATION & COMMUNITY ENGAGEMENT AS A WAY TO PROMOTE CULTURAL DIVERSITY CLASSROOM INTEGRATION - DEVELOPING RESILIENT PRACTICES “LOOKING BACK AT THE YEAR, THE FIRST SEMESTER OF DESIGN+BUILD [LOCATION] WAS DEFINITELY A HIGH POINT IN MY ACADEMIC CAREER. EVEN THOUGH WORKING WITH THE CITY WAS FRUSTRATING I REALLY LEARNED A LOT ABOUT REAL DESIGN AND WORKING WITH PLANNING AUTHORITIES. THE SEMESTER ON THE JOB SITE, WHILE THERE WERE FRUSTRATIONS, THERE WAS A LOT OF FUN TO BE HAD WITH EACH OTHER AND A LOT OF THINGS WE COULD LEARN. OVERALL I WOULD SAY THIS PROGRAM WAS VERY POSITIVE EXPERIENCE AND I WOULD DO IT AGAIN. THANK YOU!” - DAVID ZIMMERMAN, D+BSL M.ARCH GRADUATE STUDENT 09
RESEARCH & ENVIRONMENTAL SUSTAINABILITY
STRUCTURAL INSULATED PANELS (SIPS)
CONSIDERABLY REDUCING WOODEN FRAMING COMPONENTS, THE HOMES ARE CONSTRUCTED FROM SIPS THAT USE GRAPHITE-INFUSION TECHNOLOGIES TO INCREASE ITS R-VALUE. THIS ALLOWS APPLICATION OF
8” SIPS INSTEAD OF 12” STANDARD PANELS OR FRAMED WALLS, MAINTAINING PASSIVE HOUSE PERFORMANCE VALUES FOR WALLS AND ROOFS, SIMULTANEOUSLY OFFERING ADDITIONAL NET-SQUARE FOOTAGE.
COMPARABLE IN COST TO CONVENTIONALLY STICK-FRAME INSULATED WALLS, SIPS ARE EASIER AND FASTER TO INSTALL BY THE VOLUNTEERS AND STUDENTS ON THE PROJECT AND OFFER A CONSIDERABLY LOWER
AIR INFILTRATION RATE.
FACULTY AND ARCHITECTURE STUDENTS VISIT A LOCAL PREFABRICATION
MANUFACTURER TO DISCUSS AND EXPERIENCE THE DIFFERENCE BETWEEN STANDARD
STICK FRAMING AND STRUCTURAL INSULATED PANELS, AND HOW THOSE CAN BE
10
BENEFICIAL FROM A PERFORMANCE AS WELL AS AN ASSEMBLY PERSPECTIVE.
STRUCTURAL INSULATED GRAPHITE-INFUSED PANELSRESEARCH & ENVIRONMENTAL SUSTAINABILITY PASSIVE TO ACTIVE BUILDING PERFORMANCE STRATEGIES PASSIVE-TO ACTIVE STRATEGIES RANGE FROM SITE-SPECIFIC DESIGN AND ORIENTATION (OFFERING DIFFERENT FLOOR PLANS FOR NORTH AND SOUTH UNITS), PASSIVE HOUSE COMPONENTS, CONSIDERABLY ENHANCED PERFORMANCE VALUES FOR WALLS, ROOF AND FLOOR SLABS WITH LOWERED AIR INFILTRATION RATES, AND AN OPTIMIZED ACTIVE HOUSE COMPACT CORE DEVELOPED BY RESEARCHERS AT THE LOCAL UNIVERSITY. THESE MEASURES ENHANCE PERFORMANCE TO OVER 60% (HERS 39) OVER COMPARABLE CODE STANDARD BUILDINGS. FUTURE INSTALLATION OF PHOTOVOLTAIC IN THE SOLAR-READY HOMES ALLOWS FOR SITE NET ZERO PERFORMANCE. A POST-OCCUPANCY MONITORING SYSTEM DEVELOPED BY THE AUTHOR AS PART OF HIS UNIVERSITY RESEARCH WILL PROVIDE FURTHER DATA TO INTERPRET THE STEPS TAKEN TOWARDS HIGHER PERFORMANCE FOR THEIR FEASIBILITY AND ROI. 11 UNITS 9&10 UNDER CONSTRUCTION
RESEARCH & ENVIRONMENTAL SUSTAINABILITY
Home Energy Rating Certificate
DESIGN PERFORMANCE VALUES
Property HERS
[COLLABORATING
Habitat for Humanity PARTY] Rating Type: Projected Rating Certified Energy Rater: Steve Thon
4270 W 5803 S Rating Date: 2018-10-04 Rating Number:
Kearns, UT 84118 Registry ID:
Estimated Annual Energy Cost
HERS Index: 39 Use MMBtu Cost Percent
Heating 12.4 $96 15%
General Information Cooling 1.9 $43 7%
Conditioned Area 1241 sq. ft. House Type Duplex, single unit Hot Water 7.5 $56 9%
Conditioned Volume 14283 cubic ft. Foundation Slab Lights/Appliances 15.7 $359 55%
WALLS: R-40 PASSIVE HOUSE Bedrooms
Mechanical Systems Features
3 Photovoltaics
Service Charges
Total
-0.0
37.4
$-0
$100
$654
-0%
15%
100%
ROOFS: R-57 PASSIVE HOUSE
Cooling: Air-source heat pump, Electric, 16.0 SEER.
Water Heating: Instant water heater, Natural gas, 0.98 EF, 0.0 Gal. Criteria
This home meets or exceeds the minimum criteria for the following:
Heating: Fuel-fired hydronic distribution, Natural gas, 98.0 % EFF.
Duct Leakage to Outside NA
FLOOR SLAB: R-30 PASSIVE HOUSE Ventilation System
Programmable Thermostat
Balanced: ERV, 66 cfm, 48.0 watts.
Heat=Yes; Cool=Yes
Building Shell Features
WINDOWS: U-0.26 Ceiling Flat
Sealed Attic
Vaulted Ceiling
NA
NA
R-55.0 w/RB
Slab
Exposed Floor
Window Type
R-32.0 Edge, R-32.0 Under
R-30.0
U-Value: 0.280, SHGC: 0.180
ENTRY DOOR: R-7 Above Grade Walls
Foundation Walls
R-40.0
NA
Infiltration Rate
Method
Htg: 659 Clg: 659 CFM50
Blower door TITLE
Company
Lights and Appliance Features Address
Interior Fluor Lighting (%) 100.0 Range/Oven Fuel Electric City, State, Zip
Interior LED Lighting (%) 0.0 Clothes Dryer Fuel Electric Phone #
Refrigerator (kWh/yr) 691 Clothes Dryer CEF 2.62 Fax #
Dishwasher Energy Factor 0.46 Ceiling Fan (cfm/Watt) 0.00
REM/Rate - Residential Energy Analysis and Rating Software v15.7.1
This information does not constitute any warranty of energy costs or savings. © 1985-2018 NORESCO, Boulder, Colorado.
DHW/RADIANT: NAVIEN 98% EFFICIENT
CONDENSING GAS
ERV: 85% EFFICIENT
RADIANT FLOOR: ON MAIN FLOOR
MINI SPLIT: FOR REMAINS OF HOUSE
(ADD. HEATING/COOLING)
DUAL FLUSH TOILETS
1.0 GPM FAUCETS/SHOWER HEADS
80-GALLON RAINWATER HARVESTING TANK
DESIGN TARGET: 80% IMPROVEMENT BY SIMULATION
60% IMPROVEMENT OVER CODE STANDARD 61% IMPROVEMENT BY IMPLEMENTATION
[HERS 39]
BELOW: POST-OCCUPANCY MONITORING EQUIPMENT
12 BUILDING PERFORMANCE SEFAIRA ENERGY PERFORMANCE MODELING: CODE STANDARD (LEFT) AND AS DESIGNED (RIGHT)RESEARCH & ENVIRONMENTAL SUSTAINABILITY
ENVELOPPE DESIGN EVALUATION AND PERFORMANCE, OWNER‘S MANUAL
Owner’s Manual FIELD OF DREAMS
ECO-COMMUNITY
THE PARTY FIRE WALL BECAME ONE
OF THE CHALLENGES TO BE SOLVED
TOWARDS A LOW AIR INFILTRATION RATE
Habitat for Humanity Housing in Kearns, Utah
5803 S 4270 W, Kearns, Utah 84118
OWNER’S MANUAL FOR HIGH-PERFORMANCE HOUSING
AIR TIGHTNESS CONTROL VIA THERMAL IMAGES BLOWER DOOR TEST AS PART OF THE HERS RATING
MARCH/SEPTEMBER 21 AT NOON
INDICATING GOOD SPRING/FALL INDICATING GOOD SPRING/FALL SOLAR HEAT
SOLAR HEAT GAIN ON MAIN FLOOR GAIN IN SOUTHERN FACING BEDROOMS
13 WUFI PASSIVE ENVELOPE MOISTURE ANALYSIS FOR SIPS EXTRACT FROM THE DAYLIGHTING ANALYSISPROJECT CONTEXT
SITE PILOT UNITS 9&10
2023 - ... 5 - 8 UNDER CONSTRUCTION FINALIZED MID-2019
OVERALL LOT SIZE: 87,500 SF (250’ X 350’)
INDIVIDUAL LOT SIZE: 3,000 SF (31’ X 98’)
HOUSING SIZE: 1,500 SF
PARKING ON PRIVATE PROPERTIES WITH
BACK-TO-BACK PARKING
3 [GUEST] PARKING IN REAR OF PROPERTY
FRONT AND REAR PRIVATE DECKS WITH PRODUCE PLANTERS
CENTER COMMUNITY GREEN WITH LAWN AREA, PLAYGROUND,
BOCCIE COURT, PICNIC AREA, RAINWATER RETENTION POND
20 UNITS
DESCRIPTION OF EXISTING LAND USE
THE LAND WAS USED AS AN AMERICAN LEAGUE WESTERN
BOYS BASEBALL TRAINING FIELD, WHICH INCLUDED TWO
BASEBALL TRAINING COURTS WITH CORRESPONDENT
BUILDINGS AND TEMPORARY TRIBUNES. AS OF TODAY,
THE SITE HAS BEEN FALLOW FOR MAY YEARS AND, AS A
CONSEQUENCE, DISINTEGRATED OVER THE YEARS.
2023 - ... 2021 - 2023
14 PROJECT PROGRESS - PILOT UNITS 9&10 ARE REALIZED AND OCCUPIED (UPPER RIGHT), ADDITIONAL UNITS ARE UNDER CONSTRUCTIONPROJECT DESIGN
ALLEY / ENTRY ELEVATION GARDEN ELEVATION
1 4 9
8
5
2
10
8
6
10"
1. KITCHEN 11
2. DINING
3 3. LIVING ROOM
4. LAVATORY 8
7 5. MECHANICAL
6. CLOSETS
7. DEN 12
8. BEDROOMS
GROUND FLOOR 9. BATHROOM TOP FLOOR
10. HALLWAY
11. WASHER / DRYER
12. GALLERY ABOVE
ALL BEDROOMS
15 FLOOR PLANS AND ELEVATIONSCOMMUNITY SERVICE CULTURAL SUSTAINABILITY AND CONTRIBUTION TO LOCAL COMMUNITIES 16 PROJECT GROUNDBREAKING AND DEDICATION - 2 SINGLE MOTHERS AND THEIR 5 CHILDREN BECOME THE OWNERS OF UNIT 9 & 10

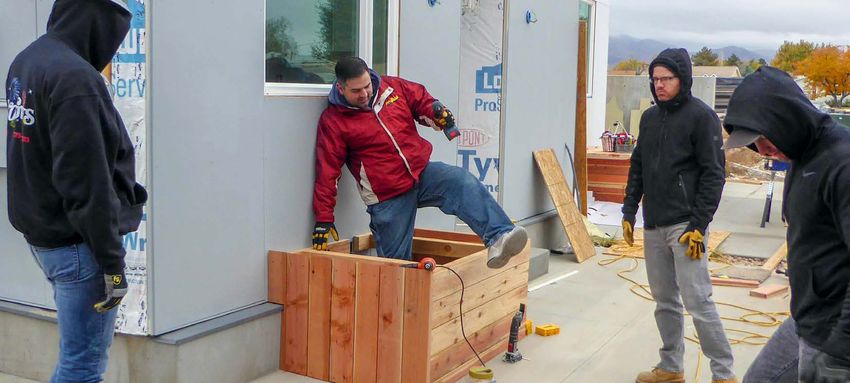

RESILIENT RESULTS THROUGH PARTICIPATORY WORK COMPLETED UNITS 9&10 17

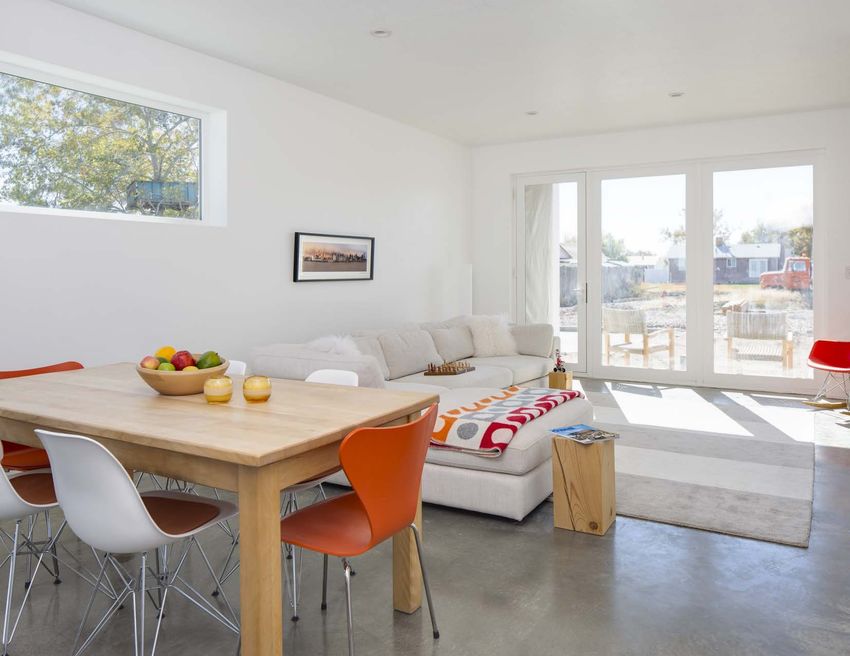

RESILIENT RESULTS THROUGH PARTICIPATORY WORK MAIN SPACE UNIT 10 18 OPEN FLOOR PLAN LOOKING NORTH

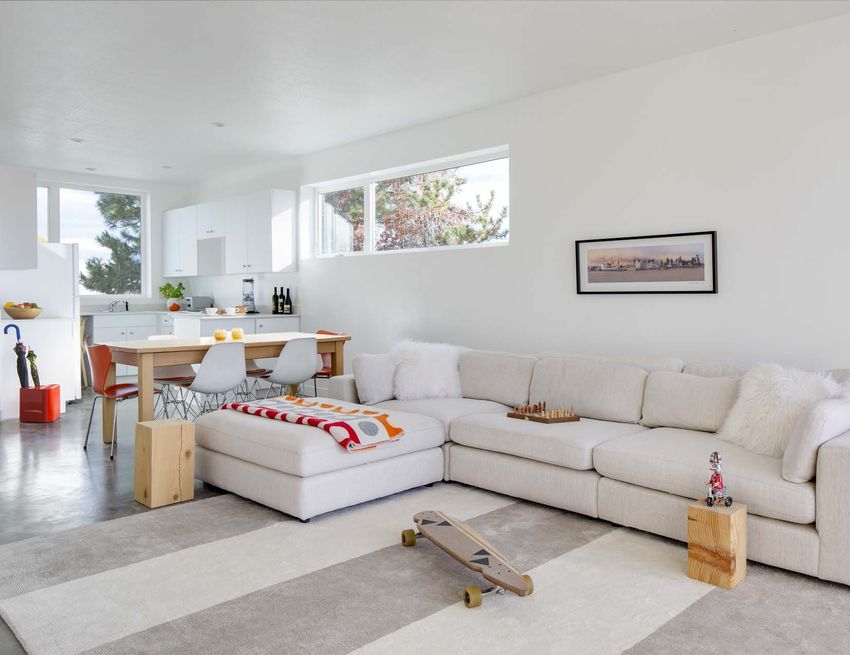

RESILIENT RESULTS THROUGH PARTICIPATORY WORK MAIN SPACE UNIT 10 19 OPEN FLOOR PLAN LOOKING SOUTH, SHOWING LARGER WINDOWS AND THERMAL MASS FOR WINTER PASSIVE SOLAR HEAT GAIN
RESILIENT RESULTS THROUGH PARTICIPATORY WORK IMPACT & FUTURE DEVELOPMENT
UPSTAIRS BEDROOMS UNIT 09 DESIGN+BUILD SALT LAKE
WITH THE FOD COLLABORATIVE PRACTICE AND EDUCATIONAL EXPERIENCE LEADING TO THE OFFICIAL
ESTABLISHMENT OF A NEW LOCAL DESIGN+BUILD PROGRAM AT THE UNIVERITY OF UTAH , THE AUTHOR
IS CONFIDENT IN STATING THAT THE PROJECT OVERALL HAS BEEN A SUCCESS IN ITS ORIGINAL
INTENTION TO SERVE AS AN OUTREACH, COMMUNITY SERVICE, TEACHING AND RESEARCH INITIATIVE
THAT LINKS FACULTY AND STUDENTS IN ARCHITECTURE WITH STAKEHOLDERS, PRACTITIONERS,
JURISDICTIONS AND INDUSTRY PARTNERS, TO CREATE STRONG LEARNING OPPORTUNITIES ABOUT
ARCHITECTURE THROUGH SUSTAINABLE, RESILIENT AND AFORDABLE BUILDING DESIGN AND
CONSTRUCTION PROJECTS, TO EXTEND DESIGN EDUCATION BEYOND THE CLASSROOM AND INTO THE
COMMUNITY, THUS OFFERING A TRULY TRANSFORMATIVE EXPERIENCE.
THE PROJECT HAS HAD A SIGNIFICANT IMPACT ON THE COMMUNITY, WHICH INCLUDES THE GENERAL
PUBLIC IN THE FORM OF HABITAT FOR HUMINITY WITH ITS NEW OCCUPANTS AND THEIR FAMILIES;
THE ACADEMIC COMMUNITY OF STUDENTS AND FACULTY WHO PARTICIPATED IN THE PROJECT;
AND THE PROFESSIONAL COMMUNITY WHO ENGAGED IN MENTORING HABITAT FOR HUMANITY
AND ARCHITECTURE STUDENTS BY SHARING THEIR EXPERTISE. THIS IMPACT INCLUDES BOTH A
SUSTAINABLE FOCUS AS IT RELATES TO THE FOD DESIGN AS WELL AS A SOCIAL AND JUST FOCUS AS
IT RELATES TO THE SCOPE OF WORK AND RESPONSIBILITIES FOR ARCHITECTS.

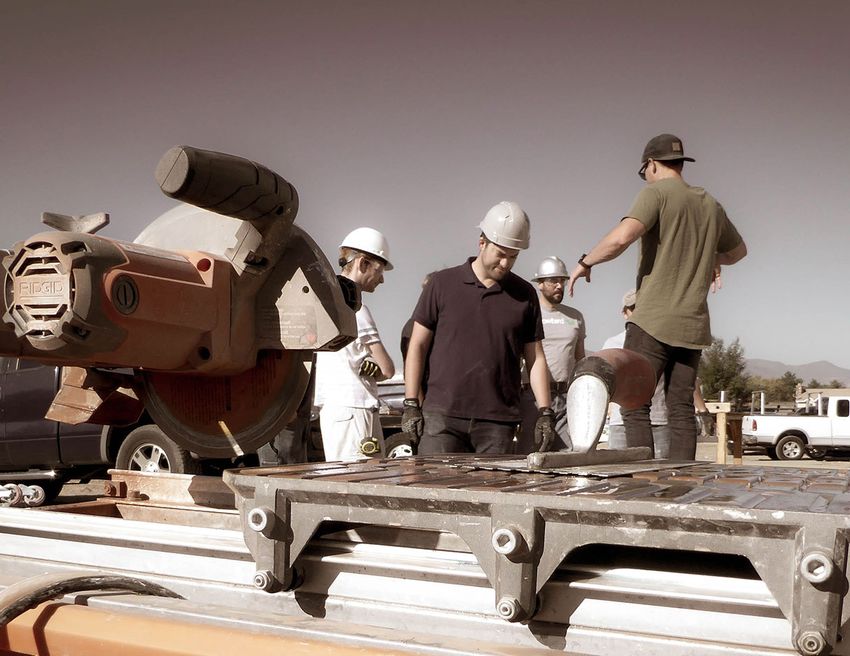

DURING THE AY 2019/2020 THE FOLLOW-UP STUDENT COHORT DESIGNED+BUILT A 750 SF HIGH-
PERFORMANCE ACCESSORY DWELLING UNIT FOR A WHEELCHAIR-BOUND REFUGEE MOTHER FROM
TIBET, WHCIH WAS COMPLETED IN EARLY FALL 2020.
„JÖRG RÜGEMER HAS BEEN INSTRUMENTAL TO OUR ORGANIZATION IN THE DESIGN OF A 20 HOME
DEVELOPMENT CALLED “THE FIELD OF DREAMS ECOCOMMUNITY.” WE SET OUT TO CRAFT SUPER
ENERGY EFFICIENT HOUSING IN THIS SECTOR AT AN AFFORDABLE COST, ONE THAT MEETS THE
STANDARDS OF OUR ORGANIZATION AND THE LIMITED INCOMES OF THE FAMILIES WE SERVE.
JÖRG RÜGEMER‘S INNOVATIVE DESIGNS ARE INTEGRAL IN MEETING THE GOALS WE HAVE FOR
MAKING AFFORDABLE HOUSING AFFORDABLE TO OWN. I HAVE THE DEEPEST PERSONAL AND
PROFESSIONAL RESPECT FOR JÖRG, AND SINCERELY BELIEVE HE WILL BRING HIS UNIQUE
SKILLSETS, OPTIMISM, PASSION, AND TIRELESS CREATIVITY TO OUR ORGANIZATION AND THE
FIELD OF DREAMS DEVELOPMENT. HE HAS MY HIGHEST ENDORSEMENT.“
ED BLAKE, CEO OF SALT LAKE VALLEY HABITAT FOR HUMANITY
20 CHILDREN AND MASTER BEDROOMSYou can also read
