Table of Contents
Ki Pro FS 25 HDBaseT Mini-Converters
3 Digital Recorders and Players 17 4K/2K/HD/SD Frame Sync and Conversion Solution for extending video signals up to 100 meters
File-based recording and playback devices that Hardware conversion in compact 1RU rack Frame Sync over Cat 5 (or better) cable, utilizing the industry
create high-quality files on computer friendly media units offering unrivaled flexibility and supporting the standard HDBaseT protocol.
via industry standard codecs and connections for latest connectivity, with models supporting 12G-SDI, 26 Optical Fiber Mini-Converters
on set, postproduction, OTT, live events, and more. HDMI, and fiber I/O with extensive audio support. SDI/Optical Fiber converters for the transport of 12G/3G/
BRIDGE LIVE KUMO HD/SD-SDI or HDMI over distances up to 10km when us-
6 Streaming Appliance 20 Routers ing standard Single-Mode or Multi-Mode fiber optic cable.
BRIDGE LIVE is a a turnkey solution built for critical Convenient dense routing solutions in lightweight form FiDO models support video formats all the way up to 8K/
streaming applications with high performance 12G-SDI factors for use in facilities, OB trucks, post suites, and UltraHD2, model dependent.
video encoding/decoding and stream based transcoding. more. Available in multiple connector densities, with Mini-Converter Accessories
HELO 3G-SDI and 12G-SDI models. 29 Accessories
7 Streaming and Recording Appliance Mini-Converters Options for mounting and powering AJA Mini-Converters.
SDI and HDMI I/O in a single appliance with the ability
21 Infrastructure Converters openGear
to simultaneously stream, encode and record beautiful
Options for common infrastructure and point of use 30 openGear Compatible Rackframe Cards
H.264 files.
needs. Cards for infrastructure, HDMI/SDI conversion, scan
Io
23 HDMI Mini-Converters conversion, fiber conversion, scaling, for use in openGear
8 Mobile I/O frames, including the AJA OG-X-FR.
Converters offering support for raster sizes all the way
Desktop-level functionality in portable form factors
from SD and HD to 4K/UltraHD, as well as connections for SFP Options
encompassing Thunderbolt™ standards all the way up
the latest 12G-SDI and HDMI 2.0 standards. 33 SFP Options
to Thunderbolt 3 with 12G-SDI and HDMI 2.0, as well as
mobile USB 3 and PCIe devices. 24 Scan Converters Optional SFP modules available for a range of AJA
Exceptional high quality conversion of computer Products
KONA
and video sources signals with Region of Interest Corvid
10 Desktop I/O
support to desired HD raster sizes and frame rates. 34 PCIe I/O
Powerful I/O solutions for the most demanding tasks from
SD to 8K, Multi-Channel workflows, HDR, Streaming, and 24 Scaling Mini-Converters Proven video I/O devices available to AJA partners for
Broadcast IP. Conversion for an entire source image from 4K to HD, development and support of integrated products with
up, down, or cross-conversion between SD and HD powerful SDK support.
U-TAP
formats or even HD to DVI conversion for driving DVI RovoCam HDBaseT Camera System
14 USB 3.0 Powered 3G-SDI and HDMI Capture
monitors from video sources. 35 HDBaseT Powered Camera and Receivers
Professional connectivity and high quality video capture
to your laptop or workstation. 24 IP Mini-Converters UltraHD/HD capture in a range of scenarios from Sports
Rugged, compact, and reliable, providing the bridge venues to live events, facilities, and HOW use.
T-TAP
between baseband and IP video for a range of
15 Thunderbolt™ Powered SDI and HDMI Output applications.
Inexpensive and compact devices that utilize the power
of Thunderbolt™ to deliver high-quality 10-bit, 12-bit, SDR, 25 Analog Mini-Converters
HDR, SD, HD, 2K, UltraHD and 4K video and embedded Solutions for Analog to Digital and Digital to Analog
audio output from any compatible Mac or PC. conversion for both Video and Audio, including
HDR Image Analyzer composite, component and HD Analog to
HD Digital conversion.

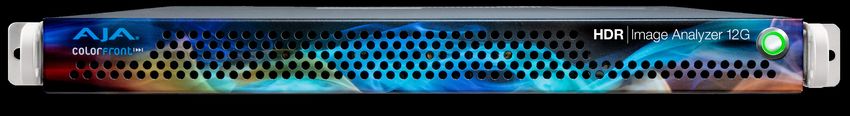

16 HDR Waveform, Histogram, and Vectorscope Monitoring
Tools for the effective real time analysis of the latest HDR 25 LUT-box
standards from 8K/UltraHD2/4K/UltraHD/2K/HD content In-line color transform for adjusting the color look for any
in a stand-alone 1RU device. source signal with simultaneous outputs to HD HDMI and
SDI monitors from a single device.
A Versatile Digital VTR For Any Workflow
ULTRA 12G $3,995 GO $3,995
• 1 2G-SDI 4K/UltraHD/2K/HD recorder/player and • Support for RP 188 timecode inputs on SDI • Multi-channel HD H.264 recording • Genlock free inputs
multi-channel ProRes HD recorder • Balanced XLR analog audio inputs, mic/line/ • 5x USB recording media ports, compatible • HDMI and SDI multi-channel matrix monitoring
• Genlock free multi-channel recording 48v switchable with off-the-shelf USB 3.2 Gen 1 media • Support for RP 188 timecode inputs on SDI
• Single channel recording up to 4K 60p • Front panel button controls with integrated • Recording to network (SMB) storage • Balanced XLR analog audio inputs, mic/line/
• Support for 8K VPID multi-unit playback HD resolution screen • Redundant recording to user selectable 48v switchable
• Records and plays back up to ProRes 4444 XQ • RS-422 control destinations – USB or SMB • Front panel button controls with integrated
• Records and plays back up to Avid DNxHR HQX • REST interface • Up to 25Mbps bit rate HD resolution screen
• HDR recording and playback • Optional rack mount shelf (KPU-SHELF) • Network file download • Optional rackmount shelf (KPU-SHELF)
• 1x 12G-SDI and 3x 3G-SDI I/O • Easy to use web UI, configure and control • Enhanced Super Out • Easy to use web UI, configure and control
• HDMI 2.0 I/O from standard web browsers • Front panel audio monitoring from standard web browsers
• SFP fiber cage I/O • Stand-alone operation • LTC on analog audio input • Stand-alone operation
• Analog audio I/O (DB-25 loom connectivity) • Three year warranty • Drive formatting • Three year warranty
AJA Pak Media Size (W x D x H): 219.46 x 268.60 x 84.08 mm Size (W x D x H): 219.46 x 268.60 x 84.08 mm
Available in 2TB, 1TB, 512GB and 256GB capacities
www.aja.com |3
Rack $1,995 Ki Pro Rack
• HD/SD recorder and player
• Record to Apple ProRes or Avid DNxHD
• SDI, HDMI, and Component Video I/O
• AES (BNC) and analog (XLR) audio I/O
• 2x KiStor media bays with Ki Protect
• Up, down, cross-conversion built-in
• Easy to use web UI, configure and control from standard web browsers
• REF, LTC, and RS-422 support
• Three year warranty
AJA KiStor Media Size (W x D x H): 219.46 x 268.60 x 44.45 mm
Available in 1TB, 512GB SSD, 500GB HDD
and 256GB SSD capacities
www.aja.com |4
PAK Media PAK Dock Ki Pro Shelf
PAK Media is a high capacity solid state drive encased
External Dock for PAK Media with Thunderbolt™ and Ki Pro Ultra Plus, Ki Pro Ultra 12G, Ki Pro Ultra,
in a protective housing with a rugged connection
USB 3.0 connections for fast transfer of media to a host and Ki Pro GO feature a small footprint for desktop use
engineered to handle the rigors of repeated use in
computer. or can be mounted side by side using the additional
the field. Available in 2TB, 1TB, 512GB and 256GB
KPU-Shelf for rackmount applications.
capacities. Designed for use with Ki Pro Ultra 12G.
KiStor Media KiStor Drive Reliable Storage Media
KiStor Media is a high capacity solid state drive encased External Dock for KiStor Media with Thunderbolt and Ki Pro Ultra 12G and Ki Pro Rack include Ki Protect,
in a protective housing with a rugged connection USB 3.0 connections for fast transfer of media to a host a feature that helps to ensure data integrity if a media
engineered to handle the rigors of repeated use in the computer. drive is accidentally removed or loses power during
field. Available in 1TB, 512GB and 256GB capacities. recording.
Designed for use with Ki Pro Rack.
The only loss that should be incurred is the last few
frames that were in transit to the media drive to be
recorded when the operation was interrupted, providing
greater peace of mind on set and in the studio.
www.aja.com |5

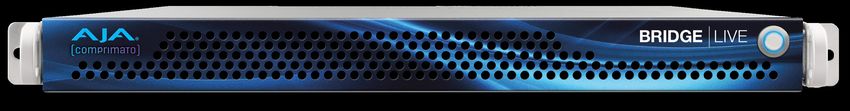

Multi-Channel Video Encoding, Decoding, BRIDGE LIVE
Streaming and Transcoding for Live Video $14,995
•
•
Up to 4-channels of HD or 1-channel of UltraHD via 12G-SDI I/O
H.265, H.264, and H.262(MPEG-2) encode, decode and transcode
BRIDGE LIVE is a turnkey solution built for critical streaming applications with high performance bi-directional • Optional JPEG 2000 encode/decode license
SDI video encoding/decoding, stream-based transcoding, flexible I/O, comprehensive metadata support, and a • Selectable profiles for 10-bit and 8-bit, 4:2:2 and 4:2:0
compact 1RU form factor with redundant power supplies. • Closed Captioning support
• RTMP/S, SRT (plus encryption), RTP/UDP, and MPEG-TS
A collaboration between AJA and Comprimato and designed with the ability to support both low latency • ABR Ladder Profiles
and high quality workflows across a range of codecs, containers, and protocols, BRIDGE LIVE enables numerous • Hand-off for OTT packaging
use cases; Multi-input live streaming to platforms such as YouTube, Facebook, or Twitch, providing high quality reference • Dual 10GbE interface for control and transport
video for remote collaboration in production and post, backhauling remote live SDI video sources to the media • Local control or Remote WebUI operation
production facility, SDI to MPEG-TS conversions for Telcos/IPTV/Cable networks, through to encoding for content • Monitoring, Control and Automation supported via REST API or SNMP
distribution with ABR ladder profiles or hand-off for OTT packaging, and all supported via public internet. • Dual power supplies for critical application redundancy
4x 12G-SDI Bidirectional I/O for up to 4-Channels of HD or 1-Channel of UltraHD with Dual 10GigE Ethernet Size (W x D x H): 436.88 x 429.26 x 43.18 mm
Transport, Encoding Live Direct-To-Audience Encoding Remote Video Transport and
and Delivery Streaming For Distribution Contribution
BRIDGE LIVE can be used for low latency BRIDGE LIVE offers a comprehensive BRIDGE LIVE facilitates primary distribution BRIDGE LIVE provides an efficient
or high quality tasks. Depending on platform for live video streaming. Streaming of finished and mastered content to partners mechanism for backhauling remote live
configuration, latency can be as low as support includes SRT, RTMP/S, RTP/UDP, and for subsequent streaming to audiences. SDI video sources to the media production
200ms. BRIDGE LIVE gives you a flexible MPEG-TS. Using these standard protocols facility, in order to be converted back to SDI
BRIDGE LIVE can provide ABR ladder profiles
toolset to deliver to your needs. provides wide support for streaming services and made available on the internal facility SDI
or hand-off for OTT packaging. For example,
from Twitch, YouTube Live, and Facebook router for ongoing production/transmission.
• RTMP, RTMPS (output) encoding to H.264 or H.265 for hand-off with
Live. BRIDGE LIVE builds upon the tried and
• RTP, UDP ABR ladder profiles, including pointing the BRIDGE LIVE allows source cameras and
tested approach of AJA’s HELO streaming
• SRT (plus encryption) ladder profile directly to a local packager local program out to be transported using
device, while including flexibility for multiple
• MPEG Transport Stream or CDN. publicly available internet, with no penalty for
inputs, broad format and bit-rate support,
• ABR Ladder Profiles early or extended use during a production.
as well as metadata and redundancy.
• Hand-off for OTT packaging BRIDGE LIVE also offers lower latency
than traditional secure lines for time critical
productions.
www.aja.com |6
Stream, Record, Deliver H.264 at the Touch of a Button
HELO $1,295
Connect Encode Stream Record Web Server Built-In Scheduler and
Automation Control
Your projects vary, you Your goal is efficiency Streaming can be complex, Live means Now. You serve the web.
need flexible connectivity. with beautiful results. HELO makes it simple. Live means Pressure. HELO serves you. Point HELO to an event
HELO delivers with 3G-SDI HELO encodes to H.264/ A USB connection and web calendar for a set and forget
HELO offers a dedicated AJA eMini-Setup and
and HDMI video inputs and MPEG-4 ensuring bandwidth browser based UI allows recording and streaming
Record button right on HELO’s easy to use web
outputs. efficiencies with widely you to setup and configure experience.
the front of HELO’s small browser Interface make
24-bit audio at 48 kHz compatible files. From tablets your CDN connection before HELO simple to setup,
and mobile interface for For more complex situations,
embedded in the SDI or to smartphones, desktops you arrive at your event. configure and update
immediate recording. It achieve full automation with
HDMI signal ensures you to Smart TVs, no translation On site, simply press the firmware at any time and you
also provides simultaneous an easy to script control API.
never lose sync, plus Line necessary. Stream button and deliver can capture Logs for simple
your project across HELO’s redundant recording to two
Level, Unbalanced stereo media devices: CIFS/SMB, trouble shooting.
3.5mm TRS connectors Ethernet connection,
which supports RTMPE, NFS, SD, or USB. Connect to HELO either via
have you covered for live
audio capture. RTMP, RTSP and unicast or Simply plug in your exFAT its direct USB port to set
multicast RTP. or FAT32 formatted USB static/dynamic IP addresses
drive, SD card or connected though AJA eMini-Setup
HLS streaming adds direct
network storage and record software or over the
interoperability with Apple®
immediately. network using HELO’s web
iPads® and other consumer
server generated UI.
devices. AV Mute allows
for uploading your custom
graphic to your stream
before the event begins.
Size (W x D x H): 177.8 x 118.37 x 25.91 mm
www.aja.com LIVE |7
Powerful and Flexible Professional I/O
4K Plus $2,495
Io 4K Plus 3
• 4K/UltraHD/2K/HD/SD 10-bit I/O up to 50/60p
• 4x bidirectional 12G-SDI BNC with 16-channel embedded audio
• 4K/UltraHD HDMI 2.0 I/O with 8-channel embedded audio
• Two Thunderbolt 3 ports with loop through
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
• 4K Closed Caption Support
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry
and Luminance via SDI
• PQ, HLG, HDR10 and Dolby Vision Support
• HDR Metadata Capture and Auto Playback Detection
• Analog Audio flexibility with a choice of 8-channel In or 8-channel Out
or 4-channel In and 4-channel out
• XLR 12V power for battery or AC use
• Headphone jack and level control for mobile environments
• RS-422 VTR control, Reference, LTC Input
• Three year warranty
Size (W x D x H): 222.0 x 206.0 x 41.9 mm
IP $2,495 Io IP 3
• 4K/UltraHD Input or Output, and 2K/HD/SD I/O, 10-bit up to 50/60p
• SMPTE ST 2110 up to 4K/UltraHD, ST 2022-6 up to 2K/HD
• ST 2022-7 Tx support up to 2K/HD
• Two Thunderbolt 3 ports with loop through
• 2x 10 GigE SFP connections for multi-channel I/O
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
• Local baseband monitoring via 3G-SDI and/or HDMI 2.0
• 48 kHz 16 and 24-bit embedded audio, 16-channel SDI, 8-channel HDMI
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry
and Luminance via SDI
• PQ, HLG, HDR10 and Dolby Vision Support
• HDR Metadata Capture and Auto Playback Detection
• Analog Audio flexibility for 8-channel In or 8-channel Out, or 4-channel
In and 4-channel out
• XLR 12V power for battery or AC use
• Headphone jack and level control for mobile environments
• NMOS 1.3, PTP and LLDP support, plus Reference/LTC Input
Size (W x D x H): 222.0 x 206.0 x 41.91 mm • Three year warranty
www.aja.com |8
Powerful and Flexible Professional I/O
Software Compatibility
Io products are cross-platform and compatible with a wide range
of professional macOS® and Windows® software applications.
AJA drivers and plug-ins create a seamless integration between the native software
and AJA’s high quality hardware that lets you focus on the work, not the technology.
View our software compatibility chart for the following categories:
Audio | Color | Dailies | Editorial | Effects | Graphics | Ingest/Playout | Restoration
Streaming/Live Production | Test/Measure
View Compatibility Chart
www.aja.com |9
Professional Performance, Unparalleled Reliability
5 $2,995 KONA 5
• 8K/UltraHD2/4K/UltraHD/2K/HD/SD up to 50/60p
• 4x bidirectional 12G-SDI spigots with 16-channel embedded audio
• HDMI 2.0 output, 4K/UltraHD HFR, plus 8K to 4K downsampling
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
• 8K support for Apple Final Cut Pro, Adobe Premiere Pro and Avid Media
Composer, 8K or multi-channel 4K support for OEM applications with AJA SDK
• Dynamic FPGA Firmware Reconfiguration
• 4K Closed Caption Support
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and
Luminance via SDI
• PQ, HLG, HDR10, HDR10+ and Dolby Vision Support
• HDR Metadata Capture and Auto Playback Detection
• Compatible with leading creative apps
• Reference Input on card (Analog black burst or Tri-level)
• Included breakout cable for LTC, RS-422, 8-ch AES/EBU
• Three year warranty
IP $2,495 KONA IP
• 4K/UltraHD Input or Output, and 2K/HD/SD I/O, 10-bit up to 50/60p
• SMPTE ST 2110 up to 4K/UltraHD, ST 2022-6 up to 2K/HD
• ST 2022-7 Tx support up to 2K/HD
• 2x 10 GigE SFP connections for multi-channel I/O
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
• Local baseband monitoring via HDMI 1.4b
• 48 kHz 16 and 24-bit embedded audio, 16-channel IP, 8-channel HDMI
• PQ, HLG, HDR10 and Dolby Vision supported (application dependent)
• HDR Metadata Capture and Auto Playback Detection
• NMOS 1.3, PTP and LLDP Support, plus Reference/LTC Input
• Three year warranty
www.aja.com | 104 $1,995 KONA 4
• 4K/UltraHD/2K/HD/SD up to 50/60p
• 4x bidirectional 3G-SDI spigots with 16-channel embedded audio
• HDMI 1.4b monitoring with 8-channel embedded audio, plus 4K to HD
downsampling
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
• Real time up, down, cross-conversion (HD/SD)
• 4K Closed Caption Support
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and
Luminance via SDI
• PQ, HLG, HDR10, HDR10+ and Dolby Vision Support
• HDR Metadata Capture and Auto Playback Detection
• Compatible with leading creative apps
• Included breakout cable for Ref (Analog or Tri-level), LTC, RS-422,
8-ch AES/EBU
• Extend external connectivity with K3G-BOX breakout box
• Three year warranty
K3G-Box $395
HDMI $895 KONA HDMI
• 4K/UltraHD/2K/HD/SD up to 50/60p
• 4x full-size HDMI inputs each with 8-channel embedded audio
• HDMI 2.0 (port 1 & 2) and HDMI 1.4b (ports 3 & 4)
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
• Simultaneous capture of 2x 4K/UltraHD or 4x 2K/HD
• Capture stunning HDR from cameras, game consoles, and more
• PQ, HLG, HDR10 and Dolby Vision Support
• HDR Metadata Capture
• Video4Linux (V4L2) and DirectShow support
• Compatible with leading creative apps
• Three year warranty
www.aja.com | 111 $595
KONA 1
• 2K/HD/SD up to 50/60p
• 2x 3G-SDI spigots (In, Out) with 16-channel embedded audio
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and
Luminance via SDI
• PQ, HLG and Dolby Vision Support
• HDR Metadata Capture and Auto Playback Detection
• RS-422 support on 9-pin external connector
• Low profile form factor also available with internal RS-422 header
• Reference/LTC Input on card (Analog black burst or Tri-level)
• Compatible with leading creative apps
• Three year warranty
LHi $1,495 KONA LHi
• 2K/HD/SD up to 50/60p
• 2x 3G-SDI spigots (In, Out) with 8-channel embedded audio
• 2x HDMI 1.3 ports (In, Out) with 8-channel embedded audio
• YCbCr 4:2:2 10-bit and HD HFR workflows supported
• Real time up, down and cross-conversion for HD and SD with pristine
10-bit quality
• Compatible with leading creative apps
• Included breakout cable for Ref (Analog or Tri-level), RS-422, 2-ch AES/EBU,
Analog composite or S-video, or SD/HD component
• Extend external connectivity with KLHi-BOX breakout box
• Three year warranty
KLHi-BOX $349
www.aja.com | 12LHe Plus $995
KONA LHe Plus
• HD-SDI and SD-SDI up to 1080 30p / 720 60p
• 3x 1.5G-SDI spigots (1x In, 2x Out) with 8-channel embedded audio
• YCbCr 4:2:2 10-bit workflows supported
• Real time HD to SD down-conversion with pristine 10-bit quality
• Compatible with leading creative apps
• Included breakout cable for Ref (Analog Color Black or Composite Sync),
RS-422, 2-ch AES/EBU, Analog composite or S-video, or SD/HD component,
2-ch analog audio I/O
• Extend external connectivity with KL-BOX-LH breakout box
• Three year warranty
KL-BOX-LH $299
Software Compatibility
KONA cards are cross-platform and compatible with a wide range
of professional macOS®, Windows®, and Linux® software applications.
AJA hardware is compatible with a wide range of professional software applications on macOS, Windows, and Linux.
AJA drivers and software create a seamless integration between best of class creative tools and AJA’s high quality
hardware that lets you focus on the work, not the technology.
View our software compatibility chart for the following categories:
Audio | Color | Dailies/Archiving | Editorial | Effects | Graphics/Virtual | Ingest/Playout | Restoration
SDI / IP Bridging | Streaming/Live Production | Test/Measure | VJ / Live Video Performance | Video Assist
View Compatibility Chart
www.aja.com | 13USB 3.0 Powered 3G-SDI and HDMI Capture
U-TAP SDI
$345
• HD/SD Capture up to 1080 60p over USB
• 1x 3G-SDI BNC with 2-channel embedded audio
• 1x 3G-SDI SDI loop-out
• 1x USB 3.0 (USB 3.2, Gen 1) connector
• YCbCr 4:2:2 10-bit workflows supported
• HD/SD and scaled (USB) raster support
• Configurable behavior upon loss of input signal
• UVC/UAC capture, no third party driver required
• Compact, silent and pocketable
• Bus-powered, no power adapter required
USB 3.0 • macOS, Windows and Linux supported
• Universal application compatibility
• Three year warranty
View Compatibility Chart
LIVE
Size (W x D x H): 104.14 x 60.96 x 25.4 mm
U-TAP HDMI
$345
• HD/SD Capture up to 1080 60p over USB
• 1x HDMI 1.4a with 2-channel embedded audio
• 1x USB 3.0 (USB 3.2, Gen 1) connector
• YCbCr 4:2:2 10-bit workflows supported
• RGB 4:4:4 / YCbCr 4:4:4 10/12-bit (raster / frame rate dependent)
• HD/SD and scaled (USB) raster support
• Configurable behavior upon loss of input signal
• UVC/UAC capture, no third-party driver required
• Compact, silent and pocketable
• Bus-powered, no power adapter required
USB 3.0 • macOS, Windows and Linux supported
• Universal application compatibility
• Three year warranty
View Compatibility Chart
LIVE
www.aja.com
Size (W x D x H): 83.82 x 60.96 x 25.4 mm
| 14®
Thunderbolt™ Powered SDI and HDMI Output
T-TAP Pro 3
$795
• 4K/UltraHD/2K/HD/SD Output/Monitoring up to 50/60p
• 1x 12G-SDI BNC with 16-channel embedded audio
• 1x HDMI 2.0 with 8-channel embedded audio
• 1x Thunderbolt 3 connector
• Compact, silent, mobile form-factor with Front-panel Audio Levels
Reference Display
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
• 4K Closed Caption Support
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and
Luminance via SDI
• PQ, HLG, HDR10 and Dolby Vision Support
• HDR Metadata Auto Playback Detection
• Headphone jack and quick access audio level control for mobile environment
• Three year warranty
View Compatibility Chart
®
Size (W x D x H): 127.0 x 127.0 x 25.4 mm
LIVE
®
$295 T-TAP
• 2K/HD/SD Output/Monitoring for 2K up to p25 and 1080 up to p30
• 1x 3G-SDI BNC with 8-channel embedded audio
• 1x HDMI 1.3 with 8-channel embedded audio
• 1x Thunderbolt connector
• YCbCr 4:2:2 10-bit workflows supported
HDMI • Compact, silent and pocketable at 0.2 lb (0.1 kg)
• No power cable required; 5V Thunderbolt bus powered; 6.5W max
• Three year warranty
SDI
View Compatibility Chart
LIVE
Size (W x D x H): 74.93 x 17.78 x 57.92 mm
www.aja.com *Dolby Vision requires third party application support | 15HDR Waveform, Histogram HDR Image Analyzer 12G
and Vectorscope Monitoring $19,995
• U ltraHD UI for native-resolution picture display including PQ support for HDR
capable displays.
• Configurable layouts allow you to put the tool you need in the window you
need it
HDR Image Analyzer fuses AJA’s proven audio and video I/O technology with Colorfront’s • Support for display referred SDR (Rec.709), HDR ST2084/PQ, and HLG analysis
powerful Colorfront Engine™. The sleek 1RU device delivers a comprehensive toolset for • Support for scene referred ARRI, Canon, Panasonic, RED and Sony camera
monitoring and analyzing HDR standards including, Hybrid Log Gamma (HLG) and Perceptual color spaces
Quantizer (PQ) for up to 8K/UltraHD2 workflows. • Precision CIE graph, vectorscope, waveform, and histogram support
• False color mode to easily spot out of gamut/out of brightness pixels
The HDR Image Analyzer 12G offers 4x 12G-SDI bi-directional I/O and DisplayPort output con- • NIT levels and audio phase metering
nections with up to UltraHD resolution for the PQ high-resolution GUI. • Line mode to focus a region of interest onto a single horizontal or vertical line
• File base error logging with timecode
• Three year warranty
Size (W x D x H): 436.88 x 429.26 x 43.18 mm
8K/UltraHD2 Analysis Input Support ACES Support Configrable Layouts
HDR Image Analyzer 12G provides With input support for both leading camera The Academy Color Encoding System HDR Image Analyzer 12G’s interface
the necessary connectivity to support LOG formats as well as SDR, HLG, and PQ (ACES) is fast becoming an industry provides a quadrant layout for viewing your
advanced 8K/UltraHD2 HDR and SDR monitoring from a range of sources, HDR standard for managing color throughout tools and footage as you work. Quick key
production monitoring and analysis Image Analyzer 12G takes the pain out the life cycle of a motion picture or shortcuts provide pre-configured common
workflows. Providing the same high quality of HDR monitoring. With a wide range of television production. HDR Image Analyzer layouts for how your tools and views are
and precision analysis tools available analysis tools and automatic error logging 12G supports an ACES Grading Colorspace presented. For further customization, you
for all other video formats, this powerful with timecode stamping, HDR Image and offers ACEScct signal analysis for real can also choose a particular tool to be
analyzer is a smart investment for today’s Analyzer 12G ensures your production time integration with ACES workflows. shown in any of the quadrants.
needs as well as ensuring you are ready achieves the desired final results.
for tomorrow’s.
www.aja.com | 16Real Time HDR/WCG Transformations,
Multi-Channel Converter and Frame Sync $7,995
Powered by Colorfront Engine™ proprietary video processing algorithms, with real time parametric controls for HDR transforms, color correction, and SDR Preview of HDR transforms
for Single Master HDR workflows; FS-HDR also serves as a full, 1-channel up, down, cross-converter for 4K/UltraHD/2K/HD and in 4-channel mode, offers four simultaneous and
independent channels of 2K/HD conversions. FS-HDR offers ganged operational control of multiple FS-HDRs supporting 8K/UltraHD2, Colorfront Engine TV, Live, and Film-Modes,
ACES support, Dynamic Multi-Channel LUT capabilities, BBC HLG LUTs, ability to upload custom 3D LUTs, extensive audio processing, and more
Firmware v4.0 adds the new Colorfront Engine TV Mode that simplifies controls to just the essentials for Color Correction and Camera Correction for live television productions
with two new powerful highlight and roll-off management controls for Knee Point and Knee Slope. The BBC HLG LUT support is also updated to the very latest v1.4 BBC HLG LUTs.
NEW
ARE!
FIRMW
v 4.0
Rear
Front
Size (W x D x H): 444.5 x 406.4 x 44.45 mm
Dynamic Range/Color Gamut HDR Workflows for UltraHD/HD Input Formats Output Formats
Rec 709 color space Rec 2020 color space
0.9 0.9
• S ingle channel mode for 4K/UltraHD/ • SDR BT.709 100 Nits From multi-channel HD to true 4K, FS-HDR
2K/HD including down-conversion to HD • SDR Extended BT.709 carries your HDR / SDR video over 3G-SDI,
520 520
0.8 0.8
540 540
y
0.7
y
0.7
HDR or SDR • PQ BT.2020 1000 Nits optional fiber or 12G-SDI to wherever it needs
• Four channel mode for multi-channel • PQ P3D65 1000 Nits to go; from switchers, routers, monitors, to
560 560
0.6 0.6
500 500
2K/HD conversion and HDR processing • Hybrid Log Gamma BT.2100 huge LED displays and more. You can even
580 580
0.5 0.5
simultaneously • HLG Extended BT.709 convert your convert your sources to ACEScct
0.4 600 0.4 600
D65 620 D65 620
0.3 0.3
• Colorfront Engine Live, Film, and TV Modes • HLG Extended BT.2100 for use further along the chain.
700 700
490 490
0.2 0.2
0.1
480
0.1
480
• v1.4 BBC HLG LUT mode with an array of • Sony® S-Log3 S-Gamut3 • SDR BT.709 100 Nits
BBC transformations for HLG (Hybrid Log • Sony S-Log3 S-Gamut3 Cine • SDR Extended BT.709
470 470
460 0.0 460
0.0
0.0 0.1 380 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.0 0.1 380 0.2 0.3 0.4 0.5 0.6 0.7 0.8
Gamma) including Scene-Referred and • Sony S-Log3 BT.2020 • PQ BT.2020 1000 Nits
x x
Modern cameras are inherently HDR Display-Referred conversions • ARRI Log C Wide Gamut • PQ P3D65 1000 Nits
capable with their wide dynamic ranges • Dynamic LUT mode for third party • Panasonic® V-Log • Hybrid Log Gamma BT.2100
available from the sensor on, and for software integration • RED Log3G10 Wide Gamut • HLG Extended BT.709
live events and broadcasts, it’s crucial to • User LUT mode for importing 3D .cube LUTs • Canon Log 2 • HLG Extended BT.2100
translate their Log and Gamut capabilities • ASC CDL support • Canon Log 3 • Sony SLog3 S-Gamut3
to the accepted standards • Auto or configurable HDR Signaling of SDI • ACEScct • Sony SLog3 BT.2020
for SDR/PQ/HLG • ARRI Log C Wide Gamut
www.aja.com
• PQ output control from 48 to 4000 Nits • ACEScct
| 17ULTRA Plus
4K/2K/HD/SD Frame Sync and Conversion
FS HDR
FS4
FS 4 $4,995 QUAD • Four Independent 2K, HD, or SD Video Processors
• One 4K, UltraHD, 2K, HD, or SD Video Processor
3 Down, Cross-ConverterMINI
4-Ch 2K/HD/SD or 1-Ch 4K/UltraHD Frame Sync • Up, down, cross-conversion
FS
• 4x 3G-SDI In and 4x 3G-SDI Out
and Up, • 12G-SDI (HD-BNC) I/O with Optional SFPs
ULTRA Plus
• 12G-SDI Fiber I/O with Optional SFPs
RACK
• Quadrant (Square Division) or 2SI (Two Sample Interleave) 4K/UltraHD
input pixel mapping
FS 2
• 1x 3G-SDI and 1x HDMI Monitor Outputs
FS HDR • 16-channel embedded audio over SDI per port, 8-ch AES In and Out,
64-ch MADI Fiber and 64-ch MADI Coax I/O
• Five year warranty
FS
FS 1
4 KONA IP
QUAD
FS 1-X MINI
KONA IP
FS 3
Size (W x D x H): 444.5 x 406.4 x 44.45 mm
RACK
KONA LHi
FS 2 $3,995 FS2
HELO
2-Ch HD/SD Frame KONA LHe
Sync and Up, Down,Plus
Cross-Converter • 2x 3G-SDI Inputs
FS 1
• 2x Fiber 3G-SDI Inputs (optional)
KONA IP •
•
•
HD component YPbPr, SMPTE-274 (3x BNC) Input
HDMI I/O
2x 3G-SDI Outputs
FS4K1-X
Io KUMO CP • 2x Fiber 3G-SDI Outputs (optional)
KONA IP
• HD component YPbPr, SMPTE-274 (3x BNC) Output
• Up, down, cross-conversion
• 16-channel, 24-bit SMPTE-272/299 SDI embedded audio, 48 kHz sample
Io 4K Plus KUMO CP2
rate, synchronous I/O
KONA LHi
• 16-channel, 24-bit AES/EBU audio, 48 kHz sample rate, synchronous
or nonsynchronous, internal sample rate conversion (8x XLR via 25-pin
breakout cable)
HELO
• Five year warranty
Io Express KUMO 1604Plus
KONA LHe Size (W x D x H): 438.15 x 368.3 x 44.45 mm
www.aja.com | 18FS 1 KONA IP
FS 1-X $3,495
KONA IP FS1-X
HD/SD Frame Sync and Up, Down, Cross-Converter • 2x 3G-SDI Inputs
KONA ULTRA Plus
LHi
• 2x Fiber 3G-SDI Inputs (optional)
with linear Frame Rate Converter •
•
HD component YPbPr, SMPTE-274 (3x BNC) Input
HDMI I/O
FS HDR
HELO
• 2x 3G-SDI Outputs
KONA LHe Plus
• 2x Fiber 3G-SDI Outputs (optional)
• HD component YPbPr, SMPTE-274 (3x BNC) Output
• Composite SD Analog I/O
QUAD
• 64-ch MADI Fiber and 64-Ch MADI Coax I/O
FS 4 • 8 -channel balanced analog I/O, DB-25F 25-pin Power
connector (Tascam pinout)
Io 4K KUMO CP • 16-channel AES/EBU I/O (BNC), DB-25F 25-pin connector
MINI
• Five year warranty
FS 3
Io 4K Plus KUMO CP2
RACK
Size (W x D x H): 482.6 x 406.4 x 44.45 mm
FS 2
Io Express KUMO 1604
FS 1 KONA IP FS1
1616-12G
$2,995
Io1-ChXT KUMO
HD/SD Frame Sync and Up, Down, Cross-Converter
• 2x 3G-SDI Inputs
FS 1-X
• 2x 3G-SDI Outputs
KUMO IP
KONA • HD/SD component YPbPr, SMPTE-274 (3x BNC) I/O
3232-12G •
•
•
Y/C (S-Video) I/O
Composite SD Analog I/O
Up, down, cross-conversion
KONA LHi
• 8 -channel, 24-bit D/A analog audio, 48 kHz sample rate,
KUMO 6464
balanced (8x XLR via 25-pin breakout cable) In
• 8 -channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced
HELO KONA LHe Plus
(8x XLR via 25-pin breakout cable) out
• Five year warranty
Io 4K KUMO CP Size (W x D x H): 438.1mm x 317.5mm x 44.4mm
| 19
Io 4K Plus KUMO CP2
www.aja.comCompact 12G-SDI and 3G-SDI Routers
KUMO compact routers offer flexible video configuration with ease of control with KUMO routers can be configured for ganged dual and quad port routing, allowing users
the CP range of control panels or via the network. Adapt as your needs expand, to group together multiple inputs and outputs for dual-link, 4K/UltraHD, and with 12G-SDI
from 3G-SDI and 12G-SDI and up to 64 inputs and outputs. models, 8K workflows.
KUMO 6464-12G $8,995 Size (W x D x H): 441.96 x 39.12 x 177.8 mm KUMO 6464 $7,995 Size (W x D x H): 441.96 x 39.12 x 177.8 mm
KUMO 3232-12G $3,995 Size (W x D x H): 441.96 x 39.12 x 88.9 mm KUMO 3232 $3,495 Size (W x D x H): 441.96 x 39.12 x 88.9 mm
KUMO 1616-12G $2,495 Size (W x D x H): 441.96 x 39.12 x 44.45 mm KUMO 1616 $1,995 Size (W x D x H): 441.96 x 39.12 x 44.45 mm
KUMO 1604 $1,395 Size (W x D x H): 441.96 x 39.12 x 44.45 mm
KUMO CP2 $895 Size (W x D x H): 441.96 x 33.02 x 88.9 mm
KUMO CP $595 Size (W x D x H): 441.96 x 33.02 x 44.45 mmMini-Converters
The Power to Convert and Deliver
From broadcast, production, to post and live events,
AJA Mini-Converters offer the most complete range of compact,
stand-alone conversion and infrastructure solutions, designed to
the highest standards in reliability and quality. Our converters cover
a full range of 4K, HD, and SD capabilities to meet your needs.
AJA Mini-Matrix: Converter Search Software
www.aja.com/software/mini-matrix
INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE
12GM $895 3GM $495 FS-Mini $695 GEN10 $345
12G-SDI to/from Quad 3G-SDI, 3G-SDI to/from Dual SDI, Multiplexer 3G/HD/SD-SDI Utility HD/SD Sync Generator
Multiplexer Frame Synchronizer
INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE
12G-AM $995 12G-AM-TR $1395 12G-AM-T $1295 12G-AM-T-ST $1395
12G-SDI 8-Channel AES 12G-SDI 8-Channel AES 12G-SDI 8-Channel AES 12G-SDI 8-Channel AES
Embedder/Disembedder Embedder/Disembedder with Embedder/Disembedder Embedder/Disembedder
LC Fiber TR SFP with LC Fiber Tx SFP With ST Fiber Tx SFP
www.aja.com | 21INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE
12G-AM-R $1295 12G-AM-R-ST $1395 3G-AM $795 12G-AMA $995
12G-SDI 8-Channel AES 12G-SDI 8-Channel AES 3G-SDI 8-Channel AES 12G-SDI 4-Channel Analog Audio
Embedder/Disembedder, Embedder/Disembedder, Embedder/Disembedder Embedder/Disembedder
with LC Fiber Rx SFP with ST Fiber Rx SFP
INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE
12G-AMA-TR $1395 12G-AMA-T $1295 12G-AMA-T-ST $1395 12G-AMA-R $1295
12G-SDI 4-Channel Analog 12G-SDI 4-Channel Analog 12G-SDI 4-Channel Analog 12G-SDI 4-Channel Analog
Audio Embedder/Disembedder Audio Embedder/Disembedder Audio Embedder/Disembedder Audio Embedder/Disembedder
With LC Fiber TR SFP With LC Fiber Tx SFP With ST Fiber Tx SFP With LC Fiber Rx SFP
INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE
INFRASTRUCTURE
12G-AMA-R-ST $1395 3G-AMA $795 12GDA $495 3GDA $395
12G-SDI 4-Channel Analog 3G-SDI Analog Audio 1x6 12G-SDI Reclocking 1x6 3G/HD/SD Reclocking
Audio Embedder/Disembedder Embedder/Disembedder Distribution Amplifier Distribution Amplifier
With ST Fiber Rx SFP
INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE
HD5DA $195 ADA4 $390 C10DA $175
1x4 HD/SD-SDI 4-Channel Bidirectional 1x6 Analog Video Distribution Amplifier
Distribution Amplifier Audio A/D and D/A Converter
www.aja.com | 22HDMI HDMI HDMI HDMI
Hi5-12G $795 Hi5-12G-TR $1195 Hi5-12G-R $995 Hi5-12G-R-ST $1095
12G-SDI to HDMI 2.0 Mini-Converter 12G-SDI to HDMI 2.0 Mini-Converter, 12G-SDI to HDMI 2.0 Mini-Converter, 12G-SDI to HDMI 2.0 Mini-Converter,
with LC Fiber TR SFP with LC Fiber Rx SFP with ST Fiber Rx SFP
HDMI HDMI HDMI HDMI
Hi5-4K-Plus $595 Hi5-Plus $395 Hi5-3G $595 Hi5-Fiber $695
4K/UltraHD (4x 3G-SDI) 3G-SDI to HDMI Mini-Converter 3G-SDI/Dual Link SDI to HDMI 1.3a 3G-SDI over Fiber to HDMI
to full HDMI 2.0 Mini-Converter with Embedded Audio Video and Audio Mini-Converter Video and Audio Mini-Converter
HDMI HDMI
Hi5-3D $495 Hi5 $345
Dual HD-SDI Multiplexer to HDMI 1.4a HD/SD-SDI to HDMI Mini-Converter
and SDI Video and Audio Mini-Converter with Embedded Audio
HDMI HDMI HDMI HDMI
HA5-12G $795 HA5-12G-T $995 HA5-12G-T-ST $1095 HA5-4K $595
HDMI 2.0 to 12G-SDI Mini-Converter HDMI 2.0 to 12G-SDI Mini-Converter, HDMI 2.0 to 12G-SDI Mini-Converter, 4K/UltraHD HDMI to 4K/UltraHD
with LC Fiber Tx SFP with ST Fiber Tx SFP SDI Mini-Converter
www.aja.com | 23HDMI HDMI HDMI
HA5 $345 HA5-Plus $395 HA5-Fiber $695
HDMI to HD-SDI/SD-SDI Mini-Converter HDMI to 3G-SDI Mini-Converter with HDMI to 3G-SDI over Fiber
with Embedded Audio Embedded Audio Video and Audio Mini-Converter
SCAN CONVERT SCAN CONVERT SCAN CONVERT SCAN CONVERT
ROI-HDMI $995 ROI-SDI $995 ROI-DVI $995 ROI-DP $995
HDMI to 3G-SDI Scan Converter with 3G-SDI to HDMI/3G-SDI Scan Converter with DVI to 3G-SDI Scan Converter with Display Port to 3G-SDI Scan Converter with
Region of Interest and Frame Synchronizer Region of Interest and Frame Synchronizer Region of Interest and Frame Synchronizer Region of Interest and Frame Synchronizer
SCALING SCALING SCALING SCALING
4K2HD $795 UDC $695 HD10MD4 $995 HDP3 $695
4K/UltraHD to HD-SDI and HDMI Down-Converter Up, Down, Cross Mini-Converter HD/SD-SDI to SDI/Analog Down Mini-Converter 3G-SDI to DVI-D Mini-Converter
with Embedded Audio and Frame Synchronizer with Embedded Audio
IP IP IP IP
IPT-10G2-HDMI $1295 IPT-10G2-SDI $1295 IPR-10G2-HDMI $1295 IPR-10G2-SDI $1295
HDMI Video and Audio to SMPTE ST 2110 IP 3G-SDI Video and Audio to SMPTE ST 2110 IP SMPTE ST 2110 IP Video and Audio to HDMI SMPTE ST 2110 IP Video and Audio to
Converter with Hitless Switching (ST 2022-7) Converter with Hitless Switching (ST 2022-7) Converter with Hitless Switching (ST 2022-7) 3G-SDI Converter with Hitless Switching
www.aja.com | 24ANALOG ANALOG ANALOG ANALOG
V2Digital $345 V2Analog $345 HD10A-Plus $695 HD10AVA $695
Analog Video to HD/SD-SDI Mini- HD/SD-SDI to Analog Audio/Video HD Analog to HD-SDI Mini-Converter HD/SD Analog Composite or Component
Converter Mini-Converter Video and 4-Channel Analog Audio to
SD/HD-SDI with Embedded Audio
ANALOG LUT-box
HD10CEA $695 LUT-box $695
HD/SD-SDI to Analog Audio/Video In-line Color Transform Mini-Converter
Mini-Converter
HDBaseT HDBaseT
RovoRx-HDMI $495 RovoRx-SDI $995
HDBaseT to HDMI Mini-Converter with PoH HDBaseT to 6G/3G-SDI and HDMI
Mini-Converter with POH, Genlock
HDBaseT HDBaseT HDBaseT HDBaseT
HB-T-HDMI $395 HB-T-SDI $595 HB-R-HDMI $395 HB-R-SDI $595
HDMI to HDBaseT Mini-Converter 3G-SDI to HDBaseT Mini-Converter HDBaseT to HDMI Mini-Converter HDBaseT to 3G-SDI Mini-Converter
www.aja.com | 25FiDO – Optical Fiber Converters The Power to Convert and Deliver FiDO Mini-Converters offer unmatched flexibility and cost efficiency for 12G-SDI, 6G-SDI, and 3G-SDI Fiber conversion, allowing for long cable runs up to 10km for single mode FiDOs and up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 multi-mode fiber optic cables when using Multi-Mode models or SFPs. Choose LC, ST, or SC connectors, depending on the converter model. FiDO converters use compact, low profile, rugged enclosures that work well in tight spaces around and behind equipment racks, displays, in trucks and on camera. AJA Mini-Matrix: Converter Search Software www.aja.com/software/mini-matrix OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER FiDO-TR-12G $1,325 FiDO-2T-12G $1,325 FiDO-T-12G $785 FiDO-T-12G-ST $895 1-Channel 12G-SDI/LC Single Mode 2-Channel 12G-SDI to 1-Channel 12G-SDI to Single Mode 1-Channel 12G-SDI to Single Mode LC Fiber Transceiver Single Mode LC Fiber Transmitter LC Fiber Transmitter, with SDI Loop Out ST Fiber Transmitter, with SDI Loop Out OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER FiDO-2R-12G $1,325 FiDO-R-12G $785 FiDO-R-12G-ST $895 2-Channel Single Mode LC Fiber 1-Channel Single Mode LC Fiber to 1-Channel Single Mode ST Fiber to to 12G-SDI Receiver 12G-SDI Receiver, with Dual SDI Outputs 12G-SDI Receiver, with Dual SDI Outputs www.aja.com | 26
OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER FiDO-4T $1,495 FiDO-4T-ST $1,495 FiDO-4T-MM $1,985 4-Channel 3G-SDI to Single Mode 4-Channel 3G-SDI Single Mode 4-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter ST Fiber Transmitter LC Fiber Transmitter OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER FiDO-4R $1,495 FiDO-4R-ST $1,495 FiDO-4R-MM $1,985 4-Channel Single Mode LC Fiber 4-Channel 3G-SDI Single Mode 4-Channel Multi-Mode LC Fiber to 3G-SDI Receiver ST Fiber to 3G-SDI Receiver to 3G-SDI Receiver OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER FiDO-2T $645 FiDO-2T-MM $890 FiDO-2R $645 FiDO-2R-MM $890 2-Channel 3G-SDI to Single Mode 2-Channel 3G-SDI to Multi-Mode 2-Channel Single Mode Mode LC Fiber 2-Channel Multi-Mode LC Fiber LC Fiber Transmitter LC Fiber Transmitter to 3G-SDI Receiver to 3G-SDI Receiver OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER FiDO-TR $645 FiDO-TR-MM $890 FiDO-T $445 FiDO-T-ST $445 1-Channel 3G-SDI/LC Single Mode 1-Channel 3G-SDI/LC Multi-Mode 1-Channel 3G-SDI to Single Mode 1-Channel 3G-SDI to Single Mode LC Fiber Transceiver LC Fiber Transceiver LC Fiber Transmitter, with SDI Loop Out ST Fiber Transmitter, with SDI Loop Out www.aja.com | 27
OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER
FiDO-T-SC $445 FiDO-T-MM $690 FiDO-R $445 FiDO-R-ST $445
1-Channel 3G-SDI to Single Mode 1-Channel 3G-SDI to Multi-Mode 1-Channel Single Mode LC Fiber to 1-Channel Single Mode ST Fiber to
SC Fiber Transmitter, with SDI Loop Out LC Fiber Transmitter, with SDI Loop Out 3G-SDI Receiver, with Dual SDI Outputs 3G-SDI Receiver, with Dual SDI Outputs
OPTICAL FIBER OPTICAL FIBER
FiDO-R-SC $445 FiDO-R-MM $690
1-Channel Single Mode SC Fiber to 1-Channel Multi-Mode LC Fiber to
3G-SDI Receiver, with Dual SDI Outputs 3G-SDI Receiver, with Dual SDI
Outputs
www.aja.com | 28Mini-Converter Accessories
ACCESSORIES ACCESSORIES ACCESSORIES ACCESSORIES
CMP $99 DRM $590 DRM FCP $100 DRM- P/S ASSY $250
Converter Mounting Plate Mini-Converter Rackmount Frame Faceplate for DRM DRM Spare 50W Power Supply
with 50W Power Supply
ACCESSORIES ACCESSORIES ACCESSORIES ACCESSORIES
RMB $7 AJA Mini-Config DWP-U-R1 $40 PWR-CABLE $65
Rackmount Bracket Free Visual Configuration Universal Power Supply P-TAP to 2x AJA Mini-Converter
and Control Software Power Connectors
ACCESSORIES ACCESSORIES
P-TAP-CBL $45 AJA Mini-Matrix
P-Tap to AJA Mini-Converter Find the Right AJA Converter
Power Cable for Any Situation
www.aja.com | 29openGear Cards and Rackframe
For critical broadcast applications, AJA openGear compatible converter cards,
with DashBoard support, provide the highest levels of quality and reliability for
use in OG frames, including the AJA OG-X-FR.
OG-X-FR $1449
openGear Compatible Rackframe
openGear OG-DANTE-12GAM | $2495
INFRASTRUCTURE
OG-DANTE-12GAM
• S upport for 12G/6G/3G SDI audio embedding to- and from- the Dante
audio ecosystem
• Dual and independent 12G-SDI Input and Output ports, each supporting
16-audio channels, totaling 64-channels per card in a compact design
• 1x Primary and 1x Secondary 1Gb Ethernet ports
• 64-ch of simultaneous SDI/Dante audio bridging per card
• DashBoard support for remote signal status and configuration
• Compatible with a range of Dante Software from Audinate
• High density and small form factor, enabling 10 cards to be utilized
in a single openGear frame for up to 640 channels of SDI/Dante
audio bridging
• Hot-swap capable
• Compatible with OG-X-FR and OG-3-FR openGear frames
www.aja.com | 30INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE
OG-12GM $895 OG-FS-Mini $695 OG-12GDA-2x4 $695 OG-3GDA-2x4 $550
openGear 12G-SDI to/from SDI openGear 3G/HD/SD-SDI openGear Dual 1x4 12G-SDI openGear 1x8 or Dual 2x4 3G-SDI
Muxer/DeMuxer Utility Frame Synchronizer Distribution Amplifiers Reclocking DA
INFRASTRUCTURE INFRASTRUCTURE INFRASTRUCTURE HDMI
OG-3GDA-1x9 $495 OG-3G-AMA $795 OG-3G-AMD $795 OG-Hi5-4K-Plus $595
openGear 1x9 3G-SDI Reclocking DA openGear 3G-SDI Analog Audio openGear 3G-SDI 8-Channel 24-bit AES openGear 4K/UltraHD (4x 3G-SDI)
Embedder/Disembedder Embedder/Disembedder to full HDMI 2.0 Converter
HDMI SCAN CONVERT SCAN CONVERT SCAN CONVERT
OG-HA5-4K $595 OG-ROI-HDMI $995 OG-ROI-SDI $995 OG-ROI-DVI $995
openGear HDMI to 3G-SDI Scan Converter openGear 3G-SDI to HDMI/3G-SDI Scan openGear DVI to 3G-SDI Scan Converter
openGear 4K/UltraHD HDMI to 4K/UltraHD
(4x 3G-SDI) Converter with Region of Interest and Frame Synchronizer Converter with Region of Interest and Frame with Region of Interest and Frame Synchronizer
Synchronizer
SCALING SCALING
OG-4K2HD $795 OG-UDC $695
openGear 4K/UltraHD to 3G-SDI openGear 3G-SDI Up, Down, Cross-Converter
and HDMI Down-Converter and Frame Synchronizer
www.aja.com | 31OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER
OG-FiDO-TR-12G $1325 OG-FiDO-TR $645 OG-FiDO-TR-MM $890 OG-FiDO-2T $645
openGear 1-Channel 12G-SDI/LC openGear 1-Channel 3G-SDI/LC openGear 1-Channel 3G-SDI/LC openGear 2-Channel 3G-SDI to
Single Mode LC Fiber Transceiver Single Mode LC Fiber Transceiver Multi-Mode LC Fiber Transceiver Single Mode LC Fiber Transmitter
OPTICAL FIBER OPTICAL
OPTICAL FIBER
FIBER OPTICAL FIBER OPTICAL FIBER
OG-FiDO-2T-MM $890 OG-FiDO-2R $645 OG-FiDO-2R-MM $890 OG-FiDO-T $445
openGear 2-Channel 3G-SDI to openGear 2-Channel Single Mode openGear 2-Channel Multi-Mode openGear 1-Channel 3G-SDI to Single Mode LC
Multi-Mode LC Fiber Transmitter LC Fiber to 3G-SDI Receiver LC Fiber to 3G-SDI Receiver Fiber Transmitter, with SDI Loop Out
OPTICAL FIBER OPTICAL FIBER OPTICAL FIBER
FPO
OG-FiDO-T-MM $690 OG-FiDO-R $445 OG-FiDO-R-MM $690
openGear 1-Channel 3G-SDI to Multi-Mode openGear 1-Channel Single Mode openGear 1-Channel Multi-Mode
LC Fiber Transmitter, with SDI Loop Out LC Fiber to 3G-SDI Receiver LC Fiber to 3G-SDI Receiver
ACCESSORIES
OG-X-PS $679
Optional Redundant Power Supply
for OG-X-FR Frame
www.aja.com | 32SFP | Options
SFP Options Start at $195
AJA provides a range of products and optional SFP modules to allow you to make the most of your fiber infrastructure. You have the flexibility in many cases to order your
AJA model variant with an SFP already installed at time of purchase, and in other cases you may wish to order additional optional SFPs alongside your initial purchase or post purchase.
AJA SFP Configurator Single Mode LC SFP Modules Single Mode 12G SFP Modules
The AJA SFP configurator is the fastest way to ensure Single and Dual Channel LC Fiber Single and Dual Channel 12G LC, ST Fiber, HD-BNC
that you accurately select the most appropriate SFP for Transmitters and Receivers Transmitters, Receivers and Transceivers
your workflow needs for the appropriate AJA product
you wish to integrate into your facility infrastructure. Model Price Description Model Price Description
2-Channel 3G-SDI Single 2-Channel 12G-SDI Single
FIBERLC-2-TX $295 FIBERLC-2TX-12G $445
AJA SFP Configurator Mode LC Fiber Transmitter Mode LC Fiber Transmitter
2-Channel 3G-SDI Single 2-Channel 12G-SDI Single
FIBERLC-2-RX $295 FIBERLC-2RX-12G $445
Mode LC Fiber Receiver Mode LC Fiber Receiver
1-Channel 3G-SDI Single 1-Channel 12G-SDI Single
FIBERLC-1-TX $195 FIBERLC-TR-12G $445
Mode LC Fiber Transmitter Mode LC Fiber Transceiver
1-Channel 3G-SDI Single 1-Channel 12G-SDI Single
FIBERLC-1-RX $195 FIBERLC-1TX-12G $295
Mode LC Fiber Receiver Mode LC Fiber Transmitter
1-Channel 12G-SDI Single
FIBERLC-1RX-12G $295
Mode LC Fiber Receiver
1-Channel 12G-SDI Single
Single Mode SC SFP Modules Multi-Mode LC SFP Modules FIBERST-1TX-12G $395
Mode ST Fiber Transmitter
Single Channel SC Fiber Single and Dual Channel LC Fiber FIBERST-1RX-12G $395
1-Channel 12G-SDI Single
Transmitters and Receivers Mode ST Fiber Receiver
Transmitters and Receivers
Model Price Description Model Price Description
1-Channel 3G-SDI Single 2-Channel 3G-SDI Multi-
FIBERSC-1-TX $195 FIBERLC-2TX-MM $345
Mode SC Fiber Transmitter Mode LC Fiber Transmitter
1-Channel 3G-SDI Single 2-Channel 3G-SDI Multi-
FIBERSC-1-RX $195 FIBERLC-2RX-MM $345
Mode SC Fiber Receiver Mode LC Fiber Receiver
1-Channel 3G-SDI Multi-
FIBERLC-1TX-MM $295
Mode LC Fiber Transmitter
1-Channel 3G-SDI Multi-
FIBERLC-1RX-MM $295
Mode LC Fiber Receiver
www.aja.com | 33CORVID PCIe I/O Solutions for Development Partners The Corvid lineup offers OEM Developer partners a wealth of options when used with AJA’s powerful SDK on Windows, macOS, and Linux. AJA’s KONA, Io and T-TAP products are also compatible with the SDK, opening even more I/O choices. Learn More: www.aja.com/category/developer Apply today: www.aja.com/developer/request Corvid 88 $2,795 Corvid 44 12G $2,995 Corvid 44 12G BNC $2,895 Corvid 44 $1,895 High density 12-bit RGB or 10-bit YCbCr 8K or multi-channel 4K, 12-bit RGB or 8K or multi-channel 4K, 12-bit RGB or Multi-channel 12-bit RGB or 10-bit YCbCr with simultaneous 4K input/output, or eight 10-bit YCbCr with four independent 10-bit YCbCr with four independent with four independent mixed channel I/O independent mixed channel I/O. bi-directional 12G-SDI I/O and HD-BNCs. bi-directional 12G-SDI I/O and full-size BNCs. or single 4K Input or Output. Low Profile and Fanless versions available. Low Profile and Fanless versions available. Fanless version available. Low Profile and Fanless versions available. Corvid 44 BNC $1,895 Corvid 22 $1,395 Corvid 24 $1,895 Corvid HEVC $4,995 Multi-channel 12-bit RGB or 10-bit YCbCr with Multi-channel HD (2x in, 2x Out) Multi-channel HD or single-channel 4K I/O 4K or multi-channel HD HEVC encoding four independent mixed channel I/O or single supporting RGB 8-bit, or YCbCr 10-bit supporting RGB 8-bit, or YCbCr 10-bit with from up to 4K 60p video input, or file to 4K Input or Output. Full-sized BNCs. with 3G-SDI I/O. Reference/LTC Input. bypass relays continuation of SDI input file encoding. 4:2:0 / 4:2:2 at 8- or 10-bits. Fanless version available. signal to SDI output in event of signal failure. Slot powered, or ATX6 versions available. www.aja.com | 34
HDBaseT Camera System
$2,495 RovoCam Features
Integrated UltraHD/HD Camera with HDBaseT • ltraHD up to 29.97p or high frame rate HD support up to 60p
U
• Sony back illuminated 1/2.3 type 8.9 megapixel CMOS sensor
• Video, audio, control, and power over standard Cat 5e/6 cable
• Three year warranty
RovoControl Software Features
• Control and configure software for Rovocam
• When RovoCam is in UltraHD Mode, RovoControl’s unique ePTZ feature
allows the user to select a 1080p HD ROI (Region of Interest) frame from
the UltraHD raster for 1080p 50 or 1080p 59.94 output with full Pan,
Tilt and Zoom capabilities.
• Exposure control for simple camera control in the GUI
• Preset command and control with global, camera and ePTZ
• Import/Export of settings for sharing setups and configurations
• High DPI UI mode for GUI on high rez displays
• Crosshair selector for refined Spot AE and Spot Focus control
• Zoom control
Size (W x D x H): 71.12 x 149.86 x 91.44 mm
RovoRx SDI $995 RovoRx HDMI $495
UltraHD/HD HDBaseT Receiver to 6G/3G-SDI UltraHD/HD HDBaseT Receiver to HDMI with PoH
and HDMI Frame Sync w/ PoH, Genlock
RovoRx-SDI Features RovoRx-HDMI Features
• 4x 6G/3G-SDI UltraHD/HD SDI outputs • 1x UltraHD/HD HDMI output
• 1x UltraHD/HD HDMI output • 1x RCA stereo audio output
• DA Mode for distribution needs of HDBaseT sources • 1x USB for firmware upgrades
• 1x RCA stereo audio output • 1x RS-232 for RovoCam control
• 1x USB for firmware upgrades • 1x HDBaseT connector (RJ-45)
• 1x RS-232 for RovoCam control • Five year warranty
• 1x HDBaseT connector (RJ-45)
• Five year warranty
www.aja.com | 35About AJA Video Systems, Inc Since 1993, AJA Video has been a leading manufacturer of video interface and conversion solutions, bringing high quality, cost effective digital video products to the professional, broadcast and postproduction markets. AJA products are designed and manufactured at our facilities in Grass Valley, California, and sold through an extensive sales channel of resellers and systems integrators around the world. For further information, please see our website at www.aja.com. 04092021 AJA Video Systems, Inc. Grass Valley, California www.aja.com • sales@aja.com • support@aja.com www.aja.com
You can also read
