AQUAJET® 140 – HIGH-PRESSURE PUMP UNIT A new generation of efficiency and reliability High energy savings Sturdy industrial engine Different performance classes Great operational safety High mobility Many applications
THE NEW AQUAJET® 140 THE NEW AND PROVEN COMBINED:
- MORE ENVIRONMENTAL - GOOD ACCESSIBILITY - OPTIMIZED
PROTECTION: through enlarged side flaps CENTER OF GRAVITY HIGH ENERGY SAVINGS
Full-area floor tray protects and removable roof element.
against contamination.
- REINFORCED PUMP FRAME The AQUAJET® ultra high-pressure
- OPERATIONAL SAFETY: - EXCELLENT SOUND and fully galvanized chassis. pump converts 95% of the shaft
No pipelines and flexible INSULATION power into hydraulic energy
connections between the fuel
filler cap and the tank. - NEW ES 4 CONTROL
- UNSURPASSED VALUE
FOR MONEY
- VERY GOOD GROUND CLEARANCE FULL CONTROL
and the possibility of a
100 km/h approval.
All important operating data is available at a
glance. Easy operation, monitoring and nozzle
calculation thanks to the innovative ES 4
control - Intuitive and in many languages.
GREAT LONGEVITY
Long lifetime of all high-pressure components,
optimal valve and sealing technology, use
of top quality materials and precise series
production with most modern machines.
HIGH MOBILITY
High-quality tandem chassis with overrun brake and
completely galvanized chassis and optional four-point
lifting eyes for optimal positioning of the system.
VARIOUS VERSIONS
AQUAJET® high-pressure pump units are available
in a wide variety of designs and performance
classes and are up to any challenge.
2 AQUAJET® 140 HIGH-PRESSURE PUMP UNIT AQUAJET® 140 HIGH-PRESSURE PUMP UNIT 3
ENERGY SAVINGS THE ENDURANCE RUNNER STURDY INDUSTRIAL ENGINE
THROUGH HIGH EFFICIENCY IN TOP QUALITY
- Economical industrial engines
- High efficiency. - Long lifetime of all high-pressure in accordance with the current
Hammelmann high pressure components due to optimal valve and exhaust emission certification stage 5.
pumps convert 95% of the shaft sealing technology, use of top quality
power into hydraulic energy. materials and precise series production - Ample power reserves: 160 kW engines
with most modern machines. for real 140 kW pump performance.
- Very smooth running due to low
speed at maximum performance. - Ideal corrosion protection
thanks to high-quality materials.
- Low diesel consumption HIGH MOBILITY
due to modern engines. - High operational reliability
and long maintenance intervals through - Low noise pump unit
the hermetical sealing of the gear end due to super soundproofing
by a patented bellows sealing system.
- Environmentally safe operation
SAFE OPERATION - „Dry pump design“: thanks to the due to totally enclosed bottom
arrangement of all pressurized high tray made of aluminum.
- Everything under control! pressure components inside the
Monitoring, control and pump housing no water is wasted. - Large fuel reserve. Minimum of
nozzle calculation via the 8 hours operation possible due
Hammelmann ES 4 control - Significant operating cost advantage to the large internal fuel tank
unit. Intuitive navigation in thanks to the crank section with
many languages. All important pressurized lubrication system which - High quality tandem chassis
operating data at a glance. is designed for at least 25,000 with overrun brake. Chassis
operating hours under full load. is completely galvanized
- Easy set-up due to easily
accessible supply and high - High reliability in continuous duty - Easy to position by means of 4
AQUAJET® 140 – pressure connections. due to the performance reserves point lifting lugs or central single
of the high-pressure pump, drive point lifting device (optional).
AT A GLANCE engine and all components.
- Very good ground clearance
The heart of the AQUAJET® 140 series is an HDP 140 3-plunger high-
pressure pump. The unit is driven by a sturdy industrial diesel engine - 100 km/h approval possible
from established manufacturers. The well thought-out system brings
innumerable advantages and is available in different versions and performance
classes. Find the right system for your individual applications!
Very good ground clearance
4 AQUAJET® 140 HIGH-PRESSURE PUMP UNIT AQUAJET® 140 HIGH-PRESSURE PUMP UNIT 5
ES 4 –
THE CLEVER CONTROL UNIT
- The ES 4 control offers a - Engine speed, working pressure,
completely revised user fuel gauge at a glance.
interface and offers improved
clarity and usability. - Communication via CAN bus -
increased reliability because the
- Splashproof 10“ high- number of electrical terminal
resolution anti-glare touch points could be reduced.
display (1280x800 px).
- Separate, certified safety control,
- Additional keypad suitable for according to performance level D,
construction sites for operating machine directive.
the most important functions.
- Luminous and easy to
use even with gloves.
6 AQUAJET® 140 HIGH-PRESSURE PUMP UNIT AQUAJET® 140 HIGH-PRESSURE PUMP UNIT 7
AQUAJET® 140 DESIGN
High-quality components, an intelligent design and well thought-out equipment features are just a few powerful
arguments in favor of a Hammelmann AQUAJET® diesel unit.

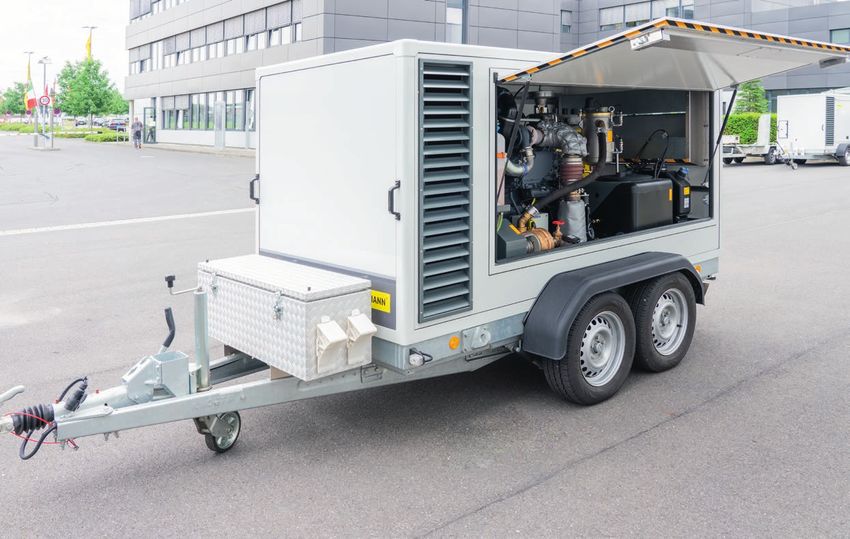

Large hood opening
for good accessibility
Bypass valve
Compressed air system
Diesel engine
Holder for blasting gun Stage EU 5
US EPA Tier 4 final
HDP 140
ES 4 control
with external panel
AdBlue®-Tank
Vice
(Optional)
Soundproof hood made of GRP rigid foam panels
4-point lifting lugs
(optional)
8 AQUAJET® 140 HIGH-PRESSURE PUMP UNIT AQUAJET® 140 HIGH-PRESSURE PUMP UNIT 9
EQUIPMENT FEATURES
ES 4 CONTROL UNIT LED INTERIOR LIGHTING
The clever control guarantees full Bright LED lights ensure a
control of all parameters and impresses well-lit interior, even when the
with a 10 “touch display and intuitive sun is already going down.
operation. The control unit is sturdy
enough for construction sites and
can be operated with gloves!
TIER 5 INDUSTRIAL ENGINE ADBLUE®-SYSTEM
TECHNICAL DETAILS
A powerful 6-cylinder diesel engine 85% less nitrogen oxides, more
from a brand manufacturer is environmental protection and
the driving force of the system lower fuel consumption.
and offers a lot of smoothness
and high power reserves. AQUAJET® 140 FAMILY
Type Plunger Ø Operating pressure Flow rate Engine power Pump performance
FULLY GALVANIZED LARGE SET OF TIRES
CHASSIS 17,5 mm up to 3200 bar up to 23 l/min.
The large tires ensure good
The rugged and fully galvanized driving characteristics, higher PRESSURE LEVEL 1
144
up to 30 l/min.
chassis guarantees optimal mobility. ground clearance and better up to 2600 bar
AQUAJET®
suspension of the system. 20,0 mm
PRESSURE LEVEL 2
up to 26 l/min. 160 kW 140 kW
up to 2800 bar
143
28,0 mm up to 1800 bar up to 42 l/min.
STORAGE BOX FROST PROTECTION
SYSTEM
142
33,0 mm up to 1240 bar up to 84 l/min.
[OPTIONAL]
The high-quality aluminum storage [OPTIONAL]
box on the drawbar offers plenty With the frost protection system, AVAILABLE VERSIONS
of space for accessories. you can easily protect your
system when the temperatures
drop below freezing point. Version Length Width Height Weight
Road going 4677 mm 1905 mm 2000 mm from 2,75 t
VICE 4-POINT LIFTING LUGS
Road going
[OPTIONAL] [OPTIONAL] 4677 mm 1905 mm 2465 mm from 2,80 t
› High Version ‹
Perfect for assembly work on-site, The 4-point lifting lugs allow the
like changing of the water tools. pump unit to be easily and precisely
Basic unit
positioned at the place of use. 2200 mm 1440 mm 2000 mm from 2,30 t
› Incl. fuel tank ‹
10”-Container 2990 mm 2440 mm 2720 mm from 5,00 t
DIMENSIONS AND WEIGHTS DEPEND ON THE DESIGN AND EQUIPMENT SELECTED.
DETAILED SPECIFICATIONS ARE AVAILABLE ON REQUEST.
10 AQUAJET® 140 HIGH-PRESSURE PUMP UNIT AQUAJET® 140 HIGH-PRESSURE PUMP UNIT 11
CERTIFICATES
- ISO 9001:2015
- ISO 14001:2015
- ISO 45001:2018
- ISO 50001:2011
- Achilles Certificate
- ASME Certificate
- SIR Certificate
- Others
Water Jetting
Calculator
The free Hammelmann app
For iOS, Android and your browser
Water Jetting Calculator: hammelmann.com/app
