Broadband Connect
Wireless
Request for Occupation
Version 1
C1 - Unclassified
Request for Occupation_BroadbandConnectWireless_Final 121114Final
Request for Occupation
1 INTRODUCTION
It is Vodacom’s pleasure to present to you as our valued customer the Broadband Connect Wireless
product. Broadband Connect Wireless can either be provided as a Point-to-Multipoint or Point-to-Point
topology.
Point-to-Point link: Typically provided to customers in very remote areas or customers that
require a service greater than 20Mb/s Point-to-Multipoint: Multiple remote sites connect to a
single Base Station which is connected to the Vodacom Network (maximum distance from a
Base Station = 4km). Typical rates include 5Mb/s, 10Mb/s and 20Mb/s.
Figure 1: Point to Point Topology

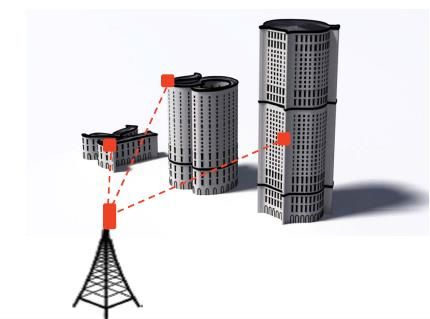

Figure 2: Point to Multipoint Topology
The purpose of this document is to introduce the system to the customer and landlords to provide clarity
on exactly what Customer Premise Equipment will be installed on their property.
C1 - Unclassified Page 2 of 10
Request for Occupation_BroadbandConnectWireless_Final 121114Final
Request for Occupation
2 CUSTOMER PREMISE EQUIPMENT (CPE)
The installation will consist of indoor and outdoor installations as set out below.
Outdoor Equipment
Radio with
Integrated Antenna
Lightning
Protection Unit
IFL Cable
Indoor Equipment
PoE
220V HG 659 Router
AC outlet

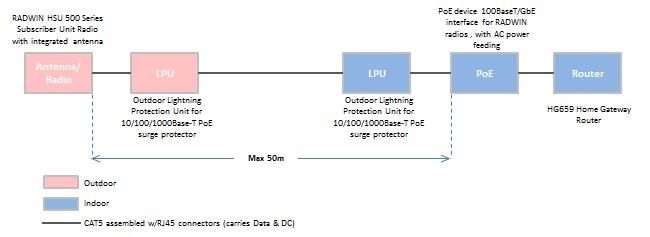

Figure 3: Broadband Connect Wireless Customer Premise Equipment
2.1 Indoor Equipment
The indoor installation requires access to the customer’s server room or office where the following
equipment can be either securely placed or mounted:
2.1.1 Radwin 5000 PoE device (Power over Ethernet)
The PoE device is a 100BaseT/GbE interface for RADWIN radios (incl. AC power feeding).

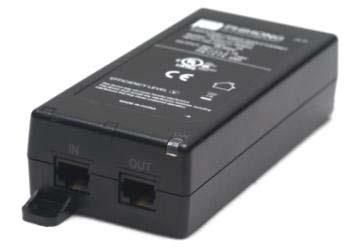

Figure 4: Indoor Equipment (PoE)
C1 - Unclassified Page 3 of 10
Request for Occupation_BroadbandConnectWireless_Final 121114Final
Request for Occupation
Installation:
No mounting required, only secure and safe placement.
2.1.2 HG659 Home Gateway Product (Router)
The HG659 is a next generation voice gateway that supports very-high-data-rate digital subscriber
line type-2 (VDSL2) uplink, one Giga Ethernet uplink port and 4 Giga Ethernet downlink ports. The
HG659 is designed for voice over broadband (VoBB) users, mid-range and high-end users using
voice over IP (VoIP) and high bandwidth services, such as high density (HD) video.
Dimensions (LxWxH): 240mm x 185mm x 37mm.
Figure 7: HG659 Router
The HG659 performs the following functions:
Acts as the Gateway for the customer LAN to assess the Vodacom network.
Routes traffic to and from the Internet/Corporate HQ.

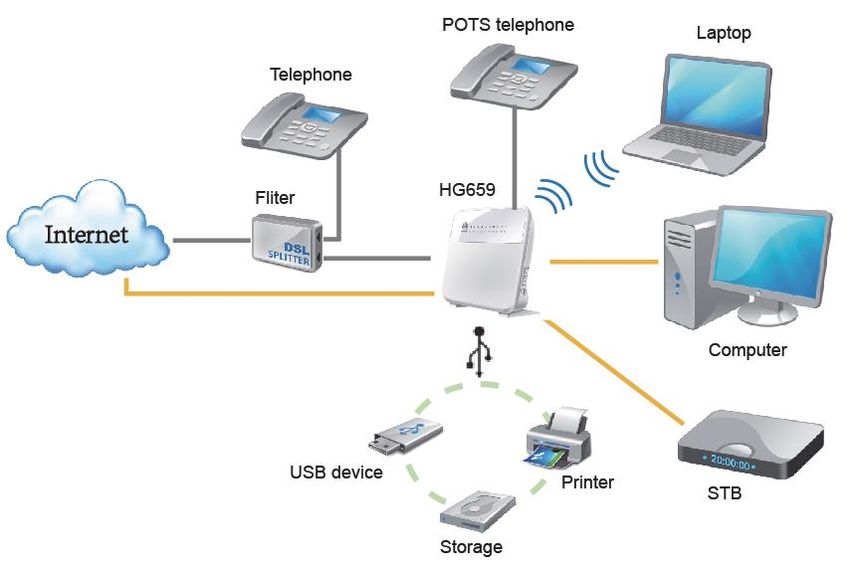

Figure 8: Networking diagram of the HG659
Installation:
C1 - Unclassified Page 4 of 10
Request for Occupation_BroadbandConnectWireless_Final 121114Final
Request for Occupation
No mounting is required, only secure and safe placement on a desk or appropriate surface
close to where the PoE is installed.
2.2 Inter Facility Link (IFL) Cabling
The indoor equipment is connected to the Outdoor equipment via Inter Facility Link (IFL) cabling. All
IFL cabling between the ODU and the PoE will be UV protected CAT5e cabling.
Figure 9: Inter Facility Cable
Should a suitable entry to the building or room not be available, the installation team will need to drill a
single 6mm hole through the exterior wall of the building to pass the IFL through to the indoor
equipment.
2.3 Outdoor Equipment
The outdoor installation requires access to the customer’s roof to mount the integrated antenna at the
best possible position where clear Line of Site (LOS) was established / confirmed to the nearest
Vodacom Base Station during a scheduled site survey. Any LOS obstruction whatsoever, such as
trees, building etc. will cause severe signal loss which may cause the link to fail.
The roof should also have secure anchoring points where the installation team can anchor themselves
during installation in order to adhere to the required Health & Safety regulations specified for working
at heights.
2.3.1 RADWIN HSU 500 Series Subscriber Unit Radio with Integrated Antenna
The RADWIN HSU 500 Series provides high capacity access connectivity of up to 5 Mbps, 10Mbps
or 25Mbps net aggregate throughput depending on the service contract signed with Vodacom. The
HSU is also referred to as the Outdoor Unit (ODU).
Dimensions (LxWxH): 241mm x 195mm x 83mm.
C1 - Unclassified Page 5 of 10
Request for Occupation_BroadbandConnectWireless_Final 121114Final
Request for Occupation
Figure 10: Outdoor Equipment Subscriber Unit (HSU)
Installation:
The ODU can be mounted on a pole or a wall and must be properly grounded. In both
installations, the supplied mounting kit is used to secure the ODU.
2.3.1.1 Mounting options
The outdoor equipment can either be mounted directly to the building using a wall mount bracket or
by means of a 1.5m (500mm diameter) extension pole. Both methods will require the installation
team to drill four attachment holes in the exterior wall of the building.
NOTE: It is important not to mount the antenna where there is a possibility of human or vehicle
traffic in front of the antenna.
A. Mounting Radwin Radio on a Mast/Pole

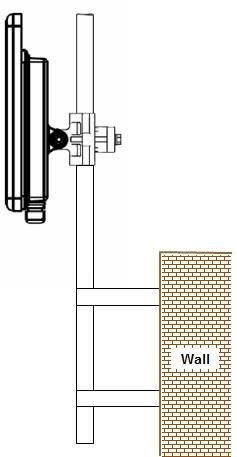

Figure11: Pole mount option of HSU
In cases where the building height is insufficient to provide clear LOS to the Vodacom
Base station, the installation team will have to install an extension pole to achieve clear
LOS. The extension pole is a 1.5m long, 50mm diameter pipe that will be secured to the
C1 - Unclassified Page 6 of 10
Request for Occupation_BroadbandConnectWireless_Final 121114Final
Request for Occupation
building using four M10 Rawl bolts. The pricing of this extension pole is included in the
standard set of equipment.
B. Mounting Radwin Radio on a Wall
Figure 12: Wall mount option of HSU Figure 13: Wall mount Arm
The wall mount bracket is secured to the building using four screw hex head M8x40mmm
bolts.
2.3.2 Lightning Protection Unit (LPU)
The PoE surge protector is a device that minimize the risk of damage due to lightning strikes (incl.
0.5m CAT5e cable and wall/pole mounting kit).

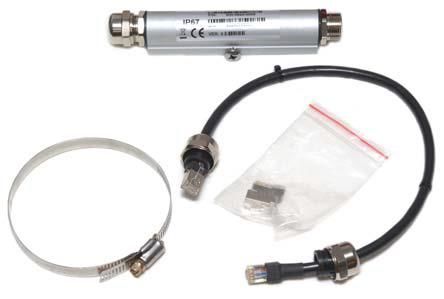

Figure 5: Lightning Protection Unit (LPU)
Installation:
The LPU will be mounted outdoor as close as possible to the inlet hole of the site/facility where
the PoE is installed.
A Wall Mounting Unit will be used to firmly secure the LP Unit on the site/facility wall and ground
the LPU using the GND screw.
The other end of the LPU is connected with a short CAT‐5e cable to the PoE.
C1 - Unclassified Page 7 of 10
Request for Occupation_BroadbandConnectWireless_Final 121114Final
Request for Occupation

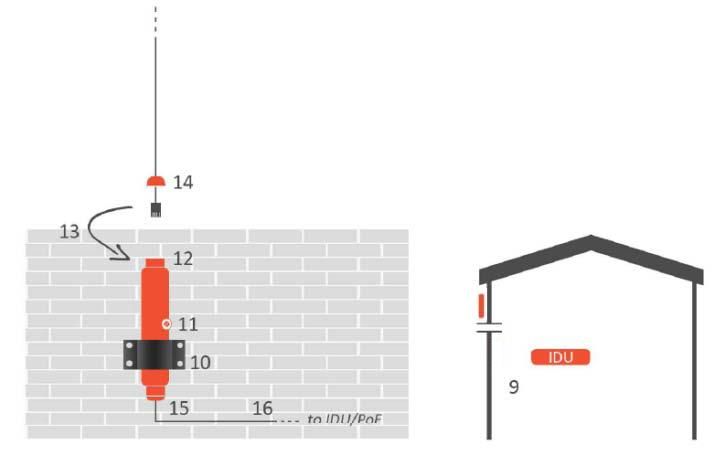

Figure 6: Indoor installation of the LPU
3 CUSTOMER REQUIREMENTS
3.1 Power
Radwin PoE: 220V, AC 3-prong outlet
HG 659 Router: 220V, AC 3-prong outlet
3.2 Grounding
Proper grounding is essential to avoid any damage to the equipment due to lightning strikes.
3.2.1 Indoor Grounding Requirements
No additional earthing required.
3.2.2 Outdoor Grounding Requirements
A dedicated, low resistance building grounding system (
Request for Occupation Appendix A – Desktop Study Feasibility Results Desktop Study Results_Foskor_ID 99939 C1 - Unclassified Page 9 of 10 Request for Occupation_BroadbandConnectWireless_Final 121114Final
Request for Occupation
Appendix B - Broadband Connect Wireless Information & Acceptance sheet
The details below need to be completed and signed by the client prior to installation of Broadband Connect Wireless. This table needs to be completed for each site where
Broadband Connect Wireless will be installed.
Afgri
Client Name
Afgi centurion
Site Name
Onsite Contact Person Nadine Bhootho Tel No. 011 xxx xxxx Cell No. 082 xxx xxx
th
Installation Address (Physical) 12 Vodacom Boulevard 16 road Midrand
Building Height 20 meters Block C Floor Ground
Bandwidth
Region Southern Gauteng Choose an item.
Options
No. of
No. of IP Talk lines requested 1 ☐ OR 2 ☐ 1 ☐ OR 5 ☐
Static IPs
Number of Analogue phones
1 ☐ OR 2 ☐
requested
Site Co-Ordinates Latitude: Longitude:
Note:
If incorrect or inaccurate GPS Co-ordinates are provided, the installer will -33.924870 / 33º55'29.53" 18.416267 / 18º24'58.56"N
have to do a second site visit to complete the configuration. This will involve
an additional call out charge which the client will be liable for.
Building Type Comments
Walls: Concrete (casted walls), brick, drywall or container?
Is it a multi-storey building? (Yes/No)
If so, how many floors does the building have? On which floor is your office situated?
Roof Type Comments
What type of roof used (Flat; Thatched; Tiled, Corrugated, Fibre Glass)?
Property Comments
Is the property leased or owned?
Other Comments
Is there an Earthing point available on/near the building’s roof?
Specify the power availability on site:
220V AV or 48V DC?
Note: A dedicated plug should be provided – the use of multi-plugs are not
allowed.
Permission to Install Vodacom Broadband Connect Wireless on a Site where the Property is Leased
Equipment to be installed: Radwin Radio unit
I, (Name & Surname),______________________________________ give permission for (Client Name)______________________________________ to install Vodacom
Wireless equipment on my property as per the address stipulated below.
Property Address:
Comments:
Please specify if there are any special building access
requirements or inductions Required?
Are there any special procedures before installation?
Property Owner Contact Details:
Property Owner Name: Property Owner Signature:
***If the property is leased please get the Owner of the property to complete the permission section.
***The Customer hereby accepts that the Request for Occupation form has been correctly completed for which this document serves as an annexure hereto***
