BUILDING SPECIFICATIONS PALM BEACH I - Moraga
BUILDING SPECIFICATIONS PALM BEACH I
BUILDING SPECIFICATIONS PALM BEACH I - Moraga
oFoundation
In accordance with the geotechnical evaluation undertaken, we have
opted for individual footings, braced between each one by means of
belts on the lower floor, in order to achieve the highest degree of
seismic-resistance.

o Roof
The roof, pertaining to the Rooftop Terrace, is flat and
transitable, with a roof pitch formed at an angle via lightweight
concrete (type of clay), thermal-acoustic insulated rigid panels
made of Styrofoam, impermeable due to armed asphalt layer
with fiberglass, refined with cement mortar with a low
retraction level over a beam that is adapted for the outdoors.
Porcelain stoneware superficial finished.

o Frontage
The frontage is completed with a double surface: an
exterior layer of brick panels and an interior layer of
double-hole bricks. Separated by a chamber with thermal-acoustic
insulated rigid panels made of projected styrofoam. The exterior layer
will be plastered with a single layer coating of plasterwork or ceramic
depending on the area of the frontage. All locks of the façade are
sound and heat-insulated, as required by current regulations.

o Joinery and exterior glazing
Lacquered aluminium exterior joinery and guaranteed insulation due
to the thermal bridge. Security entrance door with security lock in
three points. Frontage with double glass type CLIMALIT 6/12/9 and
security 3+312/6.

o Joinery and Interior glazing
Passage doors of Medium Density (MD) varnished in white with
stainless steel door handles. Inbuilt wardrobes with sliding doors in
the same finish as those of the passage doors. Interior lined cabinet
with drawers.

o Fencing and            inside
divisions
The enclosure of the plot done with SPLIT block, perforated mesh and
white glass party wall. Galvanized and painted iron access doors. They
include a pedestrian door and a n automated door.
BUILDING SPECIFICATIONS PALM BEACH I - Moraga
o Structure
The structure of the homes in this residential complex is intended to be
undertaken with pillars, forged in one direction in concrete walls and
prestressed joists in forged crawlspace. The remaining slabs will be
made with reticular slabs of filter blocks and solid slabs both in the
porches as well as in the terraces

o Brickwork
The interior partition walls of each home will be completed with
double-hole bricks, finished with polymer cement mortar. This
will be coated with a single layer coating of plasterwork and
finished with plaster or tiling.

o Interior walls
 Stoneware tiling in the bathrooms. We apply plastic paint over the
plasterwork, finished with plaster. The false ceiling al over the house
with drywall and finished with a double layer of white plastic painting.

o Flooring
Interior flooring and skirting with ceramic stoneware of the highest
quality. Exterior flooring with ceramic stoneware of the highest quality
in the sidewalk and pedestrian access.

o Electricité
The property has installed electricity at the increased
l e v e l o f 9 , 2 K w . w i t h c i r c u i t s f o r p o w e r f u l l i g h ti n g , p o w e r
outlets, countertop oven, washing machine, dishwasher
and heater, power outlet for the bathrooms, kitchen and
line for the swimming pool. Piping and wiring compliant
w i t h r e g u l a ti o n s R G B T 2 0 0 3 . T h e i n s t a l l a ti o n m e c h a n i s m
will be of the Niessen brand, Zanit series. Tv outlets in
living room, bedrooms, porch and terraces. Telephone
outlets in living room and bedrooms. The living rooms
and          bedrooms                are           connected                to          provide
t e l e c o m m u n i c a ti o n s s e r v i c e s i n b r o a d b a n d t h r o u g h o p ti c

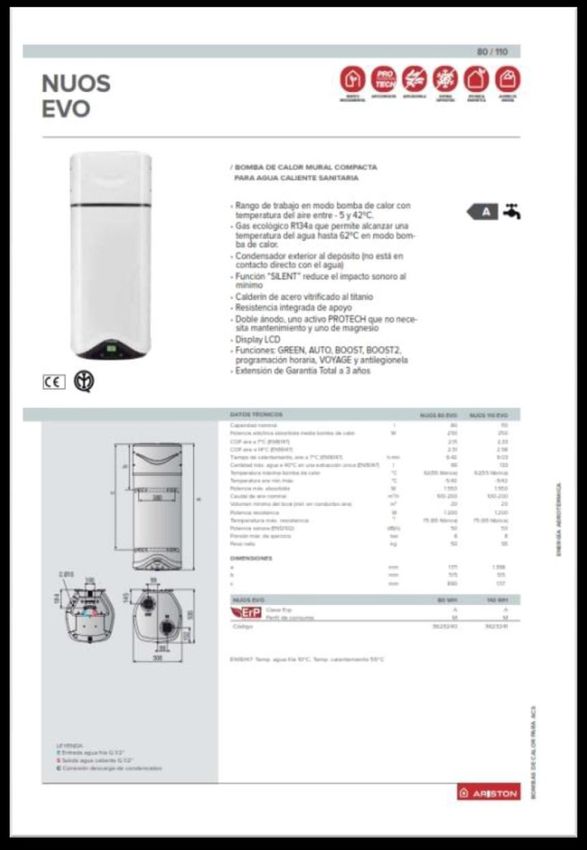

fi b r e c a b l e . H o t d r i n k i n g w a t e r p o w e r e d b y r e n e w a b l e
energy (Aerotermia) with a water reservoir and
electrical resistance backup. Video entry phone with
central unit on the main access door of the complex and
receiver in the house via monitor.
BUILDING SPECIFICATIONS PALM BEACH I - Moraga
o
Kitchen
Completely furnished with cupboards on lower and upper levels.
Furniture in lower and upper levels in the wall of the kitchen and
furniture low levels in the isle, all painted in white colour. Quartz
countertop SILESTONE type with an embedded stainless steel sink.

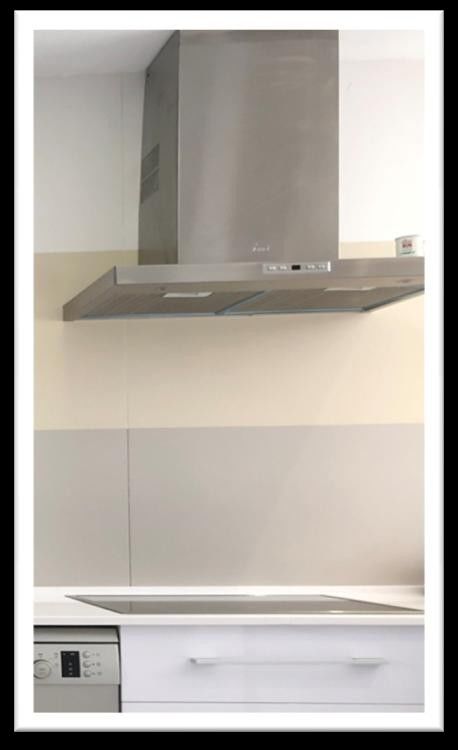

Stainless steel fingerprint resistant extractor hood and vitroceramic
hob.

oToilets and plumbing
White porcelain bathroom fittings. The toilets have a built-in cistern.
Wash basins fitted on a countertop as a bathroom unit. Shower trays
with ultra slim materials. Mixer tap of the highest quality.

o Air conditioning
Pre-installation for air conditioning (cold-hot) in the living room and
bathrooms, via conduits through adjustable air supply grilles.

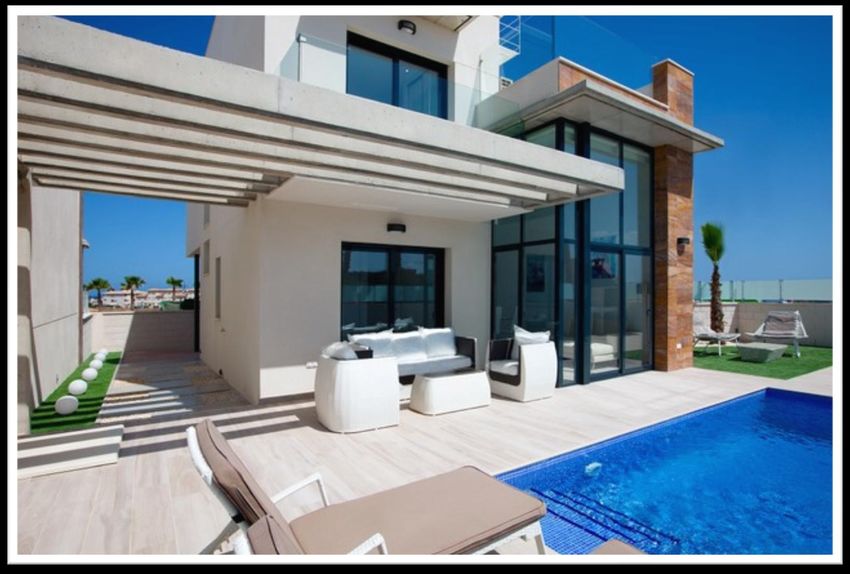

o Swimming pool
Building of the pool 6x3m, with circulating pumps, filtration
equipment… Completely finished.
BUILDING SPECIFICATIONS PALM BEACH I - Moraga
EXTRAS
o Air conditioning motors Brand Fujitsu       o Heat Pump Installation of two machines type LG-18 y LG-24 for air
                                              conditioning inside the home.
o Motorised garage door with remote control

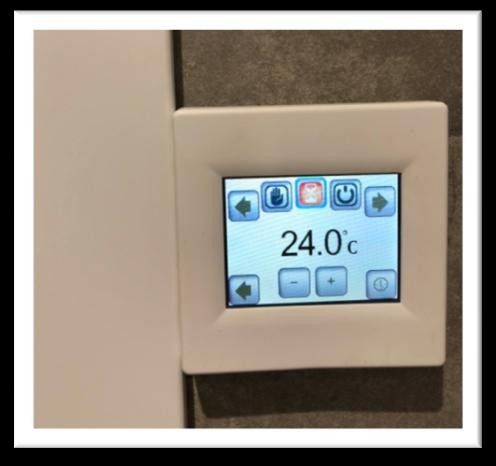

                                              o Underfloor heating: in the bathrooms, by floor or throughout the entire
o Motorised curtains and blinds               home.

o Barbecue Station                            o Incorporating a jacuzzi in the swimming pool, includes modifying the motor
                                              booth and seating bench, finishes and functions.

                                              o Swimming pool heater

                                              o Swan-neck water fountain in the swimming pool
BUILDING SPECIFICATIONS PALM BEACH I - Moraga
o Pergola
o Motorised awning

o Interior LED Lighting Pack for interior and exterior
o Furniture Pack or Pack Premium (furniture and household domestic appliances)

o Basement
