CLASSE R7 EVOLUTION GET IT RIGHT AND LEFT Q
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
quickswitch concept
new
Classe R7
EVOLUTION
get it right AND LEFT
3
7
Classe r7
VERSATILITY THAT SUITS THE WAY YOU WORK
ONE UNIT,
A HUNDRED SOLUTIONS
The Classe R7 meets the needs of dental surgeons by offering ergonomic solutions compatible
with all work styles. Easily adapted to different operating modes, unbeatable versatility makes
the Classe R7 the best all-inclusive unit on the market.
From complete integration to simple modularity, the Classe R7 has an outstanding combination of
features that ensure comfort at all times.
r7 PATIENT CHAIR
Classe r7 continental Classe r7 MODULO CONTINENTAL
Classe r7 international Classe r7 MODULO INTERNATIONAL
Classe r7 cart Classe r7 MODULO CART
5
7
Classe r7

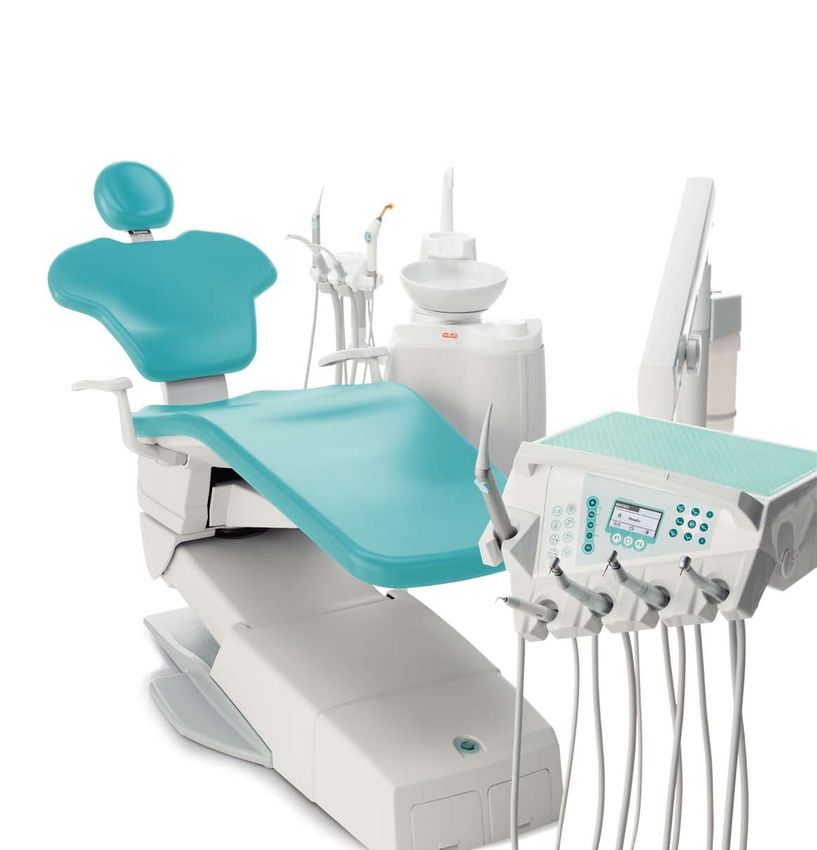

Classe R7 CONTINENTAL
SMOOTH AND STREAMLINED

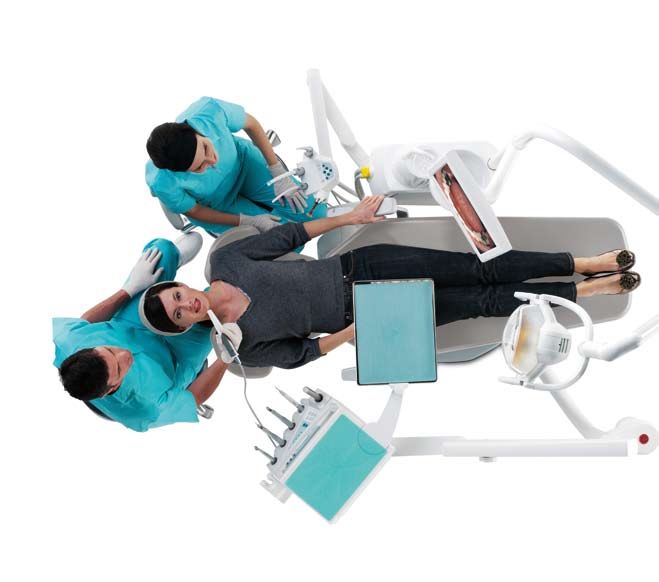

The Continental version makes the very most of the manoeuvrability of the individual modules
of the dental unit. By enhancing interaction within the dental team, workflows are smoothed
and streamlined. The outstanding versatility of the Classe R7 Continental creates plenty of space,
thus making patient access easier and improving the comfort with which dentist and assistant
perform their work.
7
7 r e s s la C

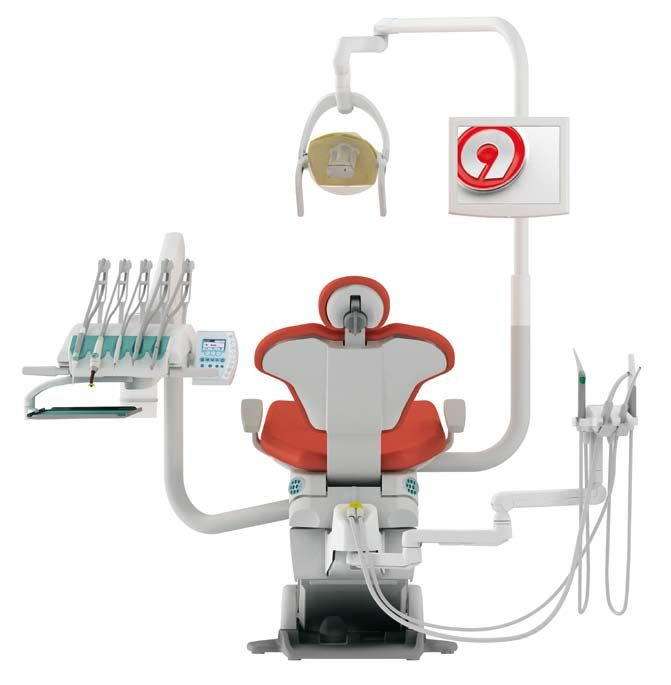

Classe R7 INTERNATIONAL
MOVEMENT COMES NATURALLY

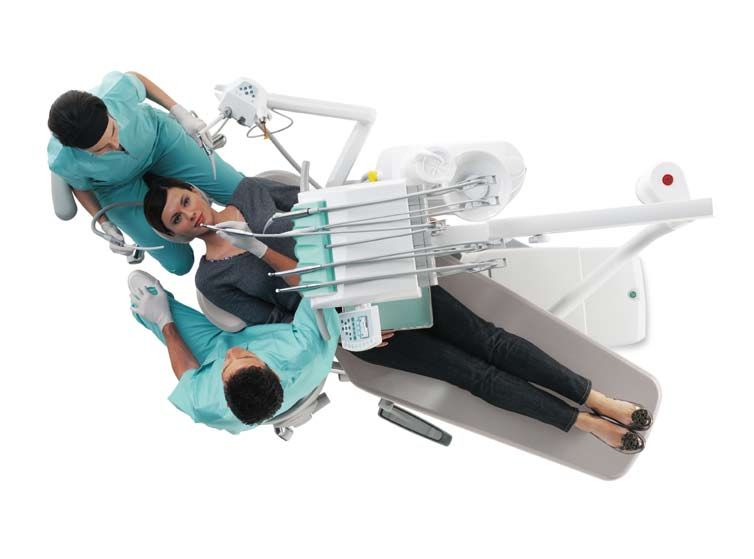

The International version presents the instruments on the dentist’s module in order to
reflect the natural movements of dental surgeons who use hanging-tube instruments.
Pantograph arm mobility is outstanding, smoothly following the operator’s every move
and change of position. Classe R7 International improves interaction with the assistant
and makes movements as natural as can be.
9
7
Classe r7

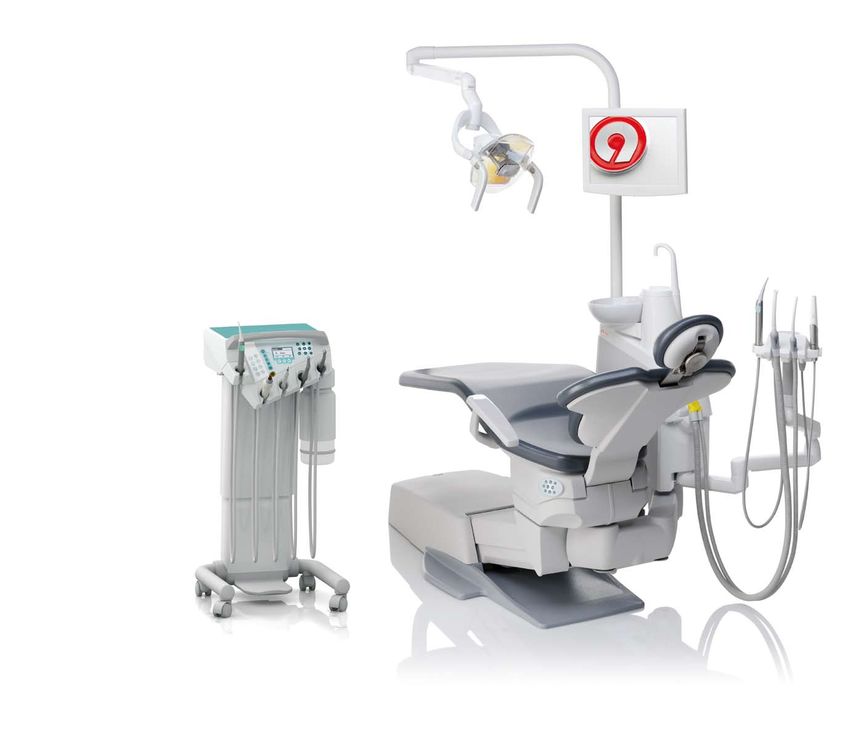

classe R7 cART
IMMEDIATE FLEXIBILITY
The Cart version provides absolute working freedom. The mobility of the dentist’s module is perfect
for any workplace and ideally suited to dentists who work with hanging-tube instruments. Whether
right-handed or left-handed, the Cart solution offers an immediate response. Height-adjustable, the
module features an easy-grip handle, a large table area and ergonomic instrument layout.
11
7
Classe r7

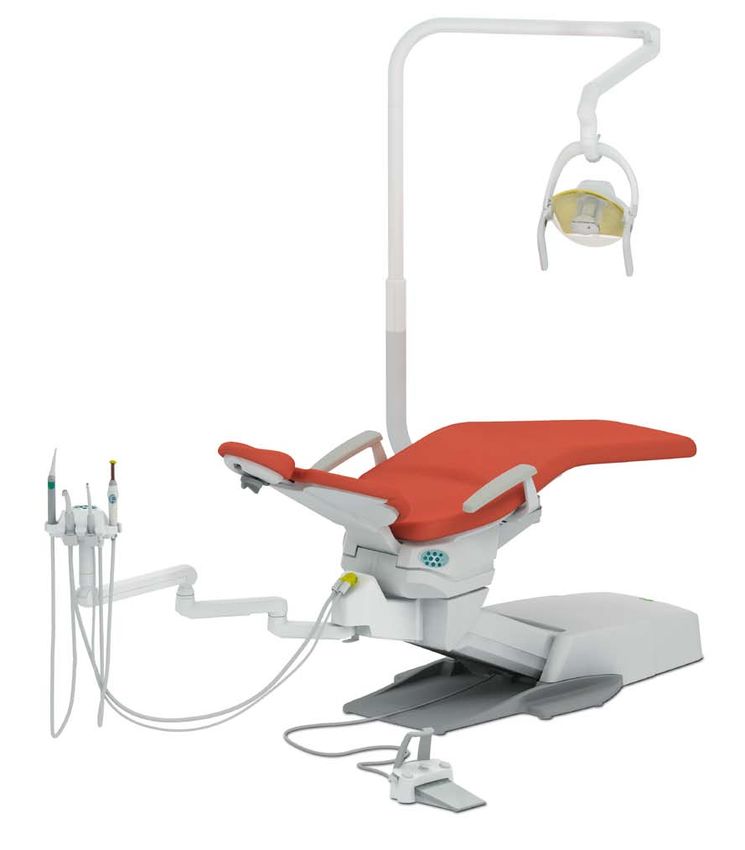

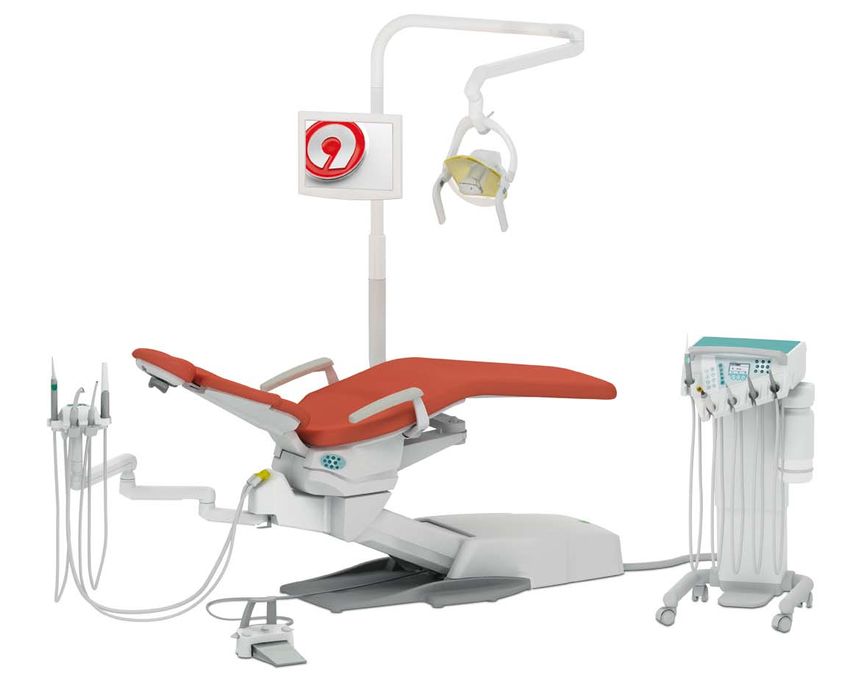

Classe r7 modulo
MADE TO MEASURE
The natural evolution of the Classe R7 dental units expands the ‘integrated treatment centre’ concept even
further by adding new versions to the range, from single patient chairs to comprehensive configurations
with or without integrated suction, with or without the dentist’s module on the swivel arm.
In its modular configuration, the Classe R7 allows the dentist to personalise the dental unit according to
his specific workplace and work-based needs.
13
7
Classe r7
COMFORT FIRST AND FOREMOST
INTELLIGENT SHAPING
Slender and slim, the seat is modelled to provide
the patient with secure yet comfortable anatomical
support throughout the operation, thus minimising
any tendency to move around. The backrest is equally
slender so that the dentist can lower the chair while
maintaining the correct posture alongside the patient.
Moreover, special backrest shaping ensures the
patient access zone is free from parts that might
hinder the work of either dentist or assistant. To enhance
operating area access even further the patient chair armrest
can be rotated forwards 180°.
Shoulder and hip support areas are gently curved to
reduce patient movement and help him/her settle into
as comfortable a position as possible during surgery.
To ensure a relaxed position is maintained for longer,
lumbar support has been incorporated into the backrest.
OPTIMAL WORKING POSITION
The Classe R7 patient chair also features extensive
vertical travel, allowing the patient to be positioned
at exactly the right height whatever the task at hand.
From a maximum above-floor height of 82 cm to a
minimum of 38 cm, both dentist and assistant can
carry out their work easily and hindrance-free. Even
with the chair lowered, slender backrest profiling ensures
work is carried out comfortably, without legs having
to be positioned awkwardly due to lack of space. All this
minimises stress and physical tiredness for both dentist
and assistant – from the start of the working day to
the end.
PNEUMATIC HEADREST
Positioning of the optional pneumatic headrest is
both precise and immediate. Thanks to the triple-joint
mechanism all the dentist has to do is press a key on
the lower side of the headrest to obtain, without any
mechanical effort whatsoever, optimal positioning of
the patient’s head. The standard, mechanical-movement,
headrest provides double articulation.
QUALITY IN MOVEMENT
Reinforcing the individual parts of the dental unit results in a unit that is stronger as a whole and so provides
long-lasting service. Cast aluminium, with its solidity, outstanding mechanical strength and lightness,
allows for stylish chair design and a particularly thin backrest. A fine-tuned yet powerful hydraulic system
provides smooth, silent movement and ensures soft starts/stops.
15
7
Classe r7
FREEDOM OF MOVEMENT
MAXIMUM FREEDOM PATIENT CHAIR ROTATION
Versatile and manoeuvrable, the Classe R7 can be
FOR THE ASSISTANT transformed to suit any surgery layout and any type of
Thanks to integrated design of the modules on the
operation.
assistant’s side, exceptional flexibility is ensured
This versatility is achieved thanks to the pivot, a mechanical
whatever the preferred operating style. All the most
device that features horizontal-plane rotation of +/- 30°
commonly used working positions are extensively
around a central fulcrum underneath the patient chair. To
covered by the mobility of the assistant’s module.
release the system the user need only press the special
There are four holders on the module: for 2 cannulae
key on the keypads on the seat sides. In certain work
with roller supports (these can be removed for cleaning
situations partial rotation of the chair increases the space
purposes) and for syringe, camera or curing light. The
available to both dentist and assistant.
keypad is not tilted to ensure easy access to controls from
The optional pivot function is available on the patient chair
any angle.
in all Classe R7 configurations: chair only, modular or the
comprehensive version with unit body, dentist’s module and
assistant’s module.
The cuspidor bowl can be replaced with a swivel tray holder installed
on the front cover of the unit body.
30°
MOBILITY AND PRACTICALITY
In every working situation, with or without the aid of the assistant, extensive
movement of the 3 articulated arms always allows the assistant’s module to
reach the operating zone and be positioned optimally.
30°
RATIONALISING THE WORKSPACE
Because each surgical task requests a particular set-up around the operating area, Classe R7 adapts to every operating
situation and provides outstanding freedom of movement. Outstanding mobility of individual components ensures that both
dentist and assistant work in full comfort and are assured easy access to the patient. The freedom provided by Classe R7
results in smooth workflows and maximal working efficiency.
17
7
Classe r7
Classe R7 REVERSO
quickswitch concept
In its complete version, with unit body, dentist’s module and assistant’s
module, the Classe R7 is an integrated treatment centre that offers dental
staff the freedom to operate as naturally as possible.
In addition to extraordinary ergonomics and versatility, the Classe R7 can,
in just a few quick moves, be converted from a right-handed dental unit to
a left-handed one.
First the user switches the unit body and assistant’s module from right to left.
Then, via a simple rotation movement, the dentist’s module is positioned on
the opposite side of the patient chair.
19
7
Classe r7
TOTAL CONTROL
USER-FRIENDLY CONTROLS
Intuitive controls enhance efficiency. Via a simple,
practical pressure-operated foot control, the dentist
can control both instruments and patient chair with ease.
Chair control joystick
Chip Air and Chip Water
Rinse and return position recall
Adjustment of dynamic instrument speed/power
Spray activation/deactivation (with LED display on foot control)
Recall of 2 pre-set positions (Power Pedal only)
Micromotor rotation reverse and operating light switch-on with
instrument extracted
Both lever-type and pressure-operated foot controls with the same
basic functions are also available.
Dentist’s control panel
• Large, clear display WORKING COMFORT
• Rapid handpiece selection keys The manoeuvrability of the Continental version dentist’s module,
• Cuspidor bowl movement and control the length of the handpiece tubing and the convenient instrument
• Software menu control keys: reflex-arm all enhance the ease with which the dentist carries out their
memory, settings, selection work.
• Direct service and main function keys On the International version dentist’s module the instruments are tilted
• Patient chair controls and arranged to ensure full compatibility with the ergonomics of hanging
tubing instrument use. Everything is within arm’s reach and there is also
the highly useful option of a sixth instrument (intraoral camera or curing
light).
Available on both versions is the broad interchangeable and autoclavable
stainless steel tray holder module. It can be positioned and rotated to meet
the needs of the dentist or to make it more accessible to the assistant.
PATIENT CHAIR CONTROL KEYPAD
Located on both sides of the seat, this practical keypad controls patient
chair movement, pivot lock/release and allows pre-set positions to be saved
and recalled.
OPTIMISING THE WORKFLOW
Working comfortably, without feeling the effects of poor posture or the tiredness induced by
repeated effort, is essential. Comfort and an absence of physical stress means higher concentration
levels throughout the day – an absolute must for high-performance dental procedures.
Outstanding module manoeuvrability, user-friendly controls and highly practical instruments all
contribute, together with excellent ergonomics, to the achievement of optimal workflow.21
7
Classe r7
HIGH PERFORMANCE AND ADVANCED TECHNOLOGY
RAPID COUPLINGS
To make instrument changeovers easier a system of rapid fittings has been Venus Plus
incorporated on both the dentist’s and assistant’s module. Stylish, high-performance operating light. Positioning of the fan on
the back of the light, away from the sprays, removable handles and a
BRUSHLESS MICROMOTORS frontal protective screen are just a few of the design features of the
Venus Plus - an instrument designed for dentists who demand the
A selection of instruments developed to provide the dentist with a complete
micromotor range. All perfectly integrated with the dental unit electronics and most from their equipment.
comprehensive memory/function control.
The new Anthos micromotors are some of the lightest and most compact 3-axis rotation of the operating light allows precise illumination of the
instruments in their class. Vibration free and virtually silent thanks to brushless patient’s mouth and ensures accurate adaptation of the focal spot to the
technology, they are highly reliable and require almost no maintenance. oral cavity. Since the Classe R7 has been designed to give you freedom to
work as you want, such functional versatility is a must.
i-MMs Luminous intensity up to 35,000 Lux
Built using cutting-edge technology, super-light (85 g) and ergonomic with LED lighting,
the i-MMs covers all your conservative, prosthetic and endodontic dentistry needs. Colour temperature 4,900°K
Outstanding control of speed from 100 to 40,000 rpm and torque, which reaches an
exceptional 4 Ncm. Auto-reverse and auto-forward. Swivel coupling (320°), ISO 3964-compliant. Thanks to a dial, which allows precise adjustment of luminous intensity
The i-MMs micromotor can be sterilised in an autoclave at up to 135 °C. (from 8,000 to 35,000 Lux), the operating area always receives the right
amount of light
i-MMr
Exceptionally compact micromotors (22 x 34 mm), ideal for conservative and prosthetic Soft-start device
dentistry. Available without (i-MMr) or with integrated LED lighting (i-MMrL). Speeds range
from 1,000 to 40,000 rpm. Maximum torque 3 Ncm. Cold disinfectable. ISO 3964-compliant. Two ceiling-mounted versions of the Venus Plus are also available: fixed (CL) and
sliding on guide rail (TML).
6 FUNCTION SYRINGE
Stainless steel 6-way syringe with instantaneous air and water heating function.
Venus
TURBINES AND SCALERS Light intensity: 8,000 / 22,500 Lux
Anthos offers a wide range of top-brand turbines and scalers together with Anthos-backed
reliability and service. Colour temperature 4,900°K
Perfectly balanced, no bellows on arms
T-LED CURING LIGHT
T-LED offers everything you need… and much more. In addition to excellent performance (up to
300° head rotation
1700 mW/cm2), long-lasting LEDs and a wide range of programmes, the T-LED is articulated: featuring
180° rotation around the central crown, it ensures maximum versatility and working comfort.
Front screen (optional)
INTRAORAL CAMERAS
Two cameras are available on the Classe R7: both have been developed using Progressive Scan digital
technology, which provides outstandingly high quality, high definition freeze-frame performance.
EFFICIENCY: A SHARED PRIORITY
Achievement of excellent performance levels leads to efficiency, faith in one’s own skills and encourages
SIXTH INSTRUMENT professional development. Selected and developed to ensure dentists always obtain key plus points,
On the International version a sixth instrument can be added to the instrument range is characterised by technological solutions that offer better performance, efficient
the dentist’s module. Dental camera or T-LED light. ergonomics and the safety of constant reliability.23
7
Classe r7
ACTIVE AND PASSIVE HYGIENE
O.D.R. SPRAY
ANTI-RETRACTION SYSTEM
This device, installed on all dynamic instruments, stops
droplet retraction and so prevents retrograde contamination The entire cup and bowl fill unit and the bowl itself are removable.
of spray water circuits. Also effective in minimising
cross-patient contamination.
OPTIMISED FILTRATION
An extensive filtration surface area results in greater efficiency of
the suction system and less frequent cleaning of it. Because
the 2 suction cannulae are physically separated inside the filter,
transfer of liquids aspirated by the active cannula to the inactive
one is prevented.
INDEPENDENT WATER TANK
On the International version the instrument housing AND DISINFECTION CYCLES
is completely removable. Located on the arm of the dentist’s module, this 2-litre tank provides a
water source for sprays and cup that is independent from the mains
supply. A second tank for sanitising fluids is provided for circuit
disinfection purposes. Since it is easily accessible and removable, tank
filling and sanitisation can be completed quickly. Circuit disinfection is
achieved using a 3% hydrogen peroxide solution.
To make sure disinfection is both easy and comprehensive, many of the The stainless steel tray holder on the dentist’s module
parts on the Classe R7 can easily be removed. can be removed in seconds and autoclaved.
FLUSHING
System compliant with EN 1717 The duct washing system with water allows the piping to be rinsed
quickly and effectively by means of a water flow which can be adjusted
from one to five minutes. The water left in the pipes overnight can be
easily removed in the morning.
On the Classe R7 Continental the instrument support mat is made of autoclavable silicone.
On the International version the same silicone is used as a mat on the tray holder.
The keys on the dentist’s and assistant’s modules may be protected by a transparent disposable
membrane. A set of membrane films is provided with the dental unit.
Seamless SKAI
upholstery on the backrest
and headrest can quickly be removed
and replaced.
HYGIENE AS A KEY DESIGN FACTOR
Anthos aims to provide nothing less than perfect hygiene, and the quest for such performance begins at the
dental unit design stage. Minimising the risk of contamination makes the work environment secure for all: doctor,
patient and assistant.
In addition to tried and tested devices that prevent any contamination at source, the Classe R7 incorporates
specially selected materials that keep safety levels high plus solutions that make surgery cleaning and hygiene
The cannulae guides can be removed. The front cover of the dentist’s module is fully removable. protocols easier to complete.7
Classe r7
ENHANCED DIAGNOSTIC POTENTIAL
PROGRESSIVE SCAN NEW INTEGRATED X-RAY SENSOR
The Progressive Scan digital technology on the C-U2 With the integration of the ZEN-X sensor, Anthos offers an
and C-U2 PRO gives crisp, clear freeze-frame images additional multimedia instrument for effective, direct communication.
without any analogue conversion of the video signal. Thanks to the intraoral sensor, it is now possible to immediately
The freeze-frame function is operated via the foot control view an X-ray image on the LCD unit. Screen integration and
or directly from the handpiece via the Touch Sensitive the immediate availability of diagnostic data enhance the medical
key. In both cases the captured image is without blur or team efficiency, preventing down time and interruptions in the
vibration. workflow.
C-U2 ZEN-X
Lightweight and manageable, the C-U2 has the highest The new ZEN-X X-ray sensor with rounded edges is handily situated
lighting rating in its category. Luminosity is automatically on the dentist’s module. This gives readily available precision
adjusted by a microprocessor inside the handpiece and no diagnostics and - thanks to careful shaping that ensures smooth
manual focussing is required. The wide-angle view is partially adaptation to the anatomy - excellent comfort. Available in 2 sizes,
retroflexed for easy access to distal and posterior tooth areas the sensor is solid and compact thanks to rear lead connection and
where a standard 90° view would be penalised. sealing of the lining, which ensures outstanding protection of the sensor.
With reduced overall volume inside the oral cavity, the sensor provides
C-U2 PRO precise, quickly-usable images.
PRO optics provides images via three different focal adjustments.
Macro Close-Up enhances the perception of the tiniest details.
Intra-oral Depth of Focus allows for complete inspection of the oral
cavity. Extra-oral position allows for the easy capture of a smile, to
add to patient records. No matter which of the 3 positions is selected,
the user benefits from clear images, the most powerful patient-oriented
communication tool.
THE POWER OF TECHNOLOGY
Direct communication systems reassure and motivate the patient. Multimedia communication, in fact, is an effective tool
for illustrating the treatment plan and attaining the patient’s informed consent.
MEDICAL VIEW 15” Classe R7 offers an outstanding multimedia option, a communication system fully integrated with the dental unit; this
Flat-screen monitor with PC and video inputs. Complies with EC Directive 93/42, the allows the dentist to carefully document each stage of the work and, over time, build up a medical record complete with
screen is made of optical glass with sealed edges to prevent any infiltration of liquids. imagery and past data.27
7
Classe r7
ESSENTIAL QUALITY
WITH ASSISTANT’S MODULE
The individual patient chair can be completed with
the addition of the assistant’s module, which
houses two cannulae and two instruments. Arm
attachment and cannula connection are located on
the patient chair base beneath the backrest: this
point is easily accessible and has been chosen to
smooth the switchover from right to left-hand module.
A centralised suction valve and two cannulae must
be provided.
OPERATING LIGHT AND MONITOR
The operating light and multimedia monitor can
be incorporated on the dental unit. In this event,
right-hand or left-hand versions of the Classe R7 can
be supplied; however, once installed this choice is
no longer modifiable.
To ensure the Classe R7 remains an ambidextrous
treatment centre with maximum flexibility, two
ceiling-mounted versions of the Venus Plus are
available: fixed (CL) and sliding on guide rail
(TML).
A CLEAN ENVIRONMENT
The Classe R7 is available as an individual patient chair on which an operating light and/or 15”
flat-screen LCD monitor can be installed. These combinations are highly suitable for dental
surgeries where a clean, essential workplace is required. For example, dental surgeons will
benefit from an optimally-shaped patient chair that is tough yet offers gentle, precision movement.
Via the foot control or keypad (on both sides of the seat), the dentist can control patient chair
movement, save new positions or recall previously made ones.29
7
Classe r7
MODULAR SOLUTION
LARGE TRAY HOLDER
The stainless steel tray holder can be positioned with
INDEPENDENT WATER FEED
Where present, the dentist’s module arm incorporates
THE RIGHT CONFIGURATION
extreme ease and removed/reassembled quickly. Thanks an independent water bottle. On the Cart version the The multiplicity of Classe R7 solutions ensures effective use of available surgery
to support rotation and a guide-slide mechanism, the tray bottle is located on the side of the module; it has a space, aiding freedom of movement around the patient chair and within the
holder movement range ensures instruments are always storage capacity of approximately 2 litres. room.
comfortably within reach. In surgeries with a centralised wet loop suction system, the version that features
On the International version the dentist’s module can be the assistant’s module without unit body can be completed with application of the
completed with the transthoracic tray holder version. dentist’s module arm or the Cart.7
Classe r7
VERSO
R7 RE
R7 R7 R7 R7 MODULO R7 MODULO R7 MODULO
Continental International Cart Continental International Cart
Hygiene systems
Tank for independent supply
and additional tank for water
Per Francesco imputare i colori pantoni
910 cm
circuit disinfection cycles
720 cm
FLUSHING water circuit rinse-out device
575 cm
Dentist’s module
LIVELLO quote NERO
Micromotor i-MMs with f.o. (100-40,000 rpm)
LIVELLO pivot Dx PANT. ARGENTO
with torque, autoreverse and autoforward adjustment
LIVELLO pivot Sx PANT. ARGENTO
Micromotor i-MMr (1,000-40,000 rpm)
LIVELLO rotazione idrico PANT. METAL. AZZ.
Micromotor i-MMrL with f.o. (1,000-40,000 rpm)
3-function syringe
LIVELLO rotazione braccio PANT. METAL. AZZ.
6-function syringe
LIVELLO copia di RIUNITO con idrici PANT.
6th instrument METAL. AZZ.
Panoramic X-ray viewer
Integrated ZEN-X x-ray sensor
Removable stainless steel tray-holder module
suitable for 2 standard trays
1840 cm
Unit body
Powered cuspidor bowl
Tray holder configuration instead of cuspidor bowl
Water-to-cup heater
Spray heating
Connections for external devices
(air, water and power supply)
Wiring for multimedia applications
and PC connection
Venus operating light
Venus Plus operating light
Suction system
Patient chair
Patient chair rotation +/- 30°
with pneumatic stop
845 cm 845 cm
Standard 2-axis headrest
1690 cm
3-axis pneumatic headrest
Power Pedal type pressure-operated foot control
Pressure-operated foot control
Standard foot control
Control keypads on seat side
Rotating patient armrests (right-hand and left-hand)
Child’s cushion
not available standard optionalACR7GB091S01
05/2010
Stabilimento / Plant - Via Bicocca, 14/c - 40026 Imola - Bo (Italy) - tel. +39 0542 653441 - fax +39 0542 653 555
www.anthos.com
Sede legale ed amministrativa / Head Quarter - Cefla s.c. Via Selice Provinciale, 23/a - 40026 Imola - Bo (Italy)
tel. +39 0542 653111 - fax +39 0542 653344
Anthos has a policy of constant technological upgrading.
The technical specifications may therefore be subject to change without prior notice.You can also read
