DETROIT HISTORIC DISTRICT COMMISSION SUBMISSION
MAY 24, 2021
CONTENTS
1. OVERVIEW
2. EXISTING CONDITIONS
3. PROPOSED IMPROVEMENTS
4. MATERIALS & FURNISHINGS
5. ILLUSTRATIONS
6. MATERIAL CUT SHEETS
Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
PROJECT DESCRIPTION SCOPE OF WORK HISTORIC ELEMENTS
Previously known as Chene Park, the Aretha Franklin TOILET ROOM FACILITIES • The proposed new work meets the Secretary of the
Amphitheater is a performing arts venue located at Interior’s Standards for the Treatment of Historic
2200/2600 East Atwater Street along the Detroit Riverwalk. The new toilet rooms are located West of the existing Properties.
amphitheater space nested into the existing hill. The new
The park and amphitheater was designed by the Toilet Room facility will add 30+ toilet fixtures, including • The additional new work provides needed functions
architectural firm Schervish, Vogel and Merz. It was 3 accessible fixtures, to the historic amphitheater, which (additional toilet room facilities and accessible seating)
constructed for $2.2 million in 1984, with an initial capacity of currently suffers a fixture shortage. Concert goers will access that are not able to be accommodated within the existing
2,000. The space was eventually upgraded and expanded to the toilet rooms from the lower promenade, where accessible structure.
include permanent seats and a distinct canopied roof in 1986 seating is currently provided, via an existing accessible • Proposed additions are carefully sited on the edges
and again in 1990. Now, the canopied venue has a capacity pathway. A lift will also be included in the new facility to of the existing structure to minimize visibility and not
of 6,000 with 5,000 seats and 1,000 lawn spaces atop the provide an accessible path to the roof and on to the upper negatively affect the original building character.
hill. promenade via a ramp, where new accessible seating will
• New construction is designed to be compatible yet
be located. Roof space above toilet rooms provides a small
differentiated from the historic buildings and site.
Structures on the property include: accessible gathering area and storage.
• Covered amphitheater with stage, seating, and an • The proposed work incorporates the existing topography
adjacent multi-level pavilion The form of the building including its critical circulation to minimize visibility and not negatively affect the original
• Ticket booth elements, deploys the curvilinear language of the existing building character.
• Small merchandising building service structures through interlocking cylinders, arc forms
• Administrative office and switchback curved walls. These sinuous elements create
• DWSD-operated building enclosed spaces, exterior spaces, and circulation routes
integrated with landscaped areas within and surrounding the
All structures are located within the newly-created Aretha structure.
Franklin Amphitheater/Chene Park Historic District.
Building materials seek to form distinctions with the existing
The work described in this Historic District Commission structures with the use of metal as a facade feature material
Submission includes a new Toilet Room Facilities with and glass railings in strategic locations. Landscape materials
usable rooftop space as well as an Accessible Seating Area will be integrated into the building form as is done in the
located at the top of the existing Amphitheater. Site work existing structures. Lighting solutions will be a combination
including grading, circulation elements, lighting, and plant of existing light posts (with location adjustments) select
material enhance the new work and contribute to the goals strategic lighting for egress safety.
of creating a historically compatible addition and enhanced
user experience. FUTURE PHASE - ADDITIONAL ACCESSIBLE SEATING
AREA
In addition to the proposed accessible seating on top of the
Toilet Room Facilities described above, a dedicated raised
seating area is proposed (as a part of a future phase) at the
Upper Promenade, accessed via a ramp. Aligned with the
center of the stage, this raised platform with glass guardrail
allows for optimized site lines, even when patrons walk by
on promenade below.
May 24, 2021 Page 2
Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
DESIGN PROCESS
Numerous options were tested to determine the location, Concrete forms the basis for this proposal, as foundation and
orientation, volume, and access that best serves the needs retainage of the primary volume, with lighter elements completing
of the Aretha Franklin Amphitheater and its patrons while the volume and marking special features - both responding to
addressing significant existing utility constraints. Views at the existing and also distinguishing as new.
right show progression from a more independent structure to
schemes where close proximity to the existing theater were Site elements such as ramps, planters, paths, and paving
tested. The proposed solution below provides accessible patterns reinforce the compositional strategy, guide circulation,
proximity to the existing upper Promenade and lower level and provide visitor amenities including a plaza at the building
access to the western pedestrian path. It is separated from entry.
the existing structure to avoid an existing water outfall
and provide structural and visual independence from the
MATERIAL GRADIENT
amphitheater.
• efficient use of space while accommodating patrons
• circulation flow
• connection between the upper and lower promenade
• minimizing impact to existing mature trees
The scheme evolved from the massing diagram at the
bottom, with passenger lift and integrated ramps for a
seamless transition from various access levels and site
conditions.
SITE DEVELOPMENT SKETCH PATTERN DISTRIBUTION
ELEVATION MATERIALS STUDY
VIEW LOOKING SOUTH VIEW LOOKING NORTH
MASSING DEVELOPMENT EARLY MASSING OPTION STUDIES CONCEPTUAL DEVELOPMENT
May 24, 2021 Page 3
Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
EXISTING CONDITIONS
May 24, 2021 Page 4
Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
PROJECT SITE, EXISTING - HISTORIC DISTRICT OVERLAY
N ST
K LI
CH
AN
FR
EN
ES
T
DU
BO
IS S
T
ST
AU
BIN
ST
R ST
AT E
AT W
R
R IVE
TR OI T
DE
NTS
Project Limit - New Toilet Project Limit - Future Phase Limits of Existing Aretha Franklin
Room Facilities and Accessible - Additional ADA Seating Amphitheater / Chene Park Historic District
Seating Area
May 24, 2021 Page 5
Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
PROJECT SITE, EXISTING - SURVEY
FENCE LINE
CANOPY SUPPORT STRUCTURE
UPPER PROMENADE
FENCE LINE
COMBINED SEWER OUTFALL
X X
POW
GAS
W RETAINING WALL
STM
ACCESSIBLE WALKWAY
SAN
May 24, 2021 Page 6
Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
PROJECT SITE, EXISTING - PHOTOS
PARK EXIT
1 5
PROPOSED SITE - TOP OF HILL - NORTH LAWN BOTTOM OF HILL - NORTH
SEATING
UPPER
PROMENADE
4
2 COLUMNS 6
PROPOSED SITE - TOP OF HILL - SOUTH BOTTOM OF HILL - NORTHWEST
7
DWSD
BUILDING 1 2
8
3
5
3 7
6
WEST AISLE - NORTH PROPOSED SITE - BOTTOM OF HILL - SOUTHEAST
LOWER
PROMENADE
TO STAGE
ADMIN
NTS BUILDING
EXISTING ACCESSIBLE SEATING EXISTING ACCESSIBLE CIRCULATION PATH
4 8
EXISTING NON-ACCESSIBLE CIRCULATION PATH
UPPER PROMENADE - SOUTHWEST PROPOSED SITE - BOTTOM OF HILL - NORTHWEST
May 24, 2021 Page 7
Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
PROJECT SITE, EXISTING - PHOTOS

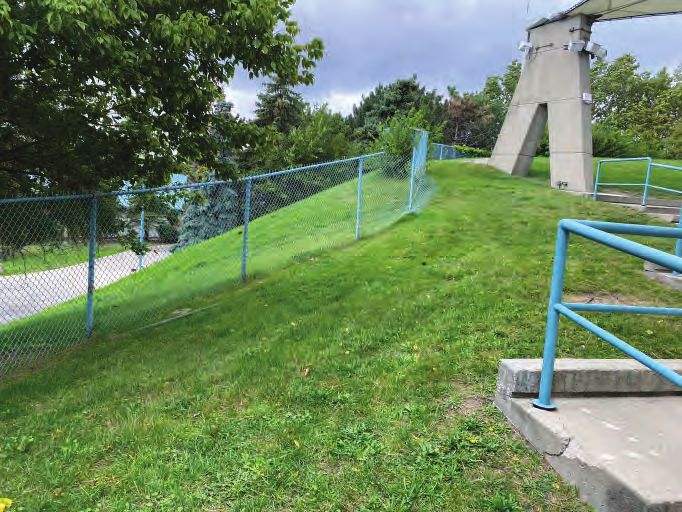

VIEW TO TOP OF THE HILL FACING NORTH VIEW FROM EXISTING WALKWAY FACING NORTH
VIEW FROM UPPER PROMENADE FACING SOUTHWEST VIEW FROM TOP OF HILL FACING STAGE
May 24, 2021 Page 8
Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
PROJECT SITE, EXISTING - PHOTOS

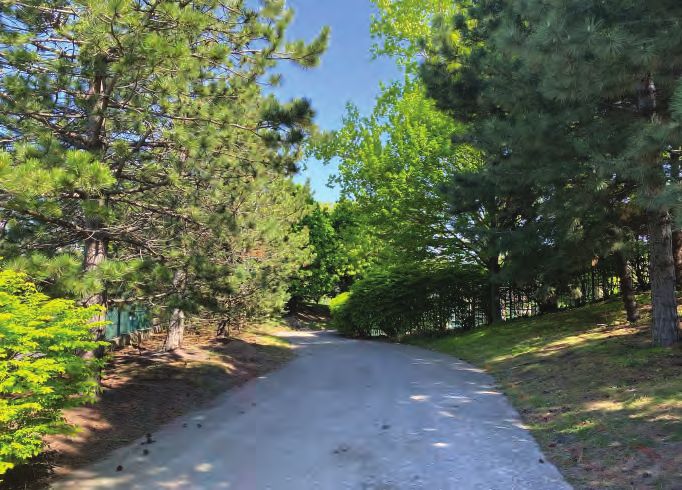

VIEW FROM EXISTING WALKWAY LEAVING ADMIN BUILDING AREA VIEW FROM EXISTING WALKWAY TOWARDS PARK EXIT
VIEW FROM EXISTING WALKWAY TOWARDS STAGE VIEW FROM EXISTING WALKWAY AT BOTTOM OF HILL
May 24, 2021 Page 9
Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
PROJECT SITE, EXISTING - PHOTOS
VIEW FROM TOP OF FUTURE RAMP AT UPPER PROMENADE LOOKING WEST VIEW FROM EXISTING WALKWAY TOWARDS PARK EXIT
VIEW FROM EXISTING WALKWAY TOWARDS STAGE VIEW FROM EXISTING WALKWAY TOWARDS PARK EXIT
May 24, 2021 Page 10Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
PROPOSED IMPROVEMENTS
May 24, 2021 Page 11Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
CONTEXT PLAN
May 24, 2021 Page 12Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
SITE AND ROOF PLAN
TO PARK EXIT
STORAGE AREA
RAISED
PLANTER, TYP. LIMITS OF BUILDING
UNACCESSIBLE SPACE,
TO PUBLIC
PERFORATED METAL SCREEN
OCCUPIABLE ROOF SPACE
CONCRETE WALL
LOW PLANTER AND
SEATWALL, TYP. CANOPY SUPPORT STRUCTURE
CANOPY LIMITS
ACCESSIBLE SEATING AREA
DECORATIVE PAVING
TOILET ROOM FACILITIES
ENTRANCE
ADA LIFT - 13’ ELEV. CHANGE
(GROUND FLOOR TO ROOF)
FLOOD LIGHT, ATTACHED TO
LIFT TOWER 1:12 RAMP WITH HANDRAIL - 4’ ELEV.
CHANGE (ROOF TO TOP TERRACE)
RELOCATED LIGHT POLE,
TYP. OF 2 STAIRS WITH HANDRAIL - 14’ ELEV
CHANGE (GROUND FLOOR TO ROOF)
EXISTING LIGHT POLE, TO REMAIN
TO AMPHITHEATER /
STAGE ENTRANCE
May 24, 2021 Page 13Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
FLOOR PLAN
TO PARK EXIT
WOMEN’S
(22) WATER CLOSETS, INCLUDING
ONE ADA AND ONE AMBULATORY
(8) LAVATORIES
STORAGE
JANITOR’S CLOSET
LIGHT SLOT
TOILET ROOM FACILITIES
ENTRANCE
ENTRY TO ADA LIFT
MEN’S
(4) WATER CLOSETS, INCLUDING
ONE ADA AND ONE AMBULATORY
(7) URINALS
(5) LAVATORIES
TO AMPHITHEATER / LIGHT SLOT
STAGE ENTRANCE
May 24, 2021 Page 14Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
SITE PLAN - UTILITIES
TO PARK EXIT
RELOCATE LIGHT POLE
COMBINED SEWER
OUTFALL EASEMENT
STORM LINE, TYP.
UNDERGROUND ELECTRICAL
LINES, TYP.
RELOCATE LIGHT POLE
LIGHT POLE, TO REMAIN
May 24, 2021 Page 15Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
SITE PLAN - TREE REMOVAL
CONCRETE
EXISTING FENCE LINE
BRUSH LINE
12”
12”
15” EVERGREEN TREE, TO BE
REMOVED, TYP. OF 13
10”
DECIDUOUS TREE, TO BE
CONCRETE
REMOVED, TYP. OF 1
18” 15”
18”
18”
18”
18”
15” 18”
15” 18”
8”
15”
15”
15”
AUSTRIAN PINES TO BE REMOVED SHOW VISIBLE TRAITS OF
DIPLODIA TIP BLIGHT AND/OR DOTHISTROMA NEEDLECAST
May 24, 2021 Page 16Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
BUILDING ELEVATIONS
STAIRS - 14’ ELEV CHANGE ACCESSIBLE SEATING AREA
(GROUND FLOOR TO ROOF) GLASS GUARDRAIL (TYPE 4)
LOW CONCRETE CURB/ PARTIAL
HEIGHT METAL RAILING (TYPE 2)
ADA LIFT WITH SOLID CORRUGATED
METAL ENCLOSURE
14’ ELEV. CHANGE
(GROUND FLOOR TO ROOF)
SMOOTH FINISH POURED CONCRETE
BUILDING ENCLOSURE
TRANSLUCENT GLAZING
SOUTH ELEVATION
HIGH CONCRETE CURB/ PARTIAL EXISTING STRUCTURE
SMOOTH FINISH POURED HEIGHT METAL RAILING (TYPE 3)
CONCRETE BUILDING ENCLOSURE FULL-HEIGHT METAL RAILING
(TYPE 1)
RAISED PLANTER, TYP. PERFORATED CORRUGATED METAL ENTRY TO TOILET ADA LIFT WITH SOLID
PANELS WITH VARYING PERFORATION ROOMS AND CORRUGATED METAL
LOW PLANTER WITH
PATTERNS TO CREATE GRADIENT STORAGE ENCLOSURE
SEATWALL, TYP.
14’ ELEV. CHANGE
SEE MATERIALS PAGE FOR
(GROUND FLOOR TO ROOF)
PERFORATION PATTERNS
WEST ELEVATION
May 24, 2021 Page 17Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
MATERIALS & FURNISHINGS
May 24, 2021 Page 18Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
PROPOSED BUILDING EXTERIOR MATERIALS - CONCRETE AND RAILINGS
Materials have been selected to both compliment the existing structures and distinguish the new work. Materials are strategically utilized to retain earth, create
occupiable interior and exterior spaces, and optimize views toward the stage. Variations in texture,color, and porosity bring character to the composition of
simple forms. SEE MATERIAL CUT SHEETS AT END OF DOCUMENT FOR ADDITIONAL INFORMATION.
FULL-HEIGHT METAL RAILING LOW CONCRETE CURB/ PARTIAL
(TYPE 1) HEIGHT METAL RAILING (TYPE 2)
RAILING PAINT COLOR
BENJAMIN MOORE CW-680
MOPBOARD BLACK
CONCRETE TEXTURE OF RENAISSANCE CENTER INSPIRED ORIGINAL AFA STRUCTURES. HORIZONTAL BANDING IS EVIDENT
HIGH CONCRETE CURB/ PARTIAL OUTBOARD GLASS RAILING
NEW PROJECT WILL FEATURE SMOOTH CONCRETE AND RESPOND TO THE PROMINENT THROUGHTOUT THE EXISTING SITE HEIGHT METAL RAILING (TYPE 3) (TYPE 4)
HORIZONTAL JOINT WORK.
A VARIATION ON THE EXISTING HORIZONTAL METAL GUARD RAILS IS PROPOSED,
ADDING ADDITIONAL RAILS TO MEET CURRENT CODE. METAL RAIL SCOPE WILL
VARY AS DIAGRAMED ABOVE.
NO RAIL CAP FOR
OPTIMAL VIEWING
GLASS RAIL - FASCIAL MOUNT
SMOOTH CONCRETE W/ BANDS FORM WORK PATTERN GLASS RAILS WILL BE USED WHERE SITE LINES ARE NEEDED AT ACCESSIBLE SEATING
CONCRETE GUARD RAILS
MATERIAL: poured concrete MATERIAL: concrete, metal rails, and glass
MANUFACTURE: locally sourced MANUFACTURER: metal by steel fabricator, glass guardrail by C.R. Little or
COLOR/FINISH: natural color, smooth finish with distinct recessed horizontal joints equal (Taper-Loc Dry Glazed Glass Railing System)
NOTES: primary material for building enclosure and guard rails at ramps and stairs COLOR/FINISH: varies, see notes above and elevations
May 24, 2021 Page 19Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
PROPOSED BUILDING EXTERIOR MATERIALS - CORRUGATED METAL
A25
A24
A19
A15
PERFORATED CORRUGATED METAL PANELS SOLID CORRUGATED METAL PANEL
WITH PERFORATION DENSITIES BELOW FACADE PARTIAL VIEW
A25
A24
A19
PERFORATED CORRUGATED METAL PANEL SOLID CORRUGATED METAL PANEL COMBINATION OF PERFORATED AND SOLID
A15
METAL FACADE TREATMENT PRECEDENTS
May 24, 2021 Page 20Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
PROPOSED PAVING MATERIALS
Two paving types are proposed for the Toilet Room Facilities and Accessible Seating Area: 1) Concrete Paving; 2) Accent Concrete Paving
CONCRETE PAVING ACCENT CONCRETE PAVING
LOCATION: Primary paving throughout project area LOCATION: Discrete areas to accentuate and differentiate
SPECIFICATION: Light broom finish, no color additive functional areas
SPECIFICATION: Exposed aggregate finish, color additive
May 24, 2021 Page 21Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
PROPOSED LIGHTING ELEMENTS
Three lighting types are proposed for the Toilet Room Facilities and Accessible Seating Area: 1) Pole Lights; 2) Recessed Lights; 3) Flood Light. Lighting intent is to minimize site lighting and rely more on overhead lighting.
(existing) (existing)
POLE LIGHTS RECESSED LIGHTS FLOOD LIGHT
LOCATION: At the sidewalk at ground level. LOCATION: Embedded in stair risers and along the ramp in the LOCATION: Attached to Lift Tower to illuminate rooftop space.
SPECIFICATION: Similar to existing pole light, as recently approved by retaining walls or raised planters. SPECIFICATION: See cut sheets.
the HDC. SPECIFICATION: Similar to existing conditions, see cut sheets.
May 24, 2021 Page 22Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
PROPOSED PLANTING PALETTE
Three planting types are proposed for the Toilet Room Facilities and Accessible Seating Area: 1) Turf Area; 2) Raised Planters; 3) Border Planting.
RESTORE TURF AREA TO
MATCH EXISTING CONDITIONS
RAISED PLANTERS, SIMILAR TO
EXISTING CONDITIONS
1
2
1
2
2
3
BORDER PLANTING ALONG
3
RETAINING WALLS, SIMILAR
TO EXISTING CONDITIONS
May 24, 2021 Page 23Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
FUTURE PHASE_ ADDITIONAL ACCESSIBLE SEATING PROVIDED REMOVED
Ramp connecting platform to Upper
Promenade, with tube steel handrail
SEATING PLATFORM AND RAMP Accessible 6 approx 100 lawn
painted to match existing, continuous,
Companion 6
each side
LOCATION E
Tube steel guardrail, painted to match exist-
ing, as required
LOCATION C
LOCATION D
LOCATION B LOCATION F
Ramp and side platform guard rails will
match existing rails similar to (above).
NO RAIL CAP FOR
OPTIMAL VIEWING
LOCATION A
Glass rails will be used at front edge of plat-
form to maximize sight lines (below).
CURRENT
ACCESSIBLE Accessible seating area, with space for
SEATING
companion seat, typ. of 6
Laminated glass guardrail in front of
accessible seating
N.T.S. Concrete retaining wall to create level
STAGE
concrete platform, typ.
LOCATION PLAN AND OPTIONS STUDY PLAN OF AREA E Scale (at 11x17):1/16”=1’-0” GUARD RAILS & RAILINGS
Accessible seating area
Tube steel guardrail, painted to
match existing (beyond)
Ramp connecting platform to Upper
Promenade, with tube steel handrail
painted to match existing, continuous,
each side
Concrete retaining wall to create level
platform
Laminated glass guardrail in front of ac-
TYPICAL SECTION - LOCATION E cessible seating 3D LOCATION DIAGRAM See railing images at upper page for more information.
Scale (at 11x17):1/4”=1’-0”
May 24, 2021 Page 24Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
ILLUSTRATIONS
May 24, 2021 Page 25Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
NOTE: Illustrations are intended to convey design intent only. Elements shown are not represented exactly as designed.
May 24, 2021 Page 26Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
NOTE: Illustrations are intended to convey design intent only. Elements shown are not represented exactly as designed.
May 24, 2021 Page 27Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
VERTICAL NON-PERFORATED
CORRUGATED METAL
COLOR/FINISH: Ascot White
VERTICAL PERFORATED CORRUGATED
METAL
COLOR/FINISH: Ascot White
CONCRETE
COLOR/FINISH:Natural color, smooth finish with distinct
recessed horizontal joints
NOTE: Illustrations are intended to convey design intent only. Elements shown are not represented exactly as designed.
May 24, 2021 Page 28Aretha Franklin Amphitheater - New Toilet Room Facilities and Accessible Seating
CUT SHEETS
May 24, 2021 Page 29Numerous hole sizes,
pattern placement
options, custom
shapes and variations
PERFORATED PANELS
GATEN SERIESGaten Series Patterns
Available in a wide selection of gauges, materials, panel profiles, and colors, Gaten Series perforated panels are ideal for numerous
applications including architectural design, passive solar shading, ventilation, acoustical solutions, and equipment screens. ATAS
offers six standard hole size patterns, as well as custom options to fit any project’s design needs. Additionally, ATAS can color-match
each side of the panels for applications where both sides are visible.
ATAS provides a single source package for your project’s needs, including engineering expertise, structural hat channels and framing,
corners, end caps, trims, and flashings. Contact your local product representative to discuss your project: www.atas.com/rep-finder
An aluminum substrate is recommended for all perforated applications due to its inherent corrosion-resistant properties.
A13 A15
1/8” holes 1/8” holes
3/16” staggered centers 1/4” staggered centers
40% open area 23% open area
Shown in Patina Green Shown in Concord Cream
ASCOT
WHITE
A23 A24
1/4” holes 3/8” holes
1/2” staggered centers 1/2” staggered centers
23% open area 51% open area
Shown in Slate Blue Shown in Silversmith
ASCOT
WHITE
A25
3/8” holes
9/16” staggered centers
40% open area
Shown in Mission Red
ASCOT
WHITE
A19
3/16” holes
5/16” staggered centers
33% open area
Shown in Boysenberry
ASCOT
WHITE
ATAS International, Inc. Sustainable Building Envelope Technology 800.468.1441Available Panels
Belvedere 7.2” Rib Belvedere Grand R Belvedere PenumWall Belvedere Wave Panel
Corra-Lok Corrugated Panel Design Wall Grand C
Grand V Metafor Multi-Purpose Panels Opaline
Rigid Wall Rigid Wall II Span Wall Versa Series
Belvedere 6” Short Rib, Ascot White
Hole Pattern: A15
Application: Accent Wall
University of Arkansas, Fayetteville, AR
ON THE COVER: Belvedere 6” Short Rib
www.atas.com Sustainable Building Envelope Technology ATAS International, Inc.Corrugated Panel, Titanium Hole Pattern: Custom Application: PTAC Unit Screens Newark Ave. Residences, Jersey City, NJ Belvedere 7.2” Rib, Classic Bronze Hole Pattern: A15 Application: Accent Wall Get Air, Pomona, CA ATAS International, Inc. Sustainable Building Envelope Technology 800.468.1441
Belvedere 6” Short Rib, Clear Satin Anodized Corrugated Panel, Titanium
Hole Pattern: A23 Hole Pattern: A25
Application: Accent Wall Application: Accent Wall
33.7 North, Tustin, CA Vinton Library, Vinton, VA
Rigid Wall II & Multi-Purpose Panels, Silversmith
Hole Pattern: A24
Application: Sunscreen
The Residences At Twelve40, Philadelphia, PA
www.atas.com Sustainable Building Envelope Technology ATAS International, Inc.Color Chart
STO C K CO LO RS (7 0 % PVD F FINISH)
Black (02) Forest Green (11) Chocolate Brown (04) Sierra Tan (09) Regal Blue (18)
Classic Bronze (01) Teal (19) Boysenberry (25) Rawhide (15) Slate Blue (21)
Medium Bronze (03) Hemlock Green (30) Redwood (07) Concord Cream (05) Rocky Grey (16)
Hartford Green (27) Patina Green (12) Mission Red (08) Almond (36) Siam Blue (14)
Charcoal Grey (62) Slate Grey (20) Dove Grey (13) Sandstone (06) Bone White (26)
P R E M I U M (7 0 % PVD F FIN IS H) P R E M I U M (A N O D I Z E D )
Antique Patina (24) Brite Red (17) Champagne (31) Clear Satin Anodized (70) Ascot White (10)
ACRY L I C COAT E D
Coppertone (23) Silversmith (28) Titanium (35) Dark Bronze Anodized (71) Acrylic Coated Galvalume ®(97)
For current SRI values and agency listings, or to order color chips, please refer to our online color chart: www.atas.com/colors
ATAS International, Inc. Contact ATAS for more
information. ATAS reserves the
right to modify, eliminate and/or
Allentown, PA | Mesa, AZ change its products without prior
notification.
800.468.1441 | www.atas.com | info@atas.com
LRD1018 LAT112
© 2018 ATAS International, Inc.
ATAS’ professional staff is able to assist in the design or provide shop drawings for your project. Final choice of materials and installation is the responsibility of the owner,
architect and/or the owner’s agent. ATAS International, Inc. cannot be held responsible for the ultimate selection or the installation of those materials. Due to slight stress in
metal materials and substrates to which metal panels are applied, installed panels may exhibit a perceived waviness in the flat areas of the panel. Commonly the period and
amplitude of the waviness is dependent upon the continuous flat width of the panel. This condition is beyond the control of ATAS and consequently this perceived waviness
or “oil canning” of the product is not a valid reason for rejection of materials. (Refer to ASTM E 1514, ASTM E 1637 and Metal Construction Association Technical Bulletin 1060
for further clarification). ATAS reserves the right to modify, eliminate and/or change its products without prior notification. ATAS cannot be held responsible for errors in line
drawings and typesetting. Inquire for availability. Colors are as close to the actual colors as modern printing allows. Exact color chips on request; this is a requirement for
all premium colors. If you have requirements or preference for colors or finishes other than shown, contact ATAS. Color availability varies by material, gauge and profile.
ATAS is not responsible for colors selected from this chart. Contact ATAS for more information.A15 - 1/8" Round x 1/4" Staggered Centers - 23% Open Area
1/4" 1/8"
1/4"
7/16"
3/16"
Coil Direction
Note: When printing for accuracy of layout ensure
scale is set to 100% when printingA19 - 3/16" Round x 5/16" Staggered Centers - 33% Open Area
5/16" 3/16"
5/16"
9/16"
1/4"
Coil Direction
Note: When printing for accuracy of layout ensure
scale is set to 100% when printingA23 - 1/4" Round x 1/2" Staggered Centers - 23% Open Area
1/2" 1/4"
1/2"
7/8"
7/16"
Coil Direction
Note: When printing for accuracy of layout ensure
scale is set to 100% when printingA25 - 3/8" Round x 9/16" Staggered Centers - 40% Open Area
9/16" 3/8"
9/16"
1"
1/2"
Coil Direction
Note: When printing for accuracy of layout ensure
scale is set to 100% when printingRECESSED LIGHT AT
STAIR AND RAMP WALLS
Recessed luminaire Location luminaire Location luminaire
Unshielded light Unshielded light Shielded light 80 51⁄8 73⁄8 97⁄8 300
Recessed wall luminaires
Unshielded or shielded light
B A B
For decades, BEGA has set the standard for recessed wall luminaires
Unshielded
worldwide. Newly redesigned with a refined look, broader range of delivered
lumens, and contractor friendly enhancements for ease of installation and LED A B
quality assurance, BEGA’s unwavering commitment to quality above all 24 011 3.8 W 5 1⁄ 8 5 1⁄ 2
24 012 7.7 W 7 3⁄ 8 5 1⁄ 2
permeates everything about this new approach to recessed wall luminaires.
24 013 11.5 W 9 7⁄ 8 5 1⁄ 2
A series of recessed wall luminaires with unshielded or shielded light
distribution. The shielded light distribution is ideal for the glare-free illumination Unshielded · location
of ground surfaces, building entrances, stairs and pathways. The unshielded
LED A B
luminaires have a directing and guiding light effect. The illuminance level on the
24 016 1.9 W 5 1⁄ 8 5 1⁄ 2
lit surface is lower, but the ambient brightness is greater with increased vertical
24 017 3.7 W 7 3⁄ 8 5 1⁄ 2
illuminance. A separate installation housing allows for seamless coordination 24 018 5.6 W 9 7⁄ 8 5 1⁄ 2
into various construction types and easy maintenance.
Die-cast aluminum housing
Die-cast aluminum faceplate with or without integral louvers
Composite installation housing · White safety glass or clear safety glass
LED color temperatures: 2700 K, 3000 K, 3500 K, 4000 K
BEGA luminaires offer a minimum service life of 60,000 hours, with suitable
LED replacement modules guaranteed for up to 20 years after date of purchase.
Further LED technical data including luminous flux, CRI, dimming and electrical
characteristics are provided on the individual luminaire specification sheets,
available at www.bega-us.com.
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil B A B
thickness. BEGA Unidure ® finish, a fluoropolymer technology, provides superior
fade protection in Black, Bronze, and Silver. BEGA standard White, as well as Shielded
optionally available RAL and custom colors, are a polyester powder. LED A B
24 101 1.9 W 5 1⁄ 8 5 1⁄ 2
NRTL listed to North American standards · Suitable for wet locations 24 102 3.7 W 7 3⁄ 8 5 1⁄ 2
Protection class IP 65 24 103 5.6 W 9 7⁄ 8 5 1⁄ 2
38 39OVERHEAD DECK LIGHT
AT LIFT SHAFT WALL
Asymmetric light distribution
Wall luminaire
Surface washer
Adjustable wall mounted luminaires with asymmetric light distribution.
Ideal for illuminating horizontal surfaces from vertical mounting surfaces.
Die-cast aluminum · Safety glass · Reflector made of pure anodized aluminum
LED color temperatures: 2700 K, 3000 K, 3500 K, 4000 K
BEGA luminaires offer a minimum service life of 60,000 hours, with suitable
B B
LED replacement modules guaranteed for up to 20 years after date of purchase.
Further LED technical data including luminous flux, CRI, dimming and electrical
characteristics are provided on the individual luminaire specification sheets, C C
available at www.bega-us.com
A D D A
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil
thickness. BEGA Unidure ® finish, a fluoropolymer technology, provides superior
fade protection in Black, Bronze, and Silver. BEGA standard White, as well as Asymmetric light distribution
optionally available RAL and custom colors, are a polyester powder. LED A B C D
24 351 21.3 W 8 7⁄ 8 4 1⁄ 8 19 1⁄8 5 1⁄ 4
NRTL listed to North American standards · Suitable for wet locations 24 816 55.3 W 8 7⁄ 8 4 1⁄ 8 19 1⁄8 5 1⁄ 4
Protection class IP 65 24 352 98.3 W 12 3⁄8 4 5⁄ 8 22 1⁄2 5 1⁄ 4
166 167GLASS GUARDRAIL
SYSTEM AT
ACCESSIBLE SEATING ARCHITECTURAL
RAILINGSYSTEMS CAT. NO. HR18
METAL RAILINGS 05 52 00
ARCHITECTURAL AND ORNAMENTAL RAILINGS 05 70 00
HAND RAILS AND RAILINGS 05 73 00
An ISO9001:2008 Certified Company
C . R . L A U R E N C E C O M PA N Y
Wo r l d w i d e M a n u fa c t u r e r a n d S u p p l i e r
Glazing, Architectural, Railing, Construction, Industrial, and Automotive Supplies
crlaurence.com usalum.com crl-arch.comCRL GRS GLASS RAILING SYSTEMS MORE CHOICES
crlaurence.com/gallery
System: TAPER-LOC® Glass Railing With 2" (51 mm) Hand Rail
System: TAPER-LOC® Glass Railing With U-Channel Top Cap and 2" (51 mm) Hand Rail System: TAPER-LOC® Glass Railing With 2" (51 mm) Top Cap and 1-1/2" (38 mm) Hand Rail
System: TAPER-LOC® Glass Railing With 3" (76 mm) Top Cap
go to crlaurence.com to search for TOLL Phone: (800) 421-6144
gallery Search 127B FREE Fax: (800) 262-3299
or enter the Catalog Number for complete product information From Anywhere in the U.S. or CanadaCRL GRS GLASS RAIL GLAZING SYSTEMS MORE CHOICES
crlaurence.com/railing-systems
CRL Balustrades, Guard Rails, and Hand Rails
Not all CRL Glass Rail Systems and materials are suitable for each Typically, Hand Rail heights range between 34" (863 mm) and
project specification and safety requirement. Since most building codes 38" (965 mm), while Guard Rails are typically 42" (1066 mm) in height.
make clear the difference between Hand Rails and Guard Rails, you It is sometimes noted in the code that the Guard Rail must include
should consult the local code. Normally Hand Rails are noted as used a Hand Rail as well. Again, check your local codes before beginning
for guidance and support, while Guard Rails are intended to prevent any Hand Rail or Guard Rail project.
accidental falls.
Hand Rail Balustrade Guard Rail Balustrade Hand Rail/Guard Rail
(Residential Stairs) (Residential and Commercial) (Residential and Commercial)
1-1/2" (38 mm)
to 4" (102 mm) 1-1/2" (38 mm)
Guard Rail Cap to 4" (102 mm)
Guard Rail Cap
NO RAIL CAP IN THIS
The Hand Grip portion of APPLICATION The Hand Grip
the Hand Rails shall not be portion of the
less than 1-1/4" (32 mm) Hand Rails shall
and no more than 2" (51 mm) not be less than
in cross sectional dimension. 1-1/4" (32 mm)
and no more
than 2" (51 mm)
1-1/2" (38 mm) in cross sectional
or 2" (51 mm) dimension.
1-1/2"
(38 mm)
Minimum
Top of Guard Rail shall not
be placed less than 42"
(1066 mm) in height
Top of Hand Rail (commercial); 36" (914 mm)
shall not be in height (residential).
placed less than
34" (863 mm) Glass Baluster
and no more
than 38" (965 Top of Hand Rail shall
mm) above the not be placed less
toe of step. Glass Baluster Top of Guard Rail shall than 34" (863 mm)
not be placed less than and no more than
42" (1066 mm) in height 38" (965 mm) above
(commercial); 36" (914 mm) landings, ramps or
in height (residential). the toe of step.
Glass Baluster
Drawings and Specifications - How to Get Them
Let CRL Be a Team Player on All Your Railing Hardware Projects!
CRL-ARCH.com
CRL-ARCH.com is your portal to C.R. Laurence
Company Architectural Products and Services.
CRL-ARCH.com is a valuable reference tool
designed with the architect, engineer, and
specifier in mind. Here you will find easy
access to CAD drawings, CSI format
specifications, engineering reports, LEED®
statements, project galleries, architectural case
studies, and our extensive library of catalogs.
go to crlaurence.com to search for TOLL Phone: (800) 421-6144
railing-systems Search 134B FREE Fax: (800) 262-3299
or enter the Catalog Number for complete product information From Anywhere in the U.S. or CanadaCRL GRS GLASS RAILING PANELS MORE CHOICES
crlaurence.com/rail-glass
CRL GRS Monolithic NEW!
Tempered "Rail Glass" Clear Monolithic
Tempered
• For Use With CRL's GRS Glass Railing Systems
• All Glass Panels Ship Cut and Tempered, Ready to Install
• Clear Tempered and Low Iron (Starphire) Glass Types Available
• Custom Sizes, Fabrication, Drilling, and Edge Work Available
Designed for interior and exterior glass railing applications, CRL's
"Rail Glass" is fabricated and tempered in accordance with Federal Low Iron Starphire®
Specifications: ANSI Z97.1, CPSC 16, and CFR 1201 standards. Monolithic Tempered
Wood crating charges apply (maximum 1500 pounds [680 kg] per crate).
Contact CRL's Railing Technical Sales for more information at (800) 421-
6144 (U.S.), (877) 421-6144 (Canada), or (323) 588-1281 (International).
Ask for Ext. 7730. You can also send email to railings@crlaurence.com.
ESR-3269
NOTE: Check your local building codes for glass type required.
1/2" (12 MM) THICK CLEAR AND LOW IRON STARPHIRE® TEMPERED GLASS
CAT. NO. SIZE DESCRIPTION
MG12CC Custom Size (Specify) Clear Tempered • Proudly
MG12LC Custom Size (Specify) Low Iron Starphire® Tempered USE MONOLITHIC Produced in Standard
TEMPERED GLASS Edge Work
Minimum order: 1 each. Boxing and crating charges will apply for all orders. the U.S.A.
5/8" (15 MM) THICK CLEAR AND LOW IRON STARPHIRE® TEMPERED GLASS 3/4" (19 MM) THICK CLEAR AND LOW IRON STARPHIRE® TEMPERED GLASS
CAT. NO. SIZE DESCRIPTION CAT. NO. SIZE DESCRIPTION
MG15CC Custom Size (Specify) Clear Tempered MG19CC Custom Size (Specify) Clear Tempered
MG15LC Custom Size (Specify) Low Iron Starphire® Tempered MG19LC Custom Size (Specify) Low Iron Starphire® Tempered
Minimum order: 1 each. Boxing and crating charges will apply for all orders. Minimum order: 1 each. Boxing and crating charges will apply for all orders.
CRL GRS Laminated NEW! Clear Laminated
Tempered "Rail Glass" Tempered
• Laminated Clear Tempered and Low Iron Starphire®
Glass Types Available
• Flat Polished Edges With CRL’s "Precise Edge" Technology
• Custom Sizes, Fabrication, and Edge Work Available
Low Iron Starphire®
Laminated Tempered
CRL’s Laminated "Rail Glass" Panels for glass balustrade applications
meet the test criteria of ASTM C1172, ANSI Z97.1, CPSC 16, and
CFR1201 standards, and are produced with a rigid IonoplastTM interlayer. ESR-3842
Our "Precise Edge" Technology dramatically improves the edge quality
of laminated glass and gives each flat polished edge a consistent clean
look and feel. Custom sizes, fabrication, and edge work is available.
Wood crating charges apply (maximum 1500 pounds [680 kg] per
• Proudly
crate). Contact CRL's Railing Technical Sales for more information. USE LAMINATED Produced in Precise Edge
Technology
NOTE: Check your local building codes for glass type required.
TEMPERED GLASS the U.S.A.
9/16" (13.52 MM) THICK CLEAR AND LOW IRON STARPHIRE® 27/32" (21.52 MM) THICK CLEAR AND LOW IRON STARPHIRE®
LAMINATED TEMPERED GLASS LAMINATED TEMPERED GLASS
CAT. NO. SIZE DESCRIPTION CAT. NO. SIZE DESCRIPTION
LG13CC Custom Size (Specify) Laminated Clear Tempered LG21CC Custom Size (Specify) Laminated Clear Tempered
LG13LC Custom Size (Specify) Laminated Low Iron Starphire® Tempered LG21LC Custom Size (Specify) Laminated Low Iron Starphire® Tempered
Minimum order: 1 each. Boxing and crating charges will apply for all orders. Minimum order: 1 each. Boxing and crating charges will apply for all orders.
11/16" (17.52 MM) THICK CLEAR AND LOW IRON STARPHIRE® 1-1/16" (25.52 MM) THICK CLEAR AND LOW IRON STARPHIRE®
LAMINATED TEMPERED GLASS LAMINATED TEMPERED GLASS
CAT. NO. SIZE DESCRIPTION CAT. NO. SIZE DESCRIPTION
LG17CC Custom Size (Specify) Laminated Clear Tempered LG25CC Custom Size (Specify) Laminated Clear Tempered
LG17LC Custom Size (Specify) Laminated Low Iron Starphire® Tempered LG25LC Custom Size (Specify) Laminated Low Iron Starphire® Tempered
Minimum order: 1 each. Boxing and crating charges will apply for all orders. Minimum order: 1 each. Boxing and crating charges will apply for all orders.
Starphire® is a registered trademark of PPG Industries Ohio, Inc.
go to crlaurence.com to search for TOLL Phone: (800) 421-6144
rail-glass Search 137B FREE Fax: (800) 262-3299
or enter the Catalog Number for complete product information From Anywhere in the U.S. or CanadaCRL GRS BASE SHOE GLAZING SYSTEMS MORE CHOICES
crlaurence.com/base-shoe
Typical Base Shoe Attachments
3 Base Shoe Attachment to Steel Substrate/Fascia Mount or Angle Mount
Works With All 8B, B5A, B5L, B5S, All B6 and B7 Monolithic Series Base Shoe. Also Works
With 9BL21, 9BL56, 9BL68, L21S, L25S, L56S, and L68S Laminated Series Base Shoe.
If you are attaching a Base Shoe to a channel
or angle from the side, this is called a Fascia Base Shoe
Mount. Base Shoe should be attached to steel
substrate prior to concrete being poured.
Otherwise, drilling and tapping of steel may be
difficult, if not impossible. Use of Weld Blocks
may be a possible solution. CRL can fabricate
the Base Shoe with side mount attachment Steel Plate by Others
holes per your engineer's instructions. An
alternative is to fasten an angle to the Fascia
and mount the Base Shoe using the regular
bottom mount method. Steel should be Concrete
drilled to match hole locations in Base Shoe.
Allowable fabrication tolerances may affect
12" (305 mm) centers. Alternative Methods
4 Base Shoe Attachment When Embedded in Concrete
Works With B5T Series Base Shoe Base Shoe
If planning and time permit, a poured
in place Base Shoe is often preferred Concrete
when an 'all-glass' look is desired. This
eliminates any Base Shoe showing, and
gives the impression that the glass comes
directly out of the floor. A Tapered Base
Shoe was developed for this application.
When poured in place it is locked in by
concrete. Mechanically fastening the shoe to Steel Plate
by Others
the substrate is still recommended during
installation. There are many different ways to
set the Base Shoe prior to pouring concrete.
For more information or questions regarding
the different mounting options contact
Alternative Method
CRL Railing Technical Sales.
5 Base Shoe Attachment to Embedded Steel Strip
Works With All 8B, B5, B6, and B7 Monolithic Series Base Shoe. Also Works With
9BL21, 9BL56, 9BL68, L21S, L25S, L56S, and L68S Laminated Series Base Shoe.
This attachment is often used in multi-story
buildings with concrete floors. A 4" (102 mm)
wide x 1/2" (13 mm) thick steel strip, drilled and Base Shoe
tapped for screws with 12" (305 mm) centers
(plugged or taped to prevent concrete
penetration), is installed flush with the top of the
concrete floor. To meet code requirements
3/8" x 2-1/2" (10 x 64 mm) Nelson® Studs are
welded to the underside of the steel strip on
18" (457 mm) centers. For installation, remove
the tape or plug from tapped holes and secure
the Base Shoe with approved fasteners. Steel
Steel Plate With
should be drilled to match hole locations in Base Nelson® Studs
Shoe. Allowable fabrication tolerances may by Others
affect 12" (305 mm) centers.
Nelson is a registered trademark of Nelson Stud Welding, Inc.
go to crlaurence.com to search for TOLL Phone: (800) 421-6144
base-shoe Search 141B FREE Fax: (800) 262-3299
or enter the Catalog Number for complete product information From Anywhere in the U.S. or CanadaCRL GRS GLASS RAILING BASE SHOE MORE CHOICES
crlaurence.com/base-shoe
CRL Cladding for 8B34 and B7S Series Heavy-Duty Square Base Shoe
• Available in Six Architectural Finishes BRUSHED STAINLESS
Straight Cladding for 8B34 and B7S • Adhere With Cladding Tape and Silicone Sealant
Series Heavy-Duty Square Base Shoe • Custom Cutting and Mitering Service Available
CAT. NO. GRADE GA./THK. LENGTH FINISH
CRL Cladding allows the user to match BSCBS10 304 20/.035" 120" (3.05 m) Brushed Stainless
any of six architectural finishes offered in BSCPS10 304 20/.035" 120" (3.05 m) Polished Stainless
Cap Railing. It can be secured to the Base BSCBS106 316 20/.035" 120" (3.05 m) Brushed Stainless
Shoe using CRL AT234 Cladding Tape and BSCPS106 316 20/.035" 120" (3.05 m) Polished Stainless
95CBL Silicone Sealant (see page 177B). BSC236BS 316 20/.035" 236" (6 m)* Brushed Stainless
NOTE: Sold by individual pieces. Base BSC236PS 316 20/.035" 236" (6 m)* Polished Stainless
Shoe requires two pieces for coverage on BSCPB10 C260 .045" 120" (3.05 m) Polished Brass
BSCSB10 C260 .045" 120" (3.05 m) Satin Brass
both sides.
BSCSA10 5052 .050" 120" (3.05 m) Satin Anodized
BSCDU10 5052 .050" 120" (3.05 m) Dark Bronze Anodized
Minimum order: 1 each. *Minimum order: 1 pack (6 pieces per pack). All finishes can be combined for quantity pricing.
Custom lengths up to 168" (4.26 m) are available on special order. Must ship common carrier.
Fascia Cladding for 8B34 and B7S Series Heavy-Duty Square Base Shoe
CRL Fascia Cladding is offered for applications where the Base Shoe • Available in Six Architectural Finishes
is installed to the side of the substrate. We offer Outside Fascia Cladding
that will conceal the three exposed outside edges of the Base Shoe. We
• Adhere With Cladding Tape and Silicone Sealant
also offer the Inside Fascia Cladding Strip that will cover the top inside • Custom Cutting and Mitering Services Available
edge of the Base Shoe. Secure with CRL AT234 Cladding Tape and • Outside and Inside Fascia Cladding Are Sold Separately
95CBL Silicone Sealant (see page 177B).
OUTSIDE FASCIA CLADDING
CRL Inside CAT. NO. GRADE GA./THK. LENGTH FINISH
Fascia Cladding
Strip B7C0FBS 304 20/.035" 120" (3.05 m) Brushed Stainless
3/4" (19 mm) B7C0FPS 304 20/.035" 120" (3.05 m) Polished Stainless
Wide B7C0FPB C260 .045" 120" (3.05 m) Polished Brass
B7C0FSB C260 .045" 120" (3.05 m) Satin Brass
B7C0FSA 5052 .050" 120" (3.05 m) Satin Anodized
B7C0FDU 5052 .050" 120" (3.05 m) Dark Bronze Anodized
Minimum order: 1 each. All finishes can be combined for quantity pricing.
Custom lengths up to 168" (4.26 m) are available on special order. Must ship common carrier.
INSIDE FASCIA CLADDING STRIP
CAT. NO. GRADE GA./THK. LENGTH FINISH
B5C1FBS 304 20/.035" 120" (3.05 m) Brushed Stainless
B5C1FPS 304 20/.035" 120" (3.05 m) Polished Stainless
B5C1FPB C260 .045" 120" (3.05 m) Polished Brass
CRL Outside Fascia B5C1FSB C260 .045" 120" (3.05 m) Satin Brass
Cladding B5C1FSA 5052 .050" 120" (3.05 m) Satin Anodized
B5C1FDU 5052 .050" 120" (3.05 m) Dark Bronze Anodized
Minimum order: 1 each. All finishes can be combined for quantity pricing.
Custom lengths up to 168" (4.26 m) are available on special order. Must ship common carrier.
Application Suggestions for CRL Cladding
There are various methods of attaching the Cladding to the Base Shoe. All three types shown below will work, but a combination of AT234
Cladding Tape and 95CBL Neutral Cure Silicone (Type C) offers the best of two worlds; the instant bond of the tape along with the speed of
application of the silicone and its flexible, durable adhesion. See page 177B for additional information.
Type A: Apply three rows of Tape to the inside face and two Type B: Apply Silicone to the inside face and bottom leg of Type C: Apply two rows of Tape to the inside face of the
rows to the inside bottom leg of the Cladding. Carefully align the Cladding. Carefully align Cladding to the Base Shoe and Cladding, one toward the top and one toward the bottom.
the Cladding to the Base Shoe and press in place. press in place. Use clamps to hold the Cladding in place Apply the Silicone between the rows of Tape. Apply one row
until the Silicone cures. of Tape to the bottom leg, closest to the outer edge. Apply
Silicone between Tape and corner bend in Cladding. Carefully
align the Cladding to the Base Shoe and press in place.
go to crlaurence.com to search for TOLL Phone: (800) 421-6144
base-shoe Search 160B FREE Fax: (800) 262-3299
or enter the Catalog Number for complete product information From Anywhere in the U.S. or CanadaYou can also read
