A bout PHNIX
PHNIX is one of the largest manufacturers of House Heating Heat Pumps, Swimming Pool Heat Pumps and
Heat Pump Water Heaters in China. PHNIX dedicates itself to being a reliable partner and building the highest
quality standards to make its products stable and safe. PHNIX products are always at the forefront of energy
efficiency.
With more than 413 national patents covering heat pump applications and heat pump technologies, PHNIX
commits itself to technological excellence.
PHNIX provides users with integrated energy-saving solutions and products, including House Heating &
Cooling Heat Pumps, Swimming Pool Heat Pumps, Residential and Commercial Heat Pump Water Heaters,
Heat Pump Dehumidifiers, Industrial & Agricultural Heat Pumps.
As an international enterprise, PHNIX attaches great importance to overseas markets, exporting more than
50% of its products to Europe, North America , Middle East, Australia, South America, Africa and other
regions.
About PHNIX 01 / 02
02
MILESTONE
2002 2009 2012 2015 2018 2020
Became #1 Exporter of Swimming Became a Leading Dagang Factory Began Operation New VI, New Start To be expected!
Company Founded
Pool Heat Pumps Enterprise in Dryer Industry
2008 2010 2013 2016 2019
Awarded First National High & Started O2O Business Nansha Factory Floated on China Europe Service Center
New Technology Enterprise Began Operation New OTC Market Went into Operation
(stock code: 836716)
80edays Challenge
Milestone 03 / 04
Certifications & Patents
In each of its operation service, PHNIX s top priority is to ensure the reliability and quality of its products PHNIX has built up a variety of professional testing labs, providing a full
and meet the technical & professional certifications of overseas markets. As an international brand, range of tests for its products, which include general capacity testing,
PHNIX holds several international certifications, including CE, CB, ETL, AHRI, SAA, ErP, Standard Mark, noise acoustic testing, reliability testing and low temperature resistant
WaterMark and so on. testing, etc. The labs are recognized by world-famous associations and
Meanwhile, PHNIX has acquired 413 national patents in the field of heat pump applications and heat have achieved strategic partner of SGS, AHRI, Intertek, etc. Particularly,
pump technologies in China. the -45℃ testing lab has become the industry benchmark in China.
Certification & Patents 05 / 06
Production Advantage Cooperative Partners
Since 2005, PHNIX has started transforming the structure of the factory and focusing Heat pump technology is our core strength. PHNIX focuses on technology research and
on building automatic intelligence technology into the production process. Up to now, development, adopting the most appropriate components for every heat pump. PHNIX also
the production process has involved multiple automatic production devices, including values technical communications and collaborations with world famous enterprises.
Copper Pipe Cutter, Pipe Bender Robot, Automated Vacuum Circulatory System,
Robotic Palletization, Packaging, AGV and so on. Over 30% of automatic production PHNIX has a mature supply chain system composed of international branded suppliers.
devices are involed in PHNIX manufacturing process. Moreover, an advanced MES For example, PHNIX has a long history of cooperation with Mitsubishi and Panasonic
system is engaged in the management of production, making the production more and has entered strategy cooperative relationship, which has become one of PHNIX core
intelligent and digital. advantages in product quality and stability.
To follow through on this commitment to quality, PHNIX has built a total of 13 labs
with capability of testing heat pump products range from 3kW to 250kW. With world
leading testing level, the lab can conduct tests for performance in every aspects,
including noise level, low temperature resistant, UV, salt spray, RoHS, heat exchanger
efficiency, constant temperature and humidity, pressure, temperature etc.
Automatic Vacuum Machine Assembly Robot
Transportation Test Vibration Analyzer
Acoustic Test -40 C Extreme Cold Test
o
07 Production Advantage Cooperative Partner 08
PHNIX Smart Home
Environment Solution
Fresh Air ERV System
Fan Coil
Water Tank
Heat Pump
Floor Heating
Radiator
Domestic Hot Water
Smart Home Environment Solution 09 / 10
Polaris Series 23 / 24
PHNIX DTU Remote Control Web Platform
With a control board inside, DTU is a module installed in PHNIX house heating heat Central platform management can be realized with DTU function, which effectively saves
pump. With one SIM card rooted into the DTU module, the heat pump can be connected the cost for labor when service is needed.
to the internet with 4G Mobile signal automatically. Then all the data of the heat pump will
The fault report button creates a direct error report channel to the local service provider.
be transferred to the cloud (server).
When an error is reported, the service provider can notice the error information of the target
house heating heat pump from the background system, and contact users immediately
to offer help.
11 DTU Remote Control WEB PLATFORM 12
Inverter Technology EVI Technology
Unlike traditional heat pump with single-speed compressor which by switching on and off periodically to adjust the The EVI technology ensures the optimum performance of the unit when running at ambient
performance of the heating & cooling, full inverter heat pump uses a variable speed compressor which can automatically temperature as low as -30℃, which helps to offer the users with comfortable house heating
adjust the output needed at the lowest consumption of power and maintain the best temperature at different climatic and stable hot water supply all year round.
conditions. When the heating demand is high, the inverter compressor and the fan motor will start running at a high
speed, inversely, they will run at a low speed.
Achieve an extremely high COP.
Wider ambient temperature range for stable running.
Shorten heating time.
25% stronger heating capacity and 10% higher COP than normal heat pumps.
Greatly save energy and cut down electricity bill.
High water temperature outlet.
Contribute to a quiet neighbor environment.
Low noise and vibration level.
Outlet Water Temperature(oC)
65
60
55
50
45
40
35
30
25
20
15
10
5 Ambient Temperature(oC)
-30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45
PHNIX EVI Heat Pumps Normal Heat Pumps
13 Inverter Technology EVI Technology 14
HeroPlus Series
Air to Water Heat Pumps
DTU -25oC
-25oC Inverter EVI
A+++ Being the smart heat pump elite, HeroPlus perfectly combines eco-friendly R32 refrigerant
and inverter EVI technology to produce 60oC hot water as well as stable house heating even
Inverter Technology DTU Colorful Touch Energy Level Intelligent Defrosting under -25oC low temperature condition.
Display
DTU
DTU
To deliver the best user experience, HeroPlus series is designed with a DTU module for
remote data transferring, then easily you can monitor the running status of your heating
system on the website page with your computer. DTU is optional.
A+++ Energy Level
A+++ PHNIX DC inverter technology enables the heat pump to adjust its frequency from 30Hz
to 90Hz according to real heating requirement. With this technology, PHNIX HeroPlus
Series (P6 model) achieves an energy level of A+++ according to ErP directive.
Model P6 P10A P10T P17A P17T P24T
Performance Condition: Outdoor air 7 C / 6 C, Inlet / Outlet water 30 C / 35 C
o o o o
Heating Capacity kW 2.3~8.3 4.7~12.5 4.7~12.5 7.0~20.5 7.0~20.5 10.0~25.0
Heating Power Input kW 0.6~1.8 1.1~3.4 1.1~3.4 1.5~6.0 1.5~6.0 2.8~5.7
Performance Condition: Outdoor air 35 C / 24 C, Inlet / Outlet water 12 C / 7 C
o o o o
Cooling Capacity kW 2.0~6.1 3.2~11.3 3.2~11.3 5.5~15.5 5.5~15.5 6.4~15.8
Cooling Power Input kW 0.7~2.2 1.3~4.6 1.3~4.6 1.5~6.0 1.5~6.0 3.4~6.8
Performance Condition: Outdoor air 20oC / 15oC, water circulates from 15oC to 55 oC
Hot Water Capacity kW 3.0~9.8 5.8~16.2 5.8~16.2 9.4~24.3 9.4~24.3 14.3~28.1
Hot Water Power Input kW 0.6~2.4 1.2~4.2 1.2~4.2 2.1~6.4 2.1~6.4 3.4~7.0
Rated Voltage/ Frequency / 208-240V～/30-90Hz 380-460V/3N～/30-90Hz 208-240V～/30-90Hz 380-460V/3N～/30-90Hz
Max. Power Input kW 2.9 4.6 4.6 7.2 7.2 12.5
Max. Current Input A 13.0 21.5 7.6 33.2 12.0 20.3
Refrigerant/ Proper Input kg R32/1.3kg R32/1.7kg R32/1.6kg R32/2.0kg R32/2.0kg R32/3.4kg
CO2 Equivalent Ton 0.88 1.15 1.08 1.35 1.35 2.30
Sound Pressure Noise(1m) dB(A) 37~54 42~55 42~55 44~58 44~58 53~59
Circulation Pump / GRUNDFOS GRUNDFOS GRUNDFOS GRUNDFOS GRUNDFOS GRUNDFOS
Operating Ambient Temperature OC -25~43 -25~43 -25~43 -25~43 -25~43 -25~43
Fan Motor Type / DC DC DC DC DC DC
Unit Dimensions(L/W/H) mm 1002×490×805 953×460×915 997×437×1315 1178×450×1605
Shipping Dimensions(L/W/H) mm 1060×500×825 1040×490×920 1070×435×1340 1210×490×1650
*The data above is only a reference. For mdoel specifications, please refer to the nameplate on the unit.
HeroPlus Series 15 / 16Hero Series
Air to Water Heat Pumps
0.1 C A++
o
o
0.1 C
0.1 C Precise Temperature Control
Inverter Technology Energy Saving Intelligent Defrosting Colorful Touch Accurate Temperature Energy Level o
Up to 30% Display Control
The unit can change the operating frequency of the compressor automatically according to the
heating or cooling demand. When the temperature is close to the target temperature,the unit
runs at a lower frequency. Furthermore, the accuracy of the temperature control can be as
precise as 0.1oC .
Intelligent Defrosting
Hero series uses the pressure sliding defrosting technology to figure out the exact defrosting time
and start intelligent defrosting according to the real frosting condition, which reduces energy
consumption under low temperature environment and prevents defrosting errors.
Water Temp Curve
By generating a curve and showing directly on the controller, users can have a clear picture
on the changes of water flow and easily monitor it.
Model H6 H8A H15B H25T
Performance Condition: Outdoor air 7 C / 6 C, Inlet / Outlet water 30 C / 35 C
o o o o
Heating Capacity kW 1.9~6.4 2.5~10.8 5.0~17.3 7.0~25.1
Heating Power Input kW 0.6~2.0 0.8~2.8 1.2~4.6 7.0~20.0
Performance Condition: Outdoor air 35 C / 24 C, Inlet / Outlet water 12 C / 7 C
o o o o
Cooling Capacity kW 1.6~5.4 2.0~10.0 5.0~14.5 7.0~20.0
Cooling Power Input kW 0.6~1.9 1.0~3.4 1.6~5.6 2.5~9.0
Performance Condition: Outdoor air 20oC / 15oC, water circulates from 15oC to 55 oC
Hot Water Capacity kW 3.0~9.8 5.8~16.2 5.8~16.2 9.4~24.3
Hot Water Power Input kW 0.6~2.4 1.2~4.2 1.2~4.2 2.1~6.4
Rated Voltage/ Frequency / 208-240V~/30-90Hz 380-460V/3N～/30-90Hz
Max. Power Input kW 2.9 4.6 4.6 7.2
Max. Current Input A 8.7 18.0+13.7 27.0 14.0
Refrigerant/ Proper Input kg R410A/1.7kg R410A/2.4kg R410A/3.2kg R410A/4.4kg
CO2 Equivalent Ton 3.55 5.00 6.68 9.19
Sound Pressure Noise(1m) dB(A) 54 54 58 62
Compressor Brand Mitsubishi Electric Mitsubishi Electric Mitsubishi Electric Mitsubishi Electric
R410A
Circulation Pump / GRUNDFOS GRUNDFOS GRUNDFOS GRUNDFOS
Operating Ambient Temperature o
C -15~43 -20~52 -20~52 -20~52
Fan Motor Type / DC DC DC DC
Unit Dimensions(L/W/H) mm 1052×490×790 980×465×910 990×437×1315 1135×450×1588
Shipping Dimensions(L/W/H) mm 1070×510×945 1050×500×1060 1080×445×1480 1290×530×1760
*The data above is only a reference. For mdoel specifications, please refer to the nameplate on the unit.
Hero Series 17 / 18HeroPro Series
Air to Water Heat Pumps
-30 C DTU COP A++
o
R410A o
-30 C
-30 C Inverter EVI
o
Being the smart heat pump elite, HeroPro perfectly combines eco-friendly R410A refrigerant
Stable Running Under DTU Colorful Touch High COP R410A Refrigerant Energy Level
Cold Climate Display and inverter EVI technology to produce 60oC hot water as well as stable house heating even
under -30oC low temperature condition.
DTU
DTU
To deliver a better user experience, HeroPro series is designed with a DTU module for
remote data transferring. Then easily you can monitor the running status of your heating
system on the website page with your computer. DTU is optional and flexible.
Light Commercial Application
With the capability of stably running under extremely cold climate, HeroPro is an ideal
option for hotels, holiday resort and schools in super cold areas, such as Northern Europe,
Russia, etc.
Model HP10 HP14 HP18 HP26T HP30T HP38T
Performance Condition: Outdoor air 7oC / 6oC, Inlet / Outlet water 30oC / 35oC
Heating Capacity kW 4.2~12.0 5.6~14.8 7.2~20.0 9.8~27.3 11.5~31.5 15.0~41.0
Heating Power Input kW 1.2~4.0 1.6~4.8 2.1~6.8 3.5~10.6 4.4~13.6 5.0~13.8
Performance Condition: Outdoor air 35oC / 24oC, Inlet / Outlet water 12oC / 7oC
Cooling Capacity kW 3.6~9.6 4.2~10.6 6.3~16.5 8.3~23.1 10.2~28.2 11.9~33.1
Cooling Power Input kW 1.2~4.0 1.6~4.8 2.1~6.8 3.5~10.6 4.4~13.6 5.0~13.8
Performance Condition: Outdoor air 20oC / 15oC, water circulates from 15oC to 55 oC
Hot Water Capacity kW 5.3~13.5 5.8~15.1 7.5~21.1 10.0~27.5 11.8~32.0 15.5~41.5
Hot Water Power Input kW 1.5~4.3 1.6~5.0 2.1~7.1 3.7~10.8 4.5~13.8 5.2~14.0
Rated Voltage/ Frequency / 208~240V~/30~90Hz 380~460V/3N~/30~90Hz
Max. Power Input kW 4.6 4.8 7.0 10.6 13.6 16.0
Max. Current Input A 21.0 21.8 32.0 17.0 25.5 31.2
Refrigerant/ Proper Input kg R410A/2.2kg R410A/2.5kg R410A/2.8kg R410A/4.5kg R410A/5.0kg R410A/6.6kg
CO2 Equivalent Ton 4.59 5.22 5.85 9.40 10.44 13.78
Sound Pressure Noise(1m) dB(A) 38~52 40~53 42~54 44~57 44~58 45~60
Compressor / GMCC Landa GMCC Panasonic Panasonic Highly
R410A
Circulation Pump / WILO WILO WILO WILO GRUNDFOS GRUNDFOS
Operating Ambient Temperature oC -30~52 -30~52 -30~52 -30~52 -30~52 -30~52
Fan Motor Type / DC DC DC DC DC DC
Unit Dimensions(L/W/H) mm 960×445×910 1000×395×1325 1000×395×1325 1175×400×1600 1175×400×1600 1700×800×1685
Shipping Dimensions(L/W/H) mm 1000×500×950 1050×440×1380 1050×440×1380 1210×450×1650 1210×450×1650 1750×850×1730
*The data above is only a reference. For mdoel specifications, please refer to the nameplate on the unit.
HeroPro Series 19 / 20HeatPro Series
Air to Water Heat Pumps
EVIC
-30
EVI Technology
DTU
o
-30 C
o
RS485 A+ Being the smart heat pump elite, HeatPro perfectly combines eco-friendly R410A refrigerant and
inverter EVI technology to produce 60oC hot water as well as stable house heating even under
-30oC low temperature condition.
Stable Running Under DTU Colorful Touch BMS/RS485 Energy Level
Cold Climate Display Central Control
DTU
DTU
To deliver the best user experience, HeatPro series is designed with a DTU module for
remote data transferring. Then easily you can monitor the running status of your heating
system on the website page with your computer.
RS485
RS485 HeatPro is highlighted with central control system as a RS485 serial port is designed for
communications in every unit.
PASHW PASRW
Model KV15A KV15T KV24A KV24T
150S-PS 300S-PS
Performance Condition: Outdoor air 7oC / 6oC, Inlet / Outlet water 30℃ / 35℃
Heating Capacity kW 15.7 15.7 24.4 24.4 40.2 88.5
Heating Power Input kW 3.8 3.8 6.2 6.2 11.4 22.5
Performance Condition: Outdoor air 35oC / 24oC, Inlet / Outlet water 12oC / 7oC
Cooling Capacity kW 11.5 11.5 17.0 17.0 27.3 65.1
Cooling Power Input kW 4.0 4.0 7.9 7.8 10.6 25.4
Performance Condition: Outdoor air 20 C / 15 C, water circulates from 15 C to 55 C
o o o o
Hot Water Capacity kW 19.0 19.0 29.6 29.6 50.0 108.0
Hot Water Power Input kW 4.1 4.1 7.3 7.3 10.8 27.2
Rated Voltage/ Frequency / 208-230V～/50Hz 380-415V~/3N～/50Hz 208-230V～/50Hz 380-415V~/3N～/50Hz
Max. Power Input kW 8.1 8.1 10.2 10.2 15.7 41.5
Max. Current Input A 13.5 13.5 18.7 18.7 21.3 76.9
Refrigerant/ Proper Input kg R410A/3.0kg R410A/2×2.2kg R410A/9.0kg R410A/2×9.0kg
CO2 Equivalent Ton 6.26 6.26 9.19 9.19 18.79 37.58
Sound Pressure Noise(1m) dB(A) 56 55 58 58 68 73
Compressor / Copeland Highly Highly Highly Copeland Copeland
Circulation Pump / / / / / / /
R410A
Operating Ambient Temperature OC -30~45 -30~45 -30~45 -30~45 -30~45 -30~45
Fan Motor Type / DC DC DC DC DC AC
Unit Dimensions(L/W/H) mm 955×435×1315 1175×450×1588 1415×860×1870 2170×1070×2100
Shipping Dimensions(L/W/H) mm 1070×415×1330 1200×430×1600 1460×920×1920 2220×1130×2150
*The data above is only a reference. For mdoel specifications, please refer to the nameplate on the unit.
HeatPro Series 21 / 22Polaris Series
Commercial Heat Pumps
Inverter EVI Technology
DTU -30oC With PHNIX inverter EVI technology, the series can achieve stable heating performance even in low
temperature of -30℃. The overall heating capacity is increased by about 20%.
DTU Fast Heating Low Noise Intelligent Defrosting
Dual Cabinet Design
With two independent cabinets, the unit can run fluently even when one system is under
ON OFF
maintenance. The bottom and the upper part of the unit are separated, preventing damage
caused by water that might come from the upper part.
Constant Water Temperature
Thanks to the dual cabinet design, the unit can perform heating and defrosting simultaneously
and separately, so the interruption of defrosting on the overall heating can be reduced
and the stability of water heating can be maximized.
RS485
RS485 Polaries Series is highlighted with central control system as a RS485 serial port is designed for
communications in every unit.
Model PASRW300S-PS-BP PASRW360S-PS-BP
Performance Condition: Outdoor air 7oC / 6oC, Inlet / Outlet water 40oC / 45oC
Heating Capacity kW 16.0~95.0 44.3~108.0
Heating Power Input kW 4.5~28.9 12.5~32.8
Performance Condition: Outdoor air 35 C / 24 C, Inlet / Outlet water 12 C / 7 C
o o o o
Cooling Capacity kW 20.0~74.3 32.0~80.0
Cooling Power Input kW 8.7~25.7 11.9~36.3
Performance Condition: Outdoor air 20oC / 15oC, water circulates from 15oC to 55 oC
Hot Water Capacity kW 90.0 105.0
Hot Water Power Input kW 19.7 21.5
Rated Voltage/ Frequency / 380-460V/3N~/40~100Hz 380-460V/3N~/40~120Hz
Max. Power Input kW 34.2 40.0
Max. Current Input A 51.0 60.0
Water Flow Rate m3/h 10.3 12.0
Refrigerant/ Proper Input kg R410A/2×9.0kg R410A/2×9.5kg
CO2 Equivalent Ton 37.58 39.67
Sound Pressure Noise(1m) dB(A) 67(56~69) 67(56~69)
Compressor / Hitachi Mitsubishi
Operating Ambient Temperature C
o
-30~43 -30~43
R410A
Fan Motor Type / DC AC
Unit Dimensions(L/W/H) mm 2170×1150×2130 2350×1150×2360
Shipping Dimensions(L/W/H) mm 2250×1250×2250 2400×1250×2450
*The data above is only a reference. For mdoel specifications, please refer to the nameplate on the unit.
Polaris Series 23 / 24Exhaust Air Heat Pump
Heat Recovery
The air inlet/outlet connection helps the unit to make full use of the energy of waste heat from
the room. The unit works stably in all weather conditions with only a quarter of the cost of a
traditional electric water heater.
A+ Smart Controller
Heat pump could be automatically started or stoped by the timer setting and keep water
Heat Recovery All Plastic Design Smart Controller Flexible Installation Energy Level
temperature between 45 oC to 60 oC
Flexible Installation
With flexible ways of installation, the unit is very easy to install. It can be floor standing,
installed on a bracket or on the top of a tank.
Model PASHW010-X
ErP Rating / A+
Rated Voltage/Frequency / 208-240V~/50HZ
Moisture Resistance / IPX1
Electrical Shock Proof / I
Rated Heating Capacity kW 3.0
Heating Power Input W 740
Rated Heating Current A 3.3
The Suggested Water Tank L 100~300
Refrigerant / R410A
Air Volume m /h
3
380
Ext. Static Pressure Pa 40
Water Flow Rate m3 /h 0.7
Operation Range o
C -7~43
Declared Load Profile / L
Circulation Pump / Optional
Water Connection inch 3/4’ Female
Water Outlet Temp Range o
C 45~60
R410A
Sound Pressure Noise(1m) dB(A) 45
Net Weight kg 51
Unit Dimensions(L/W/H) mm 720×602×485.5
Shipping Dimensions(L/W/H) mm 740×622×615.5
Heating: Ambient Temperature: 20 C/15 C, Water Circulated from15 C to 55 C
o o o o
*The data above is only a reference, specific data please refer to the nameplate on the unit.
Exhaust Air Heat Pump 25 / 26Hydraulic Fan Coils
Super Quiet
The use of cross-flow fans combined with special ventilation technology makes the units with lower
noise, thus people can enjoy a healthier and more comfortable sleep.
Water Connection
Excellent in Performance
Up to the preference of the customer, the water connection can be designed
on either the right side or the left side, which creates great flexibility on installation for users.
Elegant in Appearance RS485
RS485
RS485 communication is now available for users. Centralized control can be realized for
hydraulic fan coils based on modbus protocol.
130mm 24
dB(A) Model PFP-025-A/C PFP-040-A/C PFP-060-A/C PFP-080-A/C PFP-100-A/C
Ultra-thin casing Super quiet Flexible Installtion Smart Control Variable Fan Speed
running
Performance Condition: Ambient temp.(DB/WB): 20oC/-, Water temp.(In/Out): 70oC/-
W 2550 3950 5750 7200 9400
Heating Capacity
BTU/h 8700 13500 19600 24600 32000
Water Flow Rate m3/h 0.22 0.34 0.49 0.62 0.81
Water Pressure Drop kPa 10.6 12.2 26.2 27.5 28.2
Performance Condition: Ambient temp.(DB/WB): 20 C-, Water temp.(In/Out): 50 C/
o o
W 1350 2500 3350 4300 5200
Heating Capacity
BTU/h 4600 8500 11400 14600 17800
Water Flow Rate m3/h 0.23 0.43 0.58 0.74 0.89
Water Pressure Drop kPa 10.8 13.1 27.5 27.9 28.5
Performance Condition: Ambient temp.(DB/WB): 27 C/19 C, Water temp.(In/Out): 7 C/12 C
o o o o
Cooling Capacity W 1000 1900 2500 3500 4350
BTU/h 3400 6500 8500 12000 14800
Water Flow Rate m3/h 0.17 0.33 0.43 0.60 0.75
Water Pressure Drop kPa 11.1 13.3 27.7 28.3 30.6
Air Volume(DC Motor) m /h
3
160 320 460 580 650
Sound Pressure Noise at 1 m (H) dB(A) 40 44 46 47 48
Sound Pressure Noise at 1 m (L) dB(A) 24 27 28 28 30
Power Supply V/Ph/Hz 220-240V~/50Hz 220-240V~/50Hz 220-240V~/50Hz 220-240V~/50Hz 220-240V~/50Hz
Power Input(Model A) W 13 18 22 24 28
Power Input(Model C) W 13 18 22 24 28
Water In/Out inch 3/4 3/4 3/4 3/4 3/4
Drain Connection mm 16 16 16 16 16
Unit Dimensions(L/W/H) mm 700×130×670 900×130×670 1100×130×670 1300×130×670 1500×130×670
Shipping Dimensions(L/W/H) mm 740×180×730 940×180×730 1140×180×730 1340×180×730 1540×180×730
*The data above is only a reference. For mdoel specifications, please refer to the nameplate on the unit.
*110~120V/60Hz is possible for optional.
Hydraulic Fan Coils 27 / 28Graphene Heat Exchanger
The Graphene Heat Exchanger adopts non-polluting energy recovery technology to realize energy
transferring between fresh air and exaust air. Thus, it reduces the indoor temperature loss caused
by ventilation.
Principle of Graphene
Graphene modified antibacterial membrane is a functional polymer membrane based on
graphene modification. The material is 100% solid, non-volatile, non-toxic, harmless,
and can be in direct contact with the skin.
Model PXF-A
Filter / High Efficiency HEPA
Pipe Size (indoor air) mm 6-Φ75/3-Φ110
Central Fresh Air
Pipe Size (fresh air) mm Φ160
Installation / Wall-mounted/Ceiling
Working Range o
C -20~60
Net Weight kg 10
EPP Cabinet
Gross Weight kg 12
Unit Dimension (L/W/H) mm 874×682×270
Model PDJX-350-EC
Rated Power W 163.0
High Purification
Power Supply V/Ph/Hz 208-240V~50Hz
Air Outlet Pressure Pa 100
EC Air Volume m3/h 360
ERP / A
EC Motor
Filter / Primary/Medium/High Efficiency HEPA
Sensor Type / PM2.5/CO2/TVOC/Temperature/Humidity
EVI Exchanging Efficiency / 68.3%
Heat Exchanger / Macromolecule Nanometer Materials
Silent Running
Pipe Size (indoor air) mm Φ160
Pipe Size (fresh air) mm Φ160
A Sound Power Level dB(A) 56
Installation / Wall-mounted/Ceiling
Energy Level
Working Range o
C -30~43
Net Weight kg 27
Gross Weight kg 30
Unit Dimensions(L/W/H) mm 1232×830×270
Testing condition of heat exchanging: outdoor fresh air: 35 C/28 oC(DB/WB); indoor return air: 27 o C/21.2 oC(DB/WB).
o
The data above is only for reference. For model specifications, please refer to the nameplate on the unit.
*The noise data is tested based on EU1254/2014; 2014-07-11 without air silencer distributor and duct.
Fresh Air ERV System 29 / 30Super Commercial
Heat Pump
Heat Pump For Greenhouse
Multiple Running Mode
The unit can satisfy multiple demands and greatly lower energy comsumption as it is
Heating Cooling Automatic dehumidification High Efficiency Up to 80% Energy Savings designed with multiple running modes, such as cooling in daytime, heating at night, heat
Heat Recovery
recovery at daytime and dehumidification.
Up to 80% Energy Savings
During the night time, the unit can provide stable heating while producing 50℃ hot water.
The COP of the whole system can achieve 6.21.
RS485
RS485 The super green house heat pump is highlighted with central control system as a RS485 serial
port is designed for communications in every unit.
Model PASRW130S
PASRW130S
Standard Heating Capacity kW 31.9
Smart Heating Capacity kW 50.2
Cooling Capactiy kW 32.3
Air Volume m3/h 10000
Air Pressure Pa 80
Power Input kW 10.2
Current Input A 18.5
Power Supply / 380-415V~/3N~/50Hz
Lowest Ambient Temperature o
C -15
Water Connection / DN32
Water Pressure Drop kPa 71
Max.Power Input kW 15.2
Max.Current Input A 27.6
Unit Dimensions(L/W/H) mm
R410A
1815×1316×2150
Shipping Dimensions(L/W/H) mm 1920×1350×2320
Standard Heating Condition:
PASRW130S: 7oC/6oC(DB/WB); Water(In/Out): 40 oC/45oC;
*The data above is only a reference. For mdoel specifications, please refer to the nameplate on the unit.
Super Commercial Heat Pump31/ 32EcoClimate Series
Heat Pump for Greenhouse

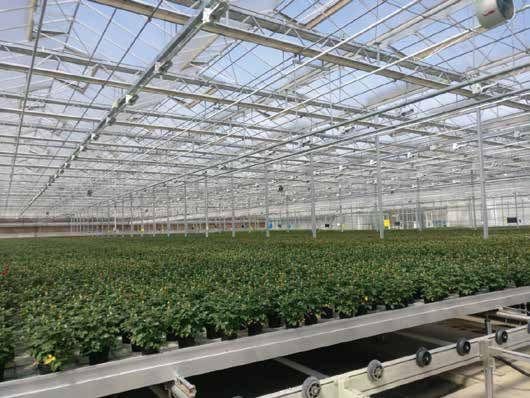

Multiple Running Mode
EcoClimate Series Water Source Heat Pump is designed with multiple functions such as heating,
cooling, dehumidification and ventilation, which can be an ideal solution for greenhouse planting
industry.
Accurate Temperature Auxiliary Heating Colorful Touch Light Sensor Automatic Heating & Cooling High Temp. Protection
Control Display Dehumidification
To protect the greenhouse from overheating and maintain suitable temperature for the plant,
users can easily manage the temperature of the greenhouse through controlling the light.
Easy Control
Adopting smart PC controlling technology, the unit can intelligently switch the running
mode and conduct multiple protection for the system. Also, the port for BMS connection
devices are designed in the unit, so that the users can choose the wire controller
for management according to their demand.
Model PWXCDQ020 PWXCDQ030 PWXCDQ050S PWXCDQ070S
kW 5.3 8.4 13.0 17.7
Cooling Capacity
BTU/h 18089 28000 44300 59371
kW 6.7 11.1 15.0 21.2
Heating Capacity
BTU/h 22200 32400 51200 64800
Electric Heating kW 1.5×2 1.5×2 2.0×2 2.0×4
Max.Current A 15.3 20.0 21.2 23.3
Air Volume m3/h 1200 1500 2670 3800
Static Pressure Pa 60 60 100 120
Sound Pressure Noise(1m) dB(A) 41 44 46 52
Power Supply V/Ph/Hz 208-240V~/50Hz 208-240V~/50Hz 380-415V/3N~/50Hz 380-415V/3N~/50Hz
Weight kg 70 86 147 180
R410A
Unit Dimensions(L/W/H) mm 945×650×410 945×650×490 1486×730×545 1706×730×545
Shipping Dimensions(L/W/H) mm 1030×710×480 1030×710×540 1540×780×690 1810×800×710
Cooling: Ambient Temp. (DB/WB): 27 C/19 C, Water Temp. (In/Out): 30 C/35 C
o o o o
Heating: Ambient Temp. (DB/WB): 20 oC/15oC, Water Temp. (In/Out): 20 oC/-.
*The above data is for reference only; specific data is subject to the product nameplate.
EcoClimate Series 33 / 34Water Source Heat Pump
Heat Pump for Commercial Occasions
Multiple Functions
PHNIX Water Source Heat Pump is featured with multiple functions such as heating, cooling, dehumidifi-
cation and ventilation, which can be a perfect interagrated solution for shopping mall buildings.
Flexible Installation Make the Best Stable Running Easy Maintenance Heating & Cooling
Use of Energy
RS485
RS485 Water Source Heat Pump is highlighted with central control system as a RS485 serial port is
designed for communications in every unit.
Colorful Touch Display
PHNIX Water Source Heat Pumps 5-inch wire-controlled LCD display is provided with powerful
functions such as water temperature curve, easy timing, one key mute and mute timer. And It has
several control modes, making the control much easier.
Model PWXRQ030 PWXRQ050S PWXRQ070S
kW 8.3 13.0 15.1
Cooling Capacity
BTU/h 29003 44300 51523
kW 9.5 15.0 21.2
Heating Capacity
BTU/h 32415 51200 64800
Max. Current A 13.7 9.7 11.1
Air Volume m3/h 1500 2800 3800
Static Pressure Pa 60 100 120
Sound Pressure Noise(1m) dB(A) 44 46 52
Power Supply V/Ph/Hz 208-240V~/50Hz 380-415V/3N~/50Hz 380-415V/3N~/50Hz
Weight kg 86 144 177
R410A
Unit Dimensions(L/W/H) mm 945x650x490 1486x730x545 1706x730x545
Shipping Dimensions(L/W/H) mm 1030x710x540 1540x780x690 1810x800x710
Cooling: Ambient Temp. (DB/WB): 27oC/19 oC, Water Temp. (In/Out): 30 oC/35oC.
Heating: Ambient Temp. (DB/WB): 20 oC/15oC, Water Temp. (In/Out): 20 oC/-.
*The data above is only a reference. For mdoel specifications, please refer to the nameplate on the unit.
Water Source Heat Pump 35 / 36Market Overview
PHNIX
Through years of technological innovation and strategic market expansion, PHNIX has become one of the most
famous and influential brands of heat pump in the world.
PHNIX has been highly recognized in the European and North American heat pump markets since 2002. Until now,
about 50% of PHNIX heat pump products, including house heating heat pumps, hot water heat pumps and swimming pool heat pumps
are exported to markets outside of China.
Israel Germany Kosovo Armenia
Global Projects
Germany Sweden China
Norway Czech Republic Greece Norway America
Market Overview 37 / 38Market Support SUPPORT
Visiting Clients more than twice a year
Local Market Product Standard, Certification Support
Attending / Co-exhibit Leading Exhibitions/Fairs in the Industry
Now PHNIX collaborates with our clients in the following ways:
MARKETING
EVENTS
ODM OEM Co-design PHNIX Brand
Based on strong capability of If clients have their own idea and For strategic cooperated PHNIX mainly does self-owned
research and development, PHNIX design of the products, PHNIX can customers, PHNIX also works brand in China domestic market
mainly provides standard products actualize and modify it to make it together with clients to design and joint brand in Israel market.
for customers on ODM basis. easy for mass production. and create totally new products.
Market Support 39 / 40HeroPlus Series Hero Series
R410A
P6 P10A / P10T P17A / P17T P24T H6 H8A H15B H25T
1002×490×805 mm 953×460×915 mm 997×437×1315 mm 1178×450×1605 mm 1052×490×790 mm 980×445×910 mm 990×437×1315 mm 1135×450×1588 mm
HeroPro Series R410A HeatPro Series
R410A R410A
HP10 HP14 / HP18 HP26T / HP30T HP38T KV15A / KV15T KV24A /KV24T PASHW150S-PS PASRW300S-PS
960×445×910 mm 1000×395×1325 mm 1175×400×1600 mm 1700×800×1685 mm 955×435×1315 mm 1175×450×1588 mm 1415×860×1870 mm 2170×1070×2100 mm
All Heat Pump Products Overview 41/ 42Super Commercial Polaris Series Exhaust Air
Heat Pump R410A R410A Heat Pump R410A
PASRW 130S PASRW300S-PS-BP PASRW360S-PS-BP PASHW010-X
1815×1316×2150 mm 2170×1150×2130 mm 2350×1150×2360 mm 720×602×485.5 mm
Hydraulic Fan Coils EcoClimate Series
R410A
100(V) / 1500×130×670 mm 080(V) / 1300×130×670 mm
040(V) / 900×130×670 mm 060(V) / 1100×130×670 mm
PWXCDQ020/030 PWXCDQ050S PWXCDQ070S
025(V) / 700×130×670 mm
945×650×410 mm 1486×730×545 mm 1706×730×545 mm
PFP-CB PFP-A PFP-CW 945×650×490 mm
Water Source Heat Pump Fresh Air ERV System
R410A
PWXRQ030 PWXRQ050S PWXRQ070S PXF-A PDJX-250-EC
945×650×490 mm 1486×730×545 mm 1706×730×545 mm 874×682×270 mm 1232×830×270 mm
All Heat Pump Products Overview 43/ 44You can also read
