Fruit Juicing -‐ Cider ʹ Vinegar -‐ Apple Cips -‐ Jam
Bin emptying

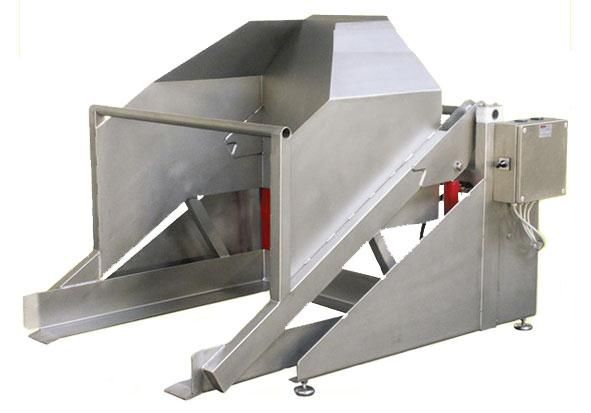

Bulk bin tipper, all stainless for bins 1200x1000x780mm
Bulk bin tipper large, all stainless for bins 1200x1200x780mm
Crushers
Centrifugal crusher in stainless steel with interchangeable
screens. Capacity: 1t/h - 2.2 KW (for smaller bladder presses
or smaller packing presses)
Apple Mill 1.5 KW (for smaller bladder presses up to 180litres)
Wash/Crushers
Washing plant with built-in centrifugal crusher 1000kg/h
(ideal in combination with single belt press 250-350kg/h)
Different knifes available
Washing plant with built-in centrifugal crusher 2000kg/h
(belt presses up to 1500kg/h and packing presses)
Different knifes available
Washing plant with built-in centrifugal crusher 5000kg/h
(belt presses up to 3000kg/h and packing presses)
Different knifes available
Large Filling Hopper for washing plant 2000 and 5000kg/h
Presses (semiautomatic)
Bladder Press 180l aluminium painted ± rotating.
Cage in stainless steel
Bladder Press 160l all stainless steel ± rotating
Bladder Press 300l all stainless steel ± rotating
Bladder Press 450l all stainless steel ± rotating

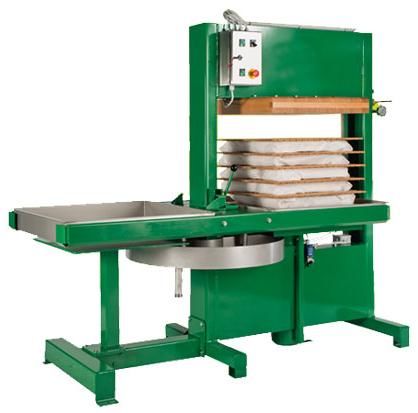

Packing Press 41x41 ± up to 150kg/h
Packing Press 50x50 ± up to 500kg/h
Packing Press 50x50 with two shift press cage
Packing Press 100x100 with rotating carriage
Up to 1000kg/h
Presses (automatic single belt presses)

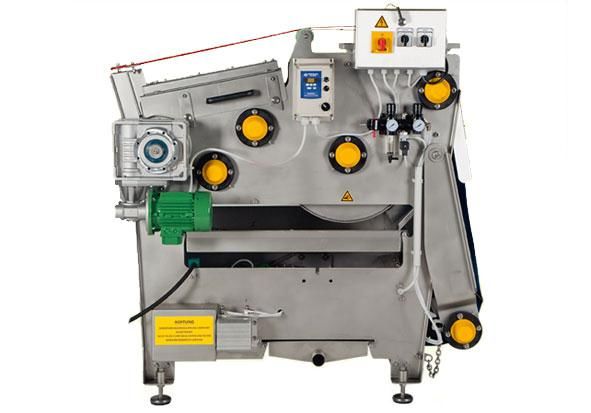

Automatic Single-belt press 250-350 KG/h
Automatic Single-belt press 500-900 KG/h
Option
Automatic Roller Brush ± for better belt cleaning
Longer feet
Presses (automatic single belt presses)

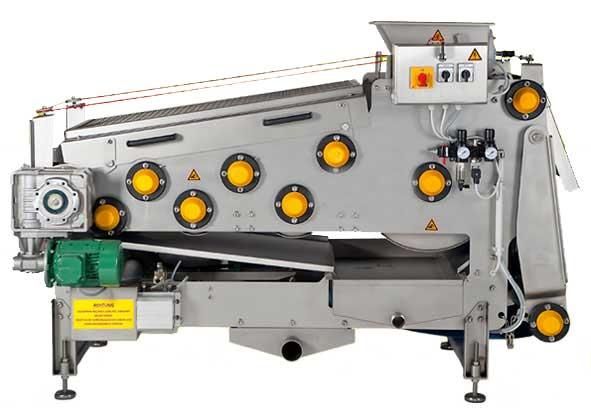

Automatic Single-belt press 1500 KG/h
Option
Automatic Roller Brush ± for better belt cleaning
Juice collection Tank with stainless pump full/empty
switch and DIN25 fittings

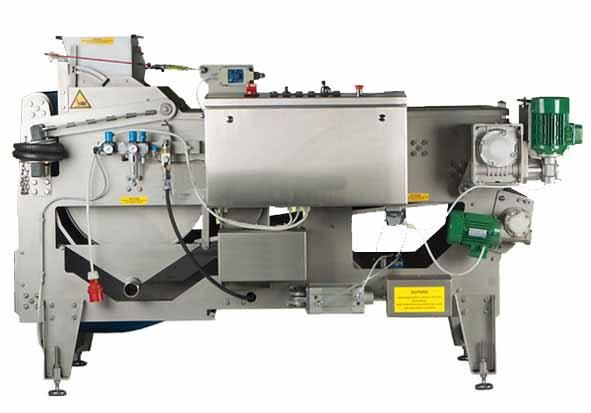

Automatic Single-belt press 3000 KG/h
Option
Automatic Roller Brush ± for better belt cleaning
F iltration
Plate Filter 20x20 10 plates and pump
Plate Filter 20x20 20 plates and pump
Plate Filter 20x20 30 plates and pump
Plate Filter 40x40 12 plates and pump
Plate Filter 40x40 20 plates and pump
Plate Filter 40x40 30 plates and pump
Horizontal screens filter DCBL/50 hl/h 2m² Dry manual
discharge type
Horizontal screens filter DCBL/80 hl/h 3 m² Dry manual
discharge type
Full automatic, self cleaning Separator 600l/h
Full automatic, self cleaning Separator 1200l/h
Storage tanks
Movable stainless steel juice tanks.Sloped floor, clear
outlet, total outlet, floating lid, two ball valves and
decanter arm DIN40
Capacity: 1000, 1600 and 2200 liter
Stainless steel juice tanks on 3 welded legs.
Sloped floor, clear outlet, total outlet, lid, ball valves and
decanter arm DIN40
Capacity: 530, 1000, 1250, 2000, 2500, 3000,
3500, 4000, 4500, 5000, 6000, 7500, 10000
F ermentation tanks
Stainless steel fermentation tanks with flat bottom or on
3 welded legs with sloped floor,
Possible Options:
x clear outlet,
x total outlet,
x floating lid,
x lifting arm for floating lid
x ball valves or butterfly valves
x decanter arm
x sight gauge
x leveling feet
x thermometer
x cooling plate/snake or cooling jacket
x mash outlet
Capacity: 530, 1000, 1250, 2000, 2500, 3000,
3500, 4000, 4500, 5000, 6000, 7500, 10000
Carbonator
Carbonator 2 head (80/120bottles x hour)
Carbonator 4 head (150/240bottles x hour)
A simple and easy to use apparatus for the carbonation
of liquids in the bottle.
The previously filled bottles are placed in the machine
and saturated with carbon dioxide from a pressure
cylinder. The apparatus is designed to rotate to allow the
contents of the bottle to enter a spherical stainless steel
pressure vessel where the carbonation takes place.
For use with glass bottles only up to 1 liter capacity and
resistant for 6 bar pressure or more.
Pasteurization
Pasteurizer IMF250 with gas burner ± 250l/h
Pipe in Pipe heat exchanger ± all stainless.
Manual control
Pasteurisation with diesel burner and automatic water
and juice temperature regulation.
Pipe in pipe head exchanger. All stainless
Capacity: .
Mod. 45 - 400/500 litres per hour
Mod. 65 - 600/700 litres per hour
Mod. 120 - 1000/1200 litres per hour
(Gas burner or heating with steam available on request)
Tub Pasteurizer. (in bottle pasteurizer): Capacity for ca.
200/300 bottles one litre. Heating with hot water coming
from an external heating unit and an additional heating
with electric elements in order to achieve faster and
more accurately to the set temperature
Bottle F illing
Vacuum filler in stainless for hot filling ± 4 valves
Bottle filler stainless steel 2 valves
Bottle filler stainless steel 4 valves
Bottle filler stainless steel 6 valves
Option:
Electronic sensor ± for connection to pasteurizer
Semi-automatic Screw Capper ± pneumatic
Table in stainless steel ± on casters
Monoblock Filler and capper
Fully automatic bottling lines with gravity filler or with
slight vacuum filler, suitable for wines (not sparkling) or
juice (hot filling).
The machine is equipped as an autonomous system
with conveyor, chain, drive and bottle collecting table.
Variable speed control
Filler with 6 valves and capper
Filler with 8 valves and capper
Filler with 10 valves and capper
Filler with 12 valves and capper
Filler with 16 valves and capper
Filler with 20 valves and capper
Option
Equipment for additional bottle sizes
Equipment for additional cap sizes
Rinser 6
Rinser 9
Rinser 12
Rinser 16
Bottle Twister
Bottle Twister in stainless steel 12
Bottle Twister in stainless steel 16
Labelling
Semiautomatic Labeller 600-700b/h
Kompakt 7 Automatic labeller up to 1000b/h
Kompakt 17 Automatic labeller up to 1500b/h
Kompakt 22 Automatic labeller up to 2200b/h
Packing
Full automatic shrink wrapping machine
Bag in Box F illing
Bag-in-Box Filling Unit 500L/h
Bag-in-Box Filler with vacuum system and lever to
remove and place the valve on the neck of the bag in
box.
Option for hot filling max. 90°C
Table to place the carton box
Complete with pump and flow meter EUR
(compressor not included)
3lt x 180/h; 5l x 150/h; 10l x 130/h
Bag-in-Box Filler with vacuum system and lever to
remove and place the valve on the neck of the bag in
box.
Option for hot filling max. 90°C
Table to place the carton box
Complete with pump and flow meter EUR
(compressor not included)
3lt x 270-320/h; 5l x 220-260/h; 10l x 180-220h
Bag-in-Box Filler with vacuum system and lever to
remove and place the valve on the neck of the bag in
box.
Option for hot filling max. 90°C
Table to place the carton box
Complete with pump and flow meter EUR
(compressor not included)
3lt x 360-420/h; 5l x 330-390/h; 10l x 300-330/h
Puffertank stainless with inlet and outlet DIN25 and
sensor for connection to the pasteurization.
Vinegar IMF submerged vinegar plant for professional and fast conversion from wine and fruit wine into vinegar. Equipped with: Electronic controlling, stainless steel tank with acidity resistent pumps and venturi air nozzles. An electricity saving 220 V heater. From the 150 litres model up to the 600 litres machine we installed an overheating protection, so that your vinegar cultures are save in case there are problems with the cooling water. Capacita: 20, 150, 240, 300, 450, 600 liter. Acidity test Kit Barriques 225l ± used 2-3 times for wine Barriques 225l ± new Wooden Barrels 2-4-6-10-20-30-50-80litres manufactured in Italy ± form Oak, Acacia or Chestnut Storage tanks for vinegar 50 ± 100000liter
De-stoner/Pulper
De-stoning machine 1000kg/h
De-stoning / straining system with changeable screens
and adjustable rotor for various applications
De-stoning machine 250kg/h
De-stoning / straining system with changeable screens
and adjustable rotor for various applications
Cookers
Jam cooker in water bath and with mixer with electronic
speed regulation. Double wall tank in stainless steel with
insulation and lateral discharge with butterfly valve.
Frame in stainless steel on 4 casters.
Programmable thermostat for temperature regulation.
Heating with Steam or electric or a combination of both
Capacity: up to 400 litres
Jam cooker in water bath and with Double wall tank in
stainless steel with lateral discharge with butterfly valve.
Frame in stainless.
Programmable thermostat for temperature regulation.
Heating with gas burner.
Capacity: up to 90-300 litres
Jam cooking pot 24litres ± Double wallet
Jam cooking pot 50litres ± Double wallet
Mixer for Jam cooking pot
Piston filler for jam and other viscous liquids(hot filling)
Volumetric piston filler for the filling of jams, sauces,
creams, viscous products, etc. even chunky
consistencies. Pedal-operated and pneumatically driven.
Draws up the product from the vessel by itself.

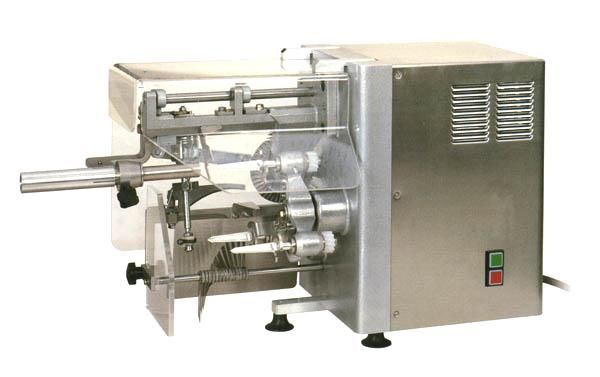

Generous choice of capacities, special filler heads.Apple Peeler Corer Slicer
Electric connection 400V 50Hz 0.15KW
Weight 35 kg
Production 70-100 kg/h
Fruit size 30-90 mm
Dimensions mm 660x300x400
Item # 110700042
Price
The DRYER (dehumidifiers and no hot drying!)
The dryer can dehydrate various fresh and frozen plant materials (apples, bears, berries, fruits,
vegetables, spices, mushrooms, tee etc.) with various content of dry matter (all the material must be
prepared in the right way to be dehydrated. The dehydrating process guarantees food safety and it is
possible to regulate and observe the process.
The dryer chamber is made of stainless steel and the drying
trays are made of stainless steel with special sheets made of
plastic material (plastic avoids that the materials sticks on the
trays).
The dehydrating process is based on heat convection and
moisture condensing principle with heat pump. (Moisture from
the chamber is condensate on the evaporator of the heat pump
and the energy from the condensation process is used to warm
up the air).
The dryer meets the appropriate hygiene requirements, is easy
to clean and maintain.
The temperature of the dryer is adjustable.
Monitoring of the moisture content is possible with a special
moisture tester (not included).
The warranty period is expected to be at least one year.
Model Type 5 Type 12 Type 16 Type 20 B Type 40 B Type 60 B Type 130 B
Size 0.82 m² 1.65 m² 2.32 m² 4.00 m² 6.45 m² 8.77 m² 17 m²
Capacity /24h 3 ± 8 Kg 10 - 15 Kg 18 - 28 Kg 20 ± 40 Kg 30 - 50 Kg 40 - 70 Kg 100 - 130 Kg
28
# of grids 6 12 17 18 17 23
(106 x 59 cm)
Dehydration capacity ca. 14 - 20 ca. 30 - 40 ca. 40 - 50 ca. 90 - 110
ca. 3 ± 5 Litre ca. 7-10 Litre ca 20 Litre.
in 24 h Litre Litre Litre Litre
Dimensions
Height 72 cm 72 cm 166 cm 182 cm 213 cm 213 cm 220 cm
Length 57 cm 57 cm 60 cm 57 cm 59 cm 59 cm 59 cm
Width 40 cm 40 cm 50 cm 58 cm 90 cm 90 cm 128 cm
Regulation Automatic Automatic Automatic Automatic Automatic Automatic Automatic
Watt 330 W 460 W 850 W 950 W 1280 W 2350 W 3100 W
Electric connection 240 V 50 Hz 240 V 50 Hz 240 V 50 Hz 240 V 50 Hz 400 V 50 Hz 400 V 50 Hz 400 V 50 Hz
max. room
25 °C 25 °C 25 °C 20 °C 25 °C 25 °C 25 °C
temperature
min.
18 ° C 18 ° C 18 ° C 18 °C 18 ° C 18 ° C 18 ° C
room temperatureYou can also read
