                     Fully Automatic transmission/Gearbox

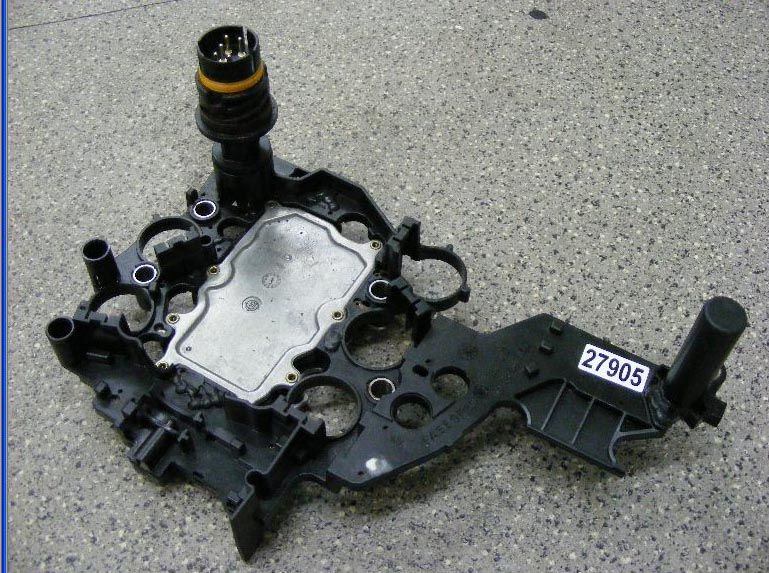

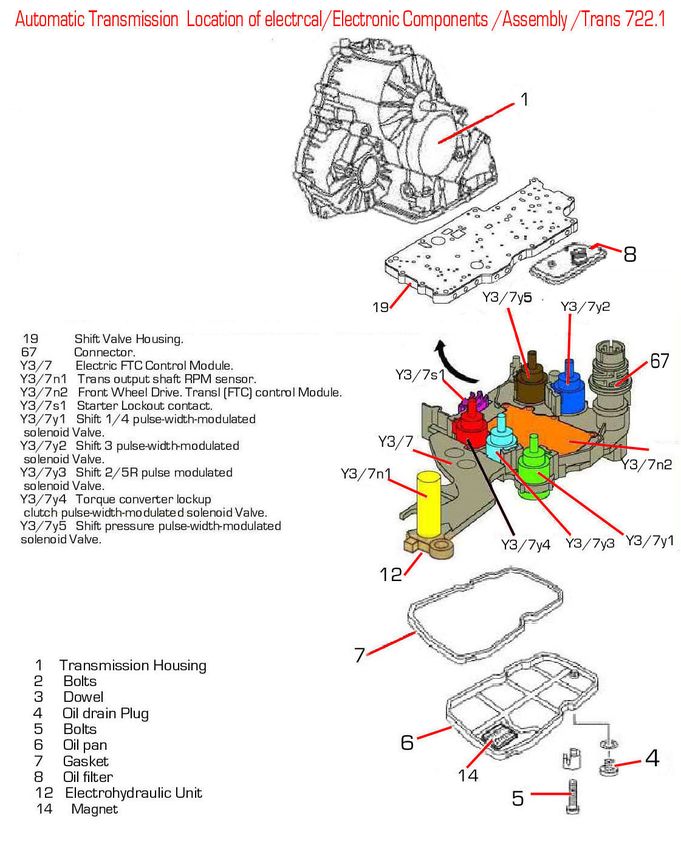

  Please Note   Repairs to the FTC.ECU (Brains) of your automatic gearbox and Gear Selector module,
                        PCB (Printed circuit board) can now be undertaken by:-
  ECU Testing.com for a fraction of the cost of a new unit and you will get a 10% discount if you mention
                                       this site (Lofty's Homepage)

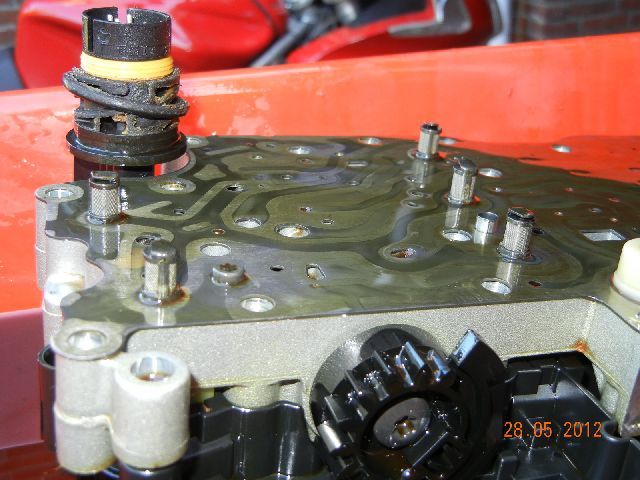

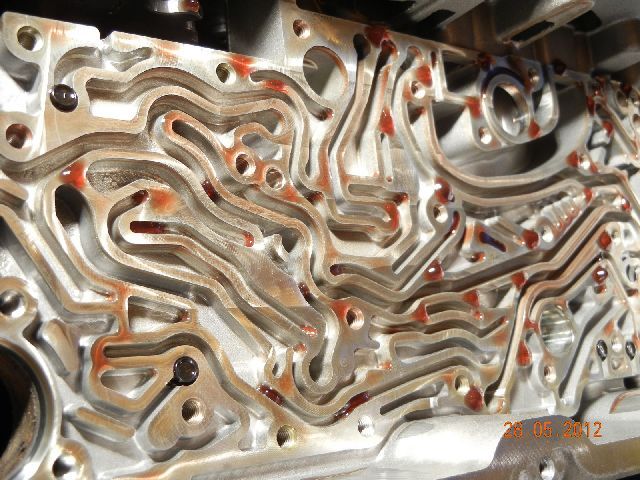

 When sending units from either W168 or W169 please ensure that the electrical connection is well
 protected against damage , also be aware that the FTC/ECU on the W169 will be returned uninstalled on
 the valve chest this is to prevent damage in transit.
 11.12.13 ECU testing have be requested to put in an instruction sheet 'How to install the FTC/ECU and
 what torque to apply to the secuing screws.'
 Most of the information and photographs on this page has been donated by various owners in an attempt
 to help others overcome problems, despite the fact that I have collated it I cannot vouch for any of the
 procedures or details on this page as my own car is a manual gearbox and I know little about the fully
 automatic transmissions fitted to the 'A' Class or any other car.
 I have however managed to back the page up with other information which I have access to.

 Of one thing however I am assured, the information and photographs are more comprehensive and
 instructional than any information you might be able to extract from Mercedes-Benz workshop manager's
 or dealership who appear to only have one solution to an automatic transmission problem? Replace the
 complete transmission with all that entails or quoting several thousands of £££££ for the repair which of
 course will only have a limited warrantee.
 Thanks to all readers who have forwarded information and in some cases excellent photos which have
 been used in the formation of this page along with Lynn who supplied this useful contact.
 Stephens+Engineering+Automatics when all else failed this company sorted out Lynn's gear box and gave
 her a warrantee, she in turn recommends this company to other owners with automatic transmission
 problems

 However I would point out that since this mail was received ,some years back and with the help of
 owners of automatic 'A' Class models massive steps forward have been made to resolve and discover
 what causes of the 'F' display that along with the professional help of ECU testing.com. owners that can
 fend for themselves with DIY can now resolve all of the problems that cause this annoying display which
 produces such problems on the Automatic transmission .
   Those of you with handbooks for your Automatic 'A' Class should will have this information in part in
  your Owners handbook Under Automatic Transmission (In my handbook page page 207) . However I am
  very much aware that a large number of owners World wide having purchased used vehicles do not have
  owners handbooks and therefore will not be aware of the procedures to be employed when a Fault occurs
    on the automatic transmission, 'F' Displayed, hopefully this information will help you and advise you
  what is going on and what to do to get home or a place of safety when the 'F' displays and normal driving
                                                is not possible.

                                 Automatic Transmission Driving your Car.
  This information is taken direct from he owners handbook (MB order No.6515 0254 02 Part number 168
                                                584 01 87.

http://www.aclassinfo.co.uk/mypage.59a.htm                                                                                    1/32
Fully Automatic transmission/Gearbox - Elchfans
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 The individual gears are selected automatically, depending on:-
 1 Selector lever with shift ranges 4,3,1 and 1.
 2 Program switch position.
 3 Accelerator position.
 4 Road Speed.

 The transmission automatically adapts to the individual driving style of the driver by adjusting its shift
 positions.

 The adjustment of the shift points is a continuous process which permanently reflects the road and traffic
 conditions at any given moment, as well as the drivers own requirements .
 If the operating circumstances change , the automatic transmission reacts by adjusting the gear shift
 program.

 Pulling away
 Apply the service/foot brake to release the selector lever lock. Release the parking/hand brake
 With the engine at Idling speed, select a drive position . Allow the gear engagement process to run
 completely , especially if the engine is cold .
 This is indicated by a gentle jerk.

 Release the service brake (foot) and depress the accelerator pedal.

 Up-shifts and cold start.
 Up-shifts are made at higher engine speeds after a cold start than when the engine is at operating
 temperature.
 This helps the catalytic converter to reach its regular operating temperature more quickly.

 Accelerator pedal conditions position.
 Light throttle = early up-shifts.
 more throttle = later up-shifts.
 Kick down -- Depress the accelerator pedal beyond the pressure point = maximum acceleration , shift
 down into lowest gear possible.
 Ease back on accelerator as soon as the desired speed has been reached __ the transmission will shift back
 up.

 Stopping
 Leave the selector lever in the drive D or R position and apply the service/foot brake or parking/hand
 brake to prevent the vehicle from either rolling forwards ( or backwards on an uphill gradient.)

 Manoeuvring
 When manoeuvring in a tight space, control the speed by carefully applying and releasing the service
 brake (foot), Do not depress the accelerator pedal too suddenly or too far.

 P Parking Apply the parking/hand brake (hand)
 Move the selector lever to position P
 On steep slopes , turn the the front wheels towards the kern-side, taking care not to damage the tyres.
 P Parking lock
 Additional safeguard when the vehicle is parked . Only select this position when the vehicle is stationary
 Note
 The ignition Key can only be removed from the ignition lock when the selector lever is in Position P .
 When the ignition key is removed , the selector lever is locked in position P
 To engage the steering wheel lock: turn the the steering wheel slightly after the key has been removed .
 Reverse Gear
http://www.aclassinfo.co.uk/mypage.59a.htm                                                                                2/32
Fully Automatic transmission/Gearbox - Elchfans
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 Only select R when the car is stationary.
 The current selector lever position is indicated in the instrument cluster display.

 Program Selector Switch
 S = Standard, switch pressed on S symbol. this position is used in all normal driving conditions .
 W Winter, switch pressed on the W symbol
 Up-shifts and downshifts are made at a lower speeds and rpm than in the S program. simply press the
 S/W switch to change between programs .
 Emergency running mode
 If during a journey the transmission no longer shifts, even in varying operating conditions , the
 transmission has entered emergency running mode. The letter 'F' will appear on the instrument cluster
 display. To make it possible to continue the journey , 2nd and reverse gears can still be selected.

 In such cases , proceed as follow:-
 Stop the car.
 Move the selector lever to position
 P
 switch off the engine
 Wait at least 10 seconds
 Start the engine
 Move the selector lever to position D 2nd gear is engaged.
 Move the selector to lever position R reverse gear is engaged.

 Have the transmission examined without delay.
 Having a diagnostics test done will pin point the problem by code, Owners of Petrol cars built pre
 February 2001, Diesel's 2004 you will need to visit either a MB garage or an independent Mercedes
 garage where they have Star diagnostic equipment available. Post 2001 /2004 vehicles your vehicle's
 should be EOBD compliant and therefore you can use any EOBD diagnostics tool to read the codes.

 This question was asked by a reader who was able to select gears without depressing the brake pedal.

 A fellow reader, John provided this answer:-
 It is the cable adjuster under the bonnet that goes from the brake /ignition switch to the gearbox.
 This is a small cable, not the main cable for the park pawl, it just moves a small cam in the gearbox out of
 the way to allow the car to be taken out of park only if the brake is pressed.

 It is a really strange white auto adjuster thing in the middle of the cable with a black button on. If the
 press the button you can collapse the adjuster, by pushing it, pressing again will allow it to release to the
 position it needs to be in.

 Now. Mine also moves from park without the brake but I actually prefer it that way myself so I have
 never experimented with the position you should have it in before pressing the release button on the
 adjuster, he will have to try it to figure the correct way. I think that it has to be collapsed. Put the car in
 park, foot off the brake and press the button. If that doesn't work then he will have to tray brake on brake
 off ignition on / off and whatever to get it set correctly unless he can find instructions in WIS.
 John

 In my opinion whether required or not it is a wise move to have your foot on the brake pedal when
 starting any car, in the case of automatics this rule is always best followed if accidents are to be
 prevented.
 Lofty

http://www.aclassinfo.co.uk/mypage.59a.htm                                                                                3/32
Fully Automatic transmission/Gearbox - Elchfans
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 This above document will print out and will be useful in the event of a problem. Click top left hand corner

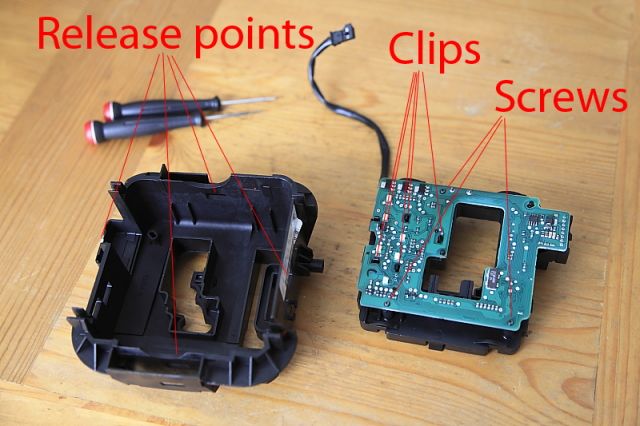

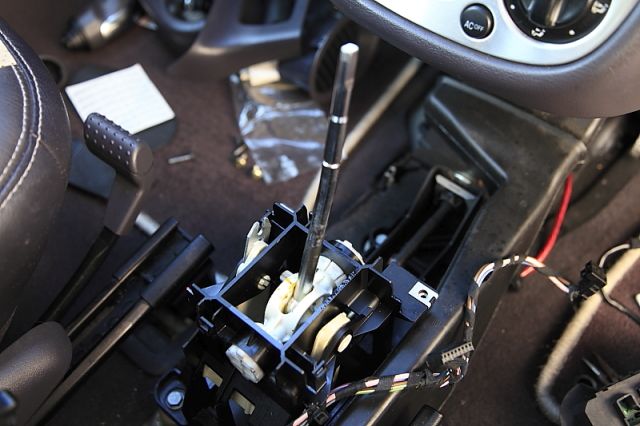

 Gear selector Photos which may help owners encountering
 problems.

http://www.aclassinfo.co.uk/mypage.59a.htm                                                                                4/32
Fully Automatic transmission/Gearbox - Elchfans
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

http://www.aclassinfo.co.uk/mypage.59a.htm                                                                                5/32
Fully Automatic transmission/Gearbox - Elchfans
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 Do remember that if you want
 the PCB professionally
 repaired then it is advisable
 not to tamper or try DIY
 repairs , Having been repaired
 by ECU testing the Board
 will have a life time
 warrantee.

 Gear Selector PCB failure
 One of the problems on the fully Automatic transmission is the PCB that forms part of the gear selector
 module situated inside the car, Cleaning of this unit as outlined further down the page does seem to help,
 however it does not always appear to last long term.

 Peter from Australia who also suffered this problem had his board checked by an auto technician who
 found many dry joints and poor soldering on the PCB.
 see his e-mail:-
 Dear Lofty
 Many thanks for such an excellent, helpful site. I just want to add one suggestion for other people who
 suffer the 'F fault' - get an electronics technician to check the printed circuit board and re-solder bad
 connections if needed.

 My wife's A-class suffered the automatic transmission 'F' fault.
 I removed the shift sensor module, as your site suggested, and cleaned it with no-residue cleaning fluid.

 I also asked an electronics technician to look at the sensor module's printed circuit board.

 The technician said it was a wonder the sensor module ever worked, because it had various badly soldered
 or 'dry' joints.
 He re-soldered the joints (especially the ones where the main power cable plugs in) and it has worked fine
 so far.
 He only charged $10 (Australian).
 I suggest your readers do the same if they have the Auto transmission 'F-fault' problems
 Thanks again for such useful money-saving info.
 Best regards
 Peter Ritchie (Australia)

 Following repair he has had no problems.

 If you have a problem and would like your board checked please contact
 ECU Testing.com will now undertake this task for you as well as checking the board for faults they can
 also replace defective components on the board
 link to site:- e-mail/ECU Testing.com/ Repairs to Gear Selector Module PCB 'A' Class Fully Automatic
 Transmission. or telephone 0044(0)1773535638 Mention 'lofty's Homepage' when calling it would also be
 helpful if you could enclose a history of the fault (Details of the fault) and any fault codes that point to
 this module.

 The mail below is typical of the mails I receive
 Lofty
 I've got a 1999 full auto A160, tonight on the dash as I was driving home an F appeared. Luckily I was
 just arriving home, as the car didn't have any guts to get up a slight incline......OK I have an existing
http://www.aclassinfo.co.uk/mypage.59a.htm                                                                                6/32
Fully Automatic transmission/Gearbox - Elchfans
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 problem with the alternator belt, tensioner is knackered however still ticking along, I'm waiting for the
 part so the car can be repaired on Friday. Do you think if the tensioner has completely given up this could
 be part of the F problem?
 Yes, In my view the only way there could have been a connection between these two faults was if the
 battery power was low caused by the belt not rotating the alternator as should be the case. Battery power
 is important with the automatic gearbox as it is powered by electrical circuits.
 Although I have heard of this display many many times with the car going into 'limp home mode' I'm not
 aware of what causes it and have never seen the reason printed. I communicated this to the owner in
 question.
 The reader has kindly come back with further information that may help other owners

 I took the car into MB for a diagnostic check....mainly due to reading through forums and feeling nervous
 the car would be heading to the scrappies.
 Fault stored was P1872 - Gear selector module......."fault is only stored at present and code was able to be
 erased, if fault reoccurs then new module is required"
 They told me that the fault may or may not happen again, however had the fault been "recurring" as
 opposed to "stored" then a repair would be needed As soon as possible (asap).

 £73.40 including VAT for diagnostic.
 Module A1683701309/7088 £274.00
 Thank you Paul for the information dated 20/11/08

 This e-mail was received from Peter in NZ which may also help other owners with this
 problem.23/12/2010
 Firstly our little A160 with the automatic tip-tronic type gearbox has been seen with the dreaded F sign on
 a rather too frequent basis, amongst other less obvious maladies.
 Well I looked carefully at what your website has to offer and agree whole heartedly it is pretty much
 right... but I do think it should make clear that the PCB on the gear-stick mounting frame is I think
 significantly more cunning than I anyway gave it credit for.
 Firstly the original was a real problem, cleaning it with contact spray was only marginally successful, it
 had immediate good results but within a week or so it was back to the bad old days only worse, however a
 squirt down the gear-stick hole allows it to be driven for a short time to get it home ...
 The solution in my case was to fit a PCB from a later model, from an A190 that is a 2002 model or later,
 that has quite amazing results it cleans up the lumpy gear change issues, improves the gear meshing
 significantly and generally makes a huge difference.

 I've been back to Peter with some questions, because what is bread & butter to one person can be a
 mammoth task to another.

 He says, The replacement of the PCB for another one is easily within the scope of a careful DIYer ... just
 unclip the plastic sections and remove the 3 small T6 Torx screws that hold the PCB to the plastic frame
 and patiently swap it out.
 Now there is a risk with the PCB swap that the slide is not placed correctly over the drive fork and if that
 happens it will break the slide and I am confident it will not be possible to get a replacement from MB ..
 You obviously also need to be careful of static electricity, so wear a anti-static wrist band when touching
 the PCB!
 But those are the downsides to what is not a difficult to do if taken with care!
 Thanks Peter
 My further observations would be to ensure if undertaking/attempting this task to acquire the selector
 module from an accident damaged vehicle rather than a scraped vehicle irrespective of age.
 I make this comment knowing that a number of owners have sold their cars for scrap being totally unable
 at reasonable cost to undertake the repairs needed, 16/5/2011 the cost of the replacement parts being more
 than the market/trade in price of the car.
 Albeit we are slowly getting to grips with the unit with the help of ECU testing where parts were
http://www.aclassinfo.co.uk/mypage.59a.htm                                                                                7/32
Fully Automatic transmission/Gearbox - Elchfans
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 previously too expensive to replace we are now able to get them tested and repaired.

 Always disconnect the battery when working on electrical components on the car this must be the case
 with main ECU as well as the FTC.ECU
 So if buying a used unit, there may be some wisdom in buying a one from a later model than you actually
 own car, as the replacement may have modifications that your defective has not got.
 That's just one more bit of information that may assist owners with what is a nightmare situation
 particularly where the vehicle is in good general condition but of low financial value.
 It is unlikely that a MB main dealer will want to undertake this task, they will want to fit a new selector
 module which may with fitting cost you more than your car is worth.
 Follow up mail
 Lofty, My A160 with the modified gear change PCB from a A190 has now done about a 2500Km
 (3.1.2011) without the slightest sign of an 'F' displaying so I think it is a goer and I cannot tell you how
 much better it goes - better fuel economy and far smoother on the changes both up and down so would
 recommend the upgrade for any or the 1999 era vehicles weather it goes well or not.
 Peter

 Low Battery power
 So can the problem you are experiencing with your Auto transmission be attributed to your battery?
 This information was posted on a forum and I feel sure that a number of Automatic transmission owners
 could find the information useful.

 The owners had a A190 fully auto W Reg. that often jumped out of gear and displayed 'F' which he found
 he could over come by switching off the engine for two minutes and then re-starting. All would then be
 well until until the next time, however his problems were worsened by the fact that when we got a cold
 spell the car would not start first time, as a result replaced his battery, which has also cured to date at
 least, the 'F problem.
 OK so the battery cost him £100, but my goodness its cheaper than taking the car to Mercedes where the
 diagnostics test alone will cost you £50 minimum plus Vat + the repairs, well the sky appears to be the
 limit with MB on this repair/problem.
 The owner in question also highlighted a very good point, it is usual for original batteries to last longer
 than replacements, and its also the case that auto boxes appear to start their antics 'F' etc at between 50-
 70000, the car driven 12 to 140000 miles a year will give you almost to the day the life of the battery 4-5
 years max, so if your car is displaying these problems fully charge the battery or at least get it tested it
 may be the cause of your problems and all though the battery will cost, it will not cost you what MB will
 charge you to examine your car and come up with the list of possible faults, the vast number of which
 could be down to the state of the battery.

 Lofty.
 I read with interest the thread about the A class automatic gear selector modules going faulty with the
 thought being that it is the infra-red detectors that are getting dirty. I found it odd that everyone seems to
 be trying to clean them out with contact cleaner. There are no contacts in these sensors. They are
 essentially an infra-red light emitting diode in one side and a photo transistor on the other. The transistor
 detecting an arm interrupting the light beam. The most likely thing to get into the sensors is dust and an
 air line will clear this away. Contact cleaner has lubricants in them and this will leave an oily film on the
 transducers which will attract more dirt. If you want to use a solvent cleaner to wash the transducer I
 would use Iso-Propanol (IPA) which is readily available from electronic suppliers such as Maplins.co.uk
 This will leave no residue when it has evaporated and will not damage electronic components. Let it all
 evaporate before re-powering the board.
 John Harmer, Senior Area Engineer
 Unquote

 Thanks John , the more information on this problem the better, even with 'Star' Diagnostics MB seem to
http://www.aclassinfo.co.uk/mypage.59a.htm                                                                                8/32
Fully Automatic transmission/Gearbox - Elchfans
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 be guessing when it comes to dealing with the 'F' Display or just quote for a new gearbox and selector
 module which isn't helpful when the repair costs more than the car is worth in money terms.

 Lofty
 I wanted to say a big thank you for the clarity of information and instructions with respect to dreaded "F"
 issue on the Mercedes A Class. I have a 2002 LWB Automatic and had the F mode turn up on the dash a
 few months ago.

 I had a local dealer look at the car and was quoted between £900 to £1300 to fix.
 As with many others in my position this repair value exceeds the price of the car so I considered
 scrapping the car and was offered £200 when I phone around!
 Then I discovered your website and having read the details in full on page 59 decided to have a look at
 the gear selector module .
 I successfully removed the PCB and sent it off for testing and was pleased to hear the board had a fault. It
 cost £190 for the repair, at ECU Testing.com.
 It took a further hour for me to fit everything back when the PCB was returned.
 The "F" fault was fixed and the car has been driving better that ever, the gear change has never been so
 smooth.

 A really excellent result considering the tricky decision of scrapping and spending money I would not see
 a return on. Your site saved the day, thank you Lofty!!!!!!!
 Best regards R
 A little extra information for you on the W168 A170 Full Automatic
 The 'F' issue affected us every 2 to 3 thousand miles, however lately its done it as frequently as every 10
 miles - I checked the fault codes and found gear selector module to be listed. I note that on your page
 http://www.aclassinfo.co.uk/mypage.59a.htm the 5th image has an arrow pointing to what's referred to as
 a selector lever, this is incorrect, its simply an interlock solenoid that stops you from moving the gear
 lever at certain times.

 I have attached pictures of the circuit board, this and the interlock
 are the only electronic components in the lever. It should be noted
 that the selector position is detected by infrared break beam
 sensors, not any type of copper slip connections, which means the
 usual culprit of dirty copper tracks or cracks is ruled out.
 The circuit board looks fine, no broken tracks or dry joints, so I
 can only presume that if it is indeed the selector module that's at
 fault(sometimes the fault code could be erroneous) then its
 possibly a design flaw or perhaps a software fault or perhaps
 weakening sensor LED's.

 This information was provided by another Ausie who got herself out of trouble by cleaning the PCB, she
 has offered this information if you intend doing the same or just want to remove the PCB to send to ECU
 Testing.com for service.

 A few of things I learnt in the process of cleaning the IR detectors, an enhancement to John Hurley’s
 excellent instructions (for rank amateurs such as I):

 (1) The metal clip that holds the Bowden cable in place in the turret frame (p4, p1 and p2) is a mongrel
 remove. Brute force seems to be the answer. Luckily it goes back more easily.
 (2) The top of the unit consists of two nested layers, each with it’s own set of plastic clips; John says
 airily “When you see the unit out of the housing it is very self explanatory” – and it is, if you know what
 is going on!
 There are TWO sets of clips – a) the four lower clips, offset towards the corners of the unit, hold the unit
 onto the console frame and b) the upper set of clips hold the two nested halves of the unit together.
http://www.aclassinfo.co.uk/mypage.59a.htm                                                                                9/32
Fully Automatic transmission/Gearbox - Elchfans
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 You cannot release the inner unit (b) until you have taken the unit off the frame (a). Don’t worry, it is self-
 explanatory when you see it : –)
 (3) When putting it back together, you must get the little sliding switch on the PCB lined up with the slot
 in the metal fork? attached to the gear lever – obviously, or the switch will not slide as the gear lever is
 moved and so engage with the IR sensors. [I would guess that in the manufacturing process, there is a jig
 that keeps the sliding switch in the correct position when the top ‘clicks’ into place.
 In the absence of a jig, a technical bamboo satay skewer poked up the inside of the console fits either of
 the little square sockets underneath the sliding switch, and can be used to hold the switch in the right
 place while you line it all up.
 (4) John’s advice to unbolt the handbrake worked well, but was a little more tricky to replace - in the
 absence of a hoist to allow me to slacken off the handbrake cable when putting it back together!
 The work around is to pop the cup holder and AC vents out of the end of the console to give access to the
 handbrake while the console is loosely fitted into place.
 Unhitch the handbrake cable from the lever, and bolt the lever back into place. I didn’t want to damage
 the wire rope of the cable by trying to grip it with a pair of pliers, so I tied a length of Venetian blind cord
 to the cable, and put enough tension on it to be able to slip the end of the cable back into the handbrake
 lever.
 The fiendishly cunning secret is to use the right knot – a simple 'Prusik hitch' didn’t grip the cable well
 enough, so I used an Icicle hitch. It looks more complicated than it is – instructions for tying it may be
 found online, search for ‘Icicle hitch’ or ‘Icicle knot’
 Thank you Caroline, it does not mean much to me because my car is a manual, but I am sure it will help
 others . Lofty 17/01/2013.

 .

 I have cleaned up the infra red sensors and put it all back together
 and so far its been fine, but its too early to call it, I will update
 you in a few months to let you know if cleaning helped.
 Thank you Darren every little helps.
 Regards

 Update on Darren's car, It ran well for approx 4 months, the fault then reoccurred and the car is at present
 un-drivable. I will update you further information when I hear the outcome. The latest news from Darren:-
 Lofty

 and the very latest :-

 I decided to purchase a gear selector module from the dealer, I got a 10% discount making it £332 inc vat
 Despite the dealer insisting that a new module needs to be coded, I decided to just try it anyway and on
 my 1999 car it plugged straight in without coding and it selects gears correctly without the dreaded F
 So a bit more info on the status for you, I'll put it through its MOT and take it for a proper drive and see
http://www.aclassinfo.co.uk/mypage.59a.htm                                                                              10/32
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 how we get on.
 Darren had on the 20th of August mailed me to say he was going to scrap the car as the repair was going
 to cost more than the car was worth in ££, the true worth to the owner is of course invariably a great deal
 more than the trade in or salvage value of the vehicle.
 As you can see Darren has obviously changed his mind and has now carried out a repair himself and
 rightly ignored the information that MB seem to always use that the new unit will need coding to the
 vehicle.
 Previous cases and this again show that this information is nothing but a ploy to get owners to have the
 work done in MB work shops which of course increases the cost of repair.
 That along with labour and Vat exceeds what the owner is prepared to spend on the car, which is
 understandable if you take into account the age of the vehicle.

 As with buying a car from the car sales you do have to set a limit when it comes to spending out on
 repairs on the older Vehicles, especially if the work be carried out is not guaranteed to cure the fault long
 term. Lets hope Darren has made the right choice in repairing his car and may he now get many more
 miles from it.
 lofty

 And yet more information from Peter in Australia,

 Dear Lofty Many thanks for such an excellent, helpful site. I just
 want to add one suggestion for other people who suffer the 'F
 fault' - get an electronics technician to check the printed circuit
 board and re-solder bad connections if needed.

 My wife's A-class suffered the automatic transmission 'F' fault.
 I removed the shift sensor module, as your site suggested, and
 cleaned it with no-residue cleaning fluid.

 I also asked an electronics technician to look at the sensor module's printed circuit board.

 The technician said it was a wonder the sensor module ever worked, because it had various badly soldered
 or 'dry' joints.
 He re-soldered the joints (especially the ones where the main power cable plugs in) and it has worked fine
 so far.
 He only charged $10 (Australian).
 I suggest your readers do the same if they have the Auto transmission 'F-fault' problems
 Thanks again for such useful money-saving info.
 Best regards
 Peter Ritchie (Australia)
 Thank you Peter that sounds like real good information to me and may account for boards failing a few
 weeks after they have been cleaned which although can help does not always appear to be the total
 answer.
 If you follow Peters advise and it proves successful please feed back information.

 It is also worth reading John's mail who backs up what Darren has said about the infra-red sensors

 Hello Lofty,
http://www.aclassinfo.co.uk/mypage.59a.htm                                                                              11/32
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 Here is some information I think your readers might like. My background is building very high
 performance racing engines and the cars that go with them, and I am the type of person who does not like
 things that do not work the way they should. I have owned many Mercedes cars because they are very
 well built and the brand has a good reputation. I am aware over the past few years that Mercedes has lost
 out in the reliability area on some of its cars. Which brings me onto the A class (W168) and the number
 of reports I have read about the “F” problem with the full auto box.
 This is how the story goes;
 I have all ways liked the A Class (Baby Benz) and it just so happened that my mother needed a small car,
 and I wanted a reason to find out why so many A Class owners had problems with Mass Air Flow
 Sensors and the F problem.

 I decided to buy a used A 160 (99 model with 60K) off a well know auction site, because of the problems
 with the car I got a very good deal [I paid a 1/3 of the true value].
 The first thing I did was send the MAFS of for repair (it had a broken reed) to ECU testing, the service
 from this company is better than 1st class. I had the unit back 48 hours after I shipped it out, plus I got the
 discount (thanks Lofty).

 With the MAS refitted the cars engine ran very well, but the auto box had the F problem. Now this is the
 bit of the jigsaw that had the most frustration in the repair. The first thing I had to do was get a trans oil
 dipstick from MB, it took me a long time to find a dealer that would order one for me, but in the end I got
 one from the dealer near Brook lands race track. This dealer is first class and the spares department
 people are only to happy to help.
 The thing they do not tell you is how to use the dipstick; now this may sound odd, but at first I thought I
 had got the wrong dipstick because it was way too long for the dip stick tube, but it turns out this dipstick
 is used on many MB cars and it is only the end bit that counts, i.e. the stick bottoms out in the box.
 When you have ALL the information it is quite simple, I was just looking at the problem to hard because
 of my background in motor racing.

 The key to checking the oil level in this box is this; Get the gearbox up to 78C, [Do Not Guess, drop a
 temp probe down the dipstick or get a infrared temp gun] [after a long run the gearbox will be over 80C}
 go thru the gears, then put the lever into N or P with the engine running and make sure you are at 11.5 on
 the dipstick. If you are going to do an oil change, get the level correct with the old fluid first. Measure the
 amount of oil you get out of the box when you drain it (because you never get all the old oil out) and
 replace with the same amount of new ATF. THE OIL SHOULD/MUST BE “MOBIL ATF320”.
 Just changing the oil will not on its own fix the F problem, but it is good practice to know what you are
 starting with, after all new oil in the box is always good.
 The thing about the F problem that did not make sense to me was the fact that you could turn off the
 engine and the problem would go away for a bit before returning. If it was a major problem it would come
 back at once. The next thing I had read about the problem was from people who had replaced the car
 battery, and the problem was not as bad. This got me thinking, why did this made a difference.
 The answer is quit simple and proves where the problem lies! And also points to the fix.
 When you restart the car you put the ‘Gear selector module’ back into N, and with this the F goes away,
 i.e. you have cleared the problem for a short while, and if you have a new battery the problem goes away
 for a longer time, all this point to the infrared sensors in the ‘Gear Selector Module’ being dirty!! And
 why a new battery helps.

 I can not take all the credit for this because half way through my repair I looked at what ‘Darren Smith’
 had done, and he is 100% correct. You do not need to take the unit all the way apart, and in fact you do
 not need to take the unit of the car to repair, but it does not take very long to remove. All you need to do is
 take the gear knob off, [half twist the bottom part of the knob and then pull up, do not punch your self in
 the face!]
 Remove all the plastic from around the selector, unclip the part of the selector that holds the circuit board,
 (easy job if you have the unit on the bench) make sure you do not drop the small spring or small white
 part that is under the S & W switch. You do not need to remove the circuit board from its plastic housing;
 all you need to do to fix the unit is spray it with Electrical Contact Cleaner!
 I would love to know how many new ‘Gear selector modules’ have been sold because of a small amount
http://www.aclassinfo.co.uk/mypage.59a.htm                                                                              12/32
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 of dirt!!

 So to end my story, my mother now has a Mercedes A160 that runs like new and cost very little to repair
 because of your web site, a big thank from us all!! Best Regards
 John Hurley.

 To try and clarify things even further I have asked john if he will explain where and how this PCB
 complete with infra red detectors is located and accessed he has responded with this further help
 document:-
 Hello Lofty,
 The PCB is just under the gear lever indicator panel; i.e. the bit that has P/R/N/D on it. I have attached the
 photos. The PCB is the gear selector module. The part on the side lower down is just a lock out pin driven
 by a solenoid, this is to stop you from changing gear at speed (from D to R). The procedure to remove the
 PCB is;
 1. Remove gear knob. [twist the bottom plastic ring {on the gear knob}, then pull up on gear knob]
 2. Remove the plastic cover which is attached to the centre console (by the bottom of the gear lever).
 {you do this by pulling up on the cover}.
 3. Remove the switch panel from the centre console (windows switch etc)
 4. Remove centre console. (on my model it is 3 screws, one in the cup holder, 1 each side of the gear
 indicator. Also I removed the hand brake lever complete; 2 bolts only). {I removed the hand brake lever
 this way for two reasons, 1. so I could remove the centre console, 2 I did not want to remove the hand
 grip off the lever}
 5. Remove the plastic trim from under the radio console, the bit between the carpet and the radio console.
 (1 screw each side of the gear lever housing, then pull back on the trim.)
 6. With the lever in 'N' unbolt the 3 bolts that hold the unit to the floor, remove the electric connectors,
 turn the unit on its side and push out the pin that holds the Bowden cable to the unit.
 7. Remove the Bowden cable and place the unit on the bench.

 To get to the PCB all you have to do now is take the unit apart by pushing down on the plastic clips on the
 side of the unit. {When you see the unit out of the housing it is very self explanatory)
 To 'FIX' I sprayed mine with "Electrical Contact Cleaner" you can buy this at Halfords. {I sprayed mine 3
 times and blow dry each time} you can spray the whole board.

 Thank you John for your contributions I'm confident they will help other owners overcome what is to
 many an most annoying and expensive defect.
 Having located the board you will be able to see the infra-red sensors which are ringed in Darren's photos
 above, Marked Photo1 & 2

 There is little doubt that with Both Darren's and John as well as other contributors we are a little closer to
 solving the problem of the 'F' Display which appears on the Auto 'A' Class World wide with none of the
 forums coming up with the answers,
 If you undertake this cleaning process and it cures you 'F' problem please mail lofty so that we can see
 just how successful this procedure is.
 John Hurley
 John has now provided his e-mail address so if your really stuck and need advise he may be able to advise
 you but please do not abuse his kind offer. j.hurly
 So in the case of the fully automatic transmission if your selector display shows 'F' there is every chance
 that it is the 'Gear selector module' This is the generally called the gear lever on Manual boxes and
 selector on automatics. This selector module does include electronic equipment and it appears it is this
 that causes the problem.

http://www.aclassinfo.co.uk/mypage.59a.htm                                                                              13/32
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 The trouble code on the Diagnostics will be P1872 and
 the component costs £274.00 part number A168 370
 1309/7088 If this item is required on your car always
 use your vehicles Vin number to ensure the correct part
 is obtained/ordered.
 Also if you have a diagnostics tool see page 69 It is
 worth deleting any fault codes to see if it re-appears
 before spending out on spares.
 If you car is pre 2001 you would need to get this
 carried out by a garage using 'Star' diagnostics , post
 2001 you can delete the code using your own
 diagnostics tool and it is cheaper to buy one rather than
 go to Mercedes-Benz for the deletion of this codes.

 The owner with the 'F' Problem on his car has now had the car sorted, however he is of the opinion that
 garages with 'Star' diagnostics have to fit it as the module requires synchronizing with the car ,

 What this involves I really do not know however he does say
 that the whole repair only takes about an hour , see mail

 MB "assured" me the fault was within the selector module, just
 under the gear stick....so although the cable harness comes with
 the selector unit this was not fitted as the old one was deemed
 OK......so I hope, as wherever the cable harness terminates...I
 presume the gearbox, this apparently requires the engine to be
 dropped to gain access. So far the "F" has not come back,
 although sometimes the gear change in drive can be
 unpredictable, for instance I can put the accelerator down but it
 takes more than a moment to do anything....not handy when
 pulling out of a junction at rush hour. The MB parts guy did say
 my faulty gear selector had been superseded twice so the part
 number of the new unit was slightly different. Replacing the
 unit is straight forward as once the covers are removed its just 3
 set screws that hold it in position however the unit has to be configured to the car so unfortunately a
 definite MB job, no more than 1 hour.
 This has been contradicted by Darren in his comments above.

 Honestly the car is coming up for 10 years with 54k on the
 clock....if I can get another unblemished 25k-30k out of it I'll be
 happy.
 Cheers Paul

 To fit the unit complete as sold with the Bowden cable assembly,
 according to Mercedes, the engine has to be lowered, obviously
 another good design feature to ensure Mercedes Workshops do
 not run out of business!!

 It could be of course, that the fault lies in the selector
http://www.aclassinfo.co.uk/mypage.59a.htm                                                                              14/32
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 Module/mechanism alone, so you may get away with fitting just that part of your purchase.
 if contracting Mercedes to do this job for you, make sure you know what they are contracting to fit, in
 respect this complete unit, to lower the engine and replace the linkage/cables which could be perfectly
 sound will cost you about 6 hours in labour.

 In Paul's case, Mercedes did the job free of charge, because they had botched a previous job, they
 therefore contacted him and explained that changing just the selector module ( Gear selector) should be
 sufficient to clear the defect, which is all they did, so do not get conned by being told it is a 6 hour job
 when all they intend doing is changing the selector module, the safest way to confirm the complete job
 has been done, if they insist is to ask for all defective parts removed on completion, remember these are
 your property and you have every right to ask for them, do not be put off including of course any parts
 that come with the new unit and which are left unused, you may need these at some later stage.

 Paul Harman another of contributors, has also made the point that if the Bowden cables are sound then
 they are best left well alone including the adjustment as this would affect the gear change when the new
 unit was fitted, so if doing this job yourself avoid pressing the RED push button which allows the cable
 adjustment to be made. (see three photos above)
 As far as the 5 pin cable which goes from the back end of the transmission casing (FTC.ECU)it is still not
 clearly defined although it's obvious that it connects into the cars electronic system at some point.

 As is confirmed in Peters mail above the module may also
 repairable, I understand that there are a number of soldered joints
 that breakdown as they get older. Re soldering these joints (work
 carried out by an auto technician(ECU testing are working on
 these units at present 1/4/2011)and you may well find it cures the
 fault, If you are able to locate the fault then in this instance
 because you are simply replacing the existing repaired unit, re-
 programming should not be necessary. Speak to you garage in
 respect of this matter.

http://www.aclassinfo.co.uk/mypage.59a.htm                                                                              15/32
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 Do remember when they
 'F' displays on your
 display that your car will
 automatically go into the
 'limp home mode'(speed
 will be limited) when this
 happens normal driving
 and speeds will not be
 possible

 If you have to resort to MB workshops sorting out your problem make sure you get a written quote and a
 wise move is to make the point to any garage you use that you want all bits removed available to view
 when picking up your car.
 That way you will know what's been fitted and will be able to ensure that all the new components
 supplied were fitted and not bypassed because the engine has to be lowered to undertake certain tasks.
 Few of us mind paying where a good job is done, none of us like being conned, if an item supplied as part
 of a kit is purchased and then not used it is your property if you have paid for the complete kit.
 An example of this is the selector module that comes complete with the Bowden cable, it may not be
 necessary to replace this component and to do so may require the engine to be lowered increasing the cost
 of repairs.
 So watch points . If the garage do not fit this cable and it may well not be necessary, you need to be able
 to pick it up with the car, the alternative is they will have fitted the new cable for which you have paid and
 you can now view the old unit when collecting your car. Sad but we just cannot trust garages to do what
 they say, and I'm afraid history has shown that MB are no acceptation to that comment.

 This photo shows the automatic gearbox /transmission removed from the car, in this instance we can see
 where the sector module Bowden cable connects. So what does the Bowden do? Well according to Paul H
 (we have more than one Paul donating information to this page )The Bowden cable selects between
 P/R/N/3(D position) and the selector just sends commands via the CAN bus to the control system that
 then controls the transmission to swap third gear which is the default for one of the others.
 When 'F' is displayed the transmission control shuts down (Goes into 'limp home mode' or 'F'(Fail
 Mode))and you only have third gear, hence no ability to go up hill with only 1000rpm max in third gear,
 (perhaps a bit of an oversight on MB here,) they should really have allowed a few more rpm when in 'Fail
 mode'('F') on the automatic because the torque converter loses all of the 1000 rpm at low speed).
 I suspect that third gear is the straight through where gearbox output rpm = crankshaft rpm and fourth and
 fifth gears are overdrive gears which makes it simpler and less likely to fail than the others which all have
http://www.aclassinfo.co.uk/mypage.59a.htm                                                                              16/32
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 cogs.
 This is the case on the ZF electronic transmissions used by Volvo
 and BMW which conveniently have the electronics in an external
 box!

 The 5 pin connector can also be seen at the rear of the
 transmission casing, this is where the electronics for the
 transmission connect onto the NTC.ECU
 where both the Bowden cable and or the electrical loom are
 replaced it may be necessary to lower the engine as like so many
 other things the cables are located between the under floor and
 upper side of the engine, albeit these would located adjacent to
 the selector module.

 Thanks Paul.

 I'm publishing this mail from Paulo in this instance, because the
 content really highlights the need for owners of A class with automatic transmissions to ensure that the
 coolant is changed at the prescribed interval failure to do so can result in the corrosion inhibitor contained
 within the coolant weakening and thereby allowing vital parts valves etc to become damaged by
 corrosion.

 Dear Lofty,
 I looked for a user feedback function on your website, but as I could find none I am sending this report by
 e-mail as a contribution to the fantastic service you provide to A-Class owners worldwide.
 You may recall that we have been in touch last year, when I purchased your excellent CD-ROM. To recap
 my status, I live in Brazil and have owned a 2002 A190 (fully automatic gearbox) since new.
 Earlier this year, as I returned home from a trip some two hours away, I got the dreaded "F" code on the
 instrument panel. Luckily, I was only a couple of miles from home, so I was able to limp along in
 whatever gear (probably 3rd) the car was stuck in.
 To make a long story short, the problem was diagnosed as a massive failure of the auto-box module. As
 this part alone costs in excess of six thousand US dollars (approx. 3700 pounds) at local Mercedes Benz
 dealers, I had the service done at an independent shop, which sourced the module from Europe and also
 replaced a number of other items (K1 clutch, assorted gaskets, coolant etc.). The grand total, including
 labour, was about the same as I would have paid at a main dealer for the module alone - still pretty hard to
 swallow, though. Not to mention the fact that the car was out of service for almost three months while the
 module was being sourced and imported.

 This problem occurred at approximately 32k miles (48000 km), so I would urge all fellow A-Class
 owners to replace the coolant at shorter intervals, as you have already advised, and also to be mindful of
 anything that may cause the module to operate at abnormally high temperatures.

 The A-Class has a lot of things going for it - but the auto-box is definitely not one of them, judging from
 my experience and that of other owners. If you think that my experience is worth passing on to your
 readers, please feel free to do so.
 Kind regards,
 Paulo
 .

 This info was received from Dave in Botswana and may be useful when undertaking the procedure below.

 M.B. official spec for t/oil is initial 6.3 litres. 3.3 litres for oil change.
 As a bush job, I filled with 3.3L then dipped with bare stick and measured the height from bottom of my
 stick to oil level. i.e; 55mm.
http://www.aclassinfo.co.uk/mypage.59a.htm                                                                              17/32
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 Has any one measured the markings on a genuine dip stick?
 Also M.B. @ 30C the oil should be between 2 and 4. 70 to 80 deg C, the oil level should be between 8
 and 12 marks on their dip stick.
 I was 30 years in the motor trade, so please note that oil level heights do not have to be correct to the mm.
 There is a minimum before it gives problems and maximum before it causes other problems.
 Regards David

 This information kindly is provided by Chris it will give you some idea of what is involved in changing
 the transmission fluid when undertaken at your request by a garage along with the parts you should expect
 to see on the invoice.

 If you have been considering doing this job yourself then it is recommended that only experienced DIY
 enthusiasts tackle this procedure and you do need some special tools if you are going to the job to a high
 standard which will ensure maximum return for your trouble.

 When Mercedes did this for me three years ago, it was 320€ and as far as I could tell, the mechanic spent
 most of his time chatting to his buddy while the transmission warmed up...
 I was GOB smacked when I got the bill - I thought I was going to be there for an hour at the most... three
 hours later I was finally back in the car!!!
 I should have asked for an estimate first.
 Anyway, the gearbox has been 100% reliable and I've just gone past 150000km so I guess peace of mind
 comes with a price tag.
 I'll give the procedure a go this weekend.
 Thanks again
 Paul

 So you can instantly see that getting Mercedes-Benz workshops to do this job is costly, I suspect mainly
 because of the time it takes, it would be asking too much for the mechanic to be getting on with other
 tasks while the gear box warmed/heated up the fluid for instance 3 x hours in the UK is going to cost at in
 the region of £240 and that's the minimum cost, remember that's before the appointed mechanic has even
 raised the bonnet!
 Plus of course the dreaded VAT.
 So if you were considering getting any work done on your car, always get a quote first and if you haven't
 used the garage before ask them to just jot that down for you and keep it handy.
 And please bear in mind I have not undertaken this task as my car has a manual gearbox so I cannot add
 anything to what Chris has said.
 Please remember not matter what the task it could be more costly than taking your car to the garage if you
 are not competent to undertake any procedure/repair, so always consider the situation before commencing
 any work on your car.

 I'll now hand over to Chris.

                                         Transmission Fluid change Procedure

 ***Message from one of my readers 'BIG JOHN', Reference the the dip stick mentioned in this procedure
 which is not installed/fitted on the automatic gearbox as standard, unless fitted by the previous owner)
 Over the years posts on the forum have suggested that the automatic transmission dip stick is not
 available or that MB would not supply it.
 Several years ago I bought one from a MB parts department without any problem it just had to be ordered
 from Milton Keynes for next day delivery.
 The details are:- DIPSTICK for measuring automatic gearbox fluid level. Part Number: W168 589 012
 100 the current cost including VAT is £23.22 14.01.11

http://www.aclassinfo.co.uk/mypage.59a.htm                                                                              18/32
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 Two owners have now provided
 information as to the measurements
 on the dip stick, which may enable
 owners to make up the own
 measuring devise if you are not able
 to obtain a dip stick,
 Marking on an original trans GB
 stick are as follows:- from the bottom
 tip of the stick to level 1 is 10mm
 then 5mm between each level up to
 12 (1-12)

 My car is a manual GB but if it were a Auto I'd be thinking of making up a
 dip stick using curtain spring , you can buy it by the meter, the sort of thing
 you use to hang net curtains up at your window .
 I confident this could be marked with paint to indicate the various levels and the stiffness improved to
 ensure it produces an accurate measurement of the fluid when hot .
 (The part number is correct as W168xx and not the normal A168xx)

 The oil filler/dipstick pipe has a plastic sealing cover retained by plastic "tamper" pin which has to be
 broken to remove the cap the original pin is black (as is the cover) the replacement pin is red.
 The details are:- PIN Part Number: A1409910055 the current cost including VAT is £1.20
 What john has said is still true today, only in the last two weeks I have had one owner tell me that MB
 parts would not sell him the stick saying it was for Garage use only, if this happens to you simply shop
 elsewhere, I contacted my branch and they agreed to sell him one, although they did ask for the part
 number!

 So the dipstick for checking transmission fluid level is available from Mercedes parts and my branch of
 MB Parts at Bognor Road, Chichester, in West Sussex Tel 01243. 776111 is prepared to supply it .

 Clint had problems with his Dad's car hesitating when going from gear to gear, having checked every
 thing else on the car he finally got round to checking the transmission fluid, only to find that the specialist
 Garage who had changed the fluid had overfilled it by 700ml which raised the fluid 60-70 mm on the dip
 stick when hot, having drained off the excess all signs of the hesitation had gone and the car now runs
 well , so remember these levels do matter and will affect the running of the car. Thank you Clint for that
 information and you other comments.

 Lofty Other parts also needed are:-
 1. Transmission fluid (See link below.)
 2. Filter
 3..Sump gasket
 4. Sump plug
 5.Copper washer
 6. Tamperproof plug

 7.Pan magnet(may be reusable )Note on later models the sump pan has been increased in depth by 3mm,
 MB recommend that this be fitted, but it is extra cost! but is does come with a drain plug and seal.
 8.Transmission fluid
 I would suggest the use of genuine Mercedes fluids, bearing in mind the cost of a replacement gearbox!
 I would suggest getting the transmission fully hot and checking the fluid level before starting work. If you
 then drain the fluid into a marked container you will know how much fluid to use on initial refill of
http://www.aclassinfo.co.uk/mypage.59a.htm                                                                              19/32
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 transmission.
 Removal of the sump pan to change the transmission filter and install a pan magnet [magnets were not
 fitted to earlier cars] is also a good thing to do.

 Note:- Both the drain plug and sump pan bolts can be quite tight so proceed with care, ensuring that Toro
 bits are fully located in the head of the bolt.

 With reference to above:

 1. Drain fluid/fluid from
 transmission

 2. Remove sump pan
 [note that there will still
 be a quantity of fluid
 within the sump pan
 which is best not
 relocated down your
 sleeve] 3. Change
 transmission filter

 A [this simply pulls out of the transmission case]

 4. Clean out sump pan using a lint free cloth
 5. Install pan magnet
 6. Refit sump pan using new gasket
 7. Refit drain plug with new copper washer

http://www.aclassinfo.co.uk/mypage.59a.htm                                                                              20/32
15.1.2019       Bert Rowe's-Mercedes-Benz 'A'-class info. Mercedes Benz A Class W168 Automatic Transmission /gearbox, Changin…

 8. Refill with the
 required amount of
 fluid ( Auto Trans
 MB Fluid £!0.20 a
 litre 14.1.11 ) before
 starting the engine
 9. Start engine and
 allow to idle in P.
 checking/correcting
 fluid level if
 necessary
 10. Warm up
 transmission and shift through all gears [with vehicle stationary] while warming up.
 After warming up transmission, wait at least 2 minutes and check fluid level with engine running in P or
 N
 11. Check transmission fluid temperature
 When transmission is cold, level must be between marks 2 and 4. The exact fluid level must be between 8
 and 12 at 70-80 degrees c [transmission fluid temperature] If you want to get an accurate reading you will
 need an infra red temperature gun or similar device Temperature gun next day delivery tel 07864991164
 [as mentioned previously I would suggest aiming to get the fluid level exactly on the 12 mark] Model
 168, use HHT to call up current transmission fluid temperature in one of the selector positions P R N or D
 [this is where I used a hand held infra-red thermometer pointed directly at the sump pan to determine fluid
 temperature, I would also suggest checking the temperature only in P or N as checking it in D or R could
 prove to be dangerous]
 12.(*** see information above) Insert dipstick as far as the stop, pull out, read off level.
 Insufficient/excessive fluid quantity causes malfunctions and transmission damage.
 13. Check fluid level again. Correct if necessary.
 14. Refit tamperproof cap
 15. Check for leaks

 Torque settings;
 Drain plug 22NM
 fluid pan to transmission 8NM

 Note to ensure that the required temperatures I purchased an infrared temperature sensor /gun from
 Maplin's although this cost just on £30.00 it was well worth while and assisted me greatly in doing the job
 well.

 Special tools for working on various Mercedes-Benz Vehicles, as well as suppliers of automatic
 transmission fluid level dip sticks

 Sorry if this seems rather lengthy but this job is possible if you know your way round you car and are
 mechanically minded and it is worth taking your time remember you are saving yourself £500 at my local
 Mercedes dealership prices but the job must be done well & right or you will face extra costs!!
http://www.aclassinfo.co.uk/mypage.59a.htm                                                                              21/32
You can also read
