Getting your Qt app running and
deployed on Symbian
Andreas Jakl
Agenda
• Developer Environment
– Platforms, Simulator, On-Device Debugging
• User Interface & Development
– Icons
– UIs
– Native Symbian APIs
• Versions & Tools
– Smart Installer
– Device & Phone tools
• Distribute
– Testing
– Signing & Certificates
The Big Picture
Developer resources & community Nokia Store publishing
Nokia Publish registration 9 million DL / day
One-time fee of €1 190+ countries
Discussion boards,
Submit an unlimited number of apps 125x operator billing
e-learning videos,
examples
Complete Qt development environment
SDK, toolchain,
remote device testing,
etc.
Total:
Symbian & Qt
• Qt works on S60 3.1+ Nokia E71
(S60 3.1, 2008)
Nokia 700
(Symbian Belle, 2011)
– Nokia E71, E72, 5800, N8, X7, 700, etc. *
• Look up platform versions
– http://www.developer.nokia.com/Devices/
Qt Compatibility Qt Pre-Installed
Series 60 Series 60 S60 S60 S60 S60 5.0 Symbian^2 Symbian^3
1.0 2.0 3.0 3.1 3.2 = Symbian Anna
(+ 3 FPs) Symbian^1
Symbian Belle …
* Qt can be installed on all compatible devices. Not all devices are enabled for Qt content in the Ovi Store. Current list of Ovi Store device deployment support for Qt apps:
http://www.developer.nokia.com/Distribute/Packaging_and_signing.xhtml
The environment to create Qt apps for Symbian DEVELOP
Developer Environment Setup
• Qt SDK
– One-click installation
– IDE, tool-chains,
documentation, examples Maemo
http://developer.nokia.com/Qt
Desktop Simulator
Qt SDK
works on
Windows,
Linux, Mac
Symbian MeeGo
Symbian – Mac / Linux
• Symbian binaries cannot be compiled on Mac or Linux *
– Legacy Symbian tool chain restriction
• Use Remote Compiler
– Compilation on Nokia servers
in the cloud
– Real-time compiler log messages
– Binaries sent back to you
• SDK installation / maintenance tool
– “Experimental” section
* Experimental Linux support for building Symbian apps: http://projects.forum.nokia.com/symbian_linux_qtsdk

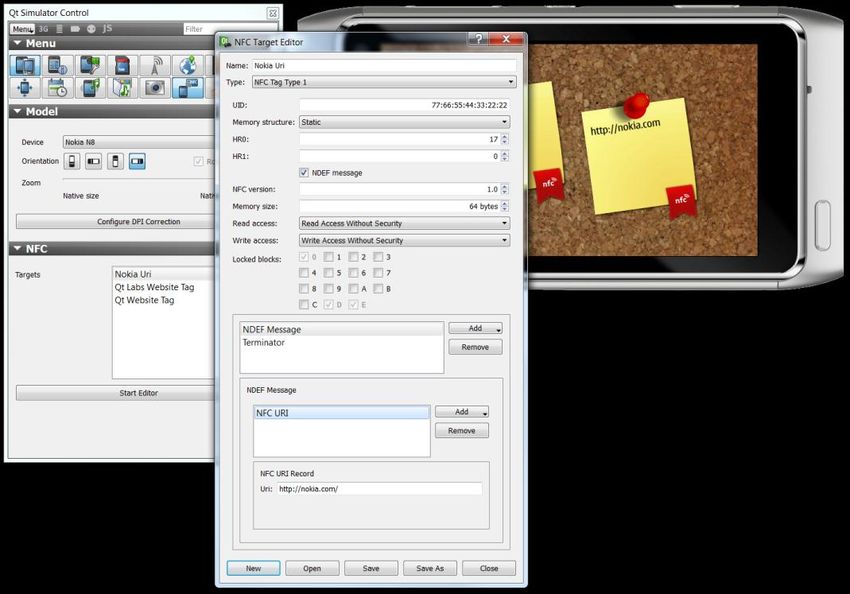

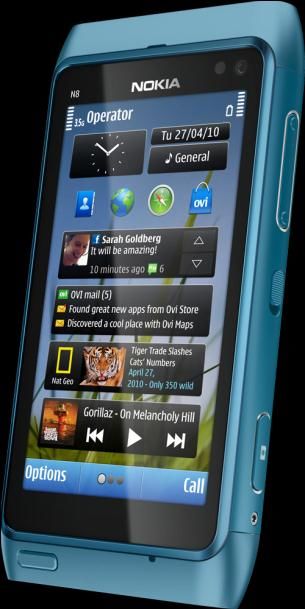

Qt SDK: Simulator
• Efficient Testing
– Quick
– Simulate phone
events & environment
– Skins
• Only Qt APIs, no support
for Symbian OS C++ native APIs
• Limited simulation of traditional softkey-menus
(if not using Qt Quick Components)
On-Device Debugging
• Debug Connection Qt Creator
– Use CODA for all Symbian touch
– App TRK for non-touch (S60 3.x)
• Qt SDK 1.1.3: only CODA support
App CODA
TRK
– Use older Qt SDK version for USB
USB TRK
non-touch on-device debugging WLAN
S60 3.x Symbian^1 or newer
(non-touch) (touch)
Creating the Symbian look & feel USER INTERFACE & DEVELOPMENT
Surround Icons

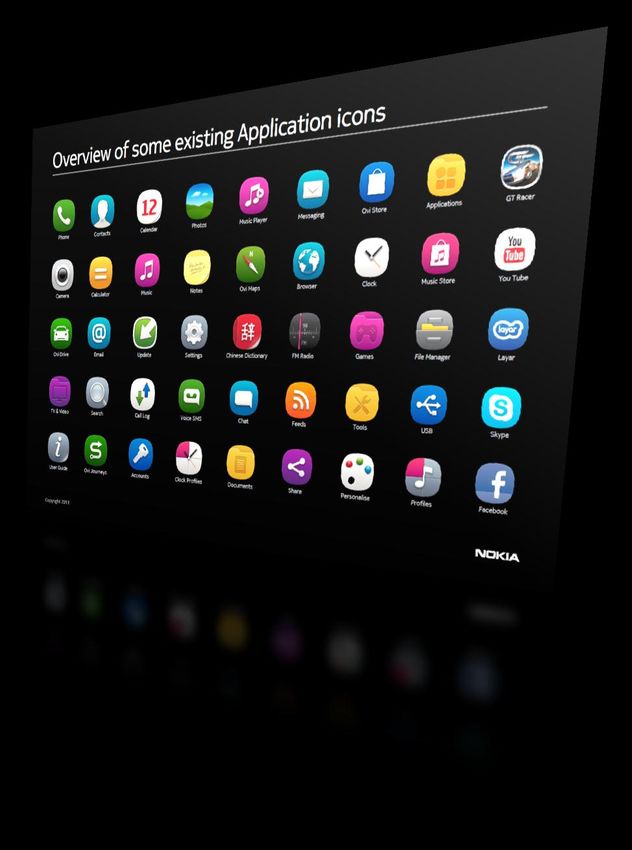

• Since Anna, new “Surround” style (Squircles)
– Recognizable, similar icon for all platforms

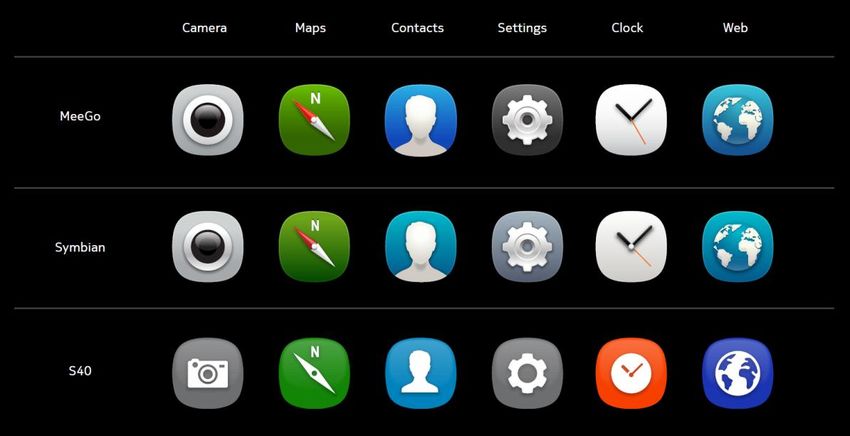

• Used in Series 40, Symbian & MeeGo
– Minor differences in complexity and colors due to
screen resolutions, etc.Symbian Launcher Icons
• Design Guidelines & Toolkit
– Templates
http://bit.ly/SurroundIcons
– SVG Converter
http://bit.ly/SvgConverter
– Online icon Generator
http://depot.javispedro.com/
nit/hicg/In-App Icons
• Similar Guidelines for in-app icons
– Toolbars and list icons
– Template kit: re-usable default icons
http://bit.ly/SurroundIconsUser Interfaces on Symbian
C++ QML / JavaScript
QWidgets Graphics View Qt Quick Qt Quick Components
All these can be mixed in
the same app if needed
HTML / JavaScript / CSS Other
Platform
QtWebKit QtOpenGL
OpenGLQWidget UIs on Symbian
• Adapt to native platform UI
– Some elements don’t integrate too well, e.g., dialogs
– No automatic kinetic scrolling
• Compatibility
– No style integration on MeeGo:
diffcult porting
– Focus of Qt 5: Qt Quick
→ QWidgets: not recommended
– However, non-touch Symbian
phones don’t support Qt QuickQt Quick Components • Ready-made Qt Quick UI components – Statusbar, toolbar, buttons, text fields, etc. • Symbian Belle look & feel – Also when app is deployed to S^3 or Anna • Compatible to S^3+
Symbian Belle Design Guidelines
• Evolving Symbian design and user experience
– Follow new style also when deploying on Symbian^3 & Anna
– http://bit.ly/SymbianDesign
Symbian^3 / Anna
Symbian BelleRecommended
Recommendations ... OK
Not recommended
Desktop App Mobile App Game
QWidgets
GraphicsView
Qt Quick
OpenGL
WebSupported
Platforms and UIs Limited
Not supported
Qt Quick Qt Quick QWidgets Direct graphics HTML (5)
Components (OpenGL, GraphicsView)
Symbian^3 / Anna
Symbian^1 / S60 5.0
S60 3.1 / 3.2 (non-touch)
MeeGo Harmattan
Maemo 5
DesktopAccessing Native Symbian APIs
• Qt is huge ...
... but it can’t possibly
cover all APIs of an entire
Operating System
• Paradigms for mixing Qt with OS-specific code
1. Same source files, #ifdef platform specific code
2. Isolate platform specific parts to separate files to include
3. Write a separate library
• More details
– http://qt.nokia.com/files/pdf/whitepaper-using-qt-and-
symbian-c-together/viewNative Symbian Note Dialog
Symbian^3 Symbian Belle
.pro file
symbian { // Only relevant for Symbian target!
LIBS += -lavkon \
-leikcdlg \
-leikctl
}
.cpp file
#if defined(Q_WS_S60)
// Text you want to show in the note dialog
QString noteText = "Success";
// Convert the Qt String to a Symbian Descriptor
TPtrC16 noteTextPtr(reinterpret_cast(noteText.utf16()));
// New confirmation note (pre-defined in S60 framework)
CAknConfirmationNote* noteConfirm = new CAknConfirmationNote;
// Displays and deletes the dialog – you don’t have to delete it yourself!
// As this method can potentially leave (the method has an L at the end of its name),
// convert any resulting error into an exception
QT_TRAP_THROWING(noteConfirm->ExecuteLD(noteTextPtr));
#endifHelp during development VERSIONS & TOOLS
Qt & the Symbian Legacy
• Qt support: S60 3.1+
– Note: older phones = lesser computing power
• These phones don’t have Qt pre-installed
– Installed on demand, over-the-air via
the Smart Installer
• Qt: not officially verified on all devices
– See Nokia Store support slideSymbian: Smart Installer
Qt Install
Required Qt version
App
not already
(& SI) installed?
Download and install
Qt & dependenciesSmart Installer Packaging Activate Smart Installer packaging in Qt Creator’s Symbian Run settings
Qt Versions for Symbian
Qt Quick Components
Qt 4.7.4
Qt Quick 1.1 Qt SDK 1.1.3 *
Qt Mobility 1.2
Symbian Belle
Qt 4.7.3
Qt Quick 1.0 Qt SDK 1.1 *
Qt Mobility 1.1.3
Symbian Anna **
Qt 4.6.3 Nokia Qt SDK 1.0
Qt Mobility 1.0.3
Symbian^3
No Qt
Symbian^1
S60 3.1 S60 3.2 S60 5.0
* Qt SDK 1.1+ also includes a Qt 4.6.3 target for Symbian^1 and Symbian^3
** The Nokia 500 does not have HW 3D acceleration, and therefore can’t be updated to Belle.QtInfo • What Qt versions are on your phone? • Qt environment info app • https://projects.developer.nokia.com/ qtinfo
Phone Tools and Utilities
• Nokia File Browser
– System standard browser hides some
folders
– http://bit.ly/FileBrowser
• Best Screen Snap
– Tip: change to true color bmp format
(lossless!) and memory card storage
– http://www.smartphoneware.com/screen_sn
ap-for-s60-5th-edition-product.phpPC Tools and Utilities
• .sis content viewers
– SISContents
symbiandev.cdtools.net
– SISXplorer
www.symbian-
toys.com/sisxplorer.aspx
• SignSis-GUI
– www.gosymbian.com/
SSIS_download.htmlTerminal Connectivity • Remote access & remote shell for Symbian – Windows, Mac and Linux – Screen sharing, simulated pointer events – File transfer and browsing – Run applications from the command line – Drag-and-drop .sis file install http://labs.qt.nokia.com/2011/04/15/introducing-muxcons/
Releasing your Qt app for Symbian PUBLISH
Qt Support in the Nokia Store
S^3 / Anna / Belle S60 5th Edition S60 3rd Edition (Qt 4.6) MeeGo / Maemo
E7-00 X6-00 E72 N900 (>= PR1.3)
N8-00 C6-00 E71 N9
C7-00 / Astound / Oro C5-03 E66
C6-01 N97 (mini) E63
E6-00 5800 XpressMusic E52
X7-00 5530 XpressMusic
500 5250
600 5235
603 5233
700 5230
701 5228
* Status: 13. October 2011. Source: http://www.developer.nokia.com/Distribute/Packaging_and_signing.xhtml#article1_aFree Remote Device Access

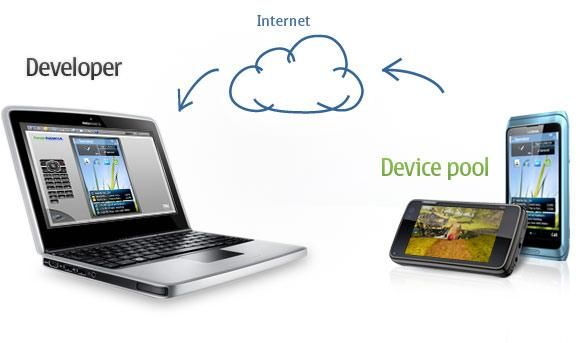

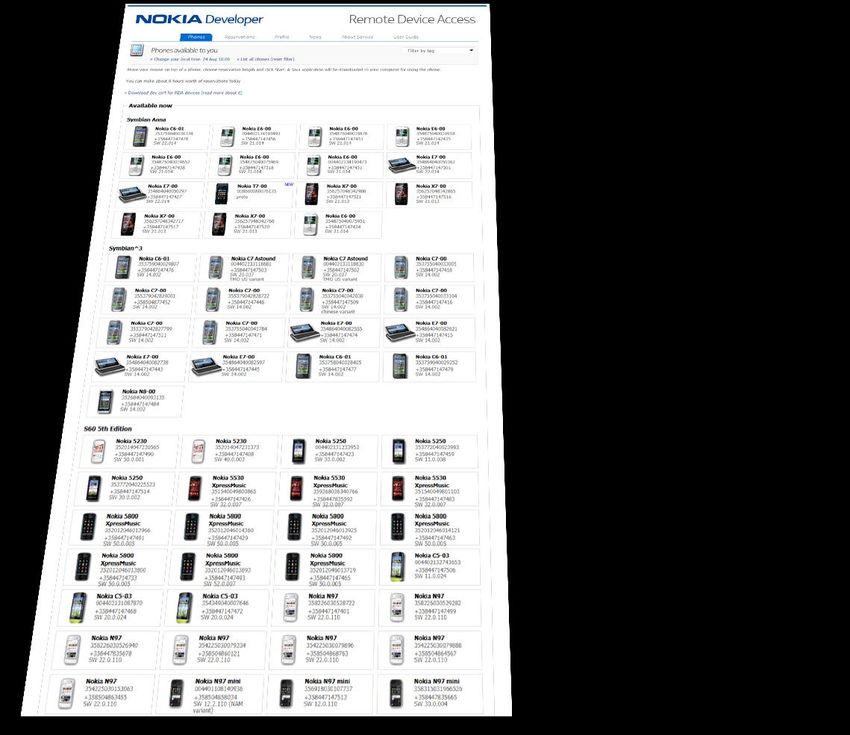

Reserve time on a real device
Full access to install and test your apps
www.developer.nokia.com/rdaSymbian Platform Security *
* Qt apps are native apps; therefore, the security model of the target operating system applies.
• Simple for developers, but be aware of:
1. Capabilities
– Define access to sensitive phone areas in .pro file
– Separated into different categories depending on security level
2. UIDs
All three are interlocked
– Random UID in testing range (0xE…) for development with
basic capabilities
– Free worldwide unique UID (0x2...) from Nokia Publish for
extended capabilities and/or when publishing
3. Certificates / Signing
– Automatic self-signed cert for development with basic capabilities
– Free development certificate with extended capabilities from
Nokia Publish
– Free signing for apps published to Nokia Store
– Paid signing available when using other distribution channels or
restricted capabilities
Symbian Installation Error Guide: http://bit.ly/SymbianInstallationSymbian UIDs
• Each process:
unique identifier (UID3)
• .pro file:
symbian {
TARGET.UID3 = 0xE025BB49
}
• Testing This adds the
NetworkServices capability
– Any UID starting with 0xE...
– Automatically and randomly created by Qt Creator
• Publishing
– Get a worldwide unique UID from Nokia Store publish support
– 0x2... (protected range)Symbian Security – Capabilities
1. Determine the required security / privacy features
– Most common: (See: developer.nokia.com/Community/Wiki/Capabilities)
Feature Capability
Internet access, telephony, messaging NetworkServices
Access location (GPS, etc.) Location
Camera, record audio UserEnvironment
Basic / User Capabilities
Contacts, Calendar ReadUserData /
WriteUserData
Bluetooth, NFC LocalServices
Extended / System
IMEI, model name, battery status ReadDeviceData
Capabilities
2. Add to Qt project file (.pro)
symbian:TARGET.CAPABILITY += Location LocalServicesSymbian Security – Development
3. Get the right certificate during development
No / Basic Capabilities Extended Capabilities
Use auto-generated self signed certificate Sign up for Nokia Publish account (€1)
(default, no action required) info.publish.nokia.com
Request development certificate (free)
developer.nokia.com/Distribute/Packaging_and_signing.xhtml
Sign your app
(Qt Creator build settings)
Test on your develoment device(s)Symbian Security – Publishing
4. Publish
No / Basic Capabilities
Extended Capabilities
Sign up for Nokia Publish account (€1)
info.publish.nokia.com
Request unique UID in 0x2... range and
development certificate (free)
developer.nokia.com/Distribute/Packaging_and_signing.xhtml
Package your Qt app with the Smart Installer
(Qt Creator build settings)
Publish to the Nokia Store
Need restricted capabilities?
developer.nokia.com/Community/Wiki/Capabilities
-> Purchase a Publisher ID ($200 / year)
Submit to Certified Signed process @ www.symbiansigned.comAll Capabilities & Signing Options
Development Free Nokia
Development
Capability Group Capability Name Self-Signed Certificate Publish Signed / Certified Signed
Certificate
(verified account) Express Signed
Basic / User LocalServices Yes, with user Yes Yes Yes Yes
Capabilities Location confirmation at
NetworkServices install time
ReadUserData
UserEnvironment
WriteUserData
System / Extended PowerMgmt
Capabilities ProtServ
ReadDeviceData
SurroundingsDD
SwEvent
TrustedUI
WriteDeviceData
Restricted CommDD
Capabilities DiskAdmin
NetworkControl
MultimediaDD
Manufacturer AllFiles Nokia Approval Nokia Approval
Capabilities DRM Required Required
TCB
More Info: http://www.developer.nokia.com/Community/Wiki/Capabilities_%28Symbian_Signed%29
Free through Nokia Publish
Only available through www.symbiansigned.comVendor Name and Version
• Add vendor name to the .pro file
– Required for publishing
• Add version number
VERSION = 2.00.0
symbian {
vendorName = "Your Company"
vendorinfo = \
"; Localised Vendor name" \
"%{$$addLanguageDependentPkgItem(vendorName)}" \
""\
"; Unique Vendor name" \
":\"$$vendorName\"" \
""
deployment_vendor.pkg_prerules += vendorinfo
DEPLOYMENT += deployment_vendor
}Publishing – Checklist
• Smart Installer
• Vendor name and version
• Change development UID
(0xE...) to final UID from
Nokia Publish (0x2...)
– Clean & rebuild project
– Uninstall from phone
before re-installing
• Test against guidelines
– http://support.publish.ovi.com/?p=64
• Publish unsigned,
Smart Installer .sis fileNokia Store
Access reports.
You get 70%, Nokia 30%.
Quality Assurance*.
Create content items.
Add meta data.
Register at
info.publish.nokia.com
(one-time fee of €1)
* Avoid the top 10 QA failures: http://support.publish.ovi.com/?p=1865THANK YOU More info → developer.nokia.com/Qt
You can also read
