Technical Paper
High performance parallel computing for Computational Fluid
Dynamics (CFD)
Atsushi Itou
Toshikazu Nakanishi
Takashi Mizuguchi
Masatake Yoshida
Tei Saburi
The supersonic aerodynamic coefficient of a sphere that represents a broken piece of structure under explo-
sion was obtained by using Computational Fluid Dynamics (CFD).The computer that was used in this study
was self-made cluster type parallel machine and available maximum number of CPU was 128. The CFD soft-
ware named CFD++ was used in this study. CFD++ is general purpose CFD software to solve
three-dimensional Navier-Stokes equations that represent characteristic of fluid viscosity and compressibility
by using finite volume method. Using the parallel computer, computational time was reduced dramatically. The
importance of network performance was mentioned in this study. Since Ethernet required more time for
communication between CPUs, that performance was limited under the condition of small number of CPUs.
However, using high-speed network system (Myrinet), we could get more performance even large number of
CPUs. The use of 64bit CPUs was also effective to reduce computational time, in addition to provide advan-
tage for building a large-scale computational model through an expansion of memory space.
Key Words: CFD, parallel computer, TOP 500, National Institute of Advanced Industrial Science and
Technology (AIST), supercomputer, personal computer, scalability, CFD++, LINUX, CPU
1. Introduction
Consideration of safety in storing and keeping of explo- is a technology that can be used in forecasting the dispersion of
sives is becoming a global issue recently in businesses that flying objects, in studying the impact of air blasts and for other
handle explosives. Because of their characteristics, strict purposes. In addition to problems faced in turning physical
safety administration is obliged for handling explosives, and phenomena into numerical models, another problem with CFD
they are often stored in one place. Forecasts of impact areas is that the number of meshes expands to several million to
by blasts and the dispersion of flying objects in case of an acci- several tens of millions depending on the experiment task when
dental explosion are important for the design of storage sheds spatial meshes have to be divided. Computational time is
and settings of the ambient safety environment. Various data several tens of hours to several hundred hours using computers
on explosives explosions are collected through explosion tests. that are normally available for computations, and this is not
In Japan, the amount of explosives that can be tested is limited practical in many cases.
to only about several tens of kilograms due to limited test In this study, through joint research with the Research
grounds, and it is not possible to test cases where several hun- Center for Explosion Safety of the National Institute for
dreds of kilograms to several tens of tons of explosives that are Advanced Industrial Science and Technology, CFD analysis
actually stored are exploded. Forecasts of blasting states us- was conducted using a parallel computer that connected plural
ing a large amount of explosives are therefore necessary using CPUs, to make simulations feasible through a drastic reduction
data of experiments that use small amounts of explosives. in this computation time. An increase that could be achieved
In these forecasts, numerical simulations using computers in the processing speed is reported.
are made. In particular, computational fluid dynamics (CFD)
2005 ② VOL. 51 NO.156 High performance parallel computing for Computational Fluid
Dynamics (CFD)
― 1 ―
2. Background environments such as Linux. The basic approach is simple.
Several tens of personal computers to several hundred sold on
The need for high-performance computers in numerical the market are connected by a network. For this reason, a
simulations that require mesh and time division as in CFD are concept called “self-made parallel machines” has emerged.
not new, and at one time, a development competition between The concept calls for the assembly of an inexpensive
Japan and the United States for a supercomputer evolved into high-performance supercomputer using personal computer
an economic problem. At the time when high calculation components sold on the market and Linux, OS of open source
speeds of one processor were pursued, American supercom- licenses. Even though special computer knowledge and net-
puter manufacturers including Cray Research were leading, work knowledge is needed to some extent, the layperson wish-
and Fujitsu and NEC of Japan caught up with them. Large ing to do something with this computer can handle it.
host computer manufacturers competed with each other to de- In this study also, a self-made computer developed by the
velop new CPUs, and machines costing several hundred mil- Research Center for Explosion Safety of the National Institute
lion yen were installed in the research organizations of univer- for Advanced Industrial Science and Technology for CFD
sities and the state, large automobile manufacturers and other simulations was used.
purchasers. These hardware units were housed in workshops
with air conditioning facilities, becoming status symbols show-
ing their technical level.
On the other hand, information service companies rented 1000000
TOP500 service in
TOP500開始
supercomputers purchased by themselves by the hour and were IBM BlueGene(131072)
selling CPUs in the form of rental per hour. Komatsu used a 100000 NEC SX-8(4096)
NEC EARTHSIMULATOR(5120)
supercomputer in this style temporarily. 10000 IBM ASCIWhite(8192)
Since then, the performance of CPUs made by so-called INTEL ASCIRed(9632)
(GFLOPS)
1000 BAKOO
UNIX-based workstation (EWS) manufacturers such as DEC
性能(GFLOPS)
AIST BAKOO(128) Xeon(2.8GHz)
FUJITSU NWT(140)
TOP500
and SGI has enhanced, and many users seem to have changed 100
ThinkingMachine CM-5(1024) CRAY
HITACHI S-3000 FUJITSU
Performance
to simulations on a level that better suits the development lead 10
NEC SX-3
HITACHI
FUJITSU VP-2600/20 Xeon(2.8GHz) NEC
time using available EMS rather than conducting large-scale CRAY CRAY-2
NEC SX-2
HITACHI S-820/80
FUJITSU VP-400E
1
simulations using a supercomputer. Excluding some research
HITACHI S-810/20
FUJITSU VP-200
CRAY CRAY-1
organizations and large automobile manufacturers, the super- 0.1
computer has clearly become “not cost competitive” in terms
FUJITSU FACOM507-75APU
0.01
1975 1980 1985 1990 1995 2000 2005 2010
of cost of installation, maintenance and management. Year
年代(年）
The development competition for supercomputers waned
Fig. 1 Development history of high-speed computers
thereafter, while the performance of CPUs for personal com-
puters manufactured by Intel and AMD has improved signifi-
cantly. The application of these CPUs has expanded from
word processing and spreadsheets for business use to image
processing and Internet utilization, resulting in high-volume
3. Parallel Computer in this Study
production by finding outlets in the homes of citizens as a mar- 3.1 Parallel computer of the Research Center
ket. The cost per CPU has been drastically reduced through for Explosion Safety (BAKOO)
high-volume production. At present, the basic performances The parallel computer of the Research Center for Explo-
of CPUs for personal computers, of memories and of hard sion Safety of the National Institute for Advanced Industrial
disks have reached a level suitable for use in simulations in- Science and Technology (BAKOO) is shown in Fig. 2. The
cluding CFD. In fact, recently, Windows personal computers parallel computer has 128 CPUs comprising 64 nodes, each
are replacing UNIX EWSs. Figure 1 traces the development node packaging two Intel Xeon processors on one motherboard.
history of high-performance computers called supercomputers. The total memory capacity is 192 Gbytes. The network has a
One Intel CPU has performance better than that of a supercom- Myrinet card, a high-speed communication device, and a
puter made 15 years ago. Myrinet switch.
In the area of software, operating systems (OSs) have The BAKOO configuration is summarized in Table 1.
been unified to UNIX in EWSs from OSs of host computer BAKOO is a perfect self-made computer for use in CFD.
manufacturers. At present, Linux can build an environment However, it ranks 351st in the world and 27th in Japan in the
almost equal to that of UNIX, also for personal computers. TOP500 ranking (rankings of top 500 supercomputer of the
Linux is an open system and is modified every day, paving the world by a Linpack benchmark based on the linear equation
way to use state-of-the-art technology in parallel calculations solution by LU resolution) for 2003. (See Fig. 1. The Earth
also. Simulator SX6 of NEC [5120 CPUs, 35Tflops] ranked first for
The approach of parallel computation by plural CPUs, 2003)
which could be accomplished in the past only by certain super-
computers, has become feasible thanks to the high performance
of hardware for personal computers, low price and software
2005 ② VOL. 51 NO.156 High performance parallel computing for Computational Fluid
Dynamics (CFD)
― 2 ―
parts stores. The configuration of the KHPC computer is
specified in Table 2. The KHPC has eight nodes, 16 CPUs
and a memory capacity of 32 Gbytes.
Full view of BAKOO System

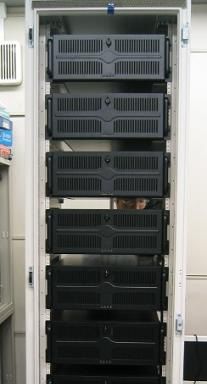

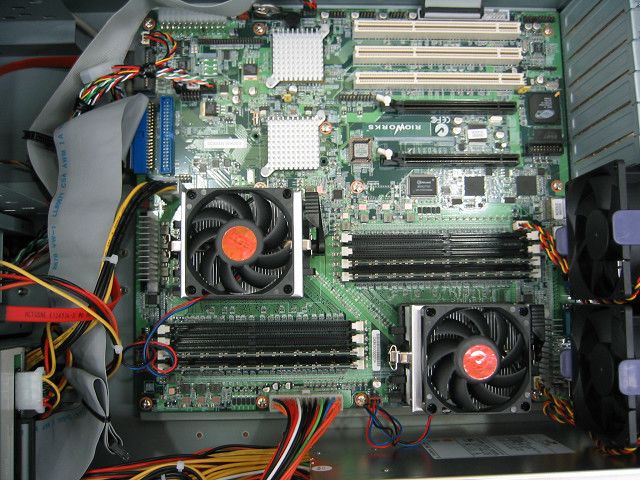

Fig. 3 Appearance and internal views of KHPC
Table 2 KHPC configuration
CPU AMD Opteron 2.2GHz
Number of CPUs 16 (8 nodes)
Memories 32Gbyte
Hard disk 75Gbytes for each node
1.5Tbytes for data storage (RAID5)
Network Gigabit Ethernet
Myrinet hub
Operating system Linux

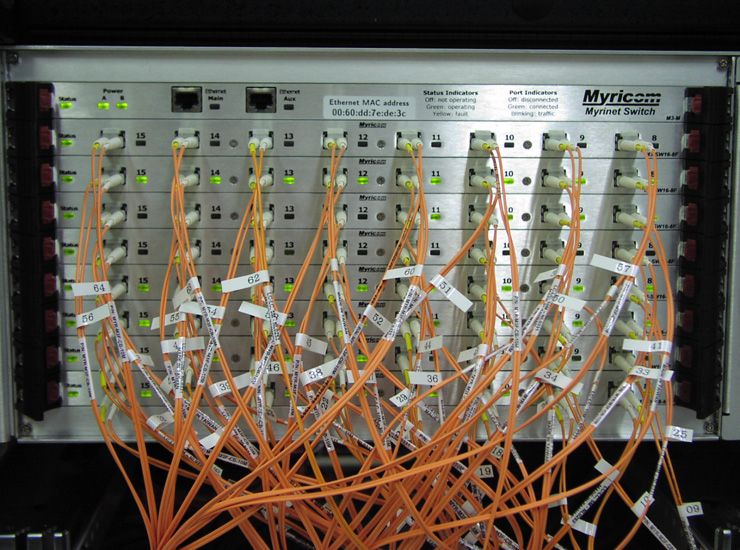

Fig. 2 BAKOO System
4. CFD Software
Table 1 BAKOO configuration The CFD code used in this study is “CFD++ (CFD plus
CPU Intel Xeon 2.8GHz plus).” “CFD++” is general-purpose CFD software devel-
Number of CPUs 128 (64 nodes) oped and sold by Metacomp of the United States mainly target-
Memories 192 Gbytes ing the aviation and space industry.
Hard disk 30 Gbytes for each node Three-dimensional Navier-Stokes equations that repre-
3.4Tbytes for data storage (RAID5) sent the characteristics of fluid viscosity and compressibility
Network Myrinet are made discrete by the TVD scheme based on the finite vol-
(LANai9.2 and PCI-X ume method. 1)−7) Several types of turbulent flows including
interconnectivity) Model k-ε can be selected. CFD++ can therefore be used
Operating system Linux
widely in Mach and Re numbers from subsonic to supersonic
speeds. The software package that was used in this study was
also used in aerodynamic calculations of flying objects at high
velocity and simulations of explosion phenomena. Parallel
3.2 64-bit prototype computer (KHPC) processing is also possible with the Intel 32-bit and AMD
CPUs of personal computers are catching up with UNIX 64-bit versions.
EWSs in installing 64-bit CPUs. CPUs of the 64-bit architec- Coupled calculations with rigid body motions with six
ture eliminate memory limits of 2 Gbytes per process, dramati- degrees of freedom are embedded as a module, enabling calcu-
cally increasing the amount of data that can be handled. An lation of a flying distance taking variations in air drag caused
increase in the bus width enhances the data transfer speed. by changes in altitude into consideration by CFD while the
A parallel computer using 64-bit processors (AMD: solving motion equations of the flying objects. This study
Opteron 2.2 GHz) was manufactured for use in a study of a will be reported later.
next-generation self-made parallel computer (KHPC). An
appearance and the inside of KHPC are shown in Fig. 3.
KHPC is housed in a server casing and is installed in a 19”
rack. The parts inside KHPC were purchased from electronic
2005 ② VOL. 51 NO.156 High performance parallel computing for Computational Fluid
Dynamics (CFD)
― 3 ―
5. Themes of Analysis
This study focuses on two problems in the safety of ex-
plosion. The first problem is how far flying objects in an
explosion would fly, and the second problem, what impact an
air blast by an explosion would have. The performance of the
parallel computer that could be obtained in the computation
process of the aerodynamic characteristics of the flying objects
in an explosion by CFD is described.
5.1 Analysis model
A sphere of 14 mm in diameter was used in the calcula- Fig. 6 Surface of 1.23M-mesh model
tions as the shape of the flying objects. Calculations for each
Mach number were performed under conditions in which fly- 5.2 Calculation results
ing objects fly above the ground (pressure 101325 Pa, tempera- The calculation results of the air drag coefficient (Cd) to
ture 288.15 K, air density 1.225 kg/m3). the Mach number are plotted in Fig. 7. CFD calculations
Figure 4 shows the entire calculation model and external solve the three-dimensional velocity components, pressure,
boundaries. The calculation model was performed by 3D temperature and turbulent flow characteristics (k, ε). The
CAD (Pro/Engineer) with external boundaries flying objects force applied to the model can be calculated as an integral of
(sphere). An IGES file was fetched in ICEM/CFD, mesh- the surface pressure by post-processing of CFD++. The air
creating software, and meshes were created. Tetrahedrons drag coefficient (Cd) that used the diameter as a representative
(tetra meshes) were used as spatial meshes. length was calculated using this force. As informative infor-
The behavior of the meshes near the flying object is illus- mation, Cd by experiment is also shown.8) The diagram
trated in Fig. 5. The meshes are made fine nearer the object shows that the calculations reproduce experiment values fairly
and trailing area, and made coarse nearer the boundary of the accurately.
periphery. A pentahedron (prism meshes) is created for the The spatial differential of the density in a flow direction
surfaces of the flying object, taking the boundary layer into calculated by CFD is shown in Fig. 8. CFD enables the
consideration. visualization of various physical quantities. As shown in the
Two nets were created to examine calculation perform- diagram, the spatial differential in a flow direction can also be
ance by the model scale, one with about 1.23 million meshes obtained. The spatial differential in a flow direction corre-
and the other with about 6 million meshes. The meshes on a sponds to a schlieren image in a wind tunnel test. The image
1.23M-mesh surface of a symmetrical object are shown in Fig. clearly shows the behavior of a detached shock wave in front
6. The calculation model is a half model, and symmetrical of the object and of the shock wave in the tail.
conditions were set on the symmetrical plane. The k-ε model 1.5
CFD
was used as a turbulent flow model. Experiment
実験値
value
1.0
Cd0
0.5
0.0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5
Mach
Fig. 7 Air drag coefficient (Cd) to each Mach
Fig. 4 Computational space and boundary conditions
Fig. 5 Mesh of symmetrical surface Fig. 8 Output corresponding to schlieren image
2005 ② VOL. 51 NO.156 High performance parallel computing for Computational Fluid
Dynamics (CFD)
― 4 ―
6. Higher Performance by Parallel Computa- the domain divisions, thereby reducing the calculation volume
tion per CPU. On the other hand, the overhead (other time needed
for computation) of data communications between nodes deter-
6.1 Calculations by BAKOO of the National mines the rate, and the CPUs idle when latency during commu-
Institute for Advanced Industrial Science nications is large. Networks with large latency (100 µs - )
and Technology such as Ethernet nullify the effect of having more CPUs. This
Computation by BAKOO, a 32-bit machine, is described. shows that a high-speed network device ( - 10 µs) is needed in
BAKOO enables calculations by a maximum of 128 CPUs, and this case.
the performance of networks (Ethernet and Myrinet) can also The computation time shows that it is not reduced simply
be compared. in proportion to an increase in the number of CPUs even
Calculations were made at Mach 3.0 of a half model of though Myrinet is used. In other words, the computation time
the sphere described earlier using two CPUs as a minimum does not necessarily decrease to half (1/2) even though the
configuration. The number of iteration cycles needed for the number of CPUs is twice increased. The relationship between
convergence of the calculations was fixed to 600 cycles. increase in the number of CPUs and calculation time reduction
An example of spatial division with four CPUs is shown is called “scalability.” Scalability exists if the computation
in Fig. 9. Parallel computation requires spatial division in speed increases twice (computation time 1/2) when the number
accordance with the number of CPUs. CFD++ comes with a of CPUs increases twice. However, normally, the overhead
domain division function. Using this function, a space was for communications and other factors does not allow scalability
divided from 2 to 128. Each divided domain is allocated to commensurate with increases in the number of CPUs.
one CPU, and calculations are executed while mutually Figure 11 plots the inverse numbers of the proportions of
communicating information at the boundaries. computation time for increases in the number of CPUs based
on computation time for two CPUs (network not used). The
dotted line in the diagram shows a case of a computation time
in proportion to increases in the number of CPUs. This dotted
line shows the ideal effect of the parallel computer. This
diagram shows what effects an increase in the computation
time illustrated in Fig. 10 has on the number of CPUs. In
Myrinet also, the effect of having more CPUs wanes beginning
at about 32 CPUs. Similarly, the computation time of 6-Mega
elements increases in proportion to increases in the number of
CPUs up to about 32 CPUs. A large number of elements in
Fig. 9 An example of spatial division with four CPUs the domain allocated to each CPU relatively reduces the pro-
(symmetrical face) portion of communication time to computation time, thereby
maintaining the effect of the increase in the number of CPUs.
The computation time needed for 1.23-Mega elements is At 6-Mega elements, the computation speed for 32 CPUs is
shown in Fig. 10. The time needed for computation with two theoretically 32 times, but is actually about 18 times, resulting
CPUs was 10.9 hours. The time with four CPUs on Ethernet in drastically low efficiency.
was 6.1 hours and with four CPUs on Myrinet, 5.1 hours, or This shows that, in terms of cost vs. performance, the
about half. However, with 16 CPUs, the time with Ethernet rational number of CPUs is predetermined by the model scale
was 3.7 hours and with Myrinet, 1.6 hours, widening the gap. (number of elements) of the analysis target when CFD++ is
With 32 CPUs, the time with Ethernet was 4.5 hours, taking a used, even though a high-speed communication device is used
longer time even though the number of CPUs was doubled. (Myrinet in this case).
Myrinet accomplished calculations in 1.0 hour, reducing the
computation time. Increases in the number of CPUs increase
Fig. 11 Computational speed dependent on the number of CPUs
(Magnification)
Fig. 10 Computation time of 1.23Mega elements
2005 ② VOL. 51 NO.156 High performance parallel computing for Computational Fluid
Dynamics (CFD)
― 5 ―
6.2 Calculations by prototype machine KHPC 8. Concluding Remarks
A comparison of computation speeds by KHPC, a proto-
The prototyped parallel computer is an ordinary personal
type 64-bit machine, and BAKOO is shown in Fig. 12. The
computer except for the power source and other parts that
computation speed of the prototype machine is faster on
require reliability, which were substituted by a server, a RAID5
Ethernet when the number of elements is the same, 1.23 Mega,
1.5-Tbyte storage and rack mount. Partly because software
and with the same number of CPUs. The computation speed
(OS) and a monitor are not packaged, the price per node (2
of the prototype machine is 1.5 times with two CPUs and about
CPUs) is about half that of a 2CPU Windows machine used
1.4 times with four CPUs. BAKOO is about 27% faster in the
in-house for analysis. Nevertheless, the machine may have
CPU clock, but KHPC has higher calculation performance.
maintenance servicing problems because it is a self-made com-
The 64-bit bus width seems to contribute to not only memory
puter. Even though the hardware cost is dramatically low, the
space, but also calculation performance in these calculations.
software license cost relatively increases for parallel use.
With 16 CPUs, however, BAKOO on Myrinet is faster. This
There are other several issues. However, the fact that compu-
means that the computation speed of KHPC with 32 CPUs
tation can be performed in several tens of hours instead of sev-
lowers below that with 16 CPUs unless a high-speed communi-
eral hundred hours will drastically change thinking toward
cation device is provided. The calculation results for one
simulations and simulation targets. This technology must be
CPU are also described as brief information. The computa-
observed by machinery manufacturers such as Komatsu.
tion time with one CPU was 15.5 hours, about twice that with
This study will be continued for both hardware and CFD
two CPUs.
analysis techniques. In addition to analysis by CFD, the
effectiveness of parallel computation with FEM and other
analyses will be verified.
References:
1) A.A. Amsden and F.H. Harlow, “The SMAC Method: A
Numerical Technique for Calculating Incompressible
Fluid Flows”, Los Alamos Scientific Laboratory Report,
LA-4370.
2) S.V. Patankar, “Numerical Heat Transfer and Fluid Flow”,
Hemisphere Pub, New York (1980).
3) S.V. Patanker and D.B. Spolding, “A Calculation Proce-
dure for Heat, Mass and Momentum Transfer in Three-
Fig. 12 Computational speeds of BAKOO and KHPC
Dimensional Parabolic Flows”, Int. J. Heat Mass Transfer,
7. Conclusion 15(1972) 1787.
4) Harten, A., “High resoluation schemes for hyperbolic
The following conclusions were obtained through this
conservation laws”, J. Comp. Phys. 49(1983) 357-393.
study.
1) A self-made parallel computer assembled by using compo- 5) Harten. A., “On a Class of High Resolution Total-
nents for general-purpose personal computers reduces com- Variation-Stable Finite-Difference Schemes”, SIAM J.
putation time more than 10 times using CFD software sold Numer. Anal., 21 (1984) 1-23.
on the market. 6) S.R. Chakravarthy and S. Osher, “A New Class of High
2) The address space of the 64-bit CPU can be expanded by
Accuracy TVD Schemes for Hyperbolic Conservation
CFD, offering the advantages of handling a large-scale
Laws”, AIAA Paper 85-0363 (1985).
model and a high calculation speed.
3) More CPUs beyond a certain number conversely lowers the 7) Robert L. McCoy “Modern Exterior Ballistics”, Schiffer
computation speed even though the number of CPUs is in- Publishing Ltd.
creased. A high-speed communication device to replace ○myrinet
Ethernet is mandatory and is an important key technology http://www.myricom.com
for parallel computation. ○Top500
4) A parallel computer with several thousand CPUs is a hot
http://www.top500.org
topic as “the world’s fastest machine.” However, the
limits of scalability emerge early (with fewer CPUs), such ○metacomp
as in the combination of general-purpose software and the http://www.metacomptech.com
analysis model used in this study. A system with a good ○linpack
cost vs. performance ratio needs be used suiting application As HPL (High-Performance LINPACK Benchmark)
work.
http://www.netlib.org/benchmark/hpl/
2005 ② VOL. 51 NO.156 High performance parallel computing for Computational Fluid
Dynamics (CFD)
― 6 ―
Introduction of the writer [A few words from the writer]
It is amazing that CFD computation that requires about a
Atsushi Itou dozen hours can be completed in one hour. What is more amaz-
Entered Komatsu in 2002 ing is that this can be accomplished by adding some functions to a
Currently belongs to Research and personal computer that can be bought by anyone. The advances
Development Center, in CPU and network technologies let us enjoy the Internet at home
Defense System Division through broadband technology. Applying these technologies,
simulations by supercomputing, which were once something to
Toshikazu Nakanishi gaze at in a shop window, are now becoming more readily avail-
able. We hear that parallel computers that are very low in price,
Doctor of Engineering
but very high in performance using CPUs contained in a
Entered Komatsu in 1986. Currently belongs
PlayStation (video game machine) are also sold. We are living in
to Research and Development Center,
Defense System Division an interesting age. No matter how fast simulations can be made,
they are meaningless unless design concepts and ideas are offered.
We need to produce better products quickly at low price by skill-
Takashi Mizuguchi
fully using these tools.
Entered Meitec Corp. in 1998.
Currently belongs to Research and
Development Center,
Defense System Division
Masatake Yoshida,
Doctor of Engineering
Currently belongs to Research Center for
Explosion Safety, National Institute of
Advanced Industrial Science and Technology,
as deputy director
Tei Saburi
Doctor of Engineering
Currently belongs to Research Center for
Explosion Safety, National Institute of
Advanced Industrial Science and Technology,
as research fellow
2005 ② VOL. 51 NO.156 High performance parallel computing for Computational Fluid
Dynamics (CFD)
― 7 ―
You can also read
