HONEYWELL PROCESS SOLUTIONS
KITS & ENHANCEMENTS CATALOG

                          August 2018
HONEYWELL PROCESS SOLUTIONS KITS & ENHANCEMENTS CATALOG - August 2018
Table of Contents

                           Kits & Enhancements Offerings

       Extend the life of your process control system.................3
       TDC/TPS Migration to ES-T......................................4
       TDC/TPS Migration to ESVT.....................................25
       Experion Upgrade Kits.........................................26
       ACE-T to ACE-T................................................27
       TDC/TPS Migration to Experion APP or ACE-T....................31
       Bundles: TDC Migration to Experion (ES-Ts and ESVT)...........33
       C300 Upgrade Kits EHPM Upgrade Kits...........................36
       Workstation Mounting Kits.....................................41
       Peripherals Kits..............................................45
       Power Supply Kits.............................................47
       Local Control Network (LCN) Kits..............................48
       Monitor Upgrade Kit — Desktop.................................51
       Monitor Upgrade Kits — Classic Console........................52
       Monitor Upgrade Kits — Z/EZ Console...........................56
       PMIO Firmware Upgrade Kits....................................60
       ENIM Upgrade Kits.............................................63
       FTE Network Kits..............................................64
       EHPM Upgrade Kits.............................................66
       SMM to TCMI upgrade...........................................67
       AxM/US/UxS/TPS Migration to ETN...............................68
       Hiway Gateway to Experion Hiway Bridge upgrades...............69
       TPS Node to Enhanced TPS Node.................................70
       EPKS Server...................................................71
       PCUS to ES-T Workstation Migration............................72
       GUS to ES-T Workstation upgrade kits..........................73
       TPS Convergence to ESVT upgrade kits..........................75
       PCUS to PCUS upgrade kits.....................................76
       LCN to ELCN upgrade kits......................................77

   2                            Honeywell Kits & Enhancements             August 2018
HONEYWELL PROCESS SOLUTIONS KITS & ENHANCEMENTS CATALOG - August 2018
Extend the life of your
process control system.

The Honeywell Kits and Enhancements (K&E) program provides packaged offerings for enhancing
Honeywell installed equipment. It provides a cost- effective, low risk upgrade path while preserving past
investments in Honeywell technology, allowing for better long-term support of the system along with
increased performance and added functionality available at specialized pricing. This is achieved through
creation of Kits and Enhancements delivered either as a complete new node or managed as an upgrade
providing all the required components along with instructions to guide the installation and minimize
downtime.

K&E Catalog August 2018 Edition
Honeywell currently offers over 200 different Kits and Enhancements for the extended longevity of your
control system. During the course of the year new kits may become available. View our online version of the
Kits and Enhancements Catalog for the most up-to-date information at honeywellprocess.com.

If you have any questions or in order to find out more about any of the Kits & Enhancements in this catalog or
any other, please contact your Account Manager or Field Service Representative.

        3                                 Honeywell Kits & Enhancements                   August 2018
HONEYWELL PROCESS SOLUTIONS KITS & ENHANCEMENTS CATALOG - August 2018
TDC/ TPS
Migration
to ES-T

            GUS/UGUS to ES-T in Classic Console
            Extend your legacy investment by upgrading Global User Station (GUS) Console
            to Experion®Process Knowledge System Experion Station TPS opening the full
            functionality and applications within Experion. Native Window and GUS graphics
            may be preserved or converted to Experion HMI web as all three are supported
            on the ES-T. The upgrade kit protects your investment in the existing hardware
            and software.

            Model          Qty.   Items
            TP-ZG2ES2       1     Workstation Tower, Raid1, 4GB Memory
                                  LCN Connection - LCNP4E, MAU Assembly, MAU Cable, Tee
                            1
                                  Connectors
                            1     22" non-touch FPD, Classic Lower Tier with IKB
                            1     Classic Console Base
                            1     Drive Enclosure for 1 Drive, Half Height Upper Tier
                            1     Complex Kit, Front, with IKB
                            1     Dual Network Interface Card (NIC) - onboard or additional
                            1     Drive, DVD and RW for Z, EZ and Classic
                            1     IKB/OEP Adapter
                                  Breaker/Connector Assembly for Peripheral Power from
                            1
                                  workstation
                            2     Display Port to VGA Port Adapter Cable
                            1     Video Cable
                            1     Cable Set 2M
                                  Software Licenses:
                            1     Windows Station COA
                            1     GUS to ES-C Conversion
                            1     Experion Station TPS Enabler License
                            1     ES-T
                            1     Microsoft SQL Client Access License

   4             Honeywell Kits & Enhancements                              August 2018
HONEYWELL PROCESS SOLUTIONS KITS & ENHANCEMENTS CATALOG - August 2018
TDC/TPS     GUS/UGUS to ES-T in Desktop Configuration
            Extend your legacy investment by upgrading Global User Station (GUS) Console
Migration   to Experion® Process Knowledge System Experion Station TPS opening the full

to ES-T     functionality and applications within Experion. Native Window and GUS graphics
            may be preserved or converted to Experion HMI web as all three are supported
            on the ES-T. The upgrade kit protects your investment in the existing hardware
            and software.

            Model          Qty.   Items
            TP-ZG2ES1       1     Workstation Tower, RAID1, 4GB Memory
                                  LCN Connection - LCNP4E, MAU Assembly, MAU Cable, Tee
                            1
                                  Connectors
                            1     Desktop Integrated Keyboard (IKB) with Trackball
                            1     Dual Network Interface Card (NIC) - onboard or additional
                            1     IKB/OEP Adapter
                            2     Display Port to VGA Port Adapter Cable
                            1     Video Cable
                            1     AC Power Cord
                                  Software Licenses:
                            1     Windows Station COA
                            1     GUS to ES-C conversion
                            1     Experion Station TPS Enabler License
                            1     ES-T
                            1     Microsoft SQL Client Access License

    5            Honeywell Kits & Enhancements                             August 2018
HONEYWELL PROCESS SOLUTIONS KITS & ENHANCEMENTS CATALOG - August 2018
TDC/TPS     GUS/UGUS to ES-T in EZ Console
            Extend your legacy investment by upgrading Global User Station (GUS) Console to
Migration   Experion® Process Knowledge System Experion Station TPS opening the full

to ES-T     functionality and applications within Experion. Native Window and GUS graphics
            may be preserved or converted to Experion HMI web as all three are supported on
            the ES-T. The upgrade kit protects your investment in the existing hardware
            and software.

            Model          Qty.   Items
            TP-ZG2ES3       1     Workstation Tower, RAID1, 4GB Memory
                                  LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                            1
                                  Tee Connectors
                            1     EZ Flat Panel Display
                            1     Z Medium Base
                            1     Z Console Mounting Kit (Upper) for EPKS Station
                            1     22" non-touch FPD
                            1     Dual Network Interface Card (NIC) - onboard or additional
                            1     Drive, DVD & RW for Z, EZ & Classic Console
                            1     EZ/IKB/1 Media Package
                            1     IKB/OEP Adapter
                                  Breaker/Connector Assembly for Peripheral Power
                            1
                                  from workstation
                            2     Display Port to VGA Port Adapter Cable
                            1     Video Cable
                            1     Annunciator Controller with Cable
                            1     Cable Set 2M
                                  Software Licenses:
                            1     Windows Station COA
                            1     GUS to ES-C Conversion
                            1     Experion Station TPS Enabler License
                            1     ES-T
                            1     Microsoft SQL Client Access License

    6            Honeywell Kits & Enhancements                             August 2018
HONEYWELL PROCESS SOLUTIONS KITS & ENHANCEMENTS CATALOG - August 2018
TDC/TPS     GUS/UGUS to ES-T in Z Console
            Extend your legacy investment by upgrading Global User Station (GUS) Console to
Migration   Experion® Process Knowledge System Experion Station TPS opening the full
to ES-T     functionality and applications within Experion. Native Window and GUS graphics
            may be preserved or converted to Experion HMI web as all three are supported on
            the ES-T. The upgrade kit protects your investment in the existing hardware
            and software.

            Model          Qty.   Items
            TP-ZG2ES4       1     Workstation Tower, RAID1, 4GB Memory
                                  LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                            1
                                  Tee Connectors
                            1     EZ Flat Panel Display
                            1     Z Medium Base
                            1     Z Console Mounting Kit (Upper) for EPKS Station
                            1     22" non-touch FPD
                            1     Dual Network Interface Card (NIC) - onboard or additional
                            1     Drive, DVD & RW for Z, EZ & Classic Console
                            1     EZ/IKB/1 Media Package
                            1     IKB/OEP Adapter
                                  Breaker/Connector Assembly for Peripheral Power
                            1
                                  from workstation
                            2     Display Port to VGA Port Adapter Cable
                            1     Video Cable
                            1     Annunciator Controller with Cable
                            1     Cable Set 2M
                                  Software Licenses:
                            1     Windows Station COA
                            1     GUS to ES-T in Z console conversion
                            1     Experion Station TPS Enabler License
                            1     ES-T
                            1     Microsoft SQL Client Access License

    7            Honeywell Kits & Enhancements                             August 2018
HONEYWELL PROCESS SOLUTIONS KITS & ENHANCEMENTS CATALOG - August 2018

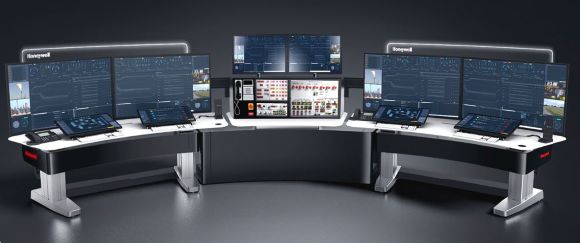

TDC/TPS     GUS/UGUS to ES-T in Icon Console with Quad FPDs
            Extend your legacy investment by upgrading Global User Station (GUS) Console to
Migration   Experion® Process Knowledge System Experion Station TPS opening the full

to ES-T     functionality and applications within Experion. Native Window and GUS graphics
            may be preserved or converted to Experion HMI web as all three are supported on
            the ES-T. The upgrade kit protects your investment in the existing hardware
            and software.

            Model          Qty.   Items
            TP-ZG2ES8       1     Tower Workstation, RAID1, Quad Video
                                  LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                            1
                                  Tee Connectors
                            4     21.3" non-touch FPD
                            1     Back Panel for Quad Screen Icon Console
                            1     Icon Console Electronics Enclosure
                            1     Icon Base Console, Curved Work Surface
                            1     Icon Console OEP Keyboard and Tray Assembly
                            1     Icon Series Blank Pop-Up Module
                            1     Icon Console OEP Chassis
                            1     Icon Console OEP Keyboard
                            1     MIM Trackball/Keypad Icon Series
                            1     Dual Network Interface Card (NIC) - onboard or additional
                            1     DVD/RW Drive, Icon Console
                            1     Icon Series Back Panel Mounting Assembly
                            1     OEP Adapter, Icon Console
                            1     4-Port USB Hub
                            1     Icon Cable/Label with Annunciator Kit
                            1     Cable Set 2M
                            1     Icon Series, Manual Input Module, Type 0
                                  Software Licenses:
                            1     Windows Station COA
                            1     GUS to ES-C Conversion
                            1     Experion Station TPS Enabler License
                            1     ES-T
                            1     Microsoft SQL Client Access License

    8            Honeywell Kits & Enhancements                               August 2018
HONEYWELL PROCESS SOLUTIONS KITS & ENHANCEMENTS CATALOG - August 2018

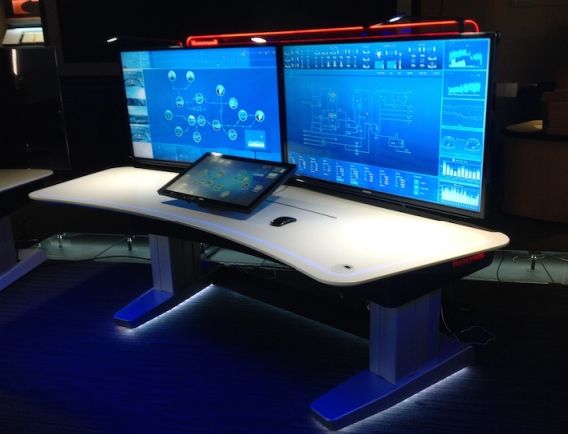

TDC/TPS     GUS/UGUS to ES-T in Icon Console with Dual FPDs
            Extend your legacy investment by upgrading Global User Station (GUS) Console
Migration   to Experion® Process Knowledge System Experion Station TPS opening the full
to ES-T     functionality and applications within Experion. Native Window and GUS graphics
            may be preserved or converted to Experion HMI web as all three are supported on
            the ES-T. The upgrade kit protects your investment in the existing hardware
            and software.

            Model          Qty.   Items
            TP-ZG2ES7       1     Workstation Tower, RAID1, 4GB Memory
                                  LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                            1
                                  Tee Connectors
                            2     21.3" non-touch FPD
                            1     Back Panel for Dual Screen Icon Console
                            1     Icon Console Electronics Enclosure
                            1     Icon Base Console, Curved Work Surface
                            1     Icon Console OEP Keyboard and Tray Assembly
                            1     Icon Series Blank Pop-Up Module
                            1     Icon Series, Manual Input Module, Type 0
                            1     Icon Console OEP Chassis
                            1     Icon Console OEP Keyboard
                            1     MIM Trackball/Keypad Icon Series
                            1     Dual Network Interface Card (NIC) - onboard or additional
                            1     DVD/RW Drive, Icon Console
                            1     Icon Series Back Panel Mounting Assembly
                            1     OEP Adapter, Icon Console
                            1     4-Port USB Hub
                            2     Display Port to VGA Port Adapter Cable
                            1     Icon Cable/Label with Annunciator Kit
                            1     Cable Set 2M
                                  Software Licenses:
                            1     Windows Station COA
                            1     GUS to ES-C Conversion
                            1     Experion Station TPS Enabler License
                            1     ES-T
                            1     Microsoft SQL Client Access License

    9            Honeywell Kits & Enhancements                               August 2018
HONEYWELL PROCESS SOLUTIONS KITS & ENHANCEMENTS CATALOG - August 2018
TDC/TPS     GUS/UGUS to ES-T in Z Console
            Extend your legacy investment by upgrading Global User Station (GUS) Console to
Migration   Experion® Process Knowledge System Experion Station TPS opening the full

to ES-T     functionality and applications within Experion. Native Window and GUS graphics
            may be preserved or converted to Experion HMI web as all three are supported on
            the ES-T. The upgrade kit protects your investment in the existing hardware
            and software.

            Model          Qty.   Items
            TP-ZG2ES4       1     Workstation Tower, RAID1, 4GB Memory
                                  LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                            1
                                  Tee Connectors
                            1     22" non-touch FPD with IKB Package, for Z Console
                            1     Z Console Base
                            1     Z Console Mounting Kit (Upper) for EPKS Station
                            1     Kit, Primary CRT Mounting
                            1     Dual Network Interface Card (NIC) - onboard or additional
                            1     Drive, DVD & RW for Z, EZ & Classic Console
                            1     IKB/OEP Adapter
                                  Breaker/Connector Assembly for Peripheral Power
                            1
                                  from workstation
                            2     Display Port to VGA Port Adapter Cable
                            1     Video Cable
                            1     Annunciator Controller with Cable
                            1     Cable Set 2M
                                  Software Licenses:
                            1     Windows Station COA
                            1     GUS to ES-C Conversion
                            1     Experion Station TPS Enabler License
                            1     ES-T
                            1     Microsoft SQL Client Access License

    10           Honeywell Kits & Enhancements                             August 2018
TDC/TPS     GUS to ES-T, Dell-based RAID1 Workstation
            Extend your legacy investment by upgrading Global User Station (GUS) Console to
Migration   Experion® Process Knowledge System Experion Station TPS opening the full

to ES-T     functionality and applications within Experion. Native Window and GUS graphics
            may be preserved or converted to Experion HMI web as all three are supported on
            the ES-T. The upgrade kit protects your investment in the existing hardware
            and software.

            Model          Qty.   Items
            TP-ZG2ETK       1     Workstation Tower, RAID1, 4GB Memory
                            1     PWA LCNP4E
                            1     Dual Network Interface Card (NIC) - onboard or additional
                                  Breaker/Connector Assembly for Peripheral Power
                            1
                                  from workstation
                            1     AC Power Cord
                            2     Display Port to VGA Port Adapter Cable
                            1     USB to Serial DB9 Adapter Cable
                            1     Workstation Upgrade Installation Instructions
                                  Software Licenses:
                            1     Windows Station COA
                            1     GUS to ES-C Conversion
                            1     Experion Station TPS Enabler License
                            1     ES-T
                            1     Microsoft SQL Client Access License
                            1     Utilities and Load Modules CD

            GUS to ES-T, Dell-based RAID1 Rack Ready Workstation
            Extend your legacy investment by upgrading Global User Station (GUS) Console to
            Experion® Process Knowledge System Experion Station TPS opening the full
            functionality and applications within Experion. Native Window and GUS graphics
            may be preserved or converted to Experion HMI web as all three are supported on
            the ES-T. The upgrade kit protects your investment in the existing hardware
            and software.

            Model          Qty.   Items
            TP-ZG2ER7      1      Dell R7920XL Rack Ready workstation, RAID1, Dual Video
                           1      PWA LCNP4E
                           1      AC Power Cord
                                  Software Licenses:
                           1      Windows Station COA
                           1      GUS to ES-C Conversion
                           1      Experion Station TPS Enabler License
                           1      ES-T
                           1      Microsoft SQL Client Access License
                           1      Utilities and Load Modules CD

    11           Honeywell Kits & Enhancements                             August 2018
TDC/TPS     US to ES-T in Icon Console with Dual FPDs
            Upgrade your US to Experion stations connected to the Local Control Network (LCN)
Migration   allowing evolution to current system software while valuing the existing LCN. The

to ES-T     upgrade protects the investment in past hardware as well as in operator graphics while
            adding new functionality and applications available within Experion which will lead
            to improved site processes and increased productivity.

             Model          Qty.   Items
             TP-ZUSES7       1     Workstation Tower, RAID1, 4GB Memory
                                   LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                             1
                                   Tee Connectors
                             2     21.3" non-touch touch screen FPD, Console Mount Icon
                             1     Back Panel for Dual Screen Icon Console
                             1     Icon Console OEP Chassis
                             1     Icon Series Back Panel Mounting Assembly
                             1     Icon Console OEP Keyboard
                             1     Icon Console Electronics Enclosure
                             1     Icon Base Console, Curved Work Surface
                             1     Icon Console OEP Keyboard and Tray Assembly
                             1     Icon Series Blank Pop-Up Module
                             1     Icon Series, Manual Input Module, Type 0
                             1     Icon Cable/Label with Annunciator Kit
                             1     DVD/RW Drive, Icon Console
                             1     OEP Adapter, Icon Console
                             1     MIM Trackball/Keypad Icon Series
                             1     Dual Network Interface Card (NIC) - onboard or additional
                             1     4-Port USB Hub
                             2     Display Port to VGA Port Adapter Cable
                             1     Cable Set 2M
                                   Software Licenses:
                             1     Windows Station COA
                             1     UxS/US/UWS to ES-C Conversion
                             1     Experion Station TPS Enabler License
                             1     ES-T
                             1     Microsoft SQL Client Access License

    12            Honeywell Kits & Enhancements                               August 2018
TDC/TPS     US to ES-T in Icon Console with Quad FPDs
            Upgrade your US to Experion stations connected to the Local Control Network (LCN)
Migration   allowing evolution to current system software while valuing the existing LCN. The

to ES-T     upgrade protects the investment in past hardware as well as in operator graphics while
            adding new functionality and applications available within Experion which will lead
            to improved site processes and increased productivity.

             Model          Qty.   Items
             TP-ZUSES8       1     Tower Workstation, RAID1, Quad Video
                                   LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                             1
                                   Tee Connectors
                             4     21.3" non-touch screen FPD, Console Mount Icon
                             1     Back Panel for Quad Screen Icon Console
                             1     Icon Console OEP Chassis
                             1     Icon Series Back Panel Mounting Assembly
                             1     Icon Console OEP Keyboard
                             1     Icon Console Electronics Enclosure
                             1     Icon Base Console, Curved Work Surface
                             1     Icon Console OEP Keyboard and Tray Assembly
                             1     Icon Series Blank Pop-Up Module
                             1     Icon Series, Manual Input Module, Type 0
                             1     Icon Cable/Label with Annunciator Kit
                             1     DVD/RW Drive, Icon Console
                             1     OEP Adapter, Icon Console
                             1     MIM Trackball/Keypad Icon Series
                             1     Dual Network Interface Card (NIC) - onboard or additional
                             1     4-Port USB Hub
                             1     Cable Set 2M
                                   Software Licenses:
                             1     Windows Station COA
                             1     UxS/US/UWS to ES-C Conversion
                             1     Experion Station TPS Enabler License
                             1     ES-T
                             1     Microsoft SQL Client Access License

    13            Honeywell Kits & Enhancements                               August 2018
TDC/TPS     US/UxS/AM/AxM to ES-T in Desktop Configuration
            Upgrade your US/UxS/AM/AxM to Experion stations connected to the Local Control
Migration   Network (LCN) allowing evolution to current system software while valuing the

to ES-T     existing LCN. The upgrade protects the investment in past hardware as well as in
            operator graphics while adding new functionality and applications available within
            Experion which will lead to improved site processes and increased productivity.

             Model              Qty.   Items
             TP-ZUSES1           1     Workstation Tower, RAID1 or No RAID, 4GB Memory
             HP Z440 LLP
                                       LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
             TP-ZUSER2           1
                                       Tee Connectors
            Dell R7920XL RAID    1     Dual Network Interface Card (NIC) - HP Z440 only
                                       Desktop Integrated Keyboard (IKB) with Trackball or Opera-
                                 1
                                       tor Entry Panel (OEP)
                                       Software Licenses:
                                 1     Windows 10 COA
                                 1     UxS/US/UWS to ES-T Conversion
                                 1     Experion Station TPS Enabler License
                                 1     Experion Station Console License
                                 1     Microsoft SQL Client Access License

    14              Honeywell Kits & Enhancements                               August 2018
TDC/TPS     US to ES-T in Classic Console
            Upgrade your US to Experion stations connected to the Local Control Network (LCN)
Migration   allowing evolution to current system software while valuing the existing LCN. The

to ES-T     upgrade protects the investment in past hardware as well as in operator graphics while
            adding new functionality and applications available within Experion which will lead
            to improved site processes and increased productivity.

             Model          Qty.   Items
             TP-ZUSES2       1     HP Z440 LLLP Workstation Tower, RAID1, 4GB Memory
                                   LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                             1
                                   Tee Connectors
                             1     Non-touch 22" FPD, Classic Lower IKB
                             1     Classic Console Base
                             1     Drive Enclosure For 1 Drive, Half Height Upper Tier
                             1     Dual Network Interface Card (NIC) - onboard or additional
                             1     Drive, DVD and RW for Z, EZ and Classic Console
                             1     Complex Kit, Front, with IKB
                             1     IKB/OEP Adapter
                                   Breaker/Connector Assembly for Peripheral Power
                             1
                                   from workstation
                             2     Display Port to VGA Port Adapter Cable
                             1     Video Cable
                             1     Cable Set 2M
                                   Software Licenses:
                             1     Windows Station COA
                             1     UxS/US/UWS to ES-C Conversion
                             1     Experion Station TPS Enabler License
                             1     ES-T
                             1     Microsoft SQL Client Access License

    15            Honeywell Kits & Enhancements                               August 2018
TDC/TPS     US to ES-T in Classic Console with Touchscreen
            Upgrade your US to Experion stations connected to the Local Control Network (LCN)
Migration   allowing evolution to current system software while valuing the existing LCN. The

to ES-T     upgrade protects the investment in past hardware as well as in operator graphics while
            adding new functionality and applications available within Experion which will lead
            to improved site processes and increased productivity.

             Model          Qty.   Items
             TP-ZU2ET2       1     Workstation Tower, RAID1, 4GB Memory
                                   LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                             1
                                   Tee Connectors
                             1     22" Touch screen FPD, Classic Lower with TS IKB
                             1     Classic Console Base
                             1     Drive Enclosure for 1 Drive, Half Height Upper Tier
                             1     Complex Kit, Front, with IKB
                             1     Dual Network Interface Card (NIC) - onboard or additional
                             1     Drive, DVD and RW for Z, EZ and Classic Console
                             1     IKB/OEP Adapter
                                   Breaker/Connector Assembly for Peripheral Power from
                             1
                                   workstation
                             2     Display Port to VGA Port Adapter Cable
                             1     Video Cable
                             1     Cable Set 2M
                                   Software Licenses:
                             1     Windows Station COA
                             1     UxS/US/UWS to ES-C Conversion
                             1     Experion Station TPS Enabler License
                             1     ES-T
                             1     Microsoft SQL Client Access License

    16            Honeywell Kits & Enhancements                               August 2018
TDC/TPS     US to ES-T in EZ Console
            Upgrade your US to Experion stations connected to the Local Control Network (LCN)
Migration   allowing evolution to current system software while valuing the existing LCN. The

to ES-T     upgrade protects the investment in past hardware as well as in operator graphics while
            adding new functionality and applications available within Experion which will lead
            to improved site processes and increased productivity.

             Model          Qty.   Items
             TP-ZUSES3       1     Workstation Tower, RAID1, 4GB Memory
                                   LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                             1
                                   Tee Connectors
                             1     22" non-touch FPD EZ
                             1     Z Console Base
                             1     EZ Console Single FPD Mounting
                             1     Z Console Mounting Kit (Upper) for EPKS Station
                             1     Dual Network Interface Card (NIC) - onboard or additional
                             1     Drive, DVD & RW for Z, EZ & Classic Console
                             1     EZ/IKB/1 Media Package
                             1     IKB/OEP Adapter
                                   Breaker/Connector Assembly for Peripheral Power from
                             1
                                   workstation
                             2     Display Port to VGA Port Adapter Cable
                             1     Video Cable
                             1     Annunciator Controller with Cable
                             1     Cable Set 2M
                                   Software Licenses:
                             1     Windows Station COA
                             1     UxS/US/UWS to ES-C Conversion
                             1     Experion Station TPS Enabler License
                             1     ES-T
                             1     Microsoft SQL Client Access License

    17            Honeywell Kits & Enhancements                               August 2018
TDC/TPS     US to ES-T in EZ Console with Touchscreen
            Upgrade your US to Experion stations connected to the Local Control Network (LCN)
Migration   allowing evolution to current system software while valuing the existing LCN. The

to ES-T     upgrade protects the investment in past hardware as well as in operator graphics while
            adding new functionality and applications available within Experion which will lead
            to improved site processes and increased productivity.

             Model          Qty.   Items
             TP-ZU2ET3       1     Workstation Tower, RAID1, 4GB Memory
                                   LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                             1
                                   Tee Connectors
                             1     22" FPD with Touchscreen, EZ
                             1     Z Medium Base
                             1     Console Base Accumulation Kit, Medium
                             1     Z Console Mounting Kit (Upper) for EPKS Station
                             1     EZ Console Single FPD Mounting
                             1     Dual Network Interface Card (NIC) - onboard or additional
                             1     Drive, DVD & RW for Z, EZ & Classic Console
                             1     IKB/OEP Adapter
                                   Breaker/Connector Assembly for Peripheral Power from
                             1
                                   workstation
                             2     Display Port to VGA Port Adapter Cable
                             1     Video Cable
                             1     Cable Hole Cover
                             1     Annunciator Controller with Cable
                             1     Cable Set 2M
                                   Software Licenses:
                             1     Windows Station COA
                             1     UxS/US/UWS to ES-C Conversion
                             1     Experion Station TPS Enabler License
                             1     ES-T
                             1     Microsoft SQL Client Access License

    18            Honeywell Kits & Enhancements                               August 2018
TDC/TPS     US to ES-T in Z Console
            Upgrade your US to Experion stations connected to the Local Control Network (LCN)
Migration   allowing evolution to current system software while valuing the existing LCN. The

to ES-T     upgrade protects the investment in past hardware as well as in operator graphics while
            adding new functionality and applications available within Experion which will lead
            to improved site processes and increased productivity.

             Model          Qty.   Items
             TP-ZUSES4       1     Workstation Tower, RAID1, 4GB Memory
                                   LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                             1
                                   Tee Connectors
                             1     22" non-touch FPD with IKB Package, for Z Console
                             1     Z Console Base
                             1     Kit, Primary CRT Mounting
                             1     Z Console Mounting Kit (Upper) for EPKS Station
                             1     Dual Network Interface Card (NIC) - onboard or additional
                             1     Drive, DVD & RW for Z, EZ & Classic Console
                             1     IKB/OEP Adapter
                                   Breaker/Connector Assembly for Peripheral Power from
                             1
                                   Workstation
                             2     Display Port to VGA Port Adapter Cable
                             1     Video Cable
                             1     Annunciator Controller with Cable
                             1     Cable Set 2M
                                   Software Licenses:
                             1     Windows Station COA
                             1     UxS/US/UWS to ES-C Conversion
                             1     Experion Station TPS Enabler License
                             1     ES-T
                             1     Microsoft SQL Client Access License

    19            Honeywell Kits & Enhancements                               August 2018
TDC/TPS     US to ES-T in Z Console with Touchscreen
            Upgrade your US to Experion stations connected to the Local Control Network (LCN)
Migration   allowing evolution to current system software while valuing the existing LCN. The

to ES-T     upgrade protects the investment in past hardware as well as in operator graphics while
            adding new functionality and applications available within Experion which will lead
            to improved site processes and increased productivity.

             Model          Qty.   Items
             TP-ZU2ET4       1     Workstation Tower, RAID1, 4GB Memory
                                   LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                             1
                                   Tee Connectors
                             1     22" touch screen FPD with IKB Package, for Z Console
                             1     Z Console Base
                             1     Kit, Primary CRT Mounting
                             1     Z Console Mounting Kit (Upper) for EPKS Station
                             1     IR Touchscreen for Z Console
                             1     Dual Network Interface Card (NIC) - onboard or additional
                             1     Drive, DVD & RW for Z, EZ & Classic Console
                             1     IKB/OEP Adapter
                                   Breaker/Connector Assembly for Peripheral Power from
                             1
                                   workstation
                             2     Display Port to VGA Port Adapter Cable
                             1     Video Cable
                             1     Annunciator Controller with Cable
                             1     Cable Set 2M
                                   Software Licenses:
                             1     Windows Station COA
                             1     UxS/US/UWS to ES-C Conversion
                             1     Experion Station TPS Enabler License
                             1     ES-T
                             1     Microsoft SQL Client Access License

    20            Honeywell Kits & Enhancements                               August 2018
TDC/TPS     US to ES-T in Icon Console with Quad FPDs with Touchscreen
            Upgrade your US to Experion stations connected to the Local Control Network (LCN)
Migration   allowing evolution to current system software while valuing the existing LCN. The

to ES-T     upgrade protects the investment in past hardware as well as in operator graphics while
            adding new functionality and applications available within Experion which will lead
            to improved site processes and increased productivity.

             Model          Qty.   Items

             TP-ZU2ET7       1     Workstation Tower, RAID1, 4GB Memory
                                   LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                             1
                                   Tee Connectors
                             4     21.3" touch screen FPD
                             1     Icon Console OEP Chassis
                             1     Icon Base Console, Curved Work Surface
                             1     Icon Console OEP Keyboard
                             1     Icon console OEP Keyboard and Tray Assembly
                             1     Back Panel for Dual Screen Icon Console
                             1     Icon Series Blank Pop-Up Module
                             1     Icon Series Back Panel Mounting Assembly
                             1     Icon Console Electronics Enclosure
                             1     Icon Cable/Label with Annunciator Kit
                             1     Icon Series, Manual Input Module, Type 0
                             1     MIM Trackball/Keypad Icon Series
                             1     Dual Network Interface Card (NIC) - onboard or additional
                             1     DVD/RW Drive, Icon Console
                             1     OEP Adapter, Icon Console
                             1     4-Port USB Hub
                             2     Display Port to VGA Port Adapter Cable
                             1     Cable Set 2M
                                   Software Licenses:
                             1     Windows Station COA
                             1     UxS/US/UWS to ES-C Conversion
                             1     Experion Station TPS Enabler License
                             1     ES-T
                             1     Microsoft SQL Client Access License

    21            Honeywell Kits & Enhancements                               August 2018
TDC/TPS     US to ES-T in Icon Console with Quad FPDs with Touchscreen
            Upgrade your US to Experion stations connected to the Local Control Network (LCN)
Migration   allowing evolution to current system software while valuing the existing LCN. The

to ES-T     upgrade protects the investment in past hardware as well as in operator graphics while
            adding new functionality and applications available within Experion which will lead
            to improved site processes and increased productivity.

             Model          Qty.   Items
             TP-ZU2ET8       1     Workstation Tower, RAID1, 4GB Memory
                                   LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                             1
                                   Tee Connectors
                             4     21.3" touch screen FPD
                             1     Icon Console OEP Chassis
                             1     Icon Base Console, Curved Work Surface
                             1     Icon Console OEP Keyboard
                             1     Icon console OEP Keyboard and Tray Assembly
                             1     Back Panel for Dual Screen Icon Console
                             1     Icon Series Blank Pop-Up Module
                             1     Icon Series Back Panel Mounting Assembly
                             1     Icon Console Electronics Enclosure
                             1     Icon Cable/Label with Annunciator Kit
                             1     Icon Series, Manual Input Module, Type 0
                             1     MIM Trackball/Keypad Icon Series
                             1     Dual Network Interface Card (NIC) - onboard or additional
                             1     DVD/RW Drive, Icon Console
                             1     OEP Adapter, Icon Console
                             1     4-Port USB Hub
                             2     Display Port to VGA Port Adapter Cable
                             1     Cable Set 2M
                                   Software Licenses:
                             1     Windows Station COA
                             1     UxS/US/UWS to ES-C Conversion
                             1     Experion Station TPS Enabler License
                             1     ES-T
                             1     Microsoft SQL Client Access License

    22            Honeywell Kits & Enhancements                               August 2018
TDC/TPS     PCUS to ES-T Upgrade, RAID1 Workstation
            Upgrade your US to Experion stations connected to the Local Control Network (LCN)
Migration   allowing evolution to current system software while valuing the existing LCN. The

to ES-T     upgrade protects the investment in past hardware as well as in operator graphics
            while adding new functionality and applications available within Experion which will
            lead to improved site processes and increased productivity.

             Model           Qty.   Items

             TP-ZP2ET6        1     HP or Dell Workstation Tower, RAID1, 4GB Memory
             Dell T5820XL
                              1     PWA LCNP4E
             TP-ZP2ER4
             Dell R7920XL
                              1     Dual Network Interface Card (NIC) - onboard or additional
             TP-ZP2ET5              Breaker/Connector Assembly for Peripheral Power
                              1
             HP Z440 LLP
                                    from workstation
                              1     USB to Serial DB9 Adapter Cable
                                    Software Licenses:
                              1     Windows Station COA
                              1     Experion Console Station License
                              1     Experion Station TPS Enabler License
                              1     Microsoft SQL Client Access License

            Dual PCUS to Single ES-T Upgrade, RAID1 Workstation
            Upgrade your US to Experion stations connected to the Local Control Network (LCN)
            allowing evolution to current system software while valuing the existing LCN. The
            upgrade protects the investment in past hardware as well as in operator graphics
            while adding new functionality and applications available within Experion which will
            lead to improved site processes and increased productivity. Added value provided for
            exchange of two US nodes in dual PCUS configuration for single ES-T.

             Model           Qty.   Items

             TP-Z2P2T6         1    HP or Dell Workstation Tower, RAID1, 4GB Memory
             Dell T5820XL
                               1    PWA LCNP4e2
             TP-Z2P2R4
             Dell R7920XL
                               1    Dual Network Interface Card (NIC) - onboard or additional
             TP-Z2P2T5              Breaker/Connector Assembly for Peripheral Power
                               1
             HP Z440 LLP
                                    from workstation
                               1    USB to Serial DB9 Adapter Cable
                                    Software Licenses:
                               1    Windows OS COA
                               1    Experion Console Station License
                               1    Experion Station TPS Enabler License
                               1    Microsoft SQL Client Access License

    23             Honeywell Kits & Enhancements                             August 2018
TDC/TPS     Dual PCUS to Single ES-T Upgrade, RAID1 Workstation
            Upgrade your US to Experion stations connected to the Local Control Network (LCN)
Migration   allowing evolution to current system software while valuing the existing LCN. The

to ES-T     upgrade protects the investment in past hardware as well as in operator graphics
            while adding new functionality and applications available within Experion which will
            lead to improved site processes and increased productivity. Added value provided for
            exchange of two US nodes in dual PCUS configuration for single ES-T.

             Model          Qty.   Items
             TP-Z2P2T6       1     Dell T5820XL workstation Tower, RAID1, 8GB Memory
                             1     PWA LCNP4E2
                             1     Dual Network Interface Card (NIC) - onboard or additional
                                   Breaker/Connector Assembly for Peripheral Power
                             1
                                   from workstation
                                   Software Licenses:
                             1     Windows Station COA
                             1     Experion Console Station License
                             1     Experion Station TPS Enabler License
                             1     Microsoft SQL Client Access License

    24            Honeywell Kits & Enhancements                             August 2018
TDC/TPS
Migration
to ESVT

            AM to Redundant ESVT, Base Tower Servers*
            Install the Experion server with Local Control Network (LCN) connection (ESVT)
            required for full functionality of your LCN connected Experion stations allowing
            evolution to current system software while valuing the existing LCN. Upgrade
            protects investment in past hardware while opening up the full capabilities of the
            Experion system.

             Model          Qty.   Items
             TP-ZAMEV4        2    Standard Level Tower Server
                                   LCN Connection - LCNP4E, MAU Assembly, MAU Cable,
                              2
                                   Tee Connectors
                              4    Memory Module 2GB
                                   Software Licenses:
                              2    Windows Server COA
                              1    AM to ESVT SESP Conversion
                              1    Experion Database Base Software
                              1    Experion Redundancy Base Software
                              1    Experion Server TPS Enabler License
                              2    Microsoft SQL Client Access License

            *Customer may upgrade to a Performance Level RAID5 Tower or Rack Ready Server.

   25             Honeywell Kits & Enhancements                                August 2018
Experion Upgrade Kits

               Experion Station, RAID1 Rack Ready Workstation, No LCN Connection
               Customers with Experion stations that require platform replacement can benefit
               from the advantages of these upgrades which are an economical way to transition
               away from any of the earlier platforms and provide the current computer platforms
               offered today with a currently supported operating system. Customers who are
               looking for increased performance from their workstations platforms can benefit
               today by upgrading their computer platforms.

                Model                  Qty.   Items
                TP-ZESCR7               1     Dell R7920XL Rack Ready workstations, RAID1, Dual Video
                                        1     AC Power Cord
                                              Software Licenses:
                                        1     Windows Station COA

               ESVT to ESVT, RAID5 Rack Ready Server
               These K&E kits provide an upgrade of the hardware to current platforms which
               allows for current operating system software and Honeywell applications to be
               used for continued support at the best levels along with the enhanced
               performance of the latest hardware technology.

               Model                   Qty.   Items
               TP-ZE2ER9                1     Performance Level Rack Ready Server, RAID5
               HP DL360 G9
                                        1     PWA LCNP4e2
               TP-ZE2ET1
               Dell T330 Performance    1     VGA Port Saver
               TP-ZE3ER2                2     Memory Module 2GB
               Dell R740XL

                                        1     ESVT Upgrade Installation Instructions
                                              Software Licenses:
                                        1     Windows Server COA

   26                   Honeywell Kits & Enhancements                                  August 2018
Experion       ACE-T to ACE-T, RAID5 Rack Ready Server
               These K&E kits provide an upgrade of the hardware to current platforms which
Upgrade Kits   allows for current operating system software and Honeywell applications to be
               used for continued support at the best levels along with the enhanced
               performance of the latest hardware technology.

                Model                   Qty.   Items

                TP-ZAC2R5                1     HP or Dell Rack Ready Server, RAID 5
                HP DL360 G9              1     ACE-T Upgrade Installation Instructions
                TP-ZAC2L2
                                         1     PWA LCNP4e2
                Dell T330

                TP-ZAC2T2                1     VGA Port Saver
                Dell T330 Performance
                                         2     Memory Module 2GB
                TP-ZAC2R3
                Dell R740XL                    Software Licenses:
                                         1     Windows Server COA

               ES-T to ES-T, RAID1 Workstation
               These K&E kits provide an upgrade of the hardware to current platforms which
               allows for current operating system software and Honeywell applications to be
               used for continued support at the best levels along with the enhanced
               performance of the latest hardware technology.

                Model                   Qty.   Items

                TP-ZE2ETL                1     Workstation Tower, RAID1 or No RAID, 8GB Memory
                Dell T5820XL
                                         1     PWA LCNP4E2
               TP-ZE3ER1
                                         1     Dual Network Interface Card (NIC) - onboard or additional
               Dell R7920XL RAID

               TP-ZE2EH2                       Breaker/Connector Assembly for Peripheral Power from
                                         1
               HP Z440 LLP
                                               Workstation
                                         2     Display Port to VGA Port Adapter Cable
                                         1     USB to Serial DB9 Adapter Cable
                                         1     AC Power Cord
                                         1     Workstation Upgrade Installation Instructions
                                               Software Licenses:
                                         1     Windows OS COA

    27                  Honeywell Kits & Enhancements                                    August 2018
Experion       Experion Station Upgrade, RAID1 Workstation, No LCN Connection
               These K&E kits provide an upgrade of the hardware to current platforms which
Upgrade Kits   allows for current operating system software and Honeywell applications to be
               used for continued support at the best levels along with the enhanced
               performance of the latest hardware technology.

                Model         Qty.   Items
                TP-ZESCD3      1     Dell T5820XL Workstation Tower, RAID1, 8GB Memory
                               1     Dual Network Interface Card (NIC) - onboard or additional
                                     Software Licenses:
                               1     Windows Station COA

               Experion Station Upgrade, RAID1 Workstation, No LCN Connection
               These K&E kits provide an upgrade of the hardware to current platforms which
               allows for current operating system software and Honeywell applications to be
               used for continued support at the best levels along with the enhanced
               performance of the latest hardware technology.

                Model         Qty.   Items
                TP-ZESCH3      1     HP Z440 Workstation Tower, RAID1, 4GB Memory
                               1     Dual Network Interface Card (NIC) - onboard or additional
                                     Software Licenses:
                               1     Windows Station COA

               Experion Server Upgrade, RAID5 Rack Ready Server, No LCN
               Connection
               These K&E kits provide an upgrade of the hardware to current platforms which
               allows for current operating system software and Honeywell applications to be
               used for continued support at the best levels along with the enhanced
               performance of the latest hardware technology.

                Model         Qty.   Items
                TP-ZESVR3      1     HP DL360 Performance Level Rack Ready Server, RAID5
                               2     Memory Module for Server for 8GB total installed
                                     Software Licenses:
                               1     Windows Server COA

    28                   Honeywell Kits & Enhancements                            August 2018
Experion       Experion Server Upgrade, RAID5 Rack Ready Server, No LCN Connection
               These K&E kits provide an upgrade of the hardware to current platforms which
Upgrade Kits   allows for current operating system software and Honeywell applications to be
               used for continued support at the best levels along with the enhanced performance
               of the latest hardware technology.

               Model                   Qty.   Items
               TP-ZESVR4                1     HP or Dell Performance Level Rack Ready Server, RAID 5
               HP DL360 G9

               TP-ZESVL2                1     Memory Module 2GB
               Dell T330 RAID           1     Software Licenses:
               TP-ZESVT3
                                        2     Windows Server COA
               Dell T330 Performance

               TP-ZESVR2
               Dell R330XL

               UPG, Experion APP to Experion APP Providing HP RAID5 Performance
               Level Rack Ready Server
               These K&E kits provide an upgrade of the hardware to current platforms which
               allows for current operating system software and Honeywell applications to be
               used for continued support at the best levels along with the enhanced performance
               of the latest hardware technology.

               Model                   Qty.   Items
               TP-ZEAUR3                1     Performance Level Server
               HP DL360 Gen9

               TP-ZEAUL1                1     PWA LCNP4e2
               Dell T330 RAID
                                        2     2GB Memory Module
               TP-ZEAUT1
               Dell T330 Performance          Software Licenses:
               TP-ZEAUR4                1     Windows Server COA
               Dell R740XL

               ESVT to ESVT upgrade kits

               Model                   Qty.   Items
               TP-ZE2ER6                1     SERVER PC HP DL 360P Gen8 RAID5 1U RACK Upgrade kit
                                        1     PWA LCNP4e2
                                        1     4GB ECC 2R RDIMM MEM EXP (1x4GB)
                                        1     Trade-in Instructions for Upgrade Kits

    29                  Honeywell Kits & Enhancements                                  August 2018
TDC/TPS Migration
to Experion APP
or ACE-T

             TPS APP to Experion APP, RAID5 Rack Ready Server
             These K&E kits provide an upgrade of the hardware to current platforms which
             allows for current operating system software and Honeywell applications to be
             used for continued support at the best levels along with the enhanced
             performance of the latest hardware technology.

              Model                   Qty.   Items
              TP-ZA2ER4                1     HP or Dell Performance Level Rack Ready Server, RAID 5
              HP DL360 G9

              TP-ZA2EL1                1     PWA LCNP4e2
              Dell T330                1     VGA Port Saver
              TP-ZA2ET1
                                       2     Memory Module 2GB
              Dell T330 Performance

              TP-ZA2ER5                1     Rework Instructions for VGA Port Saver
              Dell R740XL
                                       1     TPS APP to Experion APP Installation Instructions
                                             Software Licenses:
                                       1     Windows Server COA
                                       1     Experion APP Base Software

             *Customer may upgrade to a Performance Level RAID5 Tower or Rack Ready Server.

  30                  Honeywell Kits & Enhancements                                   August 2018
Bundles:
TDC Migration
to Experion
(ES-Ts and ESVT)

               TDC to EPKS Bundle: 3 ES-Ts in Classic Consoles + ESVT
               Migrate multiple nodes to Experion servers and stations connected to the Local
               Control Network (LCN) allowing evolution to current system software while valuing
               the existing LCN. The upgrade protects the investment in past hardware and
               engineering while adding new functionality and applications available within
               Experion which will lead to improved site processes and increased productivity.

                Model         Qty.   Items
                TP-ZUEBD2      3     Workstation Tower, RAID1, 4GB Memory
                               1     Standard Level Tower Server
                                     LCN Connection - LCNP4E, MAU Assembly, MAU Cable, Tee
                               3
                                     Connectors for ES-Ts
                                     LCN Connection - LCNP4E, MAU Assembly, MAU Cable, Tee
                               1
                                     Connectors for ESVT
                               3     22" non-touch FPD, Classic Lower IKB
                               1     21.3" non-touch FPD, Flat Panel
                               3     US to ES-T Upgrade with Classic Console
                               1     US to ESVT Upgrade, Base Tower Server
                               3     Drive Enclosure for 1 Drive, Half Height Upper
                               3     M/Pod for GUS,
                               3     Complex Kit, Front, with IKB
                                     Drive, DVD and RW for Z, EZ and Classic
                               3
                                     x3 IKB/OEP Adapter
                                     Breaker/Connector Assembly for Peripheral Power from
                               3
                                     Workstation
                               3     Blank Panel, 5.22In (13.26Cm) 3U Black
                               6     Display Port to VGA Port Adapter Cable
                               3     Video Cable
                               3     Air Baffle
                               2     Memory Module 2GB
                               3     Cable Set 2M

               Continued next page >

   31               Honeywell Kits & Enhancements                              August 2018
Bundles:           Model            Qty.   Items

TDC Migration      TP-ZUEBD2
                   (continued...)
                                     1
                                           Software Licenses:
                                           Windows Server COA
to Experion                          3     Windows Station COA
(ES-Ts and ESVT)                     3     UxS/US/UWS to ES-C Conversion
                                     1     US to ESVT Conversion
                                     3     Experion Station TPS Enabler License
                                     1     Experion Database Base Software
                                     1     Experion Server TPS Enabler License
                                     3     ES-T
                                     4     Microsoft SQL Client Access License

    32                  Honeywell Kits & Enhancements                             August 2018
C300 Upgrade Kits

              UHIO CB/EC Upgrade Kit with C300, CF9, Redundant UIO
              The C300 upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
              advanced technology of the Experion® Process Knowledge System (PKS) which
              ensures improved operations and control performance. With C300, users can extend
              the life of their automation assets and improve their plant efficiency through
              incremental modernization and upgrades to the current Experion controller offering.

               Model         Qty.     Items
               CC-ZHR010       1      C300 Controller Module
                               1      Control Firewall Module
                               2      Universal I/O Module
                               1      Horizontal C300/CF9 IOTA
                               1      Horizontal UHIO IOTA
                               1      Horizontal Backplane
                               4      Jumper kit - Gray Jumpers

              UHIO CB/EC kit with C300, CF9, Non Redundant UIO
              The C300 upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
              advanced technology of the Experion® Process Knowledge System (PKS) which
              ensures improved operations and control performance. With C300, users can extend
              the life of their automation assets and improve their plant efficiency through
              incremental modernization and upgrades to the current Experion controller offering.

               Model           Qty.    Items
               CC-ZHRN010       1      C300 Controller Module
                                1      Control Firewall Module
                                1      Universal I/O Module
                                1      Horizontal C300/CF9 IOTA
                                1      Horizontal UHIO IOTA
                                1      Horizontal Backplane
                                4      Jumper kit - Gray Jumpers

  33               Honeywell Kits & Enhancements                             August 2018
UHIO CB/EC Kit with 2 Sets of Redundant UIO
C300 Upgrade   The C300 upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
Kits           advanced technology of the Experion® Process Knowledge System (PKS) which
               ensures improved operations and control performance. With C300, users can extend
               the life of their automation assets and improve their plant efficiency through
               incremental modernization and upgrades to the current Experion controller offering.

                Model         Qty.   Items
                CC-ZHR020       4    Universal I/O Module
                                2    Horizontal UHIO IOTA
                                1    Horizontal Backplane

               UHIO CB/EC Kit with 2 Sets of Non Redundant UIO
               The C300 upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
               advanced technology of the Experion® Process Knowledge System (PKS) which
               ensures improved operations and control performance. With C300, users can extend
               the life of their automation assets and improve their plant efficiency through
               incremental modernization and upgrades to the current Experion controller offering.

                Model         Qty.   Items
                CC-ZHN020       2    Universal I/O Module
                                2    Horizontal UHIO IOTA
                                1    Horizontal Backplane

   34               Honeywell Kits & Enhancements                             August 2018
C300 PCNT01 to PCNT02 Upgrade
C300 Upgrade   This upgrade kit contains installation instructions to upgrade from C300 PCNT01
Kits           to PCNT02 (with extended memory). The C300 Controller CC-PCNT02 is a
               fully-compatible replacement for C300 CC-PCNT01. Upgrade Kit configuration.

                Model         Qty.   Items
                CC-ZC3002       1    C300 PCNT01 to PCNT02 Upgrade kit
                                1    Trade-in Instructions for Upgrade Kits
                                     C300 PCNT01 to PCNT02 Upgrade
                                1
                                     Kit Instructions

               C200/C200E upgrade to Experion C300 controller for Rockwell1756 IO
               modules
               This upgrade kit allows the Honeywell C200/C200E controller with Series A and/or
               Rockwell's 1756 IO modules to be upgraded to the Experion C300 Controller with
               Series A and/or Rockwell's 1756 IO modules for the C300 Horizontal Mounting Kit in
               cabinet.

                Model         Qty.   Items
                CC-ZHMT10       1    C300 Horizontal Mounting Kit in PM
                                1    I/O link – PM to Series C I/O link cable
                                1    Redundancy Software Key opt file
                                1    Software Options R6xx (floppy)

               C200/C200E to C300 Upgrade for chassis based modules
                Model         Qty.   Items
                CC-ZHR041       1    UHIO CB/EC/C200/HP W/Red C300/CF
                                2    Horizontal C300/CF9 IOTA, Coated
                                2    C300 Control Processor
                                2    Control Firewall Module, 8port + 1 uplink
                                1    Redundancy Software Key opt file

   35               Honeywell Kits & Enhancements                                August 2018
EHPM Upgrade Kits

             PM/APM to 15-Slot EHPM Upgrade Kit, Non-Redundant, CE
             The EHPM upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
             advanced technology of the Experion® Process Knowledge System (PKS) which
             ensures improved operations and control performance. With EHPM, users can
             extend the life of their automation assets and improve their plant efficiency through
             incremental modernization and upgrades while making minimal investments.

             The kit requires mandatory Honeywell labor services for engineering, installation
             and startup

             Model           Qty.   Items
             MC-ZEHPS2        1     HPM I/O Link Board, CC
                              2     HPM 15-Slot Cardfile Assembly, EC, CC
                              1     EHPM Communication/Control Board
                              1     EHPM Interface Assembly
                              1     PM Power Cable, EC

             PM/APM to 7-Slot EHPM Upgrade Kit, Non-Redundant, CE
             The EHPM upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
             advanced technology of the Experion® Process Knowledge System (PKS) which
             ensures improved operations and control performance. With EHPM, users can
             extend the life of their automation assets and improve their plant efficiency through
             incremental modernization and upgrades while making minimal investments.

             Model          Qty.    Items
             MC-ZEHPS7        1     EHPM Communication/Control Board
                              1     EHPM Interface Assembly
                              1     HPM I/O Link Board, CC
                              1     7-Slot Left File Assembly, CE
                              1     7-Slot Right File Assembly, CE
                              1     Cable Set, I/O Link, 4 Drop
                              1     xPM Power Cable Set with Link Protection, 2 Meters, EC
                              3     Adapter, PM Power Cable Link Protect, EC
                              1     HPM Center Filler Plate (Slot 8)
                              2     Mounting Plate

  36               Honeywell Kits & Enhancements                               August 2018
EHPM           PM/APM to 15-Slot EHPM Upgrade Kit, Redundant, Non-CE
               The EHPM upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
Upgrade Kits   advanced technology of the Experion® Process Knowledge System (PKS) which
               ensures improved operations and control performance. With EHPM, users can
               extend the life of their automation assets and improve their plant efficiency through
               incremental modernization and upgrades while making minimal investments.

               The kit requires mandatory Honeywell labor services for engineering, installation
               and startup

               Model           Qty.   Items
               MC-ZEPR2N        2     HPM I/O Link Board, CC
                                2     HPM 15-Slot Cardfile Assembly, CC
                                2     EHPM Communication/Control Board
                                2     EHPM Interface Assembly
                                1     Cable, HPM Redundancy
                                2     xPM Power Cable Set with Link Protection, 2 Meters
                                1     Cable, 100BTX, 2 Meters

               PM/APM to 7-Slot EHPM Upgrade Kit, Redundant, Non-CE
               The EHPM upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
               advanced technology of the Experion® Process Knowledge System (PKS) which
               ensures improved operations and control performance. With EHPM, users can
               extend the life of their automation assets and improve their plant efficiency through
               incremental modernization and upgrades while making minimal investments.

               The kit requires mandatory Honeywell labor services for engineering, installation
               and startup

               Model           Qty.   Items
               MC-ZEPR7N        2     HPM I/O Link Board, CC
                                1     HPM 7 Slot Cardfile Assembly (1-7), CC
                                1     HPM 7 Slot Cardfile Assembly (9-15), CC
                                2     EHPM Communication/Control Board
                                2     EHPM Interface Assembly
                                1     Cable Set, I/O Link, 4 Drop
                                1     Cable, HPM Redundancy
                                1     xPM Power Cable Set with Link Protection, 2 Meters
                                3     Adapter, PM Power Cable Link Protect
                                1     HPM Center Filler Plate (Slot 8)
                                1     Cable, 100BTX, 2 Meters
                                2     Mounting Plate

    37               Honeywell Kits & Enhancements                               August 2018
PM/APM to 15-Slot EHPM Upgrade Kit, Non-redundant, Non-CE
               The EHPM upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
EHPM           advanced technology of the Experion® Process Knowledge System (PKS) which
Upgrade Kits   ensures improved operations and control performance. With EHPM, users can
               extend the life of their automation assets and improve their plant efficiency through
               incremental modernization and upgrades while making minimal investments.

               The kit requires mandatory Honeywell labor services for engineering, installation
               and startup

               Model            Qty.   Items
               MC-ZEPS2N         1     HPM I/O Link Board, CC
                                 1     HPM 15-Slot Cardfile Assembly, CC
                                 1     EHPM Communication/Control Board
                                 1     EHPM Interface Assembly
                                 1     xPM Power Cable Set with Link Protection, 2 Meters

               PM/APM to 7-Slot EHPM Upgrade Kit, Non-Redundant, Non-CE
               The EHPM upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
               advanced technology of the Experion® Process Knowledge System (PKS) which
               ensures improved operations and control performance. With EHPM, users can
               extend the life of their automation assets and improve their plant efficiency through
               incremental modernization and upgrades while making minimal investments.

               The kit requires mandatory Honeywell labor services for engineering, installation
               and startup

               Model            Qty.   Items
               MC-ZEPS7N         1     HPM I/O Link Board, CC
                                 1     EHPM Communication/Control Board
                                 1     EHPM Interface Assembly
                                 1     HPM 7 Slot Cardfile Assembly (1-7), CC
                                 1     HPM 7 Slot Cardfile Assembly (9-15), CC
                                 1     Cable Set, I/O Link, 4 Drop
                                 3     Adapter, PM Power Cable Link Protect
                                 1     xPM Power Cable Set with Link Protection, 2 Meters, EC
                                 1     HPM Center Filler Plate (Slot 8)
                                 2     Mounting Plate

               Redundant HPM to Redundant EHPM Upgrade Kit
               The EHPM upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
               advanced technology of the Experion® Process Knowledge System (PKS) which
               ensures improved operations and control performance. With EHPM, users can
               extend the life of their automation assets and improve their plant efficiency through
               incremental modernization and upgrades while making minimal investments.
               The kit requires mandatory Honeywell labor services for engineering, installation
               and startup

               Model            Qty.   Items
               MC-ZH2EHR         2     EHPM Communication/Control Board
                                 2     EHPM Interface Assembly
                                 1     Cable, 100BTX, 2 Meters

    38                 Honeywell Kits & Enhancements                             August 2018
EHPM           Single HPM to Single EHPM Upgrade Kit
               The EHPM upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
Upgrade Kits   advanced technology of the Experion® Process Knowledge System (PKS) which
               ensures improved operations and control performance.

               The kit requires mandatory Honeywell labor services for engineering, installation
               and startup

               Model            Qty.   Items
               MC-ZH2EHS         1     EHPM Communication/Control Board
                                 1     EHPM Interface Assembly

               PM/APM to 15-Slot EHPM Upgrade Kit, Redundant, CE
               The EHPM upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
               advanced technology of the Experion® Process Knowledge System (PKS) which
               ensures improved operations and control performance.

               The kit requires mandatory Honeywell labor services for engineering, installation
               and startup

               Model            Qty.   Items
               MC-ZEHPR2         2     HPM I/O Link Board, CC
                                 2     EHPM Communication/Control Board
                                 2     EHPM Interface Assembly
                                 2     HPM 15-Slot Cardfile Assembly, EC, CC
                                 1     Cable, HPM Redundancy
                                 2     xPM Power Cable Set with Link Protection, 2 Meters, EC
                                 1     Cable, 100BTX, 2 Meters

               TPS Convergence to EHPM upgrade
               Installation of a High-Performance Process Manager (HPM)subsystem at a TPS
               system site. The High-Performance Process Manager subsystem is a device on the
               Universal Control Network (UCN) that includes the Network Interface Module
               (NIM). Process Managers (PMs), Advanced Process Managers (APMs), and Logic
               Managers (LMs) may also be resident on the network.

               Model            Qty.   Items
               MC-EHPMR1         2     HPM COM/CTRL
                                 2     EHPM I/F Assembly
                                 2     HPM I/O Link CC

               TPS Convergence to EHPM upgrade
               Installation of a High-Performance Process Manager (HPM)subsystem at a TPS
               system site. The High-Performance Process Manager subsystem is a device on the
               Universal Control Network (UCN) that includes the Network Interface Module
               (NIM). Process Managers (PMs), Advanced Process Managers (APMs), and Logic
               Managers (LMs) may also be resident on the network.

               Model            Qty.   Items
               MC-EHPMS1         1     HPM COM/CTRL
                                 1     EHPM I/F Assembly
                                 1     HPM I/O Link CC

    39                 Honeywell Kits & Enhancements                             August 2018
EHPM           PM/APM to 7-Slot EHPM Upgrade Kit, Redundant, CE
               The EHPM upgrade kit allows Honeywell’s TDC/TPS systems to modernize to the
Upgrade Kits   advanced technology of the Experion® Process Knowledge System (PKS) which
               ensures improved operations and control performance. With EHPM, users can
               extend the life of their automation assets and improve their plant efficiency through
               incremental modernization and upgrades while making minimal investments.

               The kit requires mandatory Honeywell labor services for engineering, installation
               and startup

               Model            Qty.   Items
               MC-ZEHPR7         2     HPM I/O Link Board, CC
                                 1     HPM 7 Slot Cardfile Assembly (1-7), CE, CC
                                 1     HPM 7 Slot Cardfile Assembly (9-15), CE, CC
                                 2     EHPM Communication/Control Board
                                 2     EHPM Interface Assembly
                                 1     Cable Set, I/O Link, 4 Drop
                                 1     Cable, HPM Redundancy
                                 1     xPM Power Cable Set with Link Protection, 2 Meters, EC
                                 3     Adapter, PM Power Cable Link Protect, EC
                                 1     HPM Center Filler Plate (Slot 8)
                                 1     Cable, 100BTX, 2 Meters
                                 2     Mounting Plate

               Install the CF9 Ethernet switch that is used with EHPM and ENIM in an
               HPM cabinet
               This upgrade kit contains the CF9 Ethernet switch that is used with EHPM and
               ENIM. Honeywell requires that you install these CF9 Ethernet switches in a HPM
               cabinet.

               The kit requires mandatory Honeywell labor services for engineering, installation
               and startup

               Model           Qty.    Items
               CC-ZCF9PM        2      Control Firewall Ethernet Switch CF9 (8 ports + 1 uplink)
                                2      Control Firewall IOTA
                                1      Carrier Adapter Assembly
                                2      Insulating boots (red and black)

    40                 Honeywell Kits & Enhancements                               August 2018
Workstation Mounting Kits

              Workstation Slide Mounting Kit, Beige Base Classic Console
              This mounting kit allows you to mount your new workstation into an existing Classic
              Console.

               Model           Qty.   Items
               TP-ZG2ET5-100    1     Slide Tray Mounting Assembly, Classic Console
                                2     Computer Mounting Bracket, Classic Console
                                1     Rear Door, Opaque Beige
                                1     Air Filter, XC3000 Cardfile
                                1     Air Filter
                                1     Air Baffle
                                2     Wedge, Handle Assembly
                                1     MAU Mounting Bracket
                                1     Cable Splitter, AC Power Male 120V
                                1     Cable Splitter, AC Power Male 240V
                                2     Slide Mount Retainer Bracket Assembly

  41                Honeywell Kits & Enhancements                             August 2018
Workstation     Workstation Fixed Mounting Kit, Cabinet
                This mounting kit allows you to mount your new workstation into an existing
Mounting Kits   Honeywell cabinet in a fixed mounting configuration.

                 Model           Qty.   Items
                 TP-ZG2EC4-100    3     Ribbon Cable Clamp
                                  2     AC Power Cord
                                  1     MAU Mounting Bracket, Cabinet
                                  1     Remote USB Mounting Bracket
                                  1     OEP/IKB Mounting Bracket
                                  2     Cabinet Rear Rail Bracket, 4U
                                  2     Fixed Mount Retainer Bracket Assembly
                                  2     Computer Mounting Bracket

                Workstation Mounting Kit for Z-Console
                This mounting kit allows you to mount your new workstation in your existing
                Z-Console.

                 Model           Qty.   Items
                 TP-ZG2EZ1-100    2     Ribbon Cable Clamp
                                  1     Mounting Bracket, Z-Console
                                  1     Bottom Cover
                                  1     Cable Guide Bracket
                                  1     Rear Cover
                                  2     Computer Retaining Bracket

                Workstation Fixed Mounting Kit, Blue Base Classic Console
                This mounting kit allows you to mount your new workstation into an existing Blue
                Base Classic Console.

                 Model           Qty.   Items
                 TP-ZG2EB4-100    1     Rear Door, Black
                                  2     Computer Mounting Bracket
                                  2     Fixed Mount Retainer Bracket Assembly
                                  1     MAU Mounting Bracket
                                  1     Cable Splitter, AC Power Male 120V
                                  1     Cable Splitter, AC Power Male 240V
                                  1     Air Filter, XC3000 Cardfile
                                  1     Air Filter
                                  1     Air Baffle

   42                 Honeywell Kits & Enhancements                             August 2018
Workstation     Workstation Slide Mounting Kit, Blue Base Classic Console
                This mounting kit allows you to mount your new workstation into an existing Blue
Mounting Kits   Base Classic Console.

                 Model           Qty.   Items
                 TP-ZG2EB5-100    1     Rear Door, Black
                                  2     Computer Mounting Bracket, Classic Console
                                  1     Slide Tray Mounting Assembly, Classic Console
                                  2     Slide Mounting Retainer Bracket Assembly
                                  1     MAU Mounting Bracket
                                  1     Cable Splitter, AC Power Male 120V
                                  1     Cable Splitter, AC Power Male 240V
                                  1     Air Filter, XC3000 Cardfile
                                  1     Air Filter
                                  1     Air Baffle

                Workstation Slide Mounting Kit, Honeywell Cabinet
                This mounting kit allows you to mount your new workstation into an existing
                Honeywell cabinet in a slide mounting configuration.

                 Model           Qty.   Items

                 TP-ZG2EC5-100    1     Cabinet Rear Rail Bracket, 2U
                                  2     Cabinet Rear Rail Bracket, 4U
                                  1     Slide Tray Assembly, Cabinet Mounting
                                  2     Computer Mounting Bracket, Cabinet
                                  1     OEP/IKB Mounting Bracket
                                  1     MAU Mounting Bracket, Cabinet
                                  3     Ribbon Cable Clamp
                                  1     Retainer Bracket, Cabinet Mounting
                                  2     Retainer Bracket
                                  1     Air Duct Baffle - 3U
                                  2     AC Power Cord

   43                 Honeywell Kits & Enhancements                             August 2018
You can also read
NEXT SLIDES ... Cancel
