Impact of COVID on 2020-2021 Low-energy ISOLDE activities 88th ISOLDE Collaboration Committee meeting 23rd of June 2020 Joachim Vollaire on behalf of EN-STI
Outline
• Situation and organization since mid-March
• Status and plans for frontends replacement finalization
• Plans for the new Fast Tape Station
• Nano-Laboratory construction and actinide target production
• Report on TISD activities
• MEDICIS update
23/06/2020 88th ISOLDE Collaboration Committee meeting - J. Vollaire 2
Situation and organization since mid-March
• Mid-March the facility was put in a “safe mode” and all activities on-site (including
LS2 projects) were suspended teleworking
• Remote teleworking was beneficial and productive for the majority but less relevant
for colleagues doing mainly hands-on work. Important also to keep social
connection with “isolated” colleagues (stay-at-home order for France).
• Focus on training, documentation and technical specification for tendering process
(new target vessel contract, nano-laboratory equipment….)
• Continue the excellent collaboration with all ISOLDE stakeholders (standing
meetings maintained and additional ones).
• Ensure proper representation of ISOLDE in CERN wide committees. Very important
when discussing priorities and support from technical teams.
23/06/2020 88th ISOLDE Collaboration Committee meeting - J. Vollaire 3
CERN plan for restart
Special LS2C LS2 Day
8th May 12th June
End-June
For EN-STI-RBS:
Phase 1 Phase 2 • Priority for frontends production
• Workshop activities
• Target production
• MEDICIS operation
• Students experiments (TISD)
• End of June, ~10 people on site
out of ~20 (rotation)
People with symptoms
Safe-mode and other Resume gradually, starting Ramp-up to “unlimited” or vulnerabilities not
urgent activities with LS2, accelerator and access may be completed allowed to work on site
detector upgrades, urgent by mid-September
site and building work
23/06/2020 88th ISOLDE Collaboration Committee meeting - J. Vollaire 4
FE10 production status (installation on GPS)
• FE10 in Building 179 successfully vacuum tested during the last weeks
• Preparatory activities (alignment, cabling….) inside the GPS Faraday cage in view
of the Frontend installation
New irradiation table GPS Faraday Cage
FE to the target area
Stable beams
23/06/2020 88th ISOLDE Collaboration Committee meeting - J. Vollaire 5
FE11 production status

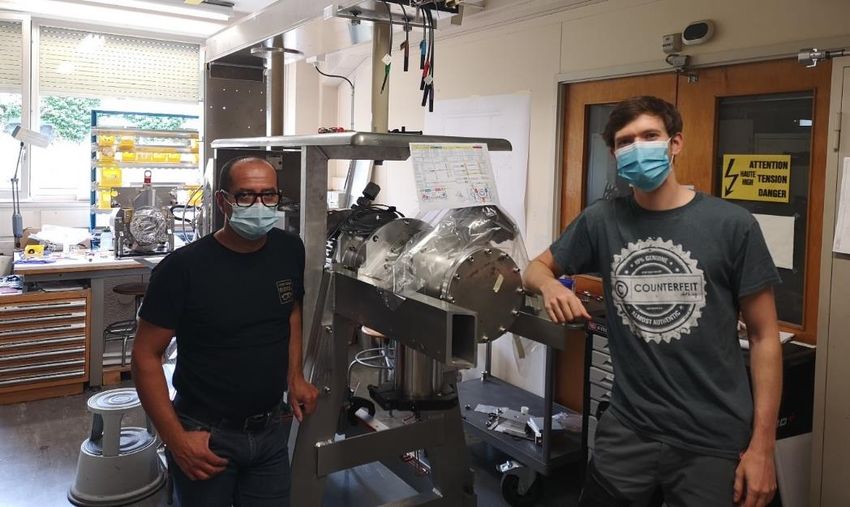

Working on FE11 mechanical assembly
They smile (happy to be here !)
• Stable beam testing period at offline2 starting in August
• New contract for J. Cruikshank until end of Jan. 2021 (+ 6 months, exceptional circumstances)
23/06/2020 88th ISOLDE Collaboration Committee meeting - J. Vollaire 6
Nano-Laboratory Construction

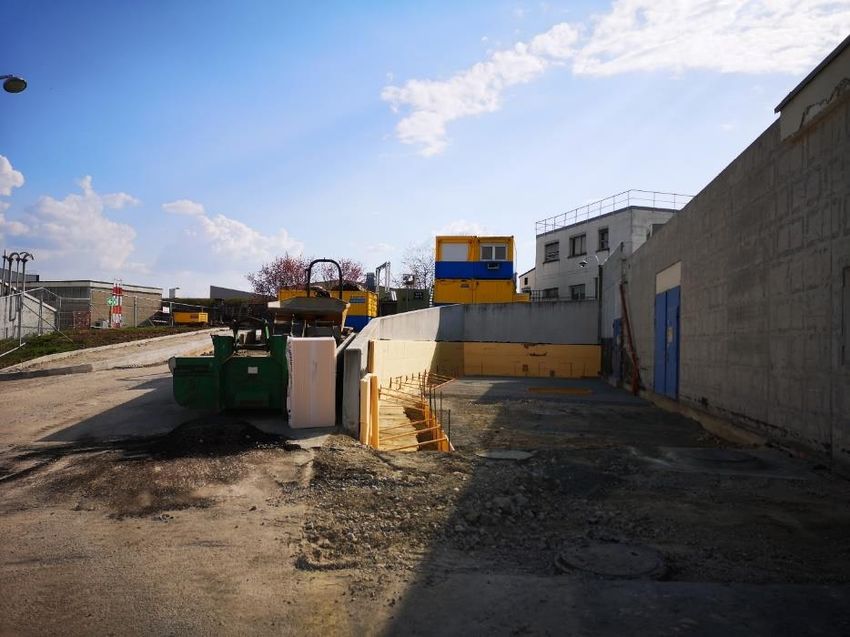

Situation mid March Situation mid June
Part dedicated to
radioactive material
storage (heavy
density concrete)
Building 179
Construction could resume after a few weeks of interruption only in agreement with host state
regulations and management approval
23/06/2020 88th ISOLDE Collaboration Committee meeting - J. Vollaire 7
New nano-laboratory – operational constraints
Laboratory for UCx production
Phase 2
(no nano-material handling allowed)
No nuclear ventilation in the 20-Oct Novembre 20 Décembre 20 Janvier 21
S45 S46 S47 S48 S49 S50 S51 S52 S53 S1 S2 S3 S4
Février 21 Mars 21 Avril 21 Mai 21
S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 S21
Carottage murs jonction
ISOLDE laboratories until end Carottages bâtiments existants
(contrat cadre CERN)
Fermeture porte temporaire et
of May in 2021 SMB
depose portes existantes
Encoffrement feu pour gaines CV
Résines au sol
Fin peintures au murs (2ème couche)
Retour étanchéité équipement
Pose murs et sas démontable -
Pose des faux plafonds
Pose des dernières portes
Carburation Area Calfeutrement coupe-feu
Pose des supports gaines + CdC
Pose des gaines &fluides
UCx pills production Pose des equipements aérauliques
tirage des câbles
Raccordement sur les équipements existants
CV (local technique)
Raccordement équipement process
Pose des grilles de ventilation
Commissioning .
tests incendie
Installation support & CdC tous
tirage des câbles danc CdC
Pose des luminaires
EL/EIC
Pose des goulottes et des descentes
de prises depuis CDC
Luminaires
tirage des câbles pumpstands
Radioactive storage EL/FC tirage des câbles de détection incendie
tests des câbles incendies
Déplacement cable GSM
tirage des câbles IT
IT
goulottes + boites plugs
tests
Détection Installation équipements + renifleurs
Incendie Tests
Installation
Gaz
Travaux extérieurs+ tests
Démémagement Pumpstands
Livraison équipements
Process Installation équipements
tests équipements
Livraison/installation RW storage
tirage de câble jusqu'à porte entrée
Existing Building Access
control
installation équipement
+raccordement porte
tests
Installation Monitorage
RP
tests
23/06/2020 88th ISOLDE Collaboration Committee meeting - J. Vollaire 8
Targets for 2021 (anticipate in 2020)
UCx targets pre-production in view of nanolab UO+C pills production ongoing 10 targets in queue
ventilation cut Q1-Q2 2021
708-UC-MK1 713-UC-VD5
709-UC-MK1 714-UC-VD7
710-UC-MK1 715-UC-MK1
711-UC-MK1 716-UC-MK1
712-UC-MK1 717-UC-MK1
Production of storage container ongoing
Targets to be reused for 2021 Also available: Targets from TISD tests
#654-UC-MK1-W #638-UC-MK1-Re
#635-UC-MK1-Ta #659-UC-VD7
#534-Sn-VD7 #668M-UC-VD5
#619-Pb-VD #637-UC-MK1-W
#653-UC-Ta-n
#641-UC-Ta
B. Crepieux, M. Owen, S. Rothe
23/06/2020 88th ISOLDE Collaboration Committee meeting - J. Vollaire 9
New Fast Tape Station
• Low level controls to be tested/fixed EN/SMM (ongoing)
• Basic high-level application / Beam instrumentation display
by BE/OP (from Oct 2020)
• Advanced yield measurement application via EN/STI
(2021)
• Detectors (4pi beta | (beta/)gamma | alpha) with strong
support by EP/SME (2020|2021|2022)
• Investigating SiPM electronics designed by IFIN
(Bucharest, Romania)
• Tapestation 2 at GLM on hold till TS1 advanced
https://doi.org/10.1016/j.nima.2019.163263
Courtesy of S. Rothe
23/06/2020 88th ISOLDE Collaboration Committee meeting - J. Vollaire 10Target and Ion source development 20/21
Welcome new arrivals !
Short descr. Target # Ion source Target Mass marker / available beams Beam to Proposed exp/ descr. Constraints Linked experiment/ Contact
proposal person Mechatronics FTEC
VADLIS Te/Cs- Tbd 1 VADIS mod. none Te FC490 Measure Te RILIS efficiency pump-probe Clean FE Collaps Te (INTC-P- BM
suppression Cs
Noble gasses
Test Cs suppression RILIS 561)
TAS n-rich In (INTC-P-
Facility support
559)
VADLIS Tbd 1 VADIS none Sm FC490 Measure the RILIS efficiency vs ion load and Clean FE General VADLIS BM Y. Gracia
Ion load Mod. (contaminat tbd. Rb,Cs) VADLIS potentials RILIS performance
Noble gasses
2Photon Tbd 2 VADIS +
mirror
none Rb (tbc.)
Noble gasses
FC490 Perform in-source 2 photon laser
spectroscopy in-source
Clean FE
RILIS
~All in-source laser
spectroscopy
KC RILIS
Laser from CRIS
Ti efficiency 1 Tbd 3 Mk1-Ta Container Enriched Ti isotope in target container FC490 Measure RILIS efficiency Clean FE 44Ti srr
RILIS
Ti
Efficiency 2
Tbd 3 Mk1-Ta Container Sample prepared from PSI w. nat.Ti FC490 Measure efficiency under real conditions.
Measure 44Ca contamination
Clean FE
RILIS
44Ti srr Material Science FTEC
Tansport through HIE isolde ?
LIST @ GPS Tbd 4 PI LIST none Mg (tbc) FC490 LIST commissioning Clean FE IS456, (P556) RH
Target development
Na (tbc) RILIS
LIST @ HRS Tbd 4 PI LIST none Mg (tbc) FC490 LIST commissioning Clean FE IS456, (P556) RH
Na (tbc) RILIS
PI-list prep CA0 Verification that slotted extraction electrode tip Clean FE IS456, (P556), LISA RH
has no effect.
Back to back comparison of beam
transmission through the machine
LIST E. Reis
Transmission, beam shape, mass resolution,
(emittance)
PI-LIST Tbd 4 PI-LIST none Tbd. Rb? Good from laser side, but low FC490 Perform offline hres spectroscopy RILIS NB IS456, (P556), LISA RH
spectroscopy temperature evaporation not
RILIS@Actinides #638 MK1-Re UC-2018-12
representative
Li MED Laser ionize actinides from UC targets (Pu, 2 weeks in NOV LISA RH
PhD Student Jun. FELL
Np, …). Also check Pm, Tc
Sm @ MED
MELISSA Molecular Beams
Actinide #659 VD7 UC-2018-05 Standard leak ISOLTRAP Systematic study of beam composition : mass MRTOF LISA srr, MA
Molecules VD7 / target temp / level of fluorination. RILIS
Actinide #668M VD5 UC ISOLTRAP
Probe molecular breakup using RILIS
Systematic study of beam composition : mass MRTOF LISA srr, MA
Molecular
Molecules VD5 / target temp / level of fluorination.
Probe molecular breakup using RILIS
RILIS
beams M. Au
Actinide #637 MK1-W UC Big leak 1.1E-4 ISOLTRAP Systematic study of beam composition : mass MRTOF LISA srr, MA
Molecules MK1 RaF molecules for CRIS ? / target temp / level of fluorination. RILIS RaF (INTC-P-555)
Probe molecular breakup using RILIS S. Rothe on behalf of TISD team
23/06/2020 88th ISOLDE Collaboration Committee meeting - J. Vollaire 11MEDICIS Status Report (02/20 to 06/20)
• Technical stop completed (January and February 2020)
• Successful stable beam commissioning (beginning of March)
• Installation stopped and put in safe mode on 16th of March 2020 (Covid)
• MEDICIS is back in operation with stable beam since 25th of May 2020
• Laser alignment performed and first laser ionized beam of the year with MELISSA
on 15th of June 2020!
• First reception of an external radioactive source foresees for the 26th of June 2020
(Sm-153 for MED-025).
• MEDICIS website is now available!
• https://cern-medicis.web.cern.ch/
C. Duchemin on behalf of MEDICIS
23/06/2020 88th ISOLDE Collaboration Committee meeting - J. Vollaire 12Thank you for your
