What is Asset Tracking? Asset Tracking means tracking of mobile objects by using sensor technologies in a defined space. Such objects can be workpieces in industry or mobile inventory in facility management. It is also possible and very useful for many applications to track people on the same principle. The objects’ movement is displayed in real time on any mo- Asset Tracking uses server based positioning which only bile device. The movement of the objects can be tracked means that the position of the asset is determined on a live and recorded. A distinction is made between zone server. In case of indoor navigation one talks about client- tracking and location tracking. In the first case, the system based positioning, because the positioning is done on determines whether an asset is within a certain zone (see the user’s device (client). The smart phone interprets the Geofencing). With location tracking, the exact position is signals of built-in beacons. This makes also clear that Asset queried. Tracking and indoor navigation are two sides of one coin. While GPS can be used outdoors, a special transmitter/ receiver infrastructure must be set up indoors to achieve sufficient coverage to enable tracking. The main difference between asset tracking and conventional goods receiving systems is that with Asset Tracking not only an object’s position at a certain time can be checked, also the object’s route from A to B and it’s behavior on the way can be re- corded. The generated data can be integrated into any existing CRM or ERP system and/or evaluated using ana- lysis software. Positions can also be displayed on existing Kiosk-Systems.
Why choose Favendo?
We are specialized in mobile tracking and navigation solutions in extremly harsh environment.
Favendo offers you cloud based and extremely data secure on-premises solutions. Numerous
successful projects with customers such as Volkswagen, SAP, FRAPORT, Hammerson plc or
MSC Cruises prove our competence in the fields of indoor positioning and indoor tracking.
Favendo has extensive experience in installing large and Favendo is partner on the Depot research and develop-
completely self-sufficient sensor infrastructures in com- ment project funded by the German Federal Ministry of
plex environments such as steel cruise liners. This ex- Economics and Energy and certified ARUBA Solutions
perience of our trained staff pays off for our customers partner. Favendo solutions are used and distributed by
when it comes to detail. How do I install a Beacon Tracker Trilux and Phoenix Contact.
as discreet as possible with the best receiver quality at the
same time? Which security regulations have to be obser-
ved, when and where and how can they be fulfilled? What
is the best way to attach an Asset Tag to a workpiece? How
does an Asset Tracking solution affect my existing WLAN?
Can we help you with further information?
Our experts do not leave you alone with these questions.
Then please feel free to contact us:
Our Asset Tracking System can also be upgraded by a pre- stefan.balduf@favendo.com
cise indoor navigation to quickly find the way to the sear- harry.stryk@favendo.com
ched asset. Service teams or employees not familiar with martal@favendo.com
the building/site can be lead to the searched good without
detour.
Independent from their vertical companies share
one challenge: They have to design their whole
value added chain in order to reduce costs and at
once increase their productivity and efficiency.
Managing, tracking and localizing of assets plays
an important role in that.
Dr. Holger Schlüter,
Associate Director IoT/Industrie 4.0
at Lufthansa Industry Solutions
Why Bluetooth?
Favendo’s Asset Tracking System is based on Bluetooth As a rule of thumb, four beacon trackers can
technology. Bluetooth is a short-range radio technology
cover an area of around 100 square meters. In
and with an accuracy of 1-3 meters does not reach the
centimeter-accurate precision of the competing UWB practice, however, this value varies depending
technology, but is completely sufficient for room-accurate on the required accuracy and the architectural
tracking and indoor navigation. In addition, BLE technology
is much more cost-effective in terms of purchase and hassle- conditions.
free maintenance. Stand-alone beacon trackers require
an external power supply. However, it is possible to install
the trackers directly into the lighting or sockets. The tags
are powered by batteries.
Your Possibilities:
continuous time-dependent zone tracking position tracking
Tracking of workpieces
Tracking of movable inventory
Tracking of persons
Tracking of forklifts and other machines
Questions you should keep in mind:
With Favendo’s Asset Tracking you can track and trace production parts, pallets or machines
within your building. Important questions to keep in mind while thinking about an Asset
Tracking Solutions are:
How precise must the positioning be? / Do I need location tracking or is zone tracking sufficient?
Remember that Bluetooth positioning is sufficiently accurate to guide people through buildings. To find a
workpiece in a hall, the accuracy is sufficient. You will find what you are looking for when you are in close
proximity. A centimeter-precise or even three-dimensional positioning is therefore often simply unnecessary.
How often should a position be displayed?
In some cases it is sufficient to know that a device is at its specified location, for example fire extinguishers
or first aid kits. In such a case, it makes sense to only display the position or trigger an action only EOD or
when the asset leaves its original position.
How can I attach an Asset Tag?
Depending on the further processing of the asset, various options can be considered, from magnetic mounting
to fixed installation on material carriers.
Is it sufficient for my case of use to track only inside my building or do I also want to track outside
with the same system?
We can also cover this case. For this purpose, the system is extended by a technological component. (See LoRaWan)
LoRaWan (Long Range Wide Area Network)
LoRa technology resp. LoRaWan (Long Range Wide Area This technology comes into its own if you want to cover a
Network) is a low power wireless network protocol. With a large outdoor area such as a construction site or an ent-
range up to 40 kms in rural areas and 2 kms in the city area ire factory site with Bluetooth and want to ensure seam-
LoRaWan belongs to the widest-reach technologies for less tracking both indoors and outdoors. LoRa serves in
positioning. Besides the big range part of the advantages this case exclusively to transmit the data collected by the
is its ability to permeate buildings, up to a certain degree trackers.
also underground rooms can be supplied. LoRaWan is
especially deployed for restricted outdoor areas such as
construction sites or mines.

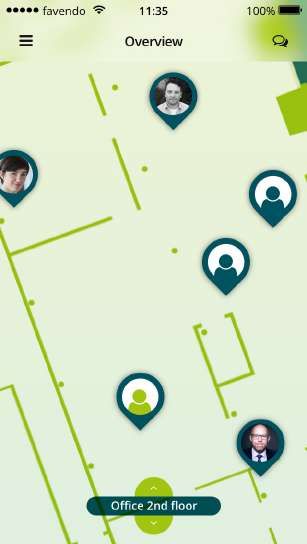

Person Tracking Tracking people in many cases offers great advantages and convenience. In other cases it is simply a matter of security that back-up teams are informed about the current location of single workers. In conjunction with geofencing and zone alerting, on-site person tracking provides a security feature for both the company and visitors. People tracking follows the same sender/receiver princi- ple as regular asset tracking. Persons to be tracked must therefore be equipped with a tag. This sender can for example be handed out in touristic facilities (leisure parks, cruise ships, hotel facilities) in form of a bracelet. By that it is possible for example for parents to constantly track where in the facility their children are. Such “Kids tracker” are for example in use on cruise ships. For shopping malls systems are suitable that automatically send an alert, if the wearer leaves the pre-defined “green area”. For industrial use or smart office/smart building applica- tions, the transmitter can be integrated into the company ID card or visitor badge.
Finder Features
Finder features are settled at the interface between So- In this case the tracked person has no influence on the
cial Location-based Services and Location-based Security/ data transmission about his/her location. Our experience
Safety. Finder Features like the „Kids tracker“ demon- from a customer project in the tourism sector shows that
strate how Asset Tracking features and indoor navigation this feature is often used and is subjectively felt to be very
are combined to the user’s advantage. In this case data valuable.
access is up to the parents or any authorized person who
can check their child’s or staff members’ position and let
themselves be navigated to the location.
Finder features highly answer to the needs and
desires of the Millenial generation’s digital natives.
Richard Lemke,
Founder of Favendo
For the so-called Friend Finder, the data sovereignty lies
with the respective person who would like to actively share
their position with a friend, colleague or team member. In
this case a user can actively release or share his location
with other selected users, who in turn can let themselves
be navigated to the shared location.
This features makes the finding and meeting with acquain-
tances in confusing buildings such like airports, train sta-
tions or big shopping malls easier. Also useful in festival
areas, sports venues or other leisure facilities. The location
can be shared straight from the app to social networks.Asset Tracking & Indoor Navigation
Asset Tracking and indoor navigation are two sides of a coin. Basis for both technologies
is a precise positioning.
Indoor navigation helps customers, staff and external visi- Among our indoor navigation customers are Hammerson,
tors – for example service teams or suppliers – to quickly ECE & FRAPORT. Our technology is in daily in use on more
orientate themselves in big buildings. The user is shown than 1.5 million square meters of sales area.
the route to a certain point on a screen or gets it announ-
ced by the device. You can find more information about Indoornavigation
here:
In an estimation Opus research assumed con-
WAYFINDING AND INDOOR NAVIGATION
sumer expenses of 10 billion Dollars in the
next four years that are going to be directly
In case you have a printed version please go to:
influenced by indoor navigation. www.favendo.com/wayfinding
Technical Basics and Explanations of Terms
Senders transmit radio signals to a receiver. The receiver interprets these signals and
determines its position within a given topography. The principles behind that are
trilateration and triangulation.
The elements referred to – sender, receiver, information mitters is even higher it is called multilateration. An ad-
about environment – are also found in radio based Asset ditional method to determine a position is triangulation.
Tracking solutions. With increasing distance a sent signal In opposition to lateration here not only the distances to
loses strength. At a distance of one meter it is strong, at the signal transmitters but also the angles are used to de-
a distance of 40 meters it is accordingly weaker. If at least termine the position of an object.
three controllers receive the signal of an asset it is possi-
ble due to the signal strength to exactly determine every For a two-dimensional identification of a position two an-
point in a room. gles and one length are needed. With angle – in technical
terms “Angle of arrival” (AoA) – it is meant the angle in
For example, the asset is 1.8 meters away from control- which the signal meets the receiver. The angle is measu-
ler 1, 2.1 meters from controller 2 and 3.7 meters from red by the delay of the signal (“Time of flight” TOF). TOF
controller 3. This kind of positioning with distance mea- measures the time a signal needs to cover the distance
suring by signal strength is called lateration, the effect of between an object and the reference point, the known
decreasing signal strength, that is utilized here, is called position of a sender. This allows a much more precise po-
attenuation. When three signal transmitters are involved sitioning on a BLE basis and will completely assert itself
it is called trilateration, when the number of signal trans- with BLE 5.1.Geofencing Geofencing is a made-up word from geographic and fence. By geofencing for example an immobilizer device can be activated if a car leaves a defined zone. The zone can for example be a construction site, a festival area or a defined zone within a building. Geotargeting/Zone Alerting It is called geotargeting if actions like push notifications are supposed to be triggered not at a certain point but when entering, leaving or staying in defined zones for example at the entrance area of an exhibition. For exam- ple if a festival visitor, who has the corresponding app in- stalled, enters the festival area and with that the defined radio signal radius, a push notification is triggered on his smart phone. This is independent from the point where he goes through the imaginary fence. In a wider sense these two work like positioning systems but with geographical defined border coordinates. Depen- ding on concept, area of deployment and geographical ac- curacy these systems can also work satellite or mobile ra- dio based. Such systems can also be used when searching for persons, for anti-theft protection of moveable assets, cars and facilities, monitoring of felons with electronic tags or compliance with driving routes or ways to school.
