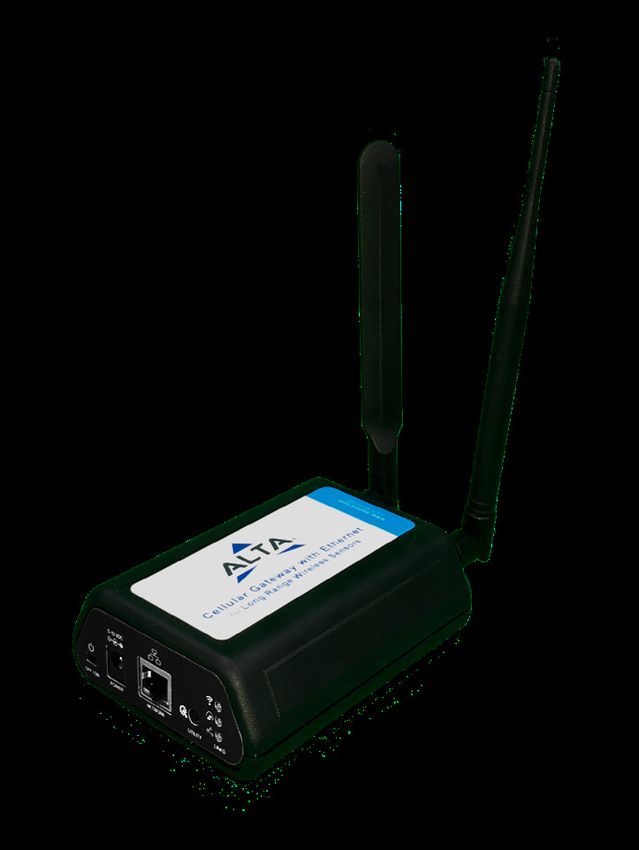

Monnit ALTA 4G LTE
Cellular Gateway
User Guide
IMPORTANT!
For best results, please wait to power on your LTE Cellular Gateway until after you have
registered an account on iMonnit and added your gateway and sensors to the online
system.
Table of Contents
I. ABOUT THE LTE CELLULAR GATEWAY 1
ALTA LTE CELLULAR GATEWAY FEATURES 1
EXAMPLE APPLICATIONS 1
II. HOW YOUR GATEWAY WORKS 2
III. GATEWAY SECURITY 3
SENSOR COMMUNICATION SECURITY 3
DATA SECURITY ON THE GATEWAY 3
SERVER COMMUNICATION SECURITY 3
IV. GATEWAY REGISTRATION 4
REGISTERING THE GATEWAY 4
V. USING THE LTE CELLULAR GATEWAY 5
USING THE LTE CELLULAR GATEWAY 5
UNDERSTANDING THE GATEWAY LIGHTS 5
LTE CELLULAR GATEWAY SETTINGS 6
VI. INSTALLING MONNIT EXPRESS AND MINE 8
INSTALLING MONNIT EXPRESS 8
INSTALLING MONNIT MINE 8
SUPPORT 9
WARRANTY INFORMATION 9
CERTIFICATIONS 11
COVERAGE MAPS 15
PAGE II
I. ABOUT THE LTE CELLULAR GATEWAY
Monnit’s ALTA LTE Cellular Gateway allows you to control settings for your sensors
without needing additional IT infrastructure. All you need is a power source to monitor
your environment and equipment using Monnit’s industry-leading devices. The LTE
Cellular Gateway communicates with sensors and iMonnit® to deliver data alerting you to
conditions in a surrounding area.
LTE Cellular Gateways operate utilizing the latest 4G LTE CAT-M1/NB1 cellular
technology. The LTE Cellular Gateway is a specialized device with an incredible range.
This advanced wireless IoT (Internet of Things) gateway accomodates multiple vertical IoT
application segments and remote wireless sensor management solutions. Your gateway
is equipped with the 24-hour backup battery.* Monnit Wireless ALTA Sensors will continue
to communicate with iMonnit via cellular transmission in the event of a power outage. The
LTE Cellular Gateway is ideal for applications without an existing wired internet connection
or where existing infrastructure is dedicated to other resources.
* Actual time may vary depending on usage.
ALTA LTE CELLULAR GATEWAY FEATURES
• Wireless range of 1,200+ feet through 12+ walls *
• Frequency Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Encrypt-RF® Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data
messages)
• Up to 50,000 sensor message memory
• Over-the-air updates (future proof)
• True plug & play—no hassles for internet configuration set-up **
• No PC required for operation
• Low-cost cellular service packages
• Local status LEDs with transmisssion and online status indicators
• 24-hour battery backup in event of power outage
* Actual range may vary depending on environment.
** When paired with a Monnit data plan.
EXAMPLE APPLICATIONS
• Remote Location Monitoring
• Shipping and Transportation
• Agricultural Monitoring
• Vacant Property Management
• Vacation Home Property Management
• Construction Site Monitoring
• Data Center Monitoring
PAGE 1
II. HOW YOUR GATEWAY WORKS
Your ALTA LTE Cellular Gateway manages communication between your sensors and
iMonnit. When running, the gateway will periodically transmit data on a heartbeat. The
gateway will store information received from sensors until its next heartbeat.
The ALTA LTE Cellular Gateway is a cellular gateway. It uses cellular towers to relay data
recieved from sensors to iMonnit. Sensors communicate with the gateway, then the gateway
relays information to the cloud.

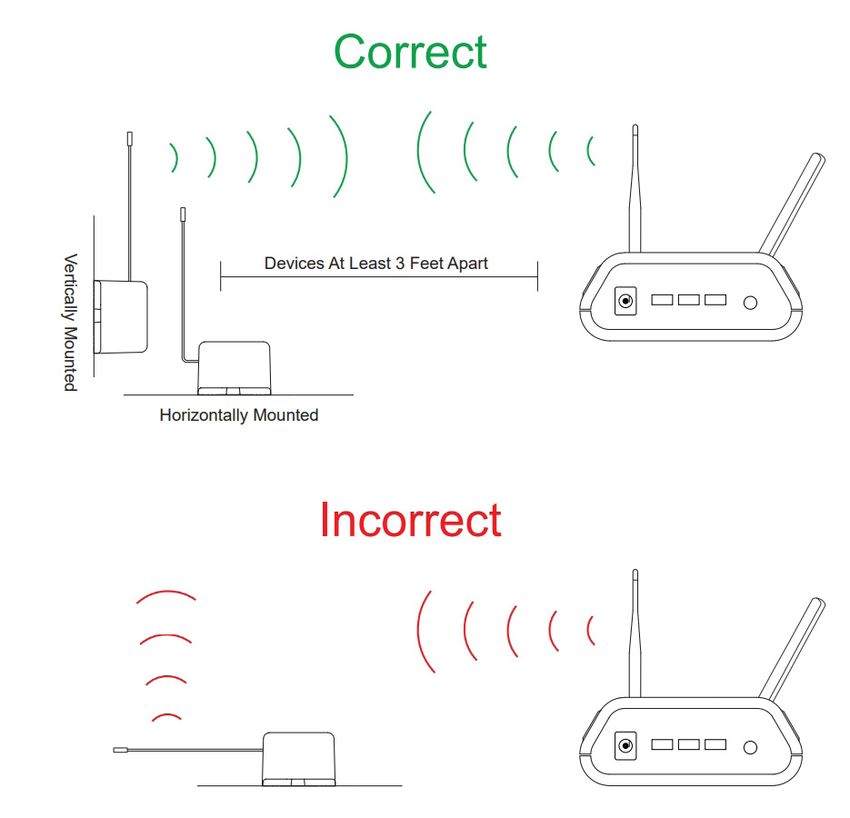

For your wireless sensors to work optimally, orient all antennas for your sensor(s) and
gateway(s) the same direction (typically vertical). Sensors must also be at least three feet
away from other sensors and the wireless gateway in order to function properly.
More Signal
Less Signal
PAGE 2
III. GATEWAY SECURITY
The ALTA LTE Cellular Gateway has been designed and built to securely manage data
from sensors monitoring your environment and equipment. Hacking from botnets are in the
headlines, Monnit Corporation has taken extreme measures to ensure your data security is
handled with the utmost care and attention to detail. The same methods utilized by financial
institutions to transmit data are also used in Monnit security infrastructure. Security features
of the gateway include tamper proof network interfaces, data encryption, and bank-grade
security.
Monnit’s proprietary sensor protocol uses low transmit power and specialized radio
equipment to transmit application data. Wireless devices listening on open communication
protocols cannot eavesdrop on sensors. Packet level encryption and verification is key
to ensuring traffic isn’t altered between sensors and gateways. Paired with best-in-class
range and power consumption protocol, all data is transmitted securely from your devices.
Thereby ensuring a smooth, worry-free, experience.
SENSOR COMMUNICATION SECURITY
Monnit sensor to gateway secure wireless tunnel is generated using ECDH-256 (Elliptic
Curve Diffie-Hellman) public key exchange to generate a unique symmetric key between
each pair of devices. Sensors and gateways use this link specific key to process packet
level data with hardware accelerated 128-bit AES encryption which minimizes power
consumption to provide industry best battery life. Thanks to this combination, Monnit
proudly offers robust bank-grade security at every level.
DATA SECURITY ON THE GATEWAY
The ALTA LTE gateway is designed to prevent prying eyes from accessing the data that
is stored on the sensors. The ALTA LTE Cellular Gateway does not run on an off the
shelf multi-function OS (operating system). Instead it runs a purpose specific real-time
embedded state machine that cannot be hacked to run malicious processes. There are
also no active interface listeners that can be used to gain access to the device over the
network. The fortified gateway secures your data from attackers and secures the gateway
from becoming a relay for malicious programs.
SERVER COMMUNICATION SECURITY
Communication between your ALTA LTE Cellular Gateway and iMonnit is secured
by packet level encryption. Similar to the security between the sensors and gateway,
the gateway and server also establish a unique key using ECDH-256 for encrypting
data. The packet level data is encrypted end to end removing additional requirements
to configure specialized cellular VPN’s. The gateway can still operate within a VPN
if it is present. Because all traffic is initiated from the gateway there is no special IP
configuration needed for the gateway allowing it to operate with any 4G LTE CAT-M1/
NB1 enabled SIM provider.
PAGE 3
IV. GATEWAY REGISTRATION
If this is your first time using the iMonnit online portal, you will need to create a new
account. If you have already created an account, start by logging in. For instructions on
how to register for an iMonnit account, please consult the iMonnit User Guide viewable at
monnit.com/support/documentation.
REGISTERING THE GATEWAY
You will need to enter the Device ID and the Security Code from your LTE Cellular
Gateway in the corresponding text boxes. Use the camera on your smartphone to scan
the QR code on your Gateway. If you do not have a camera on your phone, or you are
accessing the online portal through a desktop computer, you may enter the Device ID and
Security Code manually.
• The Device ID is a unique number located on each device label.
• Next you’ll be asked to enter the Security Code (SC) on your device. A security
code will be all letters, no numbers. It can also be found on the barcode label of
your gateway.
When completed, select the “Submit” button.
IMPORTANT: Add the gateway and all sensors to the iMonnit portal so that on boot, the
gateway can download and whitelist the sensors from the account.
PAGE 4
V. USING THE LTE CELLULAR GATEWAY
USING THE LTE CELLULAR GATEWAY

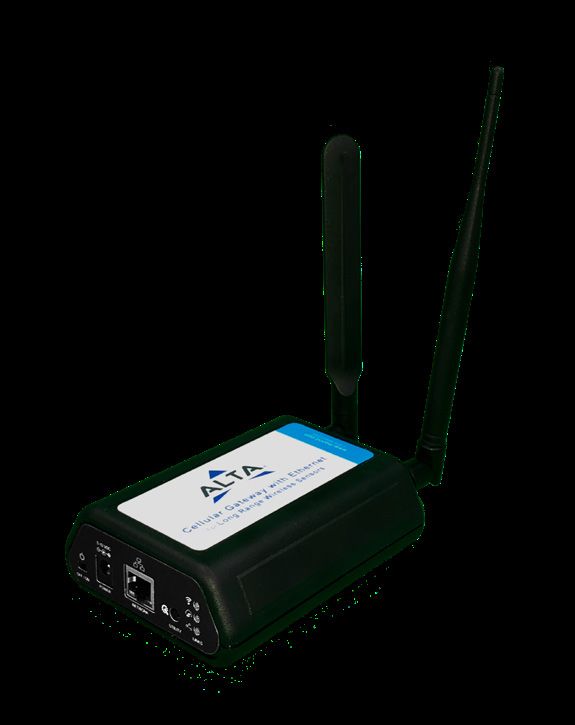

1. Connect your antennas to the gateway as seen in the below diagram.
2. Plug the power supply cord into an outlet.
3. After the three LED lights switch to green, your network is ready to use.

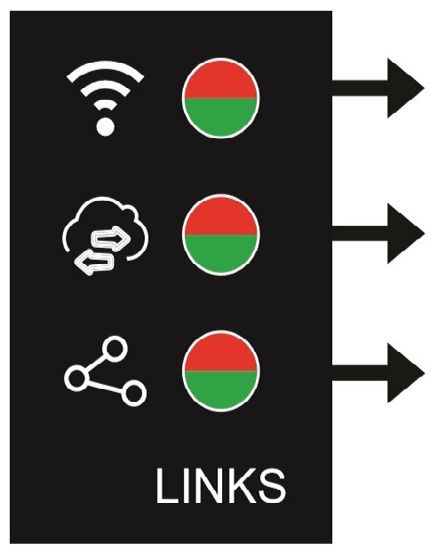

UNDERSTANDING THE GATEWAY LIGHTS
The gateway will enter three stages as it powers on:
Power-on stage: The gateway will analyze electronics and programming. The LED lights
will flash red and green, before all becoming green for one second. In case of failure, the
light sequence will repeat after ten seconds. Please contact technical support if the lights
aren’t green after two minutes.
Connection stage: The gateway will attempt to settle all operational connections. As the
gateway first connects to the network, all other lights will be dark. A blinking green light
indicates the gateway is attempting to make a tower connection. A flashing red light is a
signal the cellular connection has encountered a problem.
Operational stage: All of the lights will remain green while powered externally, unless
there is an issue. A blinking cellular link light is a signal that the gateway has encountered
an issue in the cellular network.
Steady Green: Communication with sensors is OK.
Blinking Green: Active communication with sensors.
Steady Red: Sensor communication problem.
Steady Green: Last communication with Monnit’s server was OK.
Blinking Green: Active communication with Monnit’s server
Steady Red: Last communication with Monnit’s server was unsuccessful.
Steady Green: Connected to the cellular network
Triple Blinking Green: Cellular Network Offline
Double Blinking Green: Scanning for Tower
Single Blinking Green: Activating Data Session
Blinking Green / Red: Low cellular signal
Blinking Red: Cellular connection error
PAGE 5
LTE CELLULAR GATEWAY SETTINGS
The LTE Cellular Gateway will recieve data from all sensors assigned to the network and
within range, then return this data to the server in a series of heartbeats.
You can access gateway settings by selecting “Gateways” in the main navigation panel.
Choose the LTE Cellular Gateway from the list of gateways registered to your account.

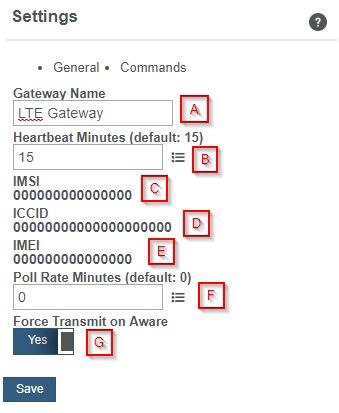

Select the “Settings” tab to edit the gateway:
A. The Gateway Name field is where
you assign your gateway a unique title.
By default, the gateway name will be the
type followed by the Device ID.
B. The Heartbeat Minutes configures
the interval that the gateway checks in
with the server. The default is fifteen
minutes. So every fifteen minutes your
gateway will report to the server.
C. The Global System for Mobile
Communications utilizes a fifteen digit
IMSI (International Mobile Subscriber
Identity) number as the primary mode
to identify the country, mobile network,
and subscriber. It is formatted as MCC-
MNC-MSIN. MCC is the Mobile Country
Code. MNC is the Mobile Network
Code attached to the cellular network.
MSIN is a serial number making the
IMSI unique to a subscriber.
D. The ICCID is the ninteen-digit unique identification number corresponding to the
cellular SIM card. It is possible to change the information contained on a SIM (including
the IMSI), but the identity of the SIM itself remains the same.
E. IMEI (International Mobile Equipment Identity) is a number exclusive to your LTE
Cellular Gateway to identify the gateway to the cell tower. The Global System for Mobile
Communications network stores the IMEI numbers in their database (EIR - Equipment
Identity Register) containing all valid cellular equipment.
F. The Poll Rate Minute setting only applies if you are using Monnit Control or Monnit
Local Alert. Here’s how it works: to conserve cellular data, your gateway has a set
heartbeat (meaning it only exchanges data with the iMonnit server once every fifteen
minutes by default). If you are using Monnit Control or Monnit Local Alert, you may want
to control equipment or receive local alerts more frequently. If you were to increase your
gateway heartbeat, you would increase your data usage substantially.
Setting a poll rate allows your gateway to check for priority incoming messages more
frequently—while using a fraction of the data of a regular message exchange. Your
gateway asks the iMonnit server if there are any priority incoming messages, and if
there are, they are exchanged immediately. If not, no messages are exchanged until
your gateway has its next regular heartbeat.
G. Force Transmit on Aware means that if the sensors reach an aware state outside of
the heartbeat interval, the gateway will immediately relay that data to the server instead
of waiting the extra time it would take to reach the next heartbeat minute.
PAGE 6

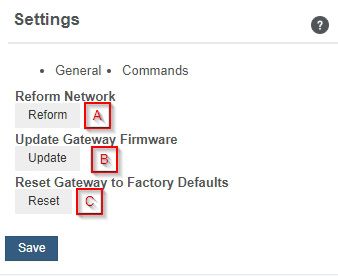

Commands
Choose the bullet for Commands located just under the Settings title to access the
commands page.
A. Selecting the Reform Network command will trigger the gateway to remove all
sensors from the internal whitelist, and then request a new sensor list from the server.
This command will force all sensors to reinitialize their connection with the gateway.
Reforming the network cleans up communication when multiple networks are in
range of each other so they are all in sync. This is especially useful if you must move
sensors to a new network, and would like to clear these sensors from the gateway’s
internal list. Reforming the network will place a new list of sensors that will continue to
exchange data.
B. If there are updates available for your gateway firmware, the Update Gateway
Firmware button will appear, giving you the option to select it and install the latest
firmware.
C. Choosing the Reset Gateway to Factory Defaults button will erase all your unique
settings and return the gateway to factory default settings.
PAGE 7
VI. INSTALLING MONNIT EXPRESS AND MINE
Gateways can be used to locally monitor wireless sensors on a computer without needing an
external Internet connection. In order to use an LTE Gateway with the PC application, you
need to make sure that both the gateway and PC are connected to the same network, and
configure the gateway to talk directly to the computer software instead of using the Internet.
INSTALLING MONNIT EXPRESS SOFTWARE

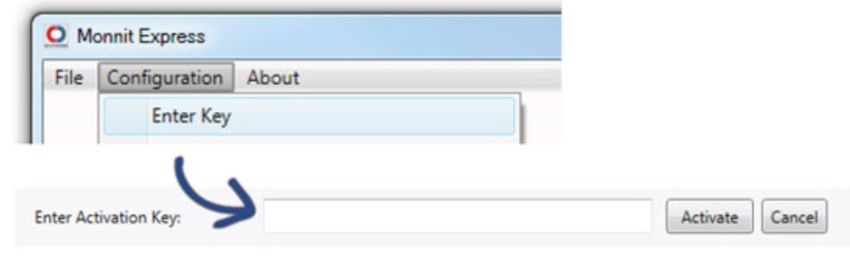

When you purchase the iMonnit Express software you will receive an activation code.
1. Visit monnit.com/support/downloads/ to download and install the iMonnit Express software.
When you finish installing the software, launch the program and click on “Configuration” then
“Enter Key”. Enter your key in the box and select “Activate.”
2. Next, you will need to add your LTE Gateway and any sensors you wish to use with the
software.
• Go to imonnit.com/point.
• Enter the Gateway ID and Security Code included on the label directly under the
QR code on the bottom of your gateway.
• Select the button for “Gateway Server Settings.”
• You must have an IP address to your server. Choose your port and whether this is
a dynamic or static DHCP. Then press the “Submit” button.
• Enter the key code.
INSTALLING MONNIT MINE SOFTWARE
Monnit MINE™ is an open software platform that provides the ability to integrate Monnit
wireless sensors and gateways with your own software system. Monnit wireless gateways
can be unlocked, allowing them to be directed to a custom host or IP address, where an
installation of Monnit MINE works as a translation application between Monnit wireless
sensors networks and existing or custom software applications.
When you purchase the Monnit MINE software, you will receive an activation code.
Next, you will need to add your LTE Gateway and any sensors you wish to use with the
software.
• Go to imonnit.com/point.
• Enter the Gateway ID and Security Code included on the label directly under the
QR code on the bottom of your gateway.
• Select the button for “Gateway Server Settings.”
• You must have an IP address to your server. Choose your port and whether this is
a dynamic or static DHCP. Then press the “Submit” button.
• Enter the key code.
PAGE 8SUPPORT
For technical support and troubleshooting tips, please visit our support knowledge base
online at monnit.com/support. If you are unable to solve your issue using our online
support, email Monnit support at support@monnit.com with your contact information and a
description of the problem, and a support representative will contact you within about one
business day.
For error reporting, please email a full description of the error to support@monnit.com.
WARRANTY INFORMATION
(a) Monnit warrants that Monnit-branded products (Product) will be free from defects in
materials and workmanship for a period of one (1) year from the date of delivery with
respect to hardware and will materially conform to their published specifications for a period
of one (1) year with respect to software. Monnit may resell sensors manufactured by other
entities and are subject to their individual warranties; Monnit will not enhance or extend
those warranties. Monnit does not warrant that the software or any portion thereof is error
free. Monnit will have no warranty obligation with respect to Products subjected to abuse,
misuse, negligence or accident. If any software or firmware incorporated in any Product
fails to conform to the warranty set forth in this section, Monnit shall provide a bug fix or
software patch correcting such non-conformance within a reasonable period after Monnit
receives from customer (i) notice of such non-conformance, and (ii) sufficient information
regarding such non-conformance so as to permit Monnit to create such bug fix or software
patch. If any hardware component of any Product fails to conform to the warranty in this
section, Monnit shall, at its option, refund the purchase price less any discounts, or repair
or replace nonconforming Products with conforming Products, or Products having substan-
tially identical form, fit, and function and deliver the repaired or replacement Product to a
carrier for land shipment to customer within a reasonable period after Monnit receives from
customer (i) notice of such non-conformance, and (ii) the non-conforming Product provided;
however, if, in its opinion, Monnit cannot repair or replace on commercially reasonable
terms it may choose to refund the purchase price. Repair parts and replacement Products
may be reconditioned or new. All replacement Products and parts become the property of
Monnit. Repaired or replacement Products shall be subject to the warranty, if any remains,
originally applicable to the Product repaired or replaced. Customer must obtain from Monnit
a Return Material Authorization Number (RMA) prior to returning any Products to Monnit.
Products returned under this warranty must be unmodified.
Customer may return all Products for repair or replacement due to defects in original
materials and workmanship if Monnit is notified within one year of customer’s receipt of the
Product. Monnit reserves the right to repair or replace Products at its own and complete
discretion. Customer must obtain from Monnit a Return Material Authorization Number
(RMA) prior to returning any Products to Monnit. Products returned under this Warranty
must be unmodified and in original packaging. Monnit reserves the right to refuse warran-
ty repairs or replacements for any Products that are damaged or not in original form. For
Products outside the one year warranty period repair services are available at Monnit at
standard labor rates for a period of one year from the customer’s original date of receipt.
(b) As a condition to Monnit’s obligations under the immediately preceding paragraphs,
customer shall return Products to be examined and replaced to Monnit’s facilities, in ship-
ping cartons which clearly display a valid RMA number provided by Monnit. Customer ac-
knowledges that replacement Products may be repaired, refurbished or tested and found to
be complying. Customer shall bear the risk of loss for such return shipment and shall bear
all shipping costs. Monnit shall deliver replacements for Products determined by Monnit to
be properly returned.
PAGE 9(c) Monnit’s sole obligation under the warranty described or set forth here shall be to repair
or replace non-conforming Products as set forth in the immediately preceding paragraph, or
to refund the documented purchase price for non-conforming Products to customer. Mon-
nit’s warranty obligations shall run solely to customer, and Monnit shall have no obligation
to customers of customer or other users of the products.
Limitation of Warranty and Remedies.
THE WARRANTY SET FORTH HEREIN IS THE ONLY WARRANTY APPLICABLE TO
PRODUCTS PURCHASED BY CUSTOMER. ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY
DISCLAIMED. MONNIT’S LIABILITY WHETHER IN CONTRACT, IN TORT, UNDER ANY
WARRANTY, IN NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE PURCHASE
PRICE PAID BY CUSTOMER FOR THE PRODUCT. UNDER NO CIRCUMSTANCES
SHALL MONNIT BE LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAG-
ES. THE PRICE STATED FOR THE PRODUCTS IS A CONSIDERATION IN LIMITING
MONNIT’S LIABILITY. NO ACTION, REGARDLESS OF FORM, ARISING OUT OF THIS
AGREEMENT MAY BE BROUGHT BY CUSTOMER MORE THAN ONE YEAR AFTER
THE CAUSE OF ACTION HAS ACCRUED.
IN ADDITION TO THE WARRANTIES DISCLAIMED ABOVE, MONNIT SPECIFICALLY
DISCLAIMS ANY AND ALL LIABILITY AND WARRANTIES, IMPLIED OR EXPRESSED,
FOR USES REQUIRING FAIL-SAFE PERFORMANCE IN WHICH FAILURE OF A PROD-
UCT COULD LEAD TO DEATH, SERIOUS PERSONAL INJURY, OR SEVERE PHYSICAL
OR ENVIRONMENTAL DAMAGE SUCH AS, BUT NOT LIMITED TO, LIFE SUPPORT OR
MEDICAL DEVICES OR NUCLEAR APPLICATIONS. PRODUCTS ARE NOT DESIGNED
FOR AND SHOULD NOT BE USED IN ANY OF THESE APPLICATIONS.
PAGE 10CERTIFICATIONS
United States FCC
This equipment has been tested and found to comply with the limits for a Class B digital
devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio commu-
nications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of more of the following measures:
• Reorient or relocate the recieving antenna.
• Increase the separtation between the equipment and reciever
• Connect the equipment into an outlet on a circuit different from that to which the
reciever is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications not expressly approved by Monnit could void
the user’s authority to operate the equipment.
RF Exposure
WARNING: To satisfy FCC RF exposure requirements for mobile
transmitting devices, the antenna used for this transmitter must not be
co-located in conjunction with any antenna or transmitter.
Monnit and ALTA Cellular Gateways:
This equipment complies with the radiation exposure limits prescribed for an uncontrolled
environment for fixed and mobile use conditions. This equipment should be installed and
operated with a minimum distance of 23 cm between the radiator and the body of the user
or nearby persons.
All ALTA Wireless Sensors and Gateways Contain FCC ID: ZTL-G2SC1.
Approved Antennas
ALTA devices have been designed to operate with an approved antenna listed below, and
having a maximum gain of 14 dBi. Antennas having a gain greater than 14 dBi are strictly
prohibited for use with this device. The required antenna impedance is 50 ohms.
• Xianzi XQZ-900E (5 dBi Dipole Omnidirectional)
• HyperLink HG908U-PRO (8 dBi Fiberglass Omnidirectional)
• HyperLink HG8909P (9 dBd Flat Panel Antenna)
• HyperLink HG914YE-NF (14 dBd Yagi)
• Specialized Manufacturing MC-ANT-20/4.0C (1 dBi 4” whip)
Monnit 4G LTE Cellular Gateway models starting with MNG2-9-LTE-CCE and MNG2-9-
ELTE-CCE also contain module: FCC ID: XPY2AGQN4NNN
The system antenna(s) used with the device must not exceed the following levels:
• 3.67 dBi in 700 MHz, i.e. LTE FDD-12 band
• 10 dBi in 850 MHz, i.e. LTE FDD-5 band
• 6.74 dBi in 1700 MHz, i.e. LTE FDD-4 band
• 7.12 dBi in 1900 MHz, i.e. LTE FDD-2 band
PAGE 11Canada (IC)
English
Under Industry Canada regulations, this radio transmitter may only operate using an anten-
na of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada.
To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the Equivalent Isotropically Radiated Power (E.I.R.P.) is not more than
that necessary for successful communication.
The radio transmitters (IC: 9794A-RFSC1, IC: 9794A-G2SC1, IC: 4160a-CNN0301, IC:
5131A-CE910DUAL, IC: 5131A-HE910NA, IC: 5131A-GE910 and IC: 8595A2AGQN4NNN)
have been approved by Industry Canada to operate with the antenna types listed on pre-
vious page with the maximum permissible gain and required antenna impedance for each
antenna type indicated. Antenna types not included in this list, having a gain greater than
the maximum gain indicated for that type, are strictly prohibited for use with this device.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
French
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour
l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélec-
trique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de
sorte que la Puissance Isotrope Rayonnée Èquivalente (P.I.R.È) ne dépasse pas l’intensité
nécessaire à l’établissement d’une communication satisfaisante.
Le présent émetteurs radio (IC: 9794A-RFSC1, IC: 9794A-G2SC1, IC: 4160a-CNN0301,
IC: 5131A-CE910DUAL, IC: 5131A-HE910NA, IC: 5131A-GE910 et IC: 8595A2AGQN-
4NNN) a été approuvé par Industrie Canada pour fonctionner avec les types d’antenne
figurant sur la page précédente et ayant un gain admissible maximal et l’impédance requise
pour chaque type d’antenne. Les types d’antenne non inclus dans cette liste, ou dont le
gain est supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de
l’émetteur.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, méme si le brouillage est susceptible d’en comprom-
ettre le fonctionnement.
PAGE 12European Union - Directive 1999/5/EC
Monnit and ALTA 2G, 3G and 4G LTE Cellular Gateways have been evaluated against the
essential requirements of the 1999/5/EC Directive.
Hereby, Monnit Corp., declares that Monnit and ALTA 2G, 3G and 4G LTE Cellular Gate-
ways are in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
In order to satisfy the essential requirements of 1999/5/EC Directive, Monnit and ALTA 2G,
3G and 4G LTE Cellular Gateways are compliant with the following standards:
EN 60950-1:2006 +A11:2009, +A1:2010 Electrical Safety RED Article 3.1a
+A12:2011, +A2:2013/IEC 60950-1:2005
EN 62311: 2008
EN 301 489-1 V1.9.2 (2011-09) EMC/ RED Article 3.1b
EMC/ RED Article 3.1b
EN 301 489-3 V1.4.1 (2002-08)
EN 301 489-7 V1.3.1
EN 301 511 V9.0.2
ETSI EN 300 220-2 V3.1.1 (2017-02) RF spectrum Efficiency RED Article 3.2
The conformity assessment procedure referred to in Article 10 and detailed in Annex IV of
Directive 1999/5/EC has been followed with the involvement of the following Testing Body.
Testing Body: Manufacturer:
NEMKO CANADA INC Monnit Corp.
303 River Road 3400 South West Temple
Ottawa, ON, Canada Salt Lake City, UT 84115
There is no restriction for the commercialisation of Monnit and ALTA 868MHz and 433MHz
wireless products in all the countries of the European Union.
WARNING: ISM and WCDMA/HSPA/GSM/GPRS/EDGE antennas are
considered integral to the Monnit Cellular Gateway and should remain
fixed with 3 meters of the device during operation.
PAGE 13SAFETY RECOMMENDATIONS
READ CAREFULLY
Be sure the use of this product is allowed in the country and in the environment required.
The use of this product may be dangerous and has to be avoided in the following areas:
• Where it can interfere with other electronic devices in environments such as hospitals
airports, aircrafts, etc.
• Where there is risk of explosion such as gasoline stations, oil refineries, etc.
It is responsibility of the user to enforce the country regulation and the specific environment
regulation.
Do not disassemble the product; any mark of tampering will compromise the warranty
validity. We recommend following the instructions of this user guide for correct setup and
use of the product.
Please handle the product with care, avoiding any dropping and contact with the internal
circuit board as electrostatic discharges may damage the product itself. The same precau-
tions should be taken if manually inserting a SIM card, checking carefully the instruction for
its use. Do not insert or remove the SIM when the product is in power saving mode.
Every device has to be equipped with a proper antenna with specific characteristics. The
antenna has to be installed with care in order to avoid any interference with other electronic
devices and has to guarantee a minimum distance from the body (23 cm). In case this re-
quirement cannot be satisfied, the system integrator has to assess the final product against
the SAR regulation.
The European Community provides some Directives for the electronic equipments intro-
duced on the market. All the relevant information’s is available on the European Community
website: http://ec.europa.eu/enterprise/sectors/rtte/documents/
Additional Information and Support
For additional information or more detailed instructions on how to use your Monnit Wireless
Sensors or the iMonnit Online System, please visit us on the web at monnit.com/support.
PAGE 14Coverage Maps:
This map shows an appoximation of wireless data coverage in the United States, Puerto Rico, and U.S. Virgin Islands.
Current as of 04/12/2019
Current as of 04/12/2019
Monnit Corporation
3400 South West Temple
Salt Lake City, UT 84115
801-561-5555
www.monnit.com
Monnit, Monnit Logo and all other trademarks are property of Monnit, Corp. AUG-007 (01/19)
© 2019 Monnit Corp. All Rights Reserved.You can also read
