Multi-Lane
   Manual 2021

     play it smart
Multi-Lane Manual 2021 - play it smart - Visplay
Finish                                                                     Dimensions are generally shown in inches (approximate) and
                                                                           millimetres (exact).
Galvanised finishes
                                                                           Ito   =   Length to order
                                                                           hto   =   Height to order
                                                                           cto   =   Colour to order
                                                                           L     =   Length
chrome                                     silk                            A     =   Axis
                                                                           H     =   Height
Suitable for merchandise supports and structural systems.
Not suitable for large surfaces or for system parts in aluminium.          D     =   Depth
* on request
                                                                           Delivery time
Anodised finishes for aluminium                                            Please check delivery times with us.

                                                                           Air freight
                                                                           Items which are to be dispatched by air must not exceed a
                                                                           total length of 3 metres.

natural anodised aluminium                 black anodised aluminium           Drawings of wooden and glass shelves
Only for aluminium system parts, such as profiles, uprights and frames.    Production drawings of shelves with the 6 digit part number
                                                                           are available for download in the product area and in the
                                                                           download centre at www.visplay.com or can be received on
Powder-coated finishes duro
                                                                           request.

                                                                               Assembly and operating instructions
                                                                           Special assembly and operating instructions exist for all
                                                                           products by Visplay in order to guarantee the functions and
                                                                           safety. These instructions contain important information e.g.
bright silver duro                         sterling silver duro
                                                                           maximum weight loads, assembly dimensions or information on
                                                                           the correct assembly and use. The respective assembly and
                                                                           operating instructions are included in the delivery of our
                                                                           systems. A general catalogue is also available on request for
                                                                           planning purposes. The assembly and operating instructions
black steel duro                           traffic white duro              are available for download in the product area and in the
Duro powder-coated surfaces are suitable for all systems, as well as for   download centre at www.visplay.com.
merchandise supports subject to heavy abrasion.

Standard and special colours (powder-coated)

stone grey                                 bright silver mistral

dark bronce                                forest green

night blue                                 khaki bronce

dolphin grey                               highland green

champagne gold                             rose bronce
Suitable for all systems – less so for merchandise supports subject
to abrasion.
Multi-Lane Manual 2021 - play it smart - Visplay
ISO 9001 / ISO 14001                                                                                            Copyright ©

The safety of Visplay products is continuously monitored by external                                            All products by Visplay and their names are protected by intellectual
testing institutes, Intertek Germany and UL (Underwriters Laboratories                                          property rights. This protection is valid for the basic system along with
Inc.).                                                                                                          the merchandise supports and accessories.
For electrified systems, the CE marking confirms conformity with the
relevant directives.                                                                                            In the event of infringement, Visplay reserves the right
                                                                                                                to take legal steps.
All processes in our company are subject to a comprehensive
management system which corresponds with the ISO 9001 quality                                                   • Our general conditions of delivery and sale are valid
standard and the ISO 14001 environment standard.                                                                  for all orders.
                                                                                                                • We reserve the right to make technical and formal
                                                                                                                 alterations.

Visplay always tries to respect the rights of third parties. Should it not be stated in individual cases, this is an oversight and will be corrected accordingly.
Multi-Lane Manual 2021 - play it smart - Visplay
Multi-Lane
Ceiling

216   1/2021 (US)
Multi-Lane Manual 2021 - play it smart - Visplay
Multi-Lane
Ceiling

 Multi-Lane layout examples

                              1/2021 (US)   217
Multi-Lane Manual 2021 - play it smart - Visplay
Multi-Lane
Ceiling

  Aluminium profile

  The aluminium profile is used to:
  - support merchandise support frames
  - support ceiling tiles and ceiling panels
  - suspend display panels
  - support 230 V power rails

  The rail has an authorised load capacity of 150 kg/m
  with an axis interval of max. 2 m.

                                                                                       49.213“ (1250 mm)
                                                                                       118.110“ (3000 mm)
                                                                                                lto

                                     Axis

  Connection sets

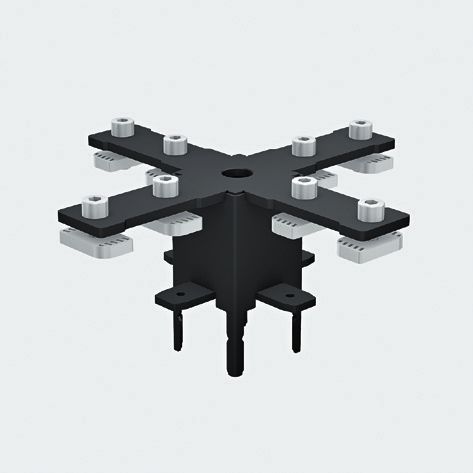

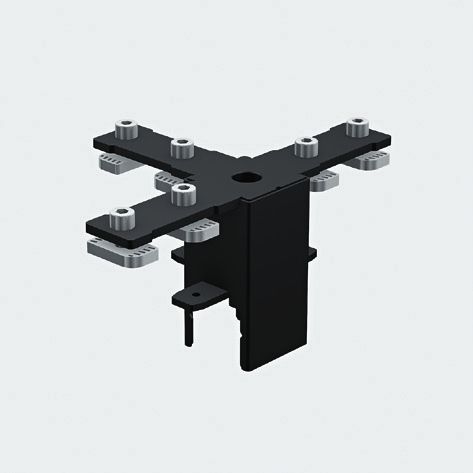

  Connection set                               L connection set      T connection set                       X connection set
  for 2 ceiling rails                          for 2 ceiling rails   for 3 ceiling rails                    for 4 ceiling rails

  Fixation set
  for 2 overlapping ceiling rails

218      1/2021 (US)
Multi-Lane Manual 2021 - play it smart - Visplay
Multi-Lane
Ceiling

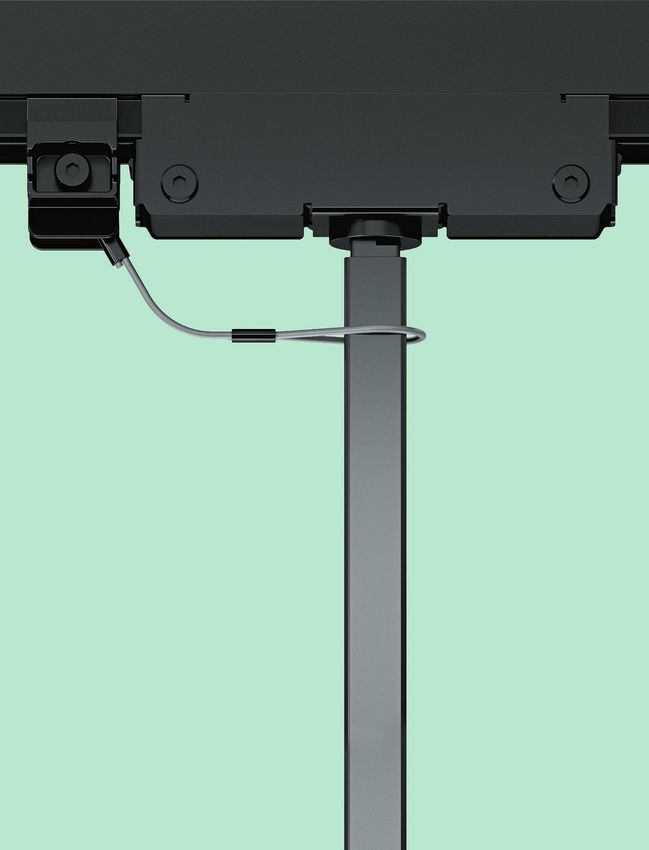

 Support bracket                                         Examples of merchandise supports with and without electrification (24 V)
 Installed without tools, holds merchandise supports

                                                                                  62.992“ (1600)
                                                                                 102.362“ (2600)

                                                                 25.591“ (A 650)
                                                                 51.181“ (A 1300)

                                                             0.98” × 0.98”
                                                             (25 x 25 mm)                                     0.98” × 0.98”
                                                                                                              (25 x 25 mm)

                                                                         25.591“ (A 650)
                                                                         51.181“ (A 1300)                              25.591“ (A 650)
                                                                                                                       51.181“ (A 1300)

 Support of power rails (230 V)                        The Multi-Lane layout can be tailored to each individual space.

                                                       Due to the system’s exceptional versatility, we will help you design the Multi-Lane
                                                       layout that best suits your needs.

                                                       We will configure the components for the necessary structures. Please contact us.

                                                       Note:
                                                       The power rail has to be ordered separately. Following brand is to be used:
                                                       EUTRAC power rail (5-conductor surface track or 7-conductor surface track incl.
                                                       data bus).

                                                                                                                        1/2021 (US)       219
Multi-Lane Manual 2021 - play it smart - Visplay
Multi-Lane
Ceiling

                     Multi-Lane ceiling rail                 Cover profile                             End cap
                                                             for ceiling rail                          for ceiling rail

  Dimensions

                                                                                                                    1.969“       1.969“
                                                                                                                   (50 mm)      (50 mm)
                                                                  49.213“ (1250 mm)
                         49.213“ (1250 mm)
                                                                  118.110“ (3000 mm)                                              3.937“
                         118.110“ (3000 mm)
                                                                           lto                                                   (50 mm)
                                  lto

  Characteristics    Aluminium profile can hold 230 V        Can be inserted into the bottom           Is fixed to the end of a ceiling rail.
                     power rails and merchandise support     groove of ceiling rail in place of a
                     frames.                                 power rail.                                  Observe the assembly and
                                                                                                          operating instruction
                     Max. weight load = 330 lbs per linear      Observe the assembly and
                     metre                                      operating instruction

                        Observe the assembly and
                        operating instruction

  Order number       black anodised aluminium                black steel duro                          black steel duro
                     49"                    337-877.06       49"		337-883.26                           		318-523.26
                     118"		337-878.06                        118"		337-884.26
                     9"–118"		337-880.06                     9"–118"		337-885.26                       Powder-coated steel; zinc-coated
                                                                                                       screws.
                                                             For lto: cover profile must be at least
                                                             0.07" shorter than the length of the
                                                             corresponding ceiling rail.

220    1/2021 (US)
Multi-Lane Manual 2021 - play it smart - Visplay
Multi-Lane
Ceiling

 Coupling                           L connector                            T connector                               X connector
 for 2 ceiling rails                for 2 ceiling rails                    for 3 ceiling rails                       for 4 ceiling rails

 Is screwed into top groove of      Is screwed to rail ends at corner      Is screwed to rail ends at intersection   Is screwed to rail ends at intersection
 2 adjoining ceiling rails.         intersection between 2 perpendicular   between 2 linear and 1 perpendicular      between 4 ceiling rails.
                                    ceiling rails.                         ceiling rail.
    Observe the assembly and                                                                                            Observe the assembly and
    operating instruction              Observe the assembly and               Observe the assembly and                  operating instruction
                                       operating instruction                  operating instruction

 black steel duro                   black steel duro                       black steel duro                          black steel duro
 		318-524.26                       		318-515.26                           		318-516.26                              		318-517.26

 Powder-coated steel; zinc-coated   Powder-coated steel; zinc-coated       Powder-coated steel; zinc-coated          Powder-coated steel; zinc-coated
 screws.                            screws.                                screws.                                   screws.

                                                                                                                                           1/2021 (US)         221
Multi-Lane Manual 2021 - play it smart - Visplay
Multi-Lane
Ceiling

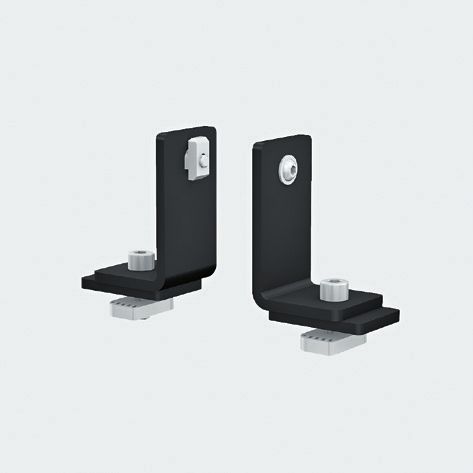

  Cover profile for L, X and T            Fixation set                               Ceiling suspension mount                    Ceiling pendulum suspension
  ­connectors                             for 2 overlying ceiling rails

                                                                                            6.772“–10.709“
                                                                                             (172–272 mm)

                                                                                                                                                                   M10

  The cover set can be inserted in L, T   Is screwed to 2 overlying ceiling rails.   Is fixed in top groove of ceiling rail.     Is fixed in top groove of ceiling rail.
  and X connectors in place of a power                                               Enables fixation of linear ceiling rails.
  rail.                                      Observe the assembly and                Min. distance from the ceiling to the       Supports an M 10 threaded rod
                                             operating instruction                   lower edge of the profile 10.709" to        ­according to ceiling height (threaded
      Observe the assembly and                                                       max 14.645".                                 rod is not included). Recommended
      operating instruction                                                          Adjustment range of 3.937" to                for ceiling structures with L, T and X
                                                                                     ­compensate for height differences.          connectors and fastened overlying
                                                                                                                                  ceiling rails.
                                                                                     Does not include mounting screws.
                                                                                     These must be selected in accord-           Does not include mounting screws.
                                                                                     ance with the type of ceiling.              These must be selected in accord-
                                                                                                                                 ance with the type of ceiling.

                                                                                        Observe the assembly and
                                                                                        operating instruction                       Observe the assembly and
                                                                                                                                    operating instruction

  black steel duro                        black steel duro                           black steel duro                            black steel duro
  		318-518.26                            		318-547.26                               		318-545.26                                		994-019.26

  Powder-coated steel; zinc-coated        Set of 2 pcs.                              The ceilung suspension mount must al-       The ceiling pendulum suspension
  screws.                                                                            ways be installed close to a connector      must always be mounted directly
                                          Powder-coated steel; zinc-coated           and at intervals of max. 78.740".           alongside the connector and at
                                          screws.                                                                                intervals of max. 78.740".
                                                                                     At least 2 per ceiling rail.
                                                                                                                                 Threaded rod is not included in the
                                                                                                                                 delivery.

222      1/2021 (US)
Multi-Lane
Ceiling

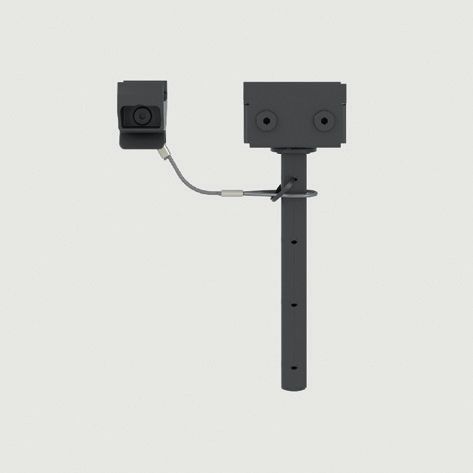

 Support bracket with shaft             Screw adapter with shaft             Universal adapter                       Power rail mounting set
 for suspended merchandise supports     for suspended merchandise support    with threaded sleeve M 8
                                                                             for insertion into ceiling rail

                                                                                                        3.543"
                                                                                                       (90 mm)

 Support bracket with shaft incl.       To be mounted in ceiling rail and    For insertion into ceiling rail.        For mounting on ceiling rail.
 safety element supports suspended      secured with tool.
 merchandise supports.                                                       For securing merchandise via            Only for use with Nordic Aluminium
                                        Supports circular tube:              a ­threaded sleeve M 8                  Global trac pro XTS 3-circuit system.
 Is clipped into the ceiling rail and   Ø 0.78" or Ø 0.98"
 secured in place without tools.        Supports square tube:                Max. weight load 66.1 lbs
                                        0.78" × 0.78" or 0.98" × 0.98"                                                  Observe the assembly and
 Supports circular tube:                                                        Observe assembly and                    operating instruction
 Ø 0.78" or Ø 0.98"                     Max. weight load = 176,37 lbs           operating instructions
 Supports square tube:                  per screw adapter
 0.78" × 0.78" or 0.98" × 0.98"
                                           Observe the assembly and
 Max. weight load = 176,37 lbs             operating instruction
 per support bracket

    Observe the assembly and
    operating instruction

 black steel duro                       black steel duro                     black steel duro                        zinc
 		318-549.26                                                   704-000.26                              704-490.06   Set of 12 pcs.		994-160.21
                                                                                                                     Set of 100 pcs.		994-103.21
                                        Incl. safety element
                                                                                                                     The recommended fastening distance
                                                                                                                     is 39".

                                                                                                                                         1/2021 (US)         223
Multi-Lane
Ceiling

  Support profile                           Support profile                            Support profile                            Merchandise support frame
  for ceiling tile                          for ceiling tiles 0.5"                     for lateral suspension of display panel    without electrification

                                                                                                                                                                    102.362"
             lto                                         lto                                      lto                                                              (2600 mm)

                                                                                                                                                   25.591" (A 650 mm)
                                                                                                                                                   51.181" (A 1300 mm)

  The aluminium profile is inserted         The aluminium profile is inserted          The aluminium profile is inserted          Steel frame with holes at 3.44"
  sideways into the groove of the ceiling   sideways into the groove of the ­          sideways into the groove of the ceiling    ­increments for supporting hanging
  rail. Ceiling tiles are supported by      ceiling rail. Ceiling tiles are screwed    rail. Supports different display panels.    rails and shelves.
  angle trims.                              to ­support profile from underneath.
                                                                                       Does not include mounting screws           Square tube 0.98" × 0.98"
      Observe the assembly and              Does not include mounting screws for       for display panels. These must be
      operating instruction                 ceiling tiles. These must be selected in   selected in accordance with the type       Max. weight load = 353 lbs
                                            accordance with the type of tile.          of panel.                                     Observe the assembly and
                                                                                                                                     operating instruction
                                               Observe the assembly and                   Observe the assembly and
                                               operating instruction                      operating instruction

  black steel duro                          black steel duro                           black steel duro                           black steel duro
  lto 9"–118"             337-897.26        lto 9"–118"		337-891.26                    lto 9"–118"		    337-903.26                25" × 102"		994-000.26
                                                                                                                                  51" × 102"		994-001.26

                                                                                                                                  Incl. 2 support bracket with safety
                                                                                                                                  element.

224      1/2021 (US)
Multi-Lane
Ceiling

 Merchandise support frame 24 V               Merchandise support frame                    Merchandise support frame 24  V              Merchandise support frame
 electrified                                  without electrification                      electrified                                  with screw adapter,
                                                                                                                                        without electrification

                                   102.362"                                     62.992"                                      62.992"                                        102.362"
                                  (2600 mm)                                    (1600 mm)                                    (1600 mm)                                      (2600 mm)

                  25.591" (A 650 mm)                           25.591" (A 650 mm)                           25.591" (A 650 mm)                             25.591" (A 650 mm)
                  51.181" (A 1300 mm)                          51.181" (A 1300 mm)                          51.181" (A 1300 mm)                            51.181" (A 1300 mm)

 Steel frame with holes at 3.44"              Steel frame with holes at 3.44"              Steel frame with integrated power rail       Steel frame with holes at
 ­increments for supporting shelves,          ­increments for supporting shelves,          on one side for powering shelves with        3.44"-­increments for insertion of
  incl. hanging rail for garments.             incl. hanging rail for garments.            LEDs. Holes in 3.44" increments.             hanging rails and shelves.

  Square tube 0.98" × 0.98"                   Square tube 0.98" × 0.98"                    Square tube 0.98" × 0.98"                    Square tube 0.98" × 0.98"
  Nominal voltage = 24 V DC                                                                Nominal voltage = 24 V DC                    Max. weight load = 353 lbs
 ­Nominal current max. 9.5 A                  Max. weight load = 353 lbs                   ­Nominal current max. 9.5 A
                                                 Observe the assembly and                                                                  Observe assembly and
 Max. weight load = 353 lbs                                                                Max. weight load = 353 lbs                      operating instructions
                                                 operating instruction
    Observe the assembly and                                                                  Observe the assembly and
    operating instruction                                                                     operating instruction

 black steel duro                             black steel duro                             black steel duro                             black steel duro
 25"× 102"		994-002.26                        25" × 62"		994-004.26                        25" × 62"		994-006.26                        25" × 102"                   704-442.26
 51" × 102"		994-003.26                       51" × 62"		994-005.26                        51"× 62"		994-007.26                         51" × 102"                   704-444.26

 Incl. 2 support bracket with safety          Incl. 2 support bracket with safety          Incl. 2 support bracket with safety          Including screw adapter; to be
 element.                                     element.                                     element.                                     mounted in ceiling rail and secured
                                                                                                                                        with tool.
 Power rail adapter and converter to                                                       Power rail adapter and converter to
 be ordered separately 994-014.26.                                                         be ordered separately 994-014.26.

                                                                                                                                                              1/2021 (US)              225
Multi-Lane
Ceiling

  Merchandise support frame 24 V                 Merchandise support frame                      Merchandise support frame 24 V                 Set of floor attachment plates
  with screw adapter, electrified                with screw adapter,                            with screw adapter, electrified                for merchandise support frame
                                                 without electrification                                                                       for suspended merchandise support

                                      102.362"                                       62.992"                                        62.992"
                                     (2600 mm)                                      (1600 mm)                                      (1600 mm)

                                                                                                                                                                              12.598"
                                                                                                                                                                             (320 mm)

                     25.591" (A 650 mm)                             25.591" (A 650 mm)                             25.591" (A 650 mm)
                     51.181" (A 1300 mm)                            51.181" (A 1300 mm)                            51.181" (A 1300 mm)

  Steel frame with integrated power              Steel frame with holes at                      Steel frame with integrated power              Vertically adjustable floor attachment
  rail on one side for electrification           3.44"-­increments for insertion                rail on one side for electrification           to reduce swinging movement of
  of shelves with LEDs; holes at                 of shelves; incl. hanging rail for             of shelves with LEDs; holes at                 ­hanging merchandise support frame.
  3.44"-increments.                              garments.                                      3.44"-increments.
                                                                                                                                               Suitable for a distance of 12.44" to
  Square tube 0.98" × 0.98"                      Square tube 0.98" × 0.98"                      Including screw adapter; to be                 18.35" between floor and bottom edge
                                                                                                mounted in ceiling rail and secured            of merchandise
  Nominal voltage = 24 V DC                      Max. weight load = 353 lbs                     with tool.                                     support frame.
  Nominal current max. 7 A
                                                    Observe assembly and                        Square tube 0.98" × 0.98"                         Observe assembly and
  Max. weight load = 353 lbs                        operating instructions                                                                        operating instructions
                                                                                                Nominal voltage = 24 V DC
      Observe assembly and                                                                      Nominal current max. 7 A
      operating instructions
                                                                                                Max. weight load = 353 lbs

                                                                                                   Observe assembly and
                                                                                                   operating instructions

  black steel duro                               black steel duro                               black steel duro                               black steel duro
  25" × 102"                   704-441.26        25" × 62"                    704-446.26        25" × 62"                    704-445.26                                 704-487.26
  51" × 102"                   704-443.26        51" × 62"                    704-448.26        51" × 62"                    704-447.26
                                                                                                                                               Set consisting of two floor
  Including screw adapter; to be                 Including screw adapter; to be                                                                attachment plates.
  mounted in ceiling rail and secured            mounted in ceiling rail and secured
  with tool.                                     with tool.

226      1/2021 (US)
Multi-Lane
Ceiling

 Assembly tool            Power supply unit with converter        Slip-on shelf brackets                    Back bar for shelf
                          and power rail adapter                                                            without electrification
                          (24 V/60 W)

                                                                                         10.630" (270 mm)

                                                                                                                      0.984" x 0.984"
                                                                                                                       (25 x 25 mm)

                                                                                                                                    25.591" (A 650 mm)
                                                                                                                                    51.181" (A 1300 mm)

                          Incl. casing. Is inserted into bottom   Are plugged over the lower connecting     Is mounted between merchandise
                          groove of ceiling rail.                 tube. (Cable and converter tray is        support frames.
                                                                  covered with wooden support shelf).
                          Only suitable for 3-phase power rail.                                             Max. weight load = 88 lbs
                                                                  Max. weight load = 88 lbs
                          Connection 100–240 V AC 50–60 Hz                                                     Drawing no.:
                          Nominal voltage = 24 V / DC SELV              Drawing no.:                           704-278 Glass shelf 1290 mm
                                                                        704-278 Glass shelf 1290 mm
                             Observe the assembly and                                                          Drawing no.:
                             ­operating instruction                     Drawing no.:                           704-279 Glass shelf 640 mm
                                                                        704-279 Glass shelf 640 mm
                                                                                                               Drawing no.:
                                                                        Drawing no.:                           704-280 Wooden shelf 1290 mm
                                                                        704-280 Wooden shelf 1290 mm
                                                                                                               Drawing no.:
                                                                        Drawing no.:                           704-281 Wooden shelf 640 mm
                                                                        704-281 Wooden shelf 640 mm

                                                                        Observe the assembly and
                                                                        ­operating instruction

 bright silver duro       black steel duro                        Black steel duro                          black steel duro
 49" (24 W)		111-844.12   		994-014.26                                                     702-758.26       25"		704-269.26
                                                                  cto                                       51"		704-270.26
                                                                                           702-758.07
                                                                  Set of 2 pieces

                                                                                                                                    1/2021 (US)           227
Multi-Lane
Ceiling

  Back bar with LED lighting for shelf         Hanging rail 0.98" × 0.98"                 Front arm 1“ × 1“                          Hanging rail 1" × 1"
  electrified                                  without electrification                                                               with a front arm on each side
                                                                                                                                     without electrification

           0.984" x 0.984"
                                                                                                                                         25.591" (A 650 mm)
            (25 x 25 mm)                                0.984" x 0.984"                                                                  51.181" (A 1300 mm)
                                                         (25 x 25 mm)                                        9.252" (235 mm)

                         25.591" (A 650 mm)
                         51.181" (A 1300 mm)                        25.591" (A 650 mm)
                                                                    51.181" (A 1300 mm)
                                                                                                                                                               0.984" x 0.984"
                                                                                                                                           15.748"              (25 x 25 mm)
                                                                                                                                          (400 mm)

  Is mounted between merchandise               Is mounted between merchandise             For mounting on hanging rail               Is mounted between merchandise
  support frames.                              support frames.                            0.98" × 0.98"                              support frames.
                                                                                                                                     Front arm depth 7,362"
  Nominal voltage = 24 V DC                    Max. weight load = 88 lbs                  Max. weight load = 44.1"
  - 6 W lamp for 25" axis                                                                                                            Max. weight load = 88 lbs
  - 12 W lamp for 51" axis                                                                We recommend that the m     ­ erchandise
  Colour temperature: 3000 K /                                                            support frame is ­secured with
  4000 K SDCM3                                                                            the floor attachment plates to avoid
  Colour rendering index: 92                                                              ­tilting in the event of a one-sided
  Luminous flux: 1000 lm/m with opal                                                       load.
  diffusor

  Max. weight load = 88 lbs

      Drawing no.:
      704-278 Glass shelf 1290 mm

      Drawing no.:
      704-279 Glass shelf 640 mm

      Drawing no.:
      704-280 Wooden shelf 1290 mm

      Drawing no.:
      704-281 Wooden shelf 640 mm

  black steel duro                             black steel duro                           black steel duro                           black steel duro
  25"		704-304.26                              for axis 25"		704-273.26                   7"                          704-256.26     25"		 704-275.26
  51"		704-272.26                              for axis 51"		704-274.26

  Indicate colour temperature of 3000 K
  or 4000 K when placing order.

228      1/2021 (US)
Multi-Lane
Ceiling

 Hanging rail 1" × 1"                  Single power adapter 24 V            LED suspension light                         LED spotlight for powered ­upright
 with two front arms on each side      for appliances                                                                    or hanging frame
 without electrification               with Visplay connectors

                     0.984" x 0.984"
                      (25 x 25 mm)
                                                                                                       0.984" × 0.984"
                                                                                 25.591" (A 650 mm)     (25 × 25 mm)
        24.606"
                                                                                 51.181" (A 1300 mm)                                               3.858"
       (625 mm)
                                                                                                                                                  (98 mm)

                      51.181"
                   (A 1300 mm)
                                                   500
                                                                                                                                                 ø 2.165"
                                                                                                                                                 (55 mm)

 Is mounted between merchandise        For insertion in powered tube        Is mounted between merchandise               LED-powered light and optical lens.
 support frames.                       25 × 25 mm.                          support frames.                              Is inserted into the perforated holes
 Front arm depth 7,362"                                                                                                  on the powered upright or hanging
                                       Other appliances may only be         Nominal voltage = 24 V DC                    frame.
 Max. weight load = 88 lbs             connected by authorised qualified    - Lamp 5 W for axis 26"
                                       personnel.                           - Lamp 10 W for axis 51"                     Nominal voltage = 24 V DC
                                                                            Colour temperature: 3000 K /                 Lamp 7 W, D 2"
                                                                            4000 K SDCM3                                 Colour temperature: 3000 K SDCM3
                                       The single power adapter may         Colour rendering index: 92                   Colour rendering index: 80
                                       only be used with the systems        Luminous flux: 1000 lm/m with opal           Luminous flux: approx. 330 lm with
                                       Qubo 25 P/L, Qubo Wall P/L and       diffuser                                     optical lens
                                       Multi-Lane.
                                                                                                                         Reflected beam angle: approx: 40°
                                       Nominal voltage = 24 V DC
                                       Nominal current max. 4 A                                                          Swivel range: up to 90° downwards

                                          Observe the assembly and
                                          ­operating instruction

 black steel duro                      black                                black steel duro                             black steel duro
 51"		704-276.26                                               993-823.18   26"                           704-412.26                              993-447.26
                                                                            51"                           704-394.26
                                       Including feed cable 500 mm with
                                       Visplay connectors.

                                                                                                                                             1/2021 (US)         229
Multi-Lane
Ceiling

  Scliss                                       Multi-Lane upright, outer 24 V               Multi-Lane upright, outer                  Multi-Lane upright, central 24 V
                                               electrified                                  without electrification                    electrified

              100 x

                                                      114.173"–122.047"                            114.173"–122.047"                          114.173"–122.047"
                          R 0.807“                     (2900–3100 mm)                               (2900–3100 mm)                             (2900–3100 mm)
                         (20.5 mm)

  Prevents scratches on hanging rails          Upright with screw adapter for               Upright with screw adapter for             Upright with screw adapter for
  and front arms in silk or stainless steel.   ­mounting in ceiling rail.                   ­mounting in ceiling rail.                 ­mounting in ceiling rail.

  To clip into coat hanger hook                Telescopic extension from 114.2"             Telescopic extension from 114.2"           Telescopic extension from 114.2"
  (Ø 0.13" – 0.14").                           to 122". With adjustable foot                to 122". With adjustable foot              to 122". With adjustable foot
                                               for fine adjustment.                         for fine adjustment.                       for fine adjustment

                                               Nominal voltage = 24 V DC                    Square tube 0.98" × 0.98"                  Nominal voltage = 24 V DC
                                               Nominal current max. 7 A                                                                Nominal current max. 7 A
                                                                                            With two pins on one side to support
                                               Square tube 0.98" × 0.98"                    connecting tubes. Steel upright with       Square tube 0.98" × 0.98"
                                                                                            holes at 3.44"-increments for ­insertion
                                               With two pins on one side to support         of hanging rails and shelves.              With two pins on both sides to support
                                               connecting tubes. Steel upright with                                                    connecting tubes. Steel upright with
                                               integrated power rail for ­electrification   Max. weight load = 264.6 lbs               integrated power rail for ­electrification
                                               of shelves with LED lights, holes at                                                    of shelves with LED lights, holes at
                                               3.44"-increments.                               Observe assembly and                    3.44"-increments.
                                                                                               operating instructions
                                               Max. weight load = 264.6 lbs                                                            Max. weight load = 264.6 lbs

                                                  Observe assembly and                                                                    Observe assembly and
                                                  operating instructions                                                                  operating instructions
  transparent                                  black steel duro                             black steel duro                           black steel duro
  		929-449.02                                                            704-452.26                                   704-451.26                                 704-450.26

  Set of 100 pcs.

230        1/2021 (US)
Multi-Lane
Ceiling

 Multi-Lane upright, central                Multi-Lane upright, outer             Multi-Lane upright, central              Adapter for converter
 without electrification                    with 120–240 V AC connection          with 120–240 V AC connection             and mini HV connector

                                                          118.110"                               118.110"
       114.173"–122.047"
                                                        (3000 mm)                              (3000 mm)
        (2900–3100 mm)

 Upright with screw adapter for             Upright with screw adapter for        Upright with screw adapter for           Adapter for connection of
 ­mounting in ceiling rail.                 ­mounting in ceiling rail.            ­mounting in ceiling rail.               mini HV connector and 90 W
                                                                                                                           converter 349-140.19
 Telescopic extension from 114.2"           Telescopic extension from 114.2"      Telescopic extension from 114.2"
 to 122". With adjustable foot              to 122". With adjustable foot         to 122". With adjustable foot for fine
 for fine adjustment                        for fine adjustment.                  adjustment.

 Square tube 0.98" × 0.98"                  Incl. power rail adapter and          Incl. power rail adapter and
                                            ­connection cable with mini           ­connection cable with mini
 With two pins on both sides to ­support     HV connector for converter.           HV connector for converter.
 connecting tubes. Steel upright with
 holes at 3.44"-increments for ­insertion   Square tube 0.98" × 0.98"             Square tube 0.98" × 0.98"
 of hanging rails and shelves
                                            With two pins on one side to          With two pins on both sides to ­
 Max. weight load = 264.6 lbs               support connecting tubes.             support connecting tubes.
                                            Holes at 3.44"-increments.            Holes at 3.44"-increments.
    Observe assembly and
    operating instructions                  Max. weight load = 264.6 lbs          Max. weight load = 264.6 lbs

                                               Observe assembly and                  Observe assembly and
                                               operating instructions                operating instructions

 black steel duro                           black steel duro                      black steel duro                         black
                           704-449.26                                704-485.26                             704-486.26                           704-453.06

                                                                                                                                            1/2021 (US)   231
Multi-Lane
Ceiling

  Set of connecting tubes

                       25.591" (650 mm)
                       51.181" (1300 mm)

  To connect Multi-Lane uprights.

      Observe assembly and
      operating instructions

  black steel duro
  for axis 26"              702-418.26
  for axis 51"              702-328.26

232      1/2021 (US)
Multi-Lane
Ceiling

             1/2021 (US)   233
Visplay Companies                                            Visplay Exclusive Dealers / Sales Agents /
Offices & Showrooms                                          Authorized Distributors

USA                                USA Showroom              Australia                             Japan
Visplay Inc.                       100 Gansevoort St.        Distributed by MADE Retail Systems    Distributed by
7528 Walker Way                    New York, NY 10014        Authorized Distributor                Okamura Corporation
Allentown, PA 18106                USA                       407 Swan Street                       Exclusive Dealer
USA                                visplay-usa@visplay.com   Richmond, Vic. 3121                   Higashi Ote Bldg.,
T +1 610 366 1658                                            Melbourne                             1F1-1-7, Uchikanda, Chiyoda-ku
visplay-usa@visplay.com                                      Australia                             Tokyo 101-0047
                                                             T +61 3 9600 4938                     Japan
Germany                            Visplay United Kingdom
                                                             info@maderetail.com.au                T +81 3 5282 8743
Visplay GmbH & Showroom            & Netherlands
                                                                                                   info_visplay@okamura.co.jp
Charles-Eames-Strasse 2            30 Clerkenwell Road
                                                             Brazil
79576 Weil am Rhein                London EC1M 5PG
                                                             Distributed by Instant Shop           Middle East, Asia & Australia
Germany                            T +44 207 608 6200
                                                             Authorized Distributor                Distributed by Klaus Bisch
T +49 (0)7621 702 4444             visplay-uk@visplay.com
                                                             Av. Nove de Julho, 5017 # 51          Sales Agent
info@visplay.com
                                                             Cj. 51 - 5° Andar                     M +34 662 675 641
                                   Visplay USA
                                                             São Paulo, SP - CEP 01407-200         Klaus.Bisch.EXT@visplay.com
Visplay Switzerland & Austria      Visplay Inc.
                                                             Brazil                                Spain
Charles-Eames-Str. 2               7528 Walker Way
                                                             T +55 11 4858-1260
79576 Weil am Rhein                Allentown, PA 18106
                                                             contato@instantshop.com.br            Panama
Germany                            USA
                                                                                                   Distributed by Vidisplay S. A.
T +41 61 377 18 41                 T +1 610 366 1658
                                                             China                                 Authorized Distributor
visplay-switzerland@visplay.com    visplay-usa@visplay.com
                                                             Distributed by Okamura Shanghai       Calle Ramon Jurado,
visplay-austria@visplay.com
                                                             Authorized Distributor                Paitilla Mall, Local 17 Piso 1
                                                             15Fax: B block, FutureLand building   Punta Paitilla
Visplay France & Belgium
                                                             No.5 Lane 388, Zhongjiang Road        Panama
So Square Opéra
                                                             Putuo District                        Ciudad de Panamá
5, Rue Boudreau
                                                             Shanghai 200062                       T +507 265 30 65
75009 Paris
                                                             China                                 info@vidisplay.net
France
                                                             T +86 21 6359 6870
T +33 01 56 77 07 93
                                                             visplay@okamura-sha.com               Poland, Czech Republic & Baltics
visplay-france@visplay.com
                                                                                                   Distributed by
                                                             Greece                                Meškank Interior Brands
Spain / Portugal / Latin America
                                                             Distributed by KYVERNITIS I. SA       Sales Agent
Calle Padilla, 21
                                                             Exclusive Dealer                      T +49 172 549 03 29
28006 Madrid
                                                             125, G. Papandreou & Adrianiou str.   visplay-interiorbrands@visplay.com
Spain
                                                             144 51 Metamorfosi Athens
T +34 91 5775261
                                                             Greek                                 Russia
visplay-spain@visplay.com
                                                             T +30 210 2855 777                    Distributed by ULTIMATHULE
                                                             info@kyvernitis.com                   Exclusive Dealer
                                                                                                   Business quartel „ARMA“
                                                             India                                 Nizhniy Susalniy per., 5 bld.18
                                                             Distributed by                        105065 Moscow
                                                             Matrix Visual Innovations Pvt. Ltd.   Russia
                                                             Authorized Distributor                T +7 495 988 21 20
                                                             45/1, 2nd Floor, Corner Market,       visplay@ultimathule.ru
                                                             Malviya Nagar
                                                             New Delhi 110017                      Turkey
                                                             India                                 Distributed by
                                                             T +971 4 321 56 74                    Dekotek Mimarlık Ltd. Sti
                                                             visplay-dubai@visplay.com             Exclusive Dealer
                                                                                                   Sair Nigar Sokak 80/8 Osmanbey
                                                             Italy                                 34363 Istanbul
                                                             Distributed by Zeppelin s.r.l.        Turkey
                                                             Exclusive Dealer                      T +90 212 233 39 33
                                                             Via Matteucci, 2                      info@dekotek.com.tr
                                                             61032 Fano PU
                                                             Italy                                 For other countries:
                                                             T +39 0721 851 042                    Visplay GmbH
                                                             info@zeppelindesign.it                Charles-Eames-Str. 2
                                                                                                   79576 Weil am Rhein
                                                                                                   T +49 (0)7621 702 4444
                                                                                                   info@visplay.com
www.visplay.com info@visplay.com
You can also read
NEXT SLIDES ... Cancel
