NATIONAL MISSION FOR CLEAN GANGA
MINISTRY OF JAL SHAKTI
UTTAR PRADESH JAL NIGAM
1st TPI Report – July 2021
WAPCOS Limited
(A Government of India Undertaking – Ministry of Jal Shakti)
Corporate Office: 76-C, Institutional Area, Sector-18, 22 July 2021
Gurgaon, Haryana - 122015, India
Registered Office: “KAILASH”, 5th Floor, KG Marg, New
Delhi-110 001, India
TPI Report for Operation & Maintenance of MPS & 14 MLD STP Salori at Prayagraj, Uttar Pradesh
Contents
SPMG TPI Report for Operation and Maintenance of MPS and 14 MLD STP Salori
in Prayagraj City
CONTENTS
1.0 Introduction.............................................................................................................02
2.0 Background.............................................................................................................02
3.0 Objectives...............................................................................................................02
4.0 14 MLD STP Salori Prayagraj.………………………...….........................................03
5.0 TPI visit……………………..…………………...........................................................04
6.0 Observations……………………………………………………………………………..04
7.0 Photographs…………….........................................................................................06
8.0 Annexures………………………………………………………………………………..12
1
SPMG TPI Report for Operation and Maintenance of MPS and 14 MLD STP Salori
in Prayagraj City
TPI REPORT FOR OPERATION AND MAINTENANCE OF MPS
AND 14 MLD STP Salori in Prayagraj City
FIRST VISIT 29.06.2021
1. INTRODUCTION
Allahabad officially known as Prayagraj, also known as AIlahabad, is a metropolis in
the Indian state of Uttar Pradesh. It is the administrative headquarters of
the Allahabad district—the most populous district in the state and 13th most
populous district in India—and the Allahabad division. The city is the judicial capital
of Uttar Pradesh with the Allahabad High Court being the highest judicial body in the
state. As of 2011, Allahabad is the seventh most populous city in the
state, thirteenth in Northern India and thirty-sixth in India, with an estimated
population of 1.53 million in the city. In 2011 it was ranked the world's 40th fastest-
growing city. Allahabad, in 2016, was also ranked the third most liveable urban
agglomeration in the state (after Noida and Lucknow) and sixteenth in the
country. Hindi is the most widely spoken language in the city. Allahabad lies close
to Triveni, Sangam, the "three-river confluence" of
the Ganges, Yamuna and Sarasvati rivers. It plays a central role in Hindu scriptures.
2. BACKGROUND
A Detailed Project Report on Sewerage Scheme of Prayagraj was prepared by UP
Jal Nigam and submitted to NMCG.
3. OBJECTIVES
The main objectives of the Detailed Project Report are-:
To ascertain that no untreated sewage is discharged into river Yamuna through
open drains/nallas.
To identify solutions for untapped nallas carrying wastewater to River Yamuna by
means of tapping arrangements, pumping station and sewage treatment plants
as and where required.
2
SPMG TPI Report for Operation and Maintenance of MPS and 14 MLD STP Salori
in Prayagraj City
To carry out the design of all sub components of the project to the level sufficient
for estimation of capital cost and O&M Cost to a reasonably accurate level.
To ascertain additional treatment capacity required for treating wastewater
carried by open drains/nallas.
4. 14 MLD STP AT SALORI. ALLAHABAD (UTTAR PRADESH)
AA&ES for the project on “Construction of 14 MLD Capacity STP at Salori,
Allahabad (Uttar Pradesh) under Infrastructure investment component of World
Bank Assisted National Ganga Basin Project at an estimated cost of Rs.42.40
crores including 5 years O&M was sanctioned by NMCG on 29th October 2014.
The period for completion of work is 18 months from the date of award of
contract and within 27 months from the date of sanction.
Revised AA&ES of costing Rs. 39.36 Crores includes capital cost, 5 years O&M
and Project Preparation & Supervision has been approved by NMCG, New Delhi,
Department of Water Resources, River Development & Ganga Rejuvenation vide
order no. Pr-12012/2020 – O/o Project Development Uttar Pradesh dated 09 th
July 2020.
The main components are listed as below:-
Sewage Treatment Plant at Salori 01 No. Capacity - 14 MLD.
Main pumping Station - 14 MLD.
Effluent Pumping Station - - 43 MLD.
The work was allotted by General Manager, GPCU, Allahabad vide letter No.
3847/610/397 Dated 01.10.2014 to M/s UEM India Pvt. Ltd for Rs. 53.39 Crores
(Design build cost – Rs. 24.25 Crores and O&M Cost for 10 years - Rs. 29.25
Crores). Attached as Annexure- I.
Presently all the works of the project has been completed and Completion report
has been given.
O&M has been started by M/s UEM India Pvt. Ltd w.e.f. 01.10.2016
The work is in post construction phase.
Uttar Pradesh Pollution Control Board has given consent to operate 14mld STP
upto 31.12.2022. vide Letter No.
91123/UPPCB/Allahabad(UPPCBRO)/CTO/Water/ Allahabad/2020 dated
30.03.2020.
3
SPMG TPI Report for Operation and Maintenance of MPS and 14 MLD STP Salori
in Prayagraj City
5 TPI VISIT BY WAPCOS ON 29.06.2021
WAPCOS conducted site visit as part of TPI for Operation and Maintenance of 14 mld
STP, MPS and EPS at Salori in Prayagraj City on 29.06.2021. WAPCOS team
comprised of following Experts:
Mr. Ravi Chandra, Top Level Expert
Mr. Suresh Kumar Chaudhary, Top Level Expert
Mr. Sunny Dwivedi, Middle Level Expert
The following officials from UP Jal Nigam and representative of contracting firm
were present:
Mr. B.K Srivastava, AE, UP Jal Nigam.
Mr. Arvind Kumar Yadav, AE, UP Jal Nigam.
Mr. Ajay Kumar Dubey, JE, UP Jal Nigam.
Mr. Premoo Tiwari, Plant Head, M/s UEM India Pvt. Ltd.
Mr. Inder Dev Pandey, Civil, M/s UEM India Pvt. Ltd.
Mr. Abhinav Mishra, Mechanical, M/s UEM India Pvt. Ltd.
6. Observations
14 MLD SBR STP is in Good Working Condition and Effluent meets the design
standards.
O & M manual and O&M schedule not available.
Painting of Structures is required.
PLC and SCADA was working but SCADA reports for daily discharge is not
available.
A) STP 14 MLD
The following units have been constructed:
S.No. Description Size Number
1 Stilling chamber 2.0m L X 2.4 m W X 1.5 m SWD + 0.6 m FB 1
2 Mechanical fine Screen 750 mm X (600 SWD X 0.5 m FB) 1
3 Manual fine Screen 750 mm L X (600 SWD X 0.5 m FB) 1
4 Grit Chamber 3.7 m L X 3.7 m W x 0.9 m SWD + 0.5M FB 2
4
SPMG TPI Report for Operation and Maintenance of MPS and 14 MLD STP Salori
in Prayagraj City
S.No. Description Size Number
5 Parshall flume 300 mm THROAT Width 1
6 Distribution Chamber of SBR 2.0 m L X 2.0 m W X 1.0 m SWD +0.6 m FB 1
7 Selector Compartment 18.0 m L X 6.5 m W X 6.5 m SWD +0.6 m FB 2
8 SBR Basins 38.0 m L X 18.0 m W X 6.75m SWD +0.6m FB 2
9 Chlorination Tank 13.0 m L X 7.3 m W X 4.3 m SWD +0.3 m FB 1
10 Sludge Sump Dia 6.0 m X 4.0 m SWD +0.5 m FB 1
Sludge Dewatering Machine
11 7.2 m L X 6.0 m W 1
Building
B) Raw Sewage Pumping Station 14 MLD
S.No. Description Size Number
1 Receiving chamber 1.8 m L X 1.2 m W X 1 m SWD + 0.5 m FB 1
2 Mechanical Coarse Screen 1000 mm X (750 SWD X 0.5 m FB) 2
3 Raw Sewage Wet Well Sump Dia 12 m X 4 m SWD+ 0.5 m FB 1
MCC Panel & Operator Room
4 3.5 m Height 1
above pumping Station
C) Effluent Pumping Station 43 MLD
S.No. Description Size Number
1 Treated Sewage Wet Well Dia 7.7 m X 6.5 m SWD+ 0.5 m FB 1
MCC Panel & Operator Room
2 Dia 3.85 m X 3.5 m Ht. 1
above pumping Station
3 DG Platform for Treated Sewage 8.0 m X 5.0 m 1
5
SPMG TPI Report for Operation and Maintenance of MPS and 14 MLD STP Salori
in Prayagraj City
7. Photographs
Observations of Site Visit are as under:
Salori STP 14 MLD:
S.
Item/ Units Photos Observations Recommendations
No
1. Project Display Board Display Board to be
Description rusted repainted
Board
2 Inlet
chamber
and
screening
6
SPMG TPI Report for Operation and Maintenance of MPS and 14 MLD STP Salori
in Prayagraj City
Screens not cleaned Proper maintenance
of Screens needs to
be done.
3. SBR SBR were found in
good working
condition.
7SPMG TPI Report for Operation and Maintenance of MPS and 14 MLD STP Salori
in Prayagraj City
4. Sumpwell
Rotating arm rusted Painting to be done
5. Chlorination
equipment. Satisfactory
8SPMG TPI Report for Operation and Maintenance of MPS and 14 MLD STP Salori
in Prayagraj City
Rusted & Loose Proper wiring and
wiring painting be done
6. Chlorine Poor Maintenance Proper Maintenance
Contact of tank of Chlorination tank
Tank (CCT) be done.
9SPMG TPI Report for Operation and Maintenance of MPS and 14 MLD STP Salori
in Prayagraj City
7. Sludge Painting Required
dewatering
Building
10SPMG TPI Report for Operation and Maintenance of MPS and 14 MLD STP Salori
in Prayagraj City
SCADA system be
PLC and SCADA
8. SCADA checked and
System working but reports complete reports be
not generated. generated.
9. Laboratory Satisfactory
11SPMG TPI Report for Operation and Maintenance of MPS and 14 MLD STP Salori
in Prayagraj City
10. Water Photograph of
Quality influent and effluent
sewage water of
STP.
List of Staff employed at site is enclosed as Annexure- II.
Last Electricity bill is attached as Annexure –III.
Consent letter from UP PCB is attached as Annexure- IV.

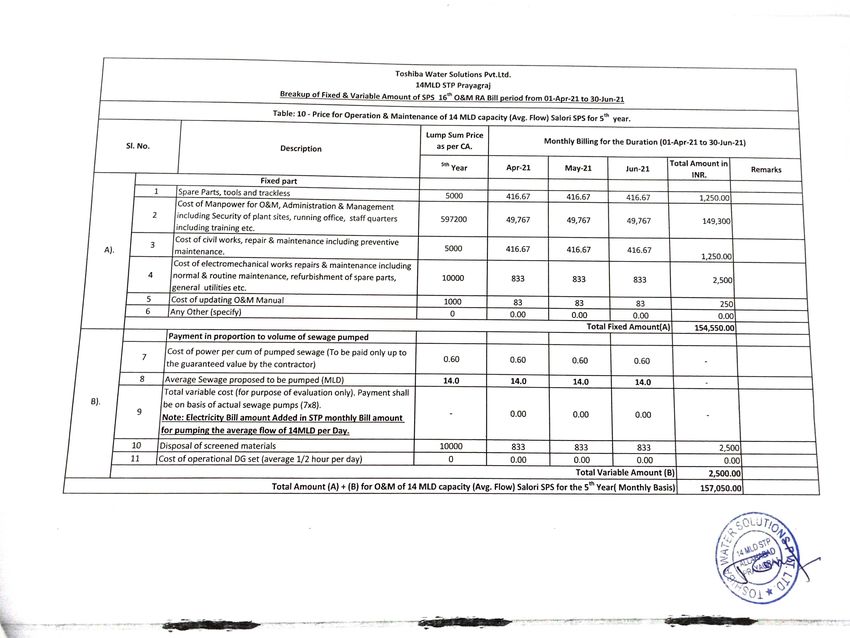

O & M expenditure record is attached as Annexure- V.
Plant Layout is attached as Annexure – VI.
Checklist of STP is attached as Annexure- VII.
12Annexure- I
ANNEXURE - I
Annexure- II
ANNEXURE - II
Annexure- III
7/5/2021 03:07:11 PM
ANNEXURE - III
(42650031094265093999710000832552)
BILL-CUM-NOTICE A/C No :4265003109
Name : M/S GENREAL MANGER GANGA PRADUSHAN U.P JAL NIGAM Bill No : 426509399971 Bill Due Date 20-MAY-2021
Address : GANGA PRADUSHAN U.P JAL NIGAM ALLAHABAD GANGA Disconnection Date 27-MAY-2021
PRADUSHAN U.P JAL NIGAM ALLAHABAD Allahabad UP 211002 IND
Circle : CIR44442 Book No : 444422263690 Bill Date : 06-MAY-2021
Division : DIV444422 SC No : PU_204860 Bill Month : MAY-2021
Sub Division : SDO4444222 Account No : 4265003109
K No : Mobile No :
9027852600
Meter Badge Meter Rcrd Bill DIFF M.F Billed MNTH Rmrk Meter
Previous Current
No. No. Dmd Basis Units Status
M4444222UPU2751 UPU27514 OK 01-APR-21 388458 02-MAY-21 396413 7955 10 79550 1 OK A
4 KWH
M4444222UPU2751 UPU27514 OK 01-APR-21 395100 02-MAY-21 403102 8002 10 80020 1 OK A
4 KVAH
M4444222UPU2751 UPU27514 19.78 OK 10 197.8 KVA 1 OK A
4
Assessed Units
Adjustment Units Total Billed Units
KWH KVAH KVA
80020
Arrears Details(`) EC Calculation Connection Details
Category Amount(`) Units Rates Amount Description Tariff Code LMV7
Arrears 0.00 Supply Type 74
Previous Arrears Surcharge 0.60 80020 7.74 619354.80 Energy Charge Conn Load 578.70 KW
Miscellaneous Arrears 0.00 Security Deposit (`) 643000.00
Total 0.60 Inoperative Balance (`) 0.00
Additional Security 0.00
Security Deposit Interest 0.00
Bill Details( ` ) Bill Details( ` ) Last Payment Status
Electricity Charges 619354.80 Installment Amount 0.00 Amount (`) 894400.40
Fixed/Demand Charges 162843.75 (A)Installment Number Receipt No 426500379507
Rural/Dept Rebate 0.00 Receipt Date 08-APR-2021
Load Factor Rebate 0.00
Power Loom Rebate 0.00 Payment Details
Amount for Min Charges 0.00 894400.40
Dishonor Cheque 0.00
Solar Heater Rebate 0.00
Fuel Surcharge 0.00 Total Payable Amount 832552 Previous Consumption Pattern
LT Metering surcharge 0.00 (`) Bill Units Units Demand Status
Excess Demand Penalty 0.00 Month (KWH) (KVAH)
Capacitor Surcharge 0.00 Payable Amount in Eight Lakh Thirty Two Thousand
Current LPSC 0.00 words Five Hundred Fifty Two Rupees APR- 85880 86350 217.8 MU
Electricity Duty 58664.89 Only 2021
Regulatory Surcharge1 0.00 MAR- 84200 84470 243.4 MU
Regulatory Surcharge2 0.00 2021
Deferred FC 0.00 FEB- 103820 104200 242.8 MU
Provisional Adjustment 0.00 2021
Tariff Adjustments/Prev FC 0.00 JAN- 89980 93200 246.6 MU
Misc Debit 0.00 2021
FC/Installment Credit 8311.93 DEC- 52930 54480 238.4 MU
Current Payable Amount(`) 832551.51 2020
NOV- 119400 120710 238.2 MU
2020
Energy Saved Is Energy Produced.
Note: If the Bill is not paid by Due Date, the supply will be disconnected without any further notice.
Book No. Receipt No. Counter no. Old Acct No Acct No Bill No.
444422263690 4265003109 426509399971
Amount Received(Figures)
Counter Name Received by Collection Date
(In Words)
Cheque/DD No. Due Date 20-MAY-2021
Bank: Total Amount Payable before due Date( ` ) 824730
Branch:
Date: Cashier Signature
Amount:
NOTE: Pay your Bill online- www.uppclonline.com Please update your Mobile # EXECUTIVE ENGINEER - TAGORE TOWN
DIAL TOLL FREE 1912 FOR BILL & SUPPLY COMPLAINTSAnnexure- IV
ANNEXURE - IV
Annexure- V
ANNEXURE - V
Annexure- VI
Annexure- VII
ANNEXURE - VII
CHECK LIST FOR MONITORING OF PROFORMANCE OF 14.00 MLD SEWAGE
TREATMENT PLANTS (STP), PRAYAGRAJ
1. Name / Location of STP : 14.00 MLD STP Prayagraj.
2. Process of Sewage Treatment :
(i) ASP - Activated sludge process
(ii)TF - Trickling filter
(iii)AL - Aerated lagoon
(iv)UASB - Upflow anaerobic sludge blanket
(v)OP - Oxidation
pond/waste
SBR
stabilization ponds
(vi)EA - Extended Aeration
(vii)SBR – Sequential Batch
Reactor
(viii)MBR – Membrane Bio
Reactor
(ix) MBBR – Moving Bed Bio
Reactor
3. Flow sheet of STP( to be attached) Not Available
4. Designed Capacity/day : 14 MLD
5. Actual treatment :
14.60 MLD (Average)
6. Raw sewage characteristics
at Inlet Average
COD 268.01 mg/l
BOD 101.14 mg/l
TSS 269.07 mg/l
Nil
7. Manual and Mechanical Grit Chambers
8 Primary Settling Tank : Nil10 Secondary Settling Tank : Nil
12. Final Effluent Quantity : Average
BOD,
TSS, 7.1 mg/l
7.04 mg/l
COD, ( Average) 21.9 mg/l
13. Sludge Thickener : NA
(i) Volume m3
(ii) Thickening Surface
m3
(iii) Underflow solids
concentration mg/L
(iv) Actual thickened
14. Sludge Digesters : Nil
sludge production
(i) Digester Volume, m3
Rate (Flow rate, m/hr
(ii)Thickening Sludge BOD
multiplied by hr/day)
& COD mg/L
(iii)Actual digester sludge production
rate (Flow rate m3/hr multiplied by
hr/day)
15. Biogas produced, if any and its : NIL
composition
16. Operational status of gas utilization : NIL17. Power generation, if any :
18. Continuous NIL
19. PLC and SCADA system Satisfactory, but complete
reports not generated.
20. Point of treated sewage disposal (river / : Treated Sewage water is
lake / used by the Nagar Nigam
irrigation / land and disposal/ pisciculture/ for Parks, Road Cleaning
aquaculture / any other )
and discharged into the
Ganga river.
21. Bypass arrangement at STPs, if any NIL
22. Method of sludge disposal and status : Satisfactory.
(satisfactory / Used by farmers
unsatisfactory)
23. Operation and maintenance of Sewage Satisfactory.
Treatment
Plant (satisfactory / unsatisfactory)
24. Agency for operation and maintenance : M/s UEM India Pvt. Ltd.
of Sewage Treatment Plant
25. Operation through Sub Contractor, if any : NIL
26. Power requirement : NA
27. Status of power availability for : 18 hours of power supply
uninterrupted and continuous running of
STP
28. Standby arrangement for power, if any NA
29. Status of Skilled/Trained Manpower : 17 Personnels.
30. Annual expenditure on O&M & STP NA
31. Consent from State Pollution Control : Consent taken till
Board/Pollution 31.12.2022.
Control Committee or not
32. Volume of industrial waste being mixed : NIL
in sewage, if any.
33. Status of maintenance of Log Books : Satisfactory
34. Status of Laboratory facility : SatisfactoryYou can also read
