Product Catalog
www.octelcables.com
www.octelcables.com
An ISO 9001:2015 Company
Page 1 of 39
Product Catalog
Page 2 of 39
Product Catalog
PRODUCT RANGE
Item Range
House Wires & Industrial Cables-Flexible 0.5 to 300 sq mm
House Wires & Industrial Cables-Solid/Stranded 0.5 to 150 sq mm
Multicore Cables 2Core, 3Core, 4Core 0.5 to 4 sq mm
Co-axial Cables RG-6, 11, 58, 59, 174, 213
Submersible Cables 3Core, 4Core 1.5 to 50 sq mm
CCTV Composite Cable 2+1, 3+1 & 4+1
Elevator/Lift Cable 0.5 to 6q mm
Computer LAN Cable Cat-5e, Cat-6 UTP, STP
Braided Flexible Strip 2.5sq mm to 500 sq mm
Cotton Covered Copper Rope 1.0sq mm to 500sq mm

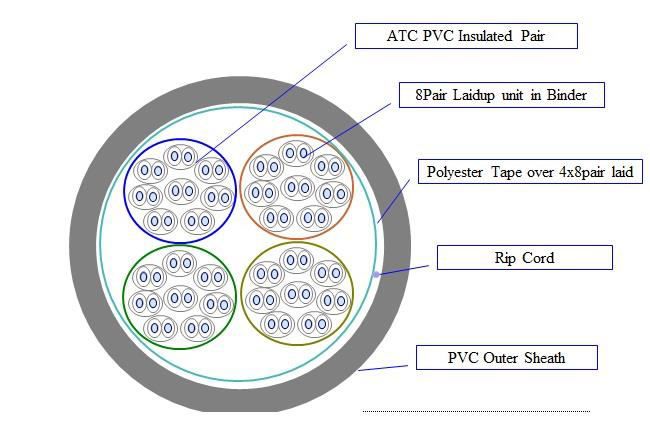

Telephone (Switchboard) Cable 0.4, 0.5 & 0.6mm 01 Pair to 128Pair
Jumper Wire 0.5, 0.60, 0.65mm
Screened PCM Cable 0.5mm 1Pair, 10Pair, 16Pair
High Power XLPE Insulated Wire 0.5 to 300sq mm
Speaker Wire 24 AWG to 10AWG
Multipair Screened Cable 24AWG, 1Pair
Multipair individually foil screened Cable 24AWG, 2Pair, 3Pair, 4Pair
Multicore Overall foil screened Cable 24AWG, 4 to 15 Core
Multipair Overall foil screened Cable 24AWG, 1 to 15 Core
Multipair individually screened cable 24AWG, 2Pair, 3Pair
Multicore Unscreened/ Screened Cable 24AWG, 2 to 36Core
Single Pair Unscreened Cable 22AWG, 1Pair
Miniature Pair Screened Cable 18, 20, 22 AWG
Flat Modular Cable 26AWG, 4,6,8Core
PVC Drop Wire 2Core
Screen Braided Cable 0.2 to 150sq mm
Hook up Wire All routine size
Cable Assembly As per custom design
Page 3 of 39
Product Catalog
About us
OCTEL CABLES PVT. LTD. is one of the renowned manufacturers of cables in the Cable Industry in India. Our range
encompasses a large variety of wires & cables including Flexible Cables, Control & Power Cables (Unarmoured &
Armoured), Telephone Cables (Unarmoured & Armoured), Submersible Cables, Data Flow Cables, Instrumentation Cables,
Coaxial Cables, Compensating cables and FRLS cables. Our Quality Assurance department performs regular checks on
quality of cables online & offline to deliver high quality of cables. OCTEL Cables has established a favorable image in the
eyes of people for reliability and commitment.
Manufacturing
At OCTEL, manufacturing is done by state of art High-tech machines to deliver high quality of products and production
efficiency. We have been continuously improving upon the manufacturing process and always keep our equipment up with
the times.
Quality Assurance & Testing
Our quality control department strives to achieve the highest quality in raw material, in-process and finished goods. Our
system has been approved by NABC the ISO certifying body and we have been awarded ISO 9001 certification for our
quality system. We have a modern testing Lab well equipped with latest testing equipments. Our products are put through
strenuous testing procedures in order to maintain quality well above laid standards. Our wires & cables are tested at every
stage of production, supervised by well-qualified and experienced engineers.
Customer Service
Customer service is utmost importance for us. We believe that ultimately what matters is the service, which we provide
through our products. OCTEL, has a separate unit for customer care comprising of a tele-caller who is responsible for taking
into account each & every query given by the customer which gets resolved as quickly as possible.
The tele-caller calls up the customer after delivery of material to ensure that the delivery is on time and the customer is
satisfied with the product quality. As OCTEL strongly believes in the sovereign position of the customer, therefore it tries to
provide each and every service which ensure customer satisfaction and future results in most efficient and effective time
manner.
Product Packaging & Shipment
Packing instructions are displayed at the adequate places for regular production items and workers are duly trained to
maintain the quality of packing. Apart from this the job sheets also gives the packing instructions as mutually agreed with the
customers. Cable is supplied in wooden reels with spindle hole. Cable ends are sealed with non-hygroscopic sealing caps. All
the details pertaining to cable contents are marked on the sides of the reel. Timely delivery of materials in any project is of
utmost importance. Any delay in the delivery of cable can contribute to overall project delay and cost overrun. To overcome
these, we keep delivery schedules on top priority.
Research & Development
We give immense stress at Research & Development on various levels of manufacturing and testing. Continuous in-house
improvement in quality of existing products, development of new products is a policy matter at our works. Our highly
qualified technical staff has the capability and can design and develop the cables to suit the environments and stress & strain
of installation conditions at various type of industries.
Page 4 of 39
Product Catalog
Construction
Conductor
We use a variety of conductors suited to different requirements. Most commonly used are Copper,
Aluminium, Cromel, Alumel, Iron, Constantan etc. We use high conductivity electrolytic grade
Copper/Aluminium.
Insulation
High dielectric insulating material like PVC (Type A, Type C, Type D) / LDPE, HDPE, XLPE and
different Thermoplastic / Elastomeric compounds are used as primary insulation.
Jacketing
We provide high strength jacketing material to hold the armouring of different insulating compounds
like PVC (ST-1, ST-2, ST-3 FR, FRLS) and various Thermoplastic / Elastomeric compounds.
Identification
We can provide different color code as primary insulation along with numbering / dot / horizontal line
throughout the length. Sequential marking is provided on the jacket at the interval of every meter. Outer
jacket color can be provided as per requirement, on special request.
Page 5 of 39
Product Catalog
HOUSE WIRES & INDUSTRIAL CABLE
High Quality Cables for House hold and commercial use. Suitable for fixed wiring, flexible
operation and for use on AC single phase systems for rated up to and including 1100 Volts and DC
systems for rated voltage up to and including 1500 Volts to earth.
PVC INSULATED SINGLE CORE UNSHEATHED
INDUSTRIAL (FLEXIBLE-MULTISTRAND CLASS-5)
CABLES – PVC/ FR/ FRLS WITH BRIGHT ANNEALED
ELECTROLYTIC BARE COPPER CONDUCTOR FOR
VOLTAGE GRADE UPTO 1100 VOLTS
Conductor Conductor DC Resistance Insulation Overall Current Carrying
Area Construction Thickness Diameter Capacity
Sq mm (nom) Mm (No./dia ) Ohm/km (max) Mm (nom) Mm (max) Ampere
0.5 16/ 0.20 39.0 0.60 2.6 5
0.75 24/0.20 26.0 0.60 2.8 8
1.0 32/0.20 19.5 0.60 3.0 13
1.5 30/0.25 13.30 0.70 3.4 17
2.5 50/0.25 7.98 0.80 4.1 24
4 56/0.30 4.95 0.80 4.8 30
6 84/0.30 3.30 0.80 5.3 38
10 80/0.40 1.91 1.0 7.0 52
16 126/0.40 1.21 1.0 8.1 70
25 196/0.40 0.780 1.2 10.2 88
35 276/0.40 0.554 1.2 11.7 110
50 396/0.40 0.386 1.4 13.9 145
70 354/0.50 0.272 1.4 16.0 215
95 484/0.50 0.206 1.6 18.2 260
120 608/0.50 0.161 1.6 20.2 305
150 750/0.50 0.129 1.8 22.5 355
185 925/0.50 0.106 2.0 24.9 415
240 1210/0.50 0.0801 2.20 28.4 500
300 1527/0.50 0.0641 2.40 31.0 585
Page 6 of 39
Product Catalog
PVC INSULATED SINGLE CORE UNSHEATHED INDUSTRIAL WITH RIGID
CONDUCTOR (CLASS-2) CABLES – PVC/FR/FRLS WITH BRIGHT ANNEALED
ELECTROLYTIC BARE COPPER CONDUCTOR FOR VOLTAGE GRADE
UPTO 1100 VOLTS
Conductor Conductor DC Resistance Insulation Overall Current Carrying
Area Construction Thickness Diameter Capacity
Sq mm (nom) Mm (No./dia ) Ohm/km (max) Mm (nom) Mm (max) Ampere
0.5 1/0.79 36.0 0.60 2.3 5
0.75 1/0.96 24.5 0.60 2.5 9
1.0 1/1.13 18.1 0.60 2.7 12
1.5 7/0.53 12.1 0.70 3.3 16
2.5 7/0.67 7.41 0.80 4.0 22
4 7/0.85 4.61 0.80 4.6 29
6 7/1.04 3.08 0.80 5.2 37
10 7/1.35 1.83 1.0 6.7 45
16 7/1.70 1.15 1.0 7.8 60
25 7/2.14 0.727 1.2 9.7 75
35 7/2.52 0.524 1.2 10.9 95
50 19/1.78 0.387 1.4 12.8 125
70 19/2.14 0.268 1.4 14.6 170
95 19/2.52 0.193 1.6 17.1 210
120 37/2.03 0.153 1.6 18.8 235
150 37/2.25 0.124 1.8 20.9 295
Page 7 of 39
Product Catalog
ALUMINIUM WIRES/ CABLES
PVC INSULATED SINGLE CORE
UNSHEATHED INDUSTRIAL WITH RIGID
CONDUCTOR (CLASS-1/2) CABLES –
PVC/FR/FRLS WITH BRIGHT
ALUMINIUM CONDUCTOR FOR
VOLTAGE GRADE UPTO 1100 VOLTS
Conductor Conductor DC Resistance Insulation Overall Current Carrying
Area Construction Thickness Diameter Capacity
Sq mm (nom) Mm (No./dia ) Ohm/km (max) Mm (nom) Mm (max) Ampere
1.5 7/0.53 18.1 0.70 3.3 12
2.5 7/0.67 12.1 0.70 4.0 17
4 7/0.85 7.41 0.80 4.6 23
6 7/1.04 4.61 0.80 5.2 29
10 7/1.35 3.08 1.0 6.7 40
16 7/1.70 1.91 1.0 7.8 54
25 7/2.14 1.20 1.2 9.7 69
35 7/2.52 0.868 1.2 10.9 83
50 19/1.78 0.641 1.4 12.8 105
Other sizes also available on demand
Page 8 of 39
Product Catalog
MULTICORE CABLES
PVC INSULATED & PVC SHEATHED COPPER FLEXIBLE FLEXIBLE MULTICORE
CABLES (YY)
Conductor Conductor DC Insulation Sheath Overall Diameter Current
Area Construction Resistance Thickness Thick Mm (approx) Carrying
(nom) Capacity
Sq mm Mm Ohm/km Mm mm 2 Core 3 Core 4Core Ampere
(nom) (No./dia ) (max) (nom)
0.5 16/0.20 39.0 0.6 0.9 6.50 6.85 7.45 3
0.75 24/0.20 26.0 0.6 0.9 7.00 7.40 8.05 6
1.00 32/0.20 19.5 0.6 0.9 7.30 7.75 8.45 10
1.50 48/0.20 13.30 0.6 0.9 7.80 8.25 9.25 15
2.50 80/0.20 7.98 0.5 0.9 9.40 10.0 10.95 20
4.00 56/0.20 4.95 0.7 1.0 10.75 11.5 12.65 25
Page 9 of 39
Product Catalog
LV POWER & CONTROL CABLE 1100V
PVC Copper & Aluminium Conductor Heavy Duty
Single & Multicore Copper & Aluminium Armoured & Unarmoured Indoors or Outdoors in cable ducts,
cable trays, conduits or underground locations under mechanical stresses in power and switching
stations. Local distribution systems, Industrial and Commercial units for basic power & lighting
purpose.
POWER CABLES CONFORMING TO IS : 1554 (PART I) AMENDED UPTO DATE
S. No. Cable Type Sizes
1 1.1 kV Single Core, Aluminium/Copper Conductor, PVC Insulated Aluminium Wire / Strip 1.5sq mm to
Armoured/Un-Armoured & PVC Sheathed Cables 1000 sq mm
2 1.1 kV Twin Core, Aluminium Conductor, PVC Insulated, Inner Sheathed, Armoured/ 1.5sq mm to
Unarmoured PVC Sheathed Cables 500sq mm
3 1.1 kV Three Core, Aluminium/Copper Conductor, PVC Insulated, Inner Sheathed, 1.5sq mm to
Armoured/ Unarmoured PVC Sheathed Cables 500sq mm
4 1.1 kV 3.5 Core, Aluminium/Copper Conductor, PVC Insulated, Inner Sheathed, 25sq mm to
Armoured/Unarmoured PVC Sheathed Cables 500sq mm
5 1.1 kV Four Core, Aluminium/Copper Conductor, PVC Insulated, Inner Sheathed, 1.5sq mm to
Armoured/Unarmoured PVC Sheathed Cables 400sq mm
CONTROL CABLES CONFORMING TO IS : 1554 (PART I) AMENDED UPTO DATE
6 1.1 kV, Annealed High Conductivity Solid Copper Conductor, 1.5 & 2.5Sq.mm 2Core to
PVC Insulated, Inner Sheathed, Armoured / Unarmoured Pvc Sheathed Control Cables 61 Core
Note: All these sizes also available in XLPE Insulated & PVC Sheathed as per IS:7098 Part 1
CURRENT RATING OF COPPER ARMOURED / UNARMOURED CABLES
650 / 1100 V GRADE IN AIR.
Area Twin Core 3, 3.5 & 4 Core Area Twin Core 3, 3.5 & 4 Core
Sq m Amp. Amp Sq m Amp. Amp
1.5 20 17 70 195 165
2.5 27 24 95 230 200
4.0 35 30 120 265 235
6.0 45 39 150 305 265
10.0 60 52 185 350 305
16.0 78 66 240 410 355
25.0 105 90 300 465 400
35.0 125 110 400 530 455
50.0 155 135 - - -
Page 10 of 39Product Catalog
CO-AXIAL CABLES
Coaxial cables offer excellent resistance to heat shocks and is thereby suitable for high-speed winding.
We manufacture these with the specifications given by the clients. Our quality experts make sure that
our range is free from any kind of defects and ideal for use. Furthermore, we meet the bulk demand of
our clients within the committed time frame
.
Type Center Outer Conductor Insulation/ Outer Diameter Impedance
Conductor Sheath
RG-6 1.02mm/ 18AWG 34AWG Alu alloy Gas Inj. Foam PE/ 6.90mm (approx) 75 +/- 3 Ohm
CCS shield with 60% PVC UV
Resistant
RG-11 1.63mm/ 14AWG 34AWG Alu alloy Gas Inj. Foam PE/ 10.30mm (approx) 75 +/- 3 Ohm
CCS shield with 60% PVC UV
Resistant
RG-58 0.57mm/ 23AWG 0.12mm ABC Gas Inj. Foam PE/ 4.95 (approx) 50 +/- 2 Ohm
CCS shield with 65% PVC UV
Resistant
RG-59 (B/U) 0.81mm/ 20AWG 0.12mm ATC Gas Inj. Foam PE/ 6.10mm 75 +/- 3 Ohm
ABC shield with 93% PVC UV
(approx)
Resistant
RG-174 0.50mm/ ABC 0.102mm ABC Foam PE/ PVC 2.85 +/- 0.15mm 50 +/- 2 Ohm
shield with 65% UV Resistant
Page 11 of 39Product Catalog
SUBMERSIBLE CABLE
Tough & Flexible submersible pump cables specially designed to supply power to submersible borehole
pumps in a deep borewell.
Loaded with exclusive features of Safety, Power Savings and Long-term Reliability, they are the best
performing submersible pump cables on the market today. Tested for toughness and performance, the
insulation & jacket will stand up to even the most aggressive wet conditions. Our finely stranded copper
conductor has better flexibility and strength for easier handling & installation.
Application
To supply power to submersible pumps in a deep bore well for
Irrigations
Drinking Water Supply
Mine Dewatering
Industries
Swimming Pools
Fountains
Offshore Drilling Rigs
Sewage Treatment Plants
Sea Water Filtration Plants
Aquariums
Conductor Conductor DC Insulation Sheath Overall Dimensions Current
Area Construction Resistance Thickness Carrying
Thickness
Capacity
Sq mm Mm Ohm/km Mm (nom) Mm (nom) Thickness (T) Width Amps
(nom) (max) mm mm (W)
(No./dia )
1.5 30/0.25 13.30 0.6 0.9 5.60 12.0 17
2.5 50/0.25 7.98 0.7 1.0 6.20 13.0 24
4.0 56/0.30 4.95 0.8 1.1 7.10 15.3 30
6.0 84/0.30 3.30 0.8 1.1 8.40 19.20 38
10 80/0.40 1.91 1.0 1.2 10.40 24.2 52
16 126/0.40 1.21 1.0 1.3 12.40 29.0 70
25 196/0.40 0.780 1.2 1.5 15.70 36.5 88
35 276/0.40 0.554 1.2 1.6 17.20 40.50 110
50 396/0.40 0.386 1.4 1.7 19.30 46.5 145
Page 12 of 39Product Catalog
CCTV COMPOSITE CABLES
26AWG Center Copper Conductor PE Dielectric, 60% ABC/Alloy braiding PVC ST-1 75 Ohm Coaxial Cable with 26AWG Copper
Conductor 1/2/3/4/5/6 PVC Insulated Core and Overall PVC ST-1 Sheathed Composite Cable.
High-definition 26AWG and low capacitance precision video coax 75 Ohm delivers crystal clear video & error free data
transmission.
26AWG power wires with earth ground are ideal for preventing voltage drops over long cable run.
Flexible RoHS jackets is durable, yet easy to work with
Type Center Conductor-Coaxial Braiding-Coaxial Power Cable Conductor Impedance
3+1 CCTV Cable (cb) ABC-26 AWG ABC-60% ABC-26 AWG 75 +/- 4 Ohm
4+1 CCTV Cable (cb) ABC-26 AWG ABC-60% ABC-26 AWG 75 +/- 4 Ohm
3+1 CCTV Cable (alb) ABC-26 AWG Alu-60% ABC-26 AWG 75 +/- 4 Ohm
4+1 CCTV Cable (alb) ABC-26 AWG Alu-60% ABC-26 AWG 75 +/- 4 Ohm
Technical Information
Coaxial Cable Power Cable
Type 75 Ohm No. of core 1/2/3/4
Center Conductor 26 AWG AWG Size 26 AWG
Dielectric Material PE Insulation Type-A as per IS-5831:84
Braiding 60% ABC/ Alu Color Red, Black, Yellow, Blue
Jacket Type ST-1 as per IS-5831:84 Overall
Jacket Color Blue (Alu Braided) & Brown (ABC Jacket Type ST-1 as per IS-5831:84
Braided)
Nominal Impedance 75 Ohms +/- 4 Jacket Color White
Nominal Capacitance (pF/mtr) 67 Packing 90 Yard/Mtr coils
Dielectric Constant 2.3 Other length as per order
Velocity of Propagation 66% (nom)
Page 13 of 39Product Catalog
ELEVATOR/LIFT CABLES
Elevator/Lift cable that ensures the electrical integrity in various areas of lift construction.
Extra flexible and flat for hoisting equipment and conveyor systems. Indoor/outdoor cranes and high-rack facilities
as supply line for moving parts.
Application:
These cables are used in Hoists, Cranes and Lifts to carry the signals for all the controls required for the sophisticated Lift
applications and Cranes/Hoist operations.
SPECIFICATIONS:
Cable Type: Multicore Flexible Festoon Cables with Annealed Bare Copper Conductor, PVC Insulated and PVC
Sheathed Flat in Voltage Grade 650/1100V as per IS 694.
Temperature of the Conductor: -15°C to +70°C.
Conductor: As per Class 5 of IS 8130: 1984.
Insulation: PVC as per IS 5831, Thermoplastic material.
Identification of Cores: For 5 cores & above black insulation & core number printed in white ink. For upto 4
cores, core colours as per colour coding Red, Yellow, Blue and Yellow / Green.
Outer Sheath: PVC as per IS 5831, Thermoplastic material.
Colour: Generally black. Any other colour required will be against bulk orders.
Packing Length: 100/500mtrs coils or 1000mtrs drum supply for certain sizes.
Type Conductor Flexibility Temp. Range Core Identification
Sizes: 0.5,0.75,1.0, 1.5, 2.5 sq Class-6 Extra Fine Extra flexible use -15deg C to Black with number and with
mm Copper 10- 20x Outer +70deg C Green/Yellow protective
No of Cores: 4,8,12,16,18, Diameter. conductor
20,24,36,40,42
Page 14 of 39Product Catalog
COMPUTER LAN CABLES
OCTEL brings to you LAN cables best suited to your specific Applications. The Cables are verified to
the performance category 5e/6 requirement to TIA/EIA 568 – A & UL 444 for Transmission
performance.
OCTEL LAN cables are suitable for Voice, Data, Video and Low Voltage Control, it is suitable for all LAN
topologies including Horizontal and Vertical distribution plenum and Riser. The conductor is made of Electrolytic
plain annealed solid copper of size 0.5 mm, High quality Polyethylene Insulated with suitable colour code, twisted
pair, Unshielded light grey PVC jacketed with improved fire characteristic meeting requirements of IEV -332-
high oxygen and temperature index. The ISO – 9001 certification ensures the quality of cables and its intended
performance.
SALIENT FEATURES:-
• Low attenuation and crosstalk • Low Structural return Loss • ISO Verified cables
Type Construction Conductor DC Overall Available Length : 305 Mtr, 100 Mtr
Construction Resistance Diameter and as per customer requirement
CAT-5e Solid Bare 24 AWG Solid 9.38 Ohm/ 5mm
UTP Copper HDPE 100Mtr (max) (nom)
CABLE Insulated 4 Pair
PVC Sheathed
LAN Cable
CAT-6 Solid Bare 23 AWG Solid 9.38 Ohm/ 6mm
UTP Copper HDPE 100Mtr (max) (nom)
CABLE Insulated 4 Pair
with cross
dummy PVC
Sheathed LAN
Cable
Page 15 of 39Product Catalog
High Quality Copper Wire &
Aluminium Braided Flexible Strips.
Multistrands of annealed and high conductivity copper or Aluminium wire are twisted into units and then braided and flattned
We produce a wide quality range of Braided Copper Flexible. These strips are designed using top quality raw material in
Compliance with the set quality parameters of the industry. These strip are recognized for their significant qualities like
longer service life, high performance and efficiency. These offered strips can be availed in different sizes and specifications
at industry leading prices.
These flexible copper wire braided products are manufactured for diverse application like;
Copper Flexible Connectors, Motor Brush leads, Circuit Breaker shunts, Flexible bus bars, Jointing Kits, Air Break Switches
, De-soldering Braids, Television Sets & Ground Strap for Flexible Earthing Solution & so on.
Manufacturing Range :-
Cross Sectional Area 2.5sq mm to 500 sq mm
Wire Gauge 27 SWG to 45 SWG
Width of Braid 4mm to 100mm
Thickness of Braid 1mm to 15 mm
*Special sizes available on request
Application : Automobile Parts , Home Appliances , Slot Cars , Electronic Toys, Television Sets , De soldering Braid , Bus
Bar Expansions , Grounding , Capacitors , Switchgear , MCB , ELCB , Control Panel , Bonding , Cable Jointing kit , Cable
Termination Kit , GOAB Switches , Motor Earthings, Flexible Connectors , Earth Clamps , Wind Mill Rotor Blade , Flexible
Shunts , Copper Flexible Braid Bond , Earth Clamps, Wind Mill, Rotor Blade, Flexible Shunts, Copper Flexible Bond, Earth
Straps etc.
Page 16 of 39Product Catalog
DCC ROPE COTTON COVERED
COPPER & ALUMINIUM ROPE
This product is widely used as an instrument transformers and power transformers up to 220 KV class.
Main features of this product.
Manufacturing Range :-
Cross Sectional Area 1.0 sq mm to 500 sq mm
Wire Gauge 31 SWG to 45 SWG
Diameter of Braid 1.5mm to 40mm
*Special sizes available on request
Material : Bare Copper Wire, Aluminium Wire, Tin Plated Copper Wire, Silver Plated Copper Wire (SPC)
Note: All figures given in the various tables are indicative only and may change without prior
notice
Page 17 of 39Product Catalog
TELEPHONE (SWITCHBOARD) CABLES
High conductivity solid annealed bare copper industrial telephone (Switchboard) Cables with high density polyethylene
insulation, paired, polyester and sheathed with high oxygen index, fire retardant, PVC Compound, grey outer sheath
generally conforming to TEC specification 01 Pair to 128Pair
Application
Switch board cables are best suited for all telephone
switch board applications in high rise buildings,
offices, factories, hotels, hospitals, residential
complexes etc. They generally conform to the TEC
specifications G/W1R- 06/03 March 2002 and In-
house specifications and are ideally designed to
minimize cross talk.
Diameter of Maximum Resistance of Conductor Radial thickness of Maximum external
Conductor (mm) Conductor at 20 deg C Elongation conductor insulation diameter of insulated
(Min) conductor
Nom. Min. Ohm/km % mm Mm
0.40mm 0.39mm 143 15 0.1 to 0.2 0.90
+0.05, -0.00
0.50mm 0.49mm 92.20 15 0.2 1.00
+0.05, -0.00
0.60mm 0.59mm 64 15 0.2 1.00
+0.05, -0.00
Special Features
The conductor is made of electrolytic grade, bright annealed bare solid copper conductor of 0.40/ 0.5 mm diameter
and is insulated with a special grade polyethylene compound on the latest state-of-the-art extruders. The cores are
twisted together with a uniform lay on a special purpose imported machine, according to the color code to form pairs.
The pairs are bunched together in such a manner so as to minimize cross talk. The cable is then jacketed with a
specially formulated PVC compound with fire retarding properties. A nylon rip cord provides an effective means of
slitting the jacket without damaging the insulation. These are ideal because of low attenuation and low cross talk.
Available in standard pack of 100 M and 500 M
Pair Color Binder Color
Pair No. Wire A Wire B 1 Blue
1 White Blue 2 Orange
2 White Orange 3 Green
3 White Green 4 Brown
4 White Brown
5 Red Blue
6 Red Orange
7 Red Green
8 Red Brown
Page 18 of 39Product Catalog
JUMPER WIRE 2CORE
Conductor : Annealed high conductive Electrolytic grade bare / tinned solid copper of 0.5 /0.6
mm diameter generally conforming to IS:8130-1984
Insulation : Hard grade specially designed PVC as per Type 2 of IS:13176:1991 suitable for a
conductor temperature upto 70ºC
Ref Specs: G/WIR-10/03 Sep 2006, CW-1257 / CW-1423/CW-1109
Colour code : As per standard
Standard packing : 100 m / 500 m High conductivity solid annealed bare copper industrial telephone
Conductor Size Max Conductor Insulation Dia over insulation
(mm) Resistance Ohm/km Thickness (mm) (mm)
0.50 92.20 0.30+/-0.05 1.20 (max)
0.60 68 0.25 (min) 1.20 (max)
0.65 58 0.25 (nom) 1.25 (max)
Page 19 of 39Product Catalog
SCREENED PCM CABLES
The PCM cables manufactured by our organization find wide usage in mobile communication and installation of
antennas. These allow flawless communication between control rooms and transmitters that emit low level signals.
We offer our entire range in standard sizes, and can also manufacture them as per the needs of the clients
0.50mm Solid Annnealed Bare Copper Foam PE Insulated 2 core twisted in pair , Polyester tape , Almyler tape with
0.50 mm Drain wire Individual Shielded ,1,10,16 Pair laid up togather Polyester tape ,Al myler tape,Polyester tape
with Drain wire Over all Screened, Rip Cord ,PVC ST-1 Sheathed Cable
Features
Tin-copper conductor of 0.50mm.
Electrolytic type reflects 99.9% purity.
Provides 80-85% of precise braiding coverage.
Available in multi-core shielded and tin-copper constructions.
Available in 1 Pair to 16 Pair and more if required.
Individually pair screen with Al-mylar & drain wire
Overall pair screen with Al-mylar & drain wire
Meets the flammability test requirement as per IEC 332 (Part-
Excellent protection to cross-talk and Electromagnetic Induction
Each pair shall be Red for Wire-1 and Blue for Wire-2, with serial number of the pair viz. 1 to 10/16, marked
at regular interval, on the outer surface of the Aluminium film used for Pair Screening.
Conductor Resistance 86+/-3 Ohm/km at 20degC Conductor Size 0.50mm ABC
Insulation Resistance >10K M-Ohm/km at 500V Insulation Thickness 1.45mm approx.
Dielectric strength Withstand 2.4kV DC for Insulation Dia 0.475mm apx
3sec
Mutual Capacitance 45+/-5 pF/mtr Drain wire 0.50mm ABC
Impedance at 1MHz 120 Ohm +/-10 Al-mylar 0.050mm
Attenuation at 1MHz 20 dB/km (max) Polyester 0.025mm
NEXT at 1MHz >85 dB Sheath Color Grey
FEXT at 1MHz >67 dB/km Rip cord Under sheath
1Pair 10Pair 16Pair
Overall Diameter 7 (max.) 15 (max.) 18 (max.)
Thickness 1.0 (min) 1.0 (min) 1.40 (min)
Page 20 of 39Product Catalog
HIGH POWER CABLE
XLPE INSULATED SINGLE CORE
Specification:
Rated Voltage : 1100V
Conductor : Stranded Copper Class-2 (99.9%)
Insulation : XLPE
Operating Temperature : 90 deg C
Short Circuit Temperature : 250 deg C
Ref Specs : BS 6862 Part 1, IS-2465, JIS C 3406
Cross Conductor Conductor Max DC Nominal Cable Current
Sectional Area Construction Diameter resistance Insulation Diameter Rating in
(sq mm) (mm) Oh/km at Thickness (approx.) Amp
20degC (mm) mm
0.5 16/0.20 0.94 39 0.6 2.2 4
1 32/0.20 1.34 19.5 0.6 2.6 11
1.5 30/0.25 1.64 13.3 0.6 2.9 14
4 56/0.30 2.61 4.95 0.8 4.3 26
10 140/0.30 4.6 1.91 1 6.7 45
35 276/0.40 8.7 0.55 1.2 11.3 95
70 360/0.50 12.3 0.27 1.6 15 170
95 485/0.50 14.7 0.21 1.8 17.5 210
120 608/0.50 16.7 0.16 2 19 235
150 750/0.50 18.3 0.13 2 21 295
300 1527/0.50 27.2 0.06 2.4 29.5 475
Page 21 of 39Product Catalog
SPEAKER WIRE
Twin parallel Speaker cable with 99.9% conductivity annealed bright plain electrolytic grade copper, twin insulated with special
grade PVC compound. The connections between the speakers and the receivers or power amplifiers are made through the
Speaker Wires. Also used for the internal wiring of the speakers, the Speaker Wires are highly reliable and long lasting
products. The company offers the best Speaker Wires at the best prices.
Product Construction
Conductor: 24 thru 10 AWG annealed
bare copper stranded wire
Insulation: Color coded flexible PVC,
with polarity marker on one conductor.
Temperature: -20°C to +60°C
Voltage: 300Volts
RoHS Compliant
Conductor Strand Cross sectional Insulation Outer Diameter Color
Size Unit area (sq mm) Thickness (inch)
(AWG) (inch)
24 7 x 32 0.20 0.015 0.055 x 0.110 Clear, Brown, Gray, White
22 7 x 30 0.32 0.020 0.070 x 0.140 Clear, Brown, Black, Gray and White
20 10 x 30 0.52 0.025 0.086 x 0.170 Clear, Brown, Black, Gray and White
18 16 x 30 0.82 0.025 0.100 x 0.200 Clear
18 16 x 30 0.82 0.025 0.100 x 0.200 Clear
18 16 x 30 0.82 0.023 0.092 x 0.190 Red/Black
16 26 x 30 1.31 0.025 0.112 x 0.220 Clear
16 19 x 29 1.31 0.023 0.102 x 0.208 Red/Black
14 41 x 30 2.08 0.025 0.120 x 0.240 Clear
14 19 x 27 2.08 0.025 0.120 x 0.240 Clear
14 19 x 27 2.08 0.023 0.118 x 0.243 Red/Black
12 65 x 30 3.31 0.030 0.160 x 0.335 Clear
12 65 x 30 3.31 0.026 0.142 x 0.286 Red/Black
10 105 x 30 5.26 0.031 0.178 x 0.360 Red/Black
Page 22 of 39Product Catalog
MULTIPAIR SCREENED CABLE
24AWG 1Pair Data Cable
Features :
Annealed Tinned Copper
Drain Wire
Rip Cord
100% Foil Screen
PVC Sheath
Construction
Dimensions Material
Conductor 2/0.02 (+0.01, -0.008) mm x 7 Stranded ATC
Insulation 3/1.80 (+/-0.13)mm PE
Shield 100% Aluminium foil
Drain Wire T0.12 (+0.001, -0.008) mm x 112 Tinned Copper Braided
Sheath 5.89 (+/-0.20mm) PVC Sheath
Electrical Characteristics
Maximum Conductor DC resistance 200 M Ohm at 20 deg C
Rated temperature 80 deg C
Rated voltage 300 V
Physical Characteristics
Minimum bend radius 88.35 mm
Conductor elongation at break >10.0%
Sheath tensile strength 10.00 N/sq mm
Sheath elongation at break 125%
Page 23 of 39Product Catalog
MULTIPAIR INDIVIDUALLY FOIL
SCREENED CABLE
24AWG Multipair Data Cable
Features :
24AWG Stranded ATC Conductor
Individually Screened Pairs
Individual Drain Wire per Pair
PVC Sheath
Product Overview
Multipair individually foil screened extended distance cables are manufactured with stranded tinned copper cables.
Each pair is individually screened with a drain wire and is insulated with foam PE insulation. The cable is support
applications including RS232 and RS422 for extended distances.
Construction
Dimensions Material
Conductor 0.203mm (+0.001, -0.008) Stranded ATC
Insulation Thickness 1.60mm (+/-0.13mm) PE
Drain Wire 0.203mm (+0.001, -0.008) Stranded ATC
Pair Screen 100% Aluminium Foil
Pair Covering Mylar Spiral Wrap Mylar Tape
Sheath Grey PVC
Dimensions and color code
2Pair 3 Pair 4Pair
Nominal Diameter 6.75mm 8.50mm 9.22mm
Red, Black Red, Black Red, Black
White, Black White, Black White, Black
Pair Color
Green/Black Green/Black
Blue/Black
Electrical Characteristics
Maximum Conductor DC resistance 200 M Ohm at 20 deg C
Rated temperature 60 deg C
Rated voltage 300 V
Physical Characteristics
Minimum bend radius 88.35 mm
Conductor elongation at break >10.0%
Sheath tensile strength 10.00 N/sq mm
Sheath elongation at break 125%
Page 24 of 39Product Catalog
MULTICORE OVERALL FOIL
SCREENED CABLE
24AWG Multicore Data Cable
Features :
24AWG Stranded ATC Conductor
Overall Foil Screened Core
Overall Drain Wire
PVC Sheath
Product Overview
Multicore with overall foil screened cables are
manufactured with stranded tinned copper cables. Overall
foil shielded with drain wire and PVC Sheathed Cable.
The cable is support RS232 applications.
Construction
Dimensions Material
Conductor 0.203mm (+0.001, -0.008) Stranded ATC
Insulation Thickness 1.10mm (+/-0.13mm) PE
Drain Wire 0.203mm (+0.001, -0.008) Stranded ATC
Screen 100% Aluminium Foil
Covering Mylar Spiral Wrap Mylar Tape
Sheath Grey PVC
No of Core 4 5 6 8 9 10 12 15
Nominal diameter (mm) 4.67 4.80 5.30 5.69 6.20 6.20 7.20 7.20
Electrical Characteristics
Maximum Conductor DC resistance 200 M Ohm at 20 deg C
Rated temperature 60 deg C
Rated voltage 300 V
Physical Characteristics
Conductor elongation at break >10.0%
Sheath tensile strength 10.00 N/sq mm
Sheath elongation at break 125%
Page 25 of 39Product Catalog
MULTIPAIR OVERALL FOIL
SCREENED CABLE
24AWG Multipair Data Cable
Features :
24AWG Stranded ATC Conductor
Overall Foil Screen Pairs
Overall Drain Wire
PVC Sheath
Product Overview
Multipair with overall foil screened extended distance cables are manufactured with stranded tinned copper cables.
Overall foil shielded with drain wire and PVC Sheathed Cable. The cable is support RS232 applications.
Construction
Dimensions Material
Conductor 0.203mm (+0.001, -0.008) Stranded ATC
Insulation Thickness 1.10mm (+/-0.13mm) PE
Drain Wire 0.203mm (+0.001, -0.008) Stranded ATC
Screen 100% Aluminium Foil
Covering Mylar Spiral Wrap Mylar Tape
Sheath Grey PVC
No of Pair 1 2 3 4 5 6 8 15
Nominal diameter (mm) +/- 0.5 3.96 5.64 5.89 6.73 7.34 7.34 8.23 10.60
Electrical Characteristics
Maximum Conductor DC resistance 200 M Ohm at 20 deg C
Rated temperature 60 deg C
Rated voltage 300 V
Physical Characteristics
Conductor elongation at break >10.0%
Sheath tensile strength 10.00 N/sq mm
Sheath elongation at break 125%
Page 26 of 39Product Catalog
MULTIPAIR INDIVIDUALLY
SCREENED CABLE
24AWG Multipair Data Cable
Features :
24AWG Stranded ATC Conductor
Overall Foil Screen Pairs
Overall Drain Wire
PVC Sheath
Product Overview
Multipair individually foil screened extended distance cables are
manufactured with stranded tinned copper cables. Each pair is individually screened with a drain wire and in
insulated with solid PE insulation. The cable is support RS232 and RS422 for extended distances.
Construction
Dimensions Material
Conductor 0.254mm (+/-0.008) x 7 Stranded ATC
Insulation Thickness 1.20mm (+/-0.13mm) Solid PE
Drain Wire 0.203mm (+/-0.008) Stranded ATC
Screen 100% Aluminium Foil
Covering Mylar Spiral Wrap Mylar Tape
Sheath Grey PVC
No of Pair 2 Pair 3 Pair
Nominal diameter (mm) 4.19 (+/-0.20) 6.90 (+/-0.25)
Electrical Characteristics
Maximum Conductor DC resistance 200 M Ohm at 20 deg C
Rated temperature 80 deg C
Rated voltage 300 V
Page 27 of 39Product Catalog
MULTCORE UNSCREENED AND
SCREENED CABLE
24AWG Multicore Data Cable
Features :
7/0.19mm Stranded ATC Conductor
Screened & Unscreened Option
Core Wrap-Mylar Tape with Rip Cord
Screen (64x0.19mm) ATC for screened only
PVC Sheath
Product Overview
Multicore cables are used for direct connection of equipment to
mains power supplies, but are ideal for the interconnection of
electronic equipment and instruments. The cores have tinned
copper conductors and are PVC insulated, the outer sheath is
black PVC. The screened versions are constructed using either a
tinned copper braid or a Tinned Copper Clad Aluminum braid,
providing a certain amount of mechanical protection, as well as
electrical screening.
Construction (19 x 7)
Screened Unscreened
Conductor 7 x 0.19mm (+/-0.08), ATC 7 x 0.19mm (+/-0.08), ATC
Insulation Thickness 1.20mm (+/-0.13), PVC 1.20mm (+/-0.13), PVC
Core Wrap Mylar Tape + Nylon rip cord Mylar Tape + Nylon rip cord
Screeen 0.10 mm (+/-0.008) x 80 (+/-2), ATC Braid NA
Sheath PVC PVC
Construction (19 x 16)
Conductor 16 x 0.19mm (+/-0.08), ATC
Insulation Thickness 1.85mm (+/-0.13), PVC
Core Wrap Mylar Tape + Nylon rip cord
Screeen 0.19 mm (+/-0.008) x 64 (+/-2), ATC Braid
Sheath PVC
Characteristics 19 x 7 19x16
Conductor Resistance < 10.43 Ohm/ 100m at 20deg C < 4.56 Ohm/ 100m at 20deg C
Rated Temperature 80 deg C 80 deg C
Rated Voltage 300 V 300 V
RoHS Pass Pass
Nominal Overall Diameter (mm) 2 3 4 6 8 9 10 12
Screened ( 0.19 x 7) 3.8 4.1 4.4 5.4 6.0 6.4 6.6 7.0
Unscreened (0.19 x 7) 3.8 4.6 5.4 5.8
Screened (0.19 x 16) 6.3 7.0 7.5 8.5 9.5 10.8
Nominal Overall Diameter (mm) 15 18 20 25 36
Screened ( 0.19 x 7) 7.7 5.30 5.69 6.20 6.20
Unscreened (0.19 x 7) 7.7 8.0 8.5 9.6 10.8
Screened (0.19 x 16) 12.3 14.4 16.5
Page 28 of 39Product Catalog
SINGLE PAIR UNSCREENED CABLE
Features :
22AWG Stranded ATC Conductor
PVC Insulation
Rip Cord
PVC Sheath
Product Overview
Single pair cables manufactured with 7/0.25mm (22AWG) tinned copper conductors, PVC insulated. Suitable for a wide
range RS232, audio and broadcast applications.
Construction
Conductor 7x 0.254 mm (+0.001, -0.008) Stranded ATC
Insulation 1.50mm (+/-0.13) PVC
Insulation Color Red/Black
Jacket 4.40 (+/-0.20) PVC
Characteristics
Conductor Resistance 200 MOhm at 20deg C
Rated Temperature 80deg C
Rated Voltage 300V
Page 29 of 39Product Catalog
MINIATURE PAIR SCREENED
CABLE
Features :
18AWG Stranded ATC Conductor
PE Insulation
Screen-Alu Foil
PVC Sheath
Product Overview
Miniature pair cables manufactured and designed for sound broadcast, audio and instrumentation, tinned copper conductors,
Voltage rating 300V, temperature rating 60deg C
Construction
18AWG 20AWG 22AWG
Conductor 16x 0.254 mm 7x 0.32 mm 7x 0.25 mm Stranded ATC
(+0.001, -0.008) (+0.001, -0.008) (+0.001, -0.008)
Insulation thickness 2.10mm (+/-0.15) 1.80mm (+/-0.13) 1.60mm (+/-0.13) Black/Clear PE
Screen Aluminium Foil Spiral screen
Drain wire 16x 0.203mm (+0.001, 7x 0.32 mm 7x 0.25 mm Stranded ATC
0.008mm) (+0.001, -0.008) (+0.001, -0.008)
Jacket PVC Black PVC
Cable Diameter 5.64 mm (+/-0.20) 5.18 mm (+/-0.20) 4.45 mm (+/-0.20) PVC
Characteristics
Conductor Resistance/100m atProduct Catalog
FLAT MODULAR CABLE
26AWG Multicore Flat Cable
Features :
26AWG Stranded ABC Conductor
Flat Construction
Flexible Multicore
Product Overview
Multicore flexible cables have conductors laid side by side and are ideal for use as patch leads, for low speed data or
voice applications. The conductors are stranded 26AWG PVC insulated, with PVC insulation.
Construction
Dimensions Material
Conductor 7/0.16mm (26AWG) Stranded Plain Annealed Copper
Insulation Color Blue, Orange, Green, Brown, Grey, Yellow, Red, Black
Nominal ID 0.95mm PE/PPE
Sheath Grey/Black PVC
No of Pair 2 Pair 3 Pair
Nominal diameter (mm) 4Core Flat 6Core Flat 8Core Flat
2.5 x 5.0mm 2.5 x 7.0mm 2.5 x 9.0mm
Minimum Bend Radius 25mm
Operating Temperature Range -15 deg C to +70 deg C
Max Conductor DC Resistance@20deg C 127.5 Ohm/km
Voltage Test Core to Core 10000 V a.c./1 min
Page 31 of 39Product Catalog
PVC DROP WIRE
The PVC Drop Wire is used in telephone connectivity. The drop wire is available in oval shape to add in conductor
field separation. These are two round solid copper covered steel wires that serve dually as conductors and
strength members. It comes with good tensile strength, conductivity and elongation property.
The bonding of insulation with the conductor is controlled to assure that the full conductor strength is
transferred to the wire support clamp. These wires are conductor resistant, insulation resistant and minimal
breakage possibility. It does not get any burn in the first 60 seconds and lasts longer than usual drop wires.
Available Range:- 0.51mm, 0.61 mm, 0.71mm, 0.91mm
Conductor ABC
Wire Dia (+/-0.01) 0.50mm
Resistance 87 +/-4 Ohm/km at 20deg C
Fiber Glass roving Yes
Insulation PVC Type A/PE
Thickness 0.50+/-0.05mm
Fiber Glass Roving 0.50mm thick
Insulation thickness 0.50mm nom
Final diameter (max) 1.60 x 2.60 x 1.60
Page 32 of 39Product Catalog
SCREEN BRAIDED CABLE
Application:- A shielded cable is an electrical cable of one or more insulated conductors enclosed by a
common conductive layer. The shield may be composed of braided strands of copper or aluminum mylar
tape, or a layer of conducting polymer. Usually, this shield is covered with a jacket.
The shield acts as a Faraday cage to reduce electrical noise from affecting the signals, and to reduce
electromagnetic radiation that may interfere with other devices (see electromagnetic interference).
The shield minimizes capacitive coupled noise from other electrical sources. The shield must be applied
across cable splices. In shielded signal cables the shield may act as the return path for the signal, or may
act as screening only.
Description:- The annealed tinned/bare Electrolytic high conductivity copper multi strand flexible conductor
as per IS: 8130/1984 of class-5, PVC insulated as per IS: 5831/1984, cores twisted together, Melinex taped.
Shielded with aluminium mylar taped and screened with tinned copper braiding, taped again & overall PVC
sheathed as per BS 5308 Part-2 multi core instrumentation Shielded Flexible cable
Range:- 0.2 sq.mm to 150 sq.mm (single core & multicore)
Page 33 of 39Product Catalog
HOOK UP WIRE
The Hook Up Wires is single insulated conductor that is used for low current, low voltage (usually under 1000
volts) applications within enclosed electronic equipment. It can operate under extreme temperature that may
range from -40 deg. C to 105 deg. Celsius. It comes with color coded PVC insulation and is corrosion proof.
Our hook up wires contains no halogens, phthalates or heavy metal, which eliminate the hazardous
substances. The wire has superior dielectric properties that make reduced wall thickness while maintain the
same electrical properties as PVC. Even with thinner walls, our wires offers far more better resistance to
PVC-based wire.
Available Range:- The wire is available in all routine sizes.
Page 34 of 39Product Catalog
Medical Wires, Cables
Medical cables and cable assemblies offered by Octel Cables are designed to be flexible and withstand
handling from the medical staff and patients.
Medical cables are constructed using stranded copper and high strength copper alloy conductors as well
as precision shielding and jacketing technology, and work together to provide highly flexible, durable
and reliable Medical Wire and Medical Cable Assemblies. Our specialized cable constructions are
available off the shelf in small and larger quantities, while custom cable configurations can also be
supplied to customer specifications.
Patient monitoring cables.
Medical cables and electrodes for EEG, ECG, EKG & EMG studies.
Medical cables for Sleep Studies.
Custom medical cables and touch proof connectors for various medical devices.
Cables for EMS, rescue, police & media communications.
Cables and connectors for custom applications
Page 35 of 39Product Catalog
SOLAR CABLES
Application
Double insulated, cross-linked cables for photovoltaic power applications. This cable is designed to meet the
varying needs of the Solar Industry. Applications include connection to
PV module junction boxes to array junction box
Temperature Range
Ambient temperature :-20/40deg C to +90deg C
Max. temperature at conductor :120 deg C
Construction
Conductor : Annealed Tinned Copper as per EN 60228 Class-5
Insulation : XLPE/PVC/ Cross linked Halogen Free Compound
Sheath : XLPE/PVC/ Cross linked Halogen Free Compound
Voltage : 1.8 kV DC- 0.6/1 kV AC
Solar Cables (as per IS 7098 Part 1)
Flexible Annealed Tinned Conductor XLPE Insulated & PVC ST-2 UV Sheathed Cable
Area Max. Cond. Conductor Insulation Sheath Overall (Amp) Current
(Sq mm) Resistance Dia mm XLPE Thickness Diameter Carrying
Ohm/km (max) PVC (mm) +/-0.5 Capacity (Air)
1.5 13.7 0.26 0.70 0.90 5.0 26
2.5 8.21 0.26 0.70 0.90 5.5 35
4 5.09 0.31 0.70 0.90 6.0 45
6 3.39 0.31 0.70 0.90 6.5 58
Other sizes also available on demand Up to 240sq mm
Solar Cables (as per IS 694)
Flexible Annealed Tinned Conductor PVC HR Insulated & PVC HR FR UV Sheathed Cable
Area Max. Cond. Conductor Insulation Sheath Overall (Amp) Current
(Sq mm) Resistance Dia mm PVC Thickness Diameter Carrying
Ohm/km (max) HR FR PVC HR FR (mm) +/-0.5 Capacity (Air)
1.5 13.7 0.26 0.60 0.90 5.0 29
2.5 8.21 0.26 0.70 0.90 5.5 40
4 5.09 0.31 0.80 0.90 6.5 50
6 3.39 0.31 0.80 0.90 7.0 64
Other sizes also available on demand Up to 240sq mm
Solar Cables (as per reference TUV Specification 2 Pfg 1169/08.2007)
Flexible Annealed Tinned Conductor XL-Halogen Free Insulated & XL-Halogen Free Sheathed Cable
Area Max. Cond. Conductor Insulation Sheath Overall (Amp) Current
(Sq mm) Resistance Dia mm Thickness Diameter Carrying
Ohm/km (max) (mm) +/-0.5 Capacity (Air)
1.5 13.7 0.26 0.70 0.90 5.0 32
2.5 8.21 0.26 0.70 0.90 5.5 41
4 5.09 0.31 0.70 0.90 6.0 54
6 3.39 0.31 0.70 0.90 6.5 70
Other sizes also available on demand Up to 240sq mm
Page 36 of 39Product Catalog
RS-485 Cables
32 AWG stranded (7x32) TC conductors, polyethylene insulation, twisted pairs, overall Alu-mylar (100% coverage) +
TC, Inner Sheath, GI Armour & Overall Jacket
Conductor Fine Stranded Tinned Copper Conductor
Insulation PVC , PE , PP Color or number coded.
Fillar PVC , PE , PP (optional)
Shield Shield with aluminum - mylar tape 100% coverage .
Drain Wire 7/20 AWG or 7/28AWG Stranded Tinned Copper Conductor
Braiding Tinned copper Conductor braid shield 90% coverage.
Inner Sheath PVC, LSZH (optional)
Armouring Galavanised round wire armouring (optional)
Outer Jacket PVC, LSZH
Conductor
Insulation
Shield
Drain Wire
ATC Braid
GI Armouring
Outer Jacket
Operating Temperature Range -15 deg C to +80deg C
Temperature Range 80 deg C
Voltage Rating 300 V
Min. Bending Radius 15 x D
Page 37 of 39Product Catalog
CABLE ASSEMBLY
We have total solutions in wiring cable assembly from designing and developing them as per customer
requirements.
In-house capability for design and manufacturing of cables, jigs, assembly boards and circuit checking
boards enable process design control and flexibility.
Page 38 of 39Product Catalog
PVT. LTD.
M/s OCTEL CABLES PVT. LTD.
G-1/954, RIICO Industrial Area, Bhiwadi, Dist.
Alwar (Rajasthan)-301019, Email:
octel.cables@gmail.com, info@octelcables.com,
Website: www.octelcables.com
GSTIN : 08ASRPG8681J1ZX
Page 39 of 39You can also read
