ELEVATION Price List USA 2021
Table of Contents
Introduction 3 Height Adjustable Desks 20
Update Summary 4 Rectangular Desk 21
Product Map 5 Rectangular Desk with Laminate Panel Leg 22
Our social responsability 6 Double Rectangular Desk with Laminate Panel Leg 26
Conditions of Sale 6 Rectangular Desk with Laminate Boxed Leg 30
Manufacturing Standards 7
How to Use the Price List 8
Divider Screens 35
How to Order Double Desks 9
Appendix A: Colors and Finishes 10 Acrylic 36
Appendix B: Grommet and Communication Box 11 Tackboards 39
Appendix C: Modesty Panel 12
Appendix D: Wood Grain 12
Appendix E: Drawer Option 12
Accessories 42
Appendix F: Surface Dimensions 12 Handles 43
Appendix G: Quick Set Up Guide 13 CPU Holders 44
Appendix H: Calculation and Use of Electrical Components 14 Miscellaneous Accessories 45
Appendix I: Electrical Wire Management Solutions 17 Electrical Accessories 46
Appendix J: Storage under worksurface 18
Appendix K: Divider Screens 19
July 1, 2021 | USA LOGIFLEX | ELEVATION 2
Introduction
Elevation is your solution for providing users with the flexibility to work at
different heights depending on their task, energy level or mood. The result is a
more productive and healthier work environment. Height-adjustable Elevation
desks can be built into any Logiflex furniture line, from private offices to
benching layouts. Elevation also provides workstation electrification and wire
management solutions.Update Summary The July 1, 2021 revision of the Elevation price list presents these principal modifications: DATE SECTION MODIFICATIONS July 1, 2021 All the Price List • All prices have been increased by approximately 6%. Previous updates: DATE SECTION MODIFICATIONS February 1, 2020 All the Price List • All prices have been increased by 2%. July 1, 2021 | USA LOGIFLEX | ELEVATION 4
Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
Product Map
Height Adjustable Desks
Rectangular Desk p. 21 Rectangular Desk with Laminate Panel p. 22 Double Rectangular Desk with Laminate Panel p. 26
BAS LPSOO LPSOF LPSFO LPSFF LPMDOO - LPDMOO LPMDOF - LPDMFO LPMDFO - LPDMOF LPMDFF - LPDMFF
Rectangular Desk with Laminate Boxed Leg p. 30 Laminate Wire Management p. 34
LBSOO LBSOF LBSFO LBSFF LWM
Divider Screens
Acrylic p. 36 Tackboard p. 39
UAS UAC UAM UBS UBC UBM
July 1, 2021 | USA LOGIFLEX | ELEVATION 5Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
Our social responsability
At Logiflex, we have chosen to be a responsible North American purchase order must contain the following information: Claims
manufacturer by implementing initiatives for sustainable
• Your company letterhead Logiflex recommends inspecting the shipment before signing
development. As much as possible, we source local materials
and partner with suppliers who prioritize clean manufacturing • Your reference number the carrier’s delivery receipt. You must notify Logiflex of any
processes. We also consolidate goods during transport to • The delivery address (with contact name and phone incomplete shipments or damaged furniture as soon as possible.
reduce ou fuel consumption and we continually make changes number) Requests to replace damaged products can be made via the
that help reduce our waste production. • The complete product codes “Private Space” section of our website, at www.logiflex.ca. Our
after-sales service department will examine your request and
The company is ISO 9001 certified. • Furniture colour(s)
help you correct the situation.
• Quantities
You can consult our eco-responsible approach as well as all our
• Descriptions
certifications in the Certifications section of our website. Find
• Retail prices and net prices Changes
out how our products can help you obtain LEED credits and the
Logiflex products that are Greenguard certified. • Project registration number (if applicable), and your Logiflex reserves the right to make changes to the materials,
approved quotation and technical drawing (for special accessories, components, specifications and designs, and to
items).
Conditions of Sale discontinue collections and/or models, at any time and without
prior notice.
Please note that a quotation cannot serve as a purchase order.
Prices Returns Storage and/or Shipping Fees
The amounts listed in this document are suggested retail All returns must first be approved by Logiflex. If the return
prices and may be changed without notice. Applicable taxes is accepted, a Logiflex customer service representative According to the terms Logiflex set forth in the transport policy.
are not included. If you have an open and active account with will send you an official return authorization form in order to The transport policy can be consulted online in the Private Space.
Logiflex, merchandise will be invoiced at the prices prevailing facilitate procedures between you, the carrier, and the Logiflex
at the time of shipment. A deposit may be requested if the merchandise reception clerk. Additional costs for shipping or Items Delivered Disassembled
opening of your account has not been completed or if your other expenses may be applied following any merchandise
account has become inactive. returns. Some items are delivered disassembled, such as empty desks,
empty returns, bridges, arched tables, D, P or Q tables, lateral
tables, end tables, hook tables, corner tables and extended-
Terms of Payment
corner tables. To order these items assembled, add a $100 list
Modifications and/or Cancellations
Net 30 days F.O.B. Sherbrooke, Quebec. The invoice will be price. Contact Customer Service for details.
assigned the shipping date and is payable 30 days from that You have 24 hours from the time we acknowledge receipt of
date. Logiflex remains the owner of the merchandise until the your order to make any requests for corrections or modifications. Warranty
invoice is paid in full. You may cancel your order during this same 24-hour period.
If you would like to modify or cancel your order after this 24- Logiflex guarantees to the original purchaser that Logiflex
hour verification period, please check with a Logiflex customer products are free from defects in design, materials and
Customized Products (Special Items) service representative. Orders cannot be changed or cancelled if workmanship for the product’s lifetime, with certain exceptions.
Price requests for customized products or special items can production has already begun or if Logiflex has already received
be submitted via the “Private Space” section of our website, the raw materials. You may consult the full warranty on the website:
at www.logiflex.ca. Our quotations department will study your Logiflex Warranty
request and send you a quotation and a technical drawing
for approval as soon as possible. Modifications to quotations Liability
or technical drawings can be requested the same way. The Logiflex’s liability ends once the carrier has delivered all items
approved quotation(s) and technical drawing(s) can then be in good condition. A delivery receipt signed by the customer
attached to your purchase order. acknowledges that the shipment is complete and has been
received in good condition.
Orders
An official purchase order must be issued for all purchases. Your
July 1, 2021 | USA LOGIFLEX | ELEVATION 6Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
Manufacturing Standards
Product Dimensions Drawer Fronts
A PVC strip 1.5 mm thick is systematically applied along all
For display purposes, the furniture dimensions represented
drawer front edges.
in the price tables on each product page are rounded to the
nearest whole number.
Levelers
Handles
All furniture items sit on 1" in diameter, white nylon levelers,
Handles are included with all storage furniture. The standard is
allowing for up to 1-1/4" height adjustment.
H052SN. Please refer to the Logiflex accessories selection at
the end of this price list on p. 43.
Colors
Pedestals Colors have to be specified for all furniture items ordered.
Consult the "How to Oder" section on the product page for
All drawers are made of black Medium density fiberboard
further details about the procedure. Consult the Logiflex Colors
(MDF) with an average thickness of 7/16".
and Finishes Guide for the colors and finishes offered. Unless
indicated otherwise in the order, the PVC edge will match the
color and finish specified.
July 1, 2021 | USA LOGIFLEX | ELEVATION 7Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
How to Use the Price List
Navigation buttons
Interactive Menu Previous View
Product line Desk Desk with Boxed Leg Previous Page
Product group Height Adjustable Desks Desk with Panel Laminate Wire Management Next Page
Double Desk with Panel Product Map
Table of Contents
Product name Rectangular Desk
Product code BAS Manufacturing Standards
• Delivered disassembled;
A • 1" thick laminate top; Product-specific
• 2 section metal leg; manufacturing
B • Programmable switch with LED display; standards
• Height: programmable to 3 positions from 27" to 47";
• Maximum load on frame: 220 lbs;
• 1 motor, two stage system;
• Metal legs with matching levelers.
Product image
Grommet and connectivity options cannot be specified in the
same position. Ex: GRC and MH3A C.
MH3 connectivity units are also available with a 120" plug in
cable.
Additional Product
Information and Notes
Options Prices
L C R
Dimensions
Illustrated options A B
3056 ****
C LR
A B 3060 **** Prices
Cutout Grommet/Connectivity Wireless Charger 3064 ****
for wires 3068 ****
3072 **** Dimensions
MH3
Navigation WAVC CAPF/CCPF A B/C D QIBL QISL
$$ $$ $$ $$ $$ $$ $$
Buttons (when blue)
How to Order
GRL
GRC MH3A L QIBLA
GRR MH3B C QIBLB
BL GLR WAVC CCPF MH3C R QISLA
AB SN (std) NGR (std) NWAV (std) CAPF (std) MH3D LR QISLB
Ordering instructions EL BAS
leg grommet cutout grommet connectivity+position Qi
series dimensions product finish position (Appx. B) style (Appx. B) (Appx. B) Blue text hyperlink
Example EL 3060 BAS SN GRC NWAV CAPF MH3BR QIBLA
Standard Product Code Options, if desired ($)
Details as per the price listed Always after the product code
July 1, 2021 | USA LOGIFLEX | ELEVATION 8Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
How to Order Double Desks
Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Double Rectangular Desk with Laminate Panel Leg
LPMDOO - LPDMOO Manufacturing Standards
• Delivered disassembled;
A
• 1" thick laminate top and panel;

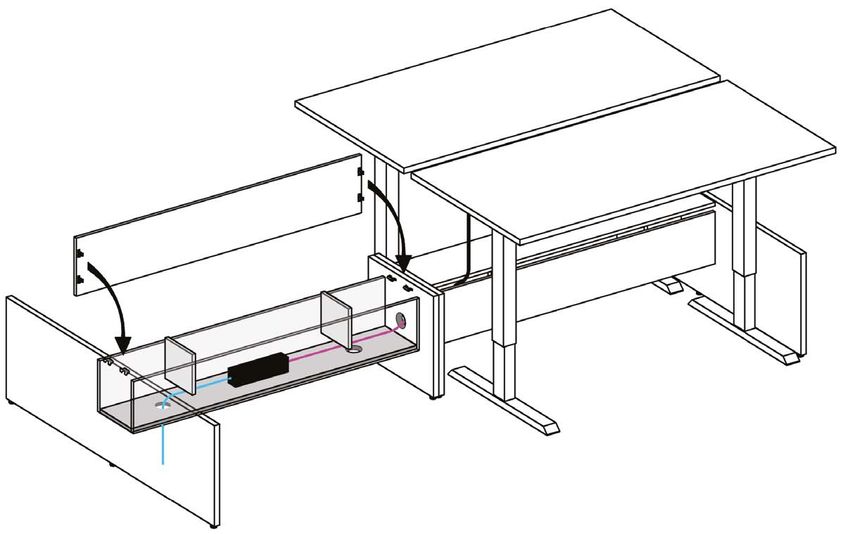

• Wire management channel with cutout for wires;
B
• 18"H modesty;
2 • 2 section metal leg;
• 1 motor, two stage system;
• Programmable switch with LED display;
• Height: programmable to 3 positions from 27" to 47";
1 Leg Position • Maximum load on frame: 220 lbs;
• Metal legs with matching levelers;
O O • White levelers on laminate panel.
2
Suggested clearance of 2" between wrksurfaces. The lengths ot
the tops must be the same on both desks.
1 Grommet and connectivity options cannot be specified in the
same position on the same desk. Ex: GRC and MH3A C.
O O MH3 connectivity units are also available with a 120" plug in
cable p. 54.
1 Offset left and right of 4"
Specify the first Options Prices
desk on line 1 L C R
Leg Grommet Price per individual desk
Dimensions
2 A B
A B
C LR 3056 **** Price per
1 Cutout Grommet/Connectivity Wireless Charger 3060
R for wires
3064
**** individual desk
****
L 3068 ****
LR MH3 3072 ****
PGR WAVC CAPF/CCPF A B/C D QIBL QISL Price per double desk
$$ $$ $$ $$ $$ $$ $$ $$
Dimensions
A B
How to Order 3056 **** Price per
3060
GRL 3064
**** double desk
GRC PGR L MH3A L QIBLA ****
GRR PGR R MH3B C QIBLB 3068 ****
BL GLR PG LR WAVC CCPF MH3C R QISLA 3072
AB SN (std) NGR (std) PNGR (std) NWAV (std) CAPF (std) MH3D LR QISLB ****
1 1 EL LPMDOO
2 EL LPDMOO
2
series dimensions product
leg grommet leg cutout grommet connectivity+position Qi Add the price
finish position grommet (Appx. B) style (Appx. B) (Appx. B)
1 EL 3060 LPMDOO SN GRC PNGR NWAV CAPF MH3BR QIBLA
of lines 1 and
Example 2 for the total
2 EL 3060 LPDMOO SN GRC PNGR NWAV CAPF MH3BR QIBLA
2 price for the
Specify the second shared desks
desk on line 2
July 1, 2021 | USA LOGIFLEX | ELEVATION 9Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
Appendix A: Colors and Finishes
How to specify your laminate colors Availablility Chart
THICKNESS
É PA I S S E U R PA N VA L HPL
FINI C O LO R CODE S T R AT I F I É
Top CODE ⅝" 1" 1 -⅝"
FINISH COULEUR
Surface / Edge
GIA Ginger Root | Gingembre • • H72 •
W /W • • • •
HAA Haze | Brume H57
AUR A
STA Storm | Tempête • • • H58 •
Base TUA Tundra • • H75 •
Surface / Edge • •
ASY Asha K47
W /W LY R A CIY Chiffon | Mousseline
**
• • K60
KAY Kali • • K46
Shelf
S U P E R M AT
IGS Ingot grey | Gris lingot • • 828
Surface / Edge WGS Willow grey | Gris saule • • 802
W /W AU Audacity | Audace
**
• • • 241 •
B Jet Black | Noir intense
*
• • 888 | S405-CA •
BC Brown cherry | Cerisier brun • • • 207 •
C Slate | Ardoise
*
• • 801 •
Top CA Caramel • • G18-GL •
Surface / Edge CO Cognac • • 260 •
W /W DL Legno Dark | Legno foncé • • G52 •
DR Driftwood | Bois de rive • • 744 •
G Mink Grey | Gris vison • • 805 | OU-927 •
Shelf D O LO M I T E GG Grigio • • G17-GL •
Surface / Edge • • •
LM Light Maple | Érable clair 992
W /W NC Natural Cherry | Cerisier naturel • • 239 •
Front NM Natural Maple | Érable naturel • • • 206 •
Surface / Edge PC Coastal Pear | Poirier de la côte
**
• • G23-GL •
W /W PO Porto • • • 913 | OU-648 •
SW Smoked Walnut | Noyer fumé • • • G21 •
Base • • • •
TO Tobacco 205
Surface / Edge
W Polar White | Blanc polaire • • • 555 | 459-CA •
W /W • • • •
WK Whisky 245
Front H I G H G LO S S GGH Grigio - fronts | façades •
Surface / Edge
S U P E R LU S T R É W-H Polar White - fronts | Blanc polaire - façades •
W /W
* Non recommended color for work surfaces.
** For conference tables with 2 or more parts, we do not recommend the use of colors with irregular and contrasted woodgrain like Chiffon,
Audacity or Coastal Pear as it results in a pronounced wood grain mismatch.
Surface Colors may vary from 2% to 5% between tfl and hpl laminates due to different technical applications.
See our complete Colors & Finishes Guide
Edge
Color available until October 2021.
July 1, 2021 | USA LOGIFLEX | ELEVATION 10Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
Appendix B: Grommet and Communication Box
Grommet Connection Unit
L C R L C R
C_PF MH3
LR LR
Square metal grommet
in satin nickel, chrome Position : L, C, R, LR Position : L, C, R, LR
and black finish
Open position Closed position Open position Closed position
Allows wire management Push to open
Cutout for wires Wireless Charger
WAVC C QIBL A B
Wire management
Position: C
cut-out
16"
1-1/2"
Dimensions Charges Qi
capable devises
July 1, 2021 | USA LOGIFLEX | ELEVATION 11Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
Appendix C: Modesty Panel Appendix F: Surface Dimensions
Modesty Height
In the example below, the dimensions for the surface shown in the price grid for a single
table, with or without laminate panels or boxed legs, are as indicated. Ex.: a 30" x 60" desktop
is 30" x 60"
30"
60"
PM FM
Partial Modesty Full Modesty
(10" high) (18" high)
Appendix D: Wood Grain In the example below where double rectangular desks are strung together, the surface
dimensions are slightly smaller to allow the desks to operate without obstructing the vertical
Wood grain runs lengthwise on desk surfaces on the side legs and the modesties. The wood movement of the desk.
grain runs vertically on fronts of doors and legs. See adjacent image for wood grain direction
placements. The depth is 1" shorter, allowing a 2" gap between facing desk. This additional space allows for
the addition of divider screens without obstructing the vertical movement of the desk. Ex.: a 30"
desktop is actually 29".
When 2 desks are side by side, the surface is 1/4" 29"
shorter lengthwise per desk top surface. 60"
59-3/4"
Ex.: a 60" desktop is 59-3/4" on outside
desktops and 59-1/2" on a desk 29"
1/2"
that is between 2 desks. O
59-1/2"
1/2" F
Appendix E: Drawer Option F
59-3/4"
The drawer option is offered on the 12" boxed legs.
The drawer dimensions are 8" x 11-1/8" x 3-1/8"H.
F
F
O
12"
8"
July 1, 2021 | USA LOGIFLEX | ELEVATION 12Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
Appendix G: Quick Set Up Guide
The height control panel is designed for the use of the Elevation
height adjustable table collection. The control panel offers basic
up and down buttons as well as programming up to three
programmable height settings for up to three individuals. The
control panel is equipped with a power wire measuring 68''L.
29
Presets Save/Setup LCD Display Up/Down Buttons
Initial Calibration
Programming and Using the Presets
After assembly, the Elevation height adjustable table must b
e
calibrated to ensure smooth and trouble free movement.
Step A: Selecting Individual Users
1. Press and hold until it stops by itself.
2. Press and hold until it stops by itself. You may program height settings for up to 3 individual
users. You must be sure to select the correct ‘user’ when
3. Press and hold again until it stops by itself. programming and using the presets.
The table is now calibrated. If you notice that the movements
1. Press for 2 seconds until the user ‘U’ menu is displayed.
are jerky or uneven, the table should be re-calibrated.
2. Press or to select U-1, U-2 or U-3.
Note: The table may be used without any programming by 3. Press to select user.
pressing the or buttons. Additionally, you can adjust the
height of the table without affecting the programmed presets. Step B: Programming a User’s Height Preset
You may program up to 3 height presets per user.
Additional Information 1. Press or to desired height shown on the LCD display.
2. Program Preset 1: adjust table to desired height, then
Re-programming the Desk Frame
press and hold then for 2 seconds, release both
Your desk control panel should be programmed to Setup No.3 buttons when the display blinks.
(P3). To re-program, follow these instructions.
Height preset 1 is now programmed. Repeat the above
1. Press for 10 seconds (be aware that the user select menu
steps to preset height and .
will display after 2 seconds, continue pressing the button).
2. Press the or to select P3 setting. Step C: Using the Presets
3. Press to save the setting. 1. Verify that your “user” is selected, follow Step A.
2. Press the desired preset button, - or .
Changing Measurements to Inches or CM Keep pressing until the desk automatically stops
Press + for 2 seconds to select CM. at the preset height.
Press + for 2 seconds to select Inches.
July 1, 2021 | USA LOGIFLEX | ELEVATION 13Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
Appendix H: Calculation and Use of Electrical Components
STEP 1:
Power Block and Simplex Capacity
Determing the Number of Amperes Required
An electrical series corresponds to the total number of
What is Amperage amperes that use the same power source. This includes
An Ampere (Amp or A) is a unit for measuring the rate at which electrical components such as computers, printers, laptops,
electric current flows. All electrical equipment has an amperage monitors, server or other devices.
rate. By following these few simple steps, you can easily
determine the number of circuits required to ensure safe use of Each power block has a total capacity of 8 Simplex units
your electrical equipment. (plugs). A Simplex can handle up to 20 amps by itself,
however as the number of Simplex are added to each
Determine the Number of Amperes Required circuit, the amount of amps is divided between them.
On your computer or other electric devices (ie: monitor, central
processing unit, printer) find the plate that provides the technical
specifications as follows:
A single Simplex
Input: 120V - 1.8A. has a maximum
capacity of 20A Each power
If you cannot locate this information on the machine, you will 20A block can hold
An Introduction to Calculation probably find it in the user manual. 8 Simplex
and Use of Electrical Components
Here are a few examples of how many Amps some equipment
Most people are uncomfortable with anything related to electricity.
may consume. Please note that these are examples and the
This step-by-step guide is intended for people who are not familiar
number of amperes may vary from one machine to another.
with electrical installations but who have to specify what system
they need when ordering furniture. In this guide, you will learn
how to choose and specify the electrical components required for A single power block has a
your projects. The list that follows illustrates and identifies each 4
maximum capacity of 80A
3
product and describes its applications. 2 20A + 20A + 20A + 20A = 80A
1
The electrical components are all recognized by the
Underwriters Laboratory (UL) as office furniture accessories and
are manufactured according to Canadian Standards Association CPU Monitor Laptop Printer Server
2.5A .5A 1A 9A 12A A power block with the same
(CSA) and UL electrical standards.
circuitSimplex on both sides
Note: All electrical connections must be performed by a certified also has amaximum capacity
electrician. of 20A
10A + 10A = 20A
By following these 3 simple steps, you can easily determine the
number of circuits required to ensure safe use of your electrical
equipment.
1. Determing the Number of Amperes Required
2. Calculating the Total Amperes Per Electrical Series + + + + = 20A
3. Determing How Many Circuits You Need
The capacity of each Simplex on the same circuit is divided
as additional Simplex’s are added on. For example,
5 Simplex on the same circuit still holds the same 20A
capacity.
July 1, 2021 | USA LOGIFLEX | ELEVATION 14Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
Appendix H: Calculation and Use of Electrical Components
STEP 2: STEP 3:
Calculating the Total Amperes Per Electrical Series Determing How Many Circuits You Need
Add the Amperes
Add the number of amps for each machine in the series. In our
example, there are 4 CPUs at 2.5A per computer, 4 monitors at
In most cases, this number will contain decimals. Round up to
the next whole number, and this will be the number of circuits
required for your equipment to run safely. If the number obtained
1.3 2
0.5A and one printer at 9A. is higher than 4 (the maximum number of circuits for a system),
you must reduce the amount of current used by the system or
create another system supplied by a separate power source.
Continuing with our example, the 1.3A is rounded up to 2A.
2.5A + .5A + 2.5A + .5A + 2.5A + .5A + 2.5A + .5A + 9A = 21A Here is one possible configuration. Using 5 power blocks joined together with junction cables, only 2 circuits are being used.
The 4 monitors and the printer are on Circuit #1 and the 4 CPUs are on Circuit #3 (which is the grounded circuit).
The total number of amperes used in this example equals to 21A.
Divide by 16 1A 1A 1A 1A 9A
3A 3A 3A 3A
21/16 =1.3
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
Most machines and computers used in offices or schools are
used continuously for many hours at a time. In this type of situa-
tion, national electrical codes usually limit circuits to 16 amperes
of continuous use. You must therefore divide the total number
of amperes calculated by 16.
July 1, 2021 | USA LOGIFLEX | ELEVATION 15Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
Appendix H: Calculation and Use of Electrical Components
8 Wire, 4 Circuit (3+1) Power Block Starter Cable with Hard Wire
• Simplexes are interchangable permitting any
required circuit combination;
• All Simplexes located together for greater access to
all power receptacles;
• Double sided blocks for single or double sided
applications;
• Complies with National Electric Code;
• UL Listed/Recognized.
• 4 circuit starter cable with hard wire at one end;
• All circuits rated for 20 AMP;
• Available in lengths from 12” to 180”;
• Whip end to be connected to building power by an
electrican.
4 Starter Cable with Plug
1
2
IG
3
• 1 circuit starter cable with electric plug at one end;
• Circuit rated for 20 AMP;
• Available in lengths from 12” to 180”.
Blue 3H
Green/Yellow 3G
Junction Cable
Green 1-2-4 G
Gray 3N
White 1-2-4 N
Black 1H
Red 2H • 4 circuit cord;
• All circuits rated for 20 AMP;
Pink 4H • Available in lengths from 12” to 180”.
July 1, 2021 | USA LOGIFLEX | ELEVATION 16Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
Appendix I: Electrical Wire Management Solutions
Removable panel
1" clearance for wire management
Fabric Sleeve for wires
Option: 2-1/2" round grommet
Junction Cable 84 FF
Available space of 2-1/2" high
Power Block PW4/PW8
Starter Cable 84 SB2
2-1/2" round grommet in the base of the unit, on the left and right.
Available space of 2-1/2" high
Power Block PW4/PW8
Starter Cable 84 SB2
2-1/2" round grommet in the base of the unit, on the left and right.
2-1/2" round grommet in the side of the unit, on the left and right.
July 1, 2021 | USA LOGIFLEX | ELEVATION 17Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
Appendix J: Storage under worksurface
Only low pedestals at 19"H and less can be positioned under height Pedestals that are higher than 19"H can not be positioned under height
ajustable surfaces (to clear the mechanism). adjustable surfaces (collision with the mechanism).
25"
19"
July 1, 2021 | USA LOGIFLEX | ELEVATION 18Product Map Manufacturing Standards Appendix
Introduction Our social responsability How to Use the Price List
Conditions of Sale How to Order a Shared Desk
Appendix K: Divider Screens
Under Mount Clip Applications
Code Definitions
Clip Insertion Position Illustration
A
Acrylic S
(C1) 1/4” Surface
(C2) 3/8”
U
Under
Mount UAS UBS UAM UBM
B
Tackboard M
7/8” Modesty
(+/- 1/8”)
*Note: When ordering a divider screen that is between two metal legs, the
total length is 4” shorter than the length of the desk surface because of the
width of the legs.
July 1, 2021 | USA LOGIFLEX | ELEVATION 19Height Adjustable Desks
Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Rectangular Desk
BAS Manufacturing Standards
• Delivered disassembled;
A • 1" thick laminate top;
• 2 section metal leg;
B • Control panel with LED display;
• Height: programmable to 3 positions from 27" to 47";
• Maximum load on frame: 220 lbs;
• 1 motor, two stage system;
• Metal legs with matching levelers.
Grommets are recess back 5-1/2".
Grommet and connectivity options cannot be specified in the
same position. Example of what not to do: GRC and MH3A C
together.
MH3 connectivity units are also available with a 120" plug in
cable p. 50.
Options Prices
L C R
Dimensions
A B
3056 1457
C A B 3060 1473
LR
Cutout Grommet/Connectivity Wireless Charger 3064 1489
for wires 3068 1505
3072 1520
MH3
WAVC C _ PF A B/C D QIBL
$23 ea. $23 ea. $343 $343 $343 $534
How to Order
GRL
GRC MH3A L
GRR CAPF MH3B C
BL GLR WAVC CBPF MH3C R QIBLA
AB SN (std) NGR (std) NWAV (std) CCPF MH3D LR QIBLB
EL BAS
leg grommet cutout grommet connectivity+position Qi
series dimensions product finish position (Appx. B) style (Appx. B) (Appx. B)
Example EL 3060 BAS SN GRC NWAV CAPF MH3BR QIBLA
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 21Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Rectangular Desk with Laminate Panel Leg
LPSOO Manufacturing Standards
• Delivered disassembled;
• 1" thick laminate top and panel;
A
• Wire management channel with cutout for wires;
B • 18”H modesty;
• 2 positioning brackets;
• 2 section metal leg;
• Control panel with LED display;
• Height: programmable to 3 positions from 27" to 47";
• Maximum load on frame: 220 lbs;
• 1 motor, two stage system;
• Metal legs with matching levelers;
Leg Position • White levelers on laminate panel.
Grommets are recess back 5-1/2".
Grommet and connectivity options cannot be specified in the
same position. Example of what not to do: GRC and MH3A C
O O together.
MH3 connectivity units are also available with a 120" plug in
Offset left and right of 4" cable p. 50.
Options Prices
L C R
Leg Grommet Dimensions
A B
3056 2063
C A B 3060 2080
LR
Cutout Grommet/Connectivity Wireless Charger 3064 2095
R
for wires 3068 2112
3072 2127
L
LR MH3
PGR WAVC C _ PF A B/C D QIBL
$0 $23 ea. $23 ea. $343 $343 $343 $534
How to Order
GRL
GRC PGR L MH3A L
GRR PGR R CAPF MH3B C
BL GLR PG LR WAVC CBPF MH3C R QIBLA
AB SN (std) NGR (std) PNGR (std) NWAV (std) CCPF MH3D LR QIBLB
EL LPSOO
leg grommet leg cutout grommet connectivity+position Qi
series dimensions product finish position grommet (Appx. B) style (Appx. B) (Appx. B)
Example EL 3060 LPSOO SN GRC PNGR NWAV CAPF MH3BR QIBLA
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 22Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Rectangular Desk with Laminate Panel Leg
LPSOF Manufacturing Standards
• Delivered disassembled;
• 1" thick laminate top and panel;
A
• Wire management channel with cutout for wires;
B • 18”H modesty;
• 2 positioning brackets;
• 2 section metal leg;
• 1 motor, two stage system;
• Control panel with LED display;
• Height: programmable to 3 positions from 27" to 47";
• Maximum load on frame: 220 lbs;
• Metal legs with matching levelers;
• White levelers on laminate panel.
Leg Position
Grommets are recess back 5-1/2".
F Grommet and connectivity options cannot be specified in the
same position. Example of what not to do: GRC and MH3A C
together.
O
MH3 connectivity units are also available with a 120" plug in
Offset left of 4" / Flush right cable p. 50.
Options Prices
L C R
Leg Grommet Dimensions
A B
3056 2092
C A B 3060 2108
LR
Cutout Grommet/Connectivity Wireless Charger 3064 2123
R for wires 3068 2140
3072 2156
L
LR MH3
PGR WAVC C _ PF A B/C D QIBL
$0 $23 ea. $23 ea. $343 $343 $343 $534
How to Order
GRL
GRC PGR L MH3A L
GRR PGR R CAPF MH3B C
BL GLR PG LR WAVC CBPF MH3C R QIBLA
AB SN (std) NGR (std) PNGR (std) NWAV (std) CCPF MH3D LR QIBLB
EL LPSOF
leg grommet leg cutout grommet connectivity+position Qi
series dimensions product finish position grommet (Appx. B) style (Appx. B) (Appx. B)
Example EL 3060 LPSOF SN GRC PNGR NWAV CAPF MH3BR QIBLA
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 23Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Rectangular Desk with Laminate Panel Leg
LPSFO Manufacturing Standards
• Delivered disassembled;
• 1" thick laminate top and panel;
A
• Wire management channel with cutout for wires;
B • 18”H modesty;
• 2 positioning brackets;
• 2 section metal leg;
• 1 motor, two stage system;
• Control panel with LED display;
• Height: programmable to 3 positions from 27" to 47";
• Maximum load on frame: 220 lbs;
• Metal legs with matching levelers;
• White levelers on laminate panel.
Leg Position
Grommets are recess back 5-1/2".
F Grommet and connectivity options cannot be specified in the
same position. Example of what not to do: GRC and MH3A C
together.
O
MH3 connectivity units are also available with a 120" plug in
Flush left / Offset right of 4" cable p. 50.
Options Prices
L C R
Leg Grommet Dimensions
A B
3056 2092
C A B 3060 2108
LR
Cutout Grommet/Connectivity Wireless Charger 3064 2123
R for wires 3068 2140
3072 2156
L
LR MH3
PGR WAVC C _ PF A B/C D QIBL
$0 $23 ea. $23 ea. $343 $343 $343 $534
How to Order
GRL
GRC PGR L MH3A L
GRR PGR R CAPF MH3B C
BL GLR PG LR WAVC CBPF MH3C R QIBLA
AB SN (std) NGR (std) PNGR (std) NWAV (std) CCPF MH3D LR QIBLB
EL LPSFO
leg grommet leg cutout grommet connectivity+position Qi
series dimensions product finish position grommet (Appx. B) style (Appx. B) (Appx. B)
Example EL 3060 LPSFO SN GRC PNGR NWAV CAPF MH3BR QIBLA
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 24Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Rectangular Desk with Laminate Panel Leg
LPSFF Manufacturing Standards
• Delivered disassembled;
• 1" thick laminate top and panel;
A
• Wire management channel with cutout for wires;
B • 18”H modesty;
• 2 positioning brackets;
• 2 section metal leg;
• 1 motor, two stage system;
• Control panel with LED display;
• Height: programmable to 3 positions from 27" to 47";
• Maximum load on frame: 220 lbs;
• Metal legs with matching levelers;
• White levelers on laminate panel.
Leg Position Grommets are recess back 5-1/2".
F F Grommet and connectivity options cannot be specified in the
same position. Example of what not to do: GRC and MH3A C
together.
MH3 connectivity units are also available with a 120" plug in
cable p. 50.
Flush left and right
Options Prices
L C R
Leg Grommet Dimensions
A B
3056 2090
C A B 3060 2106
LR
Cutout Grommet/Connectivity Wireless Charger 3064 2121
R for wires 3068 2137
3072 2154
L
LR MH3
PGR WAVC C _ PF A B/C D QIBL
$0 $23 ea. $23 ea. $343 $343 $343 $534
How to Order
GRL
GRC PGR L MH3A L
GRR PGR R CAPF MH3B C
BL GLR PG LR WAVC CBPF MH3C R QIBLA
AB SN (std) NGR (std) PNGR (std) NWAV (std) CCPF MH3D LR QIBLB
EL LPSFF
leg grommet leg cutout grommet connectivity+position Qi
series dimensions product finish position grommet (Appx. B) style (Appx. B) (Appx. B)
Example EL 3060 LPSFF SN GRC PNGR NWAV CAPF MH3BR QIBLA
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 25Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Double Rectangular Desk with Laminate Panel Leg
LPMDOO - LPDMOO Manufacturing Standards
• Delivered disassembled;
A • 1" thick laminate top and panel;
B
• Wire management channel with cutout for wires;
• 18”H modesty;
2 • 2 positioning brackets per individual desk;
• 2 section metal leg;
• 1 motor, two stage system;
1 Leg Position • Control panel with LED display;
• Height: programmable to 3 positions from 27" to 47";
O O • Maximum load on frame: 220 lbs;
• Metal legs with matching levelers;
2 • White levelers on laminate panel.
Suggested clearance of 2" between wrksurfaces. The lengths ot
the tops must be the same on both desks.
Grommets are recess back 5-1/2".
Grommet and connectivity options cannot be specified in the
1 same position. Example of what not to do: GRC and MH3A C
together.
O O
MH3 connectivity units are also available with a 120" plug in
Offset left and right of 4" cable p. 50.
Options Prices
L C R
Leg Grommet Price per individual desk
Dimensions
A B
C A B 3056 1869
LR
Cutout Grommet/Connectivity Wireless Charger 3060 1878
R for wires
3064 1885
L 3068 1893
LR MH3 3072 1901
PGR WAVC C _ PF A B/C D QIBL Price per double desk
$0 $23 ea. $23 ea. $343 $343 $343 $534
Dimensions
A B
How to Order 3056 3739
3060 3753
GRL 3064 3771
GRC PGR L MH3A L
GRR PGR R CAPF MH3B C 3068 3786
BL GLR PG LR WAVC CBPF MH3C R QIBLA 3072 3801
AB SN (std) NGR (std) PNGR (std) NWAV (std) CCPF MH3D LR QIBLB
1 EL LPMDOO
2 EL LPDMOO
leg grommet leg cutout grommet connectivity+position Qi
series dimensions product finish position grommet (Appx. B) style (Appx. B) (Appx. B)
1 EL 3060 LPMDOO SN GRC PNGR NWAV CAPF MH3BR QIBLA
Example
2 EL 3060 LPDMOO SN GRC PNGR NWAV CAPF MH3BR QIBLA
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 26Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Double Rectangular Desk with Laminate Panel Leg
LPMDOF - LPDMFO Manufacturing Standards
• Delivered disassembled;
• 1" thick laminate top and panel;
A • Wire management channel with cutout for wires;
B • 18”H modesty;
• 2 positioning brackets per individual desk;
2 • 2 section metal leg;
• 1 motor, two stage system;
1 Leg Position • Control panel with LED display;
• Height: programmable to 3 positions from 27" to 47";
O • Maximum load on frame: 220 lbs;
• Metal legs with matching levelers;
2 • White levelers on laminate panel.
Suggested clearance of 2" between wrksurfaces. The lengths ot
the tops must be the same on both desks.
F Grommets are recess back 5-1/2".
Grommet and connectivity options cannot be specified in the
1 same position. Example of what not to do: GRC and MH3A C
together.
O
MH3 connectivity units are also available with a 120" plug in
Offset left of 4" / Flush right cable p. 50.
Options Prices
L C R
Leg Grommet Price per individual desk
Dimensions
A B
C A B 3056 1882
LR
Cutout Grommet/Connectivity Wireless Charger 3060 1889
R for wires
3064 1897
L 3068 1906
LR MH3 3072 1913
PGR WAVC C _ PF A B/C D QIBL Price per double desk
$0 $23 ea. $23 ea. $343 $343 $343 $534
Dimensions
A B
How to Order 3056 3764
3060 3779
GRL 3064 3795
GRC PGR L MH3A L
GRR PGR R CAPF MH3B C 3068 3810
BL GLR PG LR WAVC CBPF MH3C R QIBLA 3072 3826
AB SN (std) NGR (std) PNGR (std) NWAV (std) CCPF MH3D LR QIBLB
1 EL LPMDOF
2 EL LPDMFO
leg grommet leg cutout grommet connectivity+position Qi
series dimensions product finish position grommet (Appx. B) style (Appx. B) (Appx. B)
1 EL 3060 LPMDOF SN GRC PNGR NWAV CAPF MH3BR QIBLA
Example
2 EL 3060 LPDMFO SN GRC PNGR NWAV CAPF MH3BR QIBLA
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 27Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Double Rectangular Desk with Laminate Panel Leg
LPMDFO - LPDMOF Manufacturing Standards
• Delivered disassembled;
• 1" thick laminate top and panel;
A • Wire management channel with cutout for wires;
B • 18”H modesty;
• 2 positioning brackets per individual desk;
2 • 2 section metal leg;
• 1 motor, two stage system;
Leg Position • Control panel with LED display;
1 • Height: programmable to 3 positions from 27" to 47";
O • Maximum load on frame: 220 lbs;
• Metal legs with matching levelers;
2 • White levelers on laminate panel.
Suggested clearance of 2" between wrksurfaces. The lengths ot
the tops must be the same on both desks.
Grommets are recess back 5-1/2".
F
Grommet and connectivity options cannot be specified in the
1 same position. Example of what not to do: GRC and MH3A C
together.
MH3 connectivity units are also available with a 120" plug in
Flush left / Offset right of 4" cable p. 50.
Options Prices
L C R
Leg Grommet Price per individual desk
Dimensions
A B
C A B 3056 1882
LR
Cutout Grommet/Connectivity Wireless Charger 3060 1889
R for wires
3064 1897
L 3068 1906
LR MH3 3072 1913
PGR WAVC C _ PF A B/C D QIBL Price per double desk
$0 $23 ea. $23 ea. $343 $343 $343 $534
Dimensions
A B
How to Order 3056 3764
3060 3779
GRL 3064 3795
GRC PGR L MH3A L
GRR PGR R CAPF MH3B C 3068 3810
BL GLR PG LR WAVC CBPF MH3C R QIBLA 3072 3826
AB SN (std) NGR (std) PNGR (std) NWAV (std) CCPF MH3D LR QIBLB
1 EL LPMDFO
2 EL LPDMOF
leg grommet leg cutout grommet connectivity+position Qi
series dimensions product finish position grommet (Appx. B) style (Appx. B) (Appx. B)
1 EL 3060 LPMDFO SN GRC PNGR NWAV CAPF MH3BR QIBLA
Example
2 EL 3060 LPDMOF SN GRC PNGR NWAV CAPF MH3BR QIBLA
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 28Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Double Rectangular Desk with Laminate Panel Leg
LPMDFF - LPDMFF Manufacturing Standards
• Delivered disassembled;
• 1" thick laminate top and panel;
A • Wire management channel with cutout for wires;
B • 18"H modesty;
• 2 positioning brackets per individual desk;
2 • 2 section metal leg;
• 1 motor, two stage system;
1 Leg Position • Control panel with LED display;
• Height: programmable to 3 positions from 27" to 47";
• Maximum load on frame: 220 lbs;
• Metal legs with matching levelers;
2 • White levelers on laminate panel.
Suggested clearance of 2" between wrksurfaces. The lengths ot
the tops must be the same on both desks.
Grommets are recess back 5-1/2".
F F
Grommet and connectivity options cannot be specified in the
1 same position. Example of what not to do: GRC and MH3A C
together.
MH3 connectivity units are also available with a 120" plug in
Flush left and right cable p. 50.
Options Prices
L C R
Leg Grommet Price per individual desk
Dimensions
A B
C A B 3056 1845
LR
Cutout Grommet/Connectivity Wireless Charger 3060 1852
R for wires
3064 1860
L 3068 1868
LR MH3 3072 1877
PGR WAVC C _ PF A B/C D QIBL Price per double desk
$0 $23 ea. $23 ea. $343 $343 $343 $534
Dimensions
A B
How to Order 3056 3688
3060 3705
GRL 3064 3720
GRC PGR L MH3A L
GRR PGR R CAPF MH3B C 3068 3737
BL GLR PG LR WAVC CBPF MH3C R QIBLA 3072 3751
AB SN (std) NGR (std) PNGR (std) NWAV (std) CCPF MH3D LR QIBLB
1 EL LPMDFF
2 EL LPDMFF
leg grommet leg cutout grommet connectivity+position Qi
series dimensions product finish position grommet (Appx. B) style (Appx. B) (Appx. B)
1 EL 3060 LPMDFF SN GRC PNGR NWAV CAPF MH3BR QIBLA
Example
2 EL 3060 LPDMFF SN GRC PNGR NWAV CAPF MH3BR QIBLA
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 29Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Rectangular Desk with Laminate Boxed Leg
LBSOO Manufacturing Standards
• Delivered disassembled;
• 1" thick laminate top and panel;
A • Wire management channel with cutout for wires;
• 18"H modesty;
B • 2 section metal leg;
• 1 motor, two stage system;
• Control panel with LED display;
• Height: programmable to 3 positions from 27" to 47";
• Maximum load on frame: 220 lbs;
• Metal legs with matching levelers;
18"
Modesty: If choice of modesty is not specified, the standard FM
8" (18"H) will be used, PM (10"H) modesty is available at no extra
Leg Position charge.
Grommets are recess back 5-1/2".
Grommet and connectivity options cannot be specified in the
same position. Example of what not to do: GRC and MH3A C
8" together.
O O MH3 connectivity units are also available with a 120" plug in
Offset left and right of 4" cable p. 50.
Options Prices
L C R
Modesty Leg Grommet Dimensions
A B
3056 2857
C A B 3060 2872
LR
Cutout Grommet/Connectivity Wireless Charger 3064 2888
for wires 3068 2904
R
3072 2920
Partial Modesty Full Modesty L
10" high 18" high LR MH3
3456 2896
PM FM PGR WAVC C _ PF A B/C D QIBL 3460 2914
$0 $0 $0 $23 ea. $23 ea. $343 $343 $343 $534
3464 2932
3468 2952
How to Order 3472 2971
GRL
GRC PGR L MH3A L
GRR PGR R CAPF MH3B C
BL PM GLR PG LR WAVC CBPF MH3C R QIBLA
AB SN (std) FM (std) NGR (std) PNGR (std) NWAV (std) CCPF MH3D LR QIBLB
EL LBSOO
leg grommet leg cutout grommet connectivity+position Qi
series dimensions product modesty
finish position grommet (Appx. B) style (Appx. B) (Appx. B)
Example EL 3060 LBSOO SN FM GRC PNGR NWAV CAPF MH3BR QIBLA
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 30Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Rectangular Desk with Laminate Boxed Leg
LBSOF Manufacturing Standards
• Delivered disassembled;
A • 1" thick laminate top and panel;
• Wire management channel with cutout for wires;
• 18"H modesty;
B • 2 section metal leg;
• 1 motor, two stage system;
• Control panel with LED display;
• Height: programmable to 3 positions from 27" to 47";
• Maximum load on frame: 220 lbs;
• Metal legs with matching levelers;
18" Drawer: The drawer option is only availabe on the flush boxed
leg. For handles other than H052 standard, please choose from
the Logiflex list at no extra charge p. 43.
12" Modesty: If choice of modesty is not specified, the standard FM
(18"H) will be used, PM (10"H) modesty is available at no extra
Leg Position charge.
Grommets are recess back 5-1/2".
Grommet and connectivity options cannot be specified in the
same position. Example of what not to do: GRC and MH3A C
8" together.
O F
MH3 connectivity units are also available with a 120" plug in
Offset left of 4" / Flush right cable p. 50.
Options Prices
L C R
Modesty Leg Grommet Drawer Dimensions
A B
3056 2870
C A B 3060 2886
LR
Cutout Grommet/Connectivity Wireless Charger 3064 2902
R
for wires 3068 2918
R
3072 2932
Partial Modesty Full Modesty L
LR MH3
10" high 18" high
3456 2909
PM FM PGR WAVC C _ PF A B/C D QIBL DR 3460 2927
$0 $0 $0 $23 ea. $23 ea. $343 $343 $343 $534 $84
3464 2946
3468 2965
How to Order 3472 2983
GRL PGR L
GRC PGR R MH3A L
GRR PG LR CAPF MH3B C DRR
BL PM GLR PNGR WAVC CBPF MH3C R QIBLA NDR H052SN
AB SN (std) FM (std) NGR (std) (std) NWAV (std) CCPF MH3D LR QIBLB (std) (std)
EL LBSOF
leg modesty grommet leg cutout grommet connectivity+position Qi handles
series dimensions product finish position grommet (Appx. B) style (Appx. B) (Appx. B) drawer (p. 43)
Example EL 3060 LBSOF SN FM GRC PNGR NWAV CAPF MH3BR QIBLA NDR H052SN
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 31Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Rectangular Desk with Laminate Boxed Leg
LBSFO Manufacturing Standards
• Delivered disassembled;
• 1" thick laminate top and panel;
A • Wire management channel with cutout for wires;
• 18"H modesty;
• 2 section metal leg;
B • 1 motor, two stage system;
• Control panel with LED display;
• Height: programmable to 3 positions from 27" to 47";
• Maximum load on frame: 220 lbs;
• Metal legs with matching levelers;
Drawer: The drawer option is only availabe on the flush boxed
18" leg. For handles other than H052 standard, please choose from
the Logiflex list at no extra charge p. 43.
Modesty: If choice of modesty is not specified, the standard FM
8" (18"H) will be used, PM (10"H) modesty is available at no extra
Leg Position
charge.
Grommets are recess back 5-1/2".
Grommet and connectivity options cannot be specified in the
same position. Example of what not to do: GRC and MH3A C
12" together.
F O
MH3 connectivity units are also available with a 120" plug in
Flush left / Offset right of 4" cable p. 50.
Options Prices
L C R
Modesty Leg Grommet Drawer Dimensions
A B
3056 2870
C A B 3060 2886
LR
Cutout Grommet/Connectivity Wireless Charger 3064 2902
R
for wires 3068 2918
3072 2932
Partial Modesty Full Modesty L
LR MH3 L
10" high 18" high
3456 2909
PM FM PGR WAVC C _ PF A B/C D QIBL DR 3460 2927
$0 $0 $0 $23 ea. $23 ea. $343 $343 $343 $534 $84
3464 2946
3468 2965
How to Order 3472 2983
GRL PGR L
GRC PGR R MH3A L
GRR PG LR CAPF MH3B C DRL
BL PM GLR PNGR WAVC CBPF MH3C R QIBLA NDR H052SN
AB SN (std) FM (std) NGR (std) (std) NWAV (std) CCPF MH3D LR QIBLB (std) (std)
EL LBSFO
leg modesty grommet leg cutout grommet connectivity+position Qi handles
series dimensions product finish position grommet (Appx. B) style (Appx. B) (Appx. B) drawer (p. 43)
Example EL 3060 LBSFO SN FM GRC PNGR NWAV CAPF MH3BR QIBLA NDR H052SN
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 32Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Rectangular Desk with Laminate Boxed Leg
LBSFF Manufacturing Standards
• Delivered disassembled;
• 1" thick laminate top and panel;
A • Wire management channel with cutout for wires;
• 18"H modesty;
B • 2 section metal leg;
• 1 motor, two stage system;
• Control panel with LED display;
• Height: programmable to 3 positions from 27" to 47";
• Maximum load on frame: 220 lbs;
• Metal legs with matching levelers;
Drawer: The drawer option is only availabe on the flush boxed
18" leg. For handles other than H052 standard, please choose from
the Logiflex list at no extra charge p. 43.
Modesty: If choice of modesty is not specified, the standard FM
12" (18"H) will be used, PM (10"H) modesty is available at no extra
Leg Position charge.
Grommets are recess back 5-1/2".
Grommet and connectivity options cannot be specified in the
same position. Example of what not to do: GRC and MH3A C
together.
12" F F
MH3 connectivity units are also available with a 120" plug in
Flush left and right cable p. 50.
Options Prices
L C R
Modesty Leg Grommet Drawer Dimensions
A B
3056 2883
C A B 3060 2899
LR
Cutout Grommet/Connectivity Wireless Charger 3064 2915
for wires 3068 2930
R R
3072 2946
Partial Modesty Full Modesty L L
LR MH3 LR
10" high 18" high
3456 2923
PM FM PGR WAVC C _ PF A B/C D QIBL DR 3460 2941
$0 $0 $0 $23 ea. $23 ea. $343 $343 $343 $534 $84 ea.
3464 2960
3468 2979
How to Order 3472 2997
GRL PGR L DRL
GRC PGR R MH3A L DRR
GRR PG LR CAPF MH3B C DLR
BL PM GLR PNGR WAVC CBPF MH3C R QIBLA NDR H052SN
AB SN (std) FM (std) NGR (std) (std) NWAV (std) CCPF MH3D LR QIBLB (std) (std)
EL LBSFF
leg modesty grommet leg cutout grommet connectivity+position Qi handles
series dimensions product finish position grommet (Appx. B) style (Appx. B) (Appx. B) drawer (p. 43)
Example EL 3060 LBSFF SN FM GRC PNGR NWAV CAPF MH3BR QIBLA NDR H052SN
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 33Desk Desk with Boxed Leg
Height Adjustable Desks Desk with Panel Laminate Wire Management
Double Desk with Panel
Laminate Wire Managment for Elevation Desks
LWM Manufacturing Standards
• Wire managment channel;
• White levelers;
18"
B
A
Note: The laminate wire management channel was designed
to be used with the Elevation collection bases and is not
recommended to be used with other manufacturer's products
Options Prices
Leg Grommet Dimensions
A B
1844 516
1850 531
1856 546
1862 562
1868 579
PGR
$0
How to Order
PGR L
PGR R
PG LR
AB PNGR (std)
EL LWM
leg
series dimensions product grommet
Example EL 1844 LWM PNGR
Ju;y 1, 2021 | USA LOGIFLEX | ELEVATION 34Divider Screens
Acrylic
Divider Screens Tackboards
Acrylic
UAS Manufacturing Standards
Under surface mount • Acrylic divider screen, frosted finish (PL), to be installed above
a surface;
• 2 satin nickel finish metal mounts for mounting under a
surface.
B
A
C1: Acrylic 1/4"
C2: Acrylic 3/8"
Dimension "B" is 1/2" recessed.
Prices
Dimensions
A B C1 C2
1524 296 346
1530 314 377
1536 332 406
1542 349 438
1548 368 469
1554 386 499
1556 396 515
1560 403 529
1564 415 545
Mounting Fixture 1566 422 560
Side View 1568 431 575
1572 441 591
How to Order
2124 394
2130 438
2136 481
2142 524
2148 565
2154 609
C1 BL 2156 630
AB C2 SN (std) PL (std) 2160 651
EL UAS 2164 674
series dimensions product acrylic metal finish acrylic finish 2166 695
thickness (Appx. A) (Appx. A) 2168 715
EL 1572 UAS C1 SN PL 2172 737
Example
July 1, 2021 | USA LOGIFLEX | ELEVATION 36Acrylic
Divider Screens Tackboards
Acrylic
UAC Manufacturing Standards
Under surface mount • Acrylic divider screen, frosted finish (PL), to position in front
of the surface;
• 2 satin nickel finish metal mounts for mounting under a
surface.
B
*Screen height above surface: 22"H = 13" / 24"H = 15"
A
C1: Acrylic 1/4"
C2: Acrylic 3/8"
Dimension "B" is 1/2" recessed.
Applicable only on single desks.
Prices
Dimensions
A B C1 C2
2224 339 420
2230 368 469
2236 397 518
2242 425 565
2248 454 614
2254 483 664
2256 497 688
2260 511 712
2264 527 737
Mounting Fixture 2266 541 761
Side View 2268 556 786
2272 570 811
How to Order
2424 348 435
2430 381 488
2436 412 541
2442 443 594
2448 474 647
2454 504 701
C1 BL 2456 522 728
AB C2 SN (std) PL (std) 2460 537 754
EL UAC 2464 552 780
series dimensions product acrylic metal finish acrylic finish 2466 567 833
thickness (Appx. A) (Appx. A) 2468 585 806
EL 2272 UAC C1 SN PL 2472 598 859
Example
July 1, 2021 | USA LOGIFLEX | ELEVATION 37Acrylic
Divider Screens Tackboards
Acrylic
UAM Manufacturing Standards
Under surface mount • Acrylic divider screen, frosted finish (PL), to be installed under
a surface;
• 2 satin nickel finish metal mounts for mounting under a
surface.
B
A
C1: Acrylic 1/4"
C2: Acrylic 3/8"
Dimension "B" is 1/2" recessed.
Prices
Dimensions
A B C1 C2
0824 273 306
0830 283 327
0836 296 346
0842 309 367
0848 320 386
0854 332 406
0856 338 418
0860 344 427
Mounting Fixture 0864 349 439
Side View 0866 356 448
0868 362 457
How to Order 0872 368 469
C1 BL
AB C2 SN (std) PL (std)
EL UAM
acrylic metal finish acrylic finish
series dimensions product thickness (Appx. A) (Appx. A)
Example EL 0872 UAM C1 SN PL
July 1, 2021 | USA LOGIFLEX | ELEVATION 38Acrylic
Divider Screens Tackboards
Tackboards
UBS Manufacturing Standards
Under surface mount • 7/8" thick tackboard covered with fabric to be installed above
a surface;
• 2 satin nickel finish metal mounts for mounting under a
surface.
B
A
Dimension "B" is 1/2" recessed.
Prices
Dimensions
A B GR1 GR2
COM/GR1 GR3 GR4 GR5 GR6
1524 375 391 415 434 455 478
1530 386 408 434 461 488 516
1536 397 423 455 488 520 553
1542 410 440 476 515 552 590
1548 421 454 497 541 585 628
1554 432 471 519 567 615 664
1556 439 479 529 582 632 683
1560 444 487 540 594 647 702
Mounting Fixture 1564 449 495 546 608 664 721
Side View 1566 454 502 561 620 681 740
1568 461 510 572 636 698 758
How to Order 1572 468 518 584 647 712 777
BL
AB SN (std)
EL UBS
metal finish
series dimensions product (Appx. A)
Example EL 1572 UBS SN
July 1, 2021 | USA LOGIFLEX | ELEVATION 39Acrylic
Divider Screens Tackboards
Tackboards
UBC Manufacturing Standards
Under surface mount • 7/8" thick tackboard covered with fabric to position in front of
the surface;
• 2 satin nickel finish metal mounts for mounting on a surface.
B
A
*Screen height above surface: 22"H = 13" / 24"H = 15"
Dimension "B" is 1/2" recessed.
Applicable only on single desks.
Prices
Dimensions
A B GR1 GR2
COM/GR1 GR3 GR4 GR5 GR6
2224 403 431 467 501 536 570
2230 423 456 500 543 587 630
2236 441 482 535 587 638 688
2242 458 508 569 629 688 750
2248 478 534 600 671 740 809
2254 496 558 637 713 790 869
2256 505 571 653 735 817 898
2260 515 585 670 756 844 927
2264 524 594 686 778 869 959
Mounting Fixture 2266 534 609 703 799 894 988
Side View 2268 542 621 721 820 920 1019
2272 552 636 737 843 945 1048
How to Order
2424 412 441 478 516 553 590
2430 430 469 516 561 609 655
2436 450 495 552 608 663 719
2442 471 523 589 653 718 785
2448 490 551 625 700 775 849
2454 510 578 662 747 828 914
BL 2456 522 592 681 763 857 948
AB SN (std) 2460 530 606 699 792 884 979
EL UBC 2464 541 618 716 816 914 1009
series dimensions product metal finish 2466 551 632 735 837 940 1042
(Appx. A) 2468 561 646 754 868 968 1076
EL 2224 UBC SN 2472 571 659 771 883 995 1107
Example
July 1, 2021 | USA LOGIFLEX | ELEVATION 40You can also read
