product
2021 edition
catalogue
TABLE OF CONTENTS
YARA 5
HERA 7
SPECTRUM P1 DL 9
SPECTRUM P2 VW 11
ODIN 15
ARES 17
ARES XS 19
HERCULES 23
JUNO 25
TRICOLOR MINI PAR 27
QUADCOLOR MINI PAR 31
DYNAMIC WHITE PAR 33
LED FAN & LED FAN XL 35
APOLLO XS 39
APOLLO 41
APOLLO XL 43
LEDWASH XL 47
LEDWASH RGBW 49
LEDWASH CW-WW 51
LEDBAR PRO 53
CLF Lighting is a Dutch brand which develops high quality lighting fixtures for live AORUN 57
entertainment, theatre, television and corporate events. Our products are well-thought-
ORION 59
out, unique and distinctive. The products are designed to fulfill specific demands in
POSEIDON 61
different markets.
BEAM 6 65
STINGER 67
Besides reliability we also put the focus on affordability in order to give every company
SERIUS 69
in Europe the possibility to benefit from the quality of the CLF products. Our flexibility,
service and long experience within the industry ensures that the CLF products will help
HAZE I & II 73
you make your production successful.
EF SMOKE 1500 & 3100 75
TURBINE 76
Get in touch with us and learn more about CLF and the possibilities of our wide range W-BRIDGE 77
of products. COMING SOON 79
TOURCASES 83
FLIGHTCASES 85
CABLES 86
CLAMPS 87

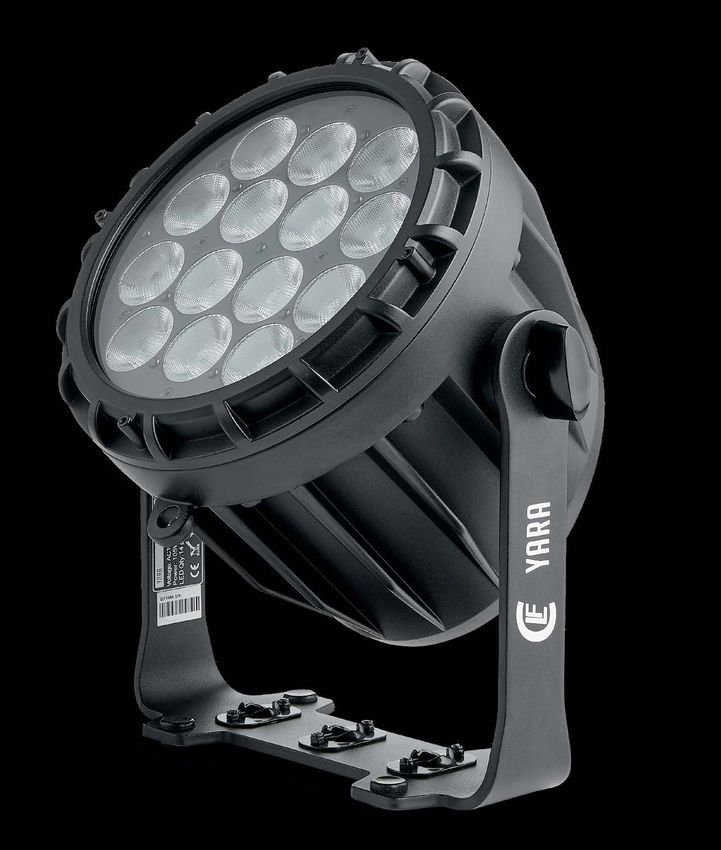

YARA
5
UNIQUE BRACKET DESIGN
TOURING PROOF
SMOOTH RGBW COLOR MIXING
IP65 RATING
SILENT OPERATION
SMOOTH PROJECTION
POWERCON TRUE1 IN & OUT
Outdoor RGBW LED Fixture RDM READY
Affordable lighting essential
2770 997.4 249.3
LUX
15°
The CLF Yara is the ideal workhorse for every purpose. The LED
fixture has an outstanding smooth RGBW color mixing delivered
by 14 high power LEDs with a very punchy 15° beam angle. The
DISTANCE (m)
specially selected LEDs provide high output with intense colors and
0 3 5 10
an exceptional white balance. IP65 rating makes the Yara suitable for
both in- and outdoor use.
The Yara comes with a unique design featuring a single bracket with 178
178178
FACTSHEET
both standing and hanging capabilities. Besides that, the solid housing
DMX channels 4,5,8,11, HSV or HSI
makes the Yara the perfect solution for heavy on-the-road use. 178
Beam angle 15º
Power supply 100 - 240 VAC
Power consumption G GClamp withwithMax. 100 Watt
with
15°
G Clamp
Clamp
The fixture is equipped with an LCD screen for easy access to the Cooling Passive Quicklock
Quicklock#875760
Quicklock
#875760
#875760 cooling
quick
lock pin on-board settings. Silent operation is ensured because of the
291
291291
DMX connection (Optional)
(Optional)
(Optional) 5p XLR in & out (3p optional)
G Clamp with Dimensions Omega Omega Bracket
OmegaBracket 259 x 178 x 291 mm (lxwxh)
Bracket
intelligent cooling system. Data and power are connected through the 291
Quicklock #875760 Weight 5.5 with Quicklock
withwith
Quicklock#520114
Quicklock Kg
#520114
#520114
(Optional) (Optional)
(Optional)
(Optional)
IP65 5-pin XLR and PowerCON TRUE1 connectors. Rigging is made Certification CE, RoHS
rdm
Omega Bracket
IP65 easy by the iconic CLF quick lock system. The fixture is RDM ready.
with Quicklock #520114
(Optional)
106
Item number
Included items
106106
156350
Power cable, manual
IP rating IP65
259
259259 106 Optional accessories Snoot, barndoor & stand
125
125125 & flightcase
259
hera
7
UNIQUE BRACKET DESIGN
TOURING-READY HOUSING
RGBWAUV COLOR MIXING
IP65 RATING
ULTRA-SILENT
RDM READY
30° BEAM ANGLE
outdoor rgbwauV
lighting essential LUX
1329 478.5 119.6
30°
DISTANCE
The CLF Hera features high output and outstanding smooth 0 3 5 10
RGBWAUV color mixing. Rich colors, subtle pastle tones and a very
homogenous 30° beam angle are delivered by 12 high power LEDs
which can be dimmed precisely by the 16bit dimming control. IP65
rating makes the Hera suitable for both in- and outdoor use. 178178
259 FACTSHEET
DMX channels 4, 5, 6, 7, 8, 11, 13, HSV, HSI
A unique single bracket design provides both standing and hang- 178 Beam angle 30º
ing opportunities, all in a touring-ready aluminum housing. The LCD Power supply 100 - 240 VAC
Power consumption G Clamp withwith Max. 121 Watt
30° display offers easy access to the menu settings and manual control. Cooling Passive
G Clamp
Quicklock
Quicklock
#875760
#875760 cooling
quick
pin 291291
290
lock DMX connection (Optional) (Optional)
DMX 5p in & out (3p optional)
G Clamp with Dimensions Omega Omega Bracket260 x 180 x 290 mm (lxwxh)
Bracket
Silent operation is ensured because of the intelligent cooling system. 291
Quicklock #875760
(Optional)
Weight 5.5 withwith
Quicklock
Quicklock
(Optional)
(Optional)
#520114
#520114
Kg
Data and power can be connected through the IP65 5 pin locking Certification CE, RoHS
rdm
Omega Bracket
IP65 XLR and PowerCON TRUE1 connectors.
with Quicklock #520114
(Optional)
Item number
106106Included items
156360
Power cable, manual
IP rating IP65
259259 106 Optional accessories Snoot, barndoor, flightcase
125125 & stand
259
9

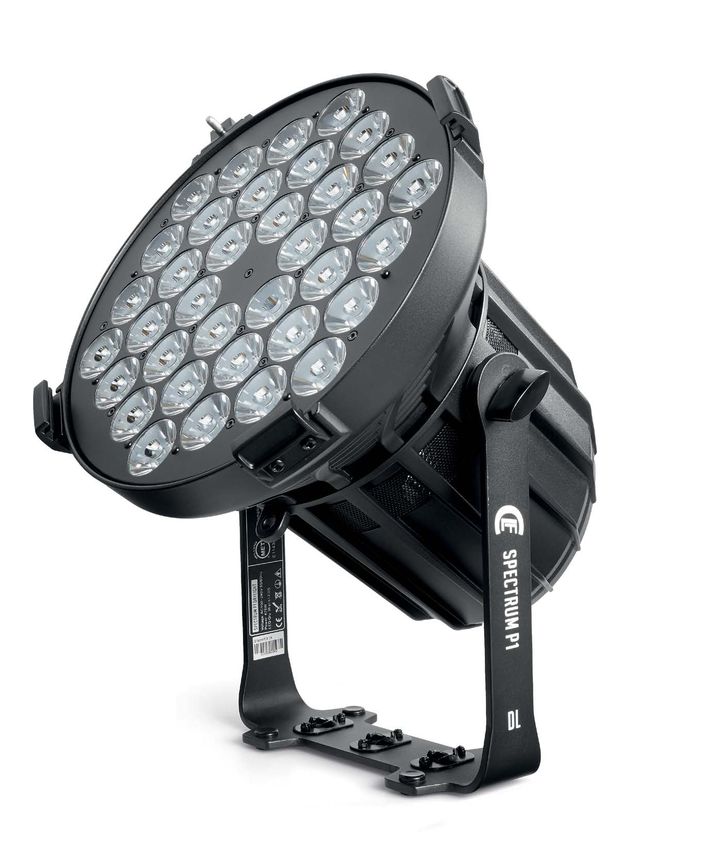

spectrum IMPRESSIVE OUTPUT
p1 dl
5700K COLD WHITE LEDS
TOURING-READY
COMPACT HOUSING
POWERCON TRUE 1 IN AND OUT
XLR3 AND XLR5 PIN
9° BEAM ANGLE
powerful cold
white led par LUX
93227 33562 8390
9°
Designed for car shows and exhibitions or any other large scale
DISTANCE
venue, the Spectrum P1 Daylight is equipped with 36 high per-
0 3 5 10
formance LEDs. Impressive output and a punchy 9° beam angle are
ideal ingredients for long throw projection. Specially selected CREE
LEDs provide a color temperature of 5700K at high CRI levels. 16bit 278mm 267mm
dimming and flicker-free operation are also part of the feature set. FACTSHEET
DMX channels 2, 3
A unique single bracket design provides both standing and hanging Beam angle 9º
opportunities and the LCD display offers easy access to the manual 178 Power supply 100 - 240 VAC
Power consumption Max. 450 Watt
9° settings and manual control. The touring-ready housing takes care of 360mm
quick
lock pin a significant amount of convection cooling, whereas the intelligent,
Cooling Passive cooling
DMX connection DMX 3 and 5 pin in & out
Dimensions 278 x 278 x 346 mm (lxwxh)
regulated fan ensures silent operation. Data and power can be
>90 connected through the 3 and 5 pin locking XLR and PowerCON
G Clamp with
Quicklock #875760
Weight 5.7 Kg
Certification CE, RoHS
rdm cri pin TRUE1 connectors.
291
106mm
(Optional)
Omega Bracket
Item number 157000
with Quicklock #520114
Included items Power cable, manual
(Optional) IP rating IP20
Optional accessories Flightcase & stand
11

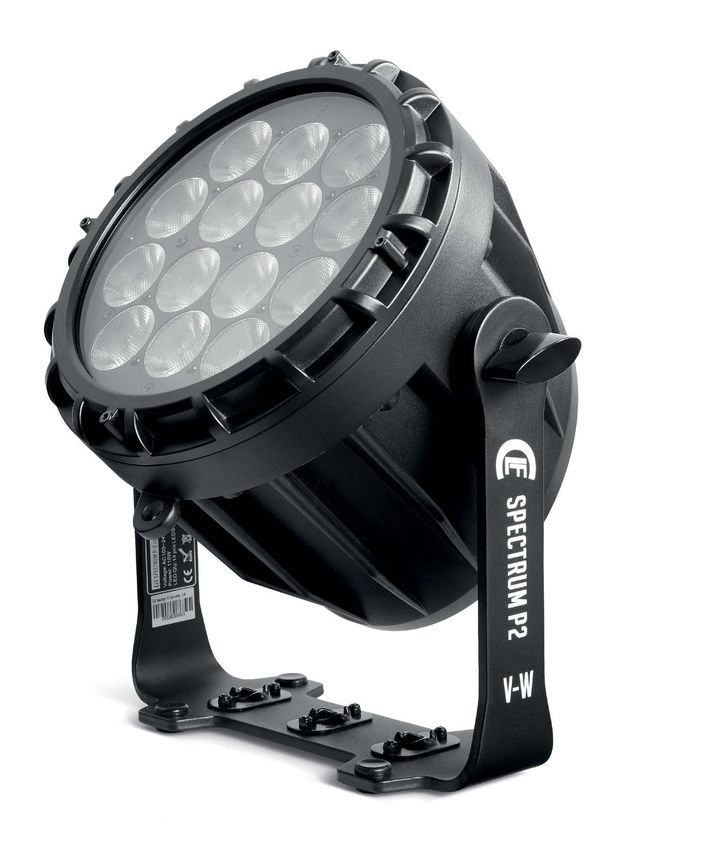

spectrum UNIQUE BRACKET DESIGN
P2 vw
TOURING-READY HOUSING
VARI-WHITE (2700K - 6500K)
IP65 RATING
ULTRA-SILENT
RDM READY
15° BEAM ANGLE
outdoor vari-white
lighting essential LUX
6481 2333 583.3
15°
The CLF Spectrum P2 VW features high output and a very pre-
DISTANCE (m)
cise white control between 2700K and 6500K. A CRI level of 90 0 3 5 10
and accurate dimming control make the CLF Spectrum P2 VW very
suitable for any high demanding application. A very homogenous
15° beam angle is delivered by the 14 high power LEDs which are
specially selected. IP65 rating makes the Spectrum P2 suitable for 178
178178
FACTSHEET
both in- and outdoor use.
DMX channels 2, 3, 4, 5, 6
178 Beam angle 15º
A unique single bracket design provides both standing and Power supply 100 - 240 VAC
Power consumption GGClamp withwithMax. 107,5 Watt
15°
with
G Clamp
Clamp
hanging opportunities, all in a touring-ready aluminum housing. Cooling Passive Quicklock
Quicklock #875760
Quicklock
#875760
#875760 cooling
quick
lock pin The LCD display offers easy access to the menu settings and
291
291291
DMX connection (Optional)
(Optional)
(Optional)
DMX 5 p in en out (3p optional)
G Clamp with Dimensions Omega Omega Bracket
OmegaBracket 260 x 180 x 290 mm (lxwxh)
Bracket
manual control. Silent operation is ensured because of the Quicklock #875760 with Quicklock
withwith
Quicklock #520114
Quicklock
#520114
#520114
>90 intelligent cooling system. Data and power can be connected through
291 (Optional) Weight 5.5
Certification
(Optional)
(Optional)
(Optional)
CE,
Kg
RoHS
rdm cri
Omega Bracket
IP65 the IP65 5 pin locking XLR and PowerCON TRUE1 connectors.
with Quicklock #520114
(Optional)
106
Item number
Included items
106106
157200
Power cable, manual
IP rating IP65
259
259259 106 Optional accessories Snoot, barndoor, flightcase
125
125125 & stand

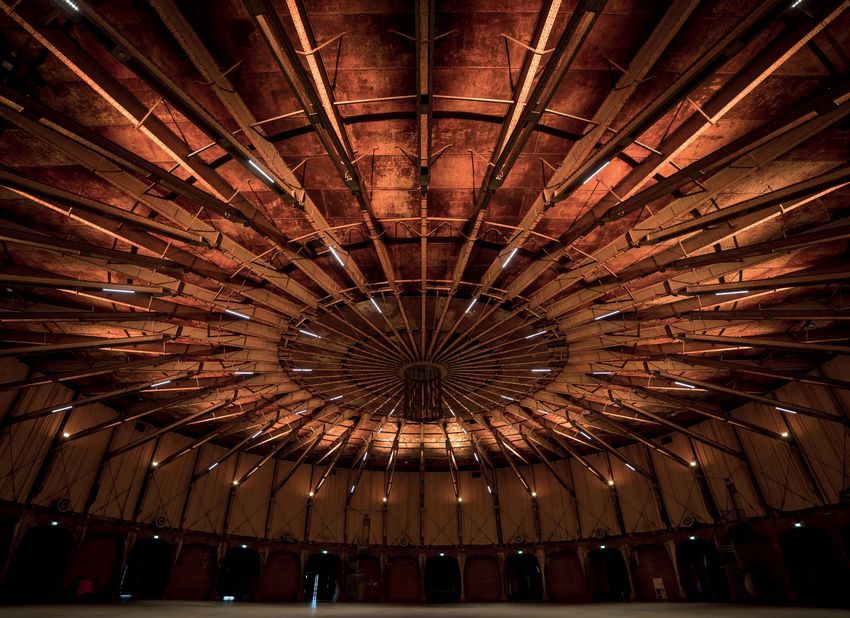

Case: Navarone Clubtour
Products involved: CLF LEDbar PRO & CLF Ares
Photo: Femke de Schepper
new!

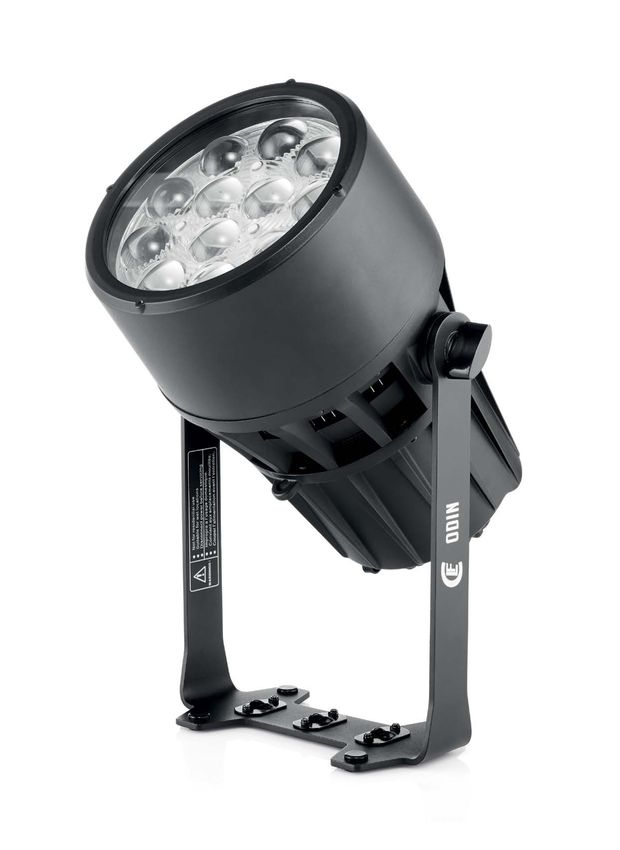

odin
15
SMOOTH RGB+LIME COLOR MIXING
IP65 RATING
11-50° ZOOM RANGE
HIGH CRI & R9 VALUES
SILENT OPERATION
DEFINABLE USER MODES
powerful outdoor
zoom par
The Odin combines cutting-edge LED technology, excellent light
quality and a sturdy outdoor housing. Designed for high-demanding
applications it comes with an outstanding optical system which ensures
even light and color projection. The fixture comes with a fast and
accurate zoom function which ranges from 11° to 50°. The IP65 rating
makes is suitable for indoor and outdoor usage.
The RGB+Lime LED engine generates a rich color set, from vivid and
saturated colors to subtle pastels. Adding lime fills the gaps between
red, green, blue and enhances the color spectrum of the fixture. It also FACTSHEET
adds beautiful white tones to the feature set. High performance LEDs
DMX channels 6, 8, 9, 13 channels
deliver high CRI and R9 values. Beam angle 11° - 50º
Power supply 100 - 240 VAC
Power consumption Max. 262 Watt
Packed in a signature CLF housing, the Odin combines convection Cooling Intelligent & convection fan
cooling with an ultra-quiet intelligent fan. The fixture can be aimed easily DMX connection 5p DMX in & out (3p optional)
Dimensions 314 x 253 x 363 mm (lxwxh)
11° by using the one button test function. The fixture can also be configured Weight 6 Kg
for exhibition applications by using the definable user modes. All in all, it Certification CE, RoHS, MET pending
quick
lock pin 50° is the ultimate workhorse for applications where superior lighting quality
Item number
Included items
156360
Power cable, manual
is required. IP rating IP65
Optional accessories Snoot & barndoor
ARES
17
ADJUSTABLE BEAM ANGLE,
SEVERAL FILTERS AVAILABLE (E.G. 36° AND 54°)
DESIGNED FOR MULTIPLE APPLICATIONS
DEEP AND SATURATED COLORS
FLICKER FREE OPERATION
SOLID HOUSING
WIRELESS DMX
IP65 RATING
superior RGBW LED WASH
4 INDIVIDUALLY CONTROLLABLE SEGMENTS
11887
178 4279 1019
The CLF Ares is an extremely powerful LED wash fixture which is
LUX
perfect for illuminating large surfaces both in- and outdoor. Extreme 178
brightness and an extraordinary even projection make the Ares a true
LED alternative for traditional wash lights. The array of 36 calibrated 178
G Clamp with
high power RGBW LEDs is divided in four individually controllable 291 21° Quicklock #875760
(Optional)
horizontal segments. Omega Bracket
G Clamp with
Quicklock #875760
291 with Quicklock #520114 (Optional)
(Optional)
G Clamp with
The Ares is equipped with a punchy 21° beam angle, which can be 291
Omega
with
Bracket
Quicklock #875760
Quicklock #520114
DISTANCE (m) (Optional)
easily adapted to other beam angles, even elliptical, by using the 106
(Optional)
Smart Filter System®. The unique LED boost mode offers 120%
0 3 5 10
FACTSHEET Omega Bracket
with Quicklock #520114
259 (Optional)
output when only using two colors simultaneously. The Ares comes DMX
106 channels 4-9-11-16-21-27-30
125
Beam angle 21°*
with an intelligent cooling system which provides extensive fan 259 Omega Bracket Power
106 supply 100 - 240 VAC
with Quicklock #520114 Power consumption Max. 360 Watt
control and is especially useful for TV and theatre use. All in all, the 125
(Optional)
Cooling Intelligent cooling system
259 Omega Bracket
Ares is a versatile LED wash that can be used for many applications. 125
DMX
with connection
Quicklock #520114 3p XLR in & out (5p optional)
Dimensions 495 x 125 x 340 mm (lxwxh)
340
387
21°
(Optional)
Dimensions
Omega Bracket (with stand) 495 x 255 x 387 mm (lxwxh)
quick
lock pin The CLF Ares comes with a filterframe, barndoor and a Wireless Weight
with (without
Quicklock #520114accessories) 12,7 Kg
340
387
(Optional)
495 Certification CE, RoHS
Solution W-DMX™receiver on board, but can also be connected Item number 156220
Included items Cable, barndoor, filter frame &
340
387
with 3-pin XLR connectors. Power is connected through a PowerCON 495
stand
IP65
255
led boost
TRUE1 connector. IP rating IP65
111 255
495 Optional accessories Flightcase, omega bracket
* adjustable with Smart Filter System, options: 36.6°, 54.2°, 63.6°, 82.7°,
21° x 63.6°, 63.6° x 21°, 63.6° x 92°
111
381 255 Omega Bracket
19
ARES XS
superior LED WASH
ADJUSTABLE BEAM ANGLE,
SEVERAL FILTERS (E.G. 36° AND 54°)
DESIGNED FOR MULTIPLE APPLICATIONS
DEEP AND SATURATED COLORS
FLICKER FREE OPERATION
TOURING
178 PROOF HOUSING
WIRELESS DMX
3 INDIVIDUALLY CONTROLLABLE SEGMENTS IP65 RATING 178
RDM READY G Clamp with
Quicklock #875760
291 (Optional)
Omega Bracket
with Quicklock #520114
G Clamp with
(Optional)
Quicklock #875760
291 (Optional)
4453 1603 400.8
106 Omega Bracket
LUX with Quicklock #520114
(Optional)
259
The Ares XS is the smaller brother of the Ares, which has been proven 125
106
to be a lighting essential for many different purposes. The powerful Omega Bracket
with Quicklock #520114
LED wash fixture is perfect for illuminating large surfaces both 259 21° (Optional)
125
in- and outdoor. Extreme brightness and an extraordinary even
340
387
Omega Bracket
projection make the Ares XS a true LED alternative for traditional wash with Quicklock #520114
(Optional)
lights. The array of 18 calibrated high power RGBW LEDs is divided in DISTANCE (m) 495
three individually controllable horizontal segments.
340
387
0 3 5 10
255
The Ares XS is equipped with a punchy 21° beam angle, which can 495 FACTSHEET
111
be easily adapted to other beam angles, even elliptical, by using the DMX channels 4-9-11-12-17-23-24
255
Beam angle 21°*
Smart Filter System®. The intelligent cooling system makes sure that 381
Power supply 100 - 240 VAC
Omega Bracket Power consumption Max. 300 Watt
the Arex XS is ready for TV and theatre productions. All in all, the Ares 111 with Quicklock #520114
Cooling Intelligent cooling system
290
(Optional)
is a versatile LED wash that can be used for many applications. DMX connection 5p XLR in & out (3p optional)
336
Dimensions 381 x 111 x 290 mm (lxwxh)
21° 381 Dimensions (with stand)
Omega Bracket 381 x 233 x 336 mm (lxwxh)
quick
lock pin The fixture comes with a filterframe, barndoor and a Wireless Solution
with Quicklock #520114
Weight (without accessories) 8,7 Kg
290
(Optional)
Certification CE, RoHS
336
W-DMX™ receiver on board, but can also be connected with XLR 233 Item number 156225
Included items Cable, barndoor, filterframe &
connectors. Power is connected through a PowerCON TRUE1 233 stand
IP65 connector. IP rating IP65
G Clamp with
233
Optional accessories Flightcase, omega bracket
Quicklock #875760 * adjustable with Smart Filter System, options: 36.6°, 54.2°, 63.6°, 82.7°,
(Optional)
233 21° x 63.6°, 63.6° x 21°, 63.6° x 92.4°Case: Parookaville
Products involved: CLF Aorun, CLF LEDbar PRO, CLF Ares & CLF Orion
Photo: SparkQuicklock #875760
291 (Optional)
Omega Bracket
23
hercules
with Quicklock #520114
(Optional)
106
259
30º BEAM ANGLE 125
COMPACT & LIGHT HOUSING Omega Bracket
with Quicklock #520114
(Optional)
HIGH OUTPUT
rgbwauv color mixing
340
387
DOUBLE BRACKET FOR FLOOR AND TRUSS MOUNTING
FLICKER FREE OPERATION 495
smart filter system
INTENSE COLORS DUE TO SPECIALLY SELECTED LEDS
255
WIRELESS DMX (OPTIONAL)
111
6 IN 1 LEDS
381 Omega Bracket
with Quicklock #520114
290
(Optional)
336
1343 596.9 90.6
LUX
The CLF Hercules is an innovative concept which combines superior
233
RGBWAUV color mixing, smart design and adaptable beams through 233
the exclusive Smart Filter System. Specially selected high quality LEDs
provide deep, saturated colors with an outstanding white balance and 30°
G Clamp with
Quicklock #875760
exceptionally smooth projection. (Optional)
Guaranteed flicker free operation makes the Hercules suitable for tv 326
DISTANCE (m )
shows, theatre and corporate events. With the Smart Filter System®, 0 2 3 7.7
users can adapt the shape and beam angle by inserting specially
designed filters (optional). Even elliptical filtersets are available. The
unique shape of the Hercules prevents cables to be in sight. 260
FACTSHEET
206
A clear LCD display gives access to all settings, including different G Clamp with
DMX channels 6, 8 or 12 channels
Beam angle 30°*
dimmer curves. Controlled by DMX, the Hercules offers extensive color Quicklock #875760
(Optional) Power supply 100 - 240 VAC
temperature control & a pre-programmed FX engine. Standard the Power consumption Max. 105 Watt
Cooling Low noise regulated fan
Hercules comes with 5-pin XLR connectors, through the supplied board DMX connection 5p XLR in & out
quick
lock pin pin it can be easily converted to 3-pin XLR. Available accessories are a
303 Dimensions 257 x 206 x 303 mm (lxwxh)
Weight 5,5 Kg
line of sight detachable snoot, barndoor and a Wireless Solution W-DMX™ receiver. Certification CE, RoHS
Item number 156170
30° The CLF Hercules is the perfect choice for professional & high demanding Included items Power cable, manual & 3p board
led boost
users. 257
IP rating IP22
Optional accessories Barndoor, Wireless board,
Flightcase
312 * adjustable with Smart Filter System, options: 39.1°, 55.9°, 65°, 83.8°, 65° x 25°
Omega Bracketwith Quicklock
with #520114
Quicklock #520114
juno
(Optional)
25
(Optional)
340
387
340
387
495
495
15º TO 30º BEAM ANGLE, MANUAL
255 ZOOM
255
CHARGE VIA CONNECTION ON THE111 BOTTOM
111
AND/OR POWERCON
381
381 Omega Bracket
Omega Bracket
WATERPROOF (IP65) HOUSING with Quicklock
with #520114
Quicklock #520114
290
290
(Optional)
(Optional)
336
336
SOLID HOUSING
CONVECTION COOLING
LITHIUM BATTERY
rgbw wallwasher
233
233
233
233
G Clamp
G Clamp with
with
Quicklock
Quicklock#875760
#875760
Wireless DMX / battery powered
(Optional)
(Optional)
The CLF Juno is a battery powered RGBW LED luminaire for in and outdoor 326
326
use. Besides the rechargeable lithium battery, the Wireless Solution
W-DMX™ receiver allows complete stand-alone use without the need to
721.5 259.7 64.93 471 169.6 42.39
run cables, which reduces set-up time radically. LUX LUX
260
260
The operating time is around 8 to 12 hours on a full battery. Manual 206
206
operation of the tilt and zoom (15°-30°) function makes the Juno perfectly 15° G Clamp
G Clamp with
with 30 °
Quicklock #875760
suitable for illuminating objects like walls and pillars at high end rental Quicklock
(Optional)
(Optional)
#875760
projects and corporate events. Specially selected, high quality CREE LEDs
provide deep and intense colors through a unique lens which provide an DISTANCE (m) DISTANCE (m)303
303
outstanding color mixing. 0 3 5 10 0 3 5 10
Besides DMX control, the Juno comes with pre-programmed macros FACTSHEET
and can be controlled manually. All controls can be found in the menu of 257
257
DMX channels 4, 6, 10, HSV, HSI Channels
the on-board OLED display which also shows battery, wireless and DMX 312
Beam angle 15 - 30º (manual zoom)
312
Power supply 100 - 240 VAC
15° status. It is also possible to connect the Juno through Neutrik® powerCON Omega
Omega Bracket
Bracket Power consumption Max. 50 Watt
with Quicklock #520115
and 5-pin DMX connectors for regular cable use. When operating with G Clamp
G Clamp with
with with Quicklock #520115
Cooling Convection / no fan
quick
pin Quicklock #875760 (Optional)
(Optional)
lock 30° PowerCON, the Juno also charges automatically. 6 Juno’s are delivered
Quicklock
(Optional)
(Optional)
#875760
DMX connection 5p XLR in & out (3p optional)
250.3
Dimensions 312 x 108 x 250 mm (lxwxh)
250.3
with a well-thought-out flightcase which is equipped with an intelligent
199
Weight 5,5 Kg
199
charging system. The system is connected through one power cable and Certification CE, RoHS
IP65 manual tilt is provided with indication lights.
Item number
Included items
156500
Power cable, manual
312
312
108
108
& Flightcase (per 6 pcs)
IP rating IP65
Optional accessories Omega bracket381 Omegawith Quicklock #520114
Bracket
29
with (Optional)
29
(Optional)#520114
Quicklock
336
27
290
336
(Optional)
336
tricolor mini par 30º BEAM
233
ANGLE
233
233
233
233
233
compact rgb fixture
G GClamp
Clampwith
with
Quicklock
with #875760
Quicklock #875760
COMPACT & LIGHT HOUSING G Clamp
(Optional)
(Optional)
Quicklock #875760
(Optional)
DOUBLE BRACKET FOR FLOOR AND TRUSS MOUNTING
suitable for all purposes FLICKER FREE OPERATION 326
326
326
CLEAR MENU STRUCTURE FOR OPERATION SETTINGS
LIGHTWEIGHT
260
260
260
206
206
206 G GClamp
Clampwith
with
Quicklock
G Clamp with #875760
Quicklock #875760
(Optional)
(Optional)
Quicklock #875760
(Optional)
303
303
349.1 196.4 64.13 303
LUX
The CLF Tricolor Mini PAR is a compact RGB LED fixture with an 257
257
257
impressive output for an affordable price. The Tricolor Mini PAR offers 30°
312
312
deep saturated, intense colors due to the specially selected LEDs. The 312 Omega
OmegaBracket
Bracket
powerful LEDs provide extremely high output and ensure flicker-free G GClamp
Clampwith
Quicklock
with Omegawith Quicklock
with Quicklock#520115
Bracket
(Optional)
(Optional)
with Quicklock #520115
#520115
G Clamp with #875760
Quicklock #875760
operation for all types of TV and camera use. (Optional)
(Optional)
Quicklock #875760 (Optional)
250.3
250.3
(Optional)
DISTANCE (m )
250.3
199
199
0 3 4 7
199
The fixture comes with a 30˚ beam angle which is perfect for illuminating
large surfaces and can also be used for effect lighting. Because of the
312
312
compact and light housing, the Tricolor Mini PAR fits inside most truss 108
108 312
types which makes it the ideal spooklight. Besides DMX control, the 108
FACTSHEET
fixture can also be controlled stand alone or in master / slave mode. The 152
152
DMX channels 3, 4 or 10 channels
152 G GClamp
Clampwith
with
Tricolor Mini PAR comes with pre-programmed macros. Quicklock
G Clamp with #875760
Quicklock #875760 Beam angle 30º
(Optional)
(Optional)
Quicklock #875760 Power supply 100 - 240 VAC
(Optional) Power consumption Max. 35 Watt
30° All controls can be found in the menu on the on-board LCD display. The Cooling Fan
quick
lock pin fixture has a double bracket so it can be placed on the floor or mounted 250
250 DMX connection 3p XLR in & out
250 Dimensions 200 x 152 x 250 mm (lxwxh)
to truss structures by using the CLF quicklock system. This unique Weight 2,5 Kg
hanging system is easy to use and time-saving. An optional barndoor Certification CE, RoHS
Item number 156100
is available. 200
200 Included items Power Cable & manual
200 IP rating IP22
Optional accessories Barndoor, flightcase,
238 148
148
238 & LED board CW-WW
238 148Case: Studio RTL 7 Darts
Product involved: CLF Tricolor mini PAR & CLF LEDwash RGBW
Photo: Spark326
326
31
quadcolor mini par 30° BEAM
206 ANGLE
260
260
compact rgbw fixture SOLID HOUSING
IP65
206
G Clamp with
Quicklock #875760
(Optional)
G Clamp with
solid ip65 housing
Quicklock #875760
(Optional)
DOUBLE BRACKET FOR FLOOR AND TRUSS303MOUNTING
FLICKER FREE OPERATION 303
INTENSE COLORS DUE TO SPECIALLY SELECTED LEDS
CLEAR MENU STRUCTURE FOR OPERATION SETTINGS 257
312 257
Omega Bracket
312 G Clamp with with Quicklock #520115
Quicklock #875760 (Optional)
Omega Bracket
(Optional)
with Quicklock #520115
250.3
G Clamp with
Quicklock #875760 (Optional)
199
(Optional)
250.3
199
837.8 301.6 153.9
The CLF Quad Color Mini PAR is a compact RGBW LED fixture with an LUX 312
impressive output for in- and outdoor use. The Quad Color mini PAR 108
offers deep saturated, intense colors due to the specially selected LEDs 108
312
with the inserted white LEDs is it possible to create a huge range of 152
colors. The powerful LEDs provide extremely high output and ensure 30° G Clamp with
Quicklock #875760
152
(Optional)
flicker-free operation for all types of TV and camera use. G Clamp with
Quicklock #875760
(Optional)
250
The fixture comes with a 30˚ beam angle which is perfect for DISTANCE (m )
illuminating large surfaces and can also be used for effect lighting. The 0 3 5 250 10
solid housing of the fixture makes it suitable for every rental stock and
fixed installation. Besides DMX control, the fixture can also be controlled 200
FACTSHEET
stand alone or in master / slave mode. The Quad Color Mini PAR comes 200
148 DMX channels 3, 4, 5, 6 or 11 channels
with pre-programmed macros. 238
Beam angle 30º
G Clamp with
238 148 Quicklock #875760 Power supply 100 - 240 VAC
(Optional) Power consumption Max. 56 Watt
The fixture has a double bracket so it can be placed on the floor or G Clamp with
Cooling Convection
Quicklock #875760
30° mounted to truss structures by using the unique CLF quicklock system. (Optional) DMX connection 3p XLR in & out
quick
lock pin This hanging system is easy to use and time-saving. The Quadcolor Dimensions 190 x 148 x 238 mm (lxwxh)
Weight 2,5 Kg
Mini PAR is equipped with waterproof cables to ensure an IP65 rating. Certification CE, RoHS
Adapters to schuko and XLR are included. An optional barndoor is also Item number 156120
Included items Power cable schuko - IP65
IP65 available. 190 DMX cable XLR3 male, manual
& female - IP65
190 with
G Clamp
IP rating IP65
Quicklock #875760 Optional accessories Barndoor & extension cables
(Optional)195
33
dynamic white par 25° BEAM ANGLE G Clamp with
Camlock system
compact led fixture
Quicklock #875760
EXTENSIVE WHITE COLOR TEMPERATURE CONTROL (2,800K – 6,500K, CRI>90)
(Optional)
Bracket adjustment knob
SOLID HOUSING 60º
cold & warm white leds
480
DOUBLE BRACKET FOR FLOOR AND TRUSS MOUNTING
105 FLICKER FREE OPERATION
POWERCON IN AND OUT 140
G Clamp with
Quicklock #875760
(Optional)
153
60º 60º
483
1357 763.2 249.2
LUX
125
150
The CLF Dynamic White PAR is a compact LED fixture with an
extraordinary high output which contains warm and cold white high 25°
G Clamp with
power LEDs. The powerful LEDs provide extremely high output and Quicklock #875760
(Optional)
ensures flicker-free operation when using cameras. 207
DISTANCE (m ) 278
The Dynamic White PAR contains specially selected LEDs which provide 0 3 4 7
cold and warm white with a CRI > 90. Warm and cold white control
between 2,800K and 6,500K and color mixing can be adjusted in
3 different DMX modes or by using the on-board menu. The fixture 158
FACTSHEET
contains both powerCON in and out and can be connected with three 177
DMX channels 2, 3 or 7 channels
pins XLR. No fan is installed in the Dynamic White PAR so it is also G Clamp with Beam angle 25º
suitable for silent applications.
Quicklock #875760 Power supply 100 - 240 VAC
(Optional)
Power consumption Max. 82 Watt
25° Cooling Convection / no fan
quick
lock pin The fixture can be placed on the floor or mounted to truss structures
255 205 DMX connection 3p XLR in & out
Dimensions 255 x 205 x 300 mm (lxwxh)
by using the unique CLF quicklock system. This hanging system is
>90 easy to use and time-saving. The solid housing of the fixture makes it
Weight 4 Kg
Certification CE, RoHS
cri suitable for every rental stock and fixed installation. 300
Item number
Included items
156000
Power cable, Filter Frame,
manual
IP rating IP22
Optional accessories Snoot, barndoor & flightcase35
new! new!
LED FAN
PROPELLeR RGB LED EFFECT
LED FAN XL
PROPELLeR RGB LED EFFECT
SIX LED BLADES SIX LED BLADES
CONTROLLABLE IN TWO SEGMENTS CONTROLLABLE IN TWO SEGMENTS
POWERCON TRUE1 IN & OUT POWERCON TRUE1 IN & OUT
DIFFERENT MOUNTING OPTIONS DIFFERENT MOUNTING OPTIONS
quick
lock pin pin quick
lock pin pin
FACTSHEET FACTSHEET
DMX channels 5, 11CH DMX channels 5, 11CH
Power supply 100 - 240 VAC 50/60HZ Power supply 100 - 240 VAC 50/60HZ
Power consumption 180W Power consumption 250W
Cooling Convection Cooling Convection
The LED Fan and LED Fan XL are versatile and spectacular LED DMX connection DMX 3 & 5p in & out The blades of the LED Fan and LED Fan XL can be moved fast and DMX connection DMX 3 & 5p in & out
effects which can be used for decorative purposes. Six vigorous LED Dimensions 700 x 80 x 700mm (hxwxl) precise in both directions, offering many creative possibilities. Multiple Dimensions 1000 x 100 x 1000mm (hxwxl)
Weight 11 Kg Weight 29 Kg
blades are equipped with RGB LEDs. Controllable in two segments, Certification CE, RoHS mounting positions can be used to connect rigging brackets. Certification CE, RoHS
these LEDs provide intense and saturated colors. Item number 850-2040 Item number 850-2045
Included items Power cable, manual Included items Power cable, manualCase: I Am Hardstyle
Products involved: CLF Aorun, CLF Orion, CLF Conan & CLF Yara
Photo: Sparknew! 39
apollo XS ONSTAGE EYE-CANDY EFFECT
WARM WHITE / AMBER CENTER LED
RGB OUTER RING
retro style
POWERCON TRUE1 IN AND OUT
EFFECT MACHINE
The CLF Apollo XS is a retro style ‘on stage eye-candy’ effect with
various, separately controllable, LED segments. A powerful warm
206
white / amber LED center effect is surrounded by an RGB ring.
Ø 245
178 FACTSHEET
Combine a vintage tungsten look with modern, colourful, LED
DMX channels 2, 7, 10, 16
animation effects. Pre-programmed effects make it easy to create Power supply 100 - 240 VAC
impressive and attractive effects, but different DMX modes allows Power consumption Max. 100 Watt
G Clamp with Cooling Temperature controlled fan
360
precise control of all different LED segments for extensive control. 291
Quicklock #875760
(Optional) DMX connection 5 pin XLR
Omega Bracket
Dimensions 309 x 206 x 360 mm (lxwxh)
with Quicklock #520114 Weight 3.35 Kg
(Optional)
Certification CE, RoHS
Item number 156701
quick
lock pin 106 Included items
& manual
Power cable, signal cable
259
309 IP rating IP20
125
Optional accessories Flightcase, stand, 4 unit frame
Omega Bracket & 7 unit frame
with Quicklock #52011441
apollo ONSTAGE EYE-CANDY EFFECT
WARM WHITE / AMBER CENTER LED
RGB OUTER RING
RGB REFLECTOR RING
retro style
INDIVIDUAL LED SEGMENTS
POWERCON TRUE1 IN AND OUT
EFFECT MACHINE
The CLF Apollo is a retro style ‘on stage eye-candy’ effect with
various, separately controllable, LED segments. A powerful warm
271
white / amber LED center effect is surrounded by eight RGB seg-
ments which illuminate the iconic golden inside reflector. Around Ø 385
178 FACTSHEET
the parabolic reflector, eight different RGB segments provide even
DMX channels 2, 7, 16, 51, 55, 64
more creative possibilities. Power supply 100 - 240 VAC
Power consumption Max. 400 Watt
493.33
G Clamp with Cooling Temperature controlled fan
Combine a vintage tungsten look with modern, colourful, LED 291
Quicklock #875760
(Optional) DMX connection 5 pin XLR
animation effects. Pre-programmed pixel effects make it easy to Omega Bracket
Dimensions 472 x 271 x 494 mm (lxwxh)
with Quicklock #520114 Weight 8.25 Kg
create impressive and attractive effects, but different DMX modes (Optional)
Certification CE, RoHS
allows precise control of all different LED segments for Item number 156700
quick
lock pin extensive control. 472
106 Included items
& manual
Power cable, signal cable
259
IP rating IP20
125
Optional accessories Flightcase & stand
Omega Bracket
with Quicklock #520114new! 43
apollo XL ONSTAGE EYE-CANDY EFFECT
WARM WHITE / AMBER CENTER LED
RGB OUTER RING
retro style
RGB REFLECTOR RING
INDIVIDUAL LED SEGMENTS
POWERCON TRUE1 IN AND OUT
EFFECT MACHINE
The CLF Apollo is a retro style ‘on stage eye-candy’ effect with
various, separately controllable, LED segments. A powerful warm
white / amber LED center effect is surrounded by eight RGB seg- 350
ments which illuminate the iconic golden inside reflector. Around Ø178565
FACTSHEET
the parabolic reflector, eight different RGB segments provide even
DMX channels 2, 7, 16, 51, 55, 64
more creative possibilities. Power supply 100 - 240 VAC
Power consumption Max. 600 Watt
G Clamp with
Cooling Temperature controlled fan
660
Combine a vintage tungsten look with modern, colourful, LED 291
Quicklock #875760
(Optional) DMX connection 5 pin XLR
animation effects. Pre-programmed pixel effects make it easy to Omega Bracket Dimensions 635 x 350 x 660 mm (lxwxh)
with Quicklock #520114
Weight 12 Kg
create impressive and attractive effects, but different DMX modes (Optional)
Certification CE, RoHS
allows precise control of all different LED segments for extensive Item number 156702
quick
lock pin control.
106 Included items Power cable, signal cable
259
& manual
IP rating IP20
125 635 Optional accessories Flightcase & stand
Omega Bracket
with Quicklock #520114Case: Untold Festival
Products involved: CLF Yara, CLF Ares, CLF Aorun, CLF Orion & CLF LEDbar PRO
Photo: Alive Coverage250
250
47
ledwash xl
MANUALLY 60° ADJUSTABLE TILT 200
200
30° AND 50° BEAM ANGLE
238 148
INTENSE COLORS DUE TO SPECIALLY SELECTED LEDS 238 148
G Clamp with
G Clamp withQuicklock #875760
CLEAR MENU STRUCTURE FOR OPERATION SETTINGS (Optional)
Quicklock #875760
MULTIFUNCTIONAL rgbw WASh
(Optional)
EXCEPTIONALLY SMOOTH COLOR MIXING
FLICKER FREE OPERATION
2 INDIVIDUALLY CONTROLLABLE SEGMENTS
POWERCON IN AND OUT
190
190
G Clamp with
G Clamp withQuicklock #875760
(Optional)
Quicklock #875760
(Optional)
255
280
30° 255
280
quick
lock pin 195
195
50°
manual tilt pin
Camlock system
Camlock system G Clamp with
11961 1329 119.6 G Clamp withQuicklock #875760
LUX (Optional)
Quicklock #875760
(Optional)
Bracket adjustment knob
60º
Bracket adjustment knob
480 60º
480
30°
105
105
140
The CLF LEDwash XL is a unique, one-of-a-kind wash fixture with two LED segments. The two horizontal LED battens can be DISTANCE (m) 140
0 3 5 10
manually tilted and controlled separately. Because of the 30° and 50° lens it is possible to use the fixture as wallwash with both parts
complementing each other. Besides that, the fixture can be used to illuminate two different surfaces simultaneously. FACTSHEET
G Clamp with DMX channels 3, 4, 5, 6, 8, 11 or 15 channels
The LEDwash XL is the perfect solution for illuminating large surfaces like walls, curtains and horizons. The technologies prevent G Clamp withQuicklock #875760 Beam angle 30 and 50º
(Optional)
multicolor shadows and provide deep saturated colors. The low and compact housing makes the fixture hardly noticeable. The fixture
Quicklock #875760 Power supply 100 - 240 VAC
(Optional)
Power consumption Max. 130 Watt
can be placed on the floor or mounted to truss structures by using the CLF quicklock system. 483 153
60º
153
60º Cooling Low noise fan
483
60º 60º DMX connection 3 & 5p XLR in & out
Dimensions 483 x 153 x 125 mm (lxwxh)
The fixture features 18 specially selected LEDs which provide deep and intense colors. The powerful LEDs provide extremely high output Weight 5,2 Kg
125
and ensure flicker-free operation for all types of TV and film use. RGBW and dimming can be controlled in 7 different DMX modes or by 125
Certification CE, RoHS
Item number 156430
using the on-board menu. The fixture contains both powerCON in and out and can be connected with 3-pin and 5-pin XLR. 150 Included items Power cable, manual
150
IP rating IP22
Optional accessories Flightcase
G Clamp with
Quicklock #875760(Optional)
Quicklock #875760 with Quicklock #520115
G Clamp with
(Optional)
49
(Optional)
Quicklock #875760
250.3
(Optional)
250.3
199
LEDwash rgbw
199
INTENSE COLORS DUE TO SPECIALLY SELECTED LEDS
CLEAR MENU STRUCTURE FOR OPERATION SETTINGS 312
108 312
EXCEPTIONALLY SMOOTH COLOR MIXING 108
compact wash fixture TILT MANUALLY 60° ADJUSTABLE
FLICKER FREE OPERATION
152
152
G Clamp with
Quicklock #875760
G Clamp with
distinctive and unique
(Optional)
Quicklock #875760
(Optional)
POWERCON IN AND OUT
250
250
200
200
238 148
50°
quick 238
lock pin 148
pin G Clamp with
Quicklock #875760
G Clamp with
(Optional)
Quicklock #875760
(Optional)
manual tilt
286.3 103.1 52.59
LUX
190
190
G Clamp with
Quicklock #875760
G Clamp with
(Optional)
Quicklock #875760
50° (Optional)
255
280
255
280
195
195
DISTANCE
0 3 5 7
The CLF LEDwash RGBW is a compact wash fixture with a unique and distinctive design. The horizontal head can be manually adjusted FACTSHEET
60˚. Combined with the 50˚ beam angle of the lens, the LEDwash is the perfect solution for illuminating large surfaces like walls, curtains Camlock system
G Clamp with DMX channels
3, 4, 5, 6 or 11 channels
Camlock system
and horizons. The technologies prevent multicolor shadows and provide deep saturated colors. It is also possible to make the beam more Quicklock #875760
G Clamp with
(Optional)
Beam angle 50º
Quicklock #875760
diffused by using the included frost lens. The low and compact housing makes the fixture hardly noticeable. The fixture can be placed on (Optional) Power supply
100 - 240 VAC
Bracket adjustment knob Power consumption
Max. 65 Watt
the floor or mounted to truss structures by using two pieces of the CLF quicklock hanging clamps. 480 60º
60º
Bracket adjustment knob Cooling Low noise fan
480 DMX connection 3 & 5p XLR in & out
Dimensions 480 x 140 x 105 mm (lxwxh)
The CLF LEDwash contains 9 specially selected LEDs which provide deep and intense colors. The powerful LEDs provide extremely high Weight 3,5 Kg
output and ensure flicker-free operation for all types of TV and film use. RGBW and dimming can be controlled in 5 different DMX modes 105 Certification CE, RoHS
105 Item number 156200
or by using the on-board menu. The fixture contains both powerCON in and out and can be connected with 3-pin and 5-pin XLR. 140 Included items Power cable, Frost & Clear lens,
140 manual
IP rating IP22
Optional accessories Flightcase(Optional)
Quicklock #875760 with Quicklock #520115
G Clamp with
(Optional)
51
(Optional)
Quicklock #875760
250.3
(Optional)
250.3
199
LEDwash cw-ww
199
EXTENSIVE WHITE COLOR TEMPERATURE CONTROL
(2,800K – 6,500K, CRI>90) 312
108 312
CLEAR MENU STRUCTURE FOR OPERATION SETTINGS 108
compact wash fixture SOLID HOUSING, UNIQUE DESIGN
TILT MANUALLY 60° ADJUSTABLE
152
152
G Clamp with
Quicklock #875760
G Clamp with
cold & warm white leds
(Optional)
Quicklock #875760
FLICKER FREE OPERATION (Optional)
POWERCON IN AND OUT 250
250
200
200
238 148 50°
quick 238
lock pin 148
pin G Clamp with
Quicklock #875760
G Clamp with
(Optional)
Quicklock #875760
>90 (Optional)
manual tilt cri
239.4 86.18 43.97
LUX
190
190
G Clamp with
Quicklock #875760
G Clamp with
(Optional)
Quicklock #875760
50° (Optional)
255
280
255
280
195
195
DISTANCE
The CLF LEDwash CW-WW is a compact wash fixture with a unique and distinctive design. The horizontal head can be manually adjusted 0 3 5 7
60˚. Combined with the 50˚ beam angle of the lens, the LEDwash is the perfect solution for illuminating large surfaces like walls, curtains FACTSHEET
and horizons. It is also possible to make the edge of the beam more diffused by using the included frost lens. The low and compact Camlock system
Camlock system G Clamp with DMX channels 2, 3 or 7 channels
housing makes the fixture hardly noticeable. The fixture can be placed on the floor or mounted to truss structures by using the unique Quicklock #875760
G Clamp with
(Optional)
Quicklock #875760
Beam angle 50º
CLF quicklock system. This hanging system is easy to use and time-saving. (Optional) Power supply 100 - 240 VAC
Bracket adjustment knobPower consumption
Max. 65 Watt
60º
480 60º
Bracket adjustment knob Cooling Low noise fan
The CLF LEDwash contains 9 specially selected LEDs which provide cold and warm white with a CRI > 90. The powerful LEDs provide 480 DMX connection 3 & 5p XLR in & out
Dimensions 480 x 140 x 105 mm (lxwxh)
extremely high output and ensure flicker-free operation for all types of TV and camera use. Warm and cold white control between 2,800K Weight 3,5 Kg
and 6,500K and dimming can be adjusted in 3 different DMX modes or by using the on-board menu. The fixture contains both powerCON 105 Certification CE, RoHS
105
Item number 156300
in and out and can be connected with 3-pin and 5-pin XLR. 140 Included items Power cable, Frost & Clear lens,
140 manual
IP rating IP22
Optional accessories Flightcase53
ledbar pro
10 BIG INDIVIDUALLY CONTROLLABLE LEDS
MULTIFUNCTIONAL RIGGING SYSTEM
INTENSE RGBW COLOR MIXING
24° BEAM ANGLE
multifunctional linear IP65 RATING
RDM READY
outdoor led batten ARTNET & SACN CONTROLLABLE
665.3 239.5 59.87
LUX
24°
quick
lock pin
24°
art
IP65 rdm net
DISTANCE (m )
0 3 5 10
FACTSHEET
DMX channels 4, 6, 10, 11, 12, 40, 47
The CLF LEDbar PRO is a multifunctional linear LED batten. Because of the 24° beam angle it can be used as cyclorama as well as pixel Beam angle 24º
controlled effect machine. 10 Big, individually controllable, high power RGBW LEDs deliver a rich color set and smooth HD dimming. Power supply 100 - 240 VAC
Power consumption Max. 237 Watt
Dynamic effects are easily configured by DMX, but the CLF LEDbar PRO is also Art-Net and sACN ready. Cooling Passive cooling
DMX connection DMX 5p in & out (3p optional)
Dimensions 1000 x 105 x 210 mm (lxwxh)
Multiple rigging options are offered by the easily adaptable bracket positioning system and the side lock system offers matrix possibilities. Weight 10,2 Kg
The CLF LEDbar PRO can be used outdoor because of the IP65 rating. The LCD display offers easy access to the menu settings and Certification CE, RoHS
Item number 156630
manual control. Power can be connected through PowerCON TRUE1 connectors. Included items Power cable, manual
IP rating IP65
Optional accessories Flightcase & frostfilterCase: André Rieu - Maastricht
Products involved: CLF Yara, CLF Ares & CLF LEDbar PRO
Photo: Spark57
aorun
ultra-bright PHYSICAL INSTALLATION
beam fixture
LENGHT 380MM MOUNTING TURNABLE QUICK TRIGGER CLAMPS
WIDTH 280MM ORIENTATION ANY
HEIGHT (HEAD VERTICAL) 529MM PROTECTION RATING IP20
NET WEIGHT 18.8KG SAFETY ATTACHMENT POINT
EFFECTS MOVEMENTS
GOBO WHEEL 11 GOBO’S, 3 ANIMATION RANGES & OPEN PAN 540°
COLOR WHEEL 14 COLORS & OPEN TILT 250°
FROST VARIABLE 0 - 100%
PRISM 8 & 16 FACET (COMBINABLE) ELECTRICAL SPECIFICATION
2.3° BEAM ANGLE INPUT 100 - 240V, 50/60 HZ
SHUTTER VARIABLE 0 - 100%, RANDOM & PULSE
8 & 16 FACET PRISM (COMBINABLE) DIMMER 0 - 100% POWER CONSUMPTION 450W
3 ANIMATION EFFECTS THERMAL SPECIFICATION
OPTICAL
169MM WIDE LENS FOR BIG MID-AIR EFFECTS SOURCE OSRAM SIRIUS HRI 330W XL MIN. AMBIENT TEMP. -5°C
AVERAGE LIFESPAN 1500H MAX. AMBIENT TEMP. 35°C
FOLDABLE QUICK TRIGGER CLAMPS ATTACHED BEAM ANGLE 2.3° COOLING FORCED AIR
LENS DIAMETER 169MM
ORDERING
PHOTOMETRIC CLF AORUN 160020
Aorun, an ultra-bright beam fixture which combines high output, OUTPUT 380000 LX @ 10M
COLOR TEMPERATURE 7600K INCLUDED ITEMS
fast movements and an extensive feature package. The moving USER MANUAL, POWER CABLE, SAFETY CABLE & DMX CABLE
head utilises a 330W HRI light source which produces heavy CONNECTIONS 380000 99000 17300
mid-air effects through the specially designed 169mm lens. POWER POWERCON IN AND OUT APPROVALS LUX
CE COMPLIANT
2.3° DATA 3 & 5 PIN LOCKING XLR
quick
lock pin pin The fixture has an 8 & 16 facet prism on-board. These prisms
UPDATES USB
OPTIONAL
can be combined for even wider effects. Additionally, the gobo 2.3°
CONTROL FLIGHTCASE &
wheel offers 3 animation ranges, creating unique beam effects. SETTINGS LCD DISPLAY HANGING BRACKET SET
rdm A softening frost completes the effect package of the Aorun. PROTOCOLS DMX512 & RDM
CHANNELS 14 - 16 DISTANCE (m)
0 10 20 5059
orion
feature packed POWER
INPUT VOLTAGE 100 - 240 VAC, 50/60HZ
HEAT MANAGEMENT
COOLING TYPE FORCED VENTILATION & AXIAL FANS
hybrid luminaire
STANDBY POWER 498W (LAMP ON) MAX. AMBIENT TEMP. TA MAX=40°C
TOTAL POWER CONSUMPTION 630W MIN. AMBIENT TEMP. TA MIN=-20°C
TYPICAL CURRENT 2.7A
CONTROL
COS φ 0.972
CONTROL PROTOCOL DMX512
POWER PLUG TYPE SEETRONIC POWERCON TRUE
SMOOTH CMY COLOR MIXING DMX CHANNELS 33
RDM YES
SOURCE
FIXED COLOR WHEEL LAMP OSRAM SIRIUS HRI 471W SN
DMX INPUT CONNECTION 3-PIN AND 5-PIN
2 GOBO WHEELS EXPECTED LIFETIME 1500 HOURS
INSTALLATION
CRI LEVEL 80 (STANDARD), 90+ (WITH HIGH CRI FILTER)
IP RATING IP20
3 + 1 DOUBLE WHEEL PRISMS ORIENTATION ANY
OPTICAL
DOUBLE LINEAR FROST BEAM ANGLE BEAM PROJECTION 2 - 21°
HOUSING
SPOT PROJECTION 3 - 42°
2° - 42° ZOOM WITH AUTOFOCUS SAFETY ATTACHMENT POINT BOTTOM
LOCK TILT LOCK
ANIMATION EFFECT PHOTOMETRIC
OUTPUT 2° @10M 422000 LUX
PHYSICAL
OUTPUT 42° @10M 765 LUX
NET PRODUCT WEIGHT 29KG
The CLF Orion is a multifunctional and powerful hybrid. This all-in-one LENGTH 401MM
EFFECTS
workhorse features a wide lens which allows big mid-air effects. The WEIGHT 300MM
COLOR MIXING CMY, FIXED COLOR WHEEL
471W Osram light source provides a very bright and punchy beam, HEIGHT 646MM
GOBO ROTATING WHEEL 9 + OPEN
which can be zoomed from 2° to 42°. Colors can be mixed smoothly FIXED WHEEL 13 + OPEN
INCLUDED ITEMS
PRISM WHEEL 1: LINEAR, 4-FACET, 8-FACET
by using the CMY wheels, there is also a fixed color wheel available. WHEEL 2: 8-FACET
MANUAL, POWER CABLE, DMX CABLE & SAFETY CABLE
ANIMATION CONTINIOUS ANIMATION EFFECT WHEEL
APPROVALS
Among the effects are a fixed and rotating gobo wheel, both ZOOM 2° - 42°
2° FROST 1° AND 5° LEVEL FROSTS, COMBINABLE
APPROVED CERTIFICATIONS CE AND ROHS
equipped with autofocus when zooming. Next to that, two prism wheels DIMMING 16 BIT
quick
lock pin pin 42° and an animation wheel are also part of the feature package. Two SHUTTER 0.5 - 9 TIMES / SECOND, RANDOM
INFORMATION
ARTICLE NUMBER 160025
PAN 540°
linear frosts are combinable for maximum flexibility. Hotspot control EAN CODE 8719189163179
TILT 250°
enables smooth projection, and a high CRI filter is available for television
rdm and theatre use. HARDWARE
OPTIONAL
INTERFACE LCD DISPLAY FLIGHTCASE & HANGING BRACKET
SOFTWARE UPLOAD USBnew! 61
poseidon
powerful
outdoor beam
POWER HEAT MANAGEMENT
INPUT VOLTAGE 100 - 240 VAC, 50/60HZ COOLING TYPE REGULATED FANS
STANDBY POWER 550W MAX. AMBIENT TEMP. TA MAX=40°C
TOTAL POWER CONSUMPTION 650W MIN. AMBIENT TEMP. TA MIN=-20°C
TYPICAL CURRENT 2.83A
CONTROL
POWER PLUG TYPE SEETRONIC POWERCON TRUE
CONTROL PROTOCOL USITT DMX512/1990
SMOOTH CMY COLOR MIXING DMX CHANNELS 17
SOURCE
RDM YES
LAMP USHIO 400W
IP65 RATING EXPECTED LIFETIME 4000 HOURS
WDMX YES
DMX INPUT CONNECTION 5-PIN
GOBO WHEEL WITH ANIMATION RANGE OPTICAL
INSTALLATION
DOUBLE PRISM BEAM ANGLE BEAM PROJECTION 1.8°
IP RATING IP65
FROST ORIENTATION ANY
PHOTOMETRIC
OUTPUT @10M 564000 LUX
190MM WIDE LENS OUTPUT @50M 25400 LUX
HOUSING
SAFETY ATTACHMENT POINT YES
LOCK TILT LOCK
EFFECTS
The CLF Poseidon is a powerful outdoor beam fixture that has been COLOR MIXING CMY, 14 + OPEN COLOR WHEEL
PHYSICAL
developed for smooth CMY color mixing. Based on the successful GOBO 14 + OPEN FIXED WHEEL
NET PRODUCT WEIGHT 35KG
PRISM 8-FACET ROUND, 16-FACET ROUND
CLF Aorun, the Poseidon comes with a fast and accurate feature set FROST 6° WASH
LENGTH 726MM
including a double prism, gobo wheel, animation section and frost. The WEIGHT 488MM
DIMMING 0 - 100%
HEIGHT 312MM
190mm wide lens and unique optics allow big mid-air effects with a SHUTTER 12HZ / SECOND, RANDOM
PAN 540°
bright and punchy beam, delivered by a 400W light source. Colors can TILT 240°
ACCESSORIES
INCLUDED ITEMS MANUAL, POWER CABLE
be mixed smoothly by using the CMY wheels and a fixed color wheel.
HARDWARE
APPROVALS
INTERFACE LCD DISPLAY
1.8° The elegantly shaped, IP65 rated, housing is equipped with specially SOFTWARE UPLOAD DMX, VIA SPECIAL BOX
APPROVED CERTIFICATIONS CE AND ROHS
quick
lock pin designed motors enabling fast pan and tilt movements. A bright O-LED INFORMATION
screen offers easy access to on-board settings, even in bright environ- ARTICLE NUMBER 160030
ments. All-in all, the Poseidon is one of the fastest and most powerful EAN CODE 8719189163995
rdm IP65 outdoor beam in its class. OPTIONAL
FLIGHTCASE & HANGING BRACKETCase: I Am Hardstyle
Products involved: CLF Aorun, CLF Orion, CLF Conan & CLF Yara
Photo: Spark65
BEAM6
fast & lightweight
led beam
PHYSICAL INSTALLATION
LENGHT 226MM MOUNTING OMEGA BRACKET
WIDTH 226MM ORIENTATION ANY
HEIGHT (HEAD VERTICAL) 286MM PROTECTION RATING IP20
NET WEIGHT 3.8KG SAFETY ATTACHMENT POINT
EFFECTS MOVEMENTS
COLOR RGBW COLOR SYSTEM PAN 540°
KALEIDOSCOPIC EFFECT 6° - 51° TILT 180°
SHUTTER VARIABLE 0 - 100%, RANDOM & PULSE
DIMMER 0 - 100% ELECTRICAL SPECIFICATION
1.5° BEAM ANGLE INPUT 100 - 240V, 50/60HZ
FAST MOVEMENTS OPTICAL POWER CONSUMPTION 91W
SOURCE 6X 10W RGBW 4 IN 1 LEDS
ROTATABLE LENS FOR SPECIAL BEAM EFFECTS ELECTRICAL SPECIFICATION
AVERAGE LIFESPAN 50000H
LCD TOUCHSCREEN FOR MENU SETTINGS BEAM ANGLE 6° - 51° MIN. AMBIENT TEMP. -5°C
MAX. AMBIENT TEMP. 35°C
ONLY 3.8KG PHOTOMETRIC COOLING FORCED AIR
OUTPUT 10600 LX @ 3M
ORDERING
CONNECTIONS CLF BEAM 6 160000
The Beam 6 is a small and lightweight LED fixture which POWER POWERCON IN AND OUT
DATA 5 PIN LOCKING XLR INCLUDED ITEMS
delivers a powerful 1.5° beam. Additionally, the kaleidoscopic USER MANUAL, POWER CABLE & DMX CABLE
effect offers a wide effect scope. All settings of the Beam 6 can CONTROL 10600 5050 1770
be adjusted in the on board touch screen. SETTINGS TFT TOUCHSCREEN APPROVALS LUX
CE COMPLIANT
1.5° PROTOCOLS DMX512 & RDM
quick
lock pin Due to its small footprint and weight, the Beam 6 is ideal for
CHANNELS 11 - 17 ROHS
UPDATES BY DMX 6°
matrix effects. Fast and precise movements complete the feature OPTIONAL
set. The fixture is equipped with 5 pin DMX, PowerCON input and FLIGHTCASE
rdm output. DISTANCE (m)
0 3 5 1067
stinger
feature-packed
effect machine
PHYSICAL
LENGHT 466MM INSTALLATION
WIDTH 246MM MOUNTING OMEGA BRACKETS
HEIGHT (HEAD VERTICAL) 575MM ORIENTATION ANY
NET WEIGHT 20KG PROTECTION RATING IP20
SAFETY ATTACHMENT POINT
6° BEAM ANGLE EFFECTS
COLOR 36 INDIVIDUAL CONTROLLABLE RGBW LEDS MOVEMENTS
CONTINUOUS MOVEMENTS MACRO EFFECTS PAN INFINITE
STAR EFFECT 49 INDIVIDUAL CONTROLLABLE CW LEDS TILT INFINITE
INDIVIDUAL CONTROLLABLE LEDS RESOLUTION 16 BIT
MACRO EFFECTS
STAR EFFECT SHUTTER VARIABLE 0 - 100%, RANDOM & PULSE
DIMMER 0 - 100% ELECTRICAL SPECIFICATION
ART-NET CONTROLLABLE PIXEL EFFECTS INPUT 100 - 240V, 50/60HZ
REFLECTOR MODULE ON BACKSIDE OPTICAL POWER CONSUMPTION 580W
SOURCE 36X RGBW LEDS & 49 CW LEDS
LOW NOISE CONTROLLABLE FAN BEAM ANGLE 6° ELECTRICAL SPECIFICATION
MIN. AMBIENT TEMP. 0°C
PHOTOMETRIC MAX. AMBIENT TEMP. 35°C
OUTPUT 25800 LX @ 5M COOLING LOW NOISE CONTROLLABLE FAN
The Stinger is a feature-packed moving head. 36 RGBW, pixel CONNECTIONS ORDERING
POWER POWERCON IN AND OUT CLF STINGER 160110
controllable, high output LEDs provide many creative possibilities.
DATA 3 AND 5 PIN LOCKING XLR, RJ45
A 6° punchy beam angle ensures impressive mid-air effects. The INCLUDED ITEMS
additional 49 CW LED star effect and the reflector module on the CONTROL USER MANUAL, POWER CABLE & 2 OMEGA BRACKETS
25800 7250 1873
backside make the Stinger the ultimate multi effect LED fixture. Matrix SETTINGS LCD DISPLAY LUX
OPTIONAL
6° effects can be controlled by Art-Net. PROTOCOLS DMX512, RDM & ART-NET
quick
lock pin pin CHANNELS 21 / 22 (DMX) / 144 (VIDEO) / 166 / 206 FLIGHTCASE
UPDATES BY DMX LINK
All features come in a rugged and touring-proof housing which can 6°
art infinite
move continuously. The fixture can be rigged in any position by using APPROVALS
rdm net rotation
the supplied omega bracket. CE COMPLIANT & ROHS
DISTANCE
0 5 10 20new! 69
serius
MOVING LED BAR
SMOOTH RGBW COLOR MIXING
3.5° – 38° ZOOM (2 SEGMENTS)
BATTERY BACKUP FOR MENU SETTINGS
12 INDIVIDUALLY CONTROLLABLE LEDS
220° TILT ANGLE
POWER CONTROL
INPUT VOLTAGE 100 - 240 VAC, 50/60HZ CONTROL PROTOCOL ARTNET, RDM READY & DMX512
STANDBY POWER 31W DMX CHANNELS 14, 57
TOTAL POWER CONSUMPTION 450W RDM YES
TYPICAL CURRENT 1.9A DMX INPUT CONNECTION 3-PIN AND 5-PIN XLR
POWER PLUG TYPE SEETRONIC POWERCON TRUE
INSTALLATION
IP RATING IP22
SOURCE
ORIENTATION ANY
LAMP OSRAM LE RTDUW S2WN
EXPECTED LIFETIME 30.000 HOURS
HOUSING
SAFETY ATTACHMENT POINT YES
PHOTOMETRIC
OUTPUT 3.5° @1M 275225 LUX
PHYSICAL
OUTPUT 3.5° @5M 11009 LUX
NET PRODUCT WEIGHT 17KG
LENGTH 1000MM
EFFECTS
WEIGHT 113MM
DIMMING 0 - 100%
HEIGHT 278MM
TILT 220°
INCLUDED ITEMS
HARDWARE
MANUAL, POWER CABLE, OMEGA BRACKETS
INTERFACE OLED DISPLAY
SOFTWARE UPLOAD VIA DMX INPUT
APPROVALS
APPROVED CERTIFICATIONS CE AND ROHS
HEAT MANAGEMENT
COOLING TYPE REGULATED FANS
INFORMATION
MAX. AMBIENT TEMP. TA MAX=40°C
CLF Serius is a moving LED bar with a length of 1 meter. It comes with MIN. AMBIENT TEMP. TA MIN=0°C
ARTICLE NUMBER 156650
12 high power RGBW LEDs which can be controlled individually. The EAN CODE 8719189163902
MAX. SURFACE TEMP. 65°C
zoom range of the Serius is divided in two segments which can be
art 3.5° OPTIONAL
moved independently from 3,5° to 38°. FLIGHTCASE & HANGING BRACKET
quick
lock pin net 38°
The shape of the CLF Serius makes sure that the LEDs will have even
spacing when multiple fixtures are combined. This creates a seamless
rdm light curtain. The bar can be tilted precisely and smoothly by 220°.Case: Dutch Queen Tribute
Products involved: CLF Ares & CLF Orion
Photo: Femke de Schepper73
haze I
BUILT-IN-FLIGHTCASE TOURING HAZER
haze II
BUILT-IN-FLIGHTCASE TOURING HAZER
POWER: 1100W POWER: 1200W
HEAT-UP TIME: 50 SECONDS HEAT-UP TIME: 50 SECONDS
ADJUSTABLE NOZZLE ANGLE ADJUSTABLE NOZZLE ANGLE
3 & 5 PIN DMX 3 & 5 PIN DMX
FLUID CONTAINER: 3,5L FLUID CONTAINER: 5L
quick
lock pin pin 3.5L quick
lock pin pin 5L
FACTSHEET FACTSHEET
DMX channels 2 DMX channels 2
Power supply 100 - 240 VAC 50/60HZ Power supply 100 - 240 VAC 50/60HZ
The CLF Haze I is a touring hazer which comes in a ready to use Power consumption 1100W The CLF Haze II is a touring hazer which comes in a ready to use Power consumption 1200W
DMX connection XLR 3 & 5p in & out DMX connection XLR 3 & 5p in & out
flightcase. The specially designed heating system reduces the warm Dimensions 425 x 390 x 242mm (hxwxl) flightcase. The specially designed heating system reduces the warm Dimensions 510 x 390 x 265mm (hxwxl)
up time to only 50 seconds. Weight 15,5 Kg up time to only 50 seconds. Weight 14 Kg
Fluid consumption 83min/L Fluid consumption 83min/L
Fluid capacity 3,5L Fluid capacity 5L
It’s capability to produce a fine haze at any output level makes it the Output 12.000 CUFT/min It’s capability to produce a fine haze at any output level makes it the Output 12.000 CUFT/min
Item number 850-1110 Item number 850-2110
ideal solution for a wide range of applications. Included items Power cable, manual ideal solution for a wide range of applications. Included items Power cable, manual
Optional CLF Haze fluid Optional CLF Haze fluidYou can also read
