2020 Catalog
Vehicle Comprehensive Solution
IP Range & Solutions
VMS/ ACS Integration
IP Cameras
Recording/ Storage Tracking
NVR/ Servers...
Access Control
Connectivity
Cloud Services
Detectors
Access & setup Malfunction
Platforms
Video Analytics
Notifications Fuel
Sensors
Authority Control
Diagnosis
Audio
Centralized Monitoring
License Plate & Management Face Detection
Page 1
Comprehensive Mobile Solutions
Vehicle security is one of the most critical undertakings with various applications including public transportation, school busses, law enforcement, private fleet,
logistics management, railway, metro, taxi and many more. REVO comprehensive mobile systems can help in regular fleet operations and centralization of all other
functions as well as assimilating them with video.
REVO’s comprehensive mobile solution provides security and reliability with a new approach. Through surveillance of everything on the vehicle, from recognizing
the passengers’ and drivers’ behavior to managing the video evidence and centralization. Besides the 24/7 diagnosis for both vehicle and system, another efficient
monitoring system for the driving behavior is provided; such as curving, gliding, revving and idling. Reliability of all of this functionality is guaranteed with stable
recording even after sudden power off.
Modular Design File System 4.0 Fault Report Upload Power-off Protection
• Less cable connection • Multi-level backup technology • Batch upgrade at one time • Keeps working about 10 sec after
• Industrial-grade connector • Ensure the integrity of data • Batch data configuration and check power off.
• Works reliably and stably • Improves reading and writing report later • Wide voltage input 8-36V
efficiency • Overall device status checking
• Improving work efficiency
Vibration Performance Temperature Protection Intelligence
Lane Departure Warning Bus Lane Enforcement
• Adopts damping rubber material • Working temperature -40°C to 70°C Monitor driver behaviour & sharp Get the snapshot of vehicles
• Pass standards MIL-STD-81O, • Industrial components curving occupying bus lane.
IS016750-3 • Smart heating/cooling design
technology
Facial Detection Fatigue Driving
Face detection in live & rec. video Detecting car gliding, idling &
for easier recognition noticing driver expressions
7” Touch Display & Control panel used for vehicle system. It also integrates with
features of SMS and voice broadcast. Moreover, it can realize the functions of
speaking inside/outside of the vehicle, IP connection, and making calls.
IP Cams Switch
Ceiba II Server Ceiba II Client
Analog/ AHD Cam
Wi-FI GDS Server GDS Client
Mobile Client Easy Check
Fire Proof Control Operation & Operation &
OBD Alarm GPS UPS Interphone
Maintenance Maintenance
Box Panel
Server Client
RevoMena.com Page 1
Mobile Recorders
Special Sectors
Up to 32CH NVR, NVRs with built-in Touch Panel
24CH Hybrid (IP & Analog) NVR 16/8 CH NVR Train & Trams Series
RI24NVR-1M RI16NVR-3M/ RI8NVR-1M
• Hybrid NVR with 16CH Analog & • NVR with 16/8CH IP
8CH IP • 2x SATA HDDs Internally, e-SATA,
• 2x SATA HDDs Internally, Mirror Rec. Mirror Rec.
Up to 12CH Hybrid (IP & AHD) NVR
Bus Series
4CH NVR 5CH Hybrid (IP & AHD) NVR
R4NVR-4M RI4NVR-3M
• NVR with 4CH IP • Hybrid NVR with 4CH Analog/ AHD
• SATA HDD Internally, Mirror Rec. & 1CH IP 2CH IP Car Embedded NVR
• SATA HDD Internally Taxi Series

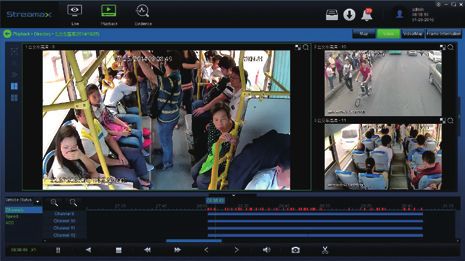

Ceiba II CMS
• Real-time live view, Alarms, Map tracking & Backup.
Live View Evidence • Single/ Multi Vehicle Search & Playback
• Real-time video • Auto evidence export • On-Demand, Upon Event or Automatic download from
• Real-time location • Evidence search vehicle to server
• Real-time metadata • Easy to manage evidence • HDD & SD card playback
• Event search by vehicle, driver, date, status, rank and
keyword
• Google Maps Support
• Setup of Fleet, License & Serial numbers for easy
recognition
• Event Notification: Push Notification, Email, Audio
& Pop up. Event Actions: Car Lock on Map, open all
vehicle cams
• Two Way Audio Communication & Broadcast
Playback Auto Download • Multiple Logs Export: GPS Location & Alarm
• Video & location • Auto download by different categories • Fence & Privacy Zone Function
• Metadata • AP management balance • PTZ Control
• Video clip • Auto adaptive network • Speed Curve Graph
Page 2
Comprehensive Mobile Solutions
City Bus Surveilance
Besides regular video surveillance,
Camera Ad Display Camera LED
REVO vehicle solution monitors
GPS irregular driving, over-speeding, rapid
Public Bus Dispatching acceleration/ deceleration, and sharp
Video client turns which seriously affect the safety
of passengers. Unusual events which
Camera Servers usually cause accidents, emergencies
which need complete evidence & vehicle
Operation & Maintenance breakdown. Also helps and solves issues
Client
CP4 for daily operations such as station
Touch Panel
Servers announcements and bus lane entrance
alerts.
Indoor Outdoor Camera MDVR
Speaker Speaker Interphone
Mobile Client
Taxi Surveilance
REVO Taxi Solution covers personal
& driving safety for both driver and Alarm Button Service evaluator
passengers. The solution also manages & Phone Fingerprint
Recognition Data Center Government
taxi price metering, dispatching, Status Displayer
and passengers’ feedback and
complaints. It can also be integrated Union Pay
Face Detection &
Passenger Count
with advertising resources that can be
Wireless
Network Monitor Center Enterprize
added to the system. GPS info, taxi Fare Calculator
availability status, multiple sensors
and fingerprint authorization all can be On- Call Center Citizen
monitored through one server along Dual Camera
Door IR Sensor
with video covering the interior of the Easy Installation
MDVR
Ad Center Media
cab and the road in front. Pressure Sensor

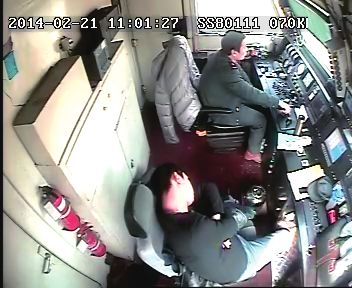

Train & Tram Surveilance Solution
Railway transportation is one of the most
Smoke Detectors
important in the world. Driver behavior
affects the safety of the train operation and
passengers. REVO system offers multiple
Cameras
features such as real-time view of the
front and rear road situation of the train,
NVR, built-in Display NVRs
WI-FI, 3G & 4G monitors the driver behavior, mechanical
Connection
& GPS Location Gigabit Ethernet Port Cascading equipment in the driver’s cabin as well as
integration with any kind of detectors such
as smoke. It enables all subsidiaries of the
Main Cabin, In & Out Coverage Sub Cabin & Cargo Coverage Exit & Entrance Coverage
railway company to share this vital data.
RevoMena.com Page 3
Law Enforcement Surveilance
Police cars and motor bikes deal with critical
situations most of the time. REVO system
provides an advanced evidence center
PTZ Zoom Camera UPS Mic Wireless Body Camera Fingerprint Identification
mainly designed for police management;
Live View
Video Playback
Navigation
Message & Email providing evidence for events and user level
Evidence Center
GPS
Alarms
PTZ Control
management. All evidence can be uploaded
to the server for comprehensive management,
Identification Card Client
Information Reading enabling easy exportation of event reports
based on users’ administration levels. The
CP4
PTZ Control center can also trigger alarms on site.
MDVR Server
School Bus Surveilance
Students’ safety is a major concern and that 360° Full
is why REVO system has given it special External Coverage
attention. The System allows parents to get WI-FI, 3G & 4G
Connection & GPS Location
updates on their children via message or GDS & OBD Systems
email; as students swipe an ID card when Curving
they get on/off the bus. Another function Acceleration/ Braking
Speeding
is an alarm trigger after the bus ignition is Revving
turned off alerting the driver if any students Gliding
Full Internal Coverage Idling
are left on the bus. There is also an integrated Rank of mileage
passenger counting device to check whether Fuel consumption,
the number of students is short or complete. Abnormal driver
behavior statistics
Of course video surveillance allows the
school and parents to monitor what is
happening on the bus. RFID Check-in with
Mobile application Checkout
Button Tire Pressure Monitoring System
Truck Surveilance
As there are different types of trucks and
related functions; REVO system developed a
comprehensive system covering all aspects of
dispatching time, dispatching load, safety, driving,
fuel consumption, vehicle diagnosis & location
services.
Page 4
Fighting Series Features
Super Compression
Mbps
75%-90% 75%-90% 75%-90%
Reduction in Bandwidth Reduction in Bitrate Reduction in Storage cost
Introducing new effective video compression technology: U-Code is an enhanced encoding technology that can help reduce your bandwidth
consumption by up to roughly 80~95% with no loss in quality! Other features include: Advanced Storage Saving, unlike conventional video
compression technologies, which try to reduce storage costs by sacrificing resolution and frame rate indiscriminately. U-Code uses “IRP” (Intelligent
Region Perception) to detect motion in each frame so that scenes containing relevant information (events) could be preserved while the other
relatively static information (such as lawns, white walls, etc.) could be squeezed to save storage. Here’s an example of the amazing capabilities of
U-Code at work: Let’s take a 4MP IP camera as an example. Normally the bit rate would be 6Mbps, and it may roughly store 63G worth of data per
day to the NVR. With U-Code mode activated, the bit rate can be reduced to 0.3~1.5Mbps and it will only require 3G of storage space per day
*Reduction is for normal scenes with adequate motion, doesn’t apply with motion recording
Built-in Video Analytics
New Built-in Video Analytics are introduced in cameras and NVRs, while you can detect special functions, trigger an action accordingly. Also, you
can search the records for these functions. This will maximize efficiency of events detection and will allow customization for different applications.
123
Face Detection Intrusion Detection Crossing Line Detection People Counting
Scene Change Detection Defocus Detection Audio Detection PTZ Auto Tracking
Auto Network Recovery Starlight
When the connection between RU/US IP
camera and NVR is interrupted, IP camera Starlight camera provides perfect color image
can store video in SD card. Then after even under up to 0.0005 Lux(F1.2) low light
reconnection, IP Camera will automatically condition.
send previous video back to NVR for
seamless playback.
RevoMena.com Page 5

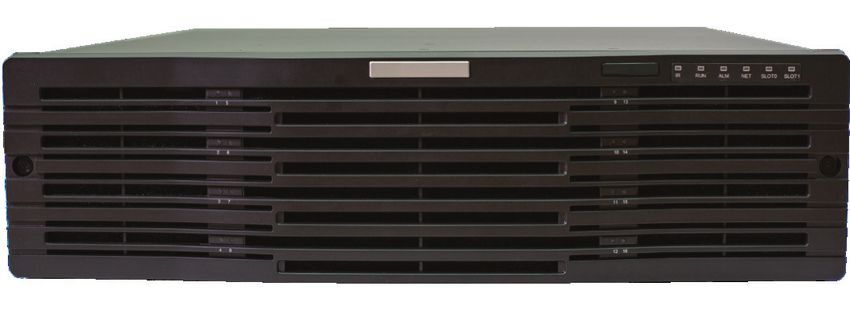

Smart Integrated Surveillance Platform (2000 Ch.)
Guard Server
2000CH
12MP
224
• Embedded system design to ensure stable operation Up to 12MP
2000 Channel System Internal Storage
• Recording solution for up to 256x Channels Monitoring & Recording
• Support for redundant power, dual-OS design
• Hot-swappable HDDs supporting RAID1 and RAID5
• 512Mbps incoming bandwidth, 1000 device connections,
up to 2000 channels of high-definition network videos
• Adaptive H.265 and H.264.
• 4K resolution for preview, storage & playback
• Standard ONVIF
• Real-time alarm, alarm plan & acknowledgment
• Up to 1,000 users can be registered with up to 300 simultanously
• Multiple client options: SW Client, Browser & Mobile
• Simultaneous output from 1×VGA & 2×HDMI (4K resolution)
• 16× SATA interfaces with two optional miniSAS interfaces;
expandable to 48 HDDS with 672TB storage.
• 4×1000M Ethernet interfaces, 2×1000M SFP interfaces
• Unified management of NVR, IP Camera, alarm host, access
control host devices, support device configuration import/export
• Central NVR Backup, NVR Playback, IP Cameras Rec. & Playback
with the option to cascade the storage (under development)

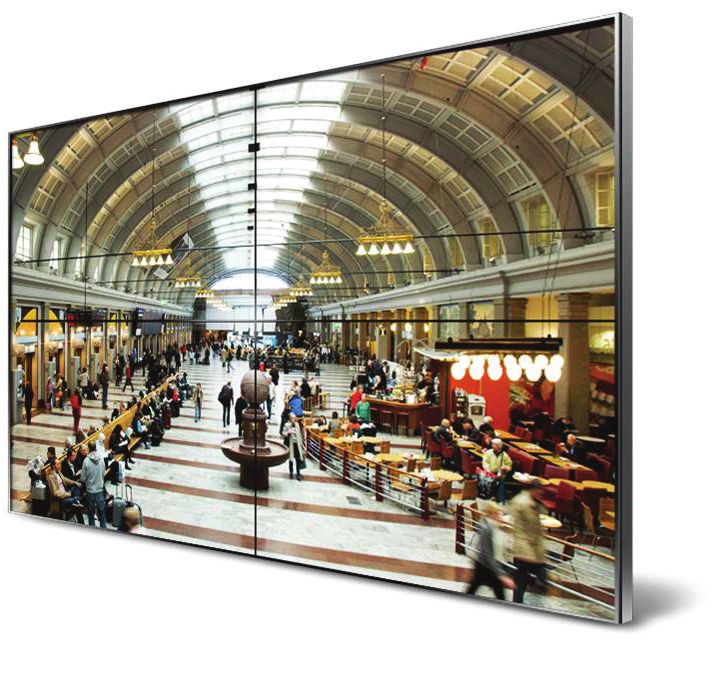

• Up to 9x9 monitors video wall
• Two-way audio communication & E-map
NVR Failover: N+1 hot spare Failover NVR
N+1 hot spare is mainly used in the sites which have high security requirements NVR
for video recording, such as banks & prisons. Client Software
If the working device is offline, the spare device would automatically take over the
NVR
work. When the working device is back on-line, the spare device would stop the
...
service and send the recording back to the working device.
Configuration of failover only needs to add the spare device to the working; then NVR
all working devices connected to spare device will be displayed in the spare
device’s list. *Available in UNxx5C, UNxx6C and Guard Server series
*Recommended to use between same model
Open Compatibility
RU/US Series are Open for multiple VMS; Integrated & tested with the following leading VMS to reach the maximum interoperability
Page 6
IP Fighting Series RU Cameras
12MP IR Vandal Fisheye 5MP Vandal Fisheye
RUA12-360 RUA50-360
IP66 5MP IP66
Weather Proof 5MP Resolution Weather Proof
• Ultra H.265, H.265, 12MP @ 15ips, 6MP @ 25ips • Ultra H.265, H.265, 5MP @ 30ips
• IR LEDs, 10m • IR LEDs, 10m
• Panoramic image, D-PTZ & different Dewarping options • Panoramic image, D-PTZ & different Dewarping options
• Smart D-PTZ function • Smart D-PTZ function
• SD Card, Alarm & Audio • WDR, SD Card, Alarm & Audio
• IP66, IK10 & PoE • IP66, IK10 & PoE
Dome Cameras
4K IR Eyeball Dome 5MP IR WDR Vandal Dome 5MP IR WDR Vandal Dome
RUD801A RUD507S RUD509S
4K Ultra HD
4K Resolution IR LEDs
5MP
5MP Resolution
5MP
5MP Resolution
• Ultra H.265, H.265, 8MP @ 20ips • Ultra H.265, H.265, 5MP @ 20ips • Ultra H.265, H.265, 5MP @ 20ips
• 2.8-12mm Motorized Lens • 2.7-13.5mm Motorized Lens • 4mm Fixed Lens
• IR LEDs, 30m • IR LEDs, 30m • IR LEDs, 30m
• WDR, Corridor, SD Card, Alarm & Audio • WDR, Corridor, SD Card, Alarm & Audio • WDR, Corridor, SD Card, Alarm & Audio
• Built-in Video Analytics • Built-in Video Analytics • Built-in Video Analytics
• IP67, & PoE • IP67, IK10 & PoE • IP67, IK10 & PoE
2MP IR Vandal Dome 2MP IR Vandal Dome 2MP WDR Eyeball IR Dome
RUD206 RUD205E RUD207S
IP67 IP67
Weather Proof Weather Proof
• Ultra H.265, H.265, 2MP @ 30ips • Ultra H.265, H.265, 2MP @ 30ips • Ultra H.265, H.265, 4MP @ 30ips
• 2.8-12mm Varifocal Lens • 2.8mm Fixed Lens • 2.7-13.5mm Motorized Lens
• IR LEDs, 30m • IR LEDs, 15m • IR LEDs, 30m
• WDR, Corridor, Alarm & Audio • True ICR, Corridor, Audio • WDR, Corridor, Audio
• Built-in Video Analytics • Built-in Video Analytics • Built-in Video Analytics
• IP67, IK10 & PoE • IP67, IK10 & PoE • IP67 & PoE
RevoMena.com Page 7
4K IR Zoom Vandal Dome 4MP IR Zoom/ Varifocal Vandal Dome 2MP IR Zoom/ Varifocal Vandal Dome
RUD807 RUD407/ RUD402 RUD2071/ RUD2022
4K Ultra HD
4K Resolution
• Ultra H.265, H.265, 8MP @ 30ips • Ultra H.265, H.265, 4MP @ 20ips • Ultra H.265, H.265, 2MP @ 30ips
• 2.8-12mm Motorized Lens • 2.8-12mm Motorized/ Varifocal Lens • 2.8-12mm Motorized/ Varifocal Lens
• IR LEDs, 30m • IR LEDs, 30m • IR LEDs, 30m
• WDR, Corridor, SD Card, Alarm & Audio • WDR, Corridor, SD Card, Alarm & Audio • WDR, Corridor, SD Card, Alarm & Audio
• Built-in Video Analytics • Built-in Video Analytics • Built-in Video Analytics
• IP67, IK10 & PoE • IP67, IK10 & PoE • IP67, IK10 & PoE
4MP IR Vandal Dome 2MP IR Vandal Dome 4MP/ 2MP IR Dome
RUD409 RUD209 RUD408/ RUD2031
IP67
Weather Proof
• Ultra H.265, H.265, 4MP @ 20ips • Ultra H.265, H.265, 2MP @ 30ips • Ultra H.265, H.265, 4MP @ 20ips/
• 2.8mm Fixed Lens • 2.8mm Fixed Lens 2MP @ 30ips
• IR LEDs, 30m • IR LEDs, 30m • 2.8mm Fixed Lens
• WDR, Corridor, Alarm & Audio • WDR, Corridor • IR LEDs, 30m
• Built-in Video Analytics • Built-in Video Analytics • WDR (RUD408), Corridor
• IP67, IK10 & PoE • IP67, IK10 & PoE • Built-in Video Analytics *Available with 1.3MP
• IP67 & PoE
Box Camera
12MP Box 2MP Box
RUB1203 RUB201
• Ultra H.265, H.265, 12MP @ 20ips,
8MP @ 30ips • 2MP @ 30ip
• C/ CS Lens Mount, Defog • WDR, Corridor
• SD Card, Alarm & Audio • C/ CS Lens Mount
• Built-in Video Analytics • SD Card, Alarm & Audio
• SFP, AC24V, DC12V & PoE • AC24V, DC12V & PoE
• Many options of housings & Lenses • Many options of housings &
Lenses
Page 8
Bullet Cameras
4K/ 2MP IR Zoom Bullet 4K IR Zoom Bullet 5MP IR WDR Bullet
RUA809/ RUA209S RUA807 RUA509S
4K Ultra HD
4K Resolution
4K Ultra HD
4K Resolution
5MP
5MP Resolution
IP67
Weather Proof
• Ultra H.265, H.265, 8MP/2MP @ 30ips • Ultra H.265, H.265, 8MP @ 20ips • Ultra H.265, H.265, 5MP @ 20ips
• 2.8-12mm Motorized Lens, • 2.8-12mm Motorized/ Varifocal Lens • 4mm Fixed Lens, Starlight
(RUA209S: Starlight) • IR LEDs, 50m • IR LEDs, 30m
• IR LEDs, 100m • WDR, Corridor, SD Card, Alarm & Audio • WDR, Corridor, Built In Mic.
• WDR, Corridor, SD Card, Alarm & Audio • Built-in Video Analytics • Built-in Video Analytics
• Built-in Video Analytics • IP67 & PoE • IP67 & PoE
• IP67 & PoE
5MP IR WDR Bullet 4MP IR Zoom/ Varifocal Bullet 4MP IR WDR Bullet
RUA507S RUA407/ RUA404 RUA408E
5MP IP67
5MP Resolution Weather Proof
• Ultra H.265, H.265, 5MP @ 20ips • Ultra H.265, H.265, 4MP @ 20ips • Ultra H.265, H.265, 4MP @ 20ips
• 2.7-13.5mm Motorized Lens, Starlight • 2.8-12mm Motorized/ Varifocal Lens • 4mm Fixed Lens
• IR LEDs, 50m • IR LEDs, 30m • IR LEDs, 50m
• WDR, Corridor, SD Card, Alarm & Audio • WDR, Corridor, SD Card, Alarm & Audio • WDR, Corridor, SD Card
• Built-in Video Analytics • Built-in Video Analytics • Built-in Video Analytics
• IP67 & PoE • IP67 & PoE (GUA407: IK10) • IP67 & PoE
4MP/ 2MP IR Mini Bullet 4MP IR Fixed P/T Bullet 2MP IR Zoom/ Varifocal Bullet
RUA408/ RUA2022 RUA406 RUA2071/ RUA2051
IP67 IP66
Weather Proof Weather Proof
• Ultra H.265, H.265, 4MP @ 20ips/ • Ultra H.265, H.265, 4MP @ 20ips • Ultra H.265, H.265, 2MP @ 30ips
2MP @ 30ips • 4mm Fixed Lens • 2.8-12mm Motorized/ Varifocal Lens
• 3.6mm/ 4mm Fixed Lens • IR LEDs, 50m • IR LEDs, 30m
• IR LEDs, 30m • Built-in 32GB, Alarm & Audio • WDR, Corridor, SD Card, Alarm & Audio
• WDR (RUA408) , Corridor • Built-in Video Analytics • Built-in Video Analytics
• Built-in Video Analytics • Pan/Tilt Motor, IP66 & PoE • IP67, IK10 & PoE
• IP67, Mini size & PoE
RevoMena.com Page 9PTZ Cameras
2MP 44x/38x Starlight IR PTZ 4K Starlight 38x IR PTZ 2MP 33x IR Laser PTZ
US205S/ US207S US803S US203LS
4K Ultra HD
4K Resolution
38
38x zoom
• Ultra H.265, H.265, 2MP @ 60ips • Ultra H.265, H.265, 8MP @ 30ips • Ultra H.265, H.265, 2MP @ 60ips
• 44x/38x Zoom, Starlight • 38x Zoom • 33x Zoom, Starlight
• Synchronized IR LEDs, 250m • Synchronized IR LEDs, 250m • IR Laser & LEDs, 500m
• EIS, WDR, SD Card, Alarm & Audio • EIS, SD Card, Alarm & Audio • EIS, WDR, SD Card, Alarm & Audio
• Built-in Video Analytics • Built-in Video Analytics • Built-in Video Analytics, Auto Tracking
• Auto Tracking (US205S) • IP66 • IP66 & PoE
• IP66
3MP 33x IR PTZ 2MP 30x IR PTZ 2MP 33x Outdoor PTZ
US301E US2031/ US2041 US201SE
• Ultra H.265, H.265, 3MP @ 30ips • Ultra H.265, H.265, 2MP @ 30ips • Ultra H.265, H.265, 2MP @ 30ips
• 33x Zoom • 30x (US2031), 20x (US2041) Zoom • 33x Zoom, Starlight
• Synchronized IR LEDs, 200m • Synchronized IR LEDs, 150m • Synchronized IR LEDs, 150m
• EIS, WDR, SD Card, Alarm & Audio • EIS, SD Card, Alarm & Audio • EIS, SD Card, Alarm & Audio
• Built-in Video Analytics & Auto Tracking • Built-in Video Analytics & Auto Tracking • Built-in Video Analytics, Auto Tracking
• IP66 • IP66 & PoE • IP66 & PoE
2MP 44x Starlight IR PTZ 2MP 5x Mini PTZ 4K Starlight Omniview Camera
US205SE US205P RUA804-180
5x
5x Zoom
4K Ultra HD
4K Resolution
IP67
Weather Proof
• Ultra H.265, H.265, 2MP @ 60ips • Ultra H.265, H.265, 2MP @ 30ips • Ultra H.265, H.265, 8MP @ 30ips
• 44x Zoom, Starlight • 5x Zoom • 44x Zoom, Starlight
• Synchronized IR LEDs, 250m • Synchronized IR LEDs, 30m • Synchronized IR LEDs, 50m
• EIS, WDR, SD Card, Alarm & Audio • EIS, SD Card, Built In Mic. • WDR, SD Card, Alarm & Audio
• Built-in Video Analytics • Built-in Video Analytics • Built-in Video Analytics
• IP66 • PoE • IP67
Page10IP Fighting Series UN NVRs
128 & 64 CH NVR 64 & 32 CH NVR 16 CH PoE NVR
UN126C & UN646C UN645C & UN325C UN164PC
12MP 12MP 12MP
224 112 56
Up to 12MP Up to 12MP Up to 12MP
Internal Storage Internal Storage Internal Storage
Monitoring & Recording Monitoring & Recording Monitoring & Recording
• 128 & 64 CH IP Cameras • 64 & 32 CH IP Cameras • 16CH IP Cameras, PoE inputs
• Supports Ultra H.265, H.265 & H.264 • Supports Ultra H.265, H.265 & H.264 • Supports Ultra H.265, H.265 & H.264
• Up to 12MP Recording • Up to 12MP Recording • Up to 12MP Recording
• 16x SATA HDDs Internally, Mini SAS, RAID • 8x SATA HDDs Internally, RAID • 4x SATA HDDs Internally
• HDMI (4K), VGA Local Display & Alarm • HDMI (4K), VGA Local Display & Alarm • HDMI (4K), VGA Local Display & Alarm
• Redundant power supply
16 CH NVR 16 CH NVR
UN162C UN162C1
• 16CH IP Cameras • 16CH IP Cameras
• 2x SATA HDDs Internally • 2x SATA HDDs Internally
12MP
• Supports Ultra H.265, H.265 28 • Supports Ultra H.265, H.265
4K
28
& H.264 & H.264
Up to 12MP
• Up to 12MP Recording Monitoring & Recording
Internal Storage
• Up to 8MP Recording
Up to 4K
Monitoring & Recording
Internal Storage
• HDMI & VGA Local Display & Alarm • HDMI & VGA Local Display
16 CH NVR
UN163C 9 CH NVR
UN092C
• 16CH IP Cameras
• 8x SATA HDDs Internally • 9CH IP Cameras
12MP
• Supports Ultra H.265, H.265 • 2x SATA HDDs Internally
9
112 4K
& H.264 • Supports Ultra H.265, H.265 28
• Up to 12MP Recording
Up to 12MP
Monitoring & Recording
Internal Storage & H.264
Up to 4K
• HDMI & VGA Local Display & Alarm • Up to 12MP Recording 16 Channel System
Monitoring & Recording
Internal Storage
• HDMI & VGA Local Display
8 CH PoE NVR 8/ 4 CH Hybrid NVR
UN081PC/ UN081C UN162H/ UN082H
• 8CH IP Cameras • 16/ 8CH IP, AHD,TVI,CVI &
• PoE inputs (UN081PC) CVBS Cameras, Up to 24/ 16 IP
4K
• Supports Ultra H.265, H.265 & 14 Channels 28
H.264 • Up to 8MP IP Recording
• Up to 12MP Recording Internal Storage
• Up to 5MP Analog HD Rec. Up to 4K
Monitoring & Recording
Internal Storage
• 1x SATA HDD Internally • 2x SATA HDD Internally
• HDMI (4K) & VGA Local Display • HDMI (4K) & VGA Local Display
RevoMena.com Page11IP Fighting Series RU Cameras
RU Lite Series
4/8Ch Lite NVR 4/8Ch Lite PoE NVR
UN041L, UN081L UN041PL & UN081PL
10 14
Internal Storage Internal Storage PoE
• 4/8CH IP Cameras • 4/8CH IP Cameras
• Supports Ultra H.265, H.265 & H.264 • PoE inputs
• Up to 2MP Recording • Supports Ultra H.265, H.265 & H.264
• 1x SATA HDD Internally • Up to 2MP Recording
• HDMI & VGA Local Display • 1x SATA HDD Internally
• HDMI & VGA Local Display
2MP IR Fixed Dome 2MP IR Fixed 4MP IR Fixed
RUD203L Vandal Dome Vandal Dome
RUD205L RUD405L
IP67
Weather Proof PoE PoE PoE
• Ultra H.265, H.265, 2MP @ 25ips • Ultra H.265, H.265, 2MP @ 25ips • Ultra H.265, H.265, 4MP @ 20ips
• 2.8 Fixed Lens • 2.8 Fixed Lens • 2.8 Fixed Lens
• IR LEDs, 30m • IR LEDs, 30m • IR LEDs, 30m
• Digital WDR • Digital WDR • Digital WDR
• Built-in Video Analytics • Built-in Video Analytics • Built-in Video Analytics
• IP67 & PoE • IP67, IK10 & PoE • IP67, IK10 & PoE
2MP IR Vandal Bullet 4MP IR Vandal Bullet 2MP IR Outdoor PTZ
RUA202L RUA402L US204E
IP67 IP67 IP67
Weather Proof PoE Weather Proof PoE Weather Proof PoE
• Ultra H.265, H.265, 2MP @ 25ips • Ultra H.265, H.265, 4MP @ 20ips • Ultra H.265, H.265, 2MP @ 20ips
• 4mm Fixed Lens • 4mm Fixed Lens • 22x Optical Zoom
• IR LEDs, 30m • IR LEDs, 30m • Synchronized IR LED, 150m
• Digital WDR • Digital WDR • Digital WDR
• Built-in Video Analytics • Built-in Video Analytics • Built-in Video Analytics
• IP67 & PoE • IP67 & PoE • IP67 & PoE
Fighting Series VMS: Guard Station
• Unified management for IP Cameras, NVR, recording server, & streaming servers
• Flexible to manage up to 512 local channels and 512 cloud channels; add, edit and share cloud devices.
• Live view: up to 64*4 live view and sequence display, corridor mode, two-way audio, audio broadcast
• Record, Playback & PTZ control
• Administration functions alarm triggering for live view, recording
• MAP Integration for full site coverage
• Flexible maintenance such as log export, alarm info export
• Friendly user interface for easy operation
• Multi-channel people counting
• Supports Failover system
• Supports disk and array alarms
• For REVO Fighting Range IP Cameras: RU, US Series, NVRs: UN Series
Page12IP Elite Series RI Cameras
Dome Cameras
8MP IR Zoom Vandal Dome 4MP IR Vandal Dome 2MP IR Zoom Vandal Dome
RIVD80IR-2P RIVD40IR-2P RIVD20IR-2P
4K Ultra HD
4K Resolution
• 8MP @ 30ips • 4MP @ 30ips • 2MP @ 30ips
• 3.6-11mm Motorized Lens • 2.8-12mm Motorized Lens • 2.8-12mm Motorized Lens
• IR LEDs, 30m, Built-in Video Analytics • IR LEDs, 30m, Built-in Video Analytics • IR LEDs, 30m, Built-in Video Analytics
• WDR, SD Card, Alarm & Audio • WDR, SD Card, Alarm & Audio • WDR, SD Card, Alarm & Audio
• IP66 & PoE • IP66 & PoE • IP66 & PoE
2MP IR Fixed Dome 2MP Pinhole IP Camera
RIVD20IR-P RIPP20-A
• 2MP @ 30ips • 2MP @ 60ips
• 3.7mm Fixed Lens • 4.3mm Pinhole Lens
• IR LEDs, 25m, Built-in Video Analytics • WDR, SD Card, Alarm & Audio
• WDR, SD Card, Alarm & Audio • Miniature size for ATM machine fit
PTZ Cameras
2MP 20x PTZ 3MP 36x PTZ 8MP 30x PTZ
RISD20-2P RISD36-9P RISD30-3P
36
36x zoom
350m
350m IR Range
4K Ultra HD
4K Resolution
350m
350m IR Range
• 2MP @ 30ips • 3MP @ 30ips • 8MP @ 30ips
• 20x Zoom • 36x Zoom, WDR • 30x Zoom, WDR
• Built-in Video Analytics • Sync. IR LED, 350m, Built-in Video Analytics • Sync. IR LED, 350m, Built-in Video Analytics
• WDR, SD Card, Alarm & Audio • SD Card, Alarm & Audio • SD Card, Alarm & Audio
• IP66 & PoE • IP66 & PoE • IP66 & PoE
RevoMena.com Page13Bullet Cameras
8MP IR Zoom Bullet 4MP IR Zoom Bullet 2MP IR Zoom Bullet
RIPP80-1P RIPP40MIR-4P RIPP20MIR-4P
4K Ultra HD
4K Resolution
• 8MP @ 30ips • 4MP @ 30ips • 2MP @ 30ips
• 3.6-11mm Motorized Zoom Lens • 2.8-12mm Motorized Zoom Lens • 2.8-12mm Motorized Zoom Lens
• IR LEDs, 30m, Built-in Video Analytics • IR LEDs, 30m, Built-in Video Analytics • IR LEDs, 30m, Built-in Video Analytics
• WDR, SD Card, Alarm & Audio • WDR, SD Card, Alarm & Audio • WDR, SD Card, Alarm & Audio
• IP66 & PoE • IP66 & PoE • IP66 & PoE
2MP IR Bullet 2MP License Plate 4K WDR Box Camera
RIPP20MIR-2P Capture IR Bullet RIPP20MIR-3P RIXN80-4P
IP66
Weather Proof
IP66
Weather Proof
4K Ultra HD
4K Resolution
• 2MP @ 30ips • 2MP @ 60ips • 8MP @ 30ips
• 3.7mm Fixed Lens • 5.1-51mm Motorized Zoom Lens • Built-in Video Analytics
• IR LEDs, 25m, Built-in Video Analytics • IR LEDs, 25m, Multi-Shutter • WDR, SD Card, Alarm & Audio
• WDR, SD Card, Alarm & Audio • SD Card, Alarm & Audio • 12VDC, & PoE
• IP66 & PoE • IP66 & PoE • Many options of housings & Lenses
Fisheye Camera
8MP Vandal IP Fisheye
RIPP80IR-360 4K Ultra HD
4K Resolution
• 8MP @ 30ips
• Multi-panoramic views, software/ camera &
Mobile App Dewarping
• Up to 256 points of interest can be monitored
& analyzed without any blind spot
• Viewers can easily control, monitor the image
with smart D-PTZ, choosing region of interest
• IR LEDs, 10m, Built-in Video Analytics
• SD Card, Alarm & Audio
• IP66 & PoE
* 12MP Available soon
Page14NVRs
32CH NVR 16CH NVR
• 32 Ch. IP Inputs RI32NVR-4P • 16 Ch. IP Inputs RI16NVR-4P
• Up to 8MP Recording • Up to 8MP Recording
• Built-In 16 CH POE switch • Built-In 16 CH POE switch
• Real-Time Recording @ 4k (8MP) • Real-Time Recording @ 4k (8MP)
• H.265, H.264 Dual Codec • H.265, H.264 Dual Codec
• Video Management Software for • Video Management Software for
Remote Viewing, Playback & Remote Viewing, Playback &
Management Management
• 4x SATA HDDs with iSCSI & • 4x SATA HDDs with iSCSI &
e-SATA External storage capability e-SATA External storage capability
• Text In (ATM/POS) Overlay • Text In (ATM/POS) Overlay
PoE PoE
• 16 Ch. IP Inputs
16CH NVR • 8 Ch. IP Inputs
8CH NVR
• Up to 8MP Recording RI16NVR-2P • Up to 8MP Recording RI8NVR-2P
• Built-In 16 CH POE switch • Built-In 8 CH POE switch
• Real-Time Recording @ 4k (8MP) • Real-Time Recording @ 4k (8MP)
• H.265, H.264 Dual Codec • H.265, H.264 Dual Codec
• Video Management Software for • Video Management Software for
Remote Viewing, Playback & Remote Viewing, Playback &
Management Management
• 2x SATA HDDs with iSCSI External • 2x SATA HDDs with iSCSI External
storage capability storage capability
• Text In (ATM/POS) Overlay • Text In (ATM/POS) Overlay
PoE PoE
4CH NVR
• 4 Ch. IP Inputs RI4NVR-2P
• Up to 8MP Recording
• Built-In 4 CH POE switch
• Real-Time Recording @ 4k (8MP)
• H.265, H.264 Dual Codec
• Video Management Software for
Remote Viewing, Playback & 4
4 Channel System
Management
• 2x SATA HDDs with iSCSI External
storage capability
• Text In (ATM/POS) Overlay PoE
Hybrid & IP Elite Client: NC-Titanium
Software solution for administration, recording and monitoring of Hybrid DVRs & IP Elite devices. Server-Client
system for local and remote operation.
Multi Tabs software Live1/Live2 (each with 64 Ch), Playback, Device playback, Status, E-map & Status
RevoMena.com Page15NVRs
32CH Hybrid (IP & Analog) NVR 16CH/ 8CH/ 4CH NVR 16CH/ 4CH NVR
RI32NVR-1H EN5416/ EN5208/ EN5104 RI16NVR-1I / RI4NVR-1I
12MP
External Storage Up to 12MP External Storage
Monitoring & Recording
• Hybrid NVR with up to 32 IP Ch., up to 16 • 16/ 8/ 4 CH IP Cameras, Built-in 8/ 8/ 4 PoE • 16 / 4 CH IP Cameras
Analog Ch. Ports • 2 SATA HDDs Internally, eSATA
• Up to 4K Recording • Supports H.265 & H.264 • Elite Range, 3rd Party & Onvif Support
• 6x SATA HDDs Internally, eSATA & RAID1 • Up to 12MP Recording
• HDMI, VGA Local Display, Local Alarm & Audio • 2x SATA HDDs Internally, eSATA
• Elite Range, 3rd Party & Onvif Support • HDMI, VGA Local Display, Local Alarm & Audio
• Elite Range, 3rd Party & Onvif Support
External Storage
• Up to 4 SATA HDD Bays, Up to • Up to 16 SATA HDD Bays, Up to
6TB each 6TB each
• Quick & Easy Installation eSATA RAID • Hot Swapable HDDs Wide Range of iSCSI RAID Options
• eSATA (SATA II, 3.0Gbps) • LCD For Status Display
interface • Quick & Easy Installation
• Support Multiple RAID Options • Support Multiple RAID Options
IP Elite Series VMS: iNEX
• Up to Unlimited channels licensed separately per service
• Central management SW for Elite NVRs, DVRs & IP cameras
• Tailored Licensed packages (8, 16, 32, 48, 64, 128, 256 Channels per server) distributed on
up to 64 servers
• Federation service controlling Unlimited No. of channels
• CMS up to 1,024 DVRs and/or NVRs with Monitoring, Playback & Setup
• Unlimited no. of users with Up to 64 clients simultaneously with streaming
• Scheduled Backup for IP records and/or DVRs, Failover & Reundancy
• iNEX Interactive Client SW smart GUI with up to 15 tab, MAP Integration
• Video Analytics: Object Removed/ Left, Loitering and Tripzone
• Full Video Wall functionality Controllable remotely with network keyboard
• WIBUKey (USB Dongle) activation needed per server, Optional Electronic license
• Soft License will be available, please ask for changes
• iNEX Supports:
REVO Elite Range IP Cameras & REVO DVRs
REVO Elite Range NVRs
Open Platform Compatible with 3rd party Cameras through Onvif
Page16FULL HD Analog Range
TVI Cameras Hybrid DVRs
• Hybrid DVR with 16CH TVI
(5MP, 2MP & 1MP) & CVBS (960H)
• Real-Time Recording @ 2MP
• 4x SATA HDDs Internal, eSATA
• RAID 1 Support
• HDMI, VGA & BNC Local Display 16 CH
• Supports UTC (TVI camera OSD Hybrid (TVI & CVBS) DVR
control over Coax) XD4416R
• Remote software for administration &
monitoring
• Hybrid DVR with 8CH TVI
(5MP, 2MP, 1MP) & CVBS (960H)
2MP TVI IR Bullet 2MP TVI IR Vandal Dome • Real-Time Recording @ 2MP
RTPP20-1P RTVD20IR-1P • 4x SATA HDDs Internal, eSATA
• TVI 1080p Full HD Resolution • TVI 1080p Full HD Resolution • RAID 1 Support 8 CH Hybrid
• 2.8-12mm Varifocal Lens • 2.8-12mm Varifocal Lens • HDMI, VGA & BNC Local Display (TVI & CVBS) DVR
• WDR, IR LEDs, 40m Range • WDR, IR LEDs, 25m Range • Supports UTC (TVI camera OSD XD4408R
• IP67, TVI/ CVBS outputs, UTC • IP67, TVI/ CVBS outputs, UTC control over Coax)
• Available with Zoom & Fixed • Available with Fixed Lens • Remote software for administration
Lens options & monitoring
• Hybrid DVR with 4CH TVI / AHD
(2MP & 1MP) & CVBS (960H)
2MP TVI Zoom IR Bullet 2MP TVI Box • 120ips Rec.@ 2MP
RTPP20M-1P RTXN20-1P • 2x SATA HDDs Internal
• TVI 1080p Full HD Resolution • TVI 1080p Full HD Resolution • HDMI & VGA Local Display 4 CH Hybrid
• 5.1-51mm 10x Zoom Lens • WDR • Supports UTC (TVI camera OSD (TVI, AHD & CVBS) DVR
• WDR, IR LEDs, 50m Range • C/ CS Lens control over Coax) ED4304
• IP66 • TVI/ CVBS outputs, UTC • Remote software for administration
• TVI/ EX-SDI/ CVBS outputs, UTC • Many options of housings & & monitoring
Lenses
2MP TVI/AHD 2MP TVI/ AHD 2MP TVI/ AHD 2MP TVI/ AHD
20x Vandal PTZ 30x PTZ 30x Vandal PTZ IR 30x Vandal PTZ
RIVDPTZ20-1P RATSD30-2P RATSD30-3P RATSD30-1P
• TVI/ AHD 1080p Full HD Res. • TVI/ AHD 1080p Full HD Res. • TVI/ AHD 1080p Full HD Res. • TVI/ AHD 1080p Full HD Res.
• 20x Zoom, WDR • 30x Zoom, WDR • 30x Zoom, WDR • 30x Zoom, WDR
• Vandal, IP66, Compact Size • Compatible with wide range of • IP66, IK10 • IR LEDs, 200m Range
• TVI/ AHD/ CVBS switching, UTC housings and accessoris. • TVI/ AHD/ CVBS switching, UTC • IP66, IK10
• TVI/ AHD/ CVBS switching, UTC • TVI/ AHD/ CVBS switching, UTC
RevoMena.com Page17Guard Server Access Control Integration
Through the open management platform for surveillance system, the
solution for enterprise projects allows for a unified management of
security monitoring. Not only can it complete the security systems
integration in one platform as well as among several platforms, but also
integrates with alarm and access control systems.
Thermal Solution
Ultimate reliability video surveillance camera system with a comprehensive line of intelligent
analog, and IP video surveillance solutions, performance, quality and intelligent functionality
that grow with your requirements.
The product range includes Thermal Imaging Cameras, Pan Tilt Cameras, IP Cameras as well as
Analogue Cameras.
A thermal imaging camera with high core technology, which captures images by detecting the
energy difference of the infrared rays radiated by the target and the background within the visual
field, then converting this into an electronic signal and finally into a digital image.
• Multi sensors thermal imaging IP & Analog PTZ & Fixed cameras
• Up to 1280 x 720P Thermal camera resolution using QIET scale up (Quality
Image Enhancement Technology)
• Spot & Area temperature detection
• Adoption of low vision conditions of night, rain and fog
• 1,000 hours salt spraying test passed
• Different lenses and sensors with coverage up to 10 kilometers
ATM Solution
Small Form Factor NVR Banking applications treat transactions from ATM ATM Camera
machines carefully; recording them with text overlay.
The video from the ATM camera is very helpful,
in addition to a DVR size fitting the ATM cabin &
miniature cameras installed inside the machine.
Page18Network Switches - PoE
4 Port PoE Gigabit Switch 8 Port PoE Gigabit Switch
NSW2010-6T-POE NSW2010-10T-POE
• 4x PoE and 2x Uplinks • 8x PoE and 2x Uplinks
• Multiple working modes: • Multiple working modes:
Normal and Extended Normal, VLAN and Extended
• Up to 250m transmission • Up to 250m transmission
32” 43” 43”
24x7 24x7 32” 43” 24x7
• AC Power 100-240V • AC Power 100-240V
• MTBF >50000 hours • MTBF >50000 hours
• All metal housing Screen Size Narrow Bezel Continious Operation • All metal housing Screen Size Narrow Bezel Continious Operation
16 Port PoE Switch 24 Port PoE Switch
NSW2010-16T2GC-POE NSW2010-24T2GC-POE
• 16x PoE and 2x Uplinks • 24x PoE and 2x Uplinks
• Can use SFP for Uplinks • Can use SFP for Uplinks
• Multiple working modes: • Multiple working modes:
Normal, VLAN and Extended Normal, VLAN and Extended
21.5” 43” 24x7 18.5” 43” 24x7
• Up to 250m transmission • Up to 250m transmission
16:9 16:9
• AC Power 100-240V • AC Power 100-240V
• MTBF >50000 hours Screen Size Wide Screen Continious Operation • MTBF >50000 hours Screen Size Wide Screen Continious Operation
• All metal housing • All metal housing
Network Controllers
EN Series Network Keyboard Fighting Series Network Keyboard RI Series Network Keyboard
INK1100 KB-1100 RSK01-IP
• Remote control of DVRs, NVRs, and Network • Remote Control for NVRs (NVR Setup & PTZ • Remote Control for NVRs (NVR Setup & PTZ
Cameras /PTZ via Ethernet connections control) control)
• VMS Client control • Web Configuration & Settings • USB Interface for Easy Plug and Play
• Two-way audio communication • Control through serial: RS485, RS232 & • Control through serial: RS485, RS232 &
• Recalls of 100 macros and function mapping of 8 Ethernet: RJ45 Ethernet: RJ45
• Control up to 240 NVRs • Recalls Up to 254 Cameras
RevoMena.com Page19Display Solutions - Monitors
43” Monitor 32” Monitor
MW3243-E MW3232-E
• Ultra narrow bezel • Ultra narrow bezel
• Wide view angle 178°(H)/ 178°(V) • Wide view angle 178°(H)/ 178°(V)
• Designed for 24x7 operation • Designed for 24x7 operation
32” 43” 43”
24x7 24x7 32” 43” 24x7
• Full-HD Resolution (1920x1080) • Full-HD Resolution (1920x1080)
• DVI, VGA, HDMI and Audio • DVI, VGA, HDMI and Audio
interfaces Screen Size Narrow Bezel Continious Operation interfaces Screen Size Narrow Bezel Continious Operation
• 2x 3W Speakers • 2x 3W Speakers
21.5” Monitor 18.5” Monitor
MW3222-V MW3219-V
• Wide view angle 170°(H)/ 160°(V) • View angle 90°(H)/ 65°(V)
• Designed for 24x7 operation • Designed for 24x7 operation
• Full-HD Resolution (1920x1080) • HD Resolution (1366x768)
21.5” 43” 24x7 18.5” 43” 24x7
• VGA, HDMI and Audio interfaces • VGA interface
16:9 16:9
• 2X 2W Speakers • Without Speakers
Screen Size Wide Screen Continious Operation Screen Size Wide Screen Continious Operation
Display Solutions - Video Wall
Perfect solution for all security and control room applications, Built to run 24/7 and Tailormade
view across multiple monitors with merging or seperate monitors; up to a 15 x 15 configuration
with Wide Range of Monitors Up to 4K Resolution and 42 – 98 Inch per monitor.
Video Multiviewer allows for maximum flexibility in screen layout and for viewing multi-
window content of video and graphics at the same time over a single or multiple displays.
• Super Narrow Bezel Width is Perfect for tight mounting Video Wall
• DVI/ HDMI Cascading Up to 225 Monitors
•
•
•
Wide range of accessories and mounting options
Commander application allows on-screen graphical elements to be designed with any graphics tool
Multiple multivieiwer options with DVI, HDMI and SD / HD / 3G-SDI models with embedded audio
4K Ultra HD
4K Resolution
Page20Revo born in the USA with an extensive product range designed and built for the high-end enterprise level
applications; complying with the demanding integration requirements of such applications, meeting the strin-
gent technical specifications within the industry.
Revo MENA, operating out of Jebel Ali, Dubai, UAE, provides on-going technical and design support with
local stock availability for prompt shipping throughout the Middle East & North Africa (MENA).
Revo Team, with vast and rich experience in the Americas & MENA, along with its worldwide network of
partners enables Revo to be an industry leader with special emphasis on the needs of System Integrators.
REVO MENA, Dubai, UAE REVO America, Irving, Texas, USA
www.revomena.com,
RevoMena.com sales@revomena.com www.revoamerica.com Page21You can also read
