R&S®GTA-RN5 Radio Net


                            Radiomonitoring & Radiolocation

                                                               Data Sheet | 01.02
Simulation Device
Testing and ­training
­using defined ­scenarios
R&SGTA-RN5 Radio Net Simulation Device Testing and training using defined scenarios
R&S®GTA-RN5                                             The R&S®GTA-RN5 simulates wave propagation between
                                                        radios and/or radiomonitoring equipment that are con-
                                                        nected to the device. It provides all the required functional-

Radio Net                                               ity in a single box and does away with complex and costly
                                                        open-field tests. All test parameters can be edited and
                                                        stored by means of the control software. This allows the

­Simulation Device                                      use of a variety of reproducible test scenarios.

                                                        The radio net simulation device is exceptionally well s­ uited

 At a glance                                            for training purposes and testing. The R&S®GTA-RN5
                                                        makes it possible to train and test – even in parallel –
                                                        v­arious radiocommunications and radiomonitoring applica-
                                                        tions, as well as applications related to electronic support
To accomplish missions successfully, it is essential    measures (ESM), electronic protective measures (EPM),
to carry out training and tests that closely reflect    and electronic countermeasures (ECM). All tests and train-
                                                        ing courses are performed using the actually deployed
real operational conditions and to know the capabili-
                                                        devices, providing an effective means of reducing costs
ties of one's own forces.                               significantly.
The R&S®GTA-RN5 radio net simulation device
­offers the required solution, providing defined and    Applications
                                                        JJ Test   of new concepts and devices in dedicated, realistic
 reproducible scenarios and boundary conditions
                                                           scenarios
 for radiomonitoring and radiolocation as well as       JJ Operator training in the fields of r­ adiocommunications,
 radiocommunications.                                      ­radiolocation/radiomonitoring and electronic
                                                            ­countermeasures
                                                        JJ Optimization of system configurations and o   ­ perational
                                                             sequences in a clearly defined environment for
                                                             ­subsequent use in real scenarios

                                                        Key facts
                                                        JJ Hardware-based     simulation of radio wave propagation in
                                                           a self-contained unit
                                                        JJ Hardware-based, integrated DF antenna simulation unit
                                                           for direction finders from Rohde & Schwarz to simulate up
                                                           to eight different angles of incidence
                                                        JJ Three independent radio networks, which can be
                                                           ­supplied jointly or individually with ECM and/or an
                                                            ­external antenna signal
                                                        JJ Connectivity of radiomonitoring/radiolocation equipment
                                                        JJ Frequency range from 20 MHz to 400 MHz
                                                        JJ Graphical user interface for creating reproducible test
                                                             and training scenarios

2
R&SGTA-RN5 Radio Net Simulation Device Testing and training using defined scenarios
R&S®GTA-RN5          Flexible system ­concept
                     JJ Compact design
                     JJ Comprehensive connectivity

Radio Net            ▷▷ page 4

                     Wide range of a     ­ pplications

­Simulation Device   JJ Test and optimization of new devices and methods
                        with minimal effort
                     JJ Effective training for typical scenarios

 Benefits and        ▷▷ page 5

                     Easy and r­ eproducible setup of s   ­ cenarios

 key features        JJ Quick and flexible hardware configuration
                     JJ Rapid setup of training scenarios using intuitive
                        control software
                     ▷▷ page 7

                            Rohde & Schwarz R&S®GTA-RN5 Radio Net Simulation Device 3
R&SGTA-RN5 Radio Net Simulation Device Testing and training using defined scenarios
Flexible system                                                 Comprehensive connectivity
                                                                The R&S®GTA-RN5 simulates wave propagation of con-
                                                                ventional fixed-frequency transmitters as well as modern

­concept                                                        frequency-hopping transmitters in the range from 20 MHz
                                                                to 400 MHz. It offers combined TX/RX connectors for con-
                                                                necting up to six radios from any manufacturers. In ad-
                                                                dition, monitoring receivers and even a direction finder
Compact design                                                  from Rohde & Schwarz can be connected to accomplish
The R&S®GTA-RN5 offers extensive training capabilities.         ­radiomonitoring tasks. Moreover, it is possible to feed an

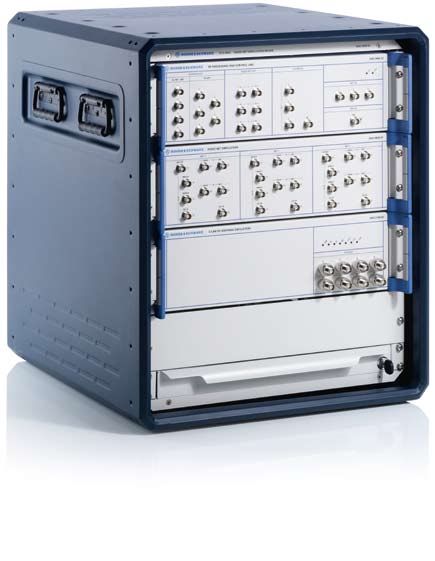

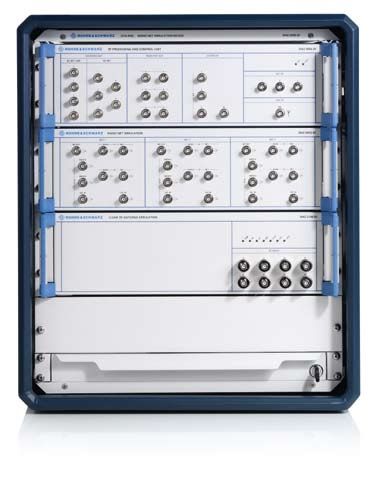

Designed as a compact 19" system with 12 height units,           external RF signal, e.g. from a signal generator or a jam-
it is ideally suited for lab or training applications. It can    mer, plus the signal from an external antenna to complete
be ­installed and deinstalled quickly and can thus be used       the scenario. All radios and/or radiomonitoring equipment
­flexibly wherever it is needed.                                 are connected to the R&S®GTA-RN5 via RF cables.

The modules of the R&S®GTA-RN5, i.e. the RF p     ­ rocessing   The maximum of six radios can be used to form up to
unit, the radio net simulation unit and the DF a­ ntenna        three independent radio networks. The system supports
­simulation unit, can be accommodated in a box or               transmission and reception at each of the six radio con-
 ­installed in a commercial 19" rack. The control PC can be     nectors. The DF antenna simulation unit can simulate up
  kept in a drawer in the box. The system can be remote-        to eight different angles of incidence for the radio signals
  controlled via LAN.                                           to be applied to the direction finder.

                                                                The different radio networks can be supplied jointly or
                                                                individually with an external RF signal, e.g. from a signal
                                                                generator or a radio jammer. In addition, the scenario can
                                                                be superimposed with a real-world signal spectrum (back-
                                                                ground spectrum) from an external antenna.

Internal signal flow

              Radio           Radio network 1                                                               Antenna
                                                                                        Scenario
                                                                                       simulation
                                                                                                           Monitoring
              Radio           Radio network 2
                                                                                                            receiver

              Radio           Radio network 3                                                            Direction finder
                                                                                      DF antenna
                                                                                       simulation
           Interference       Radio network
         signal generator      interference
                                                                                                           Control unit
                                                                                      Control unit       Control software

4
R&SGTA-RN5 Radio Net Simulation Device Testing and training using defined scenarios
Wide range of                                                    Test and optimization of new devices and methods
                                                                 with minimal effort
                                                                 The performance and capabilities of radiocommunications

­applications                                                    devices should be tested prior to purchase in order to
                                                                 avoid unprofitable investments.

                                                                 The R&S®GTA-RN5 puts radios through their paces to
                                                                 verify their immunity to interference both in "clean" and in
                                                                 crowded, realistic signal environments. For this purpose,
                                                                 an interference signal or the signal from an external anten-
                                                                 na is applied to the test scenario.

                                                                 The system thus allows radio links and radios to be tested
                                                                 for robustness with respect to unwanted as well as want-
                                                                 ed interference (ECCM tests). Conversely, it is also pos-
                                                                 sible to determine and optimize the settings that provide
                                                                 the most effective jamming for dedicated radios and trans-
                                                                 mission methods.

                                                                 Typical tests
                                                                 For conventional fixed-frequency links:
                                                                 JJ Distances required between the radios and the jammer;
                                                                    jamming effectiveness as a function of the distances or
                                                                    transmit power
                                                                 JJ Signal-to-noise ratio required for effective jamming
                                                                 JJ Most effective jamming modulation

                                                                 For modern frequency-hopping links:
                                                                 JJ Jamming   effectiveness as a function of the distances
                                                                    between the radios and the jammer, or of the transmit
                                                                    power
                                                                 JJ Number of hops to be jammed to effectively corrupt
                                                                    a link
                                                                 JJ Most effective jamming modulation
                                                                 JJ Analysis of immunity to interference during

Immunity-to-interference test system                                ­synchronization in link setup

                            Devices under test

                  Radio 1                         Radio 2

                               Radio net
                            simulation device

                            Interference signal
                                generation

           Signal generation
                control
                                              Wideband
            Signal generator
                                          detector and exciter

                                                Control unit
               Waveform
               generator                    Control software

                                                                        Rohde & Schwarz R&S®GTA-RN5 Radio Net Simulation Device 5
Effective training for typical scenarios                                       The R&S®GTA-RN5 can be used to train operators in the in-
In many cases, e.g. when electronic countermeasures                            terception and monitoring of signals from fixed-frequency
are involved, open-field training is not possible because                      as well as frequency-hopping transmitters. To do this, the
the required scenarios cannot be provided, Nevertheless,                       overall signal spectrum is applied to the antenna input of
training for such scenarios should come as close to real-                      a monitoring system. Operators can now familiarize them-
life conditions as possible to ensure that equipment and                       selves with the system under realistic conditions. The sig-
systems will be used effectively in an actual mission. This                    nal scenario can be either supplied "live" via the connected
is made possible with the R&S®GTA-RN5.                                         radios or an external antenna, or existing recordings can
                                                                               be played back, e.g from a signal generator.
The R&S®GTA-RN5 is a single-box solution that allows
the effective and cost-efficient training of operators in                      The described setup can be used to train the complete
the fields of radiocommunications and radiomonitoring/                         ­sequence of operations required for COMINT, for example,
radiolocation as well as electronic countermeasures and                         covering signal search and interception, direction finding,
protective measures.                                                            as well as signal classification and technical analysis.

Defined and reproducible test and training scenarios can                       Moreover, operators of radio-based communications
easily be created, which makes the R&S®GTA-RN5 an ideal                        ­networks can be instructed in the correct situation-­specific
choice for training purposes or applications in the lab.                        use of their equipment. Using the R&S®GTA-RN5, op-
Operators can thus be trained specifically and individually                     erators can be trained to detect jamming of their own
­under the supervision of an instructor.                                        communications links and to respond correctly with the
                                                                                ­appropriate countermeasures.

Training system

               Radio                        Radio          Direction finder       Antenna

                          Radio net                                               ESM
                       simulation device
                                                                                 Direction
                                                                             finding equipment
                             ECM
        Signal generation
             control                                                             Receiver
                                                                                equipment
                                        Wideband
        Signal generator
                                    detector and exciter

                                           Control unit
           Waveform
           generator                  Control software

6
Easy and                                                                       Quick and flexible hardware configuration
                                                                               The radios to be tested and, if necessary, a signal genera-
                                                                               tor for supplying an interference signal, are connected via

­reproducible setup                                                            their RF antenna outputs directly to the corresponding
                                                                               connectors of the R&S®GTA-RN5. The radios can then be
                                                                               operated as usual. Any further devices can also be tested

 of ­scenarios                                                                 simply by connecting them to the R&S®GTA-RN5 via the
                                                                               RF cables. This makes it possible to examine a variety of
                                                                               devices under identical test conditions.

                                                                               Any connections required on the R&S®GTA-RN5 itself for a
                                                                               specific application are made quickly and easily by means
                                                                               of BNC cables. If the output signal level of connected
                                                                               ­devices is too high, external attenuators can be inserted
                                                                                between the devices and the R&S®GTA-RN5.

Graphical user interface for the setup and parameterization of a simulated radio scenario.

                                                                                        Rohde & Schwarz R&S®GTA-RN5 Radio Net Simulation Device 7
Rapid setup of training scenarios using intuitive
                                                                            ­control software
                                                                             The graphical control software makes it possible to vary
                                                                             the virtual positions of the connected devices in the ter-
                                                                             rain without having to change their physical locations. All
                                                                             defined radio stations can be displayed on a digital map by
                                                                             means of the R&S®MapView geographic information soft-
                                                                             ware. After any position change, the path losses are recal-
                                                                             culated and activated in the device as required.

                                                                            All parameters necessary for calculating the wave propa-
                                                                            gation, e.g. the antenna height and the transmit power
                                                                            of the radios, can be set in the operating software on
                                                                            the control PC. From these parameters, the path losses
                                                                            ­between the radios are calculated and set in the device.
                                                                             The test and training scenarios created in this manner can
                                                                             be saved and re-used as required.

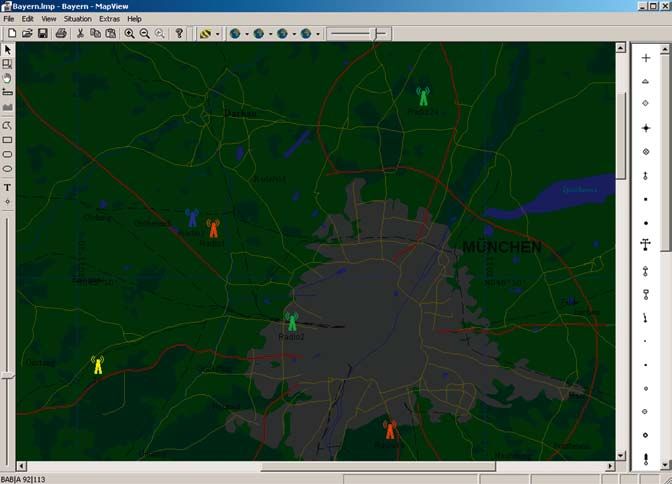

Display of a simulated radio scenario on a digital map using R&S®MapView.

8
From pre-sale to                                                                                                        The Rohde & Schwarz network in over 70 countries ensures
                                                                                                                        optimum on-site support by highly qualified experts. The
                                                                                                                        user risks are reduced to a minimum at all stages of the

­service. At your                                                                                                       project:

                                                                                                                        JJ Solution finding/purchase

 doorstep.                                                                                                              JJ Technical start-up/application development/integration
                                                                                                                        JJ Training
                                                                                                                        JJ Operation/calibration/repair

                                                                                                                                                          Norway       Finland
                                                                                                                                                                Sweden           Russian
                                                                                                                                                                                 Federation
                                                                                                                                                                           Estonia
                                                                                                                                                    UK Denmark             Latvia
                                                                                                                                          Ireland                           Lithuania
                                                                                                                                                      Netherl.    Poland
                                                                                                                                                     Belgium
                                                                                                                                                                       Czech R. Ukraine
                          Canada                                                                                                                  France                  Slovkia
                                                                                                                                                    Switzerland Austria Hungary
                                                                                                                                         Portugal                       Slovenia Romania
                                                                                                                                                                      Serbia
                                                                                                                                                                     Macedonia Bulgaria
                                                                                                                                            Spain                  Italy     Greece   Turkey

                                                                                                            Headquarters
                                              Ottawa                                                          Munich,                                                             Mongolia
   Beaverton,OR
                                                                                                              Germany                                       Kazakhstan
                            Schaumburg,IL                                                                                                                                                     Beijing
                                                                                                                                     Azerbaijan                                                                    Japan
                                    USA          Columbia, MD                                                                                                                           Xi´an       Seoul Korea Saitama
                                                                                                                         Cyprus Lebanon                                  China                                         Kanagawa
      Irvine, CA                                                                                              Tunisia                                                                                 Gumi          Tokyo
                                                                                                                    Malta          Syria             Islamabad                     Chengdu                      Osaka
            Tijuana          Irving, TX                                                                                                                         Delhi
                                                                                                                                        Kuwait                                             Shanghai
                                                                                                Morocco                         Jordan                                Nepal
                       Guadalajara                                                                                       Egypt             Abu Dhabi, Pakistan India
                                  Monterrey                                                             Algeria Libya             Saudi           Dubai                   Bangladesh      Shenzhen TaiwanTaipei
                          Mexico                                                                                                  Arabia United        Karachi Hyderabad            Guangzhou            Kaohsiung
                                                                                                                                           Arab. Oman                               Hanoi Hong Kong
                      Mexico City                                                                                                          Emirates       Mumbai                         Vietnam
                                                                                                                         Sudan                                      Chennai      Thailand              Philippines
                                                                                                                                                                                                           Makati City
                                                                                                            Nigeria                                      Bangalore              Bangkok Ho Chi
                                                                                                                                                                                             City
                                                                                                                                                                                                 Minh
                                              Colombia                                                                                                      Sri Lanka                   Malaysia Brunei
                                                                                                      Ghana              Uganda Kenya                                    Kuala Lumpur
                                                                                                                                                                                          Singapore
                                                             Manaos                                                           Tanzania                                                 Indonesia
                                                           Brazil
                                                              Brasilia                                                   Zambia Malawi
                                                                                                                                      Madagascar
                                                                                                              Namibia      Mozambique
                                                          Paraguay             Rio de Janeiro                         Botswana
                                                       Asuncion          Sao Paulo                                                                                                                      Australia
                                                                                                                    South Africa
                                              Chile                                                                                                                                            Perth                  Sydney
                                                                     Uruguay
                                                       Argentina                                                                                                                                                  Canberra
                                                                                                                                                                                                            Melbourne

                                                                                                                                                                                                                            New Zealand

                                                                                                                                    Rohde & Schwarz R&S®GTA-RN5 Radio Net Simulation Device 9
Specifications
Device data
Performance data
Frequency range                                RF radio simulation                20 MHz to 400 MHz
                                               VHF/UHF DF antenna simulation      20 MHz to 1300 MHz
Impedance                                                                         50 Ω
VHF/UHF DF antenna simulation                                                     simulates R&S®ADD153SR DF antenna
Bearing accuracy                                                                  1° RMS
Inputs/outputs
  Inputs/outputs for radios                                                       for three radio networks
                                                                                  with two RF inputs and outputs each, half-duplex
                                                                                  transmission, for A3E, J3E, F3E and frequency-
                                                                                  hopping transmitters (100 hops/s to 2000 hops/s),
                                                                                  input level –20 dBm to +20 dBm
 Inputs for VHF/UHF DF antenna simulation                                         RF inputs for eight angles of incidence
                                                                                  (15/21/28/35/45/75/105/195°),
                                                                                  input level 0 dBm nominal
 Input for external RF interference signal                                        one external signal, can be distributed to three
                                                                                  radio networks, input level –30 dBm nominal
 Input for external antenna                                                       one antenna input,
                                                                                  input level –110 dBm to –20 dBm
 Radio network inputs                                                             for three radio networks,
                                                                                  six radios (max. +20 dBm)
 RF outputs for monitoring receivers                                              five channels for radio network scenario,
                                                                                  and four channels for radio network scenario plus
                                                                                  one superimposed antenna signal
 Outputs to direction finder                                                      six signals from radios,
                                                                                  plus three external RF interference signals (one
                                                                                  from each radio network)
 Outputs for external RF interference signal                                      three channels
 Radio network outputs                                                            six channels with sum signal of the three radio
                                                                                  networks, plus three channels with one radio
                                                                                  ­network signal each
 Control interface                                                                 USB,
                                                                                   LAN (1000BaseT) for remote control
General data
Temperature ranges                             operating temperature range        +5 °C to +40 °C,
                                                                                  in line with EN 60068-2-1, EN 60068-2-2
                                               storage temperature range          –40 °C to +70 °C
Humidity                                                                          max. 95 %, cyclic test at +25/+40 °C,
                                                                                  in line with EN 60068-2-78
Shock                                                                             40 g/11 ms in line with EN 60068-2-27
Vibration                                      sinusoidal                         5 Hz to 55 Hz, 0.15 mm
                                                                                  55 Hz to 150 Hz, 0.5 g in line with EN 60068-2-6
                                               random                             10 Hz to 300 Hz, 3 mg2/Hz
                                                                                  in line with EN 60068-2-64
Electromagnetic compatibility                                                     in line with EN 61326, EN 55011, EN 61000-3-2,
                                                                                  EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,
                                                                                  EN 61000-4-4, EN 61000-4-5, EN 61000-4-6,
                                                                                  EN 61000-4-11
MTBF                                                                              12 000 h (SN 29500)
Power supply                                                                      100 V to 120 V AC/200 V to 240 V AC,
                                                                                  50 Hz to 60 Hz, 170 VA
Dimensions                                     W×H×D                              534 mm × 625 mm × 585 mm
                                                                                  (21.02 in × 24.61 in × 23.03 in)
                                               depth with front and rear covers   710 mm (27.95 in)
Weight                                                                            approx. 65 kg (approx. 143.30 lb)

10
Ordering information
Designation                                      Type                           Order No.
Base unit
Radio Net Simulation Device                       R&S®GTA-RN5                   3042.0008.02
(including accessories supplied such as power cable and manual)

                                                                  Rohde & Schwarz R&S®GTA-RN5 Radio Net Simulation Device 11
About Rohde & Schwarz
Service you can rely on       Rohde & Schwarz is an independent group of companies
J   Worldwide                 specializing in electronics. It is a leading supplier of solu-
J   Local and personalized    tions in the fields of test and measurement, broadcasting,
J   Customized and flexible
J   Uncompromising quality    radiomonitoring and radiolocation, as well as secure com-
J   Long-term dependability   munications. Established 75 years ago, Rohde & Schwarz
                              has a global presence and a dedicated service network in
                              over 70 countries. Company headquarters are in Munich,
                              Germany.

                              Environmental commitment
                              JJ Energy-efficient products
                              JJ Continuous improvement in environmental sustainability
                              JJ ISO 14001-certified environmental management system

                                Certified Quality System

                                ISO 9001

                              Rohde & Schwarz GmbH & Co. KG
                              www.rohde-schwarz.com

                              Regional contact
                              JJ Europe, Africa, Middle East
                                 +49 89 4129 137 74
                                 customersupport@rohde-schwarz.com
                              JJ North America
                                 1 888 TEST RSA (1 888 837 87 72)
                                 customer.support@rsa.rohde-schwarz.com
                              JJ Latin America
                                 +1 410 910 79 88
                                 customersupport.la@rohde-schwarz.com
                              JJ Asia/Pacific
                                 +65 65 13 04 88
                                 customersupport.asia@rohde-schwarz.com

                              R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG
                              Trade names are trademarks of the owners | Printed in Germany (sk)
                              PD 5214.1814.32 | Version 01.02 | November 2009 | R&S®GTA-RN5
                              Data without tolerance limits is not binding | Subject to change
You can also read
