Product Range
2021
Pumps • Maintenance • Illumination/Solar • Decoration • Pond Construction
1
FOUNTAIN PUMPS PondoVario 750 – 3500 Vulcan Jets Bell Calyx 2
PondoVario 750 – 3500
• Suitable for use in garden ponds and ornamental fountains
• Including pivoting telescopic extension (31-39 cm)
with 4 different nozzles
• Including thermal cut-off switch
PondoVario 1500 – 3500
• Additionally suitable for small watercourses
• Removable fine filter casing for feeding watercourses or filters
• Pivoting telescopic extension with 4 nozzles and ball joint
• A second, separately adjustable, outlet
• Stepped hose adapter (13, 19, 25 mm) included in the scope
of delivery
PondoVario
750 / 1000
PondoVario 750 / 1000 145 x 125 x 90 mm
PondoVario 1500 / 2500 180 x 160 x 125 mm
PondoVario 3500 210 x 190 x 140 mm
PondoVario
1500 / 2500 PondoVario German
3500 Technology
& Service
*Page 28
Models Vulcan Jets Bell Calyx
PondoVario 750 70 cm 70 cm 25 cm 35 cm 15 cm 15 cm
PondoVario 1000 80 cm 80 cm 40 cm 55 cm 20 cm 20 cm
PondoVario 1500 140 cm 140 cm 70 cm 100 cm 35 cm 30 cm
PondoVario 2500 180 cm 180 cm 100 cm 150 cm 50 cm 45 cm
PondoVario 3500 220 cm 220 cm 150 cm 200 cm 65 cm 60 cm
Models Flow rate Pressure 220 – 240 V/ 50 Hz Cable length International GB
PondoVario 750 720 l/h Qmax 1.10 m Hmax 9W 10 m Id. No. 56465 PU 5 56476 PU 5
PondoVario 1000 1000 l/h Qmax 1.30 m Hmax 11 W 10 m Id. No. 56719 PU 5 56735 PU 5
PondoVario 1500 1500 l/h Qmax 1.90 m Hmax 25 W 10 m Id. No. 57123 PU 4 57190 PU 4
PondoVario 2500 2500 l/h Qmax 2.20 m Hmax 40 W 10 m Id. No. 57124 PU 4 57191 PU 4
PondoVario 3500 3400 l/h Qmax 2.70 m Hmax 70 W 10 m Id. No. 56477 PU 2 56478 PU 2
3
FILTER AND WATERCOURSE PUMPS
PondoMax Eco 8500 C – 17500 C
Watercourse Filter Waterfall
PondoMax Eco 8500 C – 17500 C NeW
Energy-efficient pump for filters and watercourses with an integrated controller
The controller can be used to adjust the performance level along a continuous scale
The display shows the current power consumption in W or the performance in %
Can be installed dry and submerged
Ideal for conveying coarse dirt up to 8 mm
Stepped hose adapter included in the scope of delivery
Includes dry running and blocking protection
PondoMax Eco 8500 C–17500 C 280 x 230 x 150 mm
25 / 32 / 38 mm
min.Energy max.Power Power Control
German
Technology
& Service
70W 8300 l/h
*Page 28
Models Flow rate Pressure 220 – 240 V/ 50 Hz Cable length International GB
PondoMax Eco 8500 C 8300 l/h Qmax 4,50 m Hmax 70 W 8+2m Id. No. 73342 PU 2 73345 PU 2
PondoMax Eco 11500 C 10300 l/h Qmax 4,60 m Hmax 100 W 8+2m Id. No. 73343 PU 2 73346 PU 2
PondoMax Eco 17500 C 17300 l/h Qmax 4,70 m Hmax 175 W 8+2m Id. No. 73344 PU 2 73347 PU 2
4
H (mWS) PondoMax Eco 8500 C H (mWS) PondoMax Eco 11500 C H (mWS) PondoMax Eco 17500 C
4,5 4,6 4,7
4,0 4,0 4,0
3,0 3,0 3,0
2,0 2,0 2,0
1,0 1,0 1,0
800 2400 4500 6600 8300 1300 3500 5500 8000 10300 2400 6000 9600 13500 17300
Q (l/h) Q (l/h) Q (l/h)
5
FILTER AND WATERCOURSE PUMPS
PondoMax Eco 1500 – 17000
Watercourse Filter Waterfall
PondoMax Eco 1500 – 17000
• Energy-efficient pump for watercourses and filtration
• Suitable for solid handling of particles up to 4 – 8 mm
• Stepped hose adapter included in the scope of delivery
• Including thermal cut-off switch
PondoMax Eco 1500 / 2500 170 x 190 x 110 mm
PondoMax Eco 3500 – 17000 280 x 230 x 150 mm
19 / 25 / 32 / 38 mm
PondoMax Eco PondoMax Eco 25 / 32 / 38 mm German
1500 / 2500 3500 – 17000 Technology
& Service
*Page 28
Models Flow rate Pressure 220 – 240 V/ 50 Hz Cable length International GB
PondoMax Eco 1500 1500 l/h Qmax 1.90 m Hmax 25 W 10 m Id. No. 50851 PU 4 50852 PU 4
PondoMax Eco 2500 2500 l/h Qmax 2.20 m Hmax 40 W 10 m Id. No. 50853 PU 4 50854 PU 4
PondoMax Eco 3500 3500 l/h Qmax 2.40 m Hmax 40 W 10 m Id. No. 54770 PU 2 54771 PU 2
PondoMax Eco 5000 5000 l/h Qmax 2.60 m Hmax 60 W 10 m Id. No. 50855 PU 2 50856 PU 2
PondoMax Eco 8000 8000 l/h Qmax 2.80 m Hmax 70 W 10 m Id. No. 50857 PU 2 50858 PU 2
PondoMax Eco 11000 10000 l/h Qmax 3.00 m Hmax 95 W 10 m Id. No. 51178 PU 2 51179 PU 2
PondoMax Eco 14000 13400 l/h Qmax 3.20 m Hmax 140 W 10 m Id. No. 51180 PU 2 51183 PU 2
PondoMax Eco 17000 17000 l/h Qmax 3.50 m Hmax 180 W 10 m Id. No. 56567 PU 2 56651 PU 2
6
STATUARY PUMPS
PondoCompact 300 – 5000
PondoCompact 300 – 5000
• Suitable for indoor and outdoor water features
• Adjustable water flow PondoCompact 300i / 300iL 45 x 40 x 45 mm
• Compact design PondoCompact 500 47 x 35 x 55 mm
• Hose connection PondoCompact 600 62 x 45 x 78 mm
• Also for dry PondoCompact 800 / 1200 75 x 55 x 90 mm
installation PondoCompact 2000 / 5000 170 x 75 x 120 mm
(from 2000)
German
PondoCompact 300 iL PondoCompact PondoCompact Technology
500 – 1200 2000 – 5000 & Service
*Page 28
Models Flow rate Pressure 230 V / 50 Hz Cable length Hose connection International GB
PondoCompact 300i 300 l/h Qmax 0.70 m Hmax 5W 1.5 m 13 mm Id. No. 37057 PU 12 –
PondoCompact 300iL 300 l/h Qmax 0.70 m Hmax 5W 1.5 m 13 mm Id. No. 57502 PU 6 –
PondoCompact 500i 500 l/h Qmax 0.80 m Hmax 5W 1.5 m 13 mm Id. No. 57503 PU 6 –
PondoCompact 800i 750 l/h Qmax 1.50 m Hmax 20 W 1.5 m 13 + 17 + 19 mm Id. No. 57504 PU 4 –
PondoCompact 1200i 1200 l/h Qmax 2.00 m Hmax 25 W 1.5 m 13 + 17 + 19 mm Id. No. 57505 PU 4 –
PondoCompact 300 300 l/h Qmax 0.70 m Hmax 5W 10 m 13 mm Id. No. 57506 PU 4 57587 PU 4
PondoCompact 600 600 l/h Qmax 1.25 m Hmax 11 W 10 m 13 mm Id. No. 57507 PU 4 57588 PU 4
PondoCompact 800 800 l/h Qmax 1.60 m Hmax 20 W 10 m 13 + 17 + 19 mm Id. No. 46782 PU 4 46784 PU 4
PondoCompact 1200 1200 l/h Qmax 2.00 m Hmax 25 W 10 m 13 + 17 + 19 mm Id. No. 57508 PU 4 57589 PU 4
PondoCompact 2000 2000 l/h Qmax 2.20 m Hmax 32 W 10 m 19 + 25 mm Id. No. 57509 PU 4 57590 PU 4
PondoCompact 3000 3000 l/h Qmax 3.00 m Hmax 55 W 10 m 19 + 25 mm Id. No. 57510 PU 2 57591 PU 2
PondoCompact 5000 5000 l/h Qmax 3.10 m Hmax 82 W 10 m 19 + 25 mm Id. No. 57511 PU 2 57592 PU 2
7
UNDERWATER FILTER PonDuett 3000 / 5000 and PondoRell 3000 Vulcan Jets Bell Calyx 8
UNDERWATER FILTER-SETS Underwater filter-sets with UVC
PonDuett 3000 / 5000 PondoRell 3000
• Compact underwater filter, that also creates • Compact underwater filter with UVC, that also creates a fountain
a fountain effect, for ponds up to 3000 / 5000 litres effect, for ponds up to 3000 litres (without fish stock).
(without fish stock) • With Pontec clear water guarantee
• Bio-mechanical cleaning stages (sponge, bio-surface • Bio-mechanical cleaning stages (sponge, biosurface
elements and Bio-Pure filter media) elements and Bio-Pure filter media)
• Pivoting telescopic extension (31-39 cm) with 4 nozzles • Pivoting telescopic extension (31-39 cm) with 4 nozzles*
• 2nd separate adjustable outlet • 2nd separate adjustable outlet*
• Stepped hose adapter included for watercourse • Stepped hose adapter included for watercourse operation
operation in scope of delivery in scope of delivery
*Not in the GB version!
13 mm 13 mm
19 mm 19 mm
25 mm 25 mm
*Page 29
PonDuett PondoRell
3000 / 5000 3000
GB
German
Technology
& Service
International
*Page 28
Models Vulcan Jets Bell Calyx
PonDuett 3000 140 cm 70 cm 35 cm 30 cm 3000 l 1500 l
PonDuett 5000 180 cm 100 cm 50 cm 45 cm 5000 l 2500 l
PondoRell 3000 80 cm 40 cm 20 cm 20 cm 3000 l 1500 l
Models Flow rate Pressure 220 – 240 V/ 50 Hz Cable length International GB
PonDuett 3000 1500 l/h Qmax 1.90 m Hmax 25 W 10 m Id. No. 57118 PU 3 –
PonDuett 5000 2500 l/h Qmax 2.20 m Hmax 40 W 10 m Id. No. 57119 PU 3 –
PondoRell 3000 1000 l/h Qmax 1.30 m Hmax 20 W / UVC 7 W 10 m Id. No. 50748 PU 2 50944 PU 2
9
FLOW-THROUGH FILTER-SET WITH UVC Floating filter-set WITH UVC
PondoClear Set 4000 PondoClear Island 3000
PondoClear Set 4000 PondoClear Island 3000
• Filter-sets with Clear Water Guarantee for ponds up • Floating filter-set with Pontec Clear Water Guarantee
to 4000 litres (without fish stock) for ponds up to 3000 litres (without fish stock)
• With 7 watt underwater UVC clarifier for eliminating • With 4 watt underwater UVC clarifier for eliminating
suspended algae suspended algae
• Multi-stage filter system with different filter stages • Including filter sponges
(filter sponge, bio surface elements) • With 3 different fountain attachments and
• High-performance UVC filter pump unit with 4 mm 4 neutral-white LED light fixtures
filter slots, 3 m hose and all connections
German
Technology
& Service
*Page 29 *Page 28
Models Dimensions Flow rate 230 V / 50 Hz Cable length International GB
PondoClear Set 4000 330 x 260 x 310 mm 1000 l/h Qmax 20 W 10 m 4000 l 2000 l Id. No. 51226 PU 2 51228 PU 2
PondoClear Island 3000 250 x 250 x 270 mm 1200 l/h Qmax 21 W 10 m 3000 l 1500 l Id. No. 43186 PU 2 43281 PU 2*
* Available while stocks last.
10MULTI-CHAMBER FILTER-SETS WITH UVC
MultiClear Sets 5000 / 8000 / 15000
MultiClear Sets 5000 / 8000 / 15000
• Compact flow-through filter sets with Pontec Clear Water Guarantee for ponds up to 5000 / 8000 / 15000 litres
(without fish stock)
• With 7/ 11 watt UVC clarifier for eliminating suspended algae
• Incl. high-performance filter pumps (1500 / 2500 / 3500 l/h) with 4 mm filter slots, 3 m hose and all connections
MultiClear Set 5000
MultiClear Set 8000
German
Technology
& Service
MultiClear Set 15000 *Page 29 *Page 28
Models Dimensions incl. UVC in mm Flow rate pump 230 V / 50 Hz International GB
MultiClear Set 5000 385 x 285 x 370 mm 1500 l/h Qmax UVC 7 W 5000 l 2500 l Id. No. 50238 PU 2 50293 PU 2
MultiClear Set 8000 385 x 285 x 450 mm 2500 l/h Qmax UVC 11 W 8000 l 4000 l Id. No. 50239 PU 2 50294 PU 2
MultiClear Set 15000 385 x 560 x 410 mm 3500 l/h Qmax UVC 11 W 15000 l 7500 l Id. No. 42752 PU 1 42767 PU 1
MultiClear 5000 385 x 285 x 370 mm – UVC 7 W 5000 l 2500 l – 72223 PU 2*
MultiClear 8000 385 x 285 x 450 mm – UVC 11 W 8000 l 4000 l – 72224 PU 2*
* Only available in GB without a pump
11COMPLETE PRESSURE FILTER SET WITH UVC
PondoPress Sets 5000 / 10000 / 15000
PondoPress Sets 5000 / 10000 / 15000
• Complete pressure filter set with Clear Water Guarantee
for ponds up to 5000 / 10000 / 15000 litres (without fish
stock)
• Incl. bio-mechanical filter media and integrated 7 / 9 / 11
watt UVC clarifier, with a unique, convenient, cleaning
mechanism for maintaining filter media
• High performance filter pump (1500 / 2500 l/h) with
4 mm openings and 4.5 / 5 m hose
• The filtered water can be channelled up to 1 m in
height and can operate a watercourse
PondoPress Set 5000
PondoPress Set
10000 / 15000
German
Technology
& Service
*Page 29 *Page 28
Models Dimensions incl. UVC in mm Flow rate pump 230 V / 50 Hz International GB
PondoPress Set 5000 225 x 225 x 325 mm 1500 l/h Qmax UVC 7 W 5000 l 2500 l Id. No. 50753 PU 2 57742 PU 2
PondoPress Set 10000 350 x 350 x 450 mm 2500 l/h Qmax UVC 9 W 10000 l 5000 l Id. No. 57146 PU 1 57192 PU 1
PondoPress Set 15000 350 x 350 x 560 mm 2500 l/h Qmax UVC 11 W 15000 l 7500 l Id. No. 57147 PU 1 57193 PU 1
12AIR PUMP SET
PondoAir Set 200 – 3600
• Pump for oxygen enrichment in the pond
• For outdoor use with protection class IP 44
• Incl. 2 x 5 m hose and 2 airstones
• Incl. 2 replacement diaphragms
PondoAir Set 1800 / 3600
• Incl. 4 x 5 m hose, 4 airstones and an adjustable
air diverter
PondoAir Set 200 / 450 / 900 PondoAir Set 1800 / 3600
Replacement airstone
made from carborundum Ø 50 mm
in a display box International
Id. No. 37201 PU 10
German
Technology
& Service
*Page 28
Models Dimensions Flow rate Pressure 230 V / 50 Hz Cable length International GB
PondoAir Set 200 150 x 90 x 50 mm 200 l/h Qmax 0.15 bar 4W 1.5 m 2000 l Id. No. 57514 PU 4 57738 PU 4
PondoAir Set 450 185 x 115 x 115 mm 450 l/h Qmax 0.15 bar 6W 1.5 m 4000 l Id. No. 57515 PU 4 57737 PU 4
PondoAir Set 900 175 x 140 x 130 mm 900 l/h Qmax 0.15 bar 12 W 1.5 m 8000 l Id. No. 57516 PU 2 57740 PU 2
PondoAir Set 1800 220 x 160 x 180 mm 1800 l/h Qmax 0.25 bar 25 W 1.5 m 16000 l Id. No. 43109 PU 2 43110 PU 2
PondoAir Set 3600 255 x 185 x 215 mm 3600 l/h Qmax 0.30 bar 35 W 1.5 m 32000 l Id. No. 43111 PU 2 43112 PU 2
13SLUDGE VACUUM

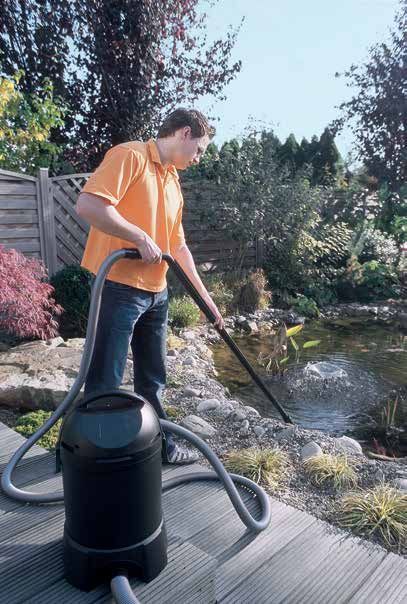

PondoMatic
PondoMatic
Special vacuum cleaner for ponds and pools
• Effective sludge vacuum with powerful 1400 watt
motor
• Automatic activation and emptying through
intelligent integrated time control
• Compact design 30 litre collection tank
• With 3 suction nozzles: crevice nozzle, algae nozzle,
variable universal nozzle (2 – 10 mm)
• Includes 4 m suction hose and 2 m discharge hose
German
Technology
& Service
*Page 28
Models Dimensions Pressure 230 V / 50 Hz Cable length International GB
PondoMatic 370 x 370 x 540 mm 2.00 m 30 l 1400 W 4m Id. No. 50754 PU 1 50770 PU 1
14heron deterrent
PondoScare Spinner PondoScare Ball
PondoScare Spinner PondoScare Ball NeW
Rotating heron deterrent Floating heron deterrent
An attractive wind spinner featuring reflective A reflective sphere with eyeball motifs that protects
details and eyeball motifs to scare herons and other the pond‘s inhabitants by scaring away herons and
birds away from the pond. other birds
Includes a plug-in handle and string for installation Includes 2.5 m cord and weight to anchor the floating
above the pond. deterrent to the bottom of the pond
German German
Technology Technology
& Service & Service
*Page 28 *Page 28
Models Dimensions International Models Dimensions International
PondoScare Spinner 35 x 190 x 190 mm Id. No. 73353 PU 4 PondoScare Ball 150 x 150 x 168 mm Id. No. 73352 PU 4
15Floating fish feeding ring Pond Thermometer
PondoFeed Ring PondoThermo
Floating fish feeding ring • Floating pond thermometer with
Keeps the fish food in place — easy to fix Celsius and Fahrenheit
to the rim of the pond or in the ground • With 1.5 m of string for
Includes fastenings (peg and string) fixing at the pond edge
German German
Technology Technology
& Service & Service
*Page 28 *Page 28
Models Dimensions International Models Dimensions International
PondoFeed Ring 30 x 240 x 240 mm Id. No. 73351 PU 6 PondoThermo 45 x 45 x 190 mm Id. No. 43190 PU 6
16ICE PREVENTER ICE PREVENTER
PondoPolar Air PondoPolar
Floating ice preventor made from Styrofoam, keeps one Offers protection against complete freezing,
part of the pond ice free down to –15 °C, can be filled can be filled with sand
with sand • Gas exchange through vent slot
• Gas exchange through vent slot • Made of Styrofoam, two-piece
• With an outdoor proofed 100 l/h air pump (IP 44) for • Suitable for use in temperatures down to –10 °C
additional water aeration and circulation
German German
Technology Technology
& Service & Service
*Page 28 *Page 28
Models Dimensions International Models Dimensions International
PondoPolar Air Ø 280 x 225 x 130 mm Id. No. 57685 PU 15* PondoPolar Ø 280 x 225 x 130 mm Id. No. 41891 PU 15*
* Available while stocks last. * Available while stocks last.
17Illumination PondoStar and PondoFog PondoStar LED PondoStar LED Set 6 PondoStar Set 30 PondoFog 18
LED-SPOTlight SET

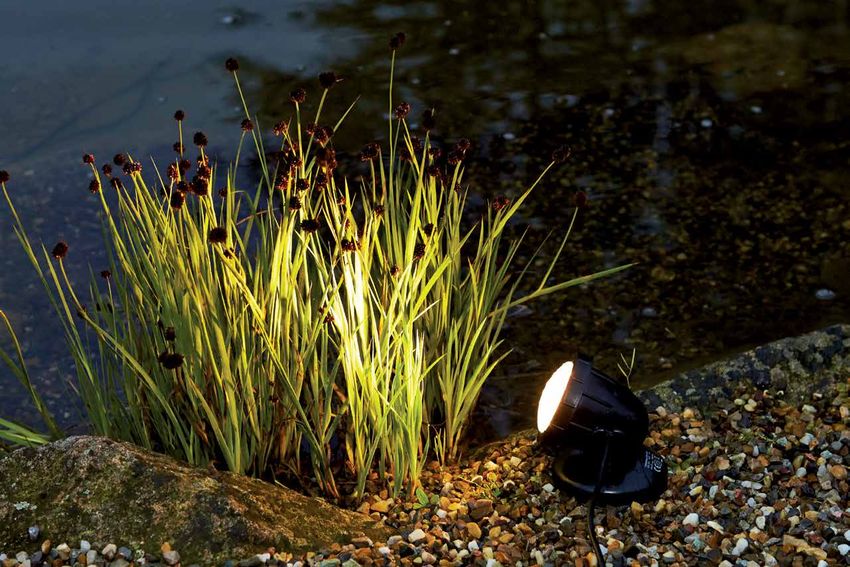

PondoStar LED Set 1/ Set 3 PondoStar LED Set 6
• Suitable for use underwater and above the water • Suitable for use underwater and above the water,
• 2 watt / 3 x 1 watt warm white LED protection class IP 68
• Protection class IP 68 • Energy efficient neutral white LED set
with 6 x 0,5W spots
• 12 V safety transformer. Cable length: 1 x 2 m plug/
transformer plus 1 x 7 m and accordingly plus 1 x 7 m • 12 V safety transformer. Cable length: 1 x 2 m plug /
and 2 x 1 m transformer, plus 3 m and 5 x 1,2 m
*Page 28
Energy Weighted energy
efficiency consumption per
Models 230 V / 50 Hz / AC class spot (kWh/1000h) International GB
PondoStar LED Set 1 12 V / 2 W A+ *1 3 KWh / 1000h Id. No. 57519 PU 4 –
PondoStar LED Set 3 12 V / 3 x 1 W A+ *1 2 KWh / 1000h Id. No. 57520 PU 4 57739 PU 4
PondoStar LED Set 6 12 V / 6 x 0,5 W A++ *1 1 KWh / 1000h Id. No. 43187 PU 2 57741 PU 2
*1 This light f ixture includes installed LED bulbs. The bulbs in the light fixture cannot be replaced.
19Coloured pond and Illuminated ring for
garden lighting water features
PondoStar LED RGBW Set 3 PondoStar LED Ring
Coloured pond and garden lighting Illuminated ring for water features
Three efficient spotlights with a transformer and Warm white LEDs for illuminating fountains
remote control for adding ambiance to the pond Also suitable for illuminating individual sections of the
or garden with coloured and white LED lighting. pond and garden; can be used above and below the
Can be used above and below the water (IP 68). water (IP 68).
Includes a 12 V safety transformer and Includes a 12 V safety transformer and 2 m + 8 m cables
2 m + 3 m + 2x 2 m cables
*Page 28
Energy Weighted energy
efficiency consumption per
Models 230 V / 50 Hz / AC class spot (kWh/1000h) International GB
PondoStar LED RGBW Set 3 12 V / 5 W A* 1
4 KWh / 1000h Id. No. 73355 PU 2 75696 PU 2
PondoStar LED Ring 12 V / 2 W A+ *1 3 KWh / 1000h Id. No. 73354 PU 4 75695 PU 2
*1 This light f ixture includes installed LED bulbs. The bulbs in the light fixture cannot be replaced.
20ROCK LIGHT SET Pond mist maker
PondoStar Set 30 PondoFog
Halogen light set for installation in the garden pond and Mist maker for indoor and outdoor use
above the water surface • Set with 10 m cable, transformer and swim ring
• 3 x 10 watt warm white halogen lights in rock design • With colourful RGD LED light for a mystic atmosphere
• Rocks are made of weather-resistant polyresin • Includes spare membrane and changing tool
• 12 V safety transformer. Cable length: 1 x 2 m • For submersible use – IP 68
plug / transformer, 3 x 3 m transformer / light
• Easy installation
*Page 28
Energy Weighted energy
efficiency consumption per
Models 230 V / 50 Hz / AC class spot (kWh/1000h) International GB
PondoStar Set 30 12 V / 3 x 10 W B * 2
11 KWh / 1000h Id. No. 36972 PU 4 –
PondoFog 24 V / 20 W – – Id. No. 43189 PU 2 –
*2 This light fixture is suitable for bulbs of energy classes B – E. The light fixture is sold with a bulb of energy class B.
21SOLAR FOUNTAIN SET
PondoSolar 150/ 250
PondoSolar 150 PondoSolar 250 Control PondoSolar Charge
• With 150 l/h, 6 V pump • With 250 l/h, 7–9.5 V pump • Indoor - Charger
• With 1.4 watt solar panel • With 3 watt solar panel 230V/50Hz – 9V for
PondoSolar 250 and
• Includes mount attachments and • Includes lithium-ion battery
600 Control
4 different nozzle heads 7.4 V – 2000 mAH
• Allows charging of the
• Solar powered fountain in sunlight – • Includes 4 nozzle heads, LED light
solar modules and run-
no need for electricity and remote control
ning of the sets even
• The fountain can be enjoyed in over- after sunset
cast conditions and twilight
International
GB
22PondoSolar 600/ 1600
PondoSolar 600 Control PondoSolar 1600
• With 600 l/h, 10–13 V pump • With 1600 l/h, 12 – 18 V pump
• With 7 watt solar panel • With 2 x 10 watt solar panel
• Includes lithium-ion battery 7.4 V – 4000 mAH • Includes 2 nozzle heads
• Includes 2 nozzle heads, LED light and • Solar powered fountain in sunlight –
remote control for even more comfort no need for electricity
• The fountain can be enjoyed in overcast
conditions and twilight
*Page 28
Models Solar panel Pump/DC Vulcan International
PondoSolar 150 1,4 W 6V 45 cm Id. No. 40277 PU 4
PondoSolar 250 Control 3W 7–9,5 V 60 cm Id. No. 43324 PU 2
PondoSolar 600 Control 7W 10–13 V 80 cm Id. No. 43325 PU 2
PondoSolar 1600 20 W 12–18 V 180 cm Id. No. 43326 PU 2
PondoSolar Charge INT – 9V – Id. No. 46786 PU 4
PondoSolar Charge GB – 9V – Id. No. 46787 PU 4*
* Available while stocks last.
23FLOATING SOLAR FOUNTAIN SET
PondoSolar Lily Island PondoSolar Lily LED Set 3
PondoSolar Lily Island PondoSolar Lily LED Set 3 NeW
• With 150 l/h, 6 V pump Floating plastic water lilies with 3 LEDs
• With 1.3 watt solar panel Solar cell with a Ni-MH battery 1.2 V – 600 mAh
• With 4 nozzle heads The three 0.06 W LEDs begin to light up at dusk
• Solar powered fountain in sunlight – no need Each with 0.75 m of cable between the leaves
for electricity
24Solar Pond Lighting Set SOLAR POND AERATING-SET
PondoSolar LED Set 3 PondoSolar Air 150 Plus
PondoSolar LED Set 3 NeW PondoSolar Air 150 Plus
Lighting set with three compact warm white • Pond aeration pump (approx. 80 l/h) with latest
LED spotlights and one peg battery technology
With Li-ion battery 3.7 V – 1800 mAh • Includes 3.7 V – 2000 mAH lithium-ion battery for
0.5 W LED spotlights that light up at dusk aeration in the twilight and during the night
Spotlights for ponds and gardens for continuous • With 200 cm hose and airstone
use above and below water (IP 68) • With 1 watt - 6 V solar panel
Includes 5 m cable plus two 1.5 m cables
*Page 28
Models Solar panel Pump/DC Vulcan International
PondoSolar Lily Island 1.3 W 6V 30 cm Id. No. 40280 PU 4
PondoSolar Lily LED Set 3 1W 2V – Id. No. 77940 PU 4
PondoSolar LED Set 3 2.5 W 9V – Id. No. 77939 PU 4
PondoSolar Air 150 Plus 1W 6V – Id. No. 46785 PU 4
25DEcORATION
PondoLily Set 3 PondoHyacinth NeW
Floating water lilies made of weatherproof plastic, Floating pond hyacinth made of weather-resistant
featuring a fastening eye plastic with fastening eye
Practical set of three with 2 x approx. 15 cm Deceptively realistic looking artificial plant for pond
and 1 x 21 cm diameter decoration with a diameter of approx. 14 cm
Assorted colours in the display box In an attractive display box
PondoLily Set 3 Id. No. 73350 PU 6 PondoHyacinth Id. No. 77938 PU 24
*Page 28
PondoLily PondoLily
*Page 28
Floating water lilies made of weatherproof plastic red/orange/white/purple
With fastening eye
Floating water lilies made of weatherproof plastic
4 assorted colours, red / orange / white / purple
in a display box With fastening eye
Also available as single colour
red Id. No. 43320 PU 12
orange Id. No. 43321 PU 12
*Page 28
white Id. No. 43322 PU 12
Ø 17 cm Id. No. 57528 PU 48 purple Id. No. 43323 PU 12
*Page 28
26POND CONSTRUCTION
PondoFall PondoFall LED
Easy-to-install stream and waterfall chute Easy-to-install outlet for streams and waterfalls with LED
A calming source element for streams or waterfalls with lighting
a stepped hose connector (19/25 mm). Illuminated outlet lip featuring 24 warm white LEDs
Made of durable, weatherproof and UV-resistant plastic Includes a stepped hose connector (19/25 mm) that can
Suitable for water flow rates from 1000 l/h to 4000 l/h be mounted at the rear or underneath
(litres per hour). Made of durable, weatherproof and UV-resistant plastic
Suitable for water flow rates from 2000 l/h to 6000 l/h
(litres per hour).
Includes a 12 V safety transformer and 2 m + 8 m cables
PondoFall Id. No. 73348 PU 2 PondoFall LED Id. No. 73349 PU 2
*Page 28 *Page 28
PVC pond liner BAMBOO NET
• Robust 0.5 mm and 1 mm PVC
pond liner
PondoNet
• Great durability • Long handle length of 100 cm
• With a 20 cm grid diameter
*Page 28
• In four roll sizes International
PVC pond liner 0.5 mm / 2 x 100 m Id. No. 50769 PU 200 m2 • 2 mm mesh width
PVC pond liner 0.5 mm / 4 x 50 m Id. No. 50778 PU 200 m2
PVC pond liner 0.5 mm / 6 x 40 m Id. No. 50779 PU 240 m2
PVC pond liner 0.5 mm / 8 x 30 m Id. No. 50780 PU 240 m2
PVC pond liner 1.0 mm / 2 x 50 m Id. No. 50628 PU 100 m2
PVC pond liner 1.0 mm / 4 x 25 m Id. No. 50629 PU 100 m2
PVC pond liner 1.0 mm / 6 x 25 m Id. No. 50630 PU 150 m2
PVC pond liner 1.0 mm / 8 x 25 m Id. No. 50632 PU 200 m2 PondoNet Id. No. 40292 PU 25
*Page 28
27Guarantee PFG GmbH guarantees this PFG device that you have purchased for a ral disasters, in particular, but not limited to, floods, fires or frost period of 24 months in accordance with the conditions listed below. damage, • negligent or wilful destruction (e.g. by cutting off the The guarantee exists in addition to the statutory warranty obligations plug or shortening the power cable), or • misuse, improper or non- of the seller and does not affect these statutory warranty obligations. intended use, installation and operator errors or lack of care (e.g. The guarantee applies without prejudice to mandatory statutory lia- use of unsuitable cleaning agents, omitted maintenance, lime-scale bility provisions, for example the provisions of the Product Liability deposits), overload or failure to comply with the user instructions, Act, in cases of intent and gross negligence, injury to life, limb or • the user‘s own repair efforts, as well as damages to • wear parts health on the part of PFG GmbH or its vicarious agents. Guarantee such as illuminant and rotors, • fragile parts, such as glass, light bulbs period The guarantee period begins on the date of first purchase and • consumables, such as batteries or filter foams. With regard to of the PFG device from the PFG stockist. The guarantee period will proper use, PFG GmbH refers to the operating instructions, which are not be extended or renewed in the event of a guarantee claim or if a component of this guarantee. Assertion of claims Guarantee claims the PFG device is resold. Guarantee PFG GmbH guarantees proper can only be asserted against PFG GmbH, Tecklenburger Straße 161, functionality and usability of the PFG device in accordance with its 48477 Hörstel, Germany, within the guarantee period. To do this, the intended purpose. In this regard, the state of science and technology person submitting the claim, bearing the shipping costs and the trans- at the time of production shall be authoritative. The PFG device must port risk, sends the device, or the part of the device, that is the object have already shown the defect that caused the damage at this point in of the complaint, to PFG GmbH together with a copy of the original time. In the event of a guarantee claim, PFG GmbH reserves the right sales receipt issued by the PFG stockist, this guarantee certificate and to repair the PFG device free of charge or to deliver spare parts for the written information concerning the defect that is the object of the PFG device or a replacement device free of charge. If the device type complaint. General provisions This guarantee is governed by German of the PFG device in question is no longer being manufactured, PFG law with exclusion of the United Nations Convention on Contracts for GmbH reserves the right to deliver a replacement device of its own the International Sale of Goods (CISG). choice from the PFG product range that most nearly approaches the device type that is the object of the complaint. The guarantee applies only to damage on the purchased PFG device itself. Reimbursement PfG GmbH of expenses for installation, removal and inspection, compensation Tecklenburger Straße 161 claims for damage that did not occur on the purchased article itself, 48477 Hörstel as well as claims for loss of profit or loss of use and further claims for info@pontec.com damages and losses of any kind whatsoever caused by the PFG device www.pontec.com or its use, are excluded from the guarantee. Guarantee exclusion Excluded from the guarantee are damages caused by • mechanical damage due to accident, fall or impact, or • force majeure or natu- 28
Pontec Clear Water
Guarantee
To all customers, at initial purchase of a Clear Water set/product and The guarantee is invalidated if the installation instructions in the
with appropriate registration under the conditions cited below, PfG operating instructions are not complied with; the guarantee applies
grants a 2-year guarantee of clear water in the pond, so that plants only for the period of unlimited operational use in accordance with
and fish are visible to a depth of 0.5 m below the surface of the pond. the provisions specified in the operating instructions.
The guarantee period starts with first-time new product purchase and
Wear parts are expressly excluded from the guarantee.
is neither extended nor restarted through guarantee performances;
nor do legal guarantee claims occur on guarantee performances. Our PfG Data Privacy Policy (http://www.pontec.com/en/datapro-
tection). Applies for the data we collect for guarantee processing.
The customer can only claim the guarantee if he registers either online
or by post and provides precise information concerning the pur- PfG GmbH
chased PONTEC set/product and specifies the type designation, the Tecklenburger Straße 161
pond size (approx. surface area in m²/approx. water content in m³/ 48477 Hörstel
approx deepest point in cm); the fish stock that is present (in cm per GERMANY
1,000 litres of pond water), as well as the purchase date and dealer
Email: info.uk@pontec.com
address. The Request Guarantee can be obtained through online reg-
Internet: www.pontec.com
istration at http://www.pontec.com/en/service/clear-water-
guarantee.html within 3 months from initial purchase, or by post.
After this period elapses it is no longer possible to request the guar-
antee.
In the event if a guarantee case the prerequisite for making a claim
under the request guarantee is submission of the original purchase
receipt with the product in question to PfG at PfG GmbH,
Tecklenburger Straße 161, 48477 Hörstel, GERMANY.
At our discretion the guarantee claim extends to free-of-charge repair
or resupply of spare parts, or however, delivery of an equivalent
replacement device; alternatively the guarantee claim extends to
reimbursement of the purchase price.
29Notes 30
Notes
31sumption
Power con
Rated voltage /
Germany
PfG GmbH
Pressure
48477 Hörstel
info@pontec.com
Flow rate
pontec® pictograms
www.pontec.com
Tecklenburger Straße 161
2 Years Guarantee 3 Years Guarantee 15 Years Guarantee Min. Energy
Cable length
print production
natureOffice.com | DE-836-JNJZB7C
carbon neutral
(L x W x H)
Dimensions
Max. Power
height
Fountain
Easy Clean
Ponds with-
out fish stock
fish stock
Pond with
Coarse debris max.
filters
Capacity –
Your pontec® dealer:
Guarantee
Clear water
UVC
Flow rate
Hose
connection
ID.Nr. 62204/09-20 OA
The products listed in this catalogue are designed for the respective described application and have been tested accordingly. PfG
GmbH assumes no liability whatsoever for applications that deviate from the described application. We reserve the right to deviate
slightly from the text and illustrations in this catalogue in the interest of technical progress. With publication of this catalogue all
other catalogues are no longer valid. Use of the image data only after obtaining express approval
from PfG GmbH.You can also read
