2019 Samsung Category Catalog
Samsung System Air Conditioner
CAC and FJM
Achieve multi-room temperature control with a lexible, easy-to-install and
energy-eficient solution
Table of contents CAC
CAC Single 3 Overview The Samsung CAC Single air conditioner system delivers optimal
comfort, eficiency and performance with features such as:
Samsung’s single split unit is a smart choice for conserving both
Free Joint Multi 8 running costs and energy consumption. This economical outdoor • World-class energy efficiency. Decrease energy consumption
unit employs advanced technologies to minimize waste and improve by up to 50 percent with a digital inverter system featuring an
Indoor Units 11 eficiency. By adopting smart inverter technology. Samsung Ceiling economical mode.
Air Conditioner (CAC) Single not only offers silent operation but also
• Superior performance. Weather severe temperatures
Legal and additional information 54 provides outstanding cooling and heating performance. dependably and maximize comfort with wide temperature
allowance.
2 3
CAC Nordic CAC
World-class energy eficiency Enhanced heating performance
Maintain optimal comfort and control with energy- Up to 50 percent less energy use Ensure supreme comfort with upgraded heating and Wide range of operation
and cost-efficient technologies After reaching the set temperature, the digital inverter air reliable performance The Nordic CAC system air conditioner not only excels in heating
Featuring a suite of energy-optimizing technologies, Samsung CAC conditioner changes its operation mode to economical. By avoiding Samsung’s Nordic CAC system air conditioner features enhanced performance, but it also provides exceptional cooling with its
Single delivers top-class energy eficiency to support businesses ineficient and frequent switching on and off of the compressor, eficiency, operational range and design for improved heating expansive operating range. It offers cooling operation from -20°C to
in saving costs and the environment. Plus, CAC Single with its the digital inverter saves up to 50 percent in energy consumption performance in cooler temperatures. And with its extended range, it 50°C, and guaranteed heating performance from -25°C to 24°C for
smart technologies fully complies with new European Union (EU) compared to non-inverter air conditioners. also supports optimal cooling for comfort in warmer climates. indoor comfort all-year-round.
regulations for more eficient performance.
High-performance heating Cooling Heating
New Energy Label Non-inverter Nordic CAC is designed to deliver high-performance heating
Conventional NEW
600
in low temperatures, providing users comfortable, consistent 50 OC
50 O
C 50 OC
warmth in frigid environments. It reinforces heating performance 24 OC
Conventional NEW
500
by a maximum of 31 percent at -20°C, and increases heating 24 O
C 24 OC
Saving performance by10 – 30 percent, depending on the temperature.
400
0 OC
300
Down to
621.4 Wh/h
-15 OC
Nordic CAC (10kW) Conventional
302 Wh/h
-20OC
O
-15 C
(Wh/h) 200 Down to
-18 OC -20 OC -20 OC
-25OC
-20 OC
-25 OC
-25 OC
Universal Outdoor unit is Flexibility operation
*Table 1: Introduction of revised energy 31%
consumption labelling for air conditioners Universal outdoor combination which any indoor units can be Feature upgrades
as per EU Directive 2011/626/EU
connected with 1 outdoor as long as same capacity is provided. The following improvements have been made to optimize the unit’s
* The number of outdoor decrease : 42model → 16model
performance in frigid climates:
SCOP 4.1
SCOP 3.8
Quick, eficient heating and cooling
Multi-unit operation • Base heater. To prevent water condensation from freezing, a
Smart inverter technology offers powerful, quick cooling and
base heater (150 W) has been applied to the unit design.
heating with minimal electricity consumption, which means Instead of connecting just one indoor unit, users can connect
real cost savings and less energy waste. The EU has established two, three or four indoor units with a single outdoor unit for more
World-class eficiency
new regulations to drastically cut the power consumption of air eficient cooling and heating. The indoor units operate and are
Nordic CAC achieves world-class eficiency to minimize energy
conditioners. Ineficient units will be gradually withdrawn from controlled simultaneously as one cycle within the same mode via
consumption and costs. In fact, all Nordic CAC models are eficiency
the market starting in 2013. To further support this initiative, the one remote controller for up to four rooms. This system is ideal for
spaces requiring multiple indoor units, such as open-plan ofices or rated SEER A++ / SCOP A+.
EU is introducing an improved energy labeling system to provide
consumers a better idea of how much electricity their units shops.
consume. Cooling Efficiency Heating Efficiency • Cabinet grid. To prevent damage from snow drifts, the cabinet
grid size has been increased, while the vertical grid size is two
Energy Grande Energy Grande times larger.
A++ A++ A++ A++ A++ A++ A++ A++
4.5 4.5
COP
4.06 4.1 4.02
4.01
4.0 4.0
3.94
EER
3.72 3.64
3.65 3.67 3.71
3.56 3.60
3.5 3.5
3.60 3.61
3.21 3.21 3.21
3.21 3.37 Conventional
COP
3.0 3.0
Conventional
3.01 EER
25KW 7.1KW 7.1KW 7.1KW 7.1KW
2.6 3.5 7.1 10 12.5 (kW) 2.6 3.5 7.1 10 12.5 (kW)
4 5
CAC Single CAC Single
Superior performance Low GWP refrigerant
Stabilize the atmosphere with broad temperature Fast cooling and heating R32 Refrigerant
allowance and control When users change the temperature setting, the CAC Single uses Uses the next generation R32 refrigerant, which has an Ozone Depletion Potential (ODP) of zero and lower Global Warming Potential (GWP)
Samsung is dedicated to supporting comfortable living and working the compressor’s maximum capacity to quickly reach the desired than conventional refrigerants, so it is much more environmentally friendly*.
environments based on the strength of its technologies. With a temperature. As a result, the unit delivers 15 percent faster cooling
single unit, CAC Single delivers reliable comfort and control over and 50 percent faster heating for a more comfortable ambiance
multiple areas to ensure a pleasant atmosphere in any climate. without the long wait.
Wide temperature performance
Cooling Heating
No matter how extreme the temperature, the high-performing CAC
Single can handle the condition—without the need for an additional 31 26
unit. Featuring a wide temperature allowance, it can cool in heat of
up to 50 and provide warmth in the freezing cold of -20°C to ensure
22 50%
29
15% Faster
Faster
a constant and comfortable home environment.
18
Ideal comfort in minutes 27
Non-inverter
Non-inverter
The CAC Single digital inverter air conditioner works at maximum 31’ 24”
14
27’ 21”
27’ 24”
17’ 41”
capacity at startup. As soon as the temperature reaches the desired
(Min.) 25 10
or set temperature, CAC Single performs ine adjustments to cope
with any changes. This means less temperature luctuation and
Time to Cool from 33oC to 25oC Time to Heat from 8oC to 20oC
ideal comfort in a matter of minutes.
Simultaneous, multi-room control
Instead of connecting to just one indoor unit, CAC Single can connect
up to four units with a single outdoor unit for more eficient cooling
and heating. With one remote controller, users can simultaneously
Steady Temperature Fluctuation
operate the indoor units in up to four rooms as one cycle within the
Non-inverter
High Temperature Fluctuation same mode. This system is ideal for spaces requiring multiple indoor * Tested on R32 refrigerant, compared to Samsung conventional refrigerant (R410A).
Uncomfortable 25 C
(Energy Loss) units, such as open-plan ofices or shops.
Versatile piping installation
24 C
Comfortable
CAC Single outdoor units offer a selection of pipe directions. The
internal pipe connection ports allow four different pipe directions,
supporting a neater, more organized-looking unit upon installation.
Uncomfortable
(Energy Loss) 23 C
6 7
Free Joint Multi Free Joint Multi
High performance
Experience ultimate comfort at home or work with The Samsung FJM system air conditioner delivers optimal comfort, Maintain optimal comfort and control with energy Drive higher performance with unmatched stability
reliable, efficient performance eficiency and performance with features such as: and cost-efficient technologies A key contributor to Samsung FJM’s eficiency is its advanced
The Samsung Free Joint Multi (FJM) system air conditioner combines Featuring a suite of energy-optimizing technologies, Samsung compressor technology. With its smart compressor design and
• High performance. Rely on smooth, eficient operation with
eficiency and reliability to deliver outstanding performance in a high-performance compressor technology. FJM delivers top-class energy eficiency to support businesses premium moving parts, the FJM air conditioning system delivers
space-saving design. Supporting up to ive indoor units, Samsung in saving costs and the environment. Plus, CAC Single with its balanced performance for high reliability and FJM fully complies
• Easy installation. Ease installation and minimize effort with a
FJM is a perfectly optimized cooling system for residences and smart technologies fully complies with new European Union (EU) with new EU regulations for more eficient performance.
small footprint and one-button auto-addressing.
smaller buildings with limited installation space. Its lightweight, regulations for more eficient performance.
Smooth performance
small-scale build and one-button auto-addressing enable easy, low- • Low noise levels. Enjoy a more peaceful home or work
cost installation, while its uniquely quiet design ensures soothing environment with quiet operation, thanks to double-layered Samsung Free Joint Multi adopts the innovative Twin Brushless
comfort and maximum eficiency. sound insulation. Direct Current (BLDC) rotary compressor for more eficient
performance. Its stable twin eccentric cams and two balance
weights reduce torque variation by 70 percent compared to the
conventional Single BLDC compressor, offering smoother, more
consistent operation. High-quality moving parts such as robust
bearings, as well as premium matching rollers and vanes, produce a
high degree of stability and durability.
Highly Efficient BLDC Motor
∙ Creative motor core design
∙ High density neodymium magnet
∙ Concentrated type stator
Extremely Low Vibration
Free Joint Multi ∙ Twin eccentric cams
∙ 2 balance weights Conventional
Single outdoor unit for 5 Indoor units
Highly Stable Moving Parts
∙ Optimal material matching
rollers and vanes
∙ High robust bearings
∙ Coated vane
∙ Coated shaft
New

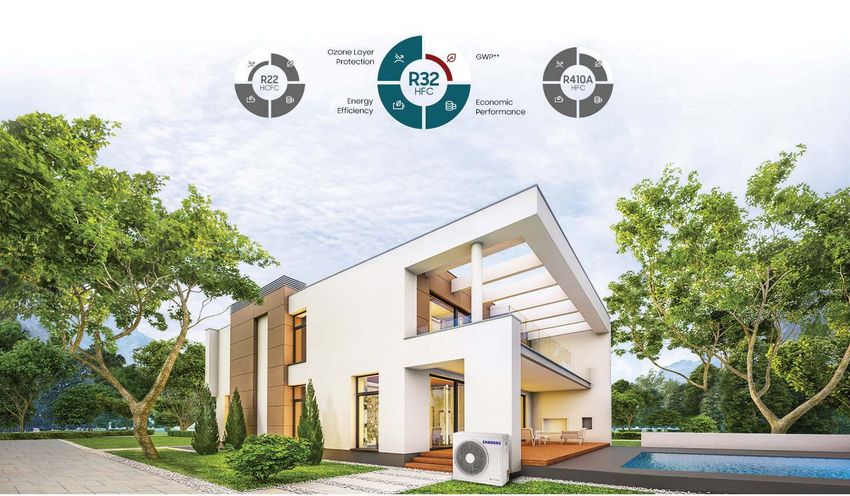

R32(Low GWP refrigerant) FJM outdoor
Uses the next generation R32 refrigerant, which has an Ozone Depletion Potential (ODP) of zero and a lower Global Warming Potential (GWP)
than conventional refrigerants, so it is much more environmentally friendly.
R22 R32 R410A
(HCFC) (HFC) (HFC)
Low GWP Low GWP Low GWP
Ozone Ozone Ozone
layer Economic layer Economic layer Economic
protection performance protection performance protection performance
Safety Energy Safety Energy Safety Energy
efficiency efficiency efficiency
Global warming
potential (GWP) 1,810 675 2,090
8 9
Free Joint Multi Indoor Units
Easy installation and low noise level
Streamline installation with a compact design and Enjoy minimal noise levels for maximum comfort Cassette Type 12
automated operation With its superior insulation and low vibration, FJM offers a 360 Cassette 13
The FJM’s compact design means that it can be easily incorporated comforting environment undisturbed by bothersome noise levels 4Way Cassette S 16
into a variety of professional and residential situations, with the typical of standard air conditioning systems. Residents can enjoy
Wind-Free™ 4Way Cassette 20
lexibility to support up to ive indoor units. In addition, the one- a more restful night and employees can increase focus levels with
button auto-addressing feature simpliies installation, which less disturbance.
4Way Cassette S (600 x 600) 24
results in minimal disruption to the day-to-day activities of busy Wind-Free™ 4Way Cassette (600 X 600) 27
companies. Insulated, quiet operation

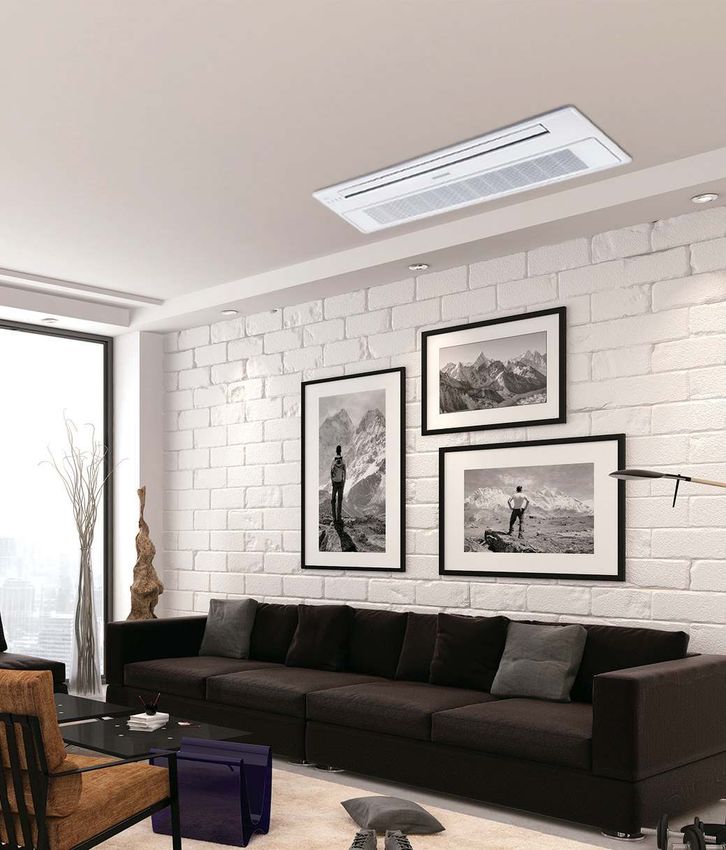

Slim 1Way Cassette 31
Double-layered sound insulation material fully covers the
Easy, one-touch setup Slim 1Way Cassette 34
compressor to absorb and minimize the noise for quieter operation,
FJM’s one-button auto-addressing solution makes installation easier making it more discreet despite its high-quality performance.
than ever. Ducted Type 37
Duct S 38
Slim Duct 42
MSP Duct 43
HSP Duct 44
Outdoor Air Processing Duct 45

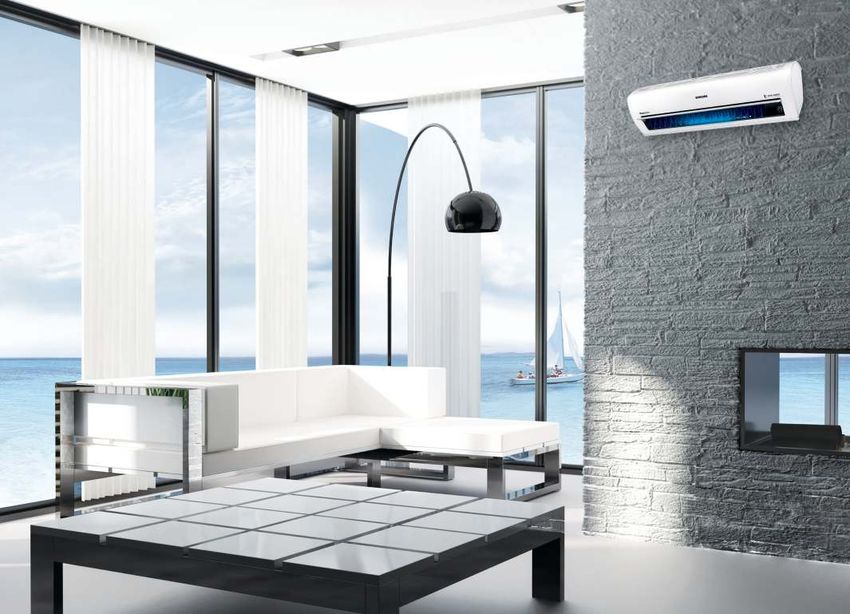

Wall Mount Type 46
Console Type 49

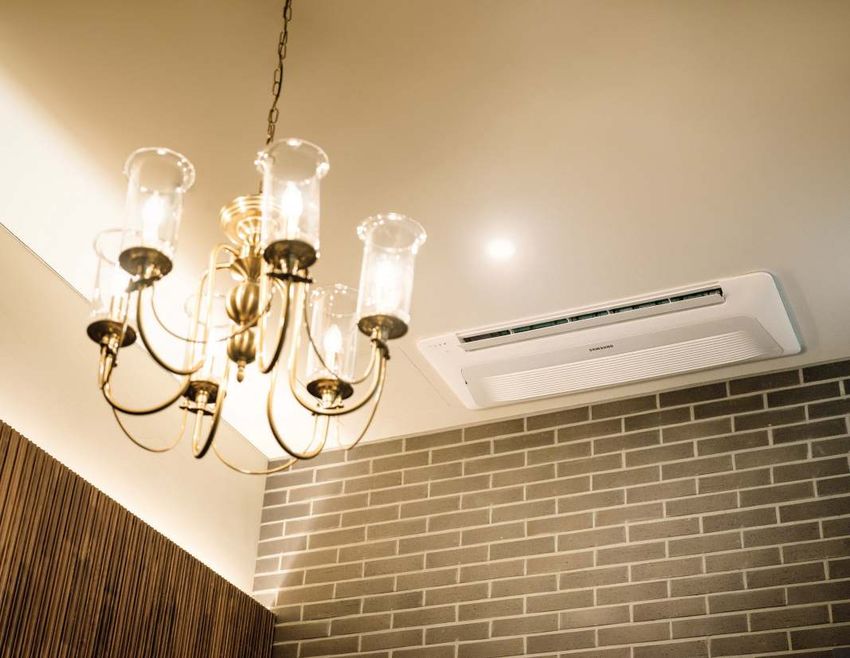

Ceiling Type 50
Neat and simple Sine Wave Controller
With a single FJM outdoor unit, users can connect up to ive indoor All Samsung FJM models have adopted a newly developed Sine Floor Standing 52
units, so property owners can keep the building exterior clean and Wave Controller. Smoother current waves result in a soft acoustic
neat. quality and overall noise reduction. P Series (Maldives) 53
New Sine Wave Controller Conventional Square Wave Controller
Current
Wave
Torque
Ripple
10 11

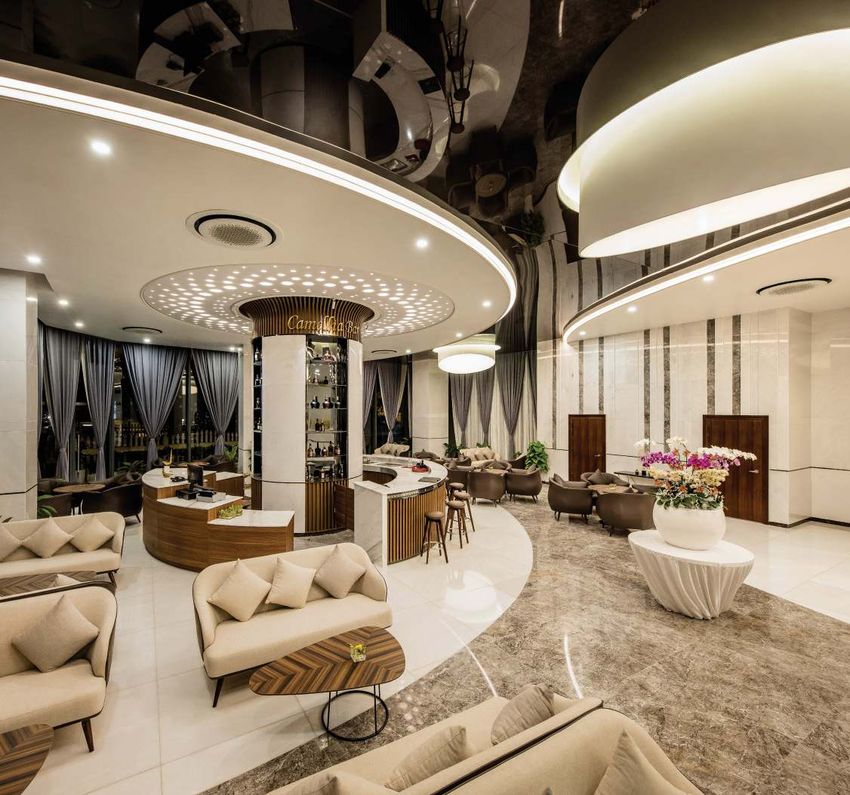

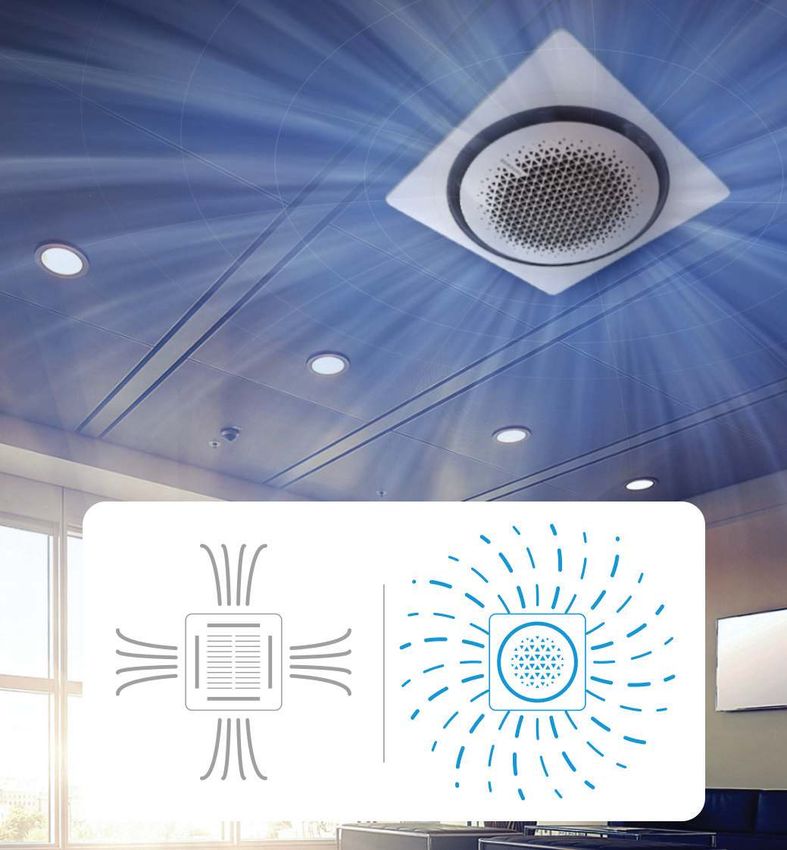

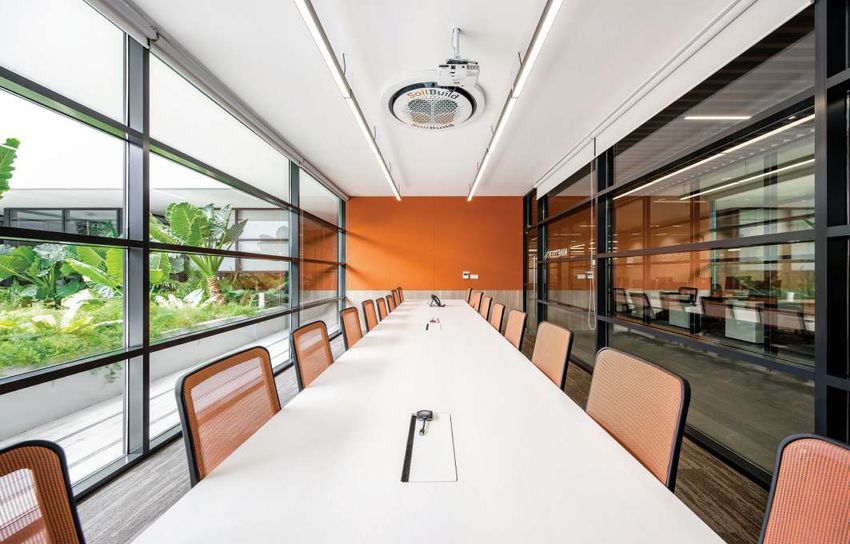

Cassette Type 360 Cassette
Experience ultimate comfort at home or work with Convenient setup All round cooling and comfort
powerful yet economical performance The high lift-up drain pump lifts condensed water up to 750 mm The Samsung 360 Cassette air conditioner offers a brand new way of
Offered in a variety of patterns, Samsung Cassette Type indoor units compared to 700 mm for conventional products, allowing for more staying comfortably cool in every corner of the room. Its innovative
give a inishing touch to the interior design. We incorporate the most lexible, convenient installation. circular design not only means it perfectly its in everywhere, adding
advanced technologies to offer optimized comfort and pleasure. a sophisticated look to many different sites, but it also blows cool air
Fresh air intake
in all directions, so that the whole room is the same temperature*.
Combining sleek inishes and innovative technologies, Samsung Samsung Cassette Type units intake fresh air through the cassette
And its bladeless outlet ensures that cool air is gently dispersed,
Cassette Type air conditioning systems offer superior performance, to provide a cleaner, more energizing room atmosphere.
without creating a cold draft**, and doesn’t block the air low, even
lexible installation and easy operation.
Multi-room cooling at low angles, so it expels 25% more air* and spreads it farther.
Powerful air low A Sub Duct enables the same air conditioner unit to cool an
Wide blades in the indoor unit deliver cool or warm air at greater additional smaller space nearby. (The cassette unit is itted with a Conventional 360 Cassette
knockout component to accommodate for this.) EVENLY CIRCULATES & COOLS EVERY CORNER
distance to provide even cooling and heating throughout the room.
Unike 4-way, cassette type air conditioners that create areas of
Ceiling dust prevention uneven airlow where cool air can't reach*, a circular outlet blows
The newly designed panel controls air direction in a way to avoid cool air in all directions, so every corner of a room is the same
contact with the ceiling. This smart design prevents dust from temperature**.
accumulating on the ceiling after long periods of operation, keeping * Samsung testing compared to a general 4 way cassette type air conditioner.
the interior space cleaner than ever. ** Within an 9.3m radius the temperature difference is less than 0.6oC.
* Within an 9.3m radius the temperature difference is less than 0.6°C.
12 13
360 Cassette 360 Cassette
Reference site
Comfortably cool, not cold Spreads more air in more ways The perfection of the circle brings unimaginable experience that harmonizes your style.
A bladeless design softly disperses cool air across the room, making An innovative Booster Fan enables cool air to be expelled at much Samsung system air conditioner ‘360 Cassette’
you comfortably cool without feeling a cold draft**. With no blades lower angles. It creates a low pressure area around the outlet, so With a circular design aesthetic that perfectly its the interior and its surroundings, the ‘360 Cassette’, winner of the iF Award (international
to block the air low, it also expels 25% more air* and spreads it that cool air comes out parallel to the ceiling and disperses across a Forum Design Award) 2016, is visually stunning. The bladeless ‘360 Cassette’ directs air uniformly in all directions using principles of wind
farther. wider area. currents, ensuring a fresh, natural, and pleasant breeze that completely eliminates cold drafts. Customers have called the ‘360 Cassette’ not
only their ‘the irst choice’ but also their ‘the best choice’.
Booster Fan
* Within a 5m radius, no cold draft between 0~1.5m in height (with 14.0kw).
Yogurteria Mingles Restaurant
Location: Italy Location: South Korea
Circular to perfectly it in everywhere All round simpler & intuitive control
Its innovative circular design can match a multitude of interior Intuitively control its performance and see where the air is going.
designs, so it perfectly its in everywhere. Its minimalist modern The Wireless Remote Controller's* Jog shuttle and button offer a
styling creates a sophisticated look and its circular shape stands out fun way to adjust the air low and a Circular LED Display shows its
beautifully. direction.
* Optional.
JUNGSIK Restaurant PARIS BAGUETTE Cafe (THE PLACE)
Location: South Korea Location: China
STARBUCKS COFFEE Cafe
Location: UK Location: South Korea
14 15
4Way Cassette S 4Way Cassette S
Stylishly clean design
Stage a beautiful yet comfortable environment The Samsung 4Way Cassette S indoor air conditioning system Complement any interior with a sleek, lightweight Neat and clean design
delivers polish, comfort and eficiency with features such as: design The indoor 4Way Cassette S boasts a smart design that promotes a
With its newly improved design, 4Way Cassette S supports a
clean, aesthetically appealing atmosphere and adds a sense of The new Samsung 4Way Cassette S indoor air conditioner comes neat and clean look. The completely hermetic blade structure keeps
• Stylishly clean design. Add panache to interior spaces with
sophistication to work and living spaces. Not only is this unit in a choice of patterns with a simple panel to better match the the indoor unit clean by preventing dust or other foreign substances
a choice of clean, streamlined panel patterns in a lightweight
attractively designed, but it also uses advanced technologies to build. interior design. Its uniquely lightweight frame makes installation from entering it. The internal parts of the indoor unit are also out of
optimize comfort in any environment. easy, while clever blade construction keeps the unit clean for a tidy sight when the blade is shut, thus improving the unit’s appearance.
• Robust operation. Control the atmosphere perfectly with
appearance.
an advanced design for superior air low and cooling/heating Lightweight build
performance. The Samsung 4Way Cassette S indoor unit is now lighter in weight at
Waffle Pattern Classic Pattern 17 kg. It is one of the lightest indoor units in the industry, about 40
• Low maintenance and simple installation. Ease installation
and minimize maintenance with a detachable, no-drip design. percent lighter than conventional products.
4Way Cassette S Conventional
40%
Aesthetic panel and display 17kg 29kg
4Way Cassette S offers two different pattern designs for the panel.
Users can select either the Wafle or Classic pattern to create just
the right look to suit their design preference. Plus, the simple
display design with rounded corners adds a chic sophistication to
the interior.
*Based on 10kW
Power Defrost Time Clean
16 17
4Way Cassette S 4Way Cassette S
Robust operation Low maintenance and simple installation
Achieve peak performance with optimal airlow and superior Silent, uniform air distribution Streamline management with a flexible design Easy leveling and installation
control The aerodynamically designed Turbo Fan minimizes blade Each corner portion of the 4Way Cassette S panel is detachable. This
The Samsung 4Way Cassette S is uniquely designed for easy
Integrating the most advanced technologies, Samsung 4Way movement noise, meaning that 4Way Cassette S is noticeably makes it easier for users to adjust the height, and makes installation
management. Featuring an advanced check valve and detachable
Cassette S delivers easy, eficient comfort with specialized blade quieter than conventional models. Plus, the Turbo Fan’s wide blades and leveling much easier and quicker.
panel and airlow blades, this unit offers quick, simple setup
control, adjustable operation and powerful airlow. And optional provide evenly distributed extreme cooling and heating from four and maintenance for the ultimate in convenience, comfort and
Ionizer kit extends the unit’s eficiency with air sanitation technology Simple cleanup
separate outlets so the entire room cools down or warms up faster. performance.
for a healthier atmosphere. 4Way Cassette S indoor units have detachable airlow blades, which
Drip-free operation means users don’t need to remove the entire panel to clean the
Quick cooling and heating blade, making maintenance even easier.
Cleaner, healthier air The check valve on the drain pump prevents drained water from
The Samsung 4Way Cassette S indoor unit achieves the desired set
Users can enjoy fresh air inside with the optional Ionizer Kit for lowing backward into the drain pan. This minimizes the drain pan’s
temperature up to 25 percent faster than conventional products.
cleaner work or living environment. The easy-to-install Ionizer water level, eliminating the worry and hassle of water stagnation or
generates active hydrogen and oxygen ions to eficiently reduce overlowing drain water dripping into the interior.
harmful elements.
Check valve:
Prevents drain water
from reversing
Minimizes
Remaining
Drain Water
H
Optimal airlow for high ceilings
W
Using only the remote controller, operators can achieve optimum
fan speed for high ceilings without adjusting the dual inline
package (DIP) switch on the printed circuit board (PCB). The fan
speed adjustment function evenly distributes cool and warm air
throughout spaces with high ceilings of up to 3.5 m. And the high
ceiling mode delivers even more powerful airlow throughout the
interior space, enlarging the airlow coverage area for heights of up
to 4.6 m.
Individual blade control
Samsung 4Way Cassette S features a remote controller that enables
users to manipulate the angles of the fan blades for more eficient
cooling. With the remote controller, users can individually set the
opening angles of the four blades at the same angle or different
angles within a 32° - 65° range to create just the right atmosphere.
18 19Wind-FreeTM 4Way Cassette Wind-FreeTM 4Way Cassette
Wind-Free™ Cooling. Keeps comfortable without changing settings.
Get cool fast, Stay Cool without Direct Wind. The 2-Step Cooling cools the air fast in Fast Cooling, then automatically changes to Wind-Free™ to maintain the temperature. So you stay
comfortable, without cold spots, and don’t need to change settings.
Wind-Free™ Cooling effectively maintains a comfortable level of
coolness without the unpleasant feeling of cold wind. Cool air is
gently dispersed through 15,700 micro air holes, so you don’t feel too STEP1 STEP2
Temp (OC)
hot or cold.
Fast Cooling Wind-Free™
※ Still Air condition : According to ASHRAE, If velocity of wind is lower than Big blade cools air No Cold Fraft & Save
0.15m/s, People can not detect wind. And they deine that condition is “Still Air”
Faster and Better Energy up to 55%
Set
Temp.
Micro Holes
Even Cooling in All Area
Wind-Free™ Cooling keeps the temperature inside all evenly.
-32.0
Conventional 4Way -31.0 Wind-Free™ 4Way
-30.0
-29.0
-28.0
-27.0
-26.0
-25.0
2M -24.0 2M
4M -23.0 4M
-22.0
Energy saving with Wind-Free™.
Normal Cooling Wind-Free™ Cooling
Under same condition, can save energy use by 55% compared to
conventional cooling.
*Tested on Outdoor unit AC140MXADKH, Indoor unit AM140FN4DEH when running
simultaneously, Individual result may vary depending on consumer usage
*Test Temperature : OD 35℃ DB / 24℃ WB, ID 27℃ DB / 19℃ WB Save
55%
20 21Wind-FreeTM 4Way Cassette Wind-FreeTM 4Way Cassette
Big Blade, Long Wind Aesthetic panel and display Achieve peak performance with optimal airlow and superior Easy leveling and installation
Big and optimized blades enable wider cooling range. Wind-Free™ 4Way Cassette offers different designs for the panel. control Each corner portion of the 4Way Cassette panel is detachable. This
The right look to suit their design preference. Plus, the simple Integrating the most advanced technologies, Samsung 4Way makes it easier for users to adjust the height, and makes installation
display design. Cassette delivers easy, eficient comfort with specialized blade and leveling much easier and quicker.
control, adjustable operation and powerful airlow. And optional
Ionizer kit extends the unit’s eficiency with air sanitation technology Simple cleanup
for a healthier atmosphere. 4Way Cassette indoor units have detachable airlow blades, which
means users don’t need to remove the entire panel to clean the
Individual blade control blade, making maintenance even easier.
84mm Samsung 4Way Cassette features a remote controller that enables
31% * users to manipulate the angles of the fan blades for more eficient
cooling. With the remote controller, users can individually set the
* Compared with Conventional 4way
opening angles of the four blades at the same angle or different
angles within a -10˚ ~ 53 ˚ range to create just the right atmosphere.
Wind-Free™ 4Way Conventional 4Way
5M 2.5M
*Tested on Outdoor unit AC140MXADKH, Indoor unit AM140FN4DEH when running
simultaneously, Individual result may vary depending on consumer usage.
Lightweight build
The Samsung Wind-Free 4Way Cassette indoor unit is now lighter in
Motion detect sensor(Optional) weight at percent lighter than conventional products.
Motion detect sensor enables customized air low and energy eficient operation.
4Way Cassette Conventional
Wind Direction : Choose Your Comfort Energy Saving : 35% > 50%
Direct wind or Indirect wind Wind-Free™ + OFF Control 35%
Direct wind Indirect
wind 17kg 26kg
MDS
Choose your
comfort
30mins 50mins
120mins
Ionizer Kit(Optional)
Users can sanitize indoor air with the optional Ionizer kit for a cleaner
work or living environment. The easy-to-install Ionizer kit generates
active hydrogen and oxygen ions to reduces airborne virus and
bacteria.
22 234Way Cassette S (600 x 600) 4Way Cassette S (600 x 600)
Tasteful design, Compact, Lightweight build
Add chic flair to your interior design with a stylish yet The 4Way Cassette S (600 x 600) indoor air conditioning system Refine the interior with an elegant, compact design Streamline management with a lexible design
powerful AC system provides high-performance heating and cooling in an elegant
The enhanced Samsung 4Way Cassette S (600 x 600) indoor air The Samsung 4Way Cassette S is uniquely designed for easy
Samsung’s advanced 4Way Cassette S (600 x 600) builds on the design with features such as: management. Featuring an advanced check valve and detachable
conditioner features a selection of simple panel patterns to blend
aesthetic appeal and performance of the standard 4Way Cassette S seamlessly into any interior design. Its uniquely lightweight frame panel and airlow blades, this unit offers quick, simple setup
• Tasteful design and compact, lightweight build. Create a
with an enhanced design. The 4Way Cassette S (600 x 600) comes blends effortlessly and beautifully into any décor, while clever blade and maintenance for the ultimate in convenience, comfort and
polished ambiance with a discreetly sized design and a choice of
in a variety of patterns to complement any interior. The stylish attractive panel patterns. construction keeps the unit clean for a tidy appearance. performance.
cassette unit visually harmonizes with the indoor space, while
• Enhanced comfort control. Optimize comfort and save energy
eficient cooling and heating performance make it a dependable
with optional motion detection.
and practical air conditioning solution.
Perfect architectural ceiling tiles size Drip-free operation
• Low maintenance and powerful airflow. Ease installation and
maintenance and maximize airlow with an eficient design and Samsung newly designed 4 Way Cassette S(600 x 600) panel can be The check valve on the drain pump prevents drained water from
robust performance. installed on a within one ceiling tile (600 x 600) without disturbance lowing backward into the drain pan. This minimizes the drain pan’s
installed in the adjacent ceiling tiles on lights, sprinklers. water level, eliminating the worry and hassle of water stagnation or
overlowing drain water dripping into the interior.
Check valve:
Prevents drain water
from reversing
Minimizes
Remaining
Drain Water
H
W
24 254Way Cassette S (600 x 600) Wind-FreeTM 4Way Cassette (600 X 600)
Enhanced comfort control
Create a flawless atmosphere with innovative Comfortable airlow control Wind-Free™ Cooling.
motion-controlled operation The purpose of air conditioners is to provide a pleasant indoor
Get cool fast, Stay Cool without Direct Wind.
The optional motion detection sensor (MDS) for 4Way Cassette S environment for users. To better serve this purpose, Samsung 4Way
Wind-Free™ Cooling effectively maintains a comfortable level of
(600 x 600)—the world’s irst—creates the ideal environment with Cassette S provides a Comfort Airlow Control function that prevents
coolness without the unpleasant feeling of cold wind. Cool air is
added comfort control and energy savings by providing just the cold drafts. When the room temperature reaches 23°C during
gently dispersed through 9,000 micro air holes, so you don’t feel too
right amount of airlow when needed. cooling mode, the indoor unit reduces the amount of discharging
hot or cold.
air. By doing so, people in the room avoid the discomfort of direct
Smart on/off function contact with cold airlow. ※ Still Air condition : According to ASHRAE, If velocity of wind is lower than
0.15m/s, People can not detect wind. And they deine that condition is “Still Air”
Energy-saving MDS detects when individuals are absent from
the area and automatically stops the air conditioning operation.
Discharged air speed (m/s)
0.7
It also automatically sets operation patterns to create the perfect 0.7
atmosphere and maximize energy eficiency. 0.6
0.6
0.5
o
Power ON Power OFF
23 C 0.5
0.4 Micro Holes
0.4
0.3
0.3
Ideal airlow distribution 0.2
The innovative MDS prevents the indoor unit from distributing * Only for 4-Way 600x600 connected with DVM products
airlow directly to individuals for increased comfort. It also reduces
the difference of thermal sensation in the body by detecting the Cleaner, healthier air
temperature around the loor. Users can enjoy fresh air inside with the optional Ionizer Kit for
cleaner work or living environment. The easy-to-install Ionizer
generates active hydrogen and oxygen ions to eficiently reduce
harmful elements.
Individual blade control
Samsung 4Way Cassette S features a remote controller that enables
users to manipulate the angles of the fan blades for more eficient
cooling. With the remote controller, users can individually set the
opening angles of the four blades at the same angle or different
angles within a 32° - 65° range to create just the right atmosphere.
26 27Wind-FreeTM 4Way Cassette (600 X 600) Wind-FreeTM 4Way Cassette (600 X 600)
Keeps comfortable without changing settings. Achieve peak performance with optimal airlow and superior Silent, uniform air distribution
control The aerodynamically designed Turbo Fan minimizes blade
The 2-Step Cooling cools the air fast in Fast Cooling, then automatically changes to Wind-Free™ to maintain the temperature. So you stay
Integrating the most advanced technologies, Samsung 4Way movement noise, meaning that 4Way Cassette is noticeably quieter
comfortable, without cold spots, and don’t need to change settings.
Cassette delivers easy, eficient comfort with specialized blade than conventional models. Plus, the Turbo Fan’s wide blades provide
control, adjustable operation and powerful airlow. And optional evenly distributed extreme cooling and heating from four separate
STEP1 STEP2
Ionizer kit extends the unit’s eficiency with air sanitation technology outlets so the entire room cools down or warms up faster.
Temp (OC)
Fast Cooling Wind-Free™ for a healthier atmosphere.
Big blade cools air No Cold Fraft & Save
Individual blade control
Faster and Better Energy up to 55%
Samsung 4Way Cassette features a remote controller that enables Easy leveling and installation
users to manipulate the angles of the fan blades for more eficient Each corner portion of the 4Way Cassette panel is detachable. This
cooling. With the remote controller, users can individually set the makes it easier for users to adjust the height, and makes installation
opening angles of the four blades at the same angle or different and leveling much easier and quicker.
Set
Temp. angles within a -10˚ ~ 53 ˚ range to create just the right atmosphere.
Simple cleanup
4Way Cassette indoor units have detachable airlow blades, which
means users don’t need to remove the entire panel to clean the
Even Cooling in All Area blade, making maintenance even easier.
Wind-Free™ Cooling keeps the temperature inside all evenly.
-32.0
Conventional 4Way -31.0 Wind-Free™ 4Way
-30.0
-29.0
-28.0
-27.0
-26.0
Lightweight build
-25.0
2M -24.0 2M
4M -23.0 4M The Samsung Wind-Free™ 4way Cassette 600x600 indoor unit is
-22.0
now lighter in weight at percent lighter than conventional products.
4 way Cassette 600 X 600 Conventional
35%
Smart on/off function(Optional)
Energy Saving MDS detects when individuals are absent from the area and automatically stops the air conditioning operation. It also
automatically sets operation patterns to create the perfect atmosphere and maximize energy eficiency. 11kg 17kg
28 29Wind-FreeTM 4Way Cassette (600 X 600) Slim 1Way Cassette
Discreet style and performance
Aesthetic panel and display Drip-free operation Enhance any environment with the best of air Slim and compact design
Wind-Free™ 4Way Cassette offers different designs for the panel. The check valve on the drain pump prevents drained water from conditioning performance and sleek style At a height of only 135 mm, the Slim 1Way Cassette is the world's
The right look to suit their design preference. Plus, the simple lowing backward into the drain pan. This minimizes the drain pan’s Samsung Slim 1Way Cassette is an optimized air solution that suits thinnest indoor air cooling unit. The compact, lightweight design
display design. water level, eliminating the worry and hassle of water stagnation or both practical and aesthetic needs with its simple design and makes installation and maintenance easier than ever with a
overlowing drain water dripping into the interior. eficient cooling operation. The slim, rounded design of the Slim panel area that's been reduced by 30 percent. And with its high
1Way Cassette unit creates a near-seamless ceiling for a clean performance and understated elegance, the unit blends seamlessly
ambiance. And its progressive design, including superior blade into interiors of all types and styles.
technology, delivers high performance and easy management
without compromise.
Check valve: Visually appealing panel
Prevents drain water
from reversing Slim 1Way Cassette projects reined simplicity. The clean lines and
simple display design make this a modern classic, which looks great
Minimizes with any interior.
Remaining
Drain Water
H
W
Perfect architectural ceiling tiles size Ionizer Kit(Optional)
Samsung newly designed 4 Way Cassette (600 x 600) panel can be Users can sanitize indoor air with the optional Ionizer kit for a cleaner
installed on a within one ceiling tile (600 x 600) without disturbance work or living environment. The easy-to-install Ionizer kit generates
installed in the adjacent ceiling tiles on lights, sprinklers. active hydrogen and oxygen ions to reduces airborne virus and
bacteria.
30 31Visually appealing panel Slim and compact design
Discreet style and performance Discreet style and performance
Enhance any décor with refined elegance and Ease installation and maintenance with a slim and Lighter indoor unit
comfort compact design Samsung is the irst to apply ABS cabinets into its indoor units to
Sim 1Way Cassette features a simple and reined design. The clean At a height of only 135mm, the Slim 1Way Cassette is the world’s provide the lightest units on the market.
lines and simple display design make this a modern classic, which thinnest indoor air cooling unit. The compact, lightweight design
3.6 kW R410A model
looks great with any interior. makes installation and maintenance in your space easier than ever. 31kg
Weight
These high-performing units are so discreet that they can easily
10.5kg
blend into interiors of all types and styles.
Conventional
1Way CST
* Excluding panel
Drip-free operation
Drain pan is included within the panel.
The check valve on the drain pump prevents drained water from
lowing backward into the drain pan. This minimizes the drain
Make sure that there is
pan's water level, eliminating the hassles of water stagnation or
enough installation space.
Allow at least 170mm for overlowing drain water dripping into the interior.
the installation.
Panel area has been reduced by 30%. Check valve:
Prevents drain water
from reversing
Minimizes
Remaining
Drain Water
H
W
Quiet operation
Air reaches every corner of the room. Samsung's new blade design drastically reduces noise levels so that
Blade angle can move from 40°C - 80°C to reach every corner of the users can relax in peace and quiet.
room.
High Fan Speed Low Fan Speed
Noise level
26%
30dB Down
25dB 32%
Down
SAMSUNG
SAMSUNG
32 33Wind-FreeTM 1Way Cassette Wind-FreeTM 1Way Cassette
Wind-Free™ Cooling. Keeps comfortable without changing settings.
Get cool fast, Stay Cool without Direct Wind. The 2-Step Cooling cools the air fast in Fast Cooling, then automatically changes to Wind-Free™ to maintain the temperature. So you stay
comfortable, without cold spots, and don’t need to change settings.
Wind-Free™ Cooling effectively maintains a comfortable level of
coolness without the unpleasant feeling of cold wind. Cool air is
gently dispersed through 10,000 micro air holes, so you don’t feel STEP1 STEP2
Temp (OC)
too hot or cold.
Fast Cooling Wind-Free™
※ Still Air condition : According to ASHRAE, If velocity of wind is lower than
Big blade cools air No Cold Fraft & Save
0.15m/s, People can not detect wind. And they deine that condition is “Still Air”
Faster and Better Energy up to 55%
※ PC1MWFMAN : 7,534ea
PC1NWFMAN : 10,454ea
PC1BWFMAN : 13,961ea
Micro Holes
Set
Temp.
Even Cooling in All Area
Wind-Free™ Cooling keeps the temperature inside all evenly.
Conventional 1Way Wind-Free™ 1Way
Quiet operation
Extremely quiet with Wind-Free™ operation.
Wind-Free™ Ex. Of Noise
※ Standard by National Noise information System
34 35Wind-FreeTM 1Way Cassette Ducted Type
Big Blade, Long Wind Overview Smart pressure control
Can deliver cool air up to 8m with wider operating angle, along with Samsung Ducted Type air conditioning units are a smart solution for Samsung Ducted Type units feature a smart pressure control
rapid and even cooling. low-maintenance, consistent cooling and heating performance in system. This system adjusts the fan speed based on the external
any environment. Their compact, slim frame blends seamlessly into static pressure (ESP), delivering consistent cooling and heating
Wind-Free™ 1Way Conventional 1Way ceilings, enhancing the beauty of the interior space and affording power, regardless of the surrounding environment.
users more lexible installation options.
Convenient installation
Various ducted air solutions The optional lift-up drain pump lifts condensed water up to 750 mm,
Offering a comprehensive lineup, Samsung Ducted type air compared to a limit of 700 mm on conventional models, for lexible
conditioning units offer just the right solution for every need: and convenient installation.
• Duct S. This solution features 3way service, automatic air
volume, light weight and high EER.
• Slim Duct. This solution is a low static pressure model, which is
optimized for places such as hotels and residences.
• Middle Static Pressure (MSP). This model is speciically
designed to enhance interior design for large spaces such as
ofices, stores, or residences.
• High Static Pressure (HSP). This model is optimized for large
spaces or places.
• Outdoor Air Processing (OAP). This model is ideal for places
such as restaurant kitchens, where 100% fresh air supply is
Energy saving Ease installation and maintenance with a slim and compact
needed.
Wind-Free™ Cooling allows eficient energy saving up to 55%, while design
keeping the place comfortably cool. At a height of only 135mm, the Slim 1Way Cassette is the world’s
thinnest indoor air cooling unit. The compact, lightweight design
makes installation and maintenance in your space easier than ever.
These high-performing units are so discreet that they can easily
blend into interiors of all types and styles.
Save
55%
※ Test Condition
- ODU : DVM S ECO 5HP(AM050FXMDEH)
- IDU : Wind-Free™ 1Way 5.6kW(AM056NN1DEH),
3.6kW(AM036NN1DEH), 2.2kW(AM022NN1DEH) Drain pan is included within the panel.
simultaneously running
※ Temperature
- OD 35℃ DB / 24℃ WB
- ID 27℃ DB / 19℃ WB
36 37Duct S Duct S
Eficient operation
Easy air tuning
Experience performance and convenient comfort for The Duct S indoor air conditioning unit delivers smooth, consistent Deliver consistent cooling and heating with
any weather condition operation and convenience with features such as: innovative operation for maximum comfort Smart Tuning provides the delicate control needed for optimum
comfort for any occasion. Users can easily ine-tune operational
Samsung Duct S delivers unparalleled cooling and heating and Samsung Duct S is a global frontrunner in energy-eficient design,
• Efficient operation. Stage the desired atmosphere with power to suit their activity level, while also ensuring minimum noise
lexible management with customizable comfort settings in any energy-eficient performance and customized airlow. temperature control and power. Its aerodynamic blade technology
and energy savings.
climate—all year round. Plus, it boasts a slim, compact size and increases airlow silently while adjustable air tuning customizes the
• Smart management. Cool spaces eficiently and manage the
multiple access points for easy setup exactly where needed. indoor climate for any situation.
air conditioning unit even while away, with features designed for
eficiency and control. World-class energy eficiency
• Easy, flexible setup. Install and maintain even multiple units The Samsung Duct S unit boasts cutting-edge technologies to
with a compact and easily accessible design. deliver stellar energy eficiency.
• Twin Rotary BLDC Compressors. These robust compressors
reduce luctuation and vibration by 75 percent for effective
reluctance.
• FME/FMC (Flat Micro-channel Evaporator/Condenser).
Samsung’s FME/FMC technology achieves a 30 percent increase
in eficiency compared with the conventional in and tube type.
It has also enabled a 30 percent decrease in unit size.
Automatic air volume
Silent performance Duct S features ingenious technology that senses the current air
The Samsung Duct S includes aerodynamic blades that increase air volume and pressure and then quickly adjusts its performance to
volume by 10 percent with less noise for powerful comfort with less ensure optimum comfort, whatever the duct length.
distraction.
Powerful cooling
With the integration of the all new sirocco fan, the Duct S ensures
suficient air volume by adopting a bigger, more powerful fan than
conventional models.
Cleaner, healthier air
Users can enjoy fresh air inside with the optional Ionizer Kit for
cleaner work or living environment. The easy-to-install Ionizer
generates active hydrogen and oxygen ions to eficiently reduce
harmful elements.
38 39Duct S Duct S
Smart management Easy, lexible setup
Minimize maintenance with innovative management Anytime temperature control Streamline management with a flexible design Plug-and-connect drainage
and anywhere control The Duct S enables users to have separate settings for daytime and The Samsung Duct S is designed especially for simple installation, The optional Plug and Connect External Type drain pump takes the
Samsung Duct S offers smart management features and settings nighttime, so they can live and sleep in perfect comfort. handling and maintenance. Its discreet, accessible design makes hassle out of draining the unit. Simply plug it in and connect it, and
that enable users to spend less time maintaining the unit and more for easy upkeep, while the smart plug-and-connect drainage with the single drain pump, maintaining all the building’s Duct S
Three-step quiet performance
time on what matters most to them. Users can enjoy stress-free streamlines maintenance for even multiple units. units is easier than ever. Plus, the advanced check valve prevents
Ensure quiet operation during the night with a reduced noise level of
comfort and control all year and all day long. drain water backlow, freeing the unit from the bacteria and fungi of
3-7 dB. Duct S minimizes noise levels with 3-step quiet operation—1 Slim design and light weight water stagnation in the drain pan.
Intuitive zone control step: 3 dB; 2 step: 5 dB; 3 step: 7 dB. A streamlined construction makes the Duct S convenient to install
With the Duct S Zone Controller, users can cool multiple spaces and maintain in any building. Its compact, slender design reduces its
Agile, anywhere operation
easily while conserving energy. Up to eight zones can be connected volume and weight compared to conventional air conditioners. Duct
With optional Smart Wi-Fi, users can control their AC anywhere,
and controlled by a single indoor unit. This function enables users S is 30 percent smaller than its counterparts, so it its easily into
anytime using a smart device, and turn it off easily to conserve
to create the perfect ambiance in different rooms and reduce power small spaces. But despite its small frame, Duct S offers exceptional
energy, even while away from home.
consumption by turning the dampers on and off. All this control eficiency, while its light weight supports convenient handling and
is wielded easily from a stylish, wide touchscreen that supports EZ Filter, easy maintenance setup.
intuitive and simple operation. The Duct S includes a ilter that is easy to assemble and disassemble.
Wide range of ESP
And ilter cleanup and maintenance are hassle-free—simply rinse
All-season comfort Users can choose from a complete range of Duct S products to
the ilter under running water.
Away Mode enables users to maintain comfort and energy savings deliver the right capacity, right ESP and right sized product.
with thermal storage operation to keep the room cool during the
Three-way access
summer season and warm during winter.
With its smart, multi-entry design and slide it, users can access
the Duct S from three directions (top, side and bottom) for easy
maintenance.
From the Top From the Bottom From the Side
40 41Slim Duct MSP Duct
Ultra-light, adaptable design Silent, strong performance
Various installation options Deliver increased airflow to broader areas with quiet, Quiet performance
Slim Duct S adopts an ultra-compact, slim size with its thin width, powerful cooling and heating The external static pressure control makes it easy to customize the
which is 200 mm narrower than conventional products. This slender ductwork to ensure eficiency and silent operation.
build enables lexible installation and maintenance in various
Easy upkeep and installation
environments.
The MSP Duct unit features quickly accessible parts so users can
World’s lightest weight maintain the unit with ease. And its compact size and narrow width
The eficient Slim Duct S is the lightest duct air conditioning unit on of 900 mm enable lexible installation and management for added
the market. At a weight that’s 15 percent lighter than conventional user convenience.
units, Slim Duct S offers the best in convenient installation and
maintenance.
Temper any environment with industry-best
lightweight design and optimized airflow
The new Samsung Slim Duct visually blends into the ceiling
while providing powerful cool and warm airlow. It’s also easy to
install and maintain in any interior regardless of the surrounding
environment with its compact size and weight—the lightest in the Concealed behind the ceiling, Samsung MSP Duct provides
900mm
industry. powerful yet silent operation with external static pressure control.
Its exceptional static pressure enables a broad coverage area and
Flexible setup provides stable, eficient performance in larger spaces.
The air inlet can be set up either on the bottom or rear of the unit,
giving users greater lexibility in installation. 700mm 200 mm
Narrower
Extensive coverage
MSP Duct offers greater static pressure than most slim ducts. This
Rear Side Air Inlet Bottom Side Air Inlet
higher pressure level enables users to design more inlets and
Easy access, easy maintenance outlets with longer ductwork to provide even more airlow to larger
areas.
Slim Duct features a lexible design that enables users to easily
Diffuser
Diffuser
TEX
TEX access its parts to maintain the unit.
Suction Duct
Suction Duct
Simple drain pump installation MSP Duct Slim Duct
The new drain pump in the Slim Duct unit can be installed from the
side by simply removing the right side panel. Users no longer need
to disassemble the top cover to install, check or repair the drain
pump for maximum convenience.
0~25mmAq 0~6mmAq
42 43HSP Duct Outdoor Air Processing Duct
Robust, high-pressure control 100% fresh treated air supply
Control the atmosphere effortlessly with robust, Conserve energy and costs with practical, high- Full-range temperature processing
adaptable performance powered operation Samsung Outdoor Air Processing Duct supplies fresh air to the
With the capacity to handle high external static pressure up to 25 Samsung's new Outdoor Air Processing Duct is an outside fresh interior environment by cold or heat processing a wide spectrum of
mmAq, the powerful Samsung HSP Duct provides an expansive air treatment unit with integrated ventilation, combining fresh air outside temperatures ranging from -5°C - 52°C.
coverage area with outstanding cooling and heating performance. processing and air conditioning via a single system.
Flexible installation
HSP Duct is an ideal it for spaces with high ceilings and can be
Air conditioning indoor units and an Outdoor Air Processing unit can This light and compact unit, with its shorter height of 390 mm,
lexibly installed to suit various environments.
be connected to the same refrigerant line, resulting in enhanced enables users to conveniently install and manage it in a variety of
design lexibility and a signiicant reduction in total system costs. areas with a host of installation options.
A BLDC motor extends the savings with considerably less energy
Split fan and coil consumption.
Products that are dificult to install are often challenging to use as High-eficiency motor
well. Considering users' product experience from start to inish,
The BLDC motor supports the highest eficiency level possible. Its
Samsung separated the Duct S (AC6000) into two parts, coil and Height
low-consumption design saves up to 32 percent more energy than 390mm
fan, for easier installation and management. When users experience
conventional products for more economical and practical operation.
dificulty handling the product due to space limitations or weight, TEX
they can install the parts separately and then put them back Quiet operation
together as one unit. Equipped with the proicient BLDC motor, Outdoor Air Processing Flexible static pressure control
Duct operates quietly with a sound level as low as 42 dB, slightly
Silent operation If the installation area of the duct exceeds the standard, then the
higher than that of a library. Such distraction-free operation ensures
The external static pressure control makes it easy to customize the static pressure control system maintains the optimized air volume
optimum comfort and calm for any environment.
ductwork to ensure eficiency and silent operation. by adjusting the fan speed.
Outdoor unit Outdoor unit
HSP Duct Slim Duct
Supply air
Exhaust air Fresh air
EA Indoor unit Indoor unit
Truss chamfer (optional)
Samsung believes that products should improve users' quality of
life, not to impose more limitations. By making a small change to Fresh air Fresh air Fresh air
0~25mmAq 0~6mmAq the product, users now can install the Duct S (AC6000) right next to
R/C R/C
the roof's edge, freeing up rooftop space for other purposes.
44 45Wall Mount Type AR9000, 7000, 5000 Series
Triangular design, powerful cooling
Breathe easily with wall-mounted systems designed Cleaner, healthier air Cool every corner of the room with a unique, Easy-access maintenance
for all-day freshness Users can enjoy fresh air inside with the optional Ionizer Kit for efficiency-boosting design Unlike conventional ilters that are often dificult to access, the
Samsung Wall Mount Type air conditioners have been designed cleaner work or living environment. The easy-to-install Ionizer Samsung AR9000, 7000, 5000 Series units are designed with Samsung wall-mounted unit ilter is on the outside, at the top of
from the ground up to be exceptionally eficient. With their stylish, generates active hydrogen and oxygen ions to eficiently reduce eficiency in mind. Their uniquely triangular design improves the device. Easy access means users can take out the ilter, clean it
innovative designs, these wall-mounted air conditioners optimize harmful elements. performance to circulate cool, clean air throughout every inch of the and put it back without having to open a cover or pull hard to get it
comfort with cool, clean, healthy freshness for everyday living. room. In addition, their smart design includes easy-to-remove ilters out. And its antibacterial coating ilters dust, dangerous airborne
Good Sleep
for easy management and healthier airlow. contaminants and allergens for healthier breathing.
Improved blade operation Samsung’s Wall Mount Type units feature Good Sleep mode for a
Samsung’s wide twin blade can open up to 90° for more effective comfortable bedroom climate perfectly tempered for a restful night.
cooling. The longer twin blade ensures that air reaches every corner With automatic temperature and moisture adjustment, all three
of the room with greater control. vital stages of sleep are protected from humidity and heat so users
wake up fully rested and refreshed.
Superior dust iltration
A Full High Density (HD) ilter creates cleaner air through enhanced
iltration, reducing microscopic dust particles by up to 90 percent.
Faster, farther cooling performance
The units’ distinctive triangular design has a wider intake, so more
air can be drawn in. The improved width and angle of the outlet,
extra v-blades and bigger fan also ensure that air is cooled and
expelled 26 percent faster and 14 meter farther than conventional
model. The result is refreshingly cool air that reaches every corner
of the room—with no blind spots. Their Smart Inverter also provides
signiicantly greater energy eficiency.
46 47Wall mounted(MAX) Console Type
Luxurious style and calm
The wall mounted indoor unit of the bigger capacity Create an exquisite interior complemented by Slim, low-proile design
This product of bigger capacity which is suitable for the space dificult elegant design and quiet performance Samsung’s console type air conditioner is only 199 mm thick, the
to install in the ceiling including the school, ofice, retail and etc. The slim, elegant Samsung Console Type indoor unit is designed to slimmest on the market, and its unobtrusive design easily integrates
perfectly it spaces with high ceilings and numerous windows while into any décor.
This wall-mounted type of large capacity is suitable to avoid falling
maintaining an optimal indoor temperature. Samsung’s console air
water from ceiling in the server room environment. Stay-clean panel
conditioning solution makes any environment more pleasant and
The intelligently designed clean panel keeps dust from
comfortable with features such as:
accumulating, so the unit and the room stay cleaner.
Two-way airlow
Sophisticated control
Featuring a 2-way air outlet, Samsung’s console unit includes two
The touchscreen display delivers convenient control, and is an
separate air outlets for cooling and heating. The warmer air comes
elegant example of functional art.
out from the bottom part of the air outlet to spread the warm air
evenly throughout the room. Users stay cooler or warmer in every
corner of the room.
48 49You can also read
