Product Catalog
Fast Fuel / Rapid Refueling Systems
Fill Receivers & Nozzles
Caps, Fuel & Oil
Diesel Exhaust Fluid Systems
ShawDev.com
About Us....
Shaw Development is a global supplier of fluid
management systems providing innovative solutions to
OEM’s in support of both commercial and military heavy
duty ground vehicle markets.
Our goal is continuous and intelligent investment in
research and development of our core competencies. We
continuously develop processes, equipment and systems
expertise, establishing Shaw Development as a premier
supplier and seamless extension of our customers’
development team.
Shaw Development specializes in custom engineering,
prototyping and production of our customers’ fluid systems
and components, supporting Fuel, Hydraulic and Diesel
Exhaust Fluid (DEF) application requirements. Our
experienced staff dedicated to operational excellence is
poised to become your technology partner.

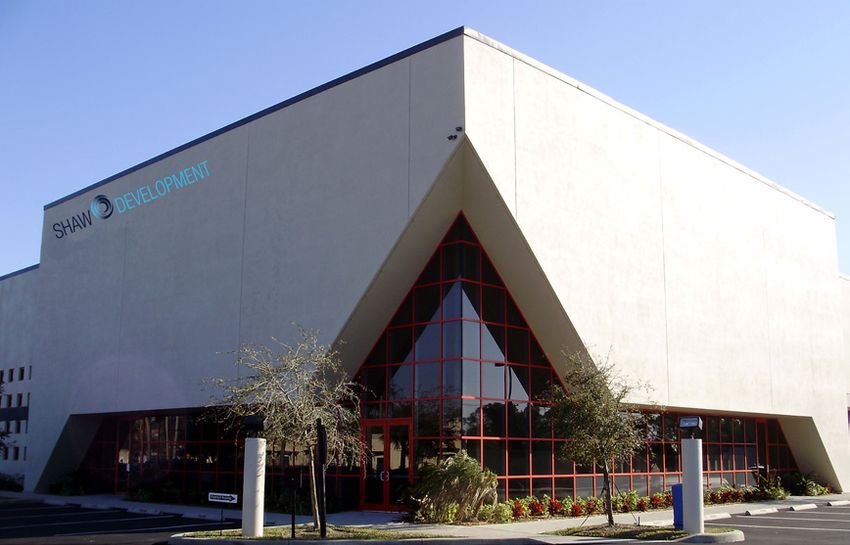

Corporate Headquarters & Operations
25190 Bernwood Drive
Bonita Springs, FL 34135 U.S.
Main: +1.239.405.6100
Fax: +1.239.405.6101
Web: shawdev.com
2
ShawDev.com
Table of Contents
Fast Fuel / Rapid Refueling Systems 4
Diesel Refueling Receivers 7
Gravity Fill Adapters 8
Inlet Shut-off Valves 9
Diesel Refueling Nozzles 10
Retrofit Plate Assemblies 10
Lubrication Service Centers 11
Poppet Vents 11
Quick Disconnect Nozzles & Receivers 12
Diesel Exhaust Fluid (DEF) Systems &Components 18
Caps, Fuel & Oil 20
Expandable Rubber Plugs 22
Distributors 23
3
ShawDev.com
Fast Fuel / Rapid Refueling Systems
Shaw Development’s Non-pressurized Refueling System is based on aerospace
technology, allowing the fuel tanks to be filled at flow rates in excess of 212+ GPM*
(800+ LPM) without pressurizing the fuel tank. This system can be used safely on
metal, composite, or bladder tanks. The system consists of three main components:
• Receiver
• Inlet Shut-off Valve
• Level Vent Assembly
Key System Features
• Standard flow rates up to 150 GPM (570 LPM)
• Positive Shut-off prevents “overfilling”
• Meets directive 97/23/EC and does not pressurize tank
• No spills or burst tanks
• Ground level connections
• Mates with industry standard nozzles and 2” NPT receivers
• Shut-off valve acts as a check valve when servicing the receiver
• Receiver can be replaced without draining the tank
* Flow rates are based upon several factors including the shutoff rating of the nozzle
itself. By using a higher shut-off rated nozzle, the Shaw system can deliver in excess
of 212 GPM and beyond.
Level Control Vent Assembly
Receiver
Signal Line
Inlet Shut-off Valve
4
ShawDev.com
Fast Fuel / Rapid Refueling Systems

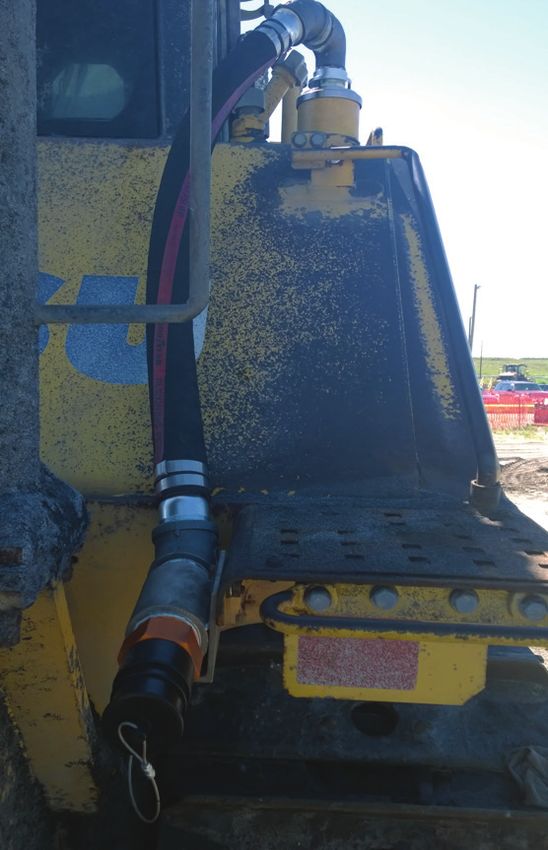

Micro Fast Fuel / Rapid Refueling Replacement Kit & Signal Line
The Micro Fast Fuel kit is designed to thread into existing recessed wells or ports with a 2” NPT
interface to replace existing systems. Simply remove the old components and thread in the new
Shaw Development System. No cutting or welding required to convert a tank from a pressurized
system to a non-pressurized system.
The kit requires:
a. Receiver/Inlet Shut-off Valve
b. Level Control Vent Assembly
c. Filter and Mounting Bracket Assembly
d. Signal Line (Sold Separately)
Existing Vehicle Housing b. Level Control
Vent Assembly
d. Signal Line
c. Filter / Breather
a. Receiver & Valve
Assembly
Micro Fast Fuel Kit P/N 971-1572-01
Figure Description Part Number *Notes
a Receiver 971-0500-01 Standard Receiver Aluminum - Orange
a Receiver Cover 971-0778-01 Includes Lanyard
a Shut-off Valve 971-1003-01 2” NPT Mounting Threads
b Level Control Assembly 971-2254-05 Ships with 5 Spacers
c Filter / Vent Assembly 971-0663-01 10 Micron
c Mounting Bracket, Filter 971-0640-01 Not Shown
c Hose Barb 971-0664-01 Not Shown
Figure Description Part Number *Notes
Sold Separately
d Signal Line 971-0984-XX Where XX defines signal line length.
Lengths (XX) available: 36” 50” 80” 120” 150” 190”
5
ShawDev.com
Fast Fuel / Rapid Refueling Systems
Weld-on Retrofit Kit
This weld-on retrofit kit is designed for vehicles without an existing Fast Fuel System. After welding
a “nut plate ring” onto the tank, the well assembly is bolted into place. All the hardware is provided
to allow the owner/operator to modify their vehicle to add a Shaw Development kit.
The kit requires:
a. Receiver
b. Weld-on Ring & Bolt-on Well w/Gasket
c. Inlet Shut-off Valve
d. Level Control Vent Assembly
e. Signal Line (Sold Separately)
f. Filter & Mounting Bracket Assembly
d. Level Vent Assembly
b. Weld-on Ring
e. Signal Line
a. Receiver c. Shut-off Valve f. Filter / Breather
Weld-on Retrofit Kit 971-1573-01
Figure Description Part Number *Notes
a Receiver 971-2127-01 Steel, Nickel Plated
a Receiver Cover 971-1091-01 Includes Wiper for Well Assembly
b Bolt-on Well Assembly 971-0956-03 Includes Well, Shut-off Valve, Gasket, Receiver & Cover
b Nut Plate Ring 971-0958-01 Weld-on
c Shut-off Valve 971-0692-01
d Level Control Assembly 971-2254-05 Ships with 5 Spacers
f Filter 971-0663-01 10 Micron
f Mounting Bracket, Filter 971-0640-01 Not Shown
Figure Description Part Number *Notes
Sold Separately
e Signal Line 971-0984-XX Where XX defines signal line length.
Lengths (XX) available: 36” 50” 80” 120” 150” 190”
6
ShawDev.com
Diesel Receivers
Key Features
• Our baseline Receivers are all metal and fabricated Custom Colors & Spring
from aluminum or nickel plated steel. Forces
• They have standard 2”NPT threading, and interface Upon Request!
with Shaw Development’s Diesel Refueling Nozzle, as
well as a majority of industry nozzles on the market
• Code 61 Flange style receivers available
Micro-Kit Receiver
P/N 971-0565-03
2” NPT Style Code 61 Flange Style
P/N 971-2127-01 Shown P/N 971-2138-01 Shown Receiver Well Assembly
P/N 971-2069-01
Description Detail No. Notes
Receiver, Aluminum - Orange (ZN2B) 971-0500-01 Standard Aluminum Receiver
Receiver, Steel Nickel Plated 971-2127-01 Standard Steel Nickel Plated Receiver, 2” NPT
Receiver Cover 971-0778-01 Receiver Cover
Receiver Cover with Shroud 971-1091-01 Receiver Cover with Wiper for Well Assemblies
Receiver, Steel Nickel Plated with Cover 971-2351-01 Steel Nickel Plated Receiver & Cover
P/N 971-2127-01 & P/N 971-0778-01
Diesel Receiver 971-2138-01 Code 61 style Steel Nickel Plated Receiver
Receiver Well Kit: Bolt-On 971-2069-01 Receiver & Cover, Bolt-on Well, Gasket,
See Figure Weld-on Ring
Receiver Micro-Kit & Valve Assembly 971-0565-03 Receiver & Cover, Micro-Kit Adapter,
See Figure Shut-off Valve
7
ShawDev.com
Gravity Fill Adapters
Another First from the Industry Leaders in High Flow Refueling!
Shaw Development’s line of gravity fill adapters is another first in the industry, allowing installation of
Fast Fuel components without cutting or welding the tank.
• Reduce Installation Time
• Eliminate Cutting/Welding
Simply Remove the Gravity Fill Cap
Lock on a New Shaw Adapter
Install the Component
Standard Configurations fit threaded, Lift & Turn, & two / three pronged necks.
8
ShawDev.com
Inlet Shut-off Valves
150 GPM—Basic
• Threads into 2” NPT Port or Existing Well on the Fuel Tank
• Remote Mount Receiver Option
150 GPM—Extendable
• Extendable Lengths
• Threads into 2” NPT Port
• Remote Mount Receiver Option
212+ GPM
For higher flow requirements, this unit is located inside the tank and can handle flow rates in
excess of 212 GPM when used with a higher rated shutoff nozzle.
9
ShawDev.com
Diesel Refueling Nozzles
Shaw Development Refueling Nozzles are field proven and uniquely designed
to handle the toughest conditions. These units are fully interchangeable with
existing equipment and are designed for use in the construction, mining,
forestry and agricultural markets. They are built from rugged, lightweight
aluminum and high strength steel in high wear areas. Flow rates are
determined by many factors. By using nozzles with a higher shut-off rating,
flow rates in excess of 212 GPM are possible.
P/N 971-2020-01
Retrofit Plate Assemblies
The bolt-on plate installation kit is ideal for the
operator who leases or rents vehicles. Fast Fuel
Systems can be installed, removed and
transferred from one vehicle to another using a
matching bolt pattern or nut plate ring.
10
ShawDev.comLubrication Service Centers
Complete NEMA rated service centers
Simultaneously service all fluids from a central location
Available Options:
• Custom logos, markings & colors
• Stainless steel or nickel plated steel housing
• Optional bulkhead or panel mount fittings
Door omitted for clarity
Optional Level Control Vent Assemblies
The Level Control Vent Assembly determines the volume of fuel in the tank
and allows for proper venting of the tank. Both open vented and poppet
vented units are offered with 2” NPT or -32 mounting threads. Spacers
are used to adjust the level inside the tank.
Poppet Vents for Side Slope Operation P/N 971-2250-05
For severe side slope operation vehicles Shaw Development also offers
poppet level control vent assemblies. These vents have a cracking
pressure of .5 psi to prevent fuel from sloshing out of the tank on side
slopes. Use of this vent with the Shaw Development Shut-off Valve will
introduce a small amount of pressure to the tank during fill and is not
recommended for bladder or thin walled tanks.
11
ShawDev.com“R” Series Quick Disconnect Nozzles
Shaw Development R-Series nozzles and receivers are the industry standard fielded by all the
major OEMs. Units are fully compatible with all competitors’ products and servicing equipment.
Coolant
hex across flats
max outside diameter
Transmission
Engine Oil
internal thread
OAL with plug (plug not shown)
Hydraulic
Nozzle
Fluid Coolant Transmission Engine Oil Hydraulic
Part Number 971-2011-01 971-2013-01 971-2015-01 971-2017-01
Internal Thread ½” NPT ¾”NPT ¾” NPT 1” NPT
HEX Across Flats 1.50” 1.75” 2.00” 2.25”
[38mm] [44.5mm] [50.8mm] [57.2mm]
OAL with Plug 2.63” 3.00” 3.16” 3.54”
[66.8mm] [76.2mm] [80.3mm] [89.9mm]
Maximum Outside 1.54” 1.83” 1.97” 2.27”
Diameter [39.1mm] [46.5mm] [50.0mm] [57.7mm]
Replacement Plug P/N 971-2011-01P 971-2013-01P 971-2015-01P 971-2017-01P
12
ShawDev.com“R” Series Quick Disconnect Receivers
Our baseline Receivers are all metal and fabricated from aluminum or nickel plated steel. Other
materials can be provided. All nozzles & receivers can be color coded and identified with ISO
symbols for easy identification in accordance with accepted industry practices.
Custom Colors,
Markings & Symbols
Upon Request!
hex across flats
OALwith cover (cover not shown)
internal thread
external thread
Reciever
Fluid Coolant Transmission Engine Oil Hydraulic
Part Number 971-2012-01 971-2014-01 971-2016-01 971-2018-01
Internal Thread 7/8 - 14UNF-2B 1 1/16 - 12UN-2B 1 5/16 - 12UN-2B 1 5/8 - 12UN-2B
External Thread 1 3/16 - 12 UN-2A 1 5/16 - 12 UN-2A 1 5/8 - 12 UN-2A 1 7/8 - 12 UN-2A
HEX Across Flats 1.25” 1.44” 1.75” 2.00”
[31.8mm] [36.5mm] [44.5mm] [50.8mm]
OAL with 2.45” 2.70” 2.71” 3.12”
Cover [62.17mm] [68.5mm] [68.8mm] [79.0mm]
Maximum Outside 1.45” 1.62” 2.08” 2.36”
Diameter [36.6mm] [41.1mm] 52.8mm] [59.9mm]
13
ShawDev.comR Series Quick Disconnect Nozzles
P/N 971-2011-01 P/N 971-2011-01N P/N 971-2011-P
Coolant nozzle & plug assembly Coolant nozzle only Coolant nozzle plug with lanyard only
Competitor P/N R11
P/N 971-2013-01N P/N 971-2013-01P
P/N 971-2013-01
Transmission nozzle only Transmission nozzle plug with lanyard only
Transmission nozzle & plug assembly
Competitor P/N R1307
Competitor P/N R13
P/N 971-2015-01 P/N 971-2015-01P
Engine oil nozzle & plug assembly P/N 971-2015-01N Engine oil nozzle plug with lanyard only
Competitor P/N R15 Engine oil nozzle only Competitor P/N 1507
P/N 971-2017-01 P/N 971-2017-01N
P/N 971-2017-01P
Hydraulic nozzle & plug assembly Hydraulic nozzle only
Hydraulic nozzle plug with lanyard only
Competitor P/N R18
Competitor P/N R1707
14
ShawDev.comR Series Quick Disconnect Receivers
P/N 971-2012-01 P/N 971-2012 -01R P/N 971-2012-01C
Coolant receiver & receiver cover with lanyard Coolant receiver only Coolant receiver cover with lanyard only
Competitor P/N R12 Competitor P/N R1205
P/N 971-2014-01 P/N 971-2014-01R P/N 971-2014-01C
Transmission receiver & receiver cover with lanyard Transmission receiver only Transmission receiver cover with lanyard only
Competitor P/N R14
P/N 971-2016-01 P/N 971-2016-01R P/N 971-2016-01C
Engine oil receiver & receiver cover with lanyard Engine oil receiver only Engine oil receiver cover with lanyard only
Competitor P/N R16
P/N 971-2018-01 P/N 971-2018-01R P/N 971-2018-01C
Hydraulic receiver & receiver cover with lanyard Hydraulic receiver only Hydraulic receiver cover with lanyard only
Competitor P/N R18 Competitor P/N R18085
15
ShawDev.comStandard Series Quick Disconnect Receivers
P/N: 971-0985-01R P/N: 971-0985-01C
Coolant receiver Coolant receiver cover
Competitor P/N: EC285A8 Competitor P/N: 1208-8
Coolant receiver & cover
P/N: 971-0985-01RC
P/N: 971-0986-01R P/N: 971-0986-01C
Transmission receiver Transmission receiver cover
Competitor P/N: P1804 Competitor P/N: P1880
Transmission receiver & cover
P/N: 971-0986-01RC
P/N: 971-0987-01R P/N: 971-0987-01C
Hydraulic receiver only Hydraulic receiver cover w/lanyard
Competitor P/N: 6005A12 Competitor P/N: 6008-12
Hydraulic receiver & cover
P/N: 971-0987-01RC
P/N: 971-0988-01R P/N: 971-0988-01C
Crankcase receiver Receiver cover w/lanyard
Competitor P/N: ON2 Competitor P/N: OC12E
Crankcase receiver & cover
PN: 971-0988-01RC
16
ShawDev.comStandard Series Quick Disconnects Nozzles
P/N 971-0985-01N P/N 971-0985-01P
Coolant nozzle Coolant nozzle plug only
Competitor P/N EC280B8 Competitor P/N 1209-8
Coolant nozzle & plug
P/N 971-0985-01NP
P/N 971-0986-01N P/N 971-0986-01P
Transmission nozzle Transmission nozzle plug with lanyard only
Competitor P/N C-1807 Competitor P/N P1844
Transmission nozzle & plug
P/N 971-0986-01NP
P/N 971-0987-01N P/N 971-0987-01P
Hydraulic nozzle Hydraulic nozzle plug with lanyard only
Competitor P/N 6000B12 Competitor P/N 6009-12
Hydraulic nozzle & plug
P/N 971-0987-01NP
P/N 971-0988-01N P/N 971-0988-01P
Crankcase nozzle Crankcase nozzle plug only
Competitor P/N OS2 Competitor P/N OP12
Crankcase nozzle & plug
P/N 971-0988-01NP
17
ShawDev.comDiesel Exhaust Fluid (DEF) Systems
YOUR SOLUTION FOR REDUCED NOx EMISSIONS FOR ON & OFF ROAD VEHICLES!
Reservoirs
Multi–Function Head Unit 5, 10, 15, 25 gallon
The Multifunction Head Unit (MFHU) design integrates landscape or portrait
level, temperature & concentration sensors, &
connections for electrical & fluid lines in one unit. Custom shapes, sizes
Available in various lengths and electrical outputs. & designs available
Coolant Valves & Fittings
12 VDC or 24 VDC and accessories
Remote Fill / Spill Pan with Cap
DEF Compatible Remote Filler Hoses available
Mounting Brackets & Electrically Heated Hoses
Debris Guards Return, Suction, & Pressure
(Various Lengths and Fittings available)
18
ShawDev.comDEF Filtration Options
(Add-On Components)
DEF Systems can have issues with debris, which may cause engine de-rate:
• Pump Failures
• Clogged Injectors
• Pump Filter clogs
Debris can be introduced into the DEF Reservoir / System through various means:
• Opening in the reservoir (i.e. fill ports, MFHU removal, and air vents)
• Off-road applications tend to operate in more debris-rich environments
Debris Prevention (Pre-Reservoir): Fill Port Strainer (consistent with in-line filter) will minimize debris
falling into tank during cap removal.
•Threaded Fuel & Oil Caps
3.5” Threaded Cap Also Offers
• Filtered vacuum breathing element
• 120, 10 & 4 micron nominal filters available
Fits 4.0” modified buttress thread • Rollover protection
• Unique color coded fluid identifiers
Key Features (4.0” & 3.5” Caps)
• Non-venting
• Locking design with standard padlock
• Rollover safe
• Leak tight during side slope & extreme operations
• Compatible with diesel fuel, hydraulic oil & most service fluids
• Custom ISO symbols available
Fits 3.5” modified buttress thread
Available Options
Cap Configuration Matrix Standard Options Customized
Cap Color Black Green Any
Custom Logo None Any Any
Fluid Symbol Fuel Hydraulic Any
Available Options (3.5” Cap only)
Venting Specs Vacuum & Pressure Relief Non-Venting or Free Breathing Special Requirements
Filtration 120µ 10µ, 4 µLift & Turn Metallic Cap
Key Features
• Compatible with diesel fuel, hydraulic oil & service fluids
• Lockable design with optional standard padlock
• Rollover safe
• Leak tight during side slope or extreme vehicle operations
General Specifications
• Manufactured from impact resistant cast aluminum &
composite materials
• Does not allow water to enter tank from outside sources such
as rain or vehicle wash downs
• Fits 4” [100 mm] filler openings
• Use with filler nozzles up to 3.25” diameter
Operation
Filter Element
The Lift & Turn design handle offers
simple one hand operation. To
remove the cap, raise the handle,
turn it counterclockwise & lift the cap off
the adapter.
Optional Stainless Handle
21
ShawDev.comExpandable Rubber Plugs
We will custom design a plug
for your special needs!
Go to ShawPlugs.com for more information!
Any Size
Any Shape
Any Material
Any Quantity
22
ShawDev.comDistributors
Mexico China United States United States
Brake Supply K-Stone Global Tech Brake Supply Downard, LLC Applied Energy
540 S Bibb # 283 204 Room Xinyuan 483 Turnpike Industrial Park Rd Travis St. Suite #225
Eagle Pass, TX 78852 Office Building Princeton, WV 24739-2303 Lafayette, LA 70503
Contact: Victor M. Diaz Miron Rdz. Equipment Manufacturing Area of Tel: (304) 487-1492 Tel: (337) 839-9730
Tel: (866) 633-3640 Qinshan District Fax: (304) 425-8866 Fax: (337) 572-8017
Cell (Mexico) + 1 (866) 630-14-13 Baotou City, Inner Mongolia, China Toll Free (888) 339-0505 Email: jeff.moreau@appliedenergyco.com
Cell (US) (210) 414-0283 Contact: Mr. Zhang Zhanxu www.downardhydraulics.com
Cell: +86-13810178028 Applied Energy
Colombia Fax: + 86-4723156358 Brake Supply Texas New Mexico
Port and Mining Solutions Email: zzx@k-stonetech.com.cn 2101 FM RD 1187 Tel: (800) 580-1171
Carretera 90 Kilometro 9-350 Mansfield, TX 76063 Email: mark.scott@appliedenergyco.com
Troncal del Caribe India Toll Free: 877-890-5762
Santa Marta-Colombia Auto & Construction Tel: (817) 453-6910 Applied Energy
Contact: Gabriel Jarmillo Equipment Corp. Fax: (817) 453-6939 South Texas
Tel: +57 5-422-9271 1/43, Old Rajinder Nagar, 9421 FM-2920
Fax: +57 5-422-5952 Delhi 110060 Brake Supply Company, Inc. Bldg. 21
www.portandmining.com Contact: Mr. Sudhir Tandon 2265 Industrial Way Tomball, TX 77375
Tel: +91 11 42436891/92 Elko, NV 89801 Tel: (281) 351-2396
Panama & Costa Rica Fax: +91 11 257527825 Tel: (775) 738-2049 Fax: 281) 351-2670
Cadel Email: acecfhs@gmail.com Fax: (775) 778-0649 Email: jesse.english@appliedenergyco.com
Via Interamericana Toll Free: (800) 738-2049
Plaza El Milenio, Oficina 26 Indonesia Canada
La Chorrera, Panama Riau Dinamika Persada, PT Brake Supply Company, Inc. Applied Industrial Technologies Ltd. 1565
Tel: (507) 832-5491 PT. Riau Dinamika Persada 278 Commerce Drive Cliveden Avenue
Cell: (507) 6747-4096 Taman Tekno Blok A1 No. 8 Beaver, WV 25813 Delta, BC V3M 6P7
Fax: (507) 832-5492 BSD-Tangerang 15314 Tel: (304) 252-6241 Tel: (604) 523-2662
Email:ventas@cadeltruck.com Tel: +62 21 75881799 Fax: (304) 255-7503 Fax: (604) 523-2902
Email: enquiry@riaudinamika.com Toll Free: (800) 766-0287
Norway Applied Industrial Technologies Ltd. 221
NASTA AS Saudi Arabia Brake Supply Company Slater Road
Bommestadmea 4 DALA General Contracting Group 5501 Foundation Blvd. Cranbrook, BC V1C 4M4
3270 Larvik, Norway Mohammed Salahu Evansville, IN 47725 Tel: (250) 426-4255
Contact: Terje Lastein 5th Floor, Al Grosaibi Tower Tel: (812) 467-1000 Fax: (250) 426-2125
Cell: +47 908 74 378 Al-Khobar-31952, Saudi Arabia Fax: (812) 429-9425
www.nasta.no Tel: 966-13847-8578 Toll Free (800) 457-5788
Email: sala@dalagroup.net
Australia www.dalagroup.net Brake Supply Company
Support Vehicles Australia 1275 North 6 Mile Road
15 Hanwell Way Bassendean South Africa Casper, WY 82604
WA 6054 Bekalube SA Tel: (307) 266-2900
Contact: Noel Baker 83 Wriggle Road Fax: (307)266-1633
Tel: +6182791323 Heriotdale Toll Free: (800) 759-2900
Fax: +6182791146 2094 South Africa
E-mail: Parts@svaust.com Contact: Quentin Chambers Applied Energy
www.svaust.com Tel: +2783-655-5629 Arkansas
Contact: Gert Van Niekerk Tel: (800) 624-4245
Israel Tel: +2783-285-8744 Email: jeff.moreau@appliedenergyco.com
C.M.D. Engineering Equipment Contact: Bennie Nortje
Supplies Co. Ltd Tel: +2783-633-0783 Applied Energy
2 Shaldag st. www.bekalube.co.za Louisiana
Ramla 72558, Israel 5728 Plauche Street, Suite A
Contact: Nisso Eini United States New Orleans, LA 70123-4132
Tel: + (972) 73-2222900 Brake Supply Paducah Tel: (504) 733-9016
Cell: + (972) 52-8842203 100 Main St Toll Free (800) 624-4245
Email: nisso@cmd.co.il Paducah, KY 42002
www.cmd.co.il Tel: (270) 444-7924 Applied Energy
Fax: (270) 444-3992 Oklahoma
Toll Free (888) 449-9666 Tel: (800) 580-1711
Email: mark.scott@appliedenergyco.com
23
ShawDev.comWorldwide Solutions
NOTICE OF CONFIDENTIAL INFORMATION AND PROPRIETARY RIGHTS
THIS DOCUMENT MAY NOT BE DISCLOSED TO OTHERS EXCEPT BY EXPRESS WRITTEN PERMISSION OF SHAW DEVELOPMENT, LLC. THIS DOCUMENT
CONTAINS CONFIDENTIAL COMMERCIAL AND TECHNICAL DATA, CONCEPTS AND OTHER INFORMATION, ALL OF WHICH ARE PROPRIETARY AND OF
ECONOMIC VALUE TO SHAW DEVELOPMENT, LLC. THIS DOCUMENT MAY NOT BE USED FOR MANUFACTURE OR PROCESSING USES ABSENT EXPRESS
WRITTEN PERMISSION OF SHAW DEVELOPMENT, LLC. ANY USE OTHER THAN CONFIDENTIAL EVALUATION IS STRICTLY PROHIBITED WITHOUT THE PRIOR
WRITTEN CONSENT OF SHAW DEVELOPMENT, LLC. © 2016 Shaw Development, LLC. All rights reserved.
24
ShawDev.comYou can also read
