Slide-In Tank
Product Range
Masport have been manufacturing
vacuum/pressure pumps and systems
for over 100 years, so you can be sure
of engineering excellence.
With a wide selection of pumps,
systems and components specifically
designed and engineered for the
Slide-In Tank Market, we can ensure
that we have your pumping needs
covered.
All products are factory tested
before shipping and are backed up
by a one year warranty against all
manufacturing defects. With Masport
on board you have an efficient and
reliable pump and system backed
by the best service and support that
has made Masport the #1 choice for
pumpers worldwide.
BUILT FOR THE HARD WORKING PUMPER

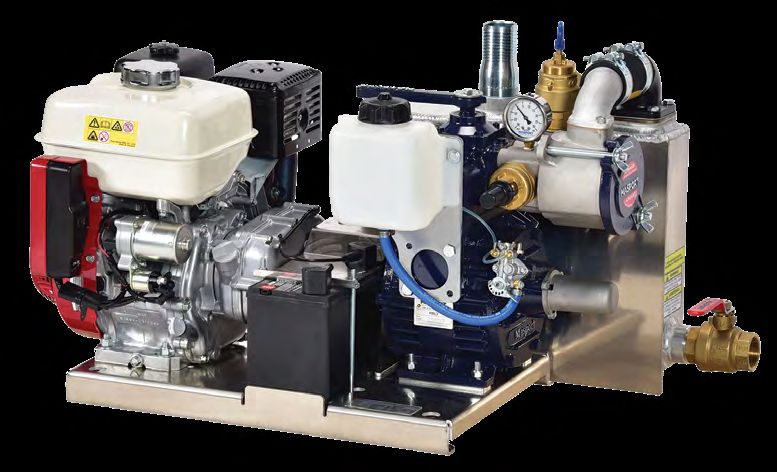

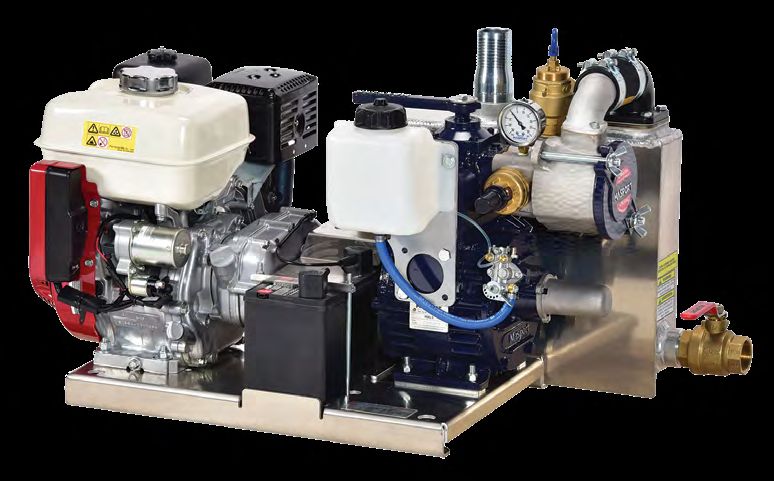

HXL2 Pump ●
75 CFM DISPLACEMENT HXL2 Pro Pack Complete 750
Features and benefits
u Achieve minimum 27" Hg u End Thrust Protection prevents rotor
(Intermittent) to-endcover contact
u Available in both vacuum/pressure u ¼" NPT vane flush port
or vacuum only models
u Double end shaft accommodates
u Heavy duty bearings clockwise or counter-clockwise drive
systems
u Viton oil seals for longer service life
u Easy to service
u Kevlar vanes are heat stablilized and
machined with exacting tolerances for u One-year performance warranty
superior ruggedness and durability
u Superior pump life
u Mechanical oil pump with automatic
oiling – no adjustment required
Features and benefits u Integrated Vacuum/Pressure Gauge
u Durable translucent high temperature
oil lines – allows visible flow of oil to u Integrated Battery
u Designed for tank sizes up to 750 Gallons
the pump
u Integrated combination
u Available in 5.5 Hp and 9 Hp Honda Engines
Secondary/Oil Catch Muffler
u 76 CFM HXL2V Pump
u Integrated Pre-Filter
u 20" HG Continuous Duty with washable stainless steel element
u 5–10 PSI Continuous Duty u 2" Hose Barb Connection
Pro Pack 750
plumb directly to your tank
u Electric Start
u Built-in centrifugal clutch
u 2:1 Direct Drive Gearbox
Engine Drive System allows for better horsepower transfer and
no belts to squeal, slip or replace
the engine to idle without having the pump
u Designed for tank sizes up to u Integrated Oil Reservoir running
750 Gallons u Integrated Vaccum and Pressure Relief Valves u One-year performance warranty
u Available in 5.5 Hp and 9 Hp
Honda Engines
u 20” HG Continuous Duty
u 5–10 PSI Continuous Duty
u Electric Start
u 2:1 Direct Drive Gearbox – no belts to squeal,
slip or replace
u Integrated Oil Reservoir
u Integrated Battery
u Built-in centrifugal clutch – allows for better
horsepower transfer and the engine to idle without
having the pump running
u Available in both vacuum/pressure or
vacuum only model
u One-year performance warranty
2
VAC U U M P U M P SYS T E M S
Slide-In Tank 3

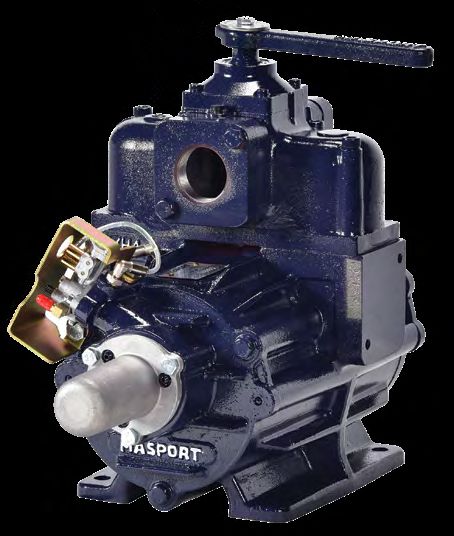

HXL3 Pump ●
112CFM DISPLACEMENT HXL3 Pro Pack Complete 1000
Features and benefits
u Achieve minimum 27" Hg u End Thrust Protection prevents
(Intermittent) rotor-to-endcover contact
u Available in both vacuum/pressure u ¼" NPT vane flush port
or vacuum only models
u Double end shaft accommodates
u Heavy duty bearings clockwise or counter-clockwise drive
systems
u Viton oil seals for longer service life
u Easy to service
u Kevlar vanes are heat stablilized and
machined with exacting tolerances for u One-year performance warranty
superior ruggedness and durability
u Superior pump life
u Mechanical oil pump with automatic
oiling – no adjustment required
Features and benefits
u Durable translucent high temperature
oil lines – allows visible flow of oil to u Designed for tank sizes up to 1000 Gallons u Integrated Battery
the pump u Integrated combination
u Made with a 9 Hp Honda Engine
Secondary/Oil Catch Muffler
u 112 CFM HXL3V Pump
u Integrated Pre-Filter
u 20” Hg Continuous Duty
with washable stainless steel element
u 10 PSI Continuous Duty
u 2” Hose Barb Connection
u Electric Start plumb directly to your tank
Pro Pack 1000 u 2:1 Direct Drive Gearbox
no belts to squeal, slip or replace
u Built-in centrifugal clutch
allows for better horsepower transfer and
Features and benefits u Integrated Oil Reservoir the engine to idle without having the pump
u Integrated Vaccum and Pressure Relief Valves running
u Designed for tank sizes up to u Integrated Vacuum/Pressure Gauge u One-year performance warranty
1000 Gallons
u Made with 9 Hp Honda Engine
u 20" HG Continuous Duty
u 10 PSI Continuous Duty
u Electric Start
u 2:1 Direct Drive Gearbox
no belts to squeal, slip or replace
u Integrated Oil Reservoir
u Integrated Battery
u Built-in centrifugal clutch
allows for better horespower transfer and
the engine to idle without having the pump
running
u Available in both vacuum/pressure or
vacuum only model
u One-year performance warranty
4
VAC U U M P U M P SYS T E M S
Slide-In Tank 5

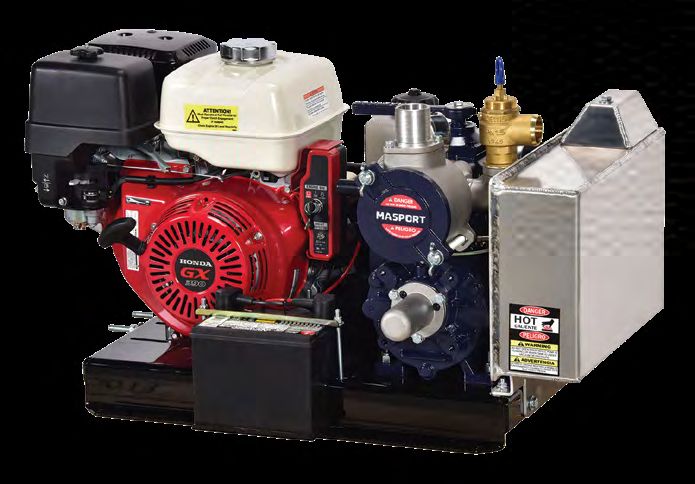

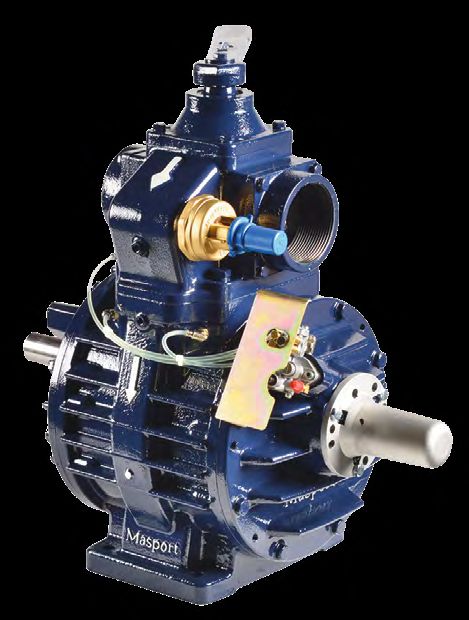

HXL4 Pump ●
165CFM DISPLACEMENT HXL4V Pro Pack Plus 1500
Features and benefits
u Achieve minimum 27" Hg u Mechanical oil pump with automatic
(Intermittent) oiling – no adjustment required
u Available in both vacuum/pressure u Durable translucent high temperature
or vacuum only models oil lines – allows visible flow of oil to
the pump
u Heavy duty bearings
u End Thrust Protection prevents
u Viton oil seals for longer service life
rotor-to-endcover contact
u Kevlar vanes are heat stablilized and
u ¼" NPT vane flush port
machined with exacting tolerances for
superior ruggedness and durability u Double end shaft accommodates
clockwise or counter-clockwise drive
u Superior pump life
systems
u O-Ring Endcovers eliminates air or
oil leakages
Features and benefits
u Easy to service
u Designed for tank sizes up to 1500 Gallons u Integrated Oil Reservoir
u One-year performance warranty
u Made with a 13 HP Honda Engine u Integrated Vaccum and Pressure Relief Valves
u Available with 9 Hp Kubota Diesel Engine u Integrated Vacuum/Pressure Gauge
u 165 CFM HXL4V Pump u Integrated Oil Catch Muffler
u Integrated Battery
u 20” HG Continuous Duty
u Integrated Pre-Filter
Pro Pack 1500
u 15 PSI Continuous Duty with washable stainless steel element
u Electric Start u 2” Hose Barb Connection
u Integrated Belt Guard plumb directly to your RIV or Metaltecnica Scrubber
Features and benefits
fully enclosing all moving parts for safety u One-year performance warranty
u Designed for tank sizes up to
1500 Gallons
u Made with a 13 Hp Honda Engine
u Available with 9 Hp Kubota
Diesel Engine
u 20” HG Continuous Duty
u 15 PSI Continuous Duty
u Electric Start
u Integrated Oil Reservoir
u Integrated Battery
u Integrated Belt Guard – fully enclosing all
moving parts for safety
u Available in both vacuum/pressure or
vacuum only model
u One-year performance warranty
6
VAC U U M P U M P SYS T E M S
Slide-In Tank 7

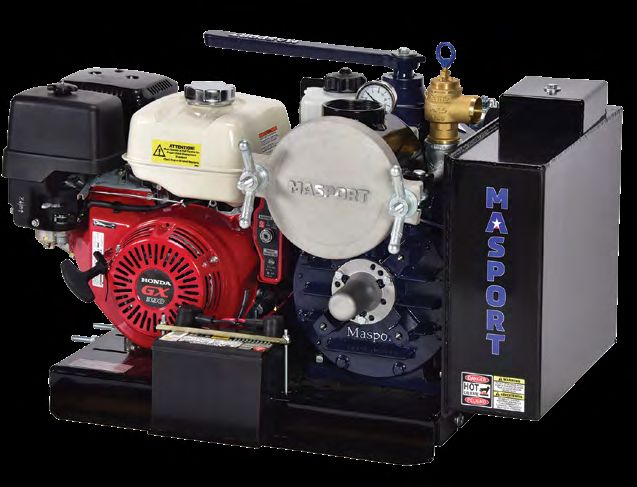

HXL75 Pump ●
230 CFM DISPLACEMENT HXL75V Pro Pack Plus 2500
Features and benefits
u Achieve minimum 27" Hg u Mechanical oil pump with automatic
(Intermittent) oiling – no adjustment required
u Available in both vacuum/pressure u Durable translucent high temperature
or vacuum only models oil lines – allows visible flow of oil to
the pump
u Heavy duty bearings
u End Thrust Protection prevents
u Viton oil seals for longer service life
rotor-to-endcover contact
u Kevlar vanes are heat stablilized and
u ¼" NPT vane flush port
machined with exacting tolerances for
superior ruggedness and durability u Intefral vacuum relief
u Superior pump life u Double end shaft accommodates
clockwise or counter-clockwise drive
systems
u O-Ring Endcovers eliminates air or Features and benefits
oil leakages
u Designed for tank sizes up to 2500 Gallons u Integrated Oil Reservoir
u Easy to service
u Made with a 13 Hp Honda Engine u Integrated Vaccum and Pressure Relief Valves
u One-year performance warranty
u Available with a 15 Hp Kohler Diesel Engine u Integrated Vacuum/Pressure Gauge
u 230 CFM HXL75V Pump u Integrated Oil Catch Muffler
u Integrated Battery
u 20” HG Continuous Duty
u Integrated Pre-Filter
Pro Pack 2500
u 15 PSI Continuous Duty with washable stainless steel element
u Electric Start u 3” Hose Barb Connection
plumb directly to your RIV or Metaltecnica Scrubber
Features and benefits u Integrated Belt Guard
fully enclosing all moving parts for safety u One-year performance warranty
u Designed for tank sizes up to
2500 Gallons
u Made with a 13 Hp Honda Engine
u Available with a 15 Hp Kohler
Diesel Engine
u 20” HG Continuous Duty
u 15 PSI Continuous Duty
u Electric Start
u Integrated Oil Reservoir
u Integrated Battery
u Integrated Belt Guard – fully enclosing all
moving parts for safety
u One-year performance warranty
8
VAC U U M P U M P SYS T E M S
Slide-In Tank 9
Masport Tank Components & Accessories
1
9
1 Primary Trap 9 Sight Glasses
u Available in a range of sizes to suit u Sizes in 2”, 3” and 5”
airflow from 20 – 400 CFM u Steel, aluminium or
u Port sizes in 1½" 2” and 3" stainless collar
u Steel, aluminium or stainless collar
9
6 Relief Valves
2
10 u Vacuum Relief Valve 1½"
u Pressure Relief Valve 1½" and 2"
7 9
11
6
6
4
10 Tank Level Indicator
8
u External indicator arrow
5
u Steel collar
3 Oil Separator
u Available in a range of sizes to suit
airflow from 20 – 400 CFM
u Port sizes in 1½", 2” and 3"
7 Oil Reservoir
u Steel or aluminium construction u Includes all components to properly
u Painted or unpainted finish 2 Scrubber 3 oil the pump
u Select from either plastic or steel
u Available in a range of sizes to suit reservoir tanks
airflow from 20 – 400 CFM u Specially formulated Masport Oil available
u Port sizes in 1 ½" and 3"
u Painted or unpainted finish
5 Vacuum/Pressure Gauges 11 Flushing Kit
4 Pre-Filter u Available as either vacuum only or u Includes all components to properly
u Available in a range of sizes to combined vacuum and pressure flush the pump
suit airflow from 20 – 400 CFM 8 Pumper Scent u Select from either plastic or steel
u Port sizes in 1½" and 3" reservoir tanks
u Effectively remove foul odors u Specially formulated Masport Flushing
u Painted or unpainted finish
when pumping Fluid available
u Port sizes in 1½", 2" and 3"
10
VAC U U M P U M P SYS T E M S
Slide-In Tank 11
Product Information
100– 1,000 Gallon Tanks – Gas Powered
System Number 12621 12645 12628 12643
System Type Pro Pack Pro Pack Complete Pro Pack Pro Pack Complete
Pump Model HXL2V HXL2V HXL3V HXL3V
Pump CFM 75 75 112 112
Rec. Tank Size (Gal.) 100 - 750 100 - 750 750 - 1,000 750 - 1,000
Vacuum (Continuous) 20 20 20 20
Pressure (Continuous) 5 5 10 10
Engine Honda Honda Honda Honda
Engine HP 5.5 5.5 9 9
1,000 – 2,500 Gallon Tanks – Gas Powered
System Number 12630 12635 12617 12639
System Type Pro Pack Pro Pack Plus Pro Pack Pro Pack Plus
Pump Model HXL4V HXL4V HXL75V HXL75V
Pump CFM 165 165 230 230
Rec. Tank Size (Gal.) 1,000 - 1,500 1,000 - 1,500 1,500 - 2,500 1,500 - 2,500
Vacuum (Continuous) 20 20 20 20
Pressure (Continuous) 15 15 15 15
Engine Honda Honda Honda Honda
Engine HP 13 13 13 13
1,000 – 2,500 Gallon Tanks – Diesel Powered
System Number 12050 12051 12943 12944
System Type Pro Pack Pro Pack Plus Pro Pack Pro Pack Plus
Pump Model HXL4V HXL4V HXL75V HXL75V
Pump CFM 165 165 230 230
Rec. Tank Size (Gal.) 1,000 - 1,500 1,000 - 1,500 1,500 - 2,500 1,500 - 2,500
Vacuum (Continuous) 20 20 20 20
Pressure (Continuous) 15 15 15 15
Engine Kubota Kubota Kohler Kohler
Engine HP 9 9 15 15
12 13
VAC U U M P U M P SYS T E M S
VAC U U M P U M P SYS T E M S
Slide-In Tank
Pump Systems
Masport Incorporated
6801 Cornhusker Highway, Lincoln, NE 68507, USA
Phone: 800 228 4510
Email: cs@masportpump.com
BUILT FOR THE HARD WORKING PUMPER www.masportpump.com
You can also read
