Square D® Multi-Link
Structured Wiring System
Increase Your
Home’s Value and
Convenience
Product Selection Guide
MultiLinkCat_2_28_05 3/15/05 3:48 PM Page 2

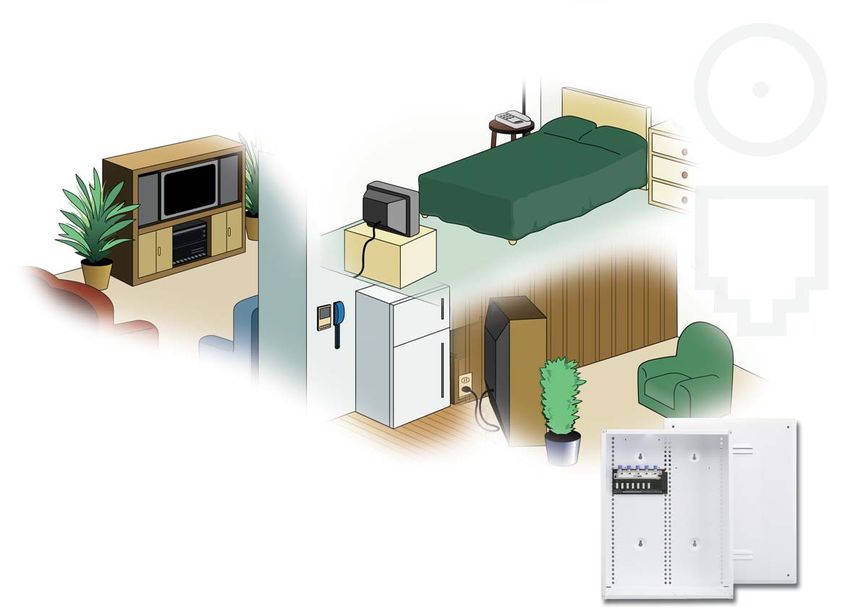

Recent technological advances have led to a whole new way
of wiring and networking a home, thus making our lives
more mobile, more flexible and more convenient.
To that end, structured wiring products provide connectivity throughout a home – allowing
us to share electronic equipment and exchange data through a series of connected
networks. Gone are the days of isolation where we used one device
from one fixed location. Your DVD player no longer needs
to be limited to the entertainment center in your
living room. Your printer can now be
used by more than one computer.
Structured wiring products are an
innovative breakthrough that will
increase the value and
convenience of
your home.
Table of Contents
Suggested System Designs
Basic Phone and Video Distribution ..........................4 Advanced Video Distribution and Security Camera ............7
Basic Home Office......................................................5 Media Center and Security Camera................................8
Advanced Home Office with Computer Networking ....6
Detailed Description of Components
Mounting Brackets and Enclosures ..........................9 IR Controls ..................................................................12
Combination Video/Telephone Hubs ..........................9 Satellite Hub ................................................................13
Telephone Hubs........................................................10 Video Cameras ............................................................13
Video Hubs ..............................................................10 Audio Hub ....................................................................14
Modulators ..............................................................11 Wall Plates....................................................................14
Data Hubs ................................................................12 Accessories ............................................................14-15
2
MultiLinkCat_2_28_05 3/15/05 3:48 PM Page 3
This points to some important opportunities for homeowners:
• Increasing demand for structured wiring products
means houses without these products will be less
desirable for resale.
• It will soon be commonplace to see voice,
data and video equipment networked
throughout a home.
• Products are available to suit whatever
networking needs you might have.
• Basic systems are affordable for any new
home that is being constructed.
When selecting a structured wiring
system, you need to consider what
present and future connections will be
required in each area of the home. Your
wiring requirements will depend upon
the components you select. The table
below will provide guidance when
designing your customized installation.
Suggested Wiring Schemes for a Structured Wiring System
Typical Room Media Center Home Office
Wire Type Quantity Phone/Satellite Wire Type Quantity Wire Type Quantity
Phone/TV/Cable
Good Phone/TV CAT-5 1 Receiver/AV CAT-5 1 CAT-5 1
Modem
Modulators
RG-6 1 RG-6 3 RG-6 2
Wire Type Quantity Phone/TV/Ethernet/ Wire Type Quantity Wire Type Quantity
Phone/TV Phone/TV/Ethernet/
Better CAT-5 2 Satellite Receiver/AC CAT-5 2 CAT-5 2
Ethernet Cable Modem
Modulators
RG-6 1 RG-6 3 RG-6 2
Phone/TV Wire Type Quantity Phone/TV/Ethernet/ Wire Type Quantity Wire Type Quantity
Phone/TV/Ethernet/
Ethernet Satellite Receiver/AC
Best CAT-5 2 CAT-5 3 Satellite Receiver/Cable CAT-5 3
Satellite Modulators/Hi-speed
Modem/Hi-speed Data
Receiver RG-6 2 Data RG-6 3 RG-6 3
3
MultiLinkCat_2_28_05 3/15/05 3:48 PM Page 4
Suggested System Designs
Basic Phone and
Video Distribution
• Video distribution to four rooms
• Support for two phone lines with outlets in up to
six locations for voice, fax and Internet access
• Ample room for future add-ons and upgrades
Components Description Phone Video Data
SDM18BW 18" Enclosure
SDM18CW Combination Flush/Surface Cover
SDM26P14V Combo Hub 2x6 1x4
4
MultiLinkCat_2_28_05 3/15/05 3:48 PM Page 5
Basic Home Office
• Support for four phone lines with outlets in up to six
locations for voice, fax and Internet access
• Video distribution to four rooms
• Ample room for future add-ons and upgrades
• Networking between two computers and/or peripherals,
such as printers and scanners
Components Description Phone Video Data
SDM18BW 18" Enclosure
SDM18CW Combination Flush/Surface Cover
SDM26P14V Combo Hub 2x6 1x4
SDM8D Data Hub 8
5
MultiLinkCat_2_28_05 3/15/05 3:48 PM Page 6
Suggested System Designs
Advanced Home Office
with Computer Networking
• Computer network hub for file sharing as well as common access
to printers and other peripheral devices
• Support for four phone lines with outlets in up to six locations
for voice, fax and data
• Video distribution to up to eight rooms
• Security panel connection for seizure of the phone line
Components Description Phone Video Data
SDM18BW 18" Enclosure
SDM18CW Combination Flush/Surface Cover
SDM46P Telephone Hub 4x6
SDM38VBIR Video Distribution Hub 3x8
SDM8D Data Hub 8
SDM5DE100 Ethernet Hub 8
SDM4AC A/C Outlet Accessory
6
MultiLinkCat_2_28_05 3/15/05 3:48 PM Page 7
Advanced Video Distribution
and Security Camera
• Video and audio signal distribution to TVs throughout the house
from multiple sources, such as satellite, CATV, VCR and DVD players
• Support for four phone lines with outlets in up to six locations for voice, fax and data
• Distribution of closed-circuit camera signals to all televisions
• Security panel connection for seizure of phone line
• Shared or dedicated telephone lines for privacy, fax, computer or intercom
Components Description Phone Video Data
SDM18BW 18" Enclosure
SDM18CW Combination Flush/Surface Cover
SDM46P Telephone Hub 4x6
SDM38VBIR Video Distribution Hub 3x8
SDM11VMB Modulator – Need one for each camera 1x1
SDM1VC Black & White Camera
SDM4AC A/C Outlet Accessory
7
MultiLinkCat_2_28_05 3/15/05 3:49 PM Page 8
Suggested System Designs
Media Center and Security Camera
• Video and audio signal distribution to TVs throughout the house
from multiple sources, such as satellite, CATV, VCR and DVD players
• DVD or VCR control from any TV in the house
• Distribution of closed-circuit camera signals to all televisions
• Security panel connection for seizure of phone line
• Support for four phone lines with outlets in up to six locations
• Shared or dedicated telephone lines for privacy, fax, computer or intercom
• Ample room for future add-ons and upgrades
Components Description Phone Video Data
SDM36BW 36" Enclosure
SDM36CW Combination Flush/Surface Cover
SDM46P Telephone Hub 4x6
SDM41VTST Set Top Modulator 4x1
SDM38VBIR Video Distribution Hub 3x8
SDM11VMB Modulator – Need one for each camera 1x1
SDM2VCC Color Camera
SDM8AC A/C Outlet Accessory
SDM1VIR IR Target – Need one for each television
SDM2VIR IR Emitter – Need one for each video
source to be controlled
8
MultiLinkCat_2_28_05 3/15/05 3:49 PM Page 9
Detailed Description of
Components
Mounting Brackets
and Enclosures
We offer enclosures with up to 70" of grid space to allow
enough room to expand basic applications for future needs.
Catalog Number Description
SDM10BW • Surface mount
Structured Wiring • 10" of grid space SDM10BW
Mounting Bracket • Mount over single or two gang J-box or mud ring
SDM10CW • Snap on cover for SDM10BW
Structured Wiring Cover
SDM18BW • Surface or flush mount • Eight 2" conduit openings for cables
Structured Wiring • 34" of grid space • Paint shield included SDM18BW
Enclosure • AC outlet accessory available
SDM18CW • Combination surface or flush mount SDM18CW
Structured Wiring Cover • For use with SDM18BW
SDM36BW • Surface or flush mount • Eight 2" conduit openings for cables
Structured Wiring • 70" of grid space • Paint shield included
SDM36BW
Enclosure • AC outlet accessory available
SDM36CW • Combination surface or flush mount
Structured Wiring Cover • For use with SDM36BW SDM36CW
Combination Video/
Telephone Hubs
These hubs will allow you to connect to four video locations and six telephone locations. This
will allow distribution of telephone, cable, antenna, DVD or satellite throughout the home.
Catalog Number Description
SDM26P14V • Distributes two phone lines to six locations SDM26P14V
Video/Telephone • Splits one cable or antenna input to four locations
Distribution Hub
SDM46P14V • Distributes four phone lines to six locations
Video/Telephone • Distributes one cable or antenna input to four locations
Distribution Hub SDM46P14V
9
MultiLinkCat_2_28_05 3/15/05 3:49 PM Page 10
Detailed Description of
Components
Telephone Hubs
The Square D® Multi-Link Telephone Hubs will support up to four separate phone lines, and will
allow voice and data to be distributed to six or more outlets, depending on the models you choose.
Catalog Number Description
SDM46P
SDM46P • Distributes four phone lines to six locations
Telephone Master Hub • Includes an RJ-31X jack to connect to alarm panels
SDM48PX • Use with SDM46P to distribute four phone lines to 14 locations
Telephone Expansion Hub • Multiple units can be connected for larger applications
SDM48PX
• CAT-5 jumper included for connection to model SDM46P
telephone master hub
SDM412PJ • Distributes four lines to twelve locations
Telephone Interface Hub/ • RJ-45 modular jacks allow easy reassignment of outlets
Patch Panel • Multiple units can be connected for larger applications
SDM412PJ
Video Hubs
A wide range of video hubs are available to suit your needs. A simple video splitter is available
to distribute CATV or antenna signals to three televisions, or a more advanced hub will distribute
CATV or antenna signals to eight televisions, with the capability to expand to up to 64 televisions.
Catalog Number Description
SDM13VS • Distributes CATV or antenna signals to three locations
3-Way Video • 5-1000 MHz bandwidth is applicable for FM, cable modem, SDM14VS
Splitter/Combiner VHF and UHF bands
SDM14VS • Distributes CATV or antenna signals to three locations
4-Way Video • 5-1000 MHz bandwidth is applicable for FM, cable modem,
Splitter/Combiner VHF and UHF bands
SDM18VS
SDM18VS • Distributes CATV or antenna signals to eight locations
8-Way Video • 5-1000 MHz bandwidth is applicable for FM, cable modem,
Splitter/Combiner VHF and UHF bands
SDM16VAB • Distributes CATV signals to six televisions
SDM16VAB
Video Amplifier Hub • Four standard outputs (up to 75 feet)
• Two long run outputs (up to 150 feet)
• 5-42 MHz bi-directional channel
SDM38VBIR • Distributes CATV or antenna signals to eight televisions
Video Amplifier Hub • Two local channel modulator inputs
• Built-in infrared engine for IR repeating SDM38VBIR
• 5-42 MHz bi-directional channel
SDM38VHIR • Distributes CATV or antenna signals to eight televisions
Video Amplifier • Two local channel modulator inputs
Hub w/High Headroom • Built-in infrared engine for IR repeating
• High headroom 5-860 MHz amplifier SDM38VHIR
10 • Antenna isolation compliant (FCC part 15)MultiLinkCat_2_28_05 3/15/05 3:49 PM Page 11
Modulators
AV and Set Top Modulators will allow you to create television channels exclusively for DVD,
VCR, satellite and security camera applications.
Catalog Number Description
SDM11VM • Creates a TV channel for a camera or other composite
SDM11VM
Single Channel Video video and stereo sound source
& Audio Modulator • Digitally stabilized
SDM11VMB • Creates a TV channel from any Square D Multi-Link CAT-5 video camera
Bi-Directional • Built-in channel injector works with CATV systems
Channel Injector • CAT-5 inputs simplify connecting a camera or other video source
• Works with pay-per view, cable modem and interactive cable systems SDM11VMB
SDM11VMH • Creates a TV channel from any Square D Multi-Link CAT-5 video camera
Channel Injector • Built-in channel injector works with CATV or antenna systems
• CAT-5 inputs simplify connecting a camera or other video source
• Ideal for a front door video camera
SDM21VT • Creates exclusive TV channels for two video sources with sound SDM11VMH
Set Top Modulator • Outputs new channels on a single coax for distribution through a
Square D Multi-Link video hub
• Use with Square D Multi-Link IR accessories for remote control of
video sources (DVD, VCR, etc.) from any location
SDM41VT • Creates exclusive TV channels for four video sources with sound
Set Top Modulator • Outputs new channels on a single coax for distribution through a
Square D Multi-Link video hub SDM81VC
• Use with Square D Multi-Link IR accessories for remote control of
video sources (DVD, VCR, etc.) from any location
SDM21VTST • Creates exclusive TV channels for two video sources with stereo sound
Set Top Modulator • Outputs modulated multi-television stereo channels (MTS) on a single
w/MTS coax for distribution through a Square D Multi-Link video hub
• Use with Square D Multi-Link IR accessories for remote control of
video sources (DVD, VCR, etc.) from any location
SDM41VTST • Creates exclusive TV channels for four video sources with stereo sound SDM1VWP
Set Top Modulator • Outputs modulated multi-television stereo channels (MTS) on a single
w/MTS coax for distribution through a Square D Multi-Link video hub
• Use with Square D Multi-Link IR accessories for remote control of
video sources (DVD, VCR, etc.) from any location
SDM81VC • Inputs for eight modulated signals for distribution through a video hub
Video Combiner Hub such as the SDM38VHIR or SDM38VBIR
• Combines all signals into one output
SDM1VWP • Accepts both audio and video signals (via RCA jacks) for distribution
Video Wall Plate through a locally generated channel
• Uses decora style wall plate
• Uses ordinary CAT-5 cable for easy wiring between wall plate
and channel injector
• Loop through capability
11MultiLinkCat_2_28_05 3/15/05 3:49 PM Page 12
Detailed Description of
Components
Data Hubs
Data hubs provide the capability to share data throughout the home. If you have a need for
Internet access housewide, our data hubs can provide the core connections for every room.
Our ethernet hub allows a printer to be shared among computers across your home network.
Catalog Number Description
SDM8D • Terminates up to eight CAT-5 cables
Data Hub • 110 punch-down connectors SDM8D
• Entry point for a high speed data line
• Can be bridged for telephone distribution
• Parallel RJ-45 jacks
SDM8DB • Terminates up to eight CAT-5 cables
Data/Telecom • 110 punch-down connectors
Distribution Hub • Entry point for a high speed data line
• Extra 110 connector allows bridging for telephone distribution SDM8DB
• Parallel RJ-45 jacks
SDM5DE100 • 100 Base-TX fast Ethernet compliant
• Create a data network for up to eight devices
Ethernet Hub • Expandable for larger networks
• Eight RJ-45 outputs for easy connection
SDM5DE100
IR Controls
Catalog Number Description
SDM1VIR • Allows DVD, DSS, or VCR to be controlled from any room (when used
IR Target with SDM2VIR emitter and Square D® Multi-Link set top modulator)
• Sends IR data to Square D Multi-Link video hubs to control video
sources from any TV SDM1VIR
• Install at each TV where remote control is desired
SDM2VIR • Allows DVD, DSS, or VCR to be controlled from any room (when used
IR Emitter with SDM1VIR IR target and Square D® Multi-Link set top modulator)
• Transmits IR data received via coax from remote TVs to each
modulated video source
SDM2VIR
• Install at each modulated video source where remote control is desired
Satellite Hub
The Square D Multi-Link Satellite Hub allows one dual LNB dish to feed up to four satellite
receivers. Our Satellite Multi-Switch is compatible with DSS™ and Dish Network™ systems.
Catalog Number Description
SDM24VD • 950-1450 MHz bandwidth
SDM24VD
Satellite Multi-Switch • Built-in amplifier compensates for splitting
12MultiLinkCat_2_28_05 3/15/05 3:49 PM Page 13
Video Cameras
Our eye-appealing video cameras are available in either black and white or color.
Fixed aim or adjustable aim models are also available. All have 78° viewing angle.
Catalog Number Description
SDM1VC • Rugged brass wall plate
Black & White • Fits standard single-gang wall boxes
Solid State Camera • Easy to wire using CAT-5 cable and SDM11VMB
or SDM11VMH channel injector SDM1VC
• Requires no power at the camera
• For indoor use or outdoor use under an eave
• 0.3 Lux performance is suitable for a typical lighted porch
SDM1VCC • Rugged brass wall plate
Color Solid State Camera • Fits standard single-gang wall boxes
• Easy to wire using CAT-5 cable and SDM11VMB
or SDM11VMH channel injector
• Requires no power at the camera
• For indoor use or outdoor use under an eave SDM1VCC
• 6 Lux performance is suitable for a typical lighted porch
SDM2VC • Fits standard double-gang wall boxes
Black & White • Adjustable camera angle
Solid State Camera • Easy to wire using CAT-5 cable and SDM11VMB
or SDM11VMH channel injector
• Requires no power at the camera
• For indoor use or outdoor use under an eave SDM2VC
• 2 Lux performance is suitable for a typical lighted porch
SDM2VCC • Fits standard double-gang wall boxes
Color Solid State Camera • Adjustable camera angle
• Easy to wire using CAT-5 cable and SDM11VMB
or SDM11VMH channel injector
• Requires no power at the camera
• For indoor use or outdoor use under an eave SDM2VCC
• 8 Lux performance is suitable for a typical lighted porch
Audio Hub
Audio hubs allow you to easily distribute stereo sound throughout the home.
Catalog Number Description
SDM16A • Connects with standard speaker wire to supply six pairs of speakers
6-Room Speaker with stereo audio from one receiver or amplifier
Distribution Hub • Speaker wire terminations removable for easy wiring
• Use with impedance matching volume controls (not supplied SDM16A
by Square D) to control speaker volume at room level
13MultiLinkCat_2_28_05 3/15/05 3:49 PM Page 14
Detailed Description of
Components
Wall Plates
Catalog Number Description
SDM10PVWP* • Pre-wired to reduce errors
Phone/Video Outlet • One-piece outlet requires no assembly for installation
• Four RJ-14 telephone jacks (lines 1-4) SDM10DPVWPI
• Two F-connectors provided
SDM10DPVWP* • Pre-wired to reduce errors
Data/Phone/Video Outlet • One-piece outlet requires no assembly for installation
• Two RJ-14 telephone jacks (lines 1/2 and 3/4)
• One Cat-5e jack
• Two F-connectors provided
SDM8AC
*For color selections, add suffix to catalog number as follows: A=Almond, W=White, I=Ivory
Accessories
Catalog Number Description
SDM1A
SDM4AC • Mounts two standard duplex receptacles (not included)
Four Plug AC • UL listed – approved for use in Square D Multi–Link
Outlet Accessory Structured Wiring system enclosures
SDM8AC • Mounts four standard duplex receptacles (not included)
Eight Plug AC • UL listed – approved for use in Square D
SDM6A
Outlet Accessory Multi–Link Structured Wiring system enclosures
SDM600LPF • Used to remove interference from CATV signals on channels where
Low Pass Filter modulated signals (cameras, etc.) are to be located
• Filter begins to remove CATV signals starting at channel 85
• Modulated signals can be added to system above channel 91 SDM12WS
SDM2503 • Used to improve picture quality by correcting over-amplification
Video Signal Attenuator • Reduces signal strength by 3dB
SDM2506 • Used to improve picture quality by correcting over-amplification
Video Signal Attenuator • Reduces signal strength by 6dB
SDM1A • Accommodates ChannelPlus RF video hubs
ChannelPlus Adapter Plate
SDM1IMB
SDM6A • Accommodates most popular keystone style jacks
Jack Mounting Plate • Accommodates F-81 barrel connectors
14MultiLinkCat_2_28_05 3/15/05 3:49 PM Page 15
Accessories, Cont.
Catalog Number Description
SDM2DC
SDM12WS • Wire mezzanine that routes incoming wires behind coax splitters,
Wire Manager data and phone hubs
SDM1IMB • Allows mounting of third-party equipment such as security system
Heavy Duty control modules
Mounting Bracket • Provides electrical isolation to prevent ground loops
• 60 lbs. Maximum
SDM2IMB • Allows mounting of third-party equipment such as security system SDM2C
Light Duty control modules
Mounting Bracket • Provides electrical isolation to prevent ground loops
• 10 lbs. Maximum
SDM1DC • RJ-45 connectors on each end
SDM2G
CAT-5 Patch Cord – 1 ft. • Routes data, phone or video connections between Square D
Multi-Link telephone hubs, data hubs, or channel injectors
SDM2DC • RJ-45 connectors on each end
CAT-5 Patch Cord – 2 ft. • Routes data, phone or video connections between Square D
Multi-Link telephone hubs, data hubs, or channel injectors
SDMLK
SDM2C • Used to couple Square D Multi-Link Structured Wiring
Enclosure Coupling Tube enclosures together
• 2" trade size conduit passes cables from one enclosure to another SDM10SL
• Spaces enclosures 2" apart
• Can use up to four SD2MC couplers per enclosure
SDM2G • Fits SDM18BW and SDM36BW knockout holes
Wire Entry Grommets • Fits 2 3/8" holes
• Snaps in place
• Rounded entry protects wires
• 5 per package
SDMLK • Fits SDM18CW and SDM36CW
Cover Lock Kit
SDM10SL • 10 per package
Replacement Snap Locks • Replace damaged snap locks on all Square D Multi-Link modules
Whole-house Protection from the
Best Name in Electrical Protection!
The Surgebreaker® Plus Multi-Path Surge Protector from Square D provides surge
protection for the entire home, including telephone, cable TV and AC power lines —
a perfect partner to protect your data, audio and video equipment networked through your
Square D Multi-Link Structured Wiring System. Our exclusive warranty provides 5-year,
$50,000 coverage for appliances and electronics in the home when used with a Square D
QO or Homeline load center and point of use surge protection.
15MultiLinkCat_2_28_05 3/15/05 3:49 PM Page 16
Square D® Structured Wiring
Extended Product Warranty
Protection Limits
Square D warrants to customers purchasing through authorized Square D distributors that the Square D labeled
passive (enclosure, cover and any non-powered module) structured wiring products at the time of sale by
Square D are free from defects in materials and workmanship. Square D also warrants to customers purchasing
through authorized Square D distributors that the Square D labeled active (any powered module) structured
wiring products at the time of sale by Square D are free from defects in materials and workmanship. If within the
applicable warranty period purchaser discovers such item was not as warranted and promptly notifies Square D
in writing, Square D shall repair or replace the items or refund the purchase price, at Square D’s option.
This warranty shall not apply (a) to equipment not supplied by Square D, (b) to equipment which shall have been
repaired or altered by others than Square D, (c) to equipment which shall have been subjected to negligence,
accident, or damage by circumstances beyond Square D’s control, or to improper operation, maintenance or
storage, or to other than normal use or service. The foregoing warranties do not cover reimbursement for labor,
transportation, removal, installation or other expenses which may be incurred in connection with repair or
replacement.
Warranty Period
For active components (as described above), this warranty shall be in effect until five (5) years following the date
of purchase, or until four (4) years following the house closing by the original owner. For passive components
(as described above), this warranty shall be in effect until fifteen (15) years following the date of purchase, or
until fourteen (14) years following the house closing by the original owner.
Warranty Transferrable
The unexpired portion of this warranty is transferred to the subsequent homeowner.
Warranty Limitations
Except as may be expressly provided in an authorized writing by Square D, Square D shall not be subject to any
other obligations or liabilities whatsoever with respect to equipment supplied by Square D or services rendered
by Square D.
Claims Procedure
Send either (1) the original dated sales receipts of the Square D Multi-Link product or (2) the dated
documentation of the original owner’s house closing or (3) original Certificate of Occupancy along with the
damaged product to:
All Rights Reserved
Square D Company
8001 Highway 64 East
Knightdale, NC 27545
Attn: Multi-Link Device Warranty
Note: If these documents are unavailable, the product may be returned to the address above, and the earliest
© 2005 Schneider Electric
identifiable date code stamped on the product will be used to determine if the product is subject to the
conditions and terms of this express warranty.
Schneider Electric - North American Operating Division
1415 S. Roselle Road
Palatine, IL 60067
Tel: 847-397-2600
Fax: 847-925-7500
Order #1400CT0102R2/05 10-04You can also read
