Headphones 2000 Series TAT2236 User manual Register your product and get support at www.philips.com/support
Contents
1 Important safety instructions 2
Hearing Safety 2
General information 2
2 Your True wireless
earphones 3
What's in the box 3
Other devices 3
Overview of your True wireless
earphones 4
3 Get started 5
Charge the battery 5
Pair the earphones with your
Bluetooth device for the first time 5
Pair the earphones with another
Bluetooth device 6
4 Use your headphones 7
Connect the earphones to your
Bluetooth device 7
Power on/off 7
Manage your calls and music 7
LED indicator status 8
Voice Assistant 8
5 Reset the earphones 9
6 Technical data 10
7 Notice 11
Declaration of conformity 11
Disposal of your old product
and battery 11
Remove the integrated battery 11
Compliance with EMF 12
Environmental information 12
Notice of compliance 12
8 Trademarks 14
9 Frequently asked questions 151 Important General information
safety To avoid damage or malfunction:
instructions Caution
Do not expose headphones to excessive heat
Do not drop your headphones.
Hearing Safety Headphones shall not be exposed to dripping
, splashing water.
Do not allow your headphones to be
submerged in water.
Do not use any cleaning agents containing
alcohol, ammonia, benzene, or abrasives.
If cleaning is required use a soft doth, if
necessary dampened with a minimum amount
of water or diluted mild soap, to clean the
Danger product.
The integrated battery shall not be exposed to
To avoid hearing damage, limit the time you excessive heat such as sunshine, fire or the
use headphones at high volume and set the like.
volume to a safe level. The louder the Danger of explosion if battery is incorrectly
volume, the shorter the safe listening time is. replaced. Replace only with the same or
equivalent type.
• Disposal of a battery into fire or a hot oven, or
Be sure to observe the following guide- mechanically crushing or cutting of a battery,
can result in an explosion;
lines when using your earphones. • Leaving a battery in an extremely high
• Listen at reasonable volumes for temperature surrounding environment can
reasonable periods of time. result in an explosion or the leakage of
• Be careful not to adjust the volume flammable liquid or gas;
• A battery subjected to extremely low air
continuously upwards as your pressure that may result in an explosion or the
hearing adapts. leakage of flammable liquid or gas.
• Do not turn up the volume so high
that you can't hear what's around
you. About operating and storage temperatures
• You should use caution or tempo- and humidity
rarily discontinue use in potentially • Store in a place where temperature is
hazardous situations. between -20°C (-4°F) and 50°C (122 °F)
• Excessive sound pressure from (up to 90% relative humidity.
earphones and headphones can • Operate in a place where temperature
cause hearing loss. is between 0°C (32°F) and 45°C (113 °F)
• Using headphones with both ears (up to 90% relative humidity.
covered while driving is not recom- • Battery life may be shorter in high or
mended and may be illegal in some low temperature conditions.
areas while driving. • Replacement of a battery with an
• For your safety, avoid distractions incorrect type that can defeat a
from music or phone calls while in safeguard (for example, in the case of
traffic or other potentially dangerous some lithium battery types);
environments.2 Your True
wireless
earphones
Quick start guide
Congratulations on your purchase, and
welcome to Philips! To fully benefit
from the support that Philips offers,
register your product at
www.philips.com/support. Global Warranty
With this Philips True wireless
earphones, you can:
• enjoy convenient wireless
handsfree calls;
• enjoy and control wireless music;
• switch between calls and music.
Safety leaflet
What's in the box
Other devices
A mobile phone or device (e.g. note-
book, PAD, Bluetooth adapters, MP3
players etc) which supports Bluetooth
and is compatible to the earphones
(see 'Technical data' on page 8).

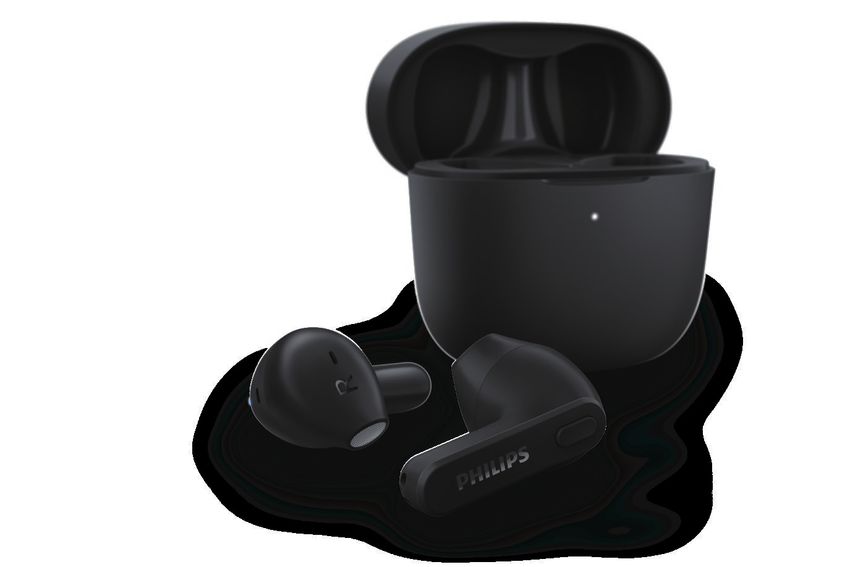

Philips True wireless earphones
Philips TAT2236
USB-C charging cable (for charging only)Overview of your True
wireless earphones
1
2
3
4
5
LED indicator (Earphones)
Multi-function button
Microphone
LED indicator (charging box)
USB-C charging slot3 Get started Pair the earphones with
your Bluetooth device
Charge the battery for the first time
Make sure that the earphones is
Note
fully charged and powered off.
Before you use your earphones for the first
time, place the earphones in the charging box Open the top cover from charging
and charge the battery for 2 hours for
box.
optimum battery capacity and lifetime.
Use only the original USB-C charging cable to
avoid any damage.
Finish your call before charging the
earphones, as connecting the earphones for
charging will power the earphones off.
Charging
Connect one end of the USB cable into
the charging box, and another end into
the power source.
The charging box starts charging.
• Charging process is verified by the The LED on both earphones
LED light on the front panel. flash in white & blue alternately.
• When the charging box is fully
charged, the light goes on. The earphones are now in
pairing mode and is ready to
pair with a Bluetooth device
(e.g. a mobile phone)
Turn on the Bluetooth function of
your Bluetooth device.
Pair the earphones with your
Bluetooth device. Refer to the user
manual of your Bluetooth device.
Note
After powering on, if the earphones cannot
Tip find any previously connected Bluetooth
device, it will automatically switch to pairing
The charging box serves as a portable backup mode.
battery for charging the earphones. When the
charging box is fully charged, it supports 2
times full recharge cycle for the earphones.
Normally, a full charge takes 2 hours (for the
earphones or charging box) by USB cable.The following example shows you
how to pair the earphones with Pair the earphones with
your Bluetooth device. another Bluetooth device
Turn on the Bluetooth function If you have another Bluetooth device
of your Bluetooth device, select that you want to pair with the
Philips TAT2236. earphones, make sure the Bluetooth
function in any other previously paired
Enter the earphones password or connected devices are turned off.
“0000” (4 zeros) if prompted. Press and hold over 5 seconds both left
For those Bluetooth devices & right side simultaneously with earpiece
featuring Bluetooth 3.0 or on ear, release when Pairing voice
higher, no need to enter a prompt is heard.
password.
Note
Philips TAT2236 The earphones stores 4 device in the memory. If
you try to pair more than 4 devices, the earliest
paired device is replaced by the new one.
Single earpiece (Mono mode)
Take either right or Left earpiece out
from charging box for Mono use. The
earpiece will power on automatically.
There will be a voice “Power on” from
earpiece.
Note
Take the second Earpiece from the charging
box and they will pair each other automatically.4 Use your Power on/off
headphones Task Multi- Operation
function
button
Connect the earphones to Turn the Open
your Bluetooth device earphones charging
case's lid
on
Turn on the Bluetooth function of Turn the Earpiece
your Bluetooth device. earphones put back to
off charging
Open the top cover from charging box and
box. close the lid
The blue LED flashes.
The earphones will search the
last connected Bluetooth device
and reconnect to it automatical-
ly. If the last connected device is
not available, the earphones will
enter pairing mode.
Manage your calls and
music
Music control
Tip
The earphones cannot connect to more than 1 Task Multi- Operation
device at the same time. If you have two paired function
Bluetooth devices, only turn on the Bluetooth
function of the device that you want to connect.
button
If you turn on the Bluetooth function of your Play or Right / Left Single tap
Bluetooth device after turning on the pause music earpiece
earphones, you have to go to the Bluetooth
menu of the device and connect the earphones Skip forward Right / Left Triple taps
to the device manully. earpiece
Adjust Via mobile
volume +/- phone
Note control
If the earphones fails to connect to any
Bluetooth device within 5 minutes, it will turn off
automatically to save the battery life.
In some Bluetooth devices, connection may not
be automatic. In this case, you have to go to the
Bluetooth menu of your device and connect the
earphones to the Bluetooth device manually.Call control Battery level of Indicator
Task Multi- Operation charging case
function
button Amber
Pick up Right / Left single tap
earpiece
Hang up call Right / Left Tap and White
earpiece hold
Switch call Right / Left triple taps
during 3-way earpiece LED goes off
call
LED indicator status Battery LED indicator on
Bluetooth device
Headphones Indicator
status It will show a battery indicator on
The earphones Blue LED flashes Bluetooth device after connected to
are connected to earphones (refer to mobile phone's
a Bluetooth operation).
device.
The earphones The blue & white
are ready for LED flash
pairing alternately
The earphones are White LED blink
on but not every 1s
connected to a (auto turn off after
Bluetooth device 3min)
Low battery level Blue LED blink 2x
(earphones) every 5s
Battery is fully LED will be off
charged
Voice Assistant
(charging box).
Task Button Operation
Trigger voice Right / Left Tap and
(Siri/Google) earpiece hold 2
assistant seconds5 Reset the
earphones
TAT2236
Press once on both earphones, and
then press and hold for 5 seconds.
After Blue LEDs finish flashing,
return earphones to charging box &
close the lid.
5 Follow steps in “Use your
earphones-Connect the earphones
to your Bluetooth device.”
6 Pair the earphones with your
Bluetooth device, select Philips
TAT2236.6 Technical data
Music time: 6 hours
Talk time: 6 hours
Standby time — 200 hours
Charging time: 2 hours
Lithium-ion battery 50 mAh on each
earpiece, Lithium-ion battery 410
mAh on charging box
Bluetooth version: 5.0
Compatible Bluetooth profiles:
• HSP (Hands-Free Profile-HFP)
• A2DP (Advanced Audio Distri-
bution Profile)
• AVRCP (Audio Video Remote
Control Profile)
Supported audio codec: SBC
Frequency range: 2.402-2.480GHz
Transmitter power: < 10 dBm
Operating range: Up to 10 meters (33
feet)
Auto power off
USB-C port for charging
Low battery warning: available
Note
Specifications are subject to change without
notice.7 Notice Remove the integrated battery
If there is no collection/recycling system
Declaration of conformity for electronic products in your country,
Hereby, MMD Hong Kong Holding Limited you can protect the environment by
declares that this product is in compli- removing and recycling the battery
ance with the essential requirements and before disposing the headphones.
other relevant provisions of Directive • Make sure the earphones is discon-
2014/53/EU. You can find the Declaration nected from the charging box
of Conformity on www.p4c.philips.com. before removing the battery.
Disposal of your old
product and battery
Your product is designed and manufac-
tured with high quality materials and
components, which can be recycled and
reused.
This symbol on a product means that • Make sure the charging box is
the product is covered by European disconnected from the USB
Directive 2012/19/EU. charging cable before removing the
battery.
This symbol means that the product
contains a built-in rechargeable battery
covered by European Directive
2013/56/EU which cannot be disposed
of with normal household waste. We
strongly advise you to take your product
to an official collection point or a Philips
service centre to have a professional
remove the rechargeable battery.
Inform yourself about the local separate
collection system for electrical and
electronic products and rechargeable
batteries. Follow local rules and never
dispose of the product and rechargeable
batteries with normal household waste.
Correct disposal of old products and
rechargeable batteries helps prevent
negative consequences for the environ-
ment and human health.frequency energy and, if not installed
Compliance with EMF and used in accordance with the
This product complies with all applica- instruction manual, may cause harmful
ble standards and regulations regarding interference to radio communications.
exposure to electromagnetic fields. However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or
Environmental information television reception, which can be
determined by turning the equipment
All unnecessary packaging has been
off and on, the user is encouraged to try
omitted. We have tried to make the
to correct the interference by one or
packaging easy to separate into three
more of the following measures:
materials: cardboard (box), polystyrene
foam (buffer) and polyethylene (bags, Reorient or relocate the receiving antenna.
protective foam sheet.) Increase the separation between
Your system consists of materials which equipment and receiver
can be recycled and reused if disassem- Connect the equipment into an outlet
bled by a specialized company. Please on a circuit different from that to which
observe the local regulations regarding the receiver is connected.
the disposal of packaging materials, Consult the dealer or an experienced
exhausted batteries and old equipment. radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC
Notice of compliance radiation exposure limits set forth for an
uncontrolled environment.
The device complies with the FCC rules, This transmitter must not be co-located
Part 15. Operation is subject to the or operating in conjunction with any
following two conditions: other antenna or transmitter.
1. This device may not cause harmful
interference, and Caution: The user is cautioned that
2. This device must accept any changes or modifications not expressly
interference received, including approved by the party responsible for
interference that may cause compliance could void the user's
undesired operation. authority to operate the equipment.
FCC rules Canada:
This equipment has been tested and This device contains licence-exempt
transmitter(s)/receiver(s) that comply with
found to comply with the limits for a
Innovation, Science and Economic Develop-
Class B digital device, pursuant to part ment Canada’s licence-exempt RSS(s).
15 of the FCC Rules. These limits are Operation is subject to the following two
designed to provide reasonable protec- conditions: (1)This device may not cause
tion against harmful interference in a interference. (2)This device must accept any
residential installation. This equipment interference, including interference that may
generates, uses and can radiate radio cause undesired operation of the device.L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CAN ICES-3(B)/NMB-3(B) IC Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
8 Trademarks Bluetooth The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by MMD Hong Kong Holding Limited is under license. Other trade- marks and trade names are those of their respective owners. Siri Siri is a trademark of Apple Inc., regis- tered in the U.S. and other countries. Google Google and Google Play are trademarks of Google LLC.
9 Frequently My Bluetooth earphones is connected to a
Bluetooth stereo enabled mobile phone,
asked but music only plays on the mobile phone
speaker.
questions Refer to the user manual of your mobile
phone. Select to listen to music through
the earphones.
My Bluetooth earphones does not turn on. The audio quality is poor and crackling
The battery level is low. Charge the noise can be heard.
earphones. • The Bluetooth device is out of range.
Reduce the distance between your
I cannot pair my Bluetooth earphones with earphones and Bluetooth device, or
my Bluetooth device. remove obstacles between them.
The Bluetooth is disabled. Enable the • Charge your earphones.
Bluetooth feature on your Bluetooth device
and turn on the Bluetooth device before The audio quality is poor when streaming
you turn on the earphones. from the mobile phone is very slow, or
audio streaming does not work at all.
Pairing does not work. Make sure your mobile phone not only
• Put both earphones into charging box. supports (mono) HSP/HFP but alos
• Make sure you have disabled the supports A2DP and is BT4.0x (or higher)
Bluetooth function of any previously compatible (see ‘Technical data’ on page
connected Bluetooth devices. 10).
• On your Bluetooth device, delete
“Philips TAT2236” from the Bluetooth
list.
• Pair your earphones (see ‘Pair the
earphones with your Bluetooth device
at the first time’ on page 6).
The Bluetooth device cannot find the
earphones.
• The earphones may be connected to a
previously paired device. Turn off the
connected device or move it out of
range.
• Pairing may have been reset or the
earphones has been previously paired
with another device. Pair the earphones
with the Bluetoot device again as
described in the user manual. (see
‘Pair the earphones with your Bluetooth
device at the first time’ on page 6).Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of MMD Hong Kong Holding Limited or one of its affiliates, and MMD Hong Kong Holding Limited is the warrantor in relation to this product. UM_TAT2236_00_EN_V1.0
You can also read
