2021 Snowmobile
Crossover
Sidewinder X-TX LE 146 Sidewinder L-TX GT 137
Engine
Type / Displacement 4 Stroke / 998 cc 4 Stroke / 998 cc
Cylinders 3-cylinder 3-cylinder
Cooling Liquid-cooled Liquid-cooled
Bore x stroke 80.0 mm x 66.2 mm 80.0 mm x 66.2 mm
Carburation Turbo boosted 41mm Mikuni x 3, Fuel Injection, Liquid Heated Turbo boosted 41mm Mikuni x 3, Fuel Injection, Liquid Heated
Intake design 2-valves 2-valves
Ignition system Digital T.C.I. w/T.P.S. Digital T.C.I. w/T.P.S.
Exhaust 2 Valves 2 Valves
Clutch / transmission Variable Ratio, Magnesium Chaincase &, Cover, Electronic Shift Variable Ratio, Magnesium Chaincase &, Cover, Electronic Shift
Reverse, YSRC Reverse, YSRC
Disc brake system Radial Master Cylinder Hydraulic Brake / Disc on Drive Shaft Radial Master Cylinder Hydraulic Brake / Light Weight Disc on Drive
Shaft
Suspension
Front suspension system SRV-M New Spindle SRV
Front shocks FOX® 1,5 Zero QS3 FOX® 1,5 ZERO iQS
Front travel 229 mm 254 mm
Rear shocks HP Gas 1,5 / FOX® 2,0 Zero QS3 Alu. HP Gas 1,5 / FOX® 2,0 ZERO iQS
Rear travel 343 mm 343 mm
Measures / Dimensions
Overall height 1190 mm 1360 mm
Overall length 3353 mm 3175 mm
Overall width 1200 mm 1230 mm
Track W x L x H 15” x 146” x 2,0” 15” x 137” x 1,75”
Track type Camso® Challenger 2,0” Camso® Backcountry 1,75”
Ski stance (ctr. to ctr.) 1016-1041 mm 1064 - 1090 mm
Fuel tank capacity 33,6 litres 33,6 litres
Features
Electric start standard standard
Reverse standard standard
Hand &, thumb warmers standard standard
Headlight watts, type 60/55W LED 60/55W LED
DC output standard standard
Specifications are subject to change without notice, in accordance with national regulations and legislation.
Mountain

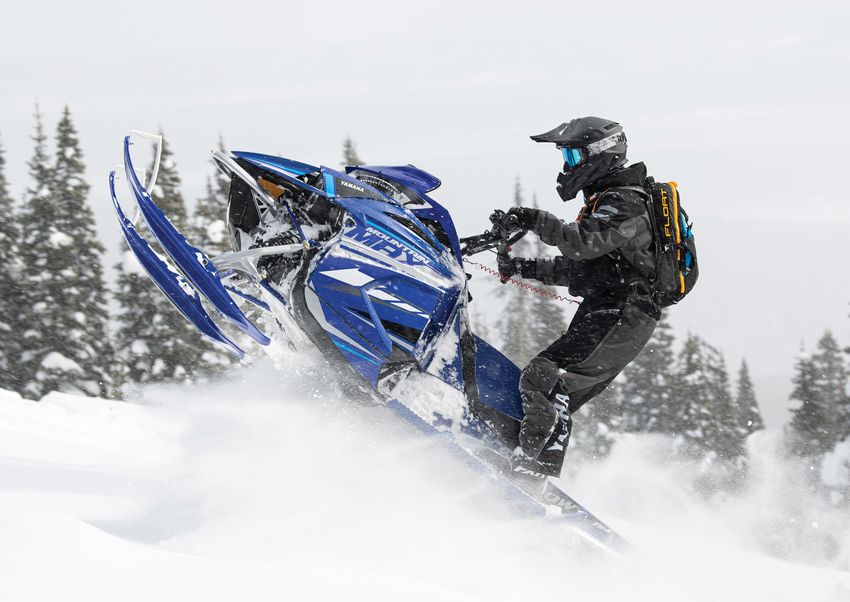

Mountain Max 154 Sidewinder M-TX LE 153 SX Venom Mountain
Engine
Type / Displacement 2 Stroke / 794 cc 4 Stroke / 998 cc 2 Stroke / 397 cc
Cylinders 2-cylinder 3-cylinder 1-cylinder
Cooling Liquid-cooled Liquid-cooled Liquid-cooled
Bore x stroke 85,0 mm x 70,0 mm 80.0 mm x 66.2 mm 85,0 mm x 70,0 mm
Carburation Electronic injection Turbo boosted 41mm Mikuni x 3, Fuel Injection, Liquid Heated Electronic injection
Intake design Piston Reed Valves 2-valves Piston Reed Valves
Ignition system Digitally Controlled CDI Digital T.C.I. w/T.P.S. Digitally Controlled CDI
Exhaust APV with tuned pipe 2-valves APV with tuned pipe
Clutch / transmission Team Rapid / Reverse push Button Engine Variable Ratio, Magnesium Chaincase &, Cover, Electronic Shift Team Rapid / Reverse push Button Engine
Reverse, YSRC
Disc brake system Stealth Hydraulic Master Cylinder w/ light weight Caliper Radial Master Cylinder Hydraulic Brake / Disc on Drive Shaft Stealth Hydraulic Master Cylinder w/ light weight Caliper
Suspension
Front suspension system SRV-M New Spindle SRV-M New Spindle SRV-M New Spindle
Front shocks FOX® QS3 FOX® Float® QS3 Hydraulic Twin Tube
Front travel 178 mm 177 mm 211 mm
Rear shocks FOX® QS3/FOX® QSL w/climb lock out FOX® Float® QS3 / FOX Float QSL w/climb lock out Hydraulic Twin Tube / Hydraulic Twin Tube
Rear travel 394 mm 394 mm 305 mm
Measures / Dimensions
Overall height 1270 mm 1270 mm n/a
Overall length 3353 mm 3360 mm 3251 mm
Overall width 1130 mm 1100 mm 1117 mm
Track W x L x H 15“ x 154“ x 2,6“ 14“ x 153“ x 3,0“ 15“ x 146“ x 2,0”
Track type Camso® Power Claw 2,6” Camso® Power Claw 3,0” Camso® Challenger ™
Ski stance (ctr. to ctr.) 902 - 952 mm adjustable 876 - 978 mm adjustable 940 mm - 991 mm adjustable
Fuel tank capacity 39,4 litres 33,6 litres 44,3 litres
Features
Electric start standard standard standard
Reverse standard standard standard
Hand &, thumb warmers standard standard standard
Headlight watts, type 60/55W LED 60/55W LED Single 60/55W Halogen
DC output standard standard Optional
Specifications are subject to change without notice, in accordance with national regulations and legislation.
Trail
SXVenom Sidewinder S-TX GT 146 RSVenture TF
Engine
Type / Displacement 2 Stroke / 397 cc 4 Stroke / 998 cc 4 Stroke / 1,049 cc
Cylinders 1-cylinder 3-cylinder 3-cylinder
Cooling Liquid-cooled Liquid-cooled Liquid-cooled
Bore x stroke 85,0 mm x 70,0 mm 80.0 mm x 66.2 mm 82.0 mm x 66.2 mm
Carburation Electronic injection Turbo boosted 41mm Mikuni x 3, Fuel Injection, Liquid Heated 41mm Mikuni x 3, Fuel Injection, Liquid Heated
Intake design Piston Reed Valves 2-valves 2-valves
Ignition system Digitally Controlled CDI Digital T.C.I. w/T.P.S. Digital T.C.I. w/T.P.S.
Exhaust APV with tuned pipe 2 Valves, Rear Exhaust 2 Valves, Rear Exhaust
Clutch / transmission Team Rapid / Reverse push Button Engine Variable Ratio, Magnesium Chaincase &, Cover, Electronic Shift YVXC, Variable Ratio, Magnesium Chaincase &, Cover, Electronic
Reverse, YSRC Shift Reverse
Disc brake system Stealth Hydraulic Master Cylinder w/ light weight Caliper Radial Master Cylinder Hydraulic Brake / Disc on Drive Shaft Hydraulic, Mechanical Parking Brake, 2 Piston Aluminium Caliper,
Ventilated Disc
Suspension
Front suspension system SRV-M New Spindle SRV Independent, double wishbone
Front shocks Hydraulic Twin Tube FOX® 1.5 ZERO QS3 KYB, 36mm Piston, H.P.G. Aluminium
Front travel 183 mm 343 mm 219 mm
Rear shocks Hydraulic Twin Tube / Hydraulic Twin Tube HP Gas 1.5 / HP Gas 1,5 with overload spring KYB, 36 mm Piston, H.P.G., Aluminium / KYB, 36 mm Piston, H.P.G.,
Aluminium
Rear travel 272 mm 394 mm 351 mm
Measures / Dimensions
Overall height 965 mm 1397 mm 1380 mm
Overall length 2921 mm 3226 mm 3215 mm
Overall width 1117 mm 1270 mm 1245 mm
Track W x L x H 14“ x 121“ x 1,0” 15” x 146” x 1,6” 15” x 151” x 1,25”
Track type Camso® Hacksaw 1,0” Camso® Cobra 1,6 Camso® Ripsaw™
Ski stance (ctr. to ctr.) 952,5 mm - 978 mm adjustable 1064 - 1090 mm 1080 mm
Fuel tank capacity 44,3 litres 33.6 litres + Auxilliary Gas Tank 34,6 litres
Features
Electric start standard standard standard
Reverse standard standard standard
Hand &, thumb warmers standard standard Passenger Grip Heating Standard, Separate, 9 Position, Adjustable,
standard
Headlight watts, type Single 60/55W Halogen 60/55W LED 60/55W Halogen x 2
DC output Optional standard standard
Utility
Transporter Lite Transporter 600 (Model year 2019) Transporter 800
Engine
Type / Displacement 2 Stroke / 397 cc 2 Stroke / 599 cc 2 Stroke / 794 cc
Cylinders 1-cylinder 2-cylinder 2-cylinder
Cooling Liquid-cooled Liquid-cooled Liquid-cooled
Bore x stroke 85,0 mm x 70,0 mm 73.8 mm x 70.0 mm 85,0 mm x 70,0 mm
Carburation Electronic injection Dual Stage injection Electronic injection
Intake design Piston Reed Valves Piston Reed Valves Piston Reed Valves
Ignition system Digitally Controlled CDI Digitally Controlled CDI Digitally Controlled CDI
Exhaust APV with tuned pipe APV with tuned pipe APV with tuned pipe
Clutch / transmission Team Rapid / Reverse push Button Engine Team Rapid / Reverse push Button Engine Team Rapid / Reverse push Button Engine
Disc brake system Stealth Hydraulic Master Cylinder w/ light weight Caliper Race radial master cylinder hydraulic brake Stealth Hydraulic Master Cylinder w/ light weight Caliper
Suspension
Front suspension system SRV-M New Spindle SRV SRV
Front shocks Hydraulic Twin Tube HPG 1.5 HPG 1,5
Front travel 183 mm 241 mm 240 mm
Rear shocks Hydraulic Twin Tube / Hydraulic Twin Tube HPG 1,5 / HPG 1,5 HPG 1,5 / HPG 1,5
Rear travel 317,5 mm 343 mm n/a
Measures / Dimensions
Overall height 1283 mm 1321 mm 1321 mm
Overall length 3251mm 3353 mm 3353 mm
Overall width 1117 mm 1219 mm 1219 mm
Track W x L x H 15“ x 146“ x 1,6“ 15” x 153” x 2,25” 15“ x 153“ x 2,25“
Track type Camso® Cobra Camso® Power Claw 2,25” Camso® Power Claw 2,25”
Ski stance (ctr. to ctr.) 952,5 mm - 978 mm adjustable 901,7 -1054 mm adjustable 901,7-1054 mm adjustable
Fuel tank capacity 44,3 litres 51,9 litres 51,9 litres
Features
Electric start standard standard standard
Reverse standard standard standard
Hand &, thumb warmers standard standard standard
w
Headlight watts, type Single 60/55W Halogen 60/55W Halogen 60/55W Halogen
DC output Optional N/A n/a
Specifications are subject to change without notice, in accordance with national regulations and legislation.
Utility Youth
VK Professional II EPS (Model year 2020) SnoScoot ES SRX 120
Engine
Type / Displacement 4 Stroke / 1,049 cc 4 Stroke / 192 cc 4 Stroke / 123 cc
Cylinders 3-cylinder 1-cylinder 1-cylinder
Cooling Liquid-cooled Air-cooled Air-cooled
Bore x stroke 82.0 mm x 66.2 mm 70.0 mm x 55.0 mm 56.0 mm x 50.0 mm
Carburation 41mm Mikuni x 3, with BRG, Fuel Injection, Liquid Heated BS-25 Mikuni CV Carburettor B-18 Mikuni TM33 Flat Slide x 1
Intake design 2-valves 1-valve 1-valve
Ignition system Digital T.C.I. w/T.P.S. C.D.I Transistorized
Exhaust 2 Valves, Rear Exhaust 1-valve 1-valve
Clutch / transmission YVXC, Variable Ratio, High / Low / Reverse Transmission CVT Centrifugal automatic, Chain
Disc brake system Hydraulic, 4 Piston Aluminium Caliper, Light Weight Ventilated Disc, Hydraulic disc Adjustable band
Mechanical Parking Brake
Suspension
Front suspension system Independent, double wishbone Double wishbone Double wishbone
Front shocks Hydraulic, Gas Cell Hydraulic Twin Tube Hydraulic
Front travel 161 mm 114 mm 76 mm
Rear shocks KYB, 40 mm Piston, H.P.G. center &, rear Hydraulic Twin Tube N/A
Rear travel 275 mm 216 mm 114 mm
Measures / Dimensions
Overall height 1455 mm 914 mm 787 mm
Overall length 3270 mm 2134 mm 1816 mm
Overall width 1165 mm 914 mm 876 mm
Track W x L x H 20” x 154” x 1,5” 10” x 93” x 1,0” 10” x 68” x 0,69”
Track type Camso® Cobra WT Camso® Cobra Camso® Block Pattern
Ski stance (ctr. to ctr.) 990 mm 775 mm 780 mm
Fuel tank capacity 44,6 litres 8,33 litres 1,7 litres
Features
Electric start standard standard N/A
Reverse standard N/A N/A
Hand &, thumb warmers 9 Position, Adjustable, standard, Separate / Adjustable Passenger 2 position Handwarmer N/A
Grip Heating Standard
Headlight watts, type 60/55W Halogen x 2 12/55W Halogen 12V/55W
DC output standard N/A N/A
www.yamaha-motor.eu Follow us on: Yamaha Motor Scandinavia
Dealer
Snowmobiles are built to operate within their design limits. For durability, reliability, but most important of all, operator
safety, under no circumstances should the recommended capacities identified in the owner’s manual be exceeded. Consult
your snowmobile dealer when selecting a snowmobile for your particular needs.
