Technical Workshop OCTOBER 29-31, 2019 | TELIT HQ – TRIESTE, ITALY 5G Telit Technology Introduction and Product Offering Roberto Pagano Product Manager
Basic 5G Concepts
Telit Technical Workshop 2019 The Three Tracks of 5G 5G embraces several aspects and different requirements in three major scenarios: eMBB | mMTC | uMTC Massive Massive Massive Sensing Control Content «massive MTC» «ultra-reliable/ «extreme MMB» critical MTC» Use case: Use case: Use case: bit/sec over 10 years on Speed, Gb/s → Tb/s Low latency, AAA batteries response 1ms LTE-M/NB-IoT are fundamental to 5G mMTC! Confidential & Proprietary © 2019 Telit. All Rights Reserved. 3
Telit Technical Workshop 2019 The Three Tracks of 5G (continued) • eMBB (enhanced Mobile Broadband) • First 5G focus • Greater bandwidth • Moderate latency improvements • mMTC (massive Machine Type Communications) • Started with Rel. 13/14 LPWA development (eg NB-IoT) • uRRLC (Ultra Reliable Low Latency Communications) • Extensions of above concept to achieve lower latency • Full URLLC will require 5G Core deployment Confidential & Proprietary © 2019 Telit. All Rights Reserved. 4
Telit Technical Workshop 2019 Cellular Standards Towards 5G MBB and Pervasive IoT Moble Broadband Rel 13 launches Rel 14 launches Rel 15 trials & launches Rel 15 Nationwide rollouts 5G NR C-V2X eMBB Focused URLLC URLLC enhancements 5G unlicensed/shared spectrum New spectrum: 5G for satellite Launches LWA (LTE-Wi-Fi aggr.) sub6 GHz & mmWave 5G above 52.6 GHz CA enh. LAA (LTE Ass. Access) Massive MIMO (up to 64x64) SON & Big data MIMO enh. CA up to 32CC Beamforming & beam tracking MIMO enhancements D2D Enhan. On D2D/ProSe Network slicing Location and positioning enh. eMBMS enh. Full dim. MIMO eLAA (uplink LAA) SA & NSA operations Power consumption improv Cat 0 Support Indoor positioning C-V2X eMBB & URLLC uses cases Dual Connectivity enhancement 3GPP STANDARDS Rel 12 Rel 13 Rel 14 Rel 15 Rel 16 Rel 17 & onwards Mobile IoT LPWA Licensed Evolution to eMTC FeMTC eFeMTC Further eMTC enhancements Mobile IoT NBIoT eNBIoT FeNBIoT Further eMTC ehancements Low Power Multicast TDD support 5GIoT Lower Cost Extension of eDRX Higher spectral efficiency Non orthogonal access Massive Reduced Complexity Extended Coverage Positioning Mobility enh. Early data transmission Wake-up radio (NOMA) grant-free uplink deployment IoT VoLTE (LTE-M only) Multi-hop mesh Higher data rate Confidential & Proprietary © 2019 Telit. All Rights Reserved. 5
Telit Technical Workshop 2019 5G in an Equation number of channel antennas Bandwidth = ∗ ∗ log 2 1+ Channel capacity in bits / second Signal-to-Noise ratio Confidential & Proprietary © 2019 Telit. All Rights Reserved. 6
Telit Technical Workshop 2019 Basic 5G Concepts • 5G Features • High Bandwidth (up to 10 Gbps theoretical) • Low latency (sub-1 ms latency rate) • 5G Potential Use Cases (Why do I need 5G?): • Autonomous Driving/Connected Cars • Cloud-based Services • High-bandwidth fixed wireless access • Spectrum allocation, divided in two macro-areas: • Sub-6: f < 6 GHz (FR1) • mmWave: 6 < f < 80 GHz (FR2) • Beam forming, High order MIMO… Confidential & Proprietary © 2019 Telit. All Rights Reserved. 7
Telit Technical Workshop 2019 5G Coverage – Combination of Low & High Bands Extremely High 20 Gbps DL Hotspots 1000x High Bands cm/mmWave 5G 26, 28, 39 GHz 10 CA, 1000 MHz BW 6-100 GHz Local Capacity 100 MHz carriers Gig-zones Ultra High Bands 5G 3500 GHz 2.7-6 GHz LTE CBRS, LAA 10x Capacity Path Loss 2 Gbps DL High Bands 5G 2500 MHz with LTE Grid 5 CA, 100 MHz BW 2.1-2.7 GHz LTE 2100, 2600 GHz... with 256QAM, 4x4 MIMO Massive MIMO Mid Bands 5G 1700, 1900 (AWS, n2) 1-2.1 GHz LTE AWS-1/2/3/4, PCS,… Low Bands 5G 600, 700, 850, 900 MHz IoT & Critical Low 200 Mbps DL
Telit Technical Workshop 2019 Roles of Different 5G Cell Sites Larger cells on sub-6GHz Smaller cells on mmWave – Gig-zones Existing LTE Deployments Public Safety/ Emergency Services Ubiquitous LTE New 5G NR Sub-6 GHz New 5G NR mmWave Gigabit LTE, VoLTE, ULL & LTE Coverage nx10 Gigabit 5G nx1 Gigabit 5G Automotive Private IoT Networks Confidential & Proprietary © 2019 Telit. All Rights Reserved. 9
5G Market Launches
Telit Technical Workshop 2019 US 5G Launches The United States’ major wireless carriers are planning to launch their 5G networks Verizon AT&T T-Mobile Sprint MWCA 2018: 5G home 5G in 19 cities in 2019 Plans near full US coverage with 4 markets by the end of May 2019 Currently in two 5G cities 30 5G lead with private 600MHz by end-2020 5 more in 1H19 markets by end-2019 networks in enterprises, Has mmWave spectrum, but Will use mid-band 2.5GHz for FWA 39GHz mmWave hospitals, and universities states it is not mature enough initial rollout spectrum for initial rollouts FWA mmWave spectrum now To help approval for Sprint Focused around adding massive Sub-6 GHz next year Sub-6GHz next year merger plans roll out of fixed MIMO radio support to LTE as 5G is wireless in rural areas being rolled out Confidential & Proprietary © 2019 Telit. All Rights Reserved. 11
Telit Technical Workshop 2019 EMEA 5G Launches Top European carriers in 5G trials ahead of commercial launch in the 2020 time frame Deutsche Vodafone Orange Swisscom Telekom NW ready for launch in 2018 early field trials in 2018 5G E2E trials 5G network live since April Leading markets by mid Berlin with sub-6 GHz and 2019 5G cities 2019. 102 locations in the 2019 – High speed data & massive MIMO 64T64R and 2020 Commercial launches first 54 towns. Coverage layer beamforming 90% population by end-2019. Confidential & Proprietary © 2019 Telit. All Rights Reserved. 12
Telit Technical Workshop 2019 APAC 5G Launches Japan, China, Korea, Australia leading the 5G effort in the region China China NTT SKT Telstra Mobile Telecom DoCoMo Launching 5G Pre-commercial 5G commercial First commercial 5G switch on in Gold Coast. commercial launch in mid 2019, launch before Tokyo launch in March 2019 More than 200 cities 5G service in 2020, full commercial Olympics 2020 capable are planned SA mode. service mid 2020 Confidential & Proprietary © 2019 Telit. All Rights Reserved. 13
Telit Technical Workshop 2019 5G Commercial Launches Europe A1, Telia, Elisa 3.5 GHz Q2’19 North America China Japan DT-AG 3.5 GHz Q2’19 AT&T 28/39 GHz Q2’19 CMCC 2.6/4.9 GHz Q3’19 DCM 4.5/28 GHz Q3’19 EE, Swisscom 3.5 GHz Q2’19 Sprint 2.6 GHz Q2’19 CT 3.5 GHz Q3’19 KDDI 4.5/28 GHz Q3’19 MTS, MF 26 GHz Q2-Q3’19 T-Mobile 0.6/28/39 GHz Q2‘19 CU 3.5 GHz Q3‘19 SB 2.5/28 GHz Q3‘19 Orange ESP 3.5 GHz Q2’19 Verizon 28/39 GHz Q2’19 Orange FR 0.7/3.5/26 GHz Q3’19 South Korea TIM 3.5/26 GHz Q3’19 LGU+ 28 GHz TBD VF UK/DE/IT/ESP 3.5 GHz Q2’19 SKT, KT 28 GHz Q3’19 SKT, KT, LGU+ 3.5 GHz Q2‘19 Australia/SEA Optus 3.5 GHz Q2’19 Telstra 3.5 GHz Q2’19 Confidential & Proprietary © 2019 Telit. All Rights Reserved. 14
Telit Technical Workshop 2019 Global 4G/5G (Sub6 & mmWave Spectrum) Russia 4G LTE Europe 1, 3, 7, 20, 38 4G LTE North America 5G mmWave Japan 1, 3, 7, 8, 20, 28, 32, 38, 46 4G LTE China n257 (2019) 4G LTE 5G Sub-6 2, 4, 5, 7, 12, 13, 14, 25, 4G LTE 1, 3, 8, 11, 18, 19, 21, 26, 28, 41, 42 26, 29, 30, 46, 48, 66, 71 n78 (2019) n1, n3, n20, n28 (2020) 1, 3, 5, 8, 34, 38, 40, 41 5G Sub-6 5G Sub-6 5G mmWave 5G Sub-6 n77, n78, n79 (2019/2020) n41 (2019), n78 (Canada 2020) n1, n3 (2021) n2, n5, n12, n66, n71 (2020) n257 (2019), n258 (2021) n41, n78, n79 (2019/2020) 32 GHz (tbd) 5G mmWave South Korea 5G mmWave 5G mmWave 4G LTE n257 (2019), n258 (2021) n260, n261 (2019) 37-42 GHz (2021) 32 GHz (tbd) n258 (2020) 1, 3, 5, 7, 8 42 GHz/47 GHz (2021/2022) 5G Sub-6 n78 (2019) Australia/SEA 4G LTE 5G mmWave 1, 3, 5, 7, 28, 40 n257 (2019) 5G Sub-6 n78 (2019) 5G mmWave n257 (2019), n258 (2020) Confidential & Proprietary © 2019 Telit. All Rights Reserved. 15
Telit Technical Workshop 2019 5G Network Architectures Evolution of use cases over time as infrastructure evolves to final “pure 5G” LTE+5G LTE Core 5G NR+Core NW NW/RAN+5GNR Media Broadband Experience Human Smart Vehicles, Critical Control of Everywhere Everywhere, Anytime Interaction – IoT Transport & Infrastructure Remote Devices LTE Core LTE Core LTE Core 5G Core 5G Core 5G Core (EPC) (EPC) (EPC) LTE RAN LTE RAN 5G RAN 5G RAN LTE RAN 5G RAN OPTION 1 OPTION 3 OPTION 2 OPTION 4 (SA LTE, (NSA NR, LTE (SA NR, 5GC (NSA eLTE, NR EPC connected) assisted, EPC connected) assisted, 5GC connected) connected) LTE EPC needed to support non-5G / legacy devices Confidential & Proprietary © 2019 Telit. All Rights Reserved. 16
From Gigabit LTE to 5G eMBB
Telit Technical Workshop 2019 LTE to 5G Datacard Roadmap MDM9240 SDX20 SDX55 Cat 11 Cat 18 3GPP Rel 15 (both LTE and 5G) 3GPP Rel 11 3GPP Rel 12 Gigabit LTE + 5G-NR 2x2 MIMO 4x4 MIMO on 3CA (Sub-6GHz + mmWave) DL/UL 600Mbps/75Mbps DL/UL 1.2Gbps/150Mbps 2CC 5G-sub6 up to 200MHz BW, TDD LTE-FDD/TDD LTE-FDD/TDD 8CC 5G-mmWave up to 800MHz BW 3CA DL, 60MHz LAA on 3CA Option 3.x and Option 3.A core DC-HSPA+ 5CA DL, 100MHz network options, Option 2 in sub-6 only GNSS B48 (CBRS), FirstNet B14 and B71 support GNSS gen 9 2CA DL, 40MHz DC-HSPA+ GNSS Confidential & Proprietary © 2019 Telit. All Rights Reserved. 18
Telit Technical Workshop 2019 FN980m 5G NR Capabilities FEATURE | Sub-6 GHz Capabilities FEATURE | mmWave Capabilities MAX COMPONENT MAX COMPONENT CARRIERS (CC) IN 5G- 2 CC CARRIERS (CC) IN 5G- DL: 8CA | UL: 8CA SUB6 MMWAVE MAX BANDWIDTH IN 5G- MAX BANDWIDTH IN 5G- SUB6 200 MHz with 1CC MMWAVE 800Mhz (50, 100, 200 and 400 Mhz carriers) FN980m NUMEROLOGY, 30 KHz NON-CONTIGUOUS CA for DL CA only SUB-CARRIER SPACING MODULATION: MAXIMUM IBW Up to 1200 MHz MAX QAM ORDER DL: 256 QAM | UL: 256 QAM SUPPORTED INTER-BAND (28GHZ + 39GHZ) CA Not supported MIMO DL CA: 4x4 | UL CA: 2x2 CARRIER SPACING 120 KHz for data and sync channels NUMEROLOGY 240 KHz for sync channels only MASSIVE MIMO Yes: Reciprocity & Feedback based MODULATION: MAX QAM ORDER Up to 64QAM (both DL/UL) DUPLEX MODE TDD and FDD SUPPORTED DL CA: 2x2 MIMO up to 8CC CORE NETWORK OPTIONS Option 3.X, Option 3A and Option 2 MIMO UL CA: 1x1 MIMO up to 8CC, 2x2 up to 4CC NSA AGGREGATION MODE Dual Connectivity, PDCP Aggregation (DL and CORE NETWORK OPTIONS Option 3.X and 3A UL) FDD: n1, n2, n3, n5, n12, n41, n66, n71 n261 (27.5 – 28.35 GHz) and n260 (37.00 – RF BANDS SUPPORTED RF BANDS SUPPORTED TDD: n77, n78 and n79 40.00 GHz) dual band mode Confidential & Proprietary © 2019 Telit. All Rights Reserved. 19
Telit Technical Workshop 2019 5G Impact on Certifications As of today, very limited number of 5G GCF/PTCRB validated Test Cases • Lack of 5G devices slows down TC validation • New test platforms development/introduction (especially for mmWave) • ~500 validated TCs by year-end out of a full scope of ~1700 TCs (30%) This goes on top of the current number of LTE validated TCs • Example: ~15000 validated TCs for a LTE Cat.18 multi-band module Number of 5G TCs is expected to grow in the next months/years as the standard matures and new features will be supported by networks/devices Confidential & Proprietary © 2019 Telit. All Rights Reserved. 20
Telit Technical Workshop 2019 Does 5G Pose Health Risks? FCC finds 5G poses no new risk – Source: Mobile World Live, 9 Aug 2019 US officials set public concerns about the health impacts of 5G aside, concluding there is nothing about the technology or the bands it operates in which would require new limits on radio frequency (RF) exposure. On a call with journalists, senior FCC officials noted the US’ current RF standards for handheld devices in particular, are among the strictest in the world. They added a review of scientific evidence conducted by the Food and Drug Administration’s Centre for Devices and Radiological Health found no adverse health effects in humans caused by RF exposure at or under the current limits. Confidential & Proprietary © 2019 Telit. All Rights Reserved. 21
Telit 5G Products Offering
Telit Technical Workshop 2019 5G Product Portfolio and Positioning Fixed Wireless Access Indoor and outdoor High Power CPEs, industrial grade Consumer grade Residential Commercial & Enterprise Tablets/Handhelds Laptop/Notebook High-Speed Industrial Routers Networking PCs Internet Gateways SD-WAN FN980m FN982m FN980m is intended to be used in applications such as outdoor high power CPEs where the modem is intended to be used intensively under severe environmental conditions Confidential & Proprietary © 2019 Telit. All Rights Reserved. 23
Telit Technical Workshop 2019 FN980m Development Phases • Development of the FN980m 5G datacard goes through different phases as follows: MKT_1 phase Aimed to bring up the LTE and 5G sub-6 radio interface. 5G mmWave not supported MKT_2 phase First hardware that will converge to the final size 30 x 50mm. Connectors for mmWave antennas replaced with final version, after feasibility study completed on the MKT_1 phase. ENG_1 phase: Additional refinements of the MKT_2 hardware. Will bring the necessary changes and tuning on the RF parts, mmWave connectors position will change. Pins positions antenna tuning and audio will be changed too. ENG_2 phase: Final hardware version aimed to start certifications. Confidential & Proprietary © 2019 Telit. All Rights Reserved. 24
Telit Technical Workshop 2019 FN980m Schedule Phase P/N Configuration / support of: Schedule (shipment date) & quantity MKT_1 MKT3990251889 1xPCIe + 1xUSB3.1 / IPEX connectors Available (not recommended: no maintenance releases planned on this hardware) MKT_2 MKT3990251902 1xPCIe + 1xUSB3.1 / Murata multi line connector Available ENG_1 ENG3990251906 As MKT_2, but different position of the mmWave connectors, W51 (end of Dec) NSA & SA support, QTM525 support ENG_2 ENG3990251907 As ENG_1, but support of mmWave High Power antennas for W08/W09 2020 CPE, Min Peak EIRP 40dBm for 64 elements 64 element/4xQTM527 support TLB kit for 3990251942 This P/N includes in the kit: W40 (October) Telit EVB (new P/N) 4 x LTE/5G sub-6 antennas 1 x FN980m module P/N MKT3990251902 (MKT_2) mounted on the TLB The TLB kit requires the EVB: P/N 3990150592 Confidential & Proprietary © 2019 Telit. All Rights Reserved. 25
Telit Technical Workshop 2019 FN980m Sample Plan Sample Schedule Description (in Plan) MKT_2 Sample Oct 15, 2019 Limited function Sub6 + mmW (LP mmW Ant, Final IF connector) (*1) ENG_1 mid Dec, 2019 Candidate for Final HW Sub6 + mmW (LP mmW Ant, Final IF conn) (*2) ENG_2 Mar, 2020 Certification Ready Sample Final HW Sub6 + mmW (HP mmW Ant) *1: Market Sample #2 is limited function and limited qty. Initial engineering evaluation use only. *2: We may start certification if the HW is confirmed to be a final. Confidential & Proprietary © 2019 Telit. All Rights Reserved. 26

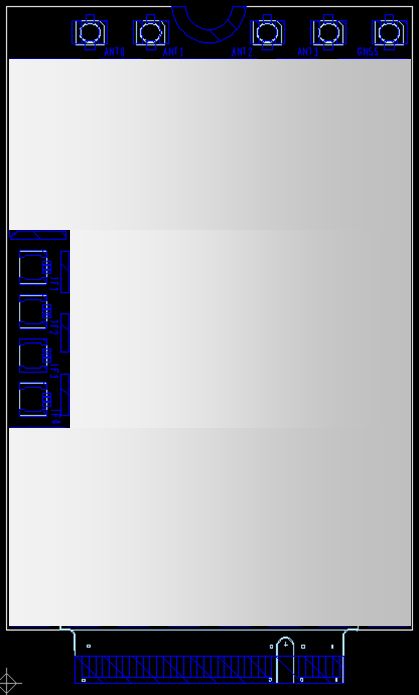

Telit Technical Workshop 2019 FN980m: MKT_2 • M.2 form factor, double side, 30 x 50 x 3.5 mm • 4 connectors for LTE/Sub-6 (I-PEX RF COAX VERTICAL RECEPT. 20449-001E- 03) • 1 antenna for L1 GNSS (I-PEX RF COAX VERTICAL RECEPT. 20449-001E-03) • 4 mmW antennas supported • IF1 connectors for mmW: Murata multi-line (MLC03-MX series) L5 GPS band L1 GPS band • 1 x PCIe gen 3 + USB 3.1 gen 2 Confidential & Proprietary © 2019 Telit. All Rights Reserved. 27

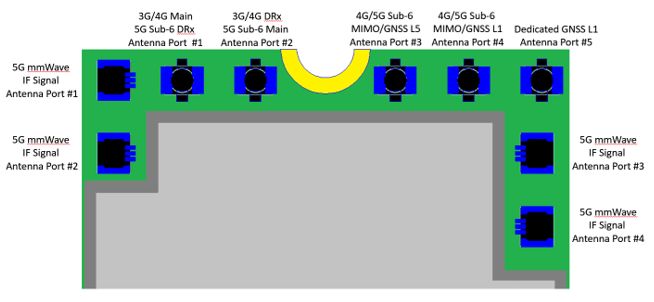

Telit Technical Workshop 2019 FN980m: ENG_1 Same specifications as for the MKT_2, but: • Change of mmW antenna connectors position, to reduce insertion losses between transceiver and connectors • MIPI control for external Antenna Tuner (LTE/5G sub-6) added • LTE band B27 removal • Only one external SIM interface available (UIM1). mmW antenna connectors Can be used to connect two external SIMs to support DSSA/DSSS (dual standby / single active) by means of external SIM switch. • Optional eSIM (connected to the same UIM1 interface) • eSIM pinout changed, now compliant to ST micro WLCSP (was Infineon pin-out on the MKT_2). FYI: Gemalto, Idemia and G&D are all based on the WLCSP package and pin-out based on ST Micro. Confidential & Proprietary © 2019 Telit. All Rights Reserved. 28
Telit Technical Workshop 2019 FN980m: Mechanical Size • PCI Express M.2 Type Key B • Dimensions are: 30 x 52 (50) x 3.5 mm • Double side PCB 1.35mm 3.5mm 1.35mm Confidential & Proprietary © 2019 Telit. All Rights Reserved. 29
Telit Technical Workshop 2019 FN980m Specifications Feature Specification Form Factor M.2 dual-side (30 x 50 x 3.5 mm) Regions NA, EMEA, APAC Operators VzW, AT&T, TMUS, Sprint, Bell, Rogers, Telus, Vodafone, Telefonica, DTAG, Orange, TIM, KDDI, NTT Docomo, Telstra, SKT, LGU+, KT, OPTUS Modem 5G: SA & NSA operations 5G Sub-6 FDD and TDD 5G core network Opt. 3a/3x and Option 2 4G: 7CA, up to 20 layers DL / 2CA UL, 256QAM DL/UL 3G: HSPA+ Rel8 (DL/UL: 42/11 Mbps) Bands supported 5G FR1: n1, n2, n5, n7, n12**, n14**, n20, n28, n66, n71, n3, n77, n78, n79, n41, n30** 5G FR2: n257, n258, n260, n261 (depends on the active antenna connected) 4G: B1, B2, B3, B4, B5, B8, B9, B12, B13, B14, B17, B18, B19, B20, B26, B28, B71, B25, B66, B39, B29 DL, B30, B32, B7, B38, B40, B41, B42, B43, B46(LAA), B48 (CBRS), B34, B27 3G: B5, B8, B3, B4, B2, B1, B9, B19 Confidential & Proprietary 30 © 2019 Telit. All Rights Reserved. ** will be supported in future QCOM MR
Telit Technical Workshop 2019 FN980m Specifications Feature Specification 4x4 MIMO DL 5G: n1, n2, n7, n66, n3, n77, n78, n79, n41, n30** 4G: B32L, B4, B66, B3, B2, B25, B1, B30, B40, B41, B7, B43, B42, B46, B48 Interfaces 1x USB 3.1 gen2 and 2.0, 1x I2S, 1x I2C, 1x PCIe gen3 1-lane 1.8/3 V SIM Interface x 2 (MKT phase) 1.8/3 V SIM Interface x 1 from ENG_1 and onwards WiFi Co-existance signals Internal pads for eSIM (optional mount from ENG_1 onwards) Voice VoLTE, VoNR (under evaluation) PCM audio and Voice Over USB Antenna types 4 x LTE/Sub-6 + 4 x QTM525 /527 Drivers Support Windows, Linux FOTA Yes DM OMA-DM GNSS gpsOne Gen 9 L1 band on dedicated RF connector, L5 shared with cellular ** will be supported in future QCOM MR Confidential & Proprietary © 2019 Telit. All Rights Reserved. 31
Telit Technical Workshop 2019 FN980m Specifications – 5G FR1 (sub-6) Feature Specification max component 2 CC carriers (CC) max bandwidth 200 MHz with 1CC numerology, 30 KHz sub-carrier spacing modulation: 256 QAM DL/UL max QAM order supported MIMO DL CA: 4x4 UL CA: 2x2 on n41, n77, n78, n79 massive MIMO Yes: Reciprocity & Feedback based duplex mode TDD and FDD core network options Option 3.X, Option 3A and Option 2 NSA aggregation mode Dual Connectivity, PDCP Aggregation (DL and UL) Confidential & Proprietary © 2019 Telit. All Rights Reserved. 32
Telit Technical Workshop 2019 FN980m specification – 5G FR2 (mmWave) Feature Specification max component DL: 8CA | UL: 8CA carriers (CC) max bandwidth 800Mhz (50, 100, 200 and 400 MHz carriers) non-contiguous CA for DL CA only maximum IBW Up to 1200 MHz inter-band (28GHz + Not supported 39GHz) CA carrier spacing 120 KHz for data and sync channels numerology 240 KHz for sync channels only modulation: Up to 64QAM (both DL/UL) max QAM order supported MIMO DL CA: 2x2 MIMO up to 8CC UL CA: 1x1 MIMO up to 8CC, 2x2 up to 4CC core network options Option 3.X and 3A Confidential & Proprietary © 2019 Telit. All Rights Reserved. 33
Telit Technical Workshop 2019 Air Interface DL/UL Peak Rate Projections (NSA) • DOWNLINK: • LTE TDD + sub-6 with 75% DL duty cycle: 3.8 Gbps, 20 layers LTE, 256-QAM, 100 MHz BW sub-6 256-QAM, 4x4 MIMO (CS target) • LTE TDD + mmW with 75% DL duty cycle: 5.7 Gbps, 8 layers LTE, 1024-QAM, 800 MHz BW mmW, 64- QAM 2x2 MIMO (CS target) • UPLINK: • LTE FDD + Sub-6 TDD with 90% UL duty cycle: 542 Mbps, 2 layers LTE, 256-QAM + Sub-6 100MHz BW, 256-QAM • LTE FDD + mmW TDD with 90% UL duty cycle: 2.7 Gbps, 2 layers LTE, 256-QAM + mmW 800MHz BW, 256-QAM Confidential & Proprietary © 2019 Telit. All Rights Reserved. 34
Telit Technical Workshop 2019 Air Interface DL/UL Peak Rate Projections (SA) • DOWNLINK: • Sub-6 TDD SA DL throughput with 75% DL duty cycle: 1.8 Gpbs, 100MHz BW 256-QAM, 4x4 MIMO (CS target) • UPLINK: • Sub-6 TDD SA UL throughput with 90% UL duty cycle: 662 Mbps, 100MHz BW 256-QAM, 4x4 MIMO Confidential & Proprietary © 2019 Telit. All Rights Reserved. 35
Telit Technical Workshop 2019 FN980m Pinout (MKT vs ENG versions) ENG_1/ENG_2 FM980 Beta MKT_1/MKT_2 FM980 Alpha'' M.2 PINOUT MKT_1/MKT_2 FM980 Alpha'' ENG_1/ENG_2 FM980 Beta CONFIG_3 CONFIG_3 1 • Comply with PCI Express M.2 2 3.3V 3.3V GND GND 3 4 3.3V 3.3V GND GND 5 6 FULL_CARD_POWER_OFF# FULL_CARD_POWER_OFF# USB_D+ USB_D+ 7 8 W_DISABLE1# W_DISABLE1# Spec USB_D- USB_D- 9 10 LED# LED# GND GND 11 12 KEY B KEY B KEY B KEY B 13 14 KEY B KEY B KEY B KEY B 15 • 1x PCIe + 1x USB3.1 Gen2 16 KEY B KEY B KEY B KEY B 17 18 KEY B KEY B KEY B KEY B 19 20 QTM0_PON I2S_CLK, TGPIO_05 CONFIG_0 CONFIG_0 21 22 QTM1_PON I2S DIN, TGPIO_06 • mmWave control signals WAKE_ON_WWAN# WAKE_ON_WWAN# 23 24 QTM2_PON I2S DOUT, TGPIO_07 DPR, TGPIO_02 DPR 25 26 QTM3_PON W_DISABLE2#, TGPIO_13 GND GND 27 28 VREG_S4E_1P904 I2S WS, TGPIO_08 USB3.1_TX_M USB3.1_TX_M 29 • One UIM interface for ext SIM USB3.1_TX_P GND USB3.1_TX_P GND 31 33 30 32 UIM_RESET UIM_CLK UIM_RESET UIM_CLK 34 UIM_DATA UIM_DATA USB3.1_RX_M USB3.1_RX_M 35 • 4 ANTCTL (MIPI) for antenna 36 UIM_PWR UIM_PWR USB3.1_RX_P USB3.1_RX_P 37 38 VDD_1P8_DIG_L6 TGPIO_12 GND GND 39 40 SIM_DETECT_2 QTM0_PON PCIE_TX_M PCIE_TX_M 41 42 UIM2_DATA QTM1_PON tuner for LTE/5G sub-6 PCIE_TX_P PCIE_TX_P 43 44 UIM2_CLK QTM2_PON GND GND 45 46 UIM2_RESET QTM3_PON PCIE_RX_M PCIE_RX_M 47 48 UIM2_PWR VREG_S4E_1P904 PCIE_RX_P PCIE_RX_P 49 • PCM signals for audio 50 PERST# PERST# GND GND 51 52 CLKREQ# CLKREQ# REFCLKn REFCLKn 53 54 PEWAKE# PEWAKE# REFCLKp REFCLKp 55 56 I2C_SDA I2C_SDA, TGPIO_09 GND GND 57 58 I2C_SCL I2C_SCL, TGPIO_10 WLAN_TX_EN ANTCTL0, TGPIO_05 59 60 WLAN_TX_EN TGPIO_11 RFFE_SDATA ANTCTL1, TGPIO_06 61 62 COEX_RXD COEX_RXD, TGPIO_03 RFFE_SCLK ANTCTL2, TGPIO_07 63 64 COEX_TXD COEX_TXD, TGPIO_04 VDD_1P8_DIG_L6 ANTCTL3, TGPIO_08 65 66 SIM DETECT SIM DETECT RESET# RESET# 67 68 TGPIO_01 TGPIO_01 CONFIG_1 CONFIG_1 69 70 3.3V 3.3V GND GND 71 72 3.3V 3.3V GND GND 73 74 3.3V 3.3V CONFIG_2 CONFIG_2 75 Confidential & Proprietary © 2019 Telit. All Rights Reserved. 36
mmWave Antennas
Telit Technical Workshop 2019 QTM525 Low Power (LP) mmWave Antennas Variant Telit P/N Support Band / notes Country of use/deployment Dimension Schedule QTM525-2 3990251911 dual-band antenna module variants Europe: n257 (2019), n258 (2021) 23 mm × 4.2 mm × 1.86 mm (1.97 mm available (MP P/N) supporting n257 and n258 Australia: n257 (2019), n258 (2020) max) rectangular Japan, Korea: n257 (2019) QTM525-5 3990251912 dual-band antenna module variants North America: 23 mm × 4.2 mm × 1.86 mm (1.97 mm available (MP P/N) supporting n258, n260 and n261 n260, n261 (2019) max) rectangular n258 (2020) Confidential & Proprietary © 2019 Telit. All Rights Reserved. 38
Telit Technical Workshop 2019 QTM527 High Power (HP) mmWave Antennas for High Power CPE Variant P/N Support Country of use/deployment Dimension Schedule /availability Band QTM527-1 3990251913 module North America: 16.8 mm × 16.8 mm × 1.89 mm (Planar) ES1 September ’19 (MP P/N) variants n260, n261 (2019) ES2 End of Dec ‘19/beg Jan supporting CS Beg of Feb 2020 n260 and n261 QTM527-2 3990251914 module variant Europe: n257 (2019), n258 (2021) 21.2 mm × 21.2 mm × 2.19 mm (Planar) ES1 August ’19 (MP P/N) supporting Australia: n257 (2019), n258 (2020) ES2 End of Dec ‘19/beg Jan n257/n261 and Japan, Korea: n257 (2019) CS Beg of Feb 2020 n258 Confidential & Proprietary © 2019 Telit. All Rights Reserved. 39
Telit Technical Workshop 2019 QTM525 Pin Definitions QTM525 series of millimeter-wave module has a B2B(board-to-board connector) to provide ✓ electrical power, ✓ grounding and ✓ IF signal connections Pin Pin name Description number 1 IF1 IF signal input and output 1 9 IF2 IF signal input and output 2 4 PON PMIC enable input signal from baseband 6, 8 VPH_PWR 3.7 V nominal power supply (Min 2.5 ~ 4.8 V) 2 VDD_1P904V 1.904 V power supply (1.85 ~ 2.04 V) 3, 5, 7, 10 GND Ground Confidential & Proprietary © 2019 Telit. All Rights Reserved. 40
Telit Technical Workshop 2019 FN980m: Murata Multi Line Connector Supported in MKT_2 and later versions for mmWave antennas Confidential & Proprietary © 2019 Telit. All Rights Reserved. 41
Telit Technical Workshop 2019 mmWave Antennas – Kits Availability • To test the LP mmW antennas, Telit offers 2 kits (one per region), including 2 x antennas and 2 x coax cables each, to connect the antennas to TLB. • 2 mmWave antennas are considered the minimum. 3 antennas are recommended. • If a customer wants to use 3 or 4 antennas, it will have to order 2 kits. Part Numbers: P/N Description 2 x Low power antennas incl. coax cables (Dual KIT 2x LP mmW ANT(EU,AUS,JP,KR) 3990251944 band) QTM525-2 (Europe, Australia, Japan, QTM525-2 Korea) 2 x Low power antennas incl. coax cables (Tri 3990251945 KIT 2x LP mmW ANT(NA) QTM525-5 band) QTM525-5 (North America) Confidential & Proprietary © 2019 Telit. All Rights Reserved. 42
Miscellaneous Information
Telit Technical Workshop 2019 FN980m Certifications Schedule Project Schedule (Main Network Carriers Only, covering H1/2020) 2019 | 2020 Sept Oct Nov Dec Jan Feb Mar Apr May June Pre-PTCRB PTCRB Certification Pre-GCF GCF Certification Verizon Certification AT&T Certification SKT Certification NTT docomo Certification Telstra Certification MNO certifications schedule for H2/2020 will be provide later on Confidential & Proprietary © 2019 Telit. All Rights Reserved. 44
Telit Technical Workshop 2019 Documentation Availability Document Code Schedule HW User Guide 1VV0301603 released Thermal Design Note 1VV0301610 released SW User Guide 1VV0301615 released AT commands User Guide 80624ST10996A released QMI Commands reference Guide 80624ST11005A released QTM525 mmWave Antenna Module 80624NT11766A Released (contact PM) overview and guidelines QTM525 mmWave Antenna Module 1VV0301618 Released (contact PM) Specification QTM527 mmWave Antenna Module W39 overview and guidelines QTM527 mmWave Antenna Module W39 Specification Confidential & Proprietary © 2019 Telit. All Rights Reserved. 45
Telit Technical Workshop 2019 FN980m Host Drivers Availability Plan • RmNet Driver and USB serial patches: available • Driver Submision to Kernel maintainer: November ‘19 • Gobiset and Gobiserial drivers, based on kernel v 4.14: under evaluation • Linux PCI drivers: under evaluation, discussions pending with QCT Confidential & Proprietary © 2019 Telit. All Rights Reserved. 46
P/N Selector
Telit Technical Workshop 2019 Part Number Selector to Test the FN980m with the EVB Use case EVB P/N TLB P/N mmWave antennas P/N I want to test the product on LTE and Not needed 5G sub-6 bands I want to test the product on LTE, 5G 3990251944 (kit for TLB) for testing on EU, Japan, KR, sub-6 and also mmWave (Low Power) AUS bands 3990251945 (kit for TLB) for testing on US bands 3990150592 3990251942 (new) The kit above include the coax cable to connect the antennas to the TLB NOTE: This is common to all use cases. I want to test the product on LTE, 5G This kit includes also 4 x LTE/5G Will be communicated later sub-6 and also mmWave (High sub-6 antennas and the FN980m Power). I’m going to test/develop an module P/N MKT3990251902 high power CPE (MKT_2) mounted on the TLB Confidential & Proprietary © 2019 Telit. All Rights Reserved. 48
FAQs
Telit Technical Workshop 2019 Frequently Asked Questions (FAQs) • Q: How do I disable the 5G radio in FR1 or FR2 spectrum? • A: ETSI AT commands provide a method to enable 5G without distinction between FR1 and FR2 spectrum. RAT selection between 3G, LTE and 5G NR can be configured by means of 3GPP 27.007 AT command AT+WS46=[] (3GPP TS 27.007 Rel 15), where can be: 22 UTRAN only (3G only) 28 E-UTRAN only (4G only) 31 UTRAN and E-UTRAN (3G and 4G) 36 NG-RAN only (5G) 37 NG-RAN and E-UTRAN 38 NG-RAN, E-UTRAN and UTRAN 40 NG-RAN and UTRAN • There is no distinction among NG-RAN in FR1 and FR2 bands Confidential & Proprietary © 2019 Telit. All Rights Reserved. 50
Telit Technical Workshop 2019 Frequently Asked Questions (FAQs) • Q: How do I select PLMN? • A: Set command forces an attempt to select and register to the GSM/UMTS/EPS/5GS network operator: +COPS=[[,[,[,]]]] : integer type; access technology selected … • 10 E-UTRA connected to a 5GCN (see NOTE 5) • 11 NR connected to a 5GCN (see NOTE 5) • 12 NG-RAN • 13 E-UTRA-NR dual connectivity (see NOTE 6) There is no distinction among NG-RAN in FR1 and FR2 bands NOTE 5: 3GPP TS 38.331 [160] specifies the information which, if present, indicates that the serving cell is connected to a 5G CN. This value is not applicable in set command. NOTE 6: 3GPP TS 38.331 [160] specifies the information which, if present, indicates that the serving cell is supporting dual connectivity of E-UTRA with NR and is connected to an EPS core. Confidential & Proprietary © 2019 Telit. All Rights Reserved. 51

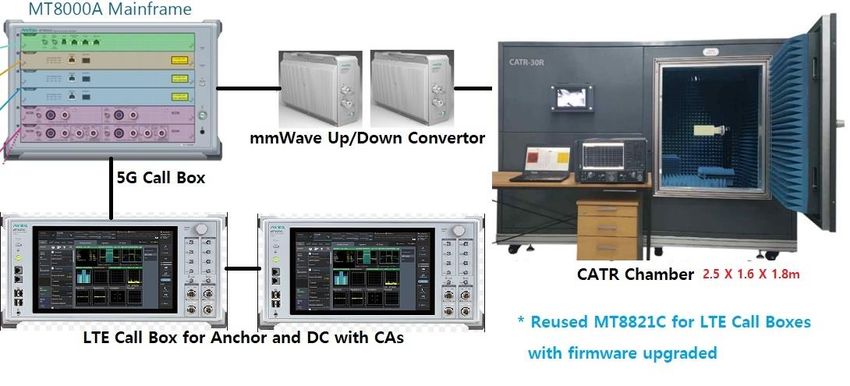

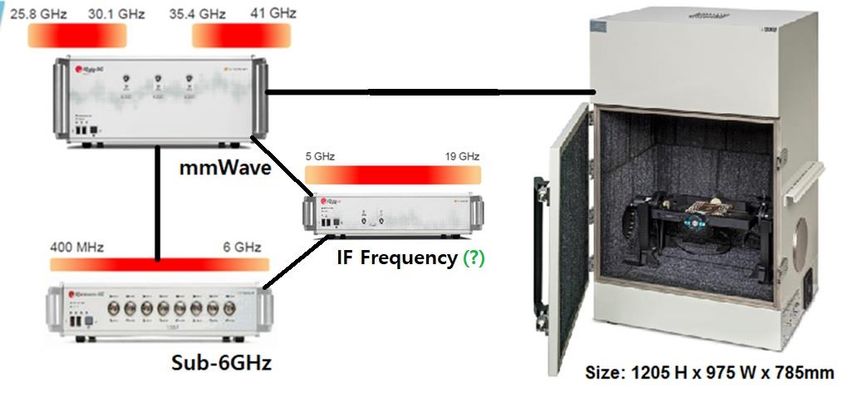

Telit Technical Workshop 2019 Test Equipment Supplier Type Parts CMP200 + Non-Signaling Box for sub6 + mmWave CMW100 + R&S Ota Chamber CMQ200 (Anechoic Chamber) MT8000A + MT8821C + Anritsu Signaling Box + CATR Chamber MT8821C + MA8172A CATR (Anechoic Chamber) R&S 5G Spectrum Analyzer under evaluation Anritsu Network Analyzer under evaluation Confidential & Proprietary © 2019 Telit. All Rights Reserved. 52
Thank You! Roberto Pagano Any feedback/questions/comments please email roberto.pagano@telit.com Telit reserves all rights to this document and the information contained herein. Products, names, logos and designs described herein may in whole or in part be subject to intellectual property rights. The information contained herein is provided “as is.” No warranty of any kind, either express or implied, is made in relation to the accuracy, reliability, fitness for a particular purpose or content of this document. This document may be revised by Telit at any time. For most recent documents, please visit www.telit.com © 2019 Telit. All Rights Reserved.
