6 MAN AIR TENT User Manual
User Manual

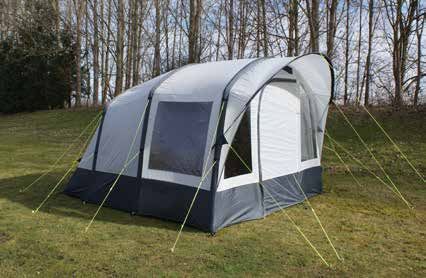

6 MAN AIR TENT

              OPED I
           VEL      N
         DE
                             GE
     L
MANUA

                               RMA
                                  NY
 my

                         om

     ha
          nse                l.c
                c o n t ro

  User-friendly
    Manual
ID: #05007
Table of contents

Scope of delivery.................................................................. 3
    Components...............................................................................7
    Connecting elements supplied...............................................7
    Required tools (not included)..................................................7
General information.............................................................8
    Reading and storing the user manual.................................. 8
    Proper use.................................................................................. 8
    Explanation of symbols........................................................... 8
Safety....................................................................................9
    Signal symbol/word definitions............................................. 9
    General safety instructions..................................................... 9
First use................................................................................12
    Checking the product and pack contents........................... 12
Setting up the product.......................................................12
    Attaching the inner tent to the outer tent........................... 14
Taking down the product.................................................. 14
Cleaning and care.............................................................. 15
Storing the product............................................................ 16
Technical data.................................................................... 16
Disposal................................................................................17
    Disposing of the packaging................................................... 17
    Disposing of the product........................................................ 17
Scope of delivery

Scope of delivery
A
        1           2                 3

                            6
    4

                                            7

               5

B
                        1
                                                    Dok./Rev.-Nr. 199001_20210205

                                  8

                                           7

                                                3
Scope of delivery

C
                    1   9

D

                            10

                                  4

E
                             11

                                  4

4
Scope of delivery

F
         12

                      4

G

    13
              6

                                  14

H
                  2

                                  Type I

Front         Rear                Type II

                                  Type III

                                             5
Scope of delivery

I

      2

                    7

J
                             17
          15
                        16

                                  18

6
Scope of delivery

Components
 1   Tent                       10        Inflatable pole (middle)

 2   Guy rope, ×16              11        Inflatable pole (rear)
     Type I, ×6
     Type II, ×8                12        Inflatable pole (front)
     Type III, ×2
                                13        Awning
 3   Carry bag

 4                              14        Pole socket, ×2
     Air pump

 5   Valve adapter, ×5          15        Outer tent

 6   Fibreglass pole            16        Inner tent

 8   Tent loop, ×8              17        Hook, ×14

 9   Air valve, ×3              18        Loop, ×14

Connecting elements supplied
 7   Peg, ×28

Required tools (not included)
                                     19
19 Hammer

                                                                                   7
General information

General information
Reading and storing the user manual
              This user manual accompanies this 6 man air tent (hereafter referred to
              as the „product“), and contains important information on setup and
              handling.
              Before using the product, read the user manual carefully. This particu-
larly applies to the safety instructions. Failure to do so may result in personal injury or
damage to the product.
The user manual is based on the standards and rules in force in the United Kingdom
and European Union (Ireland). When abroad, you must also observe country-specific
guidelines and laws.
Store the user manual for further use. Make sure to include this user manual when
passing the product on to third parties.

Proper use
The product is exclusively designed for outdoor camping with up to 6 persons. It is
only intended for private use and not suitable for commercial purposes. The product
is not a children’s toy.
Only use the product as described in this user manual. Any other use is considered
improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury incurred
through improper or incorrect use.

Explanation of symbols
The following symbols are used in this user manual, on the product or on the
packaging.
               This symbol provides you with useful additional information on
               handling and use.

8
Safety

Safety
Signal symbol/word definitions
The following symbols and signal words are used in this user manual.

                                  This signal symbol/word designates a hazard
              WARNING!            with moderate risk, which may result in death or
                                  severe injury if not avoided.
                                  This signal symbol/word designates a hazard
              CAUTION!            with low risk, which may result in minor or mod-
                                  erate injury if not avoided.
                                  This signal word warns of possible damage to
            NOTICE!               property.

General safety instructions

             WARNING!
Danger of suffocation!
If the inside of the product is not adequately ventilated, there is a risk
of suffocation. Children could catch themselves in the tent tarps, in
the packaging wrapper or in the carry bag when playing and suffo-
cate.
−− Make sure that the ventilation windows are always open in the
    event of high temperatures.
−− Avoid continual exposure to sunlight to prevent the
    accumulation of heat inside the product.
−− Do not leave children unattended in the product.
−− Make sure the vents are open.
−− Make sure that there is always an unobstructed path of escape
    out of the product. Keep the exits unobstructed.
−− Do not allow children to play with the tent tarps, the packaging
    wrapper or carry bag.
−− Do not use the product if it exhibits visible damages.
                                                                                     9
Safety

           WARNING!
Risk of injury!
Once set up, the fibreglass pole is under tension. Careless and im-
proper handling of the pole may result in injury.
−− Make sure that the tent poles do not end up in the hands of
   children.
−− When handling the fibreglass poles, pay attention to nearby
   persons.

           WARNING!
Risk of strangulation!
If the guy ropes end up in the hands of children, they could strangle
themselves.
−− Keep the guy ropes out of the reach of children.
−− Do not allow children to play with the guy ropes.

           WARNING!
Risk of fire and burn hazard!
The product consists of flammable material. It could catch fire.
−− Do not set up any cooking or heating devices in the product
   and do not hang any lighting fixtures near the walls or roof of
   the product.
−− Do not place any electric devices (e.g. heaters) that are switched
   on near or inside the product.
−− Do not use any gas or other combustion devices near or inside
   the product.
−− Keep the product away from open fire. Do not start a fire inside
   the product.
−− Avoid continual exposure to sunlight to prevent the accumulation
   of heat inside the product.
10
Safety

−− Keep the entrance of the product free of obstructions.
−− Make sure you are aware of fire prevention precautions on the
   premises.

           CAUTION!
Risk of injury!
You could trip over pegs protruding out of the ground or tensioned
guy ropes. You could injure yourself in the process.
−− Always insert pegs all the way in the ground.
−− Take note of the guy ropes when close to the product.
−− Do not leave the product unattended during set-up.

          NOTICE!
Risk of damage!
Incorrectly setting up the product, improper handling of the product
and using the product in extreme weather conditions could damage it.
−− Only use the product in mild weather conditions.
−− Do not use the product in alpine or other extreme conditions,
   e.g. in the event of hail, flooding, a storm, extreme cold or heat.
−− Do not place the product with the entrances against the wind.
−− Use the guy ropes and pegs to secure the product and protect
   it against the wind.
−− Promptly take the product down in the event of an incoming
   storm, thunderstorm or in case of strong wind. Even if properly
   anchored, it may come loose.
−− Do not use the product in the event of snow. The tent tarp is
   not designed to withstand snow loads and may rip.
−− Stop using the product if the plastic parts of the product or the
   tent tarps are deformed, cracked, chipped or exhibit breaks,
   splinters or other damages.
−− Do not place any objects on top of the product.
                                                                     11
First use

First use
Checking the product and pack contents

            NOTICE!
Risk of damage!
If you are not cautious when opening the packaging with a sharp
knife or other pointed object, you may quickly damage the product.
−− Be very careful when opening.
 1. Take the product out of the packaging.
 2. Check to make sure that the delivery is complete (see Fig. A).
 3. Check whether the product or the individual parts exhibit damage. If this is the
    case, do not use the product. Contact the manufacturer at the service address
    specified on the warranty card.

Setting up the product

            NOTICE!
Risk of damage!
If you set up the product in an unsuitable location or do not secure it
sufficiently, it may be damaged.
−− Set up the product on a dry, level surface on which the guy
    ropes can be secured.
−− Make sure that there are no pointy rocks or other sharp objects
    on the ground beneath the product.
−− Make sure that there is enough space around the product so
    that you can secure the product with the guy ropes.
−− Do not set up the product on sloped ground.
−− Do not set up the product on sandy ground. It will not be possi-
    ble to securely anchor your product in sandy ground.

12
Setting up the product

            NOTICE!
Risk of damage!
Strong wind or a storm may pull the product out of the anchors and
damage it.
−− Preferably choose a wind-protected area for set-up.
−− Set the product up so that the wind can blow over the product
   from the back of the product.
−− Use the guy ropes and pegs to secure the product and protect
   it against the wind.
              • Set up the product before a trip to familiarise with the product’s
                construction.
              • Choose an area that is large enough to accommodate not only the
                tent, but also ensure there is enough space to each side surround-
                ing the tent to tie down the guy ropes to the ground.
              • The net insert in the tent permits adequate ventilation and, at the
                same time, prevents insects from entering the product.
              • The product consists of an outer 15 and an inner tent 16 , which
                are separated by a door. The inner tent typically serves as a bed-
                room, while the outer tent is used as a living room/lounge.

 1. Select a suitable, level set-up location where you can properly secure the
    product by attaching the guy ropes 2 to the ground using the pegs 7 .
    Ensure the ground is free of stones and other sharp objects.
 2. Take the tent 1 , the fibreglass pole 6 as well as the pegs out of the carry
    bag 3 (see Fig. A).
 3. Spread out the tent with the dark grey underside facing downwards at the set-
    up location (see Fig. B).
 4. Secure the tent on the ground by using the pegs 7 to secure the tent loops 8
    in the ground (see Fig. B). Use a hammer 19 if necessary to drive the pegs into
    the ground.
    Make sure that the underside of the tent is tensioned and that the pegs do not
    protrude from the ground.
 5. Locate the air valves 9 on the tent (see Fig. C) and make sure the lower parts
    of the valves are fully screwed onto the tent to prevent air from escaping while
    inflating. Open the locking caps of the air valves.
 6. Fit the correct valve adapter 5 to the air hose and insert it into the air valve on
    the side of the inflatable pole (middle) 10 .
                                                                                          13
Taking down the product

    Use the air pump 4 to inflate the inflatable pole (middle) and keep pumping until
    the pole feels rigid (see Fig. D). The air pump is fitted with a pressure release valve
    which automatically releases air from the air tubes once the pressure exceeds 7 psi.
    Once you have finished inflating, remove the air hose and replace the locking cap.
 7. Inflate the rear and front inflatable poles 11 / 12 as described above (see
    Fig. E and F).
 8. Fold apart the fibreglass poles and push the individual pole parts into each other
    to connect them.
 9. Starting from one side, slide the fibreglass pole 6 through the sleeve on the
    edge of the awning 13 . Secure the pole in place by inserting both ends into the
    pole sockets 14 on each side of the awning (see Fig. G).
    The fibreglass pole has been set up and is under tension.
10. To further secure the product in place, a total of 16 guy ropes 2 of 3 different
    types are provided (see Fig. H).
    Unravel the guy ropes and pull them away from the tent, while making sure they
    are tensioned. The length and rope tension of individual ropes can be adapted
    by the fasteners attached to some of the ropes. Secure the guy ropes at suitable
    spots in the ground using the pegs (see Fig. I).
    Use a hammer if necessary to drive the pegs into the ground.
Attaching the inner tent to the outer tent
The inner and outer tent are buttoned together upon delivery. If the outer tent 15
and the inner tent 16 are not buttoned together (e.g. after cleaning or drying), pro-
ceed as follows:
  1. Spread out the tent with the dark grey underside facing down.
 2. Take the inner tent and attach it to the outer tent by inserting the hooks 17 at-
     tached to the inner tent through the loops 18 attached to the outer tent starting
     from the rear moving forward (see Fig. J). Make sure the hooks are pushed all the
     way through the loops and cannot slip back out.
 3. Attach the ground sheet to the outer tent via the sewn in hooks as you work your
     way forward.
To unbutton the inner tent and the outer tent, perform above steps in reverse order.

Taking down the product
Proceed as follows if you would like to take the tent down again:
  1. Remove all objects and any dirt or residues from the tent and clean it as de-
     scribed in the chapter “Cleaning and care”.
 2. Perform steps 1–10 as described in chapter “Setting up the product” in reverse order.
     To deflate the inflatable poles, carefully open up the entire valves, not just the
     locking caps, and carefully press the beams together to release the air.
     Never force the air out of the beams, as you might risk damaging the beams and
     poles.
14
Cleaning and care

Cleaning and care

            NOTICE!
Risk of damage!
Improper handling of the product may result in damage to the
product.
−− Do not use any aggressive cleaners, sharp or metallic cleaning
   utensils such as knives, hard scrapers and the like. They could
   damage the surfaces.
−− Never wash the product in the washing machine. It would be
   destroyed as a result.
−− Never have the product dry cleaned.
−− Only use clean water or a commercially-available tent cleaner
   to clean the product.
  1. Wipe off the product before you take it down to remove dust or build up dirt on
     the surface.
  2. If applicable, wipe the erected tent off with a damp, soft sponge or cloth with
     clean water or a commercially-available tent cleaner.
  3. Let the inner tent 16 dry completely.
 4. Wipe the outer tent 15 off with a damp, soft sponge or cloth with clean water or
     commercially-available tent cleaner.
  5. Let the outer tent dry completely.
 6. If the inside of the outer tent or the inner tent is damp, unbutton the two tents as
     described in the chapter “Attaching the inner tent to the outer tent”.
  7. Remove the outer tent and place it with the outside on a smooth, dry and clean
     surface.
 8. Let the inner and outer tent dry completely.
  9. Place the inner tent with the top side down on a smooth, dry and clean surface.
10. Wipe off the tent floor with a damp, soft sponge or cloth with clean water or com-
     mercially-available tent cleaner.
 11. Let all parts dry completely.
You can now fold up the tent 1 for storage as described in the chapter “Storing the
product”.

                                                                                        15
Storing the product

Storing the product

              NOTICE!
Risk of mould!
Never fold up the product when it is wet or dirty. Mould or odour may
form or the material may be discoloured.
−− Clean the product before you fold it up as described in the
   chapter “Cleaning and care”.
 1. Take the tent 1 down as described in the chapter “Taking down the product”.
 2. Spread out the product with the dark grey underside facing down.
 3. If the outer tent 15 and the inner tent 16 are buttoned together, smooth out
    the outer tent and fold the corners together so that it is flush with the inner tent.
 4. If the outer tent and inner tent are not buttoned together, button them together
    as described in the chapter “Attaching the inner tent to the outer tent”.
 5. Fold the tent up so that it has the width of the carry bag 3 .
 6. Store the tent, the pegs 7 , the fibreglass pole 6 , air pump 4 and valve
    adapters 5 in the carry bag.

Technical data
Model:                                       AD78
Dimensions (W × L × H):                      approx. 360 × 470 × 205 cm
Packing dimensions (W × L × H):              approx. 74 × 42 × 39 cm
Material
  Tent:                                      185T 68D Polyester PU2000 mm UV
  Windows:                                   PVC
Weight
  Without packaging:                         approx. 17.5 kg
  With packaging:                            approx. 18.5 kg
Article number:                              712182

16
Disposal

Disposal
Disposing of the packaging
          Sort the packaging before you dispose of it. Dispose of
          paperboard and cardboard with the recycled paper service and
          wrappings with the appropriate collection service.

Disposing of the product
−− Dispose of the product in accordance with the applicable laws and regulations for
   your country.

                                                                                   17
Great care has gone into the manufacture of this product and it should
therefore provide you with years of good service when used properly.
In the event of product failure within its intended use over the course of the
first 1 year after date of purchase, we will remedy the problem as quickly as
possible once it has been brought to our attention. In the unlikely event of
such an occurrence, or if you require any information about the product,
please contact us via our helpline support services, details of which are to be
found both in this manual and on the product itself.

 GB         IE

PRODUCED IN CHINA FOR:
ALDI STORES LTD. PO BOX 26, ATHERSTONE
WARWICKSHIRE, CV9 2SH.

ALDI STORES (IRELAND) LTD.
PO BOX 726, NAAS, CO. KILDARE.
Visit us at www.aldi.com

                                                              1
  AFTER SALES SUPPORT                       712182
       GB    IE   +44(0)161 447 8597

            www.streetwizeaccessories.com
                                                            YEAR
  MODEL:
  AD78                                     07/2021
                                                          WARRANTY
You can also read
