AARHUS LRT DENMARKS FIRST LIGHT RAIL
ORGANIZATION OF THE AARHUS LRT
Aarhus Letbane I/S Aarhus Letbane Drift I/S Midttrafik: Light Rail Council:
Regional Transport
Construction and Infrastrukturforvaltning Authotity Next Stages
purchase of vehicles Drift og vedligehold af
Region Midtjylland
materiel og infrastruktur Traffic planning
Norddjurs Kommune
Information
Syddjurs Kommune
Marketing
Randers Kommune
Ticketing
Favrskov Kommune
Owners: Owners: Skanderborg Kommune
AarhusKommune Aarhus Kommune Silkeborg Kommune Odder
Staten Region Midtjylland Kommune
Region Midtjylland Aarhus Kommune
Midttrafik
2
DENMARKS FIRST LIGHT RAIL TRANSPORTATION SYSTEM
STAGE 1
• Integration of two local railway
lines, Odderbanen and
Grenaabanen (98 km)
• 12 km new rail infrastructure
in Aarhus
• 51 stops – 18 new stops
• Light rail vehicles on
the entire
infrastructure
• Full electrification
• Full operation
in 2017
• Approx. 39,000
daily bording
passengers
3
FREQUENCY AND OPERATION
MORE DEPARTURES – SHORTER TRAVEL TIME
• Aarhus Central Station - Grenaa (68 min)
• Tranbjerg – University Hospital (30 min)
• Hornslet – University Hospital (27 min)
• Aarhus Central Station –
University Hospital ( 17 min)
• Lisbjerg - University Hospital (5 min)
4
TIME TABLE 2012 • Tender preparation • Act of Aarhus Light Rail • Construction Company is founded 2013 • Civil works • LRT System tender 2014 • Civil Works • Contract on LRT System 2015 • Civil Work on LRT System and CMS • Tram and Tram Train production 2016 • Test og Trial Operation 2017 • Full operation • Aarhus is European Capital of Culture

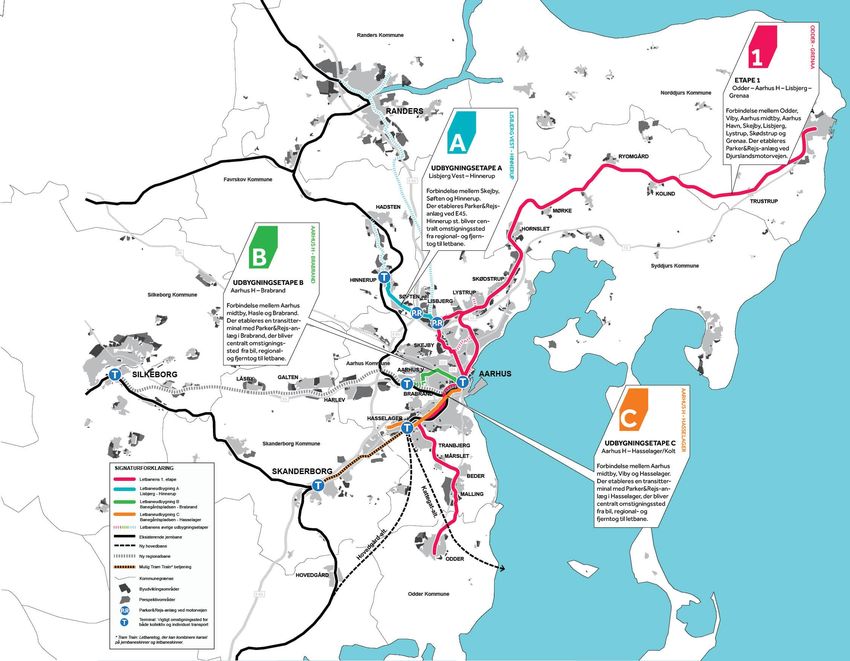

NEXT LRT STAGES PLANS FOR A LRT NETWORK
LIGHT RAIL VISION
PLANS FOR MULTIPLE LINES
The vision of Aarhus LRT is to
establish af network of light rail
lines that connect the Aarhus
area with a modern an
efficient transport and
support urban develop-
ment and use of public
transport in the
country's second
largest metropolitan
area.
7

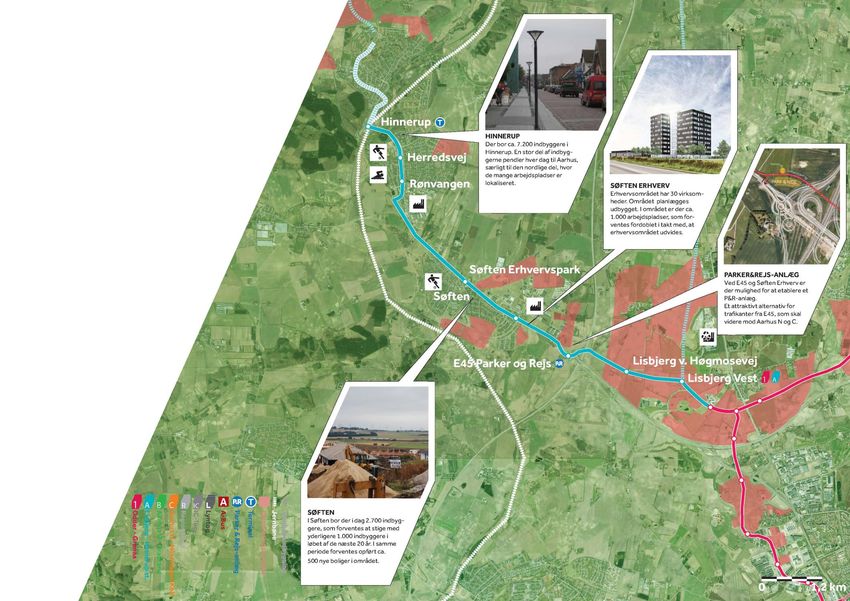

LRT STAGE A
LISBJERG VEST - HINNERUP
• Estimated construction costs: 80
mio EUR / 596 mio. dkr.
• 8.2 kilometer
• 7 stops
• Frequency every
15-20 minut
• Park & Ride
near the
motorway
E45
8
LRT STAGE B
AARHUS C - BRABRAND
• Estimated construction
cost: 96,5 mio. EUR / 718
mio. dkr
• 7,7 kilometer
• 15-17 stops
• Frequency every 5
minuts
• Part of af urban
development
project in West
End Aarhus
9
LRT STAGE C
AARHUS C - HASSELAGER
• Estimated construction
costs: 906 mio. kr. (78 mio.
kr./km)
• 11,6 kilometer
• 16 stops
• Frequency every 5
minut
• Park & Ride near
Hasselager
10TIMETABLE NEXT STAGES
LINE A AND B CAN BE IN OPERATION IN 2021
2013
• Clarification of financing
• Prepare basic planning
2014
• Planning
2015
• Act of next LRT stages
• Design
2016
• Tender for Civil Works and Transportation Package
2017
• Civil Works and production of trams and tram trains
2020
• Testing
2021
• Stage A and B in operation
11URBAN DEVELOPMENT THE LIGHT RAIL STRENGTHEN THE AARHUS AREA
AARHUS
GROWTH OBJECTIVES FOR THE YEAR 2030 COMPARED TO THE YEAR 2008
375,000 inhabitants (Compared to 300,000 in
2008)
230,000 jobs (Compared to 180,000 in 2008)
200,000 homes (Compared to 150,000 in 2008)
60,000 students (Compared to 40,000 in 2008)
Source: www.businessaarhus.com 13THE NEW AXIS OF KNOWLEDGE
Foods - Agro Food Park
Center of knowledge, innovation, research, education and growth
within the agricultural and food sectors. By 2020 Agro Food Park
will be one of the world’s five strongest knowledge clusters within
agriculture and foods.
Health and Medtech - The New University
Hospital
The New University Hospital will be one of the largest hospitals in
Northern Europe, with 300,000 m2 of buildings and 9,000
employees. The completion of the hospital - an investment of
almost 7 billion Danish Kroner - is expected by 2019.
IT - Katrinebjerg
Katrinebjerg is Aarhus’ IT powerhouse, home to a unique cluster of-
and environment for IT development and innovation. Already, strong
cooperative ties exist between public and private research at
Katrinebjerg.
Aarhus University’s IT educational and research departments of
Aarhus University are located here.
Cleantech - Navitas
Navitas will house energy-related education, research, development
and businesses in Aarhus. The complex will house more than 2.000
students and 300 teachers, researchers and private entrepreneurs.
The vision for Navitas is to create an international icon for the
development and application of sustainable energy technology.
14NEW TOWNS AT NORTHERN AARHUS
THE LISBJERG OG ELEV
Lisbjerg: Dense housing and business
development up to 20.000 inhabitants
Nye: 10.000 inhabitants
15AARHUS Ø – THE AARHUS DOCKLANDS
URBAN DEVELOPMENT AT THE NEW HABOUR FRONT
‘Northern bastion’ - Navitas Park with an engineering
school with 2000 students opened August 2014
‘Southern bastion’ – Dokk1 – opens in 2015
16AARHUS UNIVERSITY
DENMARKS SECOND LARGEST UNIVERSITY
30,000 students today
Extending up to 10 and 15,000 students over the
next 10-15 years
Extensive investment in bus priority lanes along
main corridor is converted into light rail
17AARHUS UNIVERSITY HOSPITAL
THE NEW UNIVERSITY OPENS IN 2019
The expansion to one of the largest hospitals in
Scandinavia over the next 10-15 years with 9,000
employees has begun.
The new Aarhus University Hospital are planed to
open in 2019
18WE BUILD THE AARHUS LRT THE CONSTRUCTION COMPANY
ORGANISATION AND FINANCING
AARHUS LRT, STAGE 1
Central Ministry of Central
Region Municipality Transporta Region
Municipality
Denmark of Aarhus tion Denmark
of Aarhus
Extention to
the Grenaa Other
Habour Construction investments Operating investments
investments
Extention to
Lisbjerg Options Aarhus Letbane I/S Aarhus Letbane Drift I/S
Bike path
Further
elektrification Total budget for
Aarhus Letbane I/S
20TENDER STRATEGY
19 CIVIL WORKS AND 1 TRANSPORTATION SYSTEM
Transportations System Civil Works
1 Package: 19 Packages:
Trams and Tram-trains Bridges
12 Trams og 12 Tram-trains
Tracks Construction works
OCS Track works
Depot og CMC Utility works
Platform Immunisation
Communication / radio
Passenger Information System
Signalling
Maintenance 6 + 3 years

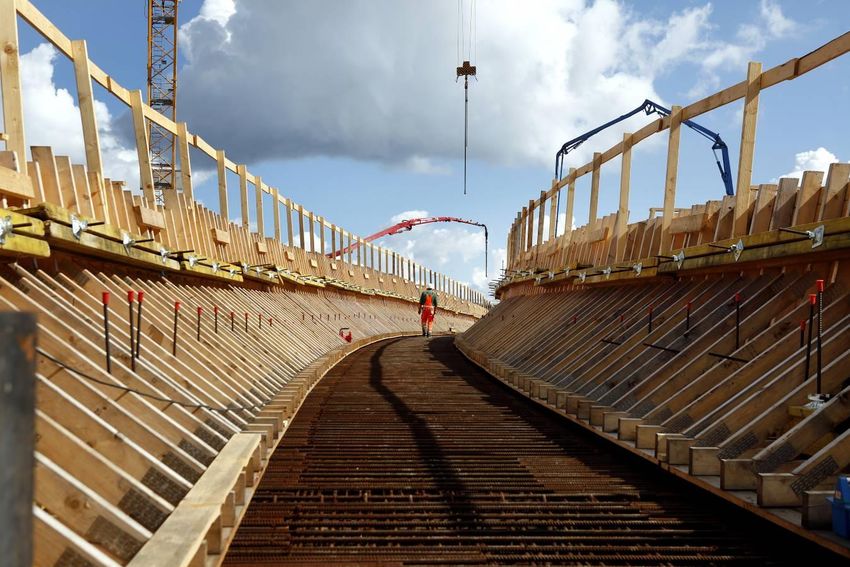

21Billede af anlægsarbejde: Letbanebro i Banegraven efter forskallingen er fjernet.

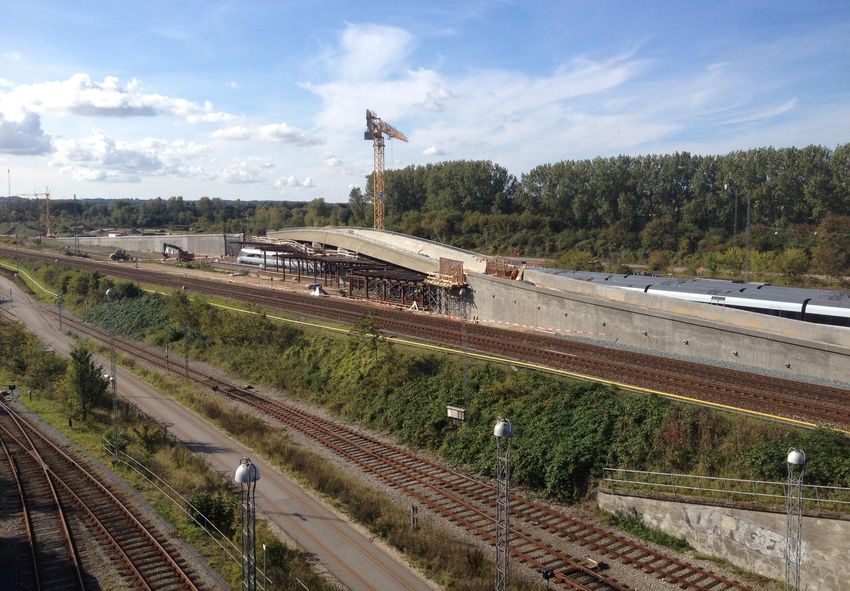

Billede af anlægsarbejde: Letbanebro ved Mindet (over Aarhus Å)
Billede af anlægsarbejde: Kombineret bro- og dæmningsanlæg mellem Skejby Nord og Lisbjerg
Billede af anlægsarbejde: Forberedelse af Letbanetracé mellem Lisberg og Lystrup
TS-CONSORTIUM TRAM
STADLER / ANSALDO STS SUPPLY THE LRT SYSTEM
Provides trams and tram-trains:
• Variobahn – runs in Bergen and Croydon
• Tango – runs in Lyon
The trams are built in Berlin, tram-trains in Altenrhein Switzerland
Bybanen in Bergen was named ”Light Rail Project of the year
2011” by Global Light Rail Awards
TRAM TRAIN
Provides a turn key LRT system including Control and
Maintenance Center
Ansaldo STS built the Copenhagen Metro
The Copenhagen Metro was named ”The Metro
of the year” several times from 2008-2012
26WE OPERATE THE AARHUS LRT
Preparation of operation of Aarhus LRT
• Two main tasks for Aarhus Letbane Drift I/S until 2017
• Finalizing a contract for the light rail operation - traffic and traffic
management. Is done by Midttrafik for ALD
• Establishing an infrastructure management organization responsible for
managing and maintaining the infrastructure.THE OPERATIONS TENDER • Negotiated EU tender process • First light rail operation tender in Denmark. No best practice in Denmark. • Much appreciated assistance from Skyss and Bybanen in Bergen.
PREQUALIFIED BIDDERS • RATP Développement S.A. • Arriva Letbane ApS • Keolis SA • Ansaldo STS S.p.A
TENDERING PROCEDURE
Tender documents Revised 1. Tender
Dialog with bidders
Draft Tender documents submission
