Advanced EEG and
biosignal technologies for
real-world monitoring
Hardware catalogue
About our hardware
About our Practical EEG and biosignals monitoring for
real-world research.
hardware
We have developed innovative human behaviour monitoring
technologies practical for real-world applications:
• Comfortable: mobile, wireless and ergonomically
designed for the user to capture natural behaviour.
• Fast and simple: easy to set up anywhere by
non-technical personnel in just a few minutes.
• Reliable: outstanding signal quality thanks to electronic
and mechanical designs that strongly reduce
artifacts, even under movement or difficult recording
circumstances.
Wearable and mobile devices for real-time monitoring of:
EEG, biosignals (ExG, GSR, RESP, TEMP, etc.), movement
activity (EMG, IMUs, etc.), eye tracking (screen-based
and mobile), and people location and tracking (indoor/
outdoor positioning system). Bitbrain technologies can be
seamlessly integrated with VR devices.
Wide range of software compatibility with many Third party
scientific tools, development tools and Bitbrain Platforms.
EEG
ly Vers
ami atil
GF eE
al EE EG
Fa
nim mi
MI ly
In
do
rs
so
M
or
t
ini
en
en
lo
ma
ios
vem
cal
l in
le B
iza
dW
mo
ati
ooer
e with Oculus & HTC
atibl
tion
s
mp Vib
Ver
aGrPa
e
and
Co
Sble
nals
oW
sors
r eSc
Eye-tr
Biosig
ara
iosen
rebelena-b
ackers
Wearable B
ndasc
erdeen
Bitrain software kit (included) Bitbrain software platforms (optional)
· Real-time SDK: C/C++ Windows and Linux. · Bitbrain Human Behaviour Research lab.
· Data acquisition and visualization suite.
· Bitbrain Cognitive Training Lab.
· Third parties real-time I/O (LabStreamingLayer LSL).
· Third parties data analysis (Python, Matlab , EEGLAB, · Bitbrain Development framework.
BCILAB and more).
More info: www.bitbrain.com 2 sales@bitbrain.com
Product overview
Product overview
EEG
Minimal dry-EEG family • Diadem P.5
The world’s most innovative family of wearable dry-EEG systems for • Hero
real-world applications. • Immersive
• Air

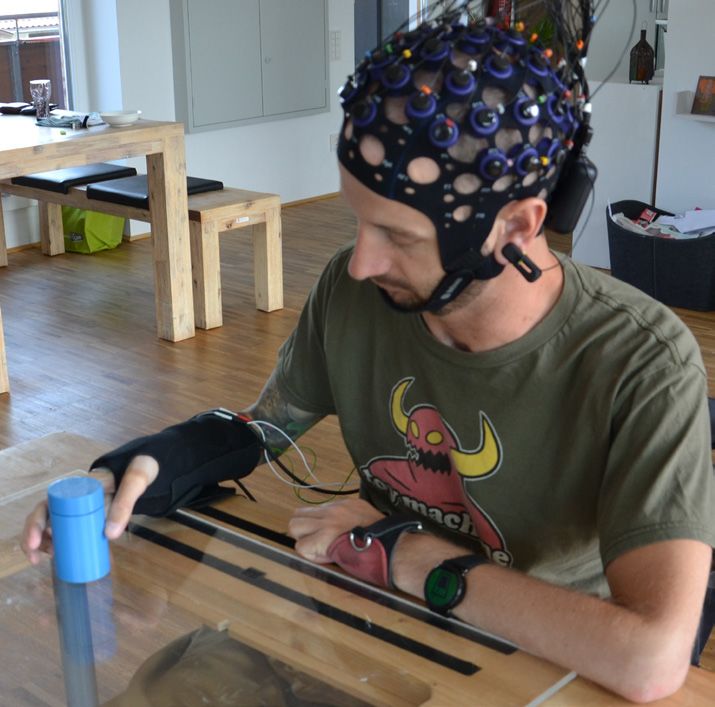

Versatile semi-dry EEG family • Versatile EEG 8 / 16 / 32ch P.17
Versatile and flexible family of mobile and semi-dry EEG systems for • Versatile EEG 64ch
real-world research.
Biosignals and movement

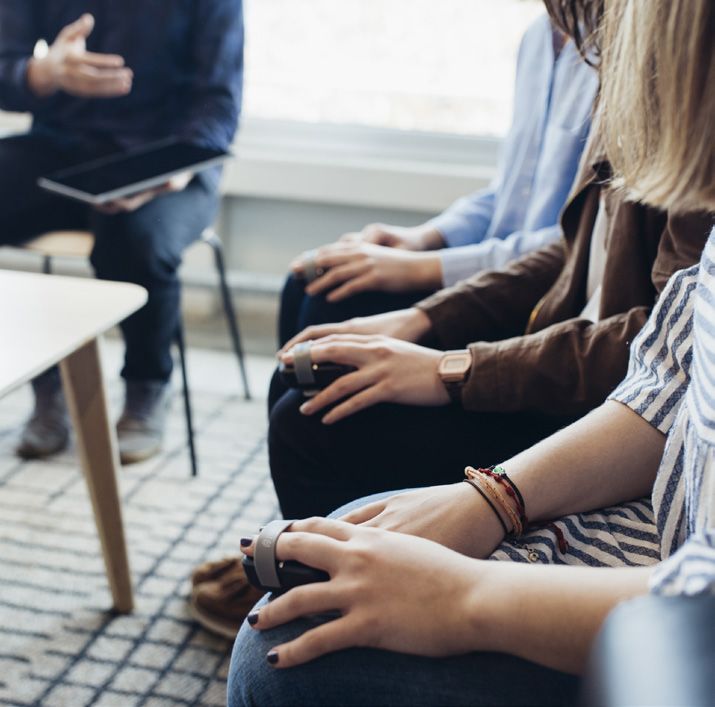

Minimal biosignal device • Ring P.23
Wearable and wireless device for real-world monitoring of GSR and BVP.
Versatile biosignal amplifier • Versatile Bio P.29
Versatile and flexible amplifier for mobile physiological monitoring in • Biosignals sensor kit
human-behaviour research. • Movement sensor kit
• Customized sensor kit
Indoor localization
Indoor positioning system (IPS) • InTrack P.35
Wearable and accurate indoor positioning and tracking system for • Coverage extension kit
real-world research.
Eye Tracker

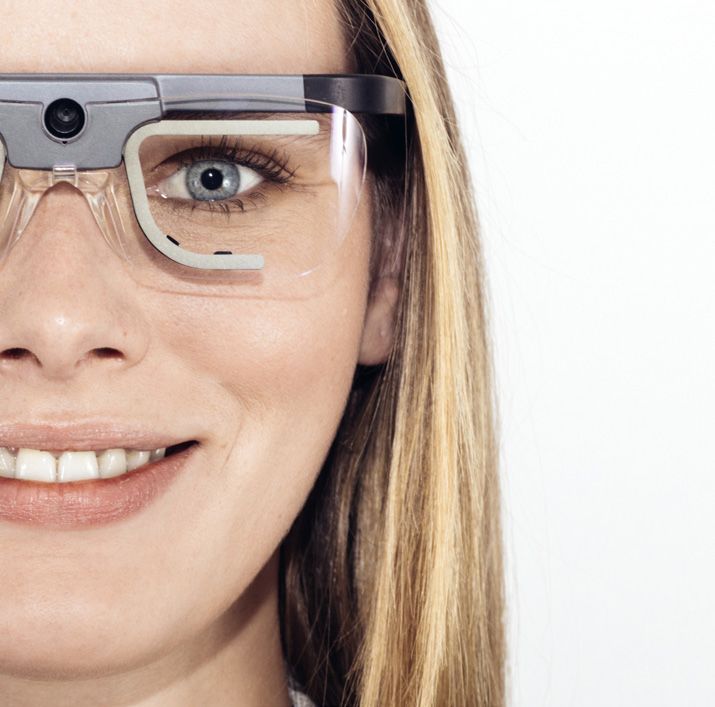

Wearable or screen-based • Tobii Pro Glasses 2 P.41
Family of wearable or screen-based eye tracking systems for real-world • Tobii Pro X2-30, X2-60, X3-120,
research. Tobii Pro Nano, and Tobii Pro
Spectrum
Software
Software tools and labs • Bitbrain Software Kit P.49
Wide range of practical software tools compatible with Third parties and • Human Behaviour Research Lab
Bitbrain software platforms. • Cognitive Training Lab
• Bitbrain Programming Platform
More info: www.bitbrain.com 3 sales@bitbrain.com
More info: www.bitbrain.com 4 sales@bitbrain.com
Minimal EEG
family
The world’s most innovative family of
wearable dry-EEG systems for real-world
applications.
More info: www.bitbrain.com 5 sales@bitbrain.com
Minimal EEG family
Minimal EEG The world’s most innovative family of wearable
and dry-EEG systems for real-world monitoring
family
Family of wearable dry-EEG devices with optimized designs to
facilitate the user’s natural behaviour in real-world environments.
The designs are very comfortable, fast and easy to set up by
non-technical personnel anywhere in just a few minutes. The
high-performance active shielding and mechanical design provides
outstanding robustness and signal quality, even under movement
or during long recording periods.
The EEG devices can be easily combined with other biometric
devices and scientific research software platforms for even deeper
insights into human behaviour.
Dry-EEG products
Diadem
Wearable dry-EEG optimized for the
estimation of emotional and cognitive
states. With 12 dry-EEG sensors
over pre-frontal, frontal, parietal and
occipital brain areas.
P.8
Hero
Wearable dry-EEG optimized for
the estimation of cognitive and
sensorimotor states. With 12 dry-EEG
sensors over fronto-central, central
and centro-parietal brain areas.
P.10
Air
Wearable dry-EEG optimized for the
estimation of basic emotional and
cognitive states. With 8 dry-EEG
sensors over pre-frontal and occipital
brain areas.
P.12
Immersive
Wearable dry-EEG that can be
seamlessly integrated with Oculus
Rift and HTC Vive Pro, and optimized
for cognitive and sensorimotor state
estimation. With 12 dry-EEG sensors
over fronto-central, central and
centro-parietal brain areas.
P.14
More info: www.bitbrain.com 6 sales@bitbrain.com
Minimal EEG family
Key features
Independence and freedom Minimalistic headset designs Highest standards of data quality
Wearable dry-EEG devices that provide EEG headsets with a minimal number Innovative active shielding for dry-EEG
maximum freedom of movement, virtually of sensors over specific brain areas, to sensors with a patented mechanical
anywhere and under any circumstances. facilitate the estimation of emotional, design, which ensures stable contacts and
cognitive or sensory/motor states. strongly reduces artifacts and interference
even under movement or electromagnetic
noise.
Fast and very simple set-up High acceptance by the user Clean and with zero maintenance
The setup time is around 2 minutes on Design with advanced ergonomics for The devices are easily stored, transported
average for all devices. They all have maximum comfort. No need to apply and cleaned with wipes. No expenses
an intuitive operation, and can be easily electrolytic substances, which eliminates on consumables (jars of gels, syringes,
placed without previous experience when user reluctance to gels and the need to shampoo, etc.), and no additional
assisted by the software. wash hair and devices after each use. maintenance costs.
Data streaming and recording Sync with other biometrics Third party compatibility
Real-time streaming of raw data via Seamless integration with more than 30 Compatible with Matlab (EEGLAB, BCILAB,
Bluetooth and on-board SD card recording. complementary technologies as etc), Python (MNE), LabStreaming
Develop applications on Windows and eye trackers, biosignals such as GSR, EMG, Layer (BCI2000, OpenVibe, NeuroPype,
Linux using the SDK, and export data to etc, indoor/outdoor positioning systems, etc), and with Bitbrain Human Behaviour
CSV or EDF. micro and camera recording, and many Lab and Cognitive Training Lab.
more.
More info: www.bitbrain.com 7 sales@bitbrain.com
Minimal EEG family

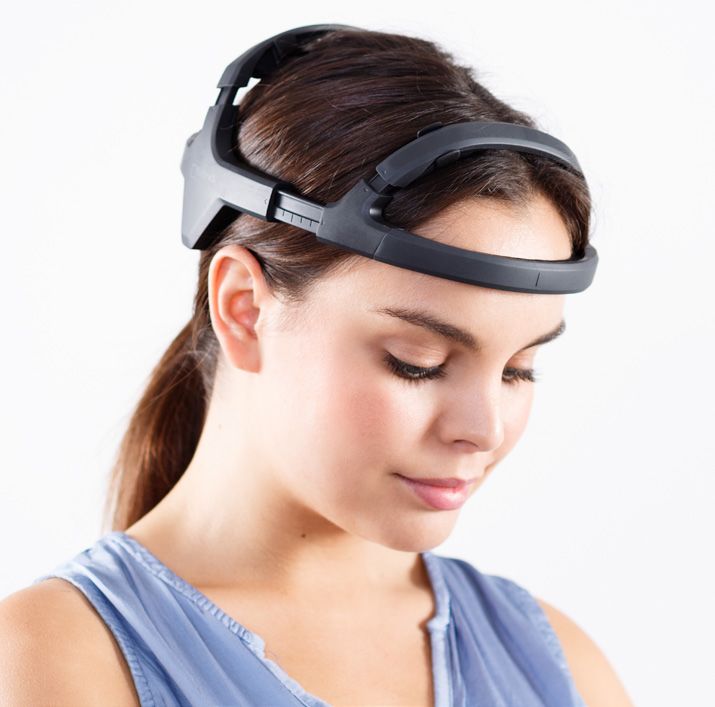

Diadem
Minimal EEG Wearable dry-EEG device with sensors over
frontal and posterior brain areas for cognitive
and emotional state estimation.
Diadem
• Wearable and mobile • Mechanical support
Very comfortable Flexible arcs and sensor
technology easy to set adjustments that ensure
up and wear. comfort, and can adapt
to head morphology and
• Dry EEG sensors hair volume.
No need to apply
electrolytic substances • Connectivity and
or saline solutions. storage
Bluetooth real time EEG
• Advanced electronics streaming and/or local
Active shielding with SD storage.
optimized DRL to • Battery
improve SNR and reduce 8+ hours in streaming
artifacts. and in local SD storage.
Some applications
Develop new therapies based on brain-computer interfaces for Evaluate the natural human behaviour of customers when
cognitive or emotional neurorehabilitation. interacting with marketing and communication materials, or new
experiences.
Evaluate and improve real-life workspaces by measuring Learn about neural correlates of human behaviour in combination
workload, attention or stress levels in natural conditions. with other biosensors, eye trackers, indoor-GPS, and more.
More info: www.bitbrain.com 8 sales@bitbrain.com
Minimal EEG family
Diadem
Technical overview
Layout optimized for frontal Wearable and ultralight (185g) Reliable dry-EEG monitoring Clean technology that is easy
alpha asymmetry, occipital EEG headset. Quick and easy with 24 bits at 256Hz for 8+ to transport and store without
alpha -ERD/ERS, P300, N400 set up anywhere, and under hours. Bluetooth streaming maintenance.
and CVN, among others. any circumstances. and/or on-board SD storage.
Hardware specifications Software specifications
Sensors and headset Bitbrain software kit (included with equipment)
Bitbrain real-time SDK In C/C++ for Windows and Linux
12 x EEG (Fp1, Fp2, AF7, AF8, F3, F4, P3, P4,
EEG channels
PO7, PO8, O1, O2), REF (A1) y DRL (Fpz)
Live visualization, streaming or SD
Bitbrain data acquisition and
Type of sensors/ EEG dry sensors with active shielding and recording, data export in CSV and raw data
visualization suite
electronics optimized DRL visualization.
Head sizes 53cm - 61cm LabStreamingLayer LSL compatibility
Third parties real-time I/O (Matlab, Python, BCI2000, OpenVibe,
NeuroPype, etc).
Wireless Amplifier
Third parties data Matlab (EEGLAB, FieldTrip, BCILAB,etc),
Sampling rate/resolution 256 SPS at 24 bits processing Python (MNE, etc) and more.
Bandwidth DC – 40Hz (3º order LPF)
Bitbrain software platforms (optional)
Online/real-time
Yes (relative contact impedance)
impedance check Practical research platform for experiment
design and data acquisition with 30+ sensor
Bitbrain Human Behaviour
Integrated IMU (9 axis): accelerometer, modalities seamlessly synchronized, and
Integrated sensors Research Lab
gyroscope and magnetometer to compute a wide range of emotional and
cognitive biometrics.
Other inputs 1 x Digital input (1 bit), 1 x optical trigger
Bitbrain Cognitive Training Software platform for QEEG and cognitive
Input range and noise ± 100 mV, < 1 µVRMS (0.5 – 30Hz) @256Hz Lab training for health and wellness.
CMRR / Input impedance > 100 dB @50Hz, > 50 GΩ Bitbrain programming Multimodal real-time neuroscience or brain-
framework computer interface development.
Data streaming and store
Data transmission and
Bluetooth 2.1 + EDR, 10 meters in direct sight. Bundle includes
range
• EEG headset and amplifier • Instructions
Data backup Yes (removable micro SD card)
• Power supply • Suitcase
• Storage base • Bitbrain Software Kit
Power
Battery Rechargeable lipo battery. Charging time 8h
Onsite Installation and Initial Training
Our team provides a one-day training course that includes the
General
onsite installation of your EEG neuroheadset and software. You
Weight Headset: 185g. Amplifier: 122g and your team will gain a basic understanding of how to operate
the system.
Maintenance Hand wipes
Hardware and Software Customization
Warranty 2 years Aesthetics (color, logos, etc), functionality (number of sensors,
location, etc) or software customization. You will receive a fully
Certifications CE and CB, with EN 60950, EN 55032, EN 55024 made to order technology for your research or business.
More info: www.bitbrain.com 9 sales@bitbrain.com
Minimal EEG family
Hero
Minimal EEG Wearable dry-EEG device with sensors over
central brain areas for cognitive and
sensory-motor states estimation.
Hero
• Wearable and mobile • Mechanical support
Very comfortable Flexible arcs and sensor
technology that is fast adjustments that adapt
and simple to set up and to head morphology and
wear. hair volume.
• Dry EEG sensors • Connectivity and
No need to apply storage
electrolytic substances Bluetooth real time EEG
or saline solutions. streaming and/or local
SD storage.
• Advanced electronics
Active shielding with • Battery
optimized DRL to Swappable batteries for
improve SNR and reduce 3+ hours in streaming
artifacts. and local SD storage.
Available in 2019
Pre-order for the third quarter
Some applications
New health interventions based on brain-computer interfaces for Capture natural human behaviour to evaluate interfaces or
cognitive or motor neurorehabilitation. physical products to build optimal user experiences.
Improve educational workspaces by measuring cognitive or Learn about the brain correlates of human behaviour during the
emotional performance, individually or in groups. exposition of stimuli, combined with other biometrics.
More info: www.bitbrain.com 10 sales@bitbrain.comMinimal EEG family
Hero
Technical overview
Layout optimized for mu/alpha Wearable and ultralight (250g) Reliable dry-EEG monitoring Clean technology that is easy
ERD/ERS, ERPs (P300, N400), EEG headset. Quick and easy with 24bits at 256Hz for 3+ to transport and store without
MRCPs, and CVN, among set up anywhere, and under hours. Bluetooth streaming maintenance.
others. any circumstances. and/or on-board SD storage.
Hardware specifications Software specifications
Sensors and headset Bitbrain software kit (included with equipment)
12 x EEG (FC3, FCz, FC4, C3, C1, Cz, C2, C4, Bitbrain real-time SDK In C/C++ for Windows and Linux
EEG channels
CP3, CPz, CP4, A2), REF (A1) y DRL (A1)
Live visualization, streaming or SD
Bitbrain data acquisition and
Type of sensors/ EEG dry sensors, active shielding and recording, data export in CSV and raw
visualization suite
electronics optimized DRL data visualization.
Fits heads 53cm - 61cm LabStreamingLayer LSL compatibility
Third parties real-time I/O (Matlab, Python, BCI2000, OpenVibe,
Wireless Amplifier NeuroPype, etc).
Sampling rate/resolution 256 SPS at 24 bits Matlab (EEGLAB, FieldTrip, BCILAB,etc),
Third parties data processing
Python (MNE, etc) and more.
Bandwidth DC – 40Hz (3º order LPF)
Bitbrain software platforms (optional)
Online/real-time
Yes (relative contact impedance)
impedance check
Practical research platform for
experiment design and data acquisition
Integrated IMU (9 axis): accelerometer,
Integrated sensors Bitbrain Human Behaviour with 30+ sensor modalities seamlessly
gyroscope and magnetometer
Research Lab synchronized, and to compute a wide
range of emotional and cognitive
Other inputs 1 x Digital input (1 bit), 1 x optical trigger biometrics.
Input range and noise ± 100 mV, < 1 µVRMS (0.5 – 30Hz) @256Hz Software platform for QEEG and cognitive
Bitbrain Cognitive Training Lab
training for health and wellness.
CMRR / Input impedance > 100 dB @50Hz, > 50 GΩ
Multimodal real-time neuroscience or
Data streaming and store Bitbrain Programming Platform
brain-computer interface development.
Data transmission and Bluetooth 2.1 + EDR with 10 meters in direct
range sight.
Bundle includes
Data backup Yes (removable micro SD card)
• EEG neuroheadset • 3 sizes lateral extensions
Power • Power supply • Instructions
• Cable USB-micro USB • Suitcase
Battery Swappable lipo battery. Charging time 3h
General Additional services
Weight 250g Onsite Installation and Initial Training
Our team provides a one-day training course that includes the
Maintenance Hand wipes onsite installation of your EEG neuroheadset and software. You
and your team will gain a basic understanding of how to operate
Warranty 2 years
the system.
Certifications CE and CB, with EN 60950, EN 55032, EN 55024 Hardware and Software Customization
Aesthetics (color, logos, etc), functionality (number of sensors,
location, etc) or software customization. You will receive a fully
made to order technology for your research or business.
More info: www.bitbrain.com 11 sales@bitbrain.comMinimal EEG family
Air
Minimal EEG Wearable dry-EEG device with sensors located
over frontal and occipital brain areas for basic
cognitive and emotional states estimation.
Air
• Wearable and mobile • Mechanical support
Very comfortable Flexible arcs and sensor
technology that is fast adjustments that adapt
and simple to set up and to the head morphology
wear. and hair volume.
• Dry EEG sensors • Connectivity and
No need to apply storage
electrolytic substances Bluetooth real time EEG
or saline solutions. streaming and/or local
SD storage.
• Advanced electronics
Active shielding with • Battery
optimized DRL to 8+ hours in streaming
improve SNR and reduce and in local SD storage.
artifacts.

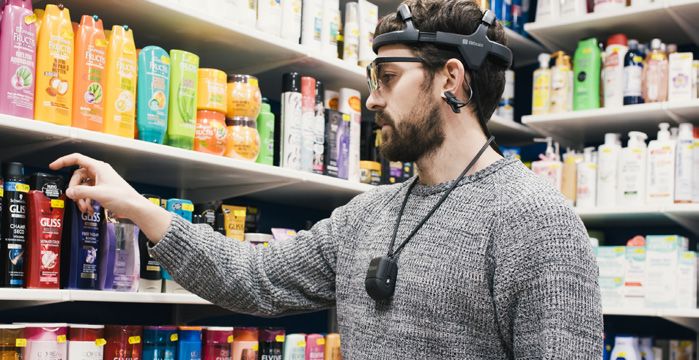

Some applications
Develop new ways to monitor EEG brain signals in natural and Discover new forms of interaction with digital and physical
ecological real-world scenarios. products, environments or new experiences.
Create new interventions based on brain-computer interfaces for Learn about the brain correlates of human behaviour in combination
health and wellness. with other biometrics, eye trackers, indoor-GPS, and more.
More info: www.bitbrain.com 12 sales@bitbrain.comMinimal EEG family
Air
Technical overview
Layout optimized for Wearable and ultralight (130g) Reliable dry-EEG monitoring Clean technology that is easy
pre-frontal alpha asymmetry, EEG headset. Quick and easy with 24 bits at 256Hz for 8+ to transport and store without
occipital alpha, visual P300 and set up anywhere, and under hours. Bluetooth streaming maintenance.
others. any circumstance. and/or on-board SD storage.
Hardware specifications Software specifications
Sensors and headset Bitbrain software kit (included with equipment)
8 x EEG (Fp1, Fp2, AF7, AF8, PO7, PO8, O1, O2), Bitbrain real-time SDK In C/C++ for Windows and Linux.
EEG channels
REF (A1) y DRL (Fpz)
Live visualization, streaming or SD
Type of sensors/ EEG dry sensors with active shielding and Bitbrain data acquisition and
recording, data export in CVS and raw
electronics optimized DRL visualization suite
data visualization.
Fits heads 53cm - 61cm LabStreamingLayer LSL compatibility
Third parties and real-timeI/O (Matlab, Python, BCI2000, OpenVibe,
Wireless Amplifier NeuroPype, etc).
Sampling rate/resolution 256 SPS at 24 bits Matlab (EEGLAB, FieldTrip, BCILAB,etc),
Third parties data processing
Python (MNE, etc) and more.
Bandwidth DC – 40Hz (3º order LPF)
Online/real-time Bitbrain software platforms (optional)
Yes (relative contact impedance)
impedance check
Practical research platform for
Integrated IMU (9 axis): accelerometer, gyroscope experiment design and data acquisition
Integrated sensors Bitbrain Human Behaviour with 30+ sensor modalities seamlessly
and magnetometer.
Research Lab synchronized, and to compute a wide
range of emotional and cognitive
Other inputs 1 x Digital input (1 bit), 1 x optical trigger
biometrics.
Input range and noise ±100 mV, < 1 µVRMS (0.5 – 30Hz) @256Hz
Software platform for QEEG and cognitive
Bitbrain Cognitive Training Lab
training for health and wellness.
CMRR / Input impedance >100 dB @50Hz, > 50 GΩ
Multimodal real-time neuroscience or
Data backup Yes (removable µSD card) Bitbrain Programming Platform
brain-computer interface development.
Data streaming and store
Data transmission and Bundle includes
Bluetooth 2.1 + EDR with 10 meters in direct sight
range
• EEG headset and amplifier • Instructions
Data files CSV, EDF • Power supply • Suitcase
• Storage base • Bitbrain Software Kit
Power
Battery Rechargeable lipo battery. Charging time 8h Onsite Installation and Initial Training
Our team provides a one-day training course that includes the
General onsite installation of your EEG neuroheadset and software. You
and your team will gain a basic understanding of how to operate
Weight Headset: 130g, Amplifier: 122g the system.
Maintenance Hand wipes Hardware and Software Customization
Aesthetics (color, logos, etc), functionality (number of sensors,
Warranty 2 years location, etc) or software customization. You will receive a fully
made to order technology for your research or business.
Certifications CE and CB, with EN 60950, EN 55032, EN 55024
More info: www.bitbrain.com 13 sales@bitbrain.comMinimal EEG family
Immersive
Minimal EEG Wearable dry-EEG device seamless integrated
with VR, and with sensors located in central
brain areas for cognitive and
Immersive sensory-motor states estimation.
• Wearable and mobile • Mechanical support
Very comfortable Flexible arcs and sensor
technology that is fast adjustments that adapt
and simple to set up and to head morphology and
wear. hair volume.
• Dry EEG sensors • Connectivity and
No need to apply storage
electrolytic substances Bluetooth real time EEG
or saline solutions. streaming and/or local
SD storage.
• Advanced electronics
Active shielding with • Battery
optimized DRL to 8+ hours in streaming
improve SNR and reduce and 10+ in local SD
artifacts. storage.
Available in 2019
Pre-order during third quarter
Some applications
Capture natural human behaviour for optimal user experience in Develop new therapies in healthcare based on VR and brain-
entertainment VR, such as video games, cinema or online TV. computer interfaces for cognitive or motor neurorehabilitation.
Evaluate and train professional skills in defence, health, space Learn about the neurophysiological correlates of human behaviour
or automation, combining VR and brain data, individually or in combining the VR stimulation with other biometrics.
groups.
More info: www.bitbrain.com 14 sales@bitbrain.comMinimal EEG family
Immersive
Technical overview
Layout optimized for mu-ERD/ Wearable and ultralight (262g) Reliable dry-EEG monitoring Clean technology that is easy
ERS, MRCPs, alfa ERD/ERS, , EEG headset. Quick and easy with 24bits at 256Hz for 3+ to transport and store without
N400 and CVN, among others. set up anywhere, and under hours. Bluetooth streaming maintenance.
any circumstances. and/or on-board SD storage.
Hardware specifications Software specifications
Sensors and headset Bitbrain software kit (included with equipment)
12 x EEG (FC3, FC1,FC2, FC4, C3, C1, C2, C4, CP3, Bitbrain real-time SDK In C/C++ for Windows and Linux .
EEG channels
CP1, CP2, CP4), REF (A2) y DRL (A2)
Live visualization, streaming or SD
Bitbrain data acquisition and
Type of sensors/ EEG dry sensors, active shielding and optimized recording, data export in CVS and raw
electronics DRL visualization suite
data visualization.
Fits heads 53cm - 61cm LabStreamingLayer LSL compatibility
Third parties I/O (Matlab, Python, BCI2000, OpenVibe,
Wireless Amplifier NeuroPype, etc).
Sampling rate/resolution 256 SPS at 24 bits Matlab (EEGLAB, FieldTrip, BCILAB,etc),
Third parties data processing
Python (MNE, etc) and more.
Bandwidth DC – 40Hz (3º order LPF)
Online/real-time Bitbrain software platforms (optional)
Yes (relative contact impedance)
impedance check
Practical research platform for
experiment design and data acquisition
Integrated IMU (9 axis)): 3-axis accelerometer,
Integrated sensors Bitbrain Human Behaviour with 30+ sensor modalities seamlessly
3-axis gyroscope and 3-axis magnetometer
Research Lab synchronized, and to compute a wide
range of emotional and cognitive
Other inputs 1x Digital input (1 bit), 1x optical trigger biometrics.
Input range and noise ±100 mV, < 1 µVRMS (0.5 – 30Hz) @256Hz Software platform for QEEG and cognitive
Bitbrain Cognitive Training Lab
training for health and wellness.
CMRR / Input impedance >100 dB @50Hz, > 50 GΩ
Multimodal real-time neuroscience or
Data backup Yes (removable µSD card) Bitbrain Programming Platform
brain-computer interface development.
Data streaming and store
Data transmission and
Bundle includes
Bluetooth 2.1 + EDR with 10 meters in direct sight
range
• EEG headset and amplifier • 2 rechargeable batteries
Data files CSV, EDF • Power supply 700mAh
• Storage base • Instructions
Power • Charger USB-microUSB • Suitcase
• Bitbrain Software Kit
Battery Swappable lipo battery. Charging time 3h Additional services
General Onsite installation and initial training
Our team provides a one-day training course that includes the
Weight Headset: 262g onsite installation of your EEG neuroheadset and software. You
and your team will gain a basic understanding of how to operate
Maintenance Hand wipes the system.
Warranty 2 years Hardware and software customization
Aesthetics (color, logos, etc), functionality (number of sensors,
Certifications CE and CB, with EN 60950, EN 55032, EN 55024 location, etc) or software customization. You will receive a tailored
technology for your research or business.
More info: www.bitbrain.com 15 sales@bitbrain.comMore info: www.bitbrain.com 16 sales@bitbrain.com
Versatile
EEG family
Versatile and flexible family of mobile
and semi-dry EEG systems
for real-world research.
More info: www.bitbrain.com 17 sales@bitbrain.comVersatile EEG family
Versatile EEG Versatile and reliable family of mobile and
semi-dry EEG systems for real-world research.
family
Family of versatile semi-dry EEG with 8/16/32/64ch for mobile and
wireless EEG monitoring with a very quick and easy set up for the
researcher and comfort and freedom of movement for the user.
In standardized 10/10 and 10/20 positions, the semi-dry sensors
(tap water humidity) can perform 6+ hours of continuous recording
with outstanding signal quality, even under the most demanding
recording circumstances.
The semi-dry EEG family combines all the advantages of the
gel-EEG and dry-EEG worlds: the highest EEG quality in the most
adverse circumstances as gel based systems, while retaining the
comfort, speed and cleanliness of dry-EEG systems.
Semi-dry EEG products
Versatile 8 / 16 / 32
Mobile semi-dry EEG system with
8/16/32ch for high-quality real-time
EEG monitoring. Standard 10-20 and
10-10 sensor locations.
P.20
Versatile 64
Link together two EEG 32ch systems
to record 64ch synchronized, or use
them independently.
*The figure displays 32 ch amplifier.
Compatible with
VR compatibility
Compatible with Oculus Rift and
with HTC Vive Pro.
More info: www.bitbrain.com 18 sales@bitbrain.comVersatile EEG family
Key features
Freedom in real-world research From low to high density EEG Highest standards of EEG quality
Semi-dry EEG family of headsets that can Systems range from 8 to 64 channels, Innovative system of semi-dry EEG
be integrated with Oculus and HTC Vive and can be placed in any position of the sensors with a mechanical design that
Pro. Mobile and wireless systems that 10/20 and 10/10 system. They cover from ensures stable contacts. DRL and active
provide maximum freedom of movement. the most basic to the most sophisticated shielding to eliminate artifacts and
neurophysiological recordings. interference even under high movement.
Very easy and fast set-up Comfort and cleanliness Hygienic with little maintenance
The setup time is 2 minutes on average for Design with advanced ergonomics. Does Uses absorbent materials moistened
the 16Ch system. They all have an intuitive not require the application of gel-based with tap water for 6+ hours of continuous
operation, and can be easily placed by electrolytic substances, which eliminates recording before evaporation. No gel
following the procedures displayed by the user reluctance to gels and the need to or syringes are needed, simplifying the
system. wash hair and devices. maintenance of the equipment and lab.
Data stream and recording Sync with other biometrics Third party compatibility
Real-time streaming of raw data via Seamless integration with more than 30 Compatible with Matlab (EEGLAB, BCILAB,
Bluetooth and on-board SD card recording. complementary technologies as etc), Python (MNE), LabStreamingLayer
Develop applications on Windows and eye trackers, biosignals such as GSR, EMG, (BCI2000, OpenVibe, NeuroPype, etc), and
Linux using the SDK, and export data to etc, indoor/outdoor positioning systems, with Bitbrain Human Behaviour Lab and
CSV or EDF. micro and camera recording, and many Cognitive Training Lab.
more.
More info: www.bitbrain.com 19 sales@bitbrain.comVersatile EEG family
8 / 16 / 32/ 64ch
Versatile EEG The most outstanding reliability and
signal quality in out-of-lab scenarios
with these wireless semi-dry EEG
8 / 16 / 32 / 64 ch devices.
• Mobile and wireless • Mechanical support
Very comfortable Flexible 10/10 system
technology that is easy with transpirable caps in
to set up and wear. Can different sizes.
be integrated with VR.
• Connectivity and
• Semi-dry EEG sensors storage
Sensors moistened Bluetooth real time EEG
with tap water. Up to streaming and/or local
6+ hours of continuous SD storage.
recording. • Battery
8+ hours in streaming
• Advanced electronics and 10+ in local SD
Active shielding with storage.
optimized DRL to
improve SNR and reduce
artifacts.
Some applications
Expand your research scenarios in psychology and neuroscience Explore new EEG correlates in real world applications such
by monitoring brain activity out of the lab. as sports performance, education, UX or in professional
workspaces.
Perform clinical research, new neurorehabilitation therapies or Combine EEG correlates with other biosignals (GSR, EMG, HR, etc.)
assessment of interventions based on EEG patterns. and Virtual Reality to explore and learn about human behaviour.
More info: www.bitbrain.com 20 sales@bitbrain.comVersatile EEG family
8 / 16 / 32/ 64ch
Technical overview
Flexible or predefined layout Wireless, mobile and ultralight Reliable semi-dry EEG up to Clean technology that works with
within 10/20 and 10/10 (amplifier from 83g - the 8ch). 512Hz and 24 bits during 8+ absorbent materials moistened
international system. Fast and easy to use. hours. Bluetooth streaming with tap water. Easy to transport
and/or on-board SD storage. and with minimal maintenance.
Hardware specifications Software specifications
Sensors and Bitbrain software kit (included with equipment)
8ch 16ch 32ch
headtset
Bitbrain real-time SDK In C/C++ for Windows and Linux
EEG channels 8x EEG, REF 16x EEG, REF 32x EEG, REF
Bitbrain data acquisition Live visualization, streaming or SD recording,
Type of sensors Semi-dry sensors, active shielding and optimized DRL and visualization suite data export in CVS and raw data visualization
Fits heads 24cm - 66cm (Cap sizes S, M, L, XL) LabStreamingLayer LSL compatibility (Matlab,
Third parties real-time I/O
Python, BCI2000, OpenVibe, NeuroPype, etc).
Wireless Amplifier
Sampling rate / Third parties data Matlab (EEGLAB, FieldTrip, BCILAB, etc),
256Hz at 24 bits processing Python (MNE, etc), Neuroguide and more
Resolution
Bandwidth DC – 40Hz (3ºLPF) DC – 70Hz (3ºLPF)
Bitbrain software platforms (optional)
Real-time check
Yes (relative contact impedance) Practical research platform for experiment
impedance
design and data acquisition with 30+ sensor
Bitbrain Human Behaviour
modalities seamlessly synchronized, and
Integrated Integrated IMU (9 axis): accelerometer, gyroscope and Research Lab
to compute a wide range of emotional and
sensors magnetometer
cognitive biometrics.
1x optical
Bitbrain Cognitive Software platform for QEEG and cognitive
1 x Digital input (1 bit), trigger
Other inputs Training Lab training for health and wellness.
1 x optical trigger (photodiode) 1x digital input
2x Bipolar ExG Bitbrain Programming Multimodal real-time neuroscience or brain-
Platform computer interface development.
Input range and ± 100 mV, < 1 µVRMS (0.5 – 30Hz) @256Hz
Bitbrain health platform Platform for QEEG and cognitive training
noise ± 400 mV, < 4 µVRMS (0.5 – 30Hz) @256Hz (bipolar ExG)
CMRR / Input
impedance
> 100 dB @50Hz, > 50 GΩ Bundle includes
Data backup Yes (removable µSD card) • EEG amplifier • Power supply
• 1 sensor set (8/16/32 • 2 caps (M and L size)
Data streaming and store respectively) • Sponges (200 units)
• Sensor bases (18/34/66 • Cable fixation tape
Transm. / range Bluetooth 2.1 + EDR with 10 meters in direct sight units) • Metric tape
• Table to store sensors and • Instructions
Data files CSV, EDF organize • Suitcase
Power
Battery Rechargeable lipo battery. Charging time 8h Our team provides a one-day training course that includes the
General onsite installation of your EEG neuroheadset and software. You
and your team will gain a basic understanding of how to operate
Weight (complete) 192g 290g 450g the system.
Maintenance Hygenic wipes Hardware and software customization
Aesthetics (color, logos, etc), functionality (number of sensors,
Warranty 2 years location, etc) or software customization. You will receive a tailored
technology for your research or business.
Certifications CE and CB, with EN 60950, EN 55032, EN 55024
More info: www.bitbrain.com 21 sales@bitbrain.comMore info: www.bitbrain.com 22 sales@bitbrain.com
Minimal
biosignal
device
Wearable and wireless device for
real-world monitoring of GSR and BVP.
More info: www.bitbrain.com 23 sales@bitbrain.comMinimal biosignal device
Ring
Minimal Wearable and wireless device for real-time
monitoring of GSR and BVP in real-world
applications.
biosignal Ring is a wearable and wireless monitoring device for real-life
scenarios. This device has an ultralight and comfortable design
with two key biosensors for a basic estimation of emotions
device (electrodermal activity - GSR, and volume blood pressure - BVP),
and a 3-axis solidary accelerometer to estimate the noise generated
by finger movements. Its ergonomics, reliability and ability to self-
position open an infinite range of possibilities. For example, it can
be used in or out of the lab scenarios, such as workplaces, shopping
centers, etc.
In addition to this, it is possible to combine (seamlessly sync) with
biometric devices and scientific research software platforms for
even deeper insights into human behaviour.
Products
Ring
Wearable and wireless device
for real-world monitoring of
GSR, BVP and movement
(accelerometer).
More info: www.bitbrain.com 24 sales@bitbrain.comMinimal biosignal device
Ring
Key features
Real-world applications Optimized to track emotions Highest standards of data quality
Wearable GSR and BVP that provide great Wearable device with the most widely Sensors located over the optimal
comfort and freedom of movement to the accepted sensors (GSR and BVP) used measurement points (2nd finger
user, in order to capture natural behaviour by the research community to estimate phalanges) as agreed by the research
in real-world applications. emotions. community, and with an accelerometer
to filter artifacts caused by finger
movements.
Very easy and intuitive set-up High acceptance by the user Clean and with zero maintenance
The set up time is less than 10 seconds Designed with advanced ergonomics The device is easily stored, transported
on average. With an intuitive operation, it for maximum comfort. No need to apply and cleaned with wipes. No expenses
can be easily self-placed without previous electrolytic substances, which increases on consumables (jars of gels, syringes,
experience. user acceptance and eliminates the need shampoo, etc.), and no additional
to wash skin or the device after each use. maintenance costs.
Data stream and recording Sync with other biometrics Compatibility with scientific
Real-time streaming of raw data via Seamless integration with more than 30 platforms
Bluetooth and on-board SD card recording. complementary technologies such as EEG, Compatible with Matlab (EEGLAB, BCILAB,
Develop applications on Windows and eye trackers, indoor/outdoor positioning etc), Python (MNE), LabStreamingLayer
Linux using the SDK, and export data to systems, micro and camera recording, and (BCI2000, OpenVibe, NeuroPype, etc), and
CSV. many more. with Bitbrain Human Behaviour Lab and
Cognitive Training Lab.
More info: www.bitbrain.com 25 sales@bitbrain.comMinimal biosignal device
Ring
Ring Wearable and wireless device for real-time
monitoring of GSR and BVP in real-world
applications.
• Adaptable and • Mechanical support
adjustable The technology
Very comfortable mitigates finger
technology that can be movements, which
set up easily to setup in are measured by the
less than 10 seconds. solidary accelerometer.
• GSR, BVP and ACC • Connectivity and
sensors storage
Dry-sensors located Bluetooth real time data
on the fingers´ first streaming and/or local
and second phalanges SD storage.
(optimal measurement
points). • Battery
10+ hours in streaming
• Advanced electronics and in SD storage.
Signal acquisition layer
optimized to improve
SNR, while reducing
external artifacts.
Some applications
Explore new research scenarios in psychology and neuroscience Understand physiological correlates in real world applications,
with fast and easy monitoring in and out of the lab. such as education, UX or in professional workspaces.
Perform biofeedback stress interventions and assessments in Learn about the physiological correlates of human behaviour in
clinical research on physiological responses. combination with EEG, biometrics, VR technologies, etc.
More info: www.bitbrain.com 26 sales@bitbrain.comMinimal biosignal device
Ring
Technical overview
Layout optimized to measure Wireless, mobile, compact and Reliable biosignal monitoring No maintenance and easy to
GSR and BVP (cardiac activity), ultralight (60g). Very easy to at 32Hz and 16 bits during 10+ transport.
in order to estimate emotional use. hours on Bluetooth streaming.
states.
Hardware specifications Software specifications
Sensors Bitbrain Software Kit (included with equipment)
Biosignal channels 1 x EDA (µS), 1 x BVP (bpm), 1 x ACC (3-axis) Bitbrain real-time SDK In C/C++ for Windows and Linux
Wireless amplifier Live visualization, streaming or SD
Bitbrain data acquisition and
recording, data export in CVS and raw
Sampling rate 32 SPS (samples per second) visualization suite
data visualization
Resolution 16 bits LabStreamingLayer LSL compatibility
Third parties real-time I/O (Matlab, Python, BCI2000, OpenVibe,
Bandwidth DC – 16Hz (2º order LPF) NeuroPype, etc).
Integrated sensors Integrated Accelerometer (3 axis) Matlab (EEGLAB, FieldTrip, BCILAB, etc),
Third parties data processing
Python (MNE, etc) and more
0.1 - 100 µS, (GSR)
Input range and noise 0 - 250 bpm (BVP)
± 4G (Accelerometer) Bitbrain software platforms (optional)
Data backup Yes (removable micro SD card) Practical research platform for
experiment design and data acquisition
On/off/connection state LED Bitbrain Human Behaviour with 30+ sensor modalities seamlessly
Indicators battery sate LED Research Lab synchronized, and to compute a wide
micro SD card state LED range of emotional and cognitive
biometrics.
Data streaming and store
Software platform for QEEG and cognitive
Bitbrain Cognitive Training Lab
Data transmission and Bluetooth 2.1 + EDR with 10 meters in direct training for health and wellness.
range sight.
Multimodal real-time neuroscience or
Bitbrain Programming Platform
Data files CSV brain-computer interface development.
Power Bitbrain health platform Platform for QEEG and cognitive training
Battery Rechargeable lipo battery. Charging time 10 h
• Wearable device
General • Charger USB-microUSB
• Instructions
Weight 60g
• Packaging box
Cleaning and maintenance Hand wipes
Warranty 2 years Additional services
Certifications CE and CB, with EN 60950, EN 55032, EN 55024
Onsite installation and initial training
Our team provides a one-day training course that includes the
onsite installation of your Ring and software. You and your team
will gain a basic understanding of operating the system.
Hardware and software adaptation
Aesthetics (color, logos, etc), funcionatility (type of sensors,
location, etc) or software customization. You will receive a tailored
technology for your research or business.
More info: www.bitbrain.com 27 sales@bitbrain.comMore info: www.bitbrain.com 28 sales@bitbrain.com
Versatile
biosignal
amplifier
Versatile and flexible amplifier for mobile
physiological monitoring in
human-behaviour research.
More info: www.bitbrain.com 29 sales@bitbrain.comVersatile biosignal amplifier
Versatile Bio
Versatile Mobile and versatile biosignal amplifier to
monitor up to 35 physiological variables
simultaneously with milli-second
biosignal synchronization.
Versatile Bio is a mobile and practical real-time biosignal acquisition
amplifier
amplifier, which provides great flexibility to monitor a large
number of simultaneous physiological variables together without
sacrificing freedom of movement. It can record for 8+ hours up to
35 simultaneous channels of analog biosignals (GSR, ExG, RESP,
TEMP, etc.), movement activity and location (EMG, IMUs, GPS, etc.),
behavior inputs (pedals and push buttons), and communication
inputs/outputs (LPT, digital, etc.).
Combine it (seamlessly sync) with biometric devices and scientific
research software platforms for even deeper insights into human
behaviour.
Products
Versatile Amplifier Amplifier inputs/outputs
Mobile and compact amplifier • 9 bipolar analog inputs
with up to 21ch (multiplexed to • 7 unipolar analog inputs
35ch) for monitoring behavioural • 2 digital COM inputs
signals. (extensible to 16)
• 1 digital Input
• 1 digital Output
• 1 internal IMU
Biosignals sensor kit
• 9x ExG bipolar lead + GND lead • 1x BVP/SPO2 sensor
• 16x ECG/EMG electrodes • 1x temperature sensor
• 1x respiratory effort band • 1x snore sensor
• 1x air flow sensor • 1x (1- 3 - 7) buttons box
• 1x GSR sensor • 1x pedal
• 1x preassure sensor • 1x optical trigger
Movement sensor kit
• 2x IMUs multiplexer • 16x ECG/EMG electrodes
• 16x IMUs 9 d.o.f. • 1x preassure sensor
• 1x GPS • 1x (1- 3- 7) buttons box
• 9x ExG bipolar lead + GND lead • 1x pedal
Customized sensor kit
Any combination of all the biosignals, movement, localization and behavioural sensors.
More info: www.bitbrain.com 30 sales@bitbrain.comVersatile biosignal amplifier
Versatile Bio
Key features
Flexible for all types of research 35 biosignals simultaneously Millisecond sync of all sensors
Mobile amplifier that provides maximum Acquire simultaneously bipolar electrical All the biosignals and inputs are digitaled
freedom of movement with remote/ biosignals (ExG), analog biosignals (GSR, at 256 Hz sampling rate, so all the signals
local monitoring. Maximum flexibility RESP, TEMP, etc.), movement and location are synchronized with a precision under
and multiple combinations of sensor (IMUs, GPS), behaviour inputs (pushVersatile biosignal amplifier
Versatile Bio
Versatile Compact and mobile equipment to
simultaneously monitor 21ch (extensible
to 35ch) of physiological variables with
Bio outstanding signal quality and millisecond
synchronization.
• Mobile and compact • Advanced electronics
Multi-purpose technology Active shielding with
that is easy to set up and optimized DRL to improve
wear. SNR and reduce artifacts.
• 21+ (35ch) channels • Flexble position
Can monitor 35 The amplifier can be placed
physiological variables on the arm, waist or leg.
with millisecond sync.
• Connectivity and storage
Bluetooth real time data
streaming and/or local SD
storage.
• Battery
8+ hours in streaming and
in local SD storage.
Some applications
Explore new research scenarios in psychology and neuroscience Understand physiological correlates in real world applications
with complete human monitoring in or out of the lab. such sports performance, education, UX or in professional
workspaces.
Perform clinical research, new neurorehabilitation therapies, or Learn about the physiological correlates of human behaviour in
assessment of interventions based on physiological responses. combination with EEG, biometrics, VR technologies, etc.
More info: www.bitbrain.com 32 sales@bitbrain.comVersatile biosignal amplifier
Versatile Bio
Technical overview
Versatile technology to monitor Wireless, mobile, compact and Reliable biosensing monitoring Minimal maintenance and easy
up to 35 physiological variables ultralight (172g). Very easy to up to 256Hz and 24 bits during to transport, everything fits in a
simultaneously. use intuitively. 8+ hours. Bluetooth streaming suitcase.
and/or on-board SD storage.
Hardware specifications Software specifications
Sensors Software compatibility (included with equipment)
9x bipolar ExG + GND Bitbrain real-time SDK In C/C++ for Windows and Linux.
6x Auxiliary analog inputs (analog sensors like GSR,
RESP, TMP, BVP...) Bitbrain data
2x Auxiliary digital inputs (sensors like IMU, GPS). Live visualization, streaming or SD recording, data
acquisition and
Streaming mode: Up to 2 HUB (1 on each input) export in CSV and raw data visualization.
Biosignal channels visualization suite
to multiplex up to 8 IMU on each input.
Backup mode: Only 1 HUB to multiplex up to 8
IMU in the selected input. Third parties real-time LabStreamingLayer LSL compatibility (Matlab,
1x Digital input (3 bits) I/O Python, BCI2000, OpenVibe, NeuroPype, etc).
1x Digital output (1 bit)
Wireless Amplifier Third parties data Matlab (EEGLAB, FieldTrip, BCILAB,etc), Python
processing (MNE, etc) and more.
Sampling rate 256 SPS at 24 bits
Bandwidth DC – 100Hz (3º order LPF) Bitbrain software platforms (optional)
Integrated IMU (9 axis): accelerometer, gyroscope Practical research platform for experiment
Integrated sensors design and data acquition with 30+ sensor
and magnetometer Bitbrain Human Behaviour
modalities seamless synchronized, and to
Research Lab
compute a wide range of emotional and
± 420 mV, < 4 µVRMS (0.5 – 30Hz) @256Hz
cognitive biometrics.
(Bipolar ExG)
Input range and noise
± 2.5 V, < 10 µVRMS (0.5 – 30Hz) @256Hz (Analog
AUX) Bitbrain Programming Multimodal real-time neuroscience or brain-
Platform computer interface development.
CMRR / Input
> 100 dB @50Hz, > 50 GΩ
impedance
Data streaming and storage
Bundle includes
Data transmission and • Amplifier • Arm and waist adjustable
Bluetooth 2.1 + EDR with 10 meters in direct sight.
range • Power supply band
• Instructions • (Biosignal kit) see sensors
Data backup Yes (removable µSD card) • Suitcase in pg. 30
• Bitbrain Software Kit • (Movement kit) see
Power sensors in pg. 30
Battery Rechargeable lipo battery. Charging time 8h
Services
Onsite installation and initial training
General Our team will provides a one-day training course that includes the
onsite installation of your amplifier and software. You and your
Weight 172gr.
team will gain a basic understanding of operating the system.
Amplifier maintenance Not required Hardware and software adaptation
Aesthetics (color, logos, etc), funcionatility (number of sensors,
Sensor maintenance Off-the-shelf consumables location, etc) or software customization. You will receive a tailored
technology for your research or business.
Warranty 2 years
Certifications CE and CB, with EN 60950, EN 55032, EN 55024
More info: www.bitbrain.com 33 sales@bitbrain.comMore info: www.bitbrain.com 34 sales@bitbrain.com
Indoor
positioning
system
Wearable and accurate indoor
positioning and tracking system for real
world research.
More info: www.bitbrain.com 35 sales@bitbrain.comIndoor positioning system family
InTrack
Indoor Wearable, fast and very accurate indoor
positioning and tracking system for real world
applications.
positioning A wearable and ultralight positioning system for real-world
applications. The system is composed of 5 anchors that can be
easily placed on walls, and a pendant for the participant that can
system be placed in seconds. This practical technology autocalibrates
the position of the anchors without manual processes, and has
outstanding precision-under 30cm on average within areas of
200m2 (expandable to 800m2 or more). Autonomy of 8 hours in data
streaming and/or local storage.
In addition to this, the device is seamlessly synchronized with other
biometric devices and scientific research software platforms for
even deeper insights into human behaviour.
Products
InTrack
Wearable indoor positioning
system with one mobile tag
(pendant) and five stationary
anchors. Total of 200m2
coverage.
Coverage extension kit
Each package of five additional
anchors increases coverage by
600m2.
More info: www.bitbrain.com 36 sales@bitbrain.comIndoor positioning system family
InTrack
Key features
Independence and freedom Outstanding accuracy indoors Great coverage for hours
Wearable and unobstructive positioning Fusion of time of flight (ToF), signal Coverage of 200 m2 with 5 anchors
system that provides maximum freedom strength (RSSI) and inertial data to track (expandable by adding extra anchors) for
of movement to the participant. the location every 125 milliseconds with an 8 hours. Anchors have rechargeable and
accuracy of 30cm of error on average. exchangeable batteries.
Comfortable and natural Quick and easy set up Easy transportation and without
The pendant is lightweight and The set up of the tag only consists of maintenance
comfortable, and facilitates natural and putting the pendant on the user’s neck. The whole system fits in a suitcase for
spontaneous behavior in real-world The placement of the anchors is also an easy storage and transportation. No
research. simple thanks to their magnetic bases, and consumables or maintenance required.
its automated self-calibration.
Data stream and recording Sync with other biometrics Third party compatibility
Real-time streaming of raw data via BLE Seamlessly integrated with more than 30 Compatible with Matlab (EEGLAB, BCILAB,
and on-board SD card recording. Develop complementary monitoring technologies, etc), Python (MNE), LabStreamingLayer
applications on Windows and Linux using such as mobile EEG, eye trackers, micro (BCI2000, OpenVibe, NeuroPype, etc), and
the SDK, and export data to CSV. and camera recording, and many more. with Bitbrain Human Behaviour Lab.
More info: www.bitbrain.com 37 sales@bitbrain.comIndoor positioning system family
InTrack
InTrack Wearable and very easy to set up indoor
positioning system with outstanding precision
and high coverage.
• Wearable and mobile • Mechanical support
Very comfortable Ultralight and
pendant device easy unobstructive tag
to set up in less than to allow maximum
2 seconds, and simple freedom of movement,
set up of anchors. and compact anchors
easily to place thanks to
• Advanced technology magnetics bases
Fusion of time of
flight (ToF), signal • Connectivity and
strength (RSSI) storage
and inertial data Bluetooth Low Energy
to improve the technology positioning
accuracy of real time streaming or local SD
storage.
positioning.
• Battery
• Automatic calibration
Swappable and
Easy and fast
rechargeable batteries
process to calibrate with 8+ hours in
anchors’ position, streaming and/or local
without manual SD storage.
procedures.
Some applications
Get objective and powerful insights into how consumers behave Evaluate and improve professional workspaces and optimize
in real stores or during customer experiences. processes by understanding movement performance.
Optimize stores, hotels or other experiences by understanding Understand human movement in combination with other biometric
how people explore the scenarios. techniques such EEG, eye tracking or biosensors.
More info: www.bitbrain.com 38 sales@bitbrain.comIndoor positioning system family
InTrack
Technical overview
Tag: Wireless, comfortable and Anchors: 5 anchors to Real-time location tracking Easy to transport (everything
ultralight (72g) device that is cover 200m2 for 8+ hours in with less than 30cm location fits in a suitcase) and without
fast and easy to use. streaming or local storage. error on average at 8Hz. maintenance.
Rechargable batteries.
Hardware specifications Software specifications
Tag Software Compatibility (included with equipment)
Sampling rate 8 SPS Bitbrain real-time SDK In C/C++ for Windows and Linux.
Localization accuracy 30 cm Live visualization, streaming or SD
Bitbrain data acquisition and
recording, data export in CSV and raw
visualization suite
Integrated IMU (9 axis): accelerometer, gyroscope data visualization.
Other sensors
and magnetometer
LabStreamingLayer LSL compatibility
On/Off/ Recording State Led Third parties real-time I/O (Matlab, Python, BCI2000, OpenVibe,
Indicators NeuroPype, etc).
Battery State Led
No-removable Rechargeable Lithium Battery Matlab (EEGLAB, FieldTrip, BCILAB,etc),
Battery Third parties data processing
Charging time: 8h
Bitbrain software platforms (optional)
Anchor Practical research platform for experiment
design and data acquition with 30+
Bitbrain Human Behaviour
Coverage 200 m2 using 5 Anchors sensor modalities seamless synchronized,
Research Lab
and to compute a wide range of emotional
On/Off/ Recording State Led and cognitive biometrics.
Indicators
Battery State Led
Multimodal real-time neuroscience or
Bitbrain Programming Platform
Swappable and rechargeable lithium battery brain-computer interface development.
Battery
Charging time: 8h
Bundle includes
• Pendant wearable (Tag) • Instructions
Connectivity and storage • 5 Anchors • Note: the additional kit
• 6 cables USB-microUSB includes 1 items 2, 3, 4, 6
Data transmission Bluetooth Low Energy 4.2 (online) • 5 lithium batteries and 7.
• Dongle BLE 4.2
Tag: Yes (removable µSD card)
Data backup
Anchor: No
General Services
Onsite installation and initial training
Weight Tag: 72g. Anchor: 114g
Our team provides a one-day training course that includes the
Cleaning and
onsite installation of your InTrack and software. You and your
Hand wipes and no consumables team will gain a basic understanding of operating the system.
maintenance
Warranty 2 years
Hardware and software adaptation
Aesthetics (color, logos, etc), funcionatility or software
Certifications CE and CB, with EN 60950, EN 55032, EN 55024 customization. You will receive a made-to-order technology for
your research or business.
More info: www.bitbrain.com 39 sales@bitbrain.comMore info: www.bitbrain.com 40 sales@bitbrain.com
Eye Tracker
family
Family of wearable or screen-based
eye tracking systems for real-world
research.
More info: www.bitbrain.com 41 sales@bitbrain.comEye Tracker family
Eye Tracker Family of wearable and screen-based
eye tracking systems for real-world research.
family
This family includes Tobii Pro eye tracking devices for all types of
applications, these range from mobile scenarios with the Tobii Pro
Glasses 2 to all screen-based systems such as the Tobii Pro X2-30,
X2-60 or X3-120, Tobii Pro Nano or the Tobii Pro Spectrum.
The Tobii Pro Glasses 2 are a wearable and ultralight eye tracking
system to obtain an objective vision of human behavior by showing
exactly what a person is looking at while moving freely in any
real-world environment. The family of screen-based eye trackers
measure the gaze exploration patterns of stimuli that are displayed
on the screen. Both can be operated with a PC, a laptop or on mobile
devices.
Bitbrain allows to combine all eye tracking devices seamless sync
with other EEG and biometric devices and scientific research
software platforms, for even deeper insights into human behaviour.
Products
Tobii Pro Glasses 2
Wearable eye tracker technology to
analyze visual behavior in mobile
real-world applications.
P.44
Screen-based
Tobii Pro X2-30, X2-60, X3-
120, Tobii Pro Nano or Tobii
Pro Spectrum
Portable, remote eye tracker
technology to analyze visual
behaviour in screen-based real-world
applications.
P.46
More info: www.bitbrain.com 42 sales@bitbrain.comYou can also read
