AIRFLOW ENGINEERING The HVAC SHOP April 2020 Heat Transfer Catalogue
Page 3-4 transfer HEAT
Page 5 common QUESTIONS
Page 6 our FANS
Page 7 HT01 SYSTEM
Page 8 HT1T SYSTEM
Page 9 HT02 SYSTEM
Page 10 HT03 SYSTEM
Page 11 HT04 SYSTEM
Page 12 HTS1 SYSTEM
Page 13 HTS2 SYSTEM
Page 14 design INFORMATION
Page 15 optional EXTRAS
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 2 of 18 +64 3 365 6278
transfer HEAT
Airflow Heat Transfer Systems allows full use to be made of the many
effective and economical heating systems, now available on the
market. The hotter the air that leaves a heating appliance, the lighter
it is, so hot air quickly rises and hovers where it does little good. Airflow
Heat Transfer is the answer to a lot of household heating problems, by
taking the chill off cold bedrooms and creating an airflow and warmth that in turn, reduce
the likelihood of condensation and dampness.
There are several ways air transfer kits can be used. Some situations can be straight forward
while other situations may require further products to ensure that the right outcome is
achieved for the individual customer’s requirements.
That is why we at Airflow – The HVAC Shop have a wide range of products available to
custom tailor your individual system to your personal needs and satisfaction.
Ducting fitted with a fan can be used to transfer warm air
from a heated room to unheated parts of a house. This
system is termed a “heat transfer system”
Heat transfer systems are most effective at providing back-
up heating for rooms not normally requiring constant
heating, such as bedrooms.
By connecting a heated living area with a
bedroom, a heat transfer system enables
residual heat from the heated room to be
passed to the bedroom. A heat transfer system
can also be used to improve the warm air
circulation throughout a home.
Heat transfer systems can be installed in several ways.
They are useful in transferring heat from one end of the
house to another and from one room to an adjacent
room. Where warm air from a downstairs heat collects
upstairs, a heat transfer can be used to help bring the
warm air back downstairs.
Choose from our standard kits, and accessories, or have
a kit designed around your specific needs.
Although a Heat Transfer Kit is designed to move heat, there will be a temperature drop in
the process. It should be remembered that you require your rooms to be comfortable,
hence the Heat Transfer Kit is designed to warm the rooms rather than make them hot.
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 3 of 18 +64 3 365 6278
transfer HEAT
"Heat", in a domestic dwelling context, usually means warmed air. Unless air has a
compelling reason to circulate throughout your home, then you will typically have rooms
or areas within your house which are quite warm and other areas which are quite cool.
Effectively, air transfer systems create a slow circulation of warm, dry air around the house,
displacing moist, cool, stale air with warm dry air from the ducting.
Heat Transfer systems work very well with wood heaters and non-ducted "Heat Pumps"
(reverse-cycle air conditioners). Typically, these systems effectively only heat "pockets" of
the house, so air transfer systems help to more equally distribute the air, particularly to
bedrooms, to more uniformly spread the heat.
As air is removed from the heated room, replacement air is drawn from adjacent rooms, creating
a natural re-circulation; hence warm, dry air is constantly being circulated throughout the home.
You can control which rooms you want the heat transferred to. The round
outlet diffusers can be fully adjusted in each room. If you require more
heated air entering one room than another, then simply adjust the diffusers
to your requirements. You can also completely shut off a diffuser if you do
not wish to deliver the heated air to a particular room (perfect for guest
bedroom).
Airflow Transfer Systems use high quality components our fans are the absolute best quality.
Airflow has over 27 years’ experience in providing ventilation solutions and will always select
the best fan for the application. Each kit incorporates a different fan which is designed to
provide the correct air flow and pressure requirements for the situation.
With our Airflow products, as with our other products, price is not the most important
principle in deciding what we can sell to our customers. You might sometimes be able to
buy cheaper products elsewhere, but we guarantee the quality of our products - we
purchase from premium manufacturers. We believe that in this industry, quality and
reliability really matter.
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 4 of 18 +64 3 365 6278
frequent QUESTIONS
1. How many rooms can heat be transferred to?
Airflow – The HVAC Shop has designed our Heat Transfer Systems to transfer heat to four rooms,
although we size our fans and ducting to use your requirements, five rooms would be about the limit
of efficiency.
2. Can extra ducting be added to transfer system?
We recommend that extra ducting is not added to a specified kit inventory, as these systems have
fans to suit the measurement of ducting included in the systems. For best results, we would prefer to
design and offer a fan to suit your requirements.
3. Does the system heat up the bedroom to the same temperature in the living room?
Although Airflow Transfer Systems are designed to move heat, there will be a temperature drop in
the process. It should be remembered these systems are most effective at providing background
warmth for rooms not normally requiring constant heating, such as bedrooms.
4. Is it possible to duct to an upstairs area?
It is possible to duct up and down. Depending on the application, moving heat up occurs naturally
and with the help of the in-line duct fan the hot air will move downwards just as effectively.
5. How much power do the Airflow Heat Transfer Systems use?
Power consumption for the one room kit is a low 40W; this is equivalent to half the power
consumption of an average sized light bulb. The one-room system uses up to 40W, the three room
system up to 54W and the four room 128W.
6. Where should the fan be located?
The fan may be in any section of the ducting, but before any ‘Y’ branches. Try to locate the fan as
far away from quiet spaces as practical.
7. How does the thermostat work?
The thermostat is installed in the heat source room. Set the required temperature you wish the fan
to turn on to transfer the heat when the air at ceiling level reaches this temperature the Heat Transfer
System will automatically switch on.
8. Is it possible to close off heat to one or more rooms?
All the kits come with fully adjustable outlet grilles that can reduce or even shut off air to one or
more rooms.
9. Is it necessary to suspend the fan?
Since all fans make slight vibrations while running, it is advised that you not mount the fan on an
inflexible wooden or metal structure. As an alternative, try hanging the fan from straps or bungee
cords or laying it atop or cradling a rubber or felt mat. It is recommended that a registered
electrician wire the fan.
10. There are cheaper Heat Transfer Systems available, why is this?
Airflow – The HVAC Shop design systems that suit the system resistance, the fans are powerful and
reliable; ducting is insulated to reduce heat loss. Airflow – The HVAC Shop will design a system for
your needs, not just supply an off the shelf unit.
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 5 of 18 +64 3 365 6278
our FANS
The reason our Airflow Transfer Systems Are Unique are because we select the fans in the
system to suit the amount of duct. These heat transfer systems are designed to move air
slowly from a warm room to other, colder rooms and the aim is to take the chill out of the
destination rooms. We aim to achieve about 2-4 air changes per hour in each destination
room, assuming approximately 20-25m³ per room. The heat source and a heat transfer kit
will work quite well in most situations but remember it is only heat transfer, it is very unlikely
to be as effective as a central heating system.
Our fan range and why we choose these fans are:
WEISS FV05CP 150Ø mm Axial Inline Fan
Fan suitable for 6m or less of flexible Duct
1 room system
6m of duct fan will deliver approx. 40 l/s at outlet grille
Free Air Fan Performance: 242 m3/hr / 67 l/sec
Motor: 230-240VAC 50Hz 0.4 Amp Wattage: 40 watts
Type: Axial plastic twin blade inline fan unit
Motor Protection: Thermally Protected
IMF-150 150Ø Mixed Flow Inline Duct Fan
Fan suitable for 15m or less of flexible Duct
1 room turbo system
9m of duct fan will deliver approx. 60 l/s at outlet grille
2 room system
12m of duct fan will deliver approx. 40 l/s at each outlet
3 room system
15m of duct fan will deliver approx. 25 l/s at each outlet
Free Air Fan Performance: 109 l/sec low 141 l/sec high
Motor: 230-240VAC 50Hz 1 Phase
Wattage: 54 Watts (High) 44watts (Low)
Type: Mixed flow blade inline fan unit
Motor ABS Plastic Body with 2 Speed Wire
IMF-150 150Ø Mixed Flow Inline Duct Fan
Fan suitable for 21m+ of flexible Duct
4 room system
18m of duct fan will deliver approx. 30 l/s at each outlet
21m of duct fan will deliver approx. 23 l/s at each outlet
Free Air Fan Performance: 189 l/sec low 236 l/sec high
Motor: 230-240VAC 50Hz 0.52 Amp
Wattage: 128 Watts (High) & 123 Watts (Low)
Type: Mixed flow ABS blade ball bearing inline fan unit
Motor ABS Plastic Body with 2 Speed Wire
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 6 of 18 +64 3 365 6278

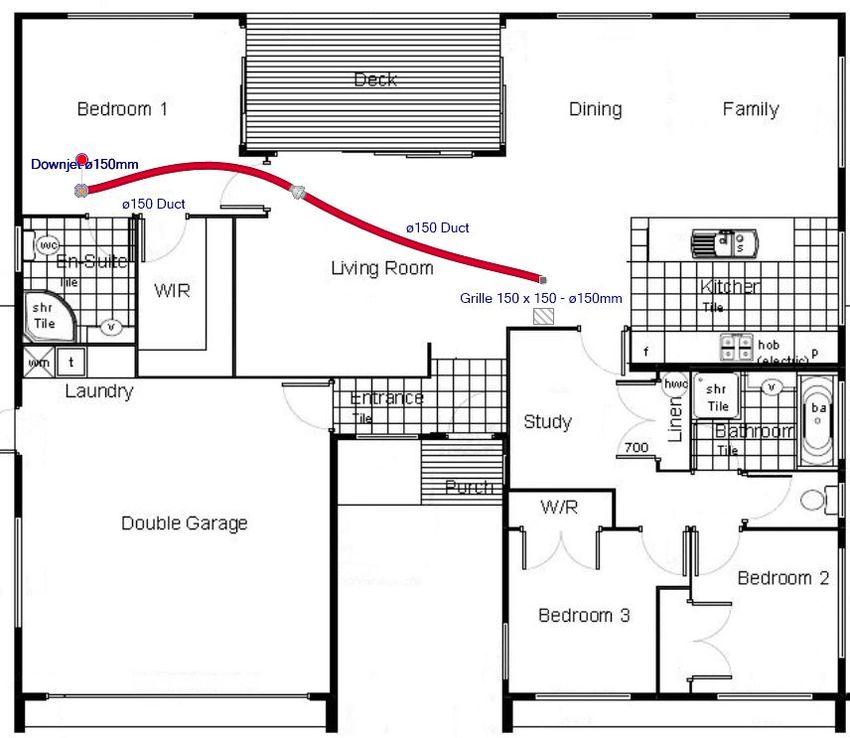

1 room HT01
Specifications HT01 The basic one room kit is adequate to transfer
150Ø Axial Fan excess heat to a bedroom or similar sized room. The
40 watts
Performance: 67 l/s
fan is an inline axial fan that will silently and quickly
39dBA @ 3m move air through the insulated duct.
150x150 - 150Ø
Maximum air flow. Easy
to remove grille for
cleaning
The 150Ø Downjet is
designed to jet warm
air right down to the
floor.
Flexiduct; insulated
aluminum flexible
ducting is a premium
flexible ducting.

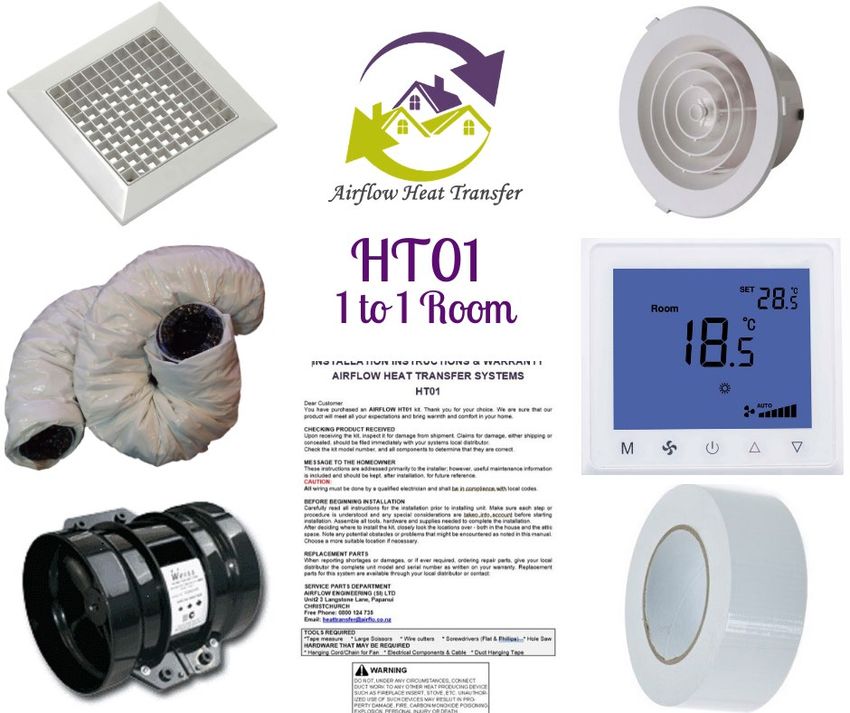

Components
A Thermostat is 1 x 150Ø Axial Inline Fan
standard for all our 1 x 150 x 150 - 150Ø Inlet Ceiling Grille
systems, set to switch 1 x 150Ø Downjet Outlet Ceiling Grille
on the system when
your heat rises. 2 x 150Ø 3m Insulated Flex Duct
Airflow reserves the right to make changes in design
1 x Thermostat
or specification to products without notice or 1 x Roll White PVC Duct Tape
obligation and to change or discontinue models.
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 7 of 18 +64 3 365 6278
turbo 1 room HT01T
Specifications HT01T This TURBO version of the one room kit is
designed to transfer excess heat to a bedroom or
150Ø Mixed Flow Fan
similar sized room with an extra-long duct run. The fan
54 watts
Performance: 140 l/s is an inline centrifugal fan that will silently and
42dBA @ 3m powerfully move air through insulated duct up to 15
m.
150x150 - 150Ø
Maximum air flow. Easy
to remove grille for
cleaning
The 150Ø Downjet is
designed to jet warm
air right down to the
floor.
Flexiduct; insulated
aluminum flexible
ducting is a premium
flexible ducting.
A Thermostat is Components
standard for all our 1 x 150 Centrifugal Inline Fan
systems, set to switch
1 x 150 x 150 Inlet Ceiling Grille
on the system when
your heat rises. 1 x 150Ø Outlet Ceiling Grille
Airflow reserves the right to make changes in design
3 x 150Ø Insulated Flex Duct
or specification to products without notice or 1 x Thermostat
obligation and to change or discontinue models.
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 8 of 18 +64 3 365 6278
2 room HT02
Specifications HT02 The 1 to 2 room transfer system. This system
transfers air into 2 rooms using a centrifugal fan, allowing
150Ø Mixed Flow Fan
longer lengths of duct. 150l/s centrifugal fan is suitable for
54 watts
Performance: 140 l/s up to 15m duct run if required.
42dBA @ 3m
150x150 - 150Ø
Maximum air flow. Easy
to remove grille for
l i
The 150Ø Downjet is
designed to jet warm air
right down to the floor.
Flexiduct; insulated
aluminum flexible
ducting is a premium
flexible ducting.
Y Branch 150/150/150 Components
Splits one Flexiduct 1 x 150 Mixed Flow In-line Fan
branch into two 1 x 150 x 150 Ceiling Grille
A Thermostat is standard 2 x 150 dia Ceiling Grilles
for all our systems, set to 1 x 150.150.150 Y Branch
switch on the system when
your heat rises.
4 x 150 dia 3m Insulated Flex Duct
Airflow reserves the right to make changes in design
1 x Thermostat
or specification to products without notice or 1 x Roll White PVC Duct Tape
obligation and to change or discontinue models.
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 9 of 18 +64 3 365 6278

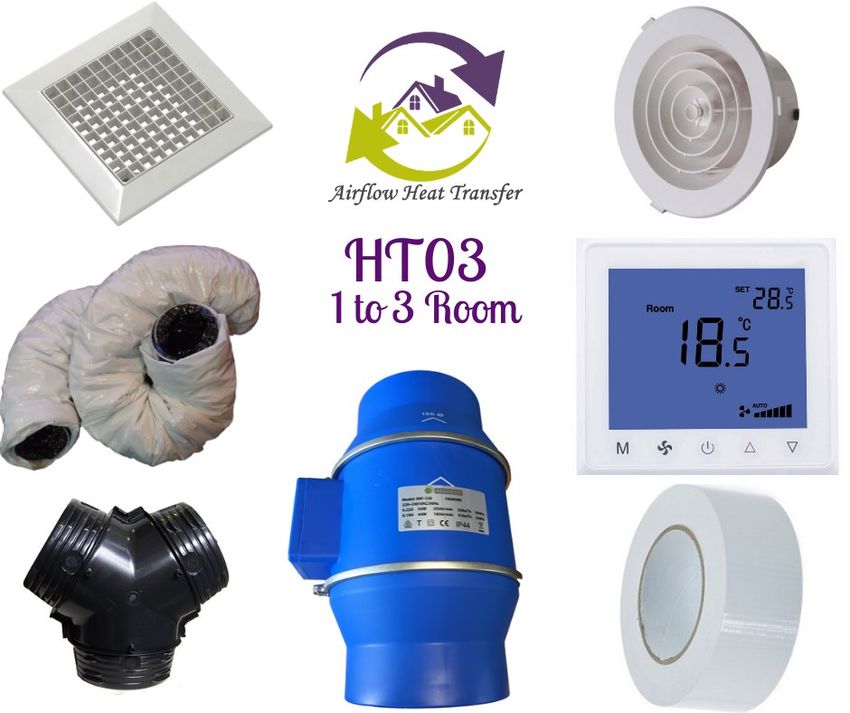

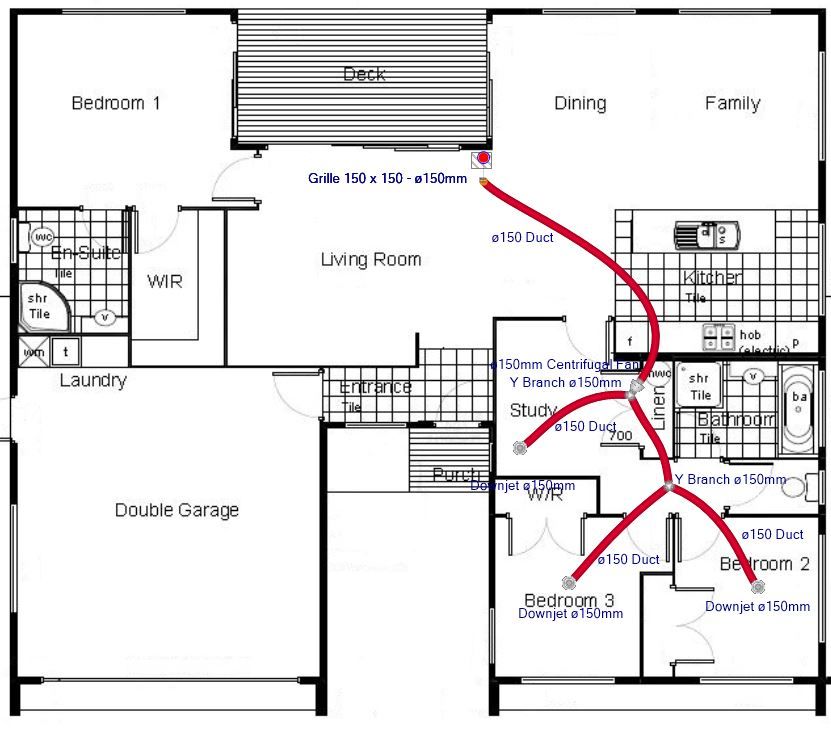

3 room HT03
Specifications HT03: The turbo three room kit is adequate to transfer
150Ø Mixed Flow Fan heat to three rooms in your home, such as a bedroom,
54 watts bathroom or a study, or to similar sized rooms. The fan
Performance: 140 l/s
is a quiet but powerful inline centrifugal fan.
42dBA @ 3m
200x200 - 200Ø Maximum
air flow. Easy to remove
grille for cleaning
The 150Ø Downjet is
designed to jet warm air
right down to the floor.
Flexiduct; insulated
aluminum flexible ducting
is a premium duct.
Components
Y Branch 150/150/150 1 x 150Ø Mixed Flow In-line Fan
Splits one Flexiduct 1 x 200 x 200 Ceiling Grille
branch into two
1 x Reducer 200-150
A Thermostat is standard 3 x 150Ø Ceiling Grilles
for all our systems, set to 2 x 150.150.150 Y Branch
switch on the system
when your heat rises.
5 x 3m 150Ø Insulated Flex Duct
1 x Thermostat
Airflow reserves the right to make changes in design
or specification to products without notice or 1 x Roll White PVC Duct Tape
obligation and to change or discontinue models.
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020

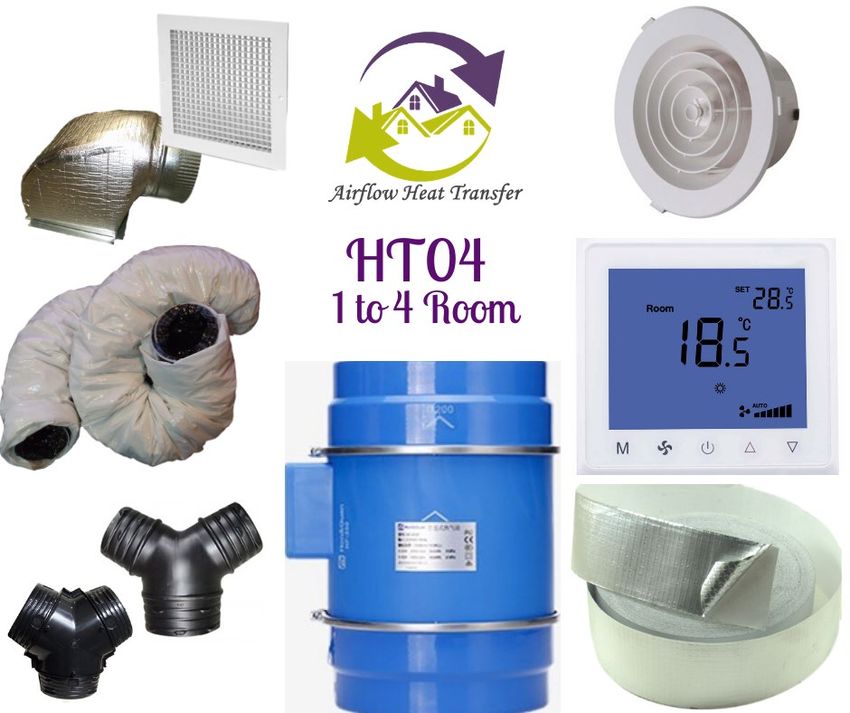

Page 10 of 18 +64 3 365 62784 room HT04
Specifications HT04: The supreme 4 room kit is the largest of our
200Ø Mixed Flow Fan available kits and is adequate to transfer heat to four
128 watts rooms in your home, such as a 3 bedrooms, a study,
Performance: 236 l/s
48dBA @ 3m
or to similar sized rooms. The fan is a powerful inline
mixed fan.
250x250 Grille
White Aluminum
With acoustic adaptor
The 150Ø Downjet is
designed to jet warm air
right down to the floor.
Flexiduct; insulated
aluminum flexible ducting
is a premium duct.
Components
Y Branch 150/150/150 1 x 200Ø Inline Mixed Flow
& 200/150/150 splits one
Flexiduct branch into two 1 x Eggcrate Grille 250² Aluminium
1 x Acoustic Adaptor 250/250-200
A Thermostat is standard 4 x Downjet 150Ø Diffuser
for all our systems, set to 2 x 200Ø 3m Insulated Flexiduct
switch on the system 4 x 150Ø 3m Insulated Flexiduct
when your heat rises.
1 x Y Branch 200.150.150
Airflow reserves the right to make changes in design
or specification to products without notice or
2 x Y Branch 150.150.150
obligation and to change or discontinue models. 1 x Thermostat
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 11 of 18 +64 3 365 6278summer kit HTS1
Specifications HTS1: After a warm summers day your home can hot
and stuffy taking a long time to cool down, the
Summer Add on Kits Introduces summer kit add on brings in filtered cool summer
fresher cooler air into your home in evening air to cool the house down without the dust,
Summer to enable year-round use
of your system.
flies or moths and without the security risk of leaving
windows open. Cool outside air gently moving
With the inlet grille installed under through the home makes it much easier to sleep on
your soffit, fresher cooler air is those hot, humid nights.
filtered using a G2 Inline filter and is When the summer kit is working the HT inlet is switched
distributed throughout your home
via your Heat Transfer outlets.
off via the damper and will not receive the cooled air
directly from outside, however due to air pressure a
The system is controlled via a natural re-circulation occurs throughout the home.
standard wall switch which The air is filtered by a ‘inline filter which will capture
operates the advantage air any dust, leaves or insects.
regulator to start drawing air from
outside.
During summer, the system is still
controlled by your existing
thermostat controller. By turning the
Components to suit HT01 HT1T HT02 HT03 for 150Ø Kits
temperature down (e.g. 15
degrees) the Summer Kit will start 1 x Fixed White Grille 150Ø Spigot
when the temperature in the room 1 x Inline Tube Filter 150Ø G2
rises above this set temperature. 1 x 150Ø 3m Nude Flexiduct
Airflow reserves the right to make changes in design 1 x Diverting Branch Motorised 150Ø
or specification to products without notice or 1 x Duct Tape PVC Roll
obligation and to change or discontinue models.
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020

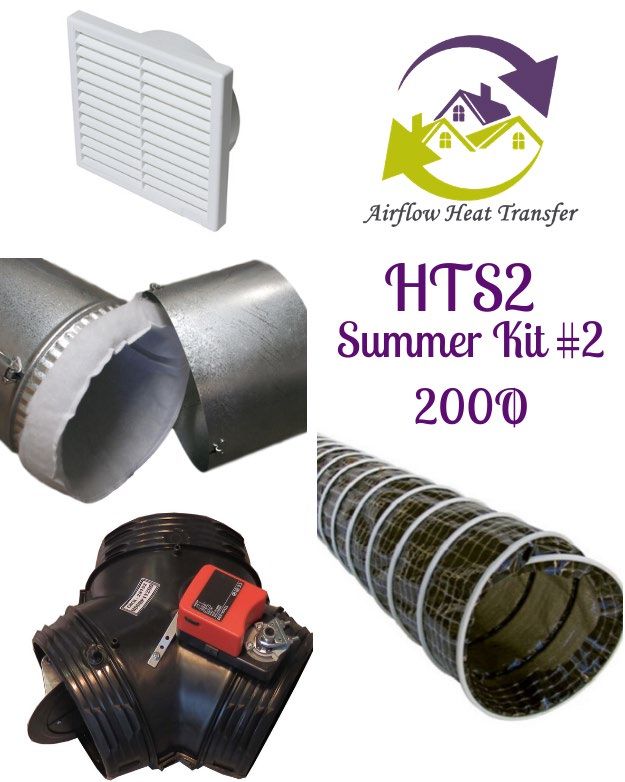

Page 12 of 18 +64 3 365 6278summer kit HTS2
Specifications HTS2: After a warm summers day your home can hot
and stuffy taking a long time to cool down, the
Summer Add on Kits Introduces summer kit add on brings in filtered cool summer
fresher cooler air into your home in evening air to cool the house down without the dust,
Summer to enable year-round use
of your system.
flies or moths and without the security risk of leaving
windows open. Cool outside air gently moving
With the inlet grille installed under through the home makes it much easier to sleep on
your soffit, fresher cooler air is those hot, humid nights.
filtered using a G2 Inline filter and is When the summer kit is working the HT inlet is switched
distributed throughout your home
via your Heat Transfer outlets.
off via the damper and will not receive the cooled air
directly from outside, however due to air pressure a
The system is controlled via a natural re-circulation occurs throughout the home.
standard wall switch which The air is filtered by a ‘inline filter which will capture
operates the advantage air any dust, leaves or insects.
regulator to start drawing air from
outside.
During summer, the system is still
controlled by your existing
thermostat controller. By turning the
temperature down (e.g. 15 Components to suit 200Ø Kit HT04
degrees) the Summer Kit will start 1 x Fixed White Grille 200
when the temperature in the room 1 x Inline Tube Filter 200Ø G2
rises above this set temperature. 1 x 200Ø 3m Nude Flexiduct
Airflow reserves the right to make changes in design 1 x Diverting Branch Motorised 200Ø
or specification to products without notice or 1 x Duct Tape PVC Roll
obligation and to change or discontinue models.
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 13 of 18 +64 3 365 6278design INFORMATION
NOISE RATINGS
Sound is measured in decibels; most fan brochures include a noise level (say xx dB). If you
are comparing different brands or models, the distance from the fan that the reading is
taken makes a big difference. A reading taken at 1 metre is going to be louder than one
at 3 metres. Carpet on the floor and curtains help to reduce some of the reflections off the
walls, and hence it appears quieter than a hard room.
The fan should be no closer than 2 duct diameters from the end grille, in order to give the
airflow a chance to straighten out and reduce turbulence losses. Fan noise is largely
dependent on the air velocity through the grilles, so most solutions involve reducing the air
speed, and larger ducting and grilles, or multiple inlets usually do this. Generally, the noise
is also proportional to the amount of airflow and the fan speed
OUTLET GRILLES
Round Downjet Diffusers are constructed from A.B.S polymers providing long term strength
and rigidity. The diffusers consist of a series of concentric rings that deliver the air downwards
at a slight angle to the vertical. The external exposed surfaces have an etched finish. A
centre knob can be pushed and turned by hand to adjust an integrated butterfly flap. The
flap impedes the airflow allowing individual control of airflow for an area. Total shut-off is
possible
DUCT INSTALLATION
Airflows through your duct work much like water flows through a garden hose. As long as
there are no kinks in the hose, you get a good volume of water flowing out of the end of
the hose. When you kink the end of the hose (for example by bending it near the nozzle)
suddenly you have much greater pressure. The water may seem to squirt farther, but the
reality is much less water is delivered. Always opt for the minimum length of flexible duct.
Any necessary bends should be made with not less than one duct diameter centerline
radius. When you do bend the duct, be careful not to compress it. Support flex duct
horizontally at intervals of not more than 1.5m. Support straps or other support material
should be at least 75mm wide.
ADDING EXTRA DUCTING
We do recommend adhering to the supplied ducting within the kit for best results; however,
we recognise that many houses are designed differently. There have been a number of
installations moving heat up to 21m away from the heat source and working as
efficiently. Adding extra duct means the hot air has to move further, hence a small heat
loss. Any further than 21m is strongly discouraged.
All our kits can be extended with extra ducting.
HT01 – 3 meters only HT02 – 3 meters only
HT03 – 6 meters only HT04 – 6 meters only
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 14 of 18 +64 3 365 6278optional EXTRAS
Sharp bends can greatly reduce the airflow and should be
avoided, the use of an Adjustable Metal Bend is recommended,
and these bends are adjustable for attachment for flex or metal
ductwork. Their rigid properties will keep flexible duct from
collapsing.
Duct Joiner used to join two pieces of flex duct together, made of
galvanised sheet metal for ease of joining two pieces of flex
ducting together.
A Speed Controller may be installed to eliminate draft and adjust
system to your needs. Where a fan is making a lot of noise due to
excessive airflow, this can be reduced in a controlled manner, until
such point as the noise becomes minimal and the airflow still
adequate. It is best to size a correct fan for the application and
eliminate the need for a speed controller.
Filtered Grille, this is an aluminum grille with an egg-crate core. The
grille has a hinged door for safe and easy removal of the air filter
which is included.
Duct / Fan Clamps
These duct clamps are used to attach ductwork to fans.
Each has a foam lining to minimize vibration.
Nylon Duct Straps
This method ensures fast, clean application
1220mm (48”) Long Cut to suit your duct
Reinforced Foil Duct Tape – Duct tape is a polyethylene, reinforced,
multi-purpose pressure sensitive tape with a soft and flexible shell
and pressure sensitive adhesive. It is generally silver or black in
colour the high conformability of the backing material makes the
tape ideal where a tight seal is required on irregular shaped
objects.
Duct Hanging Kit
Ideal for the Suspension or Hanging of Flexible Ducting
Blue Strapping, Duct Saddles, Buckles
Economic Way to suspend Flexible Ducting
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 15 of 18 +64 3 365 6278installation INFORMATION
Before buying any equipment, inspect the roof space to ensure enough clearance exists
between roofing and the ceiling lining, especially at the point where the fan and discharge
grilles are to be installed.
Before commencing work make a note of where the grilles are to be mounted and the
best possible route for the ducting avoiding as many bends as possible. Obstructions to the
ducting route must be noted and enough ducting purchased to by-pass roof stays and
rafters.
The heat transfer kit is most effective when the primary heat sources are a wood burner,
gas fireplace or reverse cycle air-conditioner. This is an energy efficient way of transferring
the excess heat from these heat sources.
The fan may be in any section of the duct run. This has the advantage of reducing the fan
noise away from living areas.
We recommend placing the inlet grille on the opposite side of the room to the heat source.
This allows the room to warm first before transferring excess heat.
Control
You can control which rooms you want the heat transferred to. The round outlet diffusers
can be fully adjusted in each room. If you require more heated air entering one room than
another, then simply adjust the diffusers to your requirements.
You can also completely shut off a diffuser if you do not wish to deliver the heated air to a
room. The outlet grilles should be installed in the ceiling at the furthest point from the door
(to encourage complete air circulation).
Duct
Avoid installing flex duct where it will be subjected to direct sunlight, such as under turbine
vents. Sunlight can degrade the vapor barrier. Avoid bending flex duct across or around
framing members, pipes and other objects. Such bends can decrease the size of the duct
at the bend point, restricting airflow and increasing air friction.
Over time, the duct inner core can continue to collapse at the bend point further restricting
airflow. This is a common installation error. Use an adjustable metal bend.
Electrical
ANY ELECTRICAL WORK SHOULD ONLY BE CARRIED OUT BY A LICENSED ELECTRICIAN
Doing electrical work, yourself can be dangerous. People have been killed doing electrical
work unsafely.
By law, any electrical installation work must be done by a licensed electrician. They must
test the work and give you a uniquely numbered Certificate of Compliance Electrical Work
to show it has been tested and ensure it complies with the regulations.
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 16 of 18 +64 3 365 6278your NOTES
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 17 of 18 +64 3 365 6278your NOTES
sales@thehvacshop.co.nz Unit 2
www.thehvacshop.co.nz 3 Langstone Lane
Northcote
Heat Transfer Christchurch
April 2020
Page 18 of 18 +64 3 365 6278You can also read
