Aluminium Formwork System & Scaffolding
www.getoformwork.com
Aluminium
Formwork
JIANGXI GETO NEW MATERIALS CORPORATION LIMITED
East China Production Base / Jiangxi Guangchang
Central China Production Base / Hubei Xianning
System &
Southern China Production Base / Guangdong Jiangmen
North China Production Base/ Shandong Weifang
TEL : (+86)0794 3637 899 E-mail : geto@geto.com.cn
Singapore GETO
Blk 808 French Road #05-157 Kitchener Complex,Singapore.
Scaffolding
TEL : (+65)6294 4386
E-mail : geto-sg@geto.com.cn
Malaysia GETO
No. 17-3, Jalan Anggerik Vanilla BE 31/BE, Kota Kemuning, 40460
Shah Alam, Selangor Darul Ehsan, Malaysia.
TEL : (+603)5131 5887
E-mail : geto-mal@geto.com.cn
India GETO
20 Neha Industrial Estate ,
Dattapada Road, Borivali East ,
Mumbai, Maharshtra, India Pin Code 400066
Office: +912228702842
Mobile: +917738080937
E-mail: skp@oxygreen.in / samit@geto.com.cn
Company Profile
GETO is a comprehensive joint-stock company specialized in Aluminium Formwork and Scaffolding system. Headquarter registered in
CONTENTS
Jiangxi and the global operation management center is based in Tsui Hang New District, heart of Guangdong-Hong Kong-Macao Greater
Bay Area. We had set up more than 20 subsidiaries in Beijing, Shanghai, Shenzhen, Changsha, and overseas in Singapore, Malaysia,
Cambodia, India, UAE, Panama, Algeria. The products are sold well in over 30 countries and regions. With four domestic production
bases, we are one of the first specially qualified and national high-tech enterprises. With a backbone team of over 2,000 people, we are
taking the lead in the realization of scale, specialization and modernization, focusing on formwork system R&D, production, leasing，
sale, renovation and technical services, providing customers with a full range of high-quality services.
200,000 340,000 270,000 270,000 30,000
square meters square meters square meters square meters square meters
01 GETO History
Jiangxi Hubei Guangdong Shangdong Malaysia 02 Overseas Market
02 GETO Production Bases
03 Qualification Certificates 12 Panel Recycling
03 Conference & Social Networking 14 Five-Star Service
04 National Patents 15 Accessories
05 GETO System Advantages 17 Components
06 Manufacturing Facilities 23 Working Process
06 Manufacturing Process 25 Quick-deck System
07 System Features 26 Project in China
09 Friction Stir Welding (FSW) 27 Project in Singapore
10 Research and Development (R&D) 29 Project in Malaysia
31 Project in India
33 Project in Cambodia
34 Other Project References
Overseas Market
India
2012.08 Maldives
Djibouti
Foundation of East China Production Base 1# 2 South Asia Sri Lanka
Algeria Africa
Pakistan
2012.09
Establishment of Research and Development Department Romania Bhutan
Saint Martin Malaysia
2014.03 Europe
Russia Singapore
Establishment of Jiangxi GETO Aluminium Formwork Tech R&D Co.,Ltd
Cambodia
Argentina
2014.04 1 Southeast Asia Vietnam
Obtained National New High-tech Enterprise Certificate Chile South America Business Map Asia Philippines
Peru Laos
2014.06
Indonesia
Elected as "Standing director units" of the Chinese formwork and scaffolding association America
Panama
2014.07 Nouth America The United Arab Emirates
Jamaica 3 Western Asia
Participated in China national standard of aluminium formwork
Saudi Arabia
2014.08 New Zealand
Establishment of Shanghai GETO Construction Tech Co.,Ltd Australia Oceania
4 Central Asia Kazakhstan
2015.04
Establishment of GETO Global Construction Tech Malaysia SDN BHD India GETO Singapore GETO Headquarter Malaysia GETO
20 Neha Industrial Blk 808 French Road Tsui Hang New District, No.17-3, Jalan Anggerik
2015.12
Rebrand to Jiangxi GETO New Materials Corporation Limited Estate ,Dattapada Road, #05-157 Kitchener Zhongshan, Vanilla BE 31/BE, Kota
Borivali East , Mumbai, Complex, Singapore Guangdong-Hong Kemuning, 40460 Shah
2016.03 Maharshtra, India kong-Macao greater bay Alam, Selangor Darul
Establishment of Guangdong GETO New Materials Tech Co.,Ltd Pin Code 400066 area, China Ehsan, Malaysia
2016.03
Establishment of Zhongshan GETO Aluminium
Formwork Tech Co.,Ltd GETO Production Base
GETO Milestone
2016.10
Public listed on National Equities Exchange North China Production Base:
and Quotations China aluminium formwork industrial park,
Weifang, Shandong, China
2017.02
Central China Production Base:
Foundation of East China Production Base 2#
Xianning, Hubei, China
2017.05
Establishment of Shandong GETO New Materials Tech Co.,Ltd East China Production Base 1#:
Guangchang, Jiangxi, China North China Production Base
2017.12 East China Production Base 2#:
Establishment of Hubei GETO New Materials Tech Co.,Ltd Guangchang, Jiangxi, China
Central China Production Base
2018.02 South China Production Base:
Establishment of GETO University Jiangmen, Guangdong, China
East China Production Base
2018.08
Obtained Special Class Certificate in aluminium formwork Malaysia Production Base:
No.5, Jalan P4/11A, Seksyen 4, Bandar Teknologi Kajang, South China Production Base
43500 Semenyih, Selangor, Malaysia
2018.11
Establishment of Jiangmen GETO New Materials Tech Co.,Ltd
1 2
Qualification Certificate National Patents
Over the years, GETO has been committed to product innovation and technology research, and has obtained more than 100 scientific
research achievements and more than 70 national patents.
Date of issue: 21/08/2017
The Workplace Safety and Health Council
is pleased to certify that
GETO GLOBAL SINGAPORE PTE. LTD.
has fulfilled the requirements to attain bizSAFE Level 3
This certificate will expire on 20/08/2020
Winston Yew
Deputy Director, Industry Capability Building
Workplace Safety and Health Council
Certificate No. E28357
Conference & Social Networking
3 4
GETO System Advantages Manufacturing Facilities
GETO uses the modern management system, automated manufacturing system, advanced production equipment and skilled labour to
manufacture the best aluminium formwork system with a competitive price.

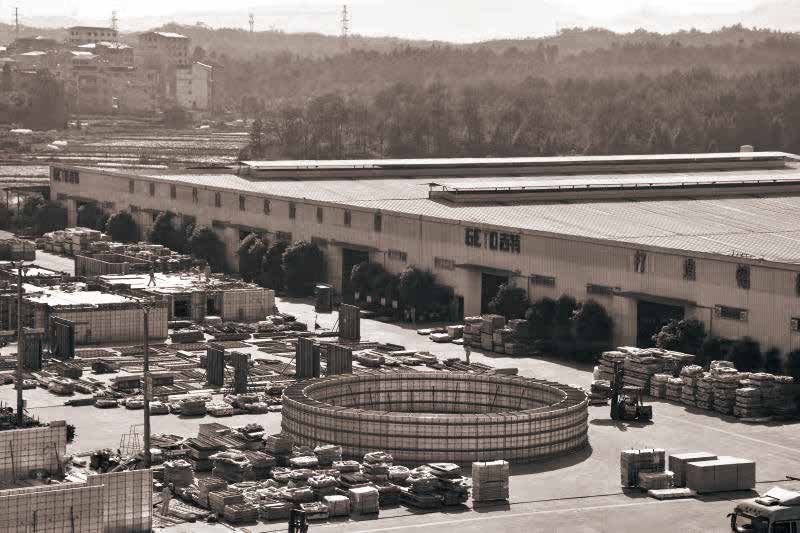

East China Production Base 1#: East China Production Base 2#： Central China Production Base:
Guangchang, Jiangxi, China Guangchang, Jiangxi, China Xianning, Hubei, China
GETO company values provide customers with solid solutions to offer concrete framing solutions that deliver faster construction
time and achieve high quality and increase efficiency on site. We focus on creating high-end brands of aluminium formwork.
Less Construction Cost Easy Transfer
Southern China Production Base 2#: North china Production Base ： Malaysia Production Base:
The cost saving throughout the whole construction The formwork panels of next floor can be
Jiangmen, Guangdong China aluminium formwork industrial park, No.5, jalan P4/11a, Seksyen 4, bandar teknologi
progress from deflect rectification, machineries, transferred through the material transfer openings Weifang, Shandong, China kajang,43500 semenyih, selangor, Malaysia
additional conventional formwork cost, time etc. on the slab without using the crane after
dismantling.
Excellent Quality
Manufacturing Process
GETO aluminium formwork system does not Safety
require plastering as the off-the-form finish is less It is safe enough for the construction requirement
than 3.5mm tolerance in deflection. due to the strength, deflection and stability of GETO
aluminium formwork system.
Speed
The wall, beam, column, slab can be casted at one Light Weight
time by using GETO aluminium formwork. The system panel is an easily handling & handheld
1 2 3
Furthermore, our prop-head system will allow to product. All components almost can be transfered
Warehousing of raw material Cutting Hole processing
dismantling the slab panels without removing the by labour through the slab transfer box during the
props. Thus, 6 days cycle is no longer a dream but a installation, dismantling & transferring.
reality.
Cycle Use
Extensive Application GETO system panels are designed for strength and
The aluminium panel can be used in wall, slab, maximum usability. This provides the ability to
column, beam, staircase, window, etc. The system reuse your existing GETO panel stock into new
can also be included in secondary structure, such as project designs in order to maximize value and 4 5 6 7
the lintel, tie column, etc. return on investment of your GETO formwork Notching Welding Straightening Quality testing
assets.
Reliable System
With GETO's Aluminium Formwork System, Environment Friendly
brackets for wall, slab, elevator and external By minimizing limited resource using such as
working platform are provided. plywood and timber, GETO provides an
environment-friendly system. 8 9 10
Coating QR code Packing
5 6
System Features
Steel Plastic Timber GETO
Formwork Formwork Formwork Aluminium
Item Specification Characteristics Formwork
Poisson's ratio(Va) 0.3
Density(ρ） 2.7g/cm3 No skilled labour required for formwork system
Aluminium Alloy（6061-T6) Elasticity modulus(Ea) 70000N/mm2
No heavy equipments required for formwork system
Yield strength(Fa) 200N/mm2
Shear strength(Fva) 115N/mm2
Inner & Outer wall panel and corner panel Cast column & wall, beam & slab in one time
Beam bottom & side panel and corner panel
Composition Form staircase with accurate dimensions for
Slab panel & prop head and corner panel riser and thread
Staircase panel
Alloy Temper 6061-T6 High strength & bearing capacity
Material Type Complete Extrusion
Main Welding Type Friction Stir Welding
Suitable for high-rise buildings
Thickness of Panel 4mm
Thickness of Frame 8mm
Height of Frame 65mm Dismantle slab panels without moving props
Standard Wall Panel Width 50mm to 600mm
Standard Wall Panel Height 2400mm Excellent concrete surface quality, no need plastering
Standard Slab Panel Size 600mm × 1200mm
Weight of Aluminium Panel 25kg/sq.m
Easy to combine with other types of formwork
Standard Prop Adjustable Steel Prop
More cycle times, less average cost
High speed of construction
Self correction feature provides unmatched forming
accuracy
Environment-friendly: no construction waste, no messy
disposals
7 8
Research and Development (R&D)
Friction Stir Welding (FSW)
Technical Background GETO has set up a special R&D team with over 200
members. GETO successfully developed GETO-BIM
Developed in 1991 in Cambridge, United Kingdom by The Welding Institute(TWI). During welding, stir welding head will move automatic modulation software and GETO-VR virtual
through the connection joint and turn it to the welding joint. This welding technology applies high pressure between 2 plates and welds
reality inspection software, co-engineering in the
them through the heat caused by the friction.
development of the automatic punching machine and
As it is a joining technology on a solid state (low heat input), compared to the traditional welding method, FSW is environment-friendly, intelligent robot welding. GETO also has an
minimizing residual stress and strain. university-enterprise in cooperation with NanChang
HangKong University and established five
Not only FSW allows aluminium welding, but it also allows bimetallic welding such as aluminium/magnesium, alloy steel and professional laboratories of aluminium formwork
lightweight alloy.
system for basic materials, structural mechanics,
GETO applied FSW into aluminium formwork manufactering to achieve perfect quality. surface treatment, welding technology and robot
application.
Advantages of FSW
As a solid state process it can be applied to all the major
aluminium alloys and avoids problems of hot cracking,
porosity, element loss, etc. common to aluminium fusion
welding processes.
Five Major Professional Laboratories
Bimetallic (aluminium/magnesium) welding is possible.
[bimetallic: different metallic properties]
No shielding gas or filler wire is required for aluminium
alloys.
Excellent mechanical properties, competing strongly with
welds made by other processes.
The absence of fusion removes much of the thermal
contraction associated with solidification and cooling,
leading to significant reductions in distortion.
Workplace friendly: There is no ultraviolet or electromagnetic radiation hazards as the absence of arc removes these hazards from the
process; the process is no noisier than a milling machine of similar power, and generates virtually zero spatter, fume and other
pollutants.
As a mechanized process, FSW does not rely on special welding skills; indeed manual intervention is seldom required.
9 10
Panel Recycling
GETO has accumulated rich experience in panels renovating through standard panel system research and development. We have realized
the recycling series for panel renovating, selecting & warehousing, old panel reusing. Not only guarantee the quality, but also reduce the
cost through improving the reusing rates of old panels effectively. So as to realize the green energy conservation and sustainable
development mode.
GETO-BIM
GETO independently developed it's own intellectual property GETO-BIM automatic modulation software after 3 years R&D. The
accuracy rate of GETO-BIM has reached 100%.
Step 1: Old Panels Back The Factory Step 2: Concrete Cleaning Step 3: Shot Blasting
GETO-VR
GETO-VR virtual reality inspection software with special equipments makes you do the inspection and acceptance at your home. Step 4: Quality Control Step 5: Selecting Step 6: Tidying Standard Panel
Step 7: Tidying Non-Standard Panel Step 8: Cutting To Standard Panel Step 9: Grinding
Step 10: Coating Step 11: QC Before Warehousing Step 12: Warehousing
11 12
Comprehensive Solutions Five-Star Service
Typical floor formwork system GETO is famous for its five-star product service including techinical disclosure, techinical training, site
instruction, secondary design and modulation, panel modification and panel & accessories supplement.
Typical floor formwork system is precisely-engineered
system fabricated in aluminium. Using this system, all
the elements of a building namely, load bearing walls, Appearance and temperament of sunshine 2-24hour response
columns, beams, floor slabs, stairs, balconies etc. can image We have established a 2-24-hour on-the-job processing
be constructed with cast in situ concrete. At present, there are more than 300 engineering and mechanism for major problems, with fast material
technical teams, all of whom have unified image and replenishment service, and the company is equipped
logo, providing customers with a sunny, vibrant and with a special vehicle for material replenishment
professional service experience and unified service.
Podium formwork system management on site, so that customers can find our
GETO have rich experience on podium projects by professional technical guide and solve the problems on Secure all the way
aluminium formwork system to handle the car ramp, site at the first time. Before the installation of aluminium formwork, our
column capital, etc. company's technical guide will organize the
Turn material resources to good account construction team to conduct theoretical training, and
Our on-site technical service guide shall timely assist the on-site technical guide will assist the construction
the construction team to install all the standard team in the whole process of aluminium formwork
Self-climbing platform materials according to the actual use on site；We will installation, and the technical guide are obliged to
register the quantity of other surplus materials, pack serve the project until the completion of the project
GETO provides self-climbing platform system that
and transport them back to the factory in time. building.
worker's safety, efficient construction and economy
are integrated, in which you can quickly progress
construction. Professional program
Each project is equipped with 2-3 professional
technical guide. On-site technical service guide can
provide all-round professional technical services.
Quick-Deck formwork system Local structure modification can be directly cut, drilled
GETO Quick-Deck Formwork System is developed to and welded on site.
construct large slab areas quickly, safely, with
minimal labour, and is fully compatible with all
GETO formwork systems or timber formwork.
Roofing formwork system
Roofing formwork system is specially designed for
the construction of roof which have special
components to the typical floor system.
Basement formwork system
GETO offers a wide variety of solutions, from
Aluminium Formwork system for basement
construction.
13 14
Accessories
BOLT,
HOLLOW SECTION Item WALLER BRACKET Item WORKING BENCH Item TIE ROD Item Item
NUT&WASHER
Weight:3.73KG/M Weight:0.58KG Weight:15KG Weight:1.7KG/M Weight:0.185KG
DESCRIPTION: DESCRIPTION: DESCRIPTION: DESCRIPTION: DESCRIPTION:
The hollow section are used to The Aluminium Waller Bracket use The working bench is used The tie rod will be used as an The set of accessories are used to
allow the horizontal straightness of to allow the horizontal straightness as the inner working embedded anchor in order to fix connect panels with panels.
wall panels and a flat wall surface of wall panels and a flat wall platform. the bracket /panels on the concrete
(especially at the bottom) after surface (especially at the bottom) surface during its installation.
concrete casting. after concrete casting.
ELEVATOR REUSABLE FLAT-TIE EMBEDDED
Item SLAB BRACKET Item WALL BRACKET Item Item Item
BRACKET AND PVC SLEEVES FLAT-TIE
Weight:8.5KG Weight:12.5KG Weight:13KG Weight:0.158-0.711KG Weight:0.064-0.286KG
DESCRIPTION: DESCRIPTION: DESCRIPTION:
The elevator bracket is used as a The slab bracket is used as a The wall bracket is used as DESCRIPTION: DESCRIPTION:
substitute of scaffolding system, the substitute of scaffolding system, the a substitute of scaffolding The flat tie is used to joint the wall The embedded flat-tie is one-time
working platform, slab platform working platform, slab platform system, the working panel to the opposite side's wall flat tie.
and elevator platform will be fixed and elevator platform will be fixed platform, slab platform and panel. And the PVC sleeves will
on the concrete. on the concrete. elevator platform will be make the flat-tie reusable.
fixed on the concrete.
SLAB TRANSFER
PIN &WEDGE Item LONG PIN Item Item STEEL PROPS Item JOINT BAR Item
BOX
Weight:0.064&0.03KG Weight:0.286KG Weight:13KG Weight:11.63-17.808KG Weight:0.713KG
DESCRIPTION: DESCRIPTION: DESCRIPTION: DESCRIPTION: DESCRIPTION:
The pin and wedge will be used to The long pin is used to fix the The slab transfer box is The steel props are used to support The joint bar is used to connect
joint the panels together. middle-beam and joint bar with used to transfer panels after the slab during concrete pouring with the prop head and middle
wedge. formwork dismantlement. and casting. It will remain under the beam.
prop head until it can satisfy the
dismantling requirement.
PVC SLEEVE REUSABLE FLAT-TIE T TYPE PANEL Y TYPE PANEL
Item Item Item Item HOLE HOOK Item
EJECTOR EJECTOR PULLER PULLER
Weight:1.983KG Weight:2.679KG Weight:4.86KG Weight:3.25KG Weight:0.768KG
DESCRIPTION: DESCRIPTION: DESCRIPTION: DESCRIPTION: DESCRIPTION:
The PVC sleeve ejector is used to The reusable flat-tie ejector is used The T type panel puller The Y type panel puller is used to The hole hook is used to adjust the
remove the reusable PVC sleeves . to remove the reusable flat-tie . is used to remove the remove the wall panels . position of panels.
slab panels.
15 16Components Item WT(WxH) Weight (kg)
Wall Top Panel
600 WT 600 6.65
500 WT 600 5.72
GETO -- WALL & COLUMN
400 WT 600 4.80
350 WT 600 4.32
Wall Panel Item W(WxH) Weight (kg) 300 WT 600 3.87
600 W 2400 27.89 250 WT 600 3.39
500 W 2400 24.10 200 WT 600 2.94
400 W 2400 19.90 150 WT 600 2.47
DESCRIPTION:
125 WT 600 2.24 Wall top panel is used to connect the
350 W 2400 17.93 REMARKS: standard wall panel to satisfy the storey.
1. Without external corner at both sides 100 WT 600 2.00
300 W 2400 14.89
2. Without Rocker at the bottom
250 W 2400 13.13 50 WT 600 1.53
DESCRIPTION:
200 W 2400 11.44 Wall Panel to support vertical structure like
wall and column. Usually the bottom part is
150 W 2400 9.35
linked to Rockers with Bolt & Nut for easy
125 W 2400 8.56 dismantling while the top is connected to
Beam Joint for beam or Slab Joint with Pin
100 W 2400 7.76
Internal Corner
& Wedge. Item(A1+A2) IC (H) Weight (kg)
Joint
50 W 2400 6.18
100×100 IC 2400 14.12
100×120 IC 2400 15.32
100×125 IC 2400 15.62
Wall End Panel
100×130 IC 2400 16.30
100×140 IC 2400 16.51 DESCRIPTION:
Internal corner joint is used to connect
100×150 IC 2400 17.12 wall panel and wall end panel at internal
Item WS(WxH) Weight (kg) corner. The height of IC are equal to the
100×160 IC 2400 17.33 wall panel height.
400 WS 2400 28.77 REMARKS: 150×150 IC 2400 20.12
350 WS 2400 27.01 1. With external corner at both sides
2. Without Rocker at the bottom
300 WS 2400 25.34
250 WS 2400 23.57 DESCRIPTION:
Wall Panel to support vertical structure like
200 WS 2400 18.26 wall and column. Usually the bottom part is
linked to Rockers with Bolt & Nut for easy Rocker
150 WS 2400 19.79
dismantling while the top is connected to
Beam Joint for beam or Slab Joint with Pin Item R (H+W) Weight (kg) DESCRIPTION:
125 WS 2400 19.01
& Wedge. Used to connect wall panels at external
100 WS 2400 18.21 63.5 R 45 600 1.02 corner area.
63.5 R 50 600 1.06
External
Corner Joint
Kicker Item K(LxH) Weight (kg)
Item EC(H) Weight (kg) DESCRIPTION:
350 K 1800 12.59
Used to connect wall panels at external
63.5×63.5 EC 2400 4.81 corner area. 350 K 1200 8.50
DESCRIPTION:
63.5×63.5 EC 600 1.21 300 K 1800 11.30 Kickers are fixed on the external wall
panels with kicker screws before concrete
300 K 1200 7.62 pouring. The function of kickers is to
support the external wall panels for next
150 K 1800 7.31
floor.
150 K 1200 4.92
17 18GETO -- BEAM Beam Corner Joint Item（A1+A2)LS(L) Weight (kg)
100×100 LS 200 2.24
Beam Soffit
Item BS(HxL) Weight (kg) 100×120 LS 200 2.57
100×125 LS 200 2.64
400 BS 1100 13.35
100×130 LS 200 2.74 DESCRIPTION:
300 BS 1100 11.69 Use for internal corners usually at beams.
REMARKS: 100×140 LS 200 2.85 Connect to other panels using Pin &
250 BS 1100 10.84 With external corner at both sides. Wedge.
100×150 LS 200 2.99
200 BS 1100 8.37
DESCRIPTION:
100×160 LS 200 3.13
150 BS 1100 9.20 Beam soffit issued to support Beam.
150×150 LS 200 3.70
125 BS 1100 8.79
Beam Side Panel
Item B(HxL) Weight (kg)
Item BSB(HxL) Weight (kg)
400 B 1100 8.71
Beam Soffit 400 BSB 1100 8.71
300 B 1100 7.05
300 BSB 1100 7.05 DESCRIPTION:
REMARKS: 200 B 1100 5.40 Use for internal corners usually at beams.
250 BSB 1100 6.20 Without external corner at both sides. Connect to other panels using Pin &
150 B 1100 4.56
Wedge.
200 BSB 1100 5.39
DESCRIPTION: 100 B 1100 3.73
150 BSB 1100 4.56 Beam soffit issued to support Beam.
125 BSB 1100 4.15
Beam internal Item (A1+A2) IC (H) Weight (kg)
Item BP(HxL) Weight (kg) corner
100×100 IC 400 2.05
300 BP 300 2.51
100×150 IC 400 2.42
Beam Prop Head 200 BP 300 1.98 DESCRIPTION:
150×150 IC 400 2.79 Internal corner joint is used to connect
200 BP 250 1.72 panels at internal corner. The height of IC
100×100 IC 600 3.17
are equal to the beam side panel height.
200 BP 200 1.47
100×150 IC 600 3.77
150 BP 300 1.71 DESCRIPTION:
Panel to support beam and use to join two 150×150 IC 600 4.37
150 BP 200 1.26 Beam Bottom with Pin & Wedge.
150 BP 150 1.03
Prop Head
Beam Outer
Item PH(HxL) Weight (kg) Corner Item (A1+A2) LC (L1+L2) Weight (kg)
DESCRIPTION: DESCRIPTION:
150 PH 330 1.74 Use to join the beams together 100×100 LC 400+400 4.76 Use for internal corners usually at beams.
(Middle beam and/or End beam), the steel Connect to other panels using Pin &
150 PH 280 1.50 props will be placed under the prop head. 100×150 LC 400+400 5.87 Wedge.
150 PH 230 1.26 150×150 LC 400+400 7.00
19 20GETO -- SLAB
Item D(WxL) Weight (kg) Item EB Weight (kg)
Slab Panel 600 D 1200 12.84 150 EB 300 2.42
End Beam
450 D 1200 10.19 150 EB 400 3.20
DESCRIPTION: DESCRIPTION:
400 D 1200 9.34 The slab panel will be used to support the 150 EB 500 3.97 Use to join the prop head and slab corner,
300 D 1200 7.29 concrete weight during concrete the end beam supports the slab panels.
150 EB 600 4.75
pouring and casting.
200 D 1200 6.91 150 EB 700 5.53
150 EB 800 6.31
Item (A1+A2) SN (L) Weight (kg)
100×100 SN 1800 9.95
Slab Corner Joint 100×120 SN 1800 10.79 Middle Beam Item MB Weight (kg) DESCRIPTION:
100×125 SN 1800 10.99 Use to join the prop heads, the middle
150 MB 1050 8.41 beam supports the slab panels.
100×130 SN 1800 11.48
150 MB 900 7.16
100×140 SN 1800 11.60
DESCRIPTION:
100×150 SN 1800 12.00 The slab corner joint will be used to
100×160 SN 1800 12.40 connect the wall panel and slab panel.
150×150 SN 1800 14.01
Prop Head
Slab Incorner Joint
Item (A1+A2) SC (L1+L2) Weight (kg)
DESCRIPTION: DESCRIPTION:
Item PH Weight (kg) Prop head to support the slab with steel 100×100 SC 400+400 4.76 The slab incorner joint will be used to
props.Also it will be connected with long connect the wall panel and slab panel at
150 PH 300 2.50 pin & wedge and BB bar for middle beam 100×150 SC 400+400 5.87 the incorner position.
& end beam.
150×150 SC 400+400 7.00
21 22Working Process
Leveling and structural line Wall Panels setup Beam Panels setup Slab Panels setup Kickers setup Staircase Panels setup Installation of M&E,rebar Inspection and acceptance
The site surveyor shall based on the Installation of M&E, plumbing Setup beam panels according to the Fixed the slab corner panels on the Kickers are fixed on the external The staircase panels setup process Installation of M&E, plumbing All the vertical panels shall be fixed in
approved construction drawings to components and steel rebar. Then the construction drawing for beam soffit top of wall panels. Then the slab wall panels with kicker screws shall be staircase soffit length, step components , steel rebar and slab position and the external corner
ensure that the structural line and wall panels setup process shall be the panels, beam support, beam side panels setup process shall be middle before concrete pouring. The panels, step angles,etc. box-out. should be checked. This will
level of the slab is properly set up. inner corner wall panels, inner wall panels, etc. beam, prop head, end beam, slab function of kickers is to support the determine if further action is required
panels, flat-tie, external wall panels, panels, etc. external wall panels for next floor. to control the deviation.
pin and wedges.
Concrete pouring Wall Panels dismantlement Beam Panels dismantlement Slab Panels dismantlement Kickers dismantlement Flat ties & PVC sleeves Panels cleansing Transfer Panels
Concrete pouring is distributed evenly The first wall panel will be the most Remove all pins and wedges from After remove all pin and wedges, The wall panels are removed to Flat ties are used to ensure the wall All components shall be cleaned Transfer all panels out
throughout the wall secti before difficult to remove out from wall. the section of beam side. Then, middle beam and end beam will be disconnecting the lower kicker from thickness and fixed the wall panels. after dismantlement for a better through Slab box to large open
commencing to cast the slab areas. And it's forbidden to remove it remove all the beam panels. easily removed. BTW, the prop head the adjacent formwork and prepared PVC sleeves are used to protect the quality in next floor. space.After that, it can be filled with
violently. and steel props must not be removed for reuse. flat tie so as to reuse it. Both of it can second-time concrete.
to support the floor slab. be removed by special tools.
23 24Quick-Deck Formwork System Projects in China
GETO Quick-Deck Formwork System is developed to construct large slab areas quickly, safely, with minimal labour, and is fully Pingding mountain Country garden
Zhangzhou Yango property-Versailles Guangzhou CRCE-South Headquarters
-Pingding mountain Tianxi
compatible with all GETO formwork systems or timber formwork. This is an advanced aluminium deck-prop-formwork system
which allows early dismantling operation.
The 1.2m X 1.8m lightweight aluminium deck panels are easy and safe to erect using a minimum of only two workers by swivelling
the panel upwards from below and locking it into our quick release prop heads for a fast, safe and systematic assembly procedure.
Removing the formwork is also simple with our specially designed quick release prop head that allows the panels to drop from the
formed surface without disturbing the prop. The newly developed 2-stage lowering function of the quick release prop head prevents
panels from accidentally falling during dismantling and speeds up the formwork dismantling process.
As quick deck formwork panels are standard sizes and not specifically designed for one project, they are able to be re-used repeatedly
on new projects without additional design costs by 100%. Nanning Poly real estate-Lingxiu residence Jinjiang Avitation Industrial-Tianxi City Fuzhou Country Garden - Ten Miles River Bay
Also, the standard panels are allowed to transfer by small handcart in site which is convenient for site construction.
Advantages
Shenzhen Construction Engineering Group
Fast Construction. All components are light enough to erect, assembly & Nanning Haitian real estate-Kaixuan No.1 Guyang zunyi- Longjing Phase
-CUHK Shenzhen campus
dismantle by labour without heavy cranes.
Easy & Compatible. GETO Quick-Deck Formwork System are allowed and
easy to compatible with other aluminium formwork system and timber
formwork system. So it's able to be used in any areas without limitations.
Intelligent Prop Head. The special prop heads and props can be seperated.
And the props are able to be used in traditional aluminium formwork system.
High Quality. The concrete surface by aluminium panel will be better than
other formwork.
Suqian Country garden Xuzhou Risesun property
Foshan Time Square-Waterfront Garden
-Dangshan Country garden -Risesun Chengquan Sheng Mei Jia
25 26Projects in Singapore
The ALPS Santorini TNIM COLLECTION Ang Mo Kio Court(Ang Mo Kio N2C31)
Tampines Senja Ridges(Bukit Panjang N6C12) POIZ Queenspeak
Bukit Panjang N6C15 Bedok LE QUEST Mercedes Benz Center
27 28Projects in Malaysia
Skyridge Gardon @ Penang IOI CITY MALL MAYA Residence Pavilion Hilltop @ PAVILION
PAVANA RESIDENCE @ Meleka Forest City Landmark Phase 1 @ Country Garden Forest City P52 @ Country Garden The Trion @ Binastra
Paradigm Mall @ WCT NOVO Ampang @ Alfranko The ERA-Duta North @ JKG The Tropika @ Berjaya Land
29 30Projects in India
71 Rain Tree Shreeji Atlantis Lotus Park View MJS Rehab-2 Platnum Vogue - D.N.Nagar
Adhirit Tower Satra Properties Jia Rameshwar Marine Palace Satra Eastern Heights
31 32Projects in Cambodia Other Project References
Office and Villa Street 2004 Bakong Village Andaluz-Panama IMPERIAL-Panama
Sea Gate The GIA TOWER SIENNA-Panama Emperatriz-Panama
R&F CITY The Wellington-Jamaica
33 34Integral prefabricated slab and column project-Kazakhstan Silos Foundation-Romania UDA housing project-Sri Lanka Oran 3000 units affordable house-Algeria
Bak Villas-The United Arab Emirates Ho Chi Minh CT03 project-Vietnam Spectacular heights development-Jamaica COFICO - Argentina
Azumi phase II-Philippines Cite Residintielle-Djibouti
35 36You can also read
