ANAVIA HT-100
The most advanced
VTOL system worldwide.
FLIGHT PERFORMANCE. UNMANNED.
ANAVIA HT-100
Economical, safe
and intelligent.
« A s p a r t o f o u r f a m i ly c r e s t ,
St. George stands for courage, vision and
t h e m a s t e r y o f s e e m i n g ly o v e r w h e l m i n g
challenges – ANAVIA is the next chapter
in this tradition.» Uncompromising perfor- Up to 65 kg of airload. 250 flight minutes with
mance and safety attri- Rapid change of payloads 65 kg airload. Thanks
butes. Can be used around given modular connection to highly innovative drive
the clock in any terrain technology. technology and 60 l
Jon Andri Jörg, CEO ANAVIA
and even adverse weather fuel tank.
conditions.
Every mission needs an experienced team and a leader. One that
combines reliability and intelligence. One that inspires the team to reach
new heights. A leader like the ANAVIA HT-100. Every detail of this
unmanned helicopter is infused with a spirit of discovery. A drive that
forever strives to stay ahead of times. We pursue one grand
objective: perfect mission achievement in every situation. With its
reliability and versatility, the ANAVIA HT-100 is the ne plus ultra
of unmanned VTOL systems. For every mission. For every deployment. Ready for take-off in Self-maintenance during Optimal price-performance
15 minutes thanks to the 250 flight hours given ratio thanks to the
user-friendly technology highest quality of compo- low total cost of owner-
of the aircraft and ground nents and innovative ship per flight hour.
station. monitoring technology of
the parameters.
For demanding flight missions
Maximum reliability and performance
over long deployment times.

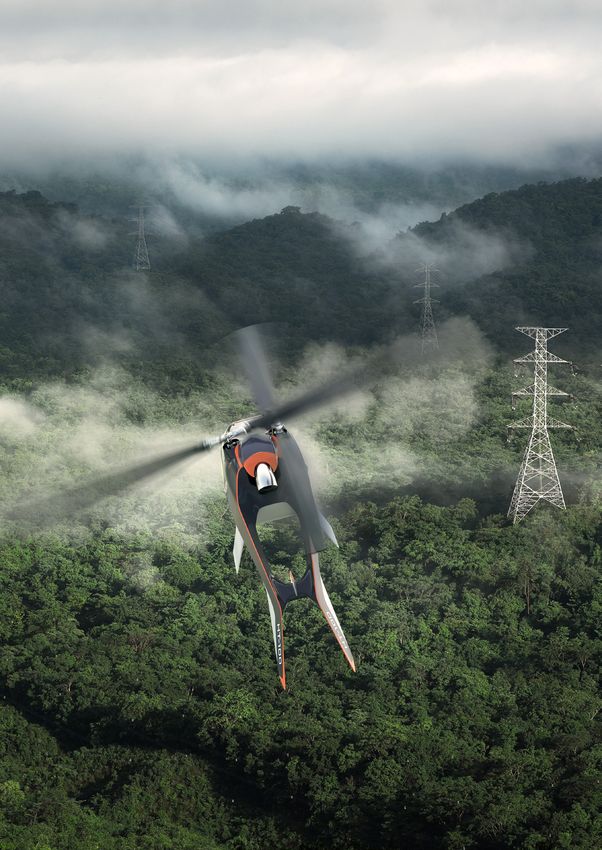

Surveying / Inspection
No matter how expansive,
remote and climatically
challenging the target
region may be, the ANAVIA
HT-100 flies its mission
as the carrier of high-pre-
Range
cision and often heavy
sensor systems. The high
payload compatibility
allows the use of different
surveying systems such
as lidar scanners, multi-
and hyperspectral devices
and much more – around
of use
the clock, with low staffing
requirements and low
costs, as only the ANAVIA
HT-100 can offer.
Logistics
With its high airload
capacity of up to 65 kg and
its reach, the ANAVIA
HT-100 is the ideal trans-
port system for time-
critical logistics jobs. The
ANAVIA HT-100 enables
fast delivery of goods to
hard-to-reach areas
with lower flight costs
than comparable systems.
Regardless of the weather,
season and time of day.
Surveillance
Its exceptional maximum

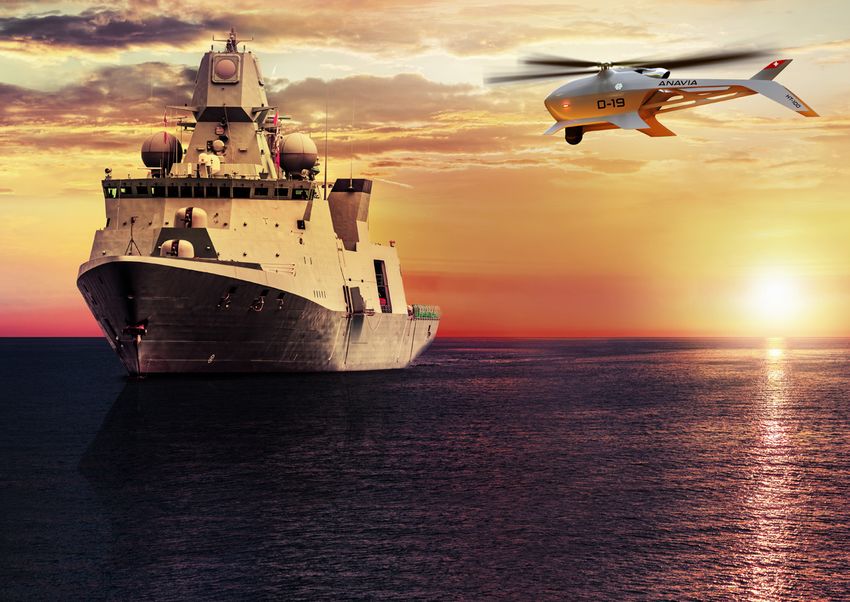

flight duration and rapid Reconnaissance & Cargo
readiness are just two of (land and sea)
the sought-after charac-
teristics of the ANAVIA Unmanned reconnaissance
HT-100 when it comes to and cargo missions of
security-related missions military supplies under harsh
to protect and monitor climatic conditions require
the integrity of expansive a modular, all-weather
properties, infrastructures capable and durable flight
and events. As a carrier platform. With a flight
system for a wide range of time of more than 250 mi-
surveillance instruments, nutes, the modular pay-
it provides all the critical load options and the high-
information to inspection performance carbon
and supervisory bodies or airframe even under de-
emergency services such manding maritime weather
as the police, border and conditions, the HT-100
costal guards. has exactly the properties
that are «mission critical»
during tactical operations.
Autonomy Technology
The new benchmark • Easy to fly thanks
to the latest gene-
• High-performance
lightweight carbon
Unparalleled safety, performance ration automatic flight
control system.
construction for cell
and rotor blades.
and ease of operation. • Automatic and fully
autonomous return
• Flettner double rotor
system enables high
flight in case of lost payloads and flight
radio contact with stability.
ground station. • Reliable, powerful back-
• Crystal clear radio up electric drive as
Mission control communication be- an emergency system.
tween the crew • Intelligent redundancy
• Easy-to-operate • Multifunctional and given with advanced system for uncompro-
flight system easy handling thanks radio headsets. mising safety.
• Fast and easy to the ergonomic and • Low vibration
programming of intuitive arrangement thanks to the 15 kW
auto-nomous of the controls. shaft turbine.
missions on a • Low-maintenance,
user-friendly closed, high-tech
interface. gearbox.
• Continuous informa- • Proven, state-of-
tion concerning the the-art hardware
flight data thanks to and software.
real-time telemetry
information.
Modular concept
• Simple and fast pay-
Ease of operation load change for a wide
variety of sensors
and transport systems. kgkg
• The system is suitable • Rapid readiness thanks • Excellent mobility with • Custom solutions
for both stationary and to the intelligent a secure transport possible thanks to our
mobile use. and intuitive design system. broad expertise.
of the hardware • Payload control via Gimbal LiDAR & Airborne
and software. a secure and reliable Aerial Magnetometer
cameras
ANAVIA
data link.
kg kg
Transport Other
HT-100
system On request
Up to 50 kg
Optional accessories
Because every flight needs
the right equipment.
Every flight mission has its own specific requirements. A high degree
of individualization – particularly for payload integration – is therefore
often necessary. With its highly modular design and compatibility,
the concept of the HT-100 enables the implementation of even unusual
requirements. The external appearance can also be created according
to your corporate design.
Exceptional safety provi- Skids in 3 standard Antennas, tripods, team
ded by backup electric heights as well as custo- radio headsets for secure
motor and safety sensors. mized landing gear with communication and data
Long-range visibility given optional connection of transmission.
transponder and FLARM. sensors.
100 l tank vehicle for opti- Power generator to ensure High-tech climate and
mal supply of the HT-100. adequate power for longer secure transport
missions. case for safe transport
and dry storage in
all climatic conditions.
Ambitious goals are accomplished with a
clear mind and precise engineering.
Toolkit for executing Custom painting with
all maintenance and individual color scheme. Manfred Aigner, Engineer
servicing work.

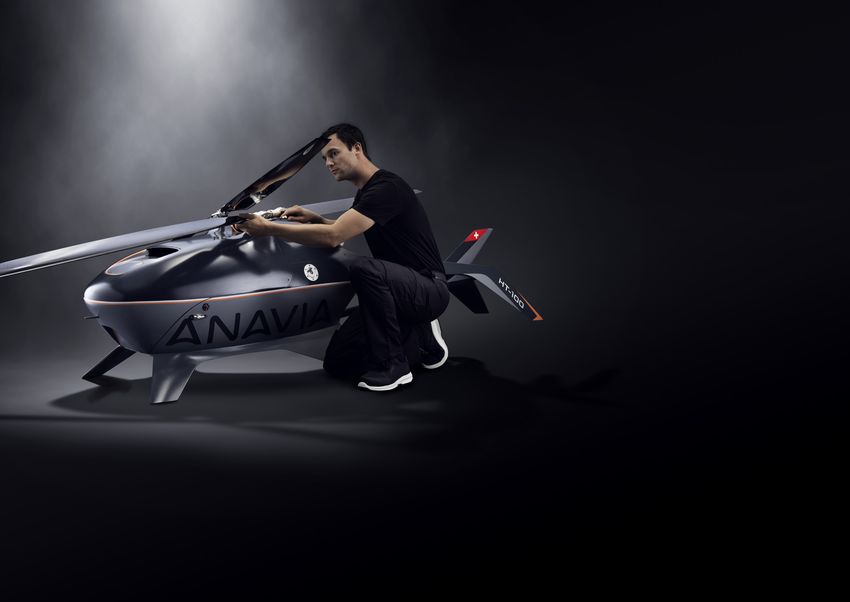

Operation and maintenance
Because professional users need to fly
safe and successful missions.
Training Customer service
The operation and main- In order to guarantee
tenance of the HT-100 our customers maximum
requires sound theoretical operational readiness of
and practical knowledge, their HT-100, our technical
which ANAVIA conscienti- customer service is avai-
ously teaches and tests. lable around the clock.
Contents include under- Our “Flying Doctors” take
standing of all technical care of inspections and re-
components and their pairs all over the world and
interactions, handling and handle the procurement
piloting the helicopter, of spare parts, whose rapid
programming and execu- availability is guaranteed
ting autonomous flights, at all times thanks to our
Training &
performing pre-flight and in-house production and
post-flight checks and pe- safety stock.
riodic self-maintenance.
All acquired skills are safe-
ty-relevant requirements
for a successful flight
mission and are therefore
Service
validated by ANAVIA
through certificates.
Superior expertise
Over 150 years of know-how and
experience in high-tech engineering.
Lightweight
construction Customization
The development, material With engineering expertise,
selection and technology innovative acumen and
of the HT-100 combines many years of experience
innovations that have in high-tech, lightweight
been applied and tested carbon construction, we
over many years of safe can offer our customers
aerospace and innovative any kind of special solution
motorsport applications. around the HT-100. Light-
ANAVIA was established ness and durability are
in 2019 as a business unit important efficiency and
of the CONNOVA Group, safety factors, such as
a leading global developer custom payload connections.
and manufacturer of
high-tech carbon compo-
Heritage &
site products for the
aerospace industry and
motor racing sector.
CONNOVA’s 30 years of
experience in innovative
composite and lightweight
construction technology is
Expertise
in the DNA of every ANAVIA
helicopter. More informa-
tion: www.connova.comCompelling
Due to innovative technology and
high-performance functionality.
Performance Safety
• Autorotation:
Payload and fuel 65 kg (143 lbs)
Programmed auto-
Max. flight time 250 min. rotation when
the RPM drops.
Max. airspeed 120 km/h (65 kn)
Max. flight distance/ 100 km/50 kg (54 nm/110 lbs) • Safety motor *:
payload weight 200 km/40 kg (108 nm/88 lbs) Electric backup motor –
300 km/30 kg (162 nm/66 lbs) redundant components.
400 km/20 kg (216 nm/44 lbs)
• Drone rescue system *:
Max. take-off weight 120 kg (264 lbs)
Automatically deploy-
Operating ceiling able parachute system,
(max. density altitude) 3000 m (10.000 ft) minimizes ground risk
and reduces damages.
Technical data
• Flight control:
Redundantly designed
Turbine 15 kW shaft turbine with four actuators.
Rotor Flettner double rotor system
• Transponder/FLARM® *:
Empty weight 55 kg (121 lbs) Reduces risk of collision
Tank capacity 60 liters (15.8 gallons) and increases the
safety of airspace
Fuel types Jet A1 – other fuel types users.
on demand (JP-8, JP-5)
Fuel consumption 13 l/h (3.43 gallons/h) • Mandatory position
lights and strobe light:
Data link type fully encrypted MESH IP Due to the arrangement
(SATCOM and LTE on demand) of the position lights,
Facts &
Data link range depending on national regulations, the aircraft is visible
radio setup, antenna configuration from a long distance.
and terrain topography up to 200 km
* optional features
Operating temperature -25 °C to +55 °C, -13 °F to +131 °F
Max. wind speed 46 km/h (25 kn)
Start and landing fully autonomous
figures
Dimensions
Rotor diameter 3.75 m (12.00 ft)
Dimensions L/W/H 2.82 m x 0.72 m x 1.00 m
(9.25 ft x 2.36 ft x 3.28 ft)The beginning of a successful mission:
