MISTRAL
Ayrton has once again pushed the limits with
MistralTM. A versatile, new fully equipped 300W
spot luminaire in the same ultra-compact format as
Merak. Its new 13-lens proprietary optical system
delivers a 8:1 zoom ratio with a zoom range of 6.7°
to 53°. The optics, equipped with a 119 mm frontal
lens, can achieve an extremely uniform flat beam
that can render images perfectly in all conditions
and at any beam angle. Mistral comes in two
versions, each to meet the specific requirements
of lighting professionals. Mistral-S is designed for
scenic applications. It is equipped with a new LED
module, delivering powerful metallic white light
with record-breaking output of 18,000 lumens
and a colour temperature of 6500 K. Devised
specifically for applications that require perfect
OPTICS microprocessors ensure extreme accuracy and smooth FROST
• 13 elements 8:1 zoom high-resolution optic system movements • Light frost filter (Heavy frost filter in option)
• Beam aperture: 6.7° to 53° • Pan and tilt with automatic repositioning
• Fast motorised linear zoom • Moving head range: 540° (pan), 270° (tilt) EFFECTS
• Tempered anti-reflective coated lenses • Focusable graphic animation effect-wheel with
• 119 mm front lens for ultimate performance COLOURS continuous rotation in both directions
• Sophisticated colour mix system providing CMY colour • 5-facet circular indexable rotating prism
LIGHT SOURCE mixing • Sparkle effect: dynamic animation effect with speed
MISTRAL-S • Variable CTO colour temperature correction and fade adjustment
• 26,000 lumens 8000 K white light engine • Fixed colour wheel with seven saturated colour filters
• Total luminaire output: up to 18,000 lumens
DIMMER / STROBE
• Colour temperature output: 6500 K GOBOS • Electronic dimmer, allowing perfect light adjustment
• CRI: greater than 70 Indexable rotating gobo wheel with 7 high precision
• from 0 to 100% without colour variation
MISTRAL-TC glass gobos plus open position • Strobe effect, with speed adjustment from 1 to 25 flashes
• 21,000 lumens 7000 K white light engine Adjustable speed rotating gobo in both directions
• per second
• Total luminaire output: up to 14,000 lumens • Fixed gobo wheel with 9 high precision glass gobos
• Colour temperature output: 5700 K plus open position
• CRI: greater than 90
SOFTWARE FEATURES
• Gobo diameter: 25.0 mm • Local DMX addressing of luminaire and optional
MISTRAL-S & MISTRAL-TC • Image diameter: 20.0 mm parameters through its built-in LCD control panel
• Rated life (L70): up to 40,000 hours • Gobo thickness: 1.1 mm • Remote DMX addressing of luminaire and optional
• Flicker-free source management suitable for TV
parameters through a standard RDM DMX controller
applications and all video-recorded events IRIS DIAPHRAGM • Information menu including hour counter, temperature,
• Fast iris diaphragme with adjustable dynamic effects software version
MOVEMENT • Iris range : 15 to 100% open
• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via
300W Spot luminaire
colour reproduction, Mistral-TC is equipped with an entirely new LED module using
a monochromatic light source with a native colour rendering index greater than 90,
extremely high TM30 readings and a colour temperature of 5700 K.
Feature-rich from the factory. Mistral includes a CMY colour mixing system
combined with a variable CTO and a seven-position complementary colour wheel
for producing an infinite palette of vivid pastels and saturated colours. The effects
section includes 16 interchangeable HD glass gobos on two wheels: one rotating
wheel with seven positions and one fixed wheel with nine positions. Its continuous
dynamic effects wheel can be used in combination with the two gobo wheels to
create unique graphical effects. Mistral also features a 15-blade iris diaphragm, a
five-facet rotating prism, and a soft-edge frost filter as standard equipment. Mistral
has a highly efficient phase-change liquid cooling system using a heat pipe that
includes a particularly effective Silent ventilation mode, designed for studio and
theatre applications.
HARDWARE FEATURES COOLING SYSTEM OPERATING PARAMETERS
• Graphic LCD display for addressing and special functions • Advanced liquid cooling system • Operating positions: all (device on floor or fixed to a
settings, with flip function • Self-adjusting variable speed fans for quiet operation support)
• Clicking jog wheel to set functions (Auto mode) • Maximum permitted ambient temperature (Ta max):
• Excess temperature protection • Selectable ventilation user’s modes with a new Silent 45° C (113° F)
• Integrated wireless CRMX TiMo™ RDM receiver from Mode • Minimum permitted ambient temperature (Ta min): -10°
LumenRadio™ • Safety protection against temperatures excesses C (14° F)
• XLR 5 pin male and female connectors for DMX • Minimum usage distance: 1.5 m (4.92 ft)
connection HOUSING
• PowerCON TRUE1 male and female connectors for • Moving-head skeleton made of aluminium and steel COMPLIANCE
power connection metal plates • EMC Directive 2014/30/EU
• Base in die-cast aluminium • LVD Directive 2014/35/EU
CONTROL • Heatsinks in aluminium and copper
• DMX 512 protocol, through DMX cable or a wireless • Moulded covers in self-extinguishing fire retardant ABS SIZE
system PC (V0 class) • Product: 365 x 591 x 212 mm (l x h x d)
• DMX-RDM compatible • Two-side handles for transportation • Flight-case Foam : 450 x 620 x 280 mm (l x h x d)
• Stand-alone mode and Master/Slave modes • Four heavy-duty feet for better stability
• Local control panel, with LCD display • IP20 protection rating
• Choice of 3 DMX modes (from 26 to 39 DMX channels) • Exterior finish: black (Carbon)
WEIGHT
• Product: 18.9 KG
POWER SUPPLY INSTALLATION PRODUCT CODES
• Electronic supply with active PFC • Fastening brackets system: two Omega ¼ turn brackets
• 011240 : MISTRAL-S SPOT LUMINAIRE
• 100 to 240 Volts – 50/60Hz designed for use with standard clamps
• 011250 : MISTRAL-TC SPOT LUMINAIRE
• Power: 450 Watt max • Mounting points: four ¼ turn locking fittings allowing
installation of Omega brackets on luminaire
• Safety cable attachment point LEGAL
• MISTRAL is AYRTON registered Trademark
• MISTRAL is a patented model
7
Specifications subject to change without notice.
DIABLO
Ayrton’s latest innovation, DiabloTM, is a versatile,
feature-rich 300-Watt profile luminaire based on
the ultra-compact Mistral format. The company
has taken on the ambitious challenge of making
Diablo the smallest, lightest and most efficient
luminaire of its category. With a record output of
19,000 lumens and a total weight of 21.8 kg, Diablo
is a powerhouse of technology that will tempt the
most demanding lighting designers. To achieve
its objective, Ayrton has miniaturised the framing
system while maximizing the performance level.
As in other profile luminaires of the product line,
the framing section allows accurate positioning
of its four shutter blades on a 100% surface area
in all positions, so that the user can frame any
object regardless of the luminaire’s position. A
new ultra-compact high-output 550 W power
supply feeds eight additional motors in the framing
system, fitting into the original Mistral format.
OPTICS microprocessors to ensure extreme accuracy and FROST
• 13-element 8:1 zoom high-resolution optic system smooth movement • Heavy frost filter
• Beam aperture: 6.7° to 53° • Pan and tilt with automatic repositioning • Light frost filter (optional)
• Fast motorised linear zoom • Moving-head range: 540° (pan), 270° (tilt)
• Tempered anti-reflective coated lenses EFFECTS
• 119 mm frontal lens for greater performance COLOURS • Graphic animation effect-wheel with continuous rotation
• Sophisticated colour mix system providing CMY colour in both directions
LIGHT SOURCE mixing • 5-facet circular indexable rotating prism
DIABLO-S • Variable CTO colour temperature correction • Sparkle effect: dynamic animation effect with speed
• 26,500 lumens, 8000 K white-light engine • Fixed colour wheel with seven complementary colours and fade adjustment
• Total luminaire output: up to 19,000 lumens
• Colour temperature output: 6500 K GOBOS DIMMER / STROBE
• CRI: greater than 70 Indexable rotating gobo wheel with 7 high-precision
• • Electronic dimmer, allowing perfect light adjustment
DIABLO-TC glass gobos, plus open position from 0 to 100% without colour variation
• 20,500 lumens 7000 K white-light engine Adjustable-speed rotating gobo in both directions
• • White or colour strobe effect, with speed adjustment
• Total luminaire output: up to 14,000 lumens Gobo diameter: 25.0 mm
• from 1 to 25 flashes per second
• Colour temperature output: 5700 K • Image diameter: 20.0 mm
• CRI: greater than 90 Gobo thickness: 1.1 mm
DIABLO-S & DIABLO-TC
•
SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional
• Rated life (L70): up to 40,000 hours
FRAMING SYSTEM parameters through a built-in LCD control panel
• Flicker-free source management suitable for TV
• 4 individually positionable shutter blades • Remote DMX addressing of luminaire and optional
applications and all video-recorded events Rotation of the framing system module: +/- 45°
• parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature,
MOVEMENT IRIS DIAPHRAGM software version
• Extremely accurate positioning • Fast iris diaphragm with adjustable dynamic effects
• Moving-head operated with either 8- or 16-bit resolution • Iris range: 15% to 100% open
• High-resolution stepper motors operated via
300W Profile luminaire
Diablo borrows the same 13-element proprietary optical system delivering an 8:1
zoom ratio with a zoom range of 6.7° to 53°. The 119 mm frontal lens can produce
an extremely uniform flat beam that can render images perfectly in all conditions
and at any beam angle.
Diablo is available in two versions: S and TC. Diablo-S, specially designed for stage
applications, is equipped with a monochromatic LED light source that can generate
extremely high output and metallic white light calibrated at 6500 K. Diablo-TC is
geared for applications that require perfect colour rendition, using a monochromatic
light source with a native colour rendering index greater than 90 and high TM30
readings, at a colour temperature of 5700 K. Fully equipped at the factory, Diablo
includes a CMY colour mixing system combined with a progressive CTO and a
wheel with seven complementary colours that produces an infinite palette of bright
pastels and saturated colours. The effects section includes a wheel with seven
interchangeable HD glass gobos, a continuous dynamic effects wheel, a 15-blade
iris diaphragm, a heavy frost filter and a five-facet circular rotating prism. Diablo
has a highly efficient phase-change liquid cooling system using a heat pipe that
includes a particularly effective ultra-silent ventilation mode, perfect for stage and
studio applications.
HARDWARE FEATURES COOLING SYSTEM OPERATING PARAMETERS
• Graphic LCD display for addressing and special functions • Advanced liquid cooling system • Operating positions: all (device on floor or fixed to a
settings, with flip function • Self-adjusting variable speed fans for quiet operation support)
• Clicking jog wheel to set functions (Auto mode) • Maximum permitted ambient temperature (Ta max):
• Excess-temperature protection • Selectable ventilation user modes including a new 45° C (113° F)
• Integrated wireless CRMX TiMo™ RDM receiver from Silent Mode • Minimum permitted ambient temperature (Ta min): -10°
LumenRadio™ • Safety protection against temperatures excesses C (14° F)
• XLR 5-pin male and female connectors for DMX • Minimum usage distance: 1.5 m (4.92 ft)
connection HOUSING
• PowerCON TRUE1 male and female connectors for • Moving-head skeleton made of aluminium and steel COMPLIANCE
power connection metal plates • EMC Directive 2014/30/EU
• Base in die-cast aluminium • LVD Directive 2014/35/EU
CONTROL • Aluminium and copper heatsinks
• DMX 512 protocol, through DMX cable or a wireless • Moulded covers in self-extinguishing fire retardant ABS SIZE
system PC (V0 class) • Product: 365 x 591 x 212 mm (l x h x d)
• DMX-RDM compatible • Two-side handles for transportation • Flight-case foam: 430 x 660 x 280 mm (l x h x d)
• Stand-alone mode and Master/Slave modes • Four heavy-duty feet for better stability
• Local control panel, with LCD display • IP20 protection rating
• Choice of 3 DMX modes (from 36 to 56 DMX channels) • Exterior finish: black (Carbon)
WEIGHT
• Product: 21.8 KG
POWER SUPPLY INSTALLATION PRODUCT CODES
• Electronic supply with active PFC • Fastening-bracket system: two Omega ¼ turn brackets
• 011340: DIABLO-S PROFILE LUMINAIRE
• 100 to 240 Volts – 50/60Hz designed for use with standard clamps
• 011350: DIABLO-TC PROFILE LUMINAIRE
• Power: 550 W maximum • Mounting points: four ¼ turn locking fittings allowing
installation of Omega brackets on luminaire
• Safety-cable attachment point LEGAL
• DIABLO is AYRTON registered Trademark
• DIABLO is a patented model
9
Specifications subject to change without notice.
GHIBLI
Ghibli™ is Ayrton’s first LED spot luminaire that is
factory-equipped with a framing system designed
to offer lighting designers unlimited creative
possibilities without any compromise. Fitted with
a LED module using a high-output, low-etendue
monochromatic light source calibrated at 6500 K,
Ghibli delivers light output of 23,000 lumens in a
highly compact format. The proprietary optical
system, equipped with a 137mm frontal lens, has
13 high-quality lenses, delivering an 8:1 zoom ratio
and a zoom range of 7° to 56°. The optics produce
an extremely uniform fat beam with no hot spot.
The selection of gobos and colours was made in
collaboration with lighting designers to meet the
needs of the entertainment industry.
OPTICS microprocessors to ensure extreme accuracy and IRIS DIAPHRAGM
• 13 elements 8:1 zoom high-resolution optic system smooth movement • Fast iris diaphragm with adjustable dynamic effects
• Beam aperture: 7° to 56° • Pan and tilt with automatic repositioning • Iris range: 15% to 100% open
• Fast motorised linear zoom • Moving-head range: 540° (pan), 270° (tilt)
• Tempered anti-reflective coated lenses FROST
• 137 mm frontal lens for greater performance COLOURS • 2 frost filters: one light, one heavy
• Sophisticated colour mix system providing CMY colour
LIGHT SOURCE mixing EFFECTS
GHIBLI-S • Variable CTO colour temperature correction • Graphic animation effect-wheel with continuous rotation
• 36,000 lumens 8000 K white light engine • Fixed colour wheel with six complementary colours in both directions
• Total luminaire output: up to 23,000 lumens and High CRI filter • 5-facet circular rotating and indexable prism
• Colour temperature output: 6500 K
• Sparkle effect: dynamic animation effect with speed
• CRI: greater than 70 GOBOS and fade adjustment
GHIBLI-TC • Indexable rotating gobo wheels with 7 high-precision
• 26,000 lumens 7000 K white light engine glass gobos, plus open position
• Total luminaire output: up to 17,000 lumens
DIMMER / STROBE
• Adjustable-speed rotating gobo in both directions • Electronic dimmer, allowing perfect light adjustment
• Colour temperature output: 5700 K • Fixed gobo wheel with 8 high-precision glass gobos, from 0 to 100% without colour variation
• CRI: greater than 90 plus open position • Strobe effect, with speed adjustment from 1 to 25 flashes
GHIBLI-S & GHIBLI-TC • Gobo diameter: 30.0 mm per second
• Rated life (L70): up to 40,000 hours • Image diameter: 22.0 mm
• Flicker-free source management suitable for TV • Gobo thickness: 1.1 mm
applications and all video-recorded events SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional
FRAMING SYSTEM parameters through its built-in LCD control panel
MOVEMENT • 4 individually positionable shutter blades on a 100% • Remote DMX addressing of luminaire and optional
• Extremely accurate positioning surface area in all positions parameters through a standard RDM DMX controller
• Moving-head operated via either 8- or 16-bit resolution • Rotation of the framing system module: +/- 45° • Information menu including hour counter, temperature,
• High-resolution stepper motors operated via
software version600W Profile luminaire
Ayrton has concentrated its expertise into one, single fixture Ghibli to offer you
a maximum of possibilities. Think versatile. Think Ghibli. Standard features on
Ghibli include a CMY colour mixing system combined with a variable CTO and
a six-position complementary colour wheel to produce in an infinite palette of
pastels and saturated colours. The luminaire is fitted with an entirely new filter for
optimising the colour rendering index. The framing system allows each frame to
be positioned with precision on a 100% surface area in all positions. The effects
section includes two wheels with interchangeable HD glass gobos: one with seven
rotating and the other with eight fixed gobos; a continuous dynamic effects wheel;
an iris diaphragm; two frost filters and a five-facet rotating prism. Ghibli is equipped
with a new, highly effective phase-change liquid cooling system using a heat pipe.
HARDWARE FEATURES COOLING SYSTEM OPERATING PARAMETERS
• Graphic LCD display for addressing and special functions • Advanced liquid cooling system • Operating positions: all (device on floor or fixed to a
settings, with flip function • Self-adjusting variable speed fans for quiet operation support)
• Clicking jog wheel to set functions (Auto mode) • Maximum permitted ambient temperature (Ta max):
• Excess temperature protection • Selectable ventilation user’s modes with a new Silent 45° C (113° F)
• Integrated wireless CRMX TiMo™ RDM receiver from Mode • Minimum permitted ambient temperature (Ta min): -10°
LumenRadio™ • Safety protection against temperatures excesses C (14° F)
• XLR 5 pin male and female connectors for DMX • Minimum usage distance: 2.0 m (6.56 ft)
connection HOUSING
• Ethercon RJ45 IN / OUT connectors for ArtNet™ • Moving-head skeleton made of aluminium and steel COMPLIANCE
connection metal plates • EMC Directive 2014/30/EU
• PowerCON TRUE1 male connector for power connection • Base in die-cast aluminium • LVD Directive 2014/35/EU
• Heatsinks in aluminium and copper
CONTROL • Moulded covers in self-extinguishing fire retardant ABS SIZE
• DMX 512 protocol, through DMX cable or a wireless PC (V0 class) • Product: 468 x 734 x 280 mm (l x h x d)
system • Two-side handles for transportation • Flight-case foam: 655 x 590 x 555 mm (l x h x d)
• DMX-RDM compatible • Four heavy-duty feet for better stability
• Stand-alone mode and Master/Slave modes • IP20 protection rating
• ArtNet™ & sACN protocol through Ethernet cable • Exterior finish: black (Carbon)
WEIGHT
• Product: 35.6 KG
• Local control panel, with LCD display
• Choice of 3 DMX modes (from 34 to 58 DMX channels) INSTALLATION
• Fastening brackets system: two Omega ¼ turn brackets
PRODUCT CODES
• 011450: GHIBLI-S PROFILE LUMINAIRE
POWER SUPPLY designed for use with standard clamps
• 011460: GHIBLI-TC PROFILE LUMINAIRE
• Electronic supply with active PFC • Mounting points: eight ¼ turn locking fittings allowing
• 100 to 240 Volts – 50/60Hz installation of Omega brackets on luminaire
• Power: 800 Watt max • Safety cable attachment point LEGAL
• GHIBLI is AYRTON registered Trademark
• GHIBLI is a patented model
11
Specifications subject to change without notice.KHAMSIN
Ayrton has once again pushed the limits with a
newly designed “profile” luminaire… KhamsinTM…
squeezing a 750-Watt L.E.D. module into the highly
compact Ghibli format, while offering 60% more
light output. To make the luminaire this compact,
Ayrton has completely redesigned its internal
structure by using cast aluminium sides. The size
of the cooling system also had to be dramatically
reduced and made even more efficient. This high-
end luminaire also features a double rotating
gobo wheel on a single axis that will allow you
to achieve astonishing high-definition morphing
effects. Like all luminaires in the Ayrton product
line, Khamsin is available in two versions:
Khamsin-S is designed for scenic applications.
It is equipped with a new LED module, delivering
powerful metallic white light with record-breaking
output of 40,000 lumens and a colour temperature
of 6500 K. Devised specifically for applications that
require perfect colour reproduction, Khamsin-TC
is equipped with an entirely new LED module using
OPTICS microprocessors to ensure extreme accuracy and FROST
• 13 elements 8:1 zoom high-resolution optic system smooth movement • 2 frost filters: one light, one heavy
• Beam aperture: 7° to 58° • Pan and tilt with automatic repositioning
• Fast motorised linear zoom • Moving-head range: 540° (pan), 270° (tilt) EFFECTS
• Tempered anti-reflective coated lenses • Focusable graphic animation effect-wheel with
• 158 mm frontal lens for greater performance COLOURS continuous rotation in both directions
• Sophisticated colour mix system providing CMY colour • 2 rotating and indexable prisms: one 5-facet circular,
LIGHT SOURCE mixing one 4-facet linear
KHAMSIN-S • Variable CTO colour temperature correction • Sparkle effect: dynamic animation effect with speed
• 60,000 lumens 8000 K white light engine • Fixed colour wheel with six complementary colours and fade adjustment
• Total luminaire output: up to 40,000 lumens
• Colour temperature output: 6500 K GOBOS DIMMER / STROBE
• CRI: greater than 70 2 indexable rotating gobo wheels with 6 high-precision
• • Electronic dimmer, allowing perfect light adjustment
KHAMSIN-TC glass gobos, plus open position from 0 to 100% without colour variation
• 48,000 lumens 7000 K white light engine Adjustable-speed rotating gobo in both directions
• • Strobe effect, with speed adjustment from 1 to 25 flashes
• Total luminaire output: up to 31,000 lumens Gobo diameter: 34.0 mm
• per second
• Colour temperature output: 5700 K • Image diameter: 24.0 mm
• CRI: greater than 90 Gobo thickness: 1.1 mm
KHAMSIN-S & KHAMSIN-TC
•
SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional
• Rated life (L70): up to 40,000 hours
FRAMING SYSTEM parameters through its built-in LCD control panel
• Flicker-free source management suitable for TV
• 4 individually positionable shutter blades on a 100% • Remote DMX addressing of luminaire and optional
applications and all video-recorded events surface area in all positions parameters through a standard RDM DMX controller
• Rotation of the framing system module: +/- 45° • Information menu including hour counter, temperature,
MOVEMENT software version
• Extremely accurate positioning IRIS DIAPHRAGM
• Moving-head operated via either 8- or 16-bit resolution • Fast iris diaphragm with adjustable dynamic effects
• High-resolution stepper motors operated via • Iris range: 15% to 100% open750W Profile luminaire
a monochromatic light source with a native colour rendering index greater than 90,
extremely high TM30 readings and a colour temperature of 5700 K.
In its quest for perfection, Ayrton has developed a fixture that will turn heads.
With such a versatile and compact luminaire you can only imagine the creative
possibilities! The proprietary optical system, fitted with 13 lenses, features a 158
mm frontal lens and delivers an 8:1 zoom ratio and a zoom range of 7° to 58°. The
high-quality optics offer excellent image reproduction and produce an extremely
uniform flat beam with no hot spot, ensuring a perfectly homogeneous colour
mix regardless of the colour combination selected. Feature-rich from the factory,
Khamsin includes a CMY colour mixing system, which, combined with a variable
CTO and one wheel with six complementary colours, produces an infinite palette
of vivid pastels and saturated colours. The framing section allows accurate
positioning of four shutter blades on a 100% surface area in all positions, so that
the user can frame any object regardless of the luminaire’s position. The effects
section includes two wheels with six interchangeable HD glass gobos; a continuous
dynamic effects wheel; a 15-blade iris diaphragm; two frost filters: one light frost,
one heavy frost; two rotating prisms: one circular with 5 facets, one linear with 4
facets. Khamsin is the perfect lighting solution for large venues, such as arenas
and stadiums dedicated to major events.
HARDWARE FEATURES COOLING SYSTEM OPERATING PARAMETERS
• Graphic LCD display for addressing and special functions • Advanced liquid cooling system • Operating positions: all (device on floor or fixed to a
settings, with flip function • Self-adjusting variable speed fans for quiet operation support)
• Clicking jog wheel to set functions (Auto mode) • Maximum permitted ambient temperature (Ta max):
• Excess temperature protection • Selectable ventilation user’s modes with a new Silent 45° C (113° F)
• Integrated wireless CRMX TiMo™ RDM receiver from Mode • Minimum permitted ambient temperature (Ta min): -10°
LumenRadio™ • Safety protection against temperatures excesses C (14° F)
• XLR 5 pin male and female connectors for DMX • Minimum usage distance: 2.0 m (6.56 ft)
connection HOUSING
• Ethercon RJ45 IN / OUT connectors for ArtNet™ • Moving-head skeleton made of aluminium and steel COMPLIANCE
connection metal plates • EMC Directive 2014/30/EU
• PowerCON TRUE1 male connector for power connection • Base in die-cast aluminium • LVD Directive 2014/35/EU
• Heatsinks in aluminium and copper
CONTROL • Moulded covers in self-extinguishing fire retardant ABS SIZE
• DMX 512 protocol, through DMX cable or a wireless PC (V0 class) • Product: 494 x 778 x 280 mm (l x h x d)
system • Two-side handles for transportation • Flight-case foam: 655 x 590 x 555 mm (l x h x d)
• DMX-RDM compatible • Four heavy-duty feet for better stability
• Stand-alone mode and Master/Slave modes • IP20 protection rating
• ArtNet™ & sACN protocol through Ethernet cable • Exterior finish: black (Carbon)
WEIGHT
• Product: 39.8 KG
• Local control panel, with LCD display
• Choice of 3 DMX modes (from 39 to 63 DMX channels) INSTALLATION
• Fastening brackets system: two Omega ¼ turn brackets
PRODUCT CODES
• 011640: KHAMSIN-S PROFILE LUMINAIRE
POWER SUPPLY designed for use with standard clamps
• 011650: KHAMSIN-TC PROFILE LUMINAIRE
• Electronic supply with active PFC • Mounting points: eight ¼ turn locking fittings allowing
• 100 to 240 Volts – 50/60Hz installation of Omega brackets on luminaire
• Power: 1,150 Watt max • Safety cable attachment point LEGAL
• KHAMSIN is AYRTON registered Trademark
• KHAMSIN is a patented model
13
Specifications subject to change without notice.MERAK
Ayrton’s new Merak TMCS is a powerhouse of
technology that features a proprietary 10:1
optical zoom system, combined with a 250-Watt
low-etendue, RGBW multichip LED module. The
7º to 70º zoom employs light pipe technology
paired with a new textured Fresnel lens design
to ensure perfectly homogenous colour mixing
regardless of the colour combination selected.
With its single-source transmitting lens, Merak-CS
casts wonderfully crisp light and shadows. The
fixture is also equipped with a de-focusable
rotating beam shaping optic.
OPTICS COLOURS SOFTWARE FEATURES
• 10:1 zoom optic system • Sophisticated 4 colours RGBW mixed • Local DMX addressing of the luminaire and optional
• Beam aperture: 7° to 70° • Uniform light beam with no colour shadows, and rich parameters through its built-in LCD panel control
• Fast motorised linear zoom saturated and pastel colour-hues • Remote DMX addressing of the luminaire and optional
• 168 mm textured fresnel lens for greater performance • 4.29 billion colours (8 bit resolution) parameters through a standard RDM DMX controller
• Virtual colour wheel, including most usuals white colour • Information menu including hour counter, temperature,
LIGHT SOURCE temperature presets software version
• 1 multi-chip 250 Watt RGBW LED sources • Dynamic colour macro effect with variable speed
• Total luminaire output: up to 4,500 lumens HARDWARE FEATURES
• Luminous intensity: 200,000 cd (narrow angle) EFFECTS • Graphic LCD display for addressing and special functions
• CRI: up to 86 • Indexable de-focusable rotating beam shaping optic settings, with flip function
• Rated life (L70): up to 40,000 hours • Clicking jog wheel to set the functions
• Flicker free sources management suitable for TV DIMMER / STROBE • Excess temperature protection
applications and all video-recorded events • Electronic dimmer, allowing perfect light adjustment • Integrated LumenRadio™ wireless CRMX TiMo™ RDM
from 0 to 100% without colour variation receiver
MOVEMENT • White or colour strobe effect, with speed adjustment • XLR 5 pin male and female connectors for DMX
• Extremely accurate positioning from 1 to 25 flashes per second connection
• Moving head operated via either 8- or 16-bit resolution • PowerCON TRUE1 male and female connectors for
• High-resolution stepper motors operated via power connection
microprocessors to ensure extreme accuracy and
smooth movements
• Pan and tilt with automatic repositioning
• Moving-head range: 540° (pan), 270° (tilt)250W Wash luminaire
Merak-CS puts new technology to great use with a next-generation power supply
that incorporates active power factor correction (PFC) and a DC/DC converter in
an ultra compact module for more than 95 percent efficiency. A new liquid cooling
system is also employed, which permits the fixture to operate in all positions. These
innovations allow the LED emitters to be run at full power continuously without any
loss of performance. To celebrate Ayrton’s 15th Anniversary, Merak-CS presents
a sleeker, updated, industrial design, with perfectly straightened yoke arms, and
minimalist base, as well as a new menu navigation system using a single control
wheel. Merak-CS can be controlled via DMX-512 w/RDM, or a wireless link using
CRMX TiMo RDM from LumenRadio™.
CONTROL HOUSING COMPLIANCE
• DMX 512 protocol, through DMX cable or wireless system • Moving-head skeleton made of aluminium and steel • EMC Directive 2014/30/EU
• DMX-RDM compatible metal plates • LVD Directive 2014/35/EU
• Stand-alone mode and Master/Slave modes • Base in die-cast aluminium
• Local control panel, with LCD display • Heatsinks in aluminium and copper SIZE
• Choice of 3 DMX modes (from 17 to 22 DMX channels) • Moulded covers in self-extinguishing fire retardant ABS • Product: 365 x 555 x 385 mm (l x h x d)
PC (V0 class) • Flight-case foam: 450 x 585 x 280 mm (l x h x d)
POWER SUPPLY • Two sides handles for transportation
Electronic supply with active PFC • Four strong feet for better stability
•
IP20 protection rating
WEIGHT
• 100 to 240 Volts – 50/60Hz •
• Product: 13.8 KG
• Power 400 Watt max • Exterior finish: black (Carbon)
INSTALLATION PRODUCT CODES
COOLING SYSTEM • 010150: MERAK-CS WASH LUMINAIRE
• Advanced liquid cooling system • Fastening brackets system: two Omega ¼ turn brackets
• Self adjusting variable speed fans for quiet operation designed for use with standard clamps
(Auto mode) • Mounting points: four ¼ turn locking fittings allowing LEGAL
installation of Omega brackets on luminaire • MERAK is AYRTON registered Trademark
• Selectable auto, stage & studio ventilation modes
Safety-cable attachment point • MERAK is a patented model
• Safety protection against temperatures excesses •
OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a
support)
• Maximum permitted ambient temperature (Ta max):
45°C (113°F)
• Minimum permitted ambient temperature (Ta min):
-10°C (14°F)
• Minimum usage distance: 0.5 m (1.64 ft)
15
Specifications subject to change without notice.LEVANTE
Ayrton now introduces LevanteTM, a dramatically
miniaturised version of the Bora wash light, and
using the same radical concept, has endowed it
with outstanding performance capabilities in the
confines of an ultra-compact format. Levante is
a marvel of technology that will attract the most
demanding lighting designers. The “S” version,
weighing only 22 kg, can deliver light output
greater than 20,000 lumens while consuming
only 300 Watts. Fitted with a spherical frontal 138
mm lens, the proprietary optical system, using
13 lenses and developed specifically for wash-
type applications, features a zoom ratio of over
a 9:1 and an impressive zoom range from 6.3° to
58°. The optics produce an extremely uniform
flat beam with no hot spot, ensuring a perfect
colour mix regardless of the colour combination
selected. Ayrton has created a wash luminaire
that can actually sculpture light and added a
high-transmission diffusion filter to the zoom lens
OPTICS microprocessors to ensure extreme accuracy and FROST
• 13-element 9:1 zoom high-resolution optic system smooth movement • 0% to 100% variable linear frost
• Beam aperture: 6.3° to 58° • Pan and tilt with automatic repositioning
• High-speed motorised linear zoom • Moving-head range: 540° (pan), 270° (tilt) EFFECTS
• Tempered anti-reflective coated lenses • Sparkle effect: dynamic animation effect with speed
• 138 mm frontal lens for greater performance COLOURS and fade adjustment
• Sophisticated colour mix system providing CMY colour
LIGHT SOURCE mixing DIMMER / STROBE
LEVANTE-S • Variable CTO colour temperature correction • Electronic dimmer, allowing perfect light adjustment
• 26,500 lumen, 8000 K white light engine • Fixed colour wheel with seven complementary colours from 0 to 100% without colour variation
• Total luminaire output: up to 20,000 lumens
• White or colour strobe effect, with speed adjustment
• Colour temperature output: 6500 K GOBOS from 1 to 25 flashes per second
• CRI: greater than 70 • 1 indexable rotating gobo wheel with 7 metallic gobos,
LEVANTE-TC plus an open position
• 20,500-lumen 7000 K white light engine
SOFTWARE FEATURES
• Adjustable-speed rotating gobo in both directions • Local DMX addressing of luminaire and optional
• Total luminaire output: up to 15,000 lumens • Gobo diameter: 25.0 mm parameters through its built-in LCD control panel
• Colour temperature output: 5700 K • Image diameter: 19.0 mm • Remote DMX addressing of luminaire and optional
• CRI: greater than 90
parameters through a standard RDM DMX controller
LEVANTE-S & LEVANTE-TC BARNDOORS • Information menu including hour counter, temperature,
• Rated life (L70): up to 40,000 hours
• 4 individually positionable shutter blades on a 100% software version
• Flicker-free source management suitable for TV
surface area in all positions
applications and all video-recorded events • Rotation of the barndoor system module: +/- 45°
MOVEMENT IRIS DIAPHRAGM
• Highly accurate positioning • Fast iris diaphragm with adjustable dynamic effects
• Moving-head operated via either 8- or 16-bit resolution • Iris range: 15% to 100% open
• High-resolution stepper motors operated via300W Wash luminaire
group to erase the edge of the beam without changing its angle. A variable linear
frost system was developed to let the user adjust the desired diffusion level with
precision. A new barndoors module allows the four shutter blades to be freely
positioned on 100% of the surface area so that any object can be framed regardless
of the luminaire’s position.
Levante is available in two versions: the S and the TC. The S version can produce
ultra high output, generating metallic white light calibrated at 6500 K and is specially
designed for stage applications. The TC version, geared for situations that require
perfect colour rendition, has a native colour rendering index greater than 90 and
high TM30 readings. Feature-rich from the factory, Levante is not only equipped
with a barndoor module but also a CMY colour mixing system, which, combined
with a variable CTO and a wheel with seven complementary colours, produces an
infinite palette of vivid pastels and saturated colours. A 15-blade iris diaphragm and
a wheel with seven indexable rotating gobos are supplied as standard equipment.
A new ultra-compact high-output 550 W power supply feeds eight additional
motors in the barndoor system, fitting into the same format as Mistral. Levante
has a highly efficient phase-change liquid cooling system using a heat pipe that
includes a particularly effective ultra-silent ventilation mode, designed for stage
and studio applications.
HARDWARE FEATURES COOLING SYSTEM OPERATING PARAMETERS
• Graphic LCD display for addressing and special functions • Advanced liquid cooling system • Operating positions: all (device on floor or fixed to a
settings, with flip function • Self-adjusting variable speed fans for quiet operation support)
• Clicking jog wheel to set functions (Auto mode) • Maximum permitted ambient temperature (Ta max):
• Excess-temperature protection • Selectable ventilation user modes with a new Silent Mode 45° C (113° F)
• Integrated wireless CRMX TiMo™ RDM receiver from • Safety protection against temperature excesses • Minimum permitted ambient temperature (Ta min): -10°
LumenRadio™ C (14° F)
• XLR 5 pin male and female connectors for DMX HOUSING • Minimum usage distance: 1.5 m (4.92 ft)
connection • Moving-head skeleton made of aluminium and steel
• PowerCON TRUE1 male and female connectors for plates COMPLIANCE
power connection • Base in die-cast aluminium • EMC Directive 2014/30/EU
• Heatsinks in aluminium and copper • LVD Directive 2014/35/EU
CONTROL • Moulded covers in self-extinguishing fire retardant ABS
• DMX 512 protocol, through DMX cable or a wireless PC (V0 class) SIZE
system • Two-side handles for transportation • Product: 365 x 591 x 212 mm (l x h x d)
• DMX-RDM compatible • Four heavy-duty feet for better stability • Flight-case foam: 430 x 660 x 280 mm (l x h x d)
• Stand-alone mode and Master/Slave modes • IP20 protection rating
• Local control panel, with LCD display • Exterior finish: black (Carbon)
• Choice of 3 DMX modes (from 31 to 52 DMX channels)
WEIGHT
• Product: 22.0 KG
INSTALLATION
POWER SUPPLY • Fastening brackets system: two Omega ¼ turn brackets
PRODUCT CODES
• Electronic supply with active PFC designed for use with standard clamps
• 010240: LEVANTE-S AUTOMATED WASH LUMINAIRE
• 100 to 240 Volts – 50/60Hz • Mounting points: four ¼ turn locking fittings allowing
• 010250: LEVANTE-TC AUTOMATED WASH LUMINAIRE
• Power: 550 W maximum installation of Omega brackets on luminaire
• Safety cable attachment point
LEGAL
• LEVANTE is AYRTON registered Trademark
• LEVANTE is a patented model
17
Specifications subject to change without notice.BORA
Ayrton has developed BoraTM, its new feature-
packed 750 W wash luminaire, using a radical
approach. Its specific function is to establish
the perfect atmosphere for your creative design.
Fitted with a frontal 178 mm spherical lens, the
proprietary optical system using 13 high-quality
lenses was developed specifically for “wash”
applications. It features an 8:1 zoom ratio for
a wide zoom range from 8° to 64°. The optics
produces an extremely uniform flat beam with no
hot spot, ensuring a perfectly homogeneous colour
mix regardless of the colour combination selected.
Bora comes in two versions, each to meet the
specific requirements of lighting professionals.
Bora-S is designed for scenic applications. It is
equipped with a new LED module calibrated at
8000 K, delivering powerful metallic white light with
record-breaking output of 42,000 lumens. Devised
specifically for applications that require perfect
OPTICS microprocessors to ensure extreme accuracy and FROST
• 13 element 8:1 zoom in high-resolution optic system smooth movements • 0% to 100% variable linear frost
• Beam aperture: 8° to 64° • Pan and tilt with automatic repositioning
• Fast motorised linear zoom • Moving-head range: 540° (pan), 270° (tilt) DIMMER / STROBE
• Tempered anti-reflective coated lenses • Electronic dimmer, allowing perfect light adjustment
• 178 mm frontal lens for greater performance COLOURS from 0 to 100% without colour variation
• Sophisticated colour mix system providing CMY colour • Strobe effect, with speed adjustment from 1 to 25 flashes
LIGHT SOURCE mixing per second
BORA-S • Variable CTO colour temperature correction
• 60,000 lumens 8000 K white light engine • 2 fixed colour wheels with six complementary colours SOFTWARE FEATURES
• Total luminaire output: up to 42,000 lumens each • Local DMX addressing of luminaire and optional
• Colour temperature output: 6500 K
parameters through its built-in LCD control panel
• CRI: greater than 70 GOBOS • Remote DMX addressing of luminaire and optional
BORA-TC • Indexable rotating gobo wheel with 6 gobos plus open parameters through a standard RDM DMX controller
• 48,000 lumens 7000 K white light engine position • Information menu including hour counter, temperature,
• Total luminaire output: up to 31,000 lumens Adjustable-speed rotating gobo in both directions
• software version
• Colour temperature output: 5700 K • Gobo diameter: 34.0 mm
• CRI: greater than 90 Image diameter: 25.0 mm
BORA-S & BORA-TC
•
HARDWARE FEATURES
• Graphic LCD display for addressing and special functions
• Rated life (L70): up to 40,000 hours
BARNDOORS settings, with flip function
• Flicker free sources management suitable for TV
• 4 individually positionable shutter blades on a 100% • Clicking jog wheel to set functions
applications and all video-recorded events surface area in all positions • Excess temperature protection
• Rotation of the framing system module: +/- 45° • Integrated LumenRadio™ wireless CRMX TiMo™ RDM
MOVEMENT receiver
• Extremely accurate positioning IRIS DIAPHRAGM • XLR 5 pin male and female connectors for DMX connection
• Moving head operated via either 8- or 16-bit resolution • Fast iris diaphragm with adjustable dynamic effects • Ethercon RJ45 IN / OUT connectors for ArtNet™ connection
• High-resolution stepper motors operated via • Iris range: 15% to 100% open • PowerCON TRUE1 male connector for power connection750W Wash luminaire
colour reproduction, Bora-TC is equipped with an entirely new LED module using
a monochromatic light source calibrated at 7000 K with a native colour rendering
index greater than 90, and extremely high TM30 readings.

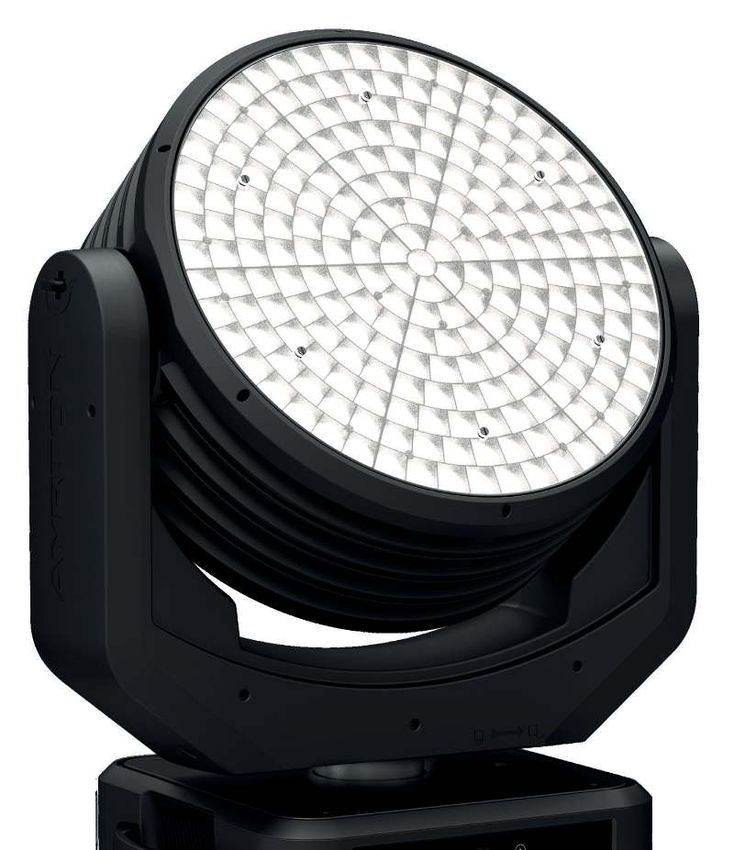

Wonderfully sleek and compact, Bora-S and Bora-TC are examples of meticulous
workmanship. Feature-rich from the factory, Bora includes a CMY colour mixing
system, which, combined with a variable CTO and two wheels with six complementary
colours each, produces an infinite palette of vivid pastels and saturated colours.
The framing section allows accurate positioning of four shutter blades on a 100%
surface area in all positions, so that the user can frame any object regardless of
the luminaire’s position. Bora is also factory-equipped with a wheel holding six
rotating gobos specially designed for wash-type applications, a variable linear
frost and a 15-blade iris diaphragm. Like all Ayrton luminaires, Bora has a phase-
change liquid cooling system using a heat pipe that includes a particularly effective
silent ventilation mode. Bora comes in two variants to accommodate all types of
professional use. Bora-S is particularly suitable for situations requiring a great
deal of light output such as concerts or other live entertainment. Designed for
total versatility, Bora-TC is ideal for applications that call for impeccable colour
reproduction, such as fashion shows or car shows.
CONTROL HOUSING COMPLIANCE
• DMX 512 protocol, through DMX cable or wireless system • Moving-head skeleton made of aluminium and steel • EMC Directive 2014/30/EU
• DMX-RDM compatible metal plates • LVD Directive 2014/35/EU
• Stand-alone mode and Master/Slave modes • Base in die-cast aluminium
• ArtNet™ & sACN protocol through Ethernet cable • Heatsinks in aluminium and copper SIZE
• Local control panel, with LCD display • Moulded covers in self-extinguishing fire retardant ABS • Product: 494 x 737 x 280 mm (l x h x d)
• Choice of 3 DMX modes (from 30 to 52 DMX channels) PC (V0 class) • Flight-case foam: 655 x 590 x 555 mm (l x h x d)
• Two-side handles for transportation
POWER SUPPLY • Four heavy-duty feet for better stability
IP20 protection rating
WEIGHT
• Electronic supply with active PFC •
• Product: 37.8 KG
• 100 to 240 Volts – 50/60Hz • Exterior finish: black (Carbon)
• Power: 1,150 Watt max
INSTALLATION PRODUCT CODES
• 010640: BORA-S WASH LUMINAIRE
COOLING SYSTEM • Fastening brackets system: two Omega ¼ turn brackets
• 010650: BORA-TC WASH LUMINAIRE
• Advanced liquid cooling system designed for use with standard clamps
• Self-adjusting variable speed fans for quiet operation • Mounting points: eight ¼ turn locking fittings allowing
(Auto mode) installation of Omega brackets on luminaire LEGAL
Safety-cable attachment point • BORA is AYRTON registered Trademark
• Selectable ventilation user’s modes with a new Silent •
• BORA is a patented model
Mode
• Safety protection against temperatures excesses OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a
support)
• Maximum permitted ambient temperature (Ta max):
45° C (113° F)
• Minimum permitted ambient temperature (Ta min): -10°
C (14° F)
• Minimum usage distance: 2.0 m (6.56 ft)
19
Specifications subject to change without notice.NANDOBEAM-S3
NandoBeam™S3 is a powerful and ultra-fast
moving-head in a compact housing. Its advanced
and highly efficient proprietary optical system,
coupled with state-of-the-art 15 Watt RGBW LED
emitters, delivers an 8° narrow beam as well as
40° wide coverage. The quality of its colour-mixing
makes the NandoBeam-S3 capable of handling
even the most demanding environments. The
choice of light sources and colour selection was
made in collaboration with lighting designers to
meet the needs of the entertainment industry. The
main benefit of the optical zoom system, which
was developed especially for the NandoBeam
OPTICS COLOURS SOFTWARE FEATURES
• 2 elements 5:1 zoom high-resolution optic system • Sophisticated 4 colours RGBW mixed, reaching high • Local DMX addressing of luminaire and optional
• Beam aperture: 8° to 40° Colour parameters through its built-in LCD control panel
• Fast motorised linear zoom • Rendering Index • Remote DMX addressing of luminaire and optional
• 170 mm front lenses cluster • Uniform light beam with no colour shadows, and rich parameters through a standard RDM DMX controller
saturated and pastel colour-hues • Information menu including hour counter, temperature,
LIGHT SOURCE • 4.29 billion colours (8 bit resolution) software version
• 19 x 500 lumens RGBW High-Power LED sources • Virtual colour wheel, including most usuals white colour
• Total luminaire output: up to 4,000 lumens temperature presets HARDWARE FEATURES
• Rated life (L70): up to 40,000 hours • Dynamic colour macro effect with variable speed • Graphic LCD display for addressing and special functions
• Flicker free sources management, suitable for TV settings, with flip function
applications and all video recorded events EFFECTS • 6 menu buttons to set the functions
• Graphical effects capabilities • Excess temperature protection
MOVEMENT • Effects can be coupled with beam, wash or matrix • Integrated wireless CRMX TiMo™ RDM receiver from
• Extremely accurate positioning applications LumenRadio™
• Moving-head operated via either 8- or 16-bit resolution • Built-in pattern effects with speed and fade controls for • XLR 5 pin male and female connectors for DMX
• High-resolution stepper motors operated via scenic applications connection
microprocessors ensure extreme accuracy and smooth • PowerCON TRUE1 male and female connectors for
movements. DIMMER / STROBE power connection
• Pan and tilt with automatic repositioning • Electronic dimmer, allowing perfect light adjustment
• Moving-head range : 540° (pan), 270° (tilt) from 0 to 100% without colour variation
• White or colour strobe effect, with speed adjustment
from 1 to 25 flashes per second300W Wash luminaire
product line, is a constant efficiency regardless of the zoom aperture: NandoBeam-S3
delivers a 4,000 lumens output across its full beam range.
Its narrow angle gives a particularly effective and very powerful tight beam, while
its wide angle works well for wash purposes, making NandoBeam-S3 the perfect
lighting tool for a wide range of applications. NandoBeam-S3’s arrangement of
two rings of individually controlled LED emitters around a central LED renders it
extremely versatile when operated in Expanded Full Colour mode. Effects capabilities
can be coupled with Beam, Wash or Matrix applications to produce superb results
whether performing in front of the audience or camera. NandoBeam-S3 is equipped
with new generation three-phase stepper motors that allow the quick and precise
movement essential for NandoBeam-S3’s performance. These extremely compact
new motors fit perfectly into the minimalist design of the luminaire.
CONTROL HOUSING COMPLIANCE
• DMX 512 protocol, through DMX cable or wireless system • Moving-head skeleton made of aluminium and steel • EMC Directive 2014/30/EU
• DMX-RDM compatible metal plates • LVD Directive 2014/35/EU
• Stand-alone mode and Master/Slave modes • Heatsinks in aluminium
• Local control panel, with LCD display • Moulded covers in self-extinguishing fire retardant ABS SIZE
• Choice of 3 DMX Modes (from 17 to 28 DMX channels) PC (V0 class) • Product: 288 x 380 x 220 mm (l x h x d)
• Two sides handles for transportation • Flight-case Foam : 350 x 410 x 280 mm (l x h x d)
POWER SUPPLY • Four heavy-duty feet for better stability
Electronic supply with active PFC • IP20 protection rating
•
Exterior finish: black (Carbon)
WEIGHT
• 100 to 240 Volts – 50/60Hz •
• Product: 9.1 KG
• Power 400 Watt max
INSTALLATION PRODUCT CODES
COOLING SYSTEM • Fastening brackets system: one Omega ¼ turn brackets
• 013350 : NANDOBEAM S3 WASH LUMINAIRE
• Advanced cooling system based on Heatpipe technology designed for use with standard clamps
• Self adjusting variable speed fans for quiet operation • Mounting points: two ¼ turn locking fittings allowing
(Auto mode) installation of Omega brackets on luminaire LEGAL
Safety cable attachment point • NANDOBEAM is AYRTON registered Trademark
• Selectable auto, stage & studio ventilation modes •
• NANDOBEAM is a patented model
• Safety protection against temperatures excesses
OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a
support)
• Maximum permitted ambient temperature (Ta max):
45°C (113°F)
• Minimum permitted ambient temperature (Ta min):
-10°C (14°F)
• Minimum usage distance: 1.0 m (3.28 ft)
21
Specifications subject to change without notice.NANDOBEAM-S6
NandoBeam™S6 is a very powerful and ultra-
fast new generation moving-head fixture in a
compact housing. Its advanced and highly efficient
proprietary optical system coupled with powerful 15
Watt RGBW LED sources provide a narrow 8° beam
as well as wide 40° coverage. NandoBeam-S6’s
thirty-seven 15 Watt LED are cooled by a heatpipe
equipped with heat-transfer fluids and heat-
exchange material. This advanced cooling
technology gives an extended LED lifetime, quiet
operation and maximum light source efficiency.
A 6,000 lumens output at its 8° angle makes
NandoBeam-S6 the perfect lighting tool for use
as a beamlight moving-head. Its wide angle
capabilities of up to 40° coupled with the same
6,000 lumens light output as its narrow beam angle
gives great washlight potential. NandoBeam-S6
OPTICS COLOURS SOFTWARE FEATURES
• 2 elements 5:1 zoom high-resolution optic system • Sophisticated 4 colours RGBW mixed, reaching high • Local DMX addressing of luminaire and optional
• Beam aperture: 8° to 40° Colour parameters through its built-in LCD control panel
• Fast motorised linear zoom • Rendering Index • Remote DMX addressing of luminaire and optional
• 210 mm front lenses cluster • Uniform light beam with no colour shadows, and rich parameters through a standard RDM DMX controller
saturated and pastel colour-hues • Information menu including hour counter, temperature,
LIGHT SOURCE • 4.29 billion colours (8 bit resolution) software version
• 37 x 500 lumens RGBW High-Power LED sources • Virtual colour wheel, including most usuals white colour
• Total luminaire output: up to 6,000 lumens temperature presets HARDWARE FEATURES
• Rated life (L70): up to 40,000 hours • Dynamic colour macro effect with variable speed • Graphic LCD display for addressing and special functions
• Flicker free sources management, suitable for TV settings, with flip function
applications and all video recorded events EFFECTS • 6 menu buttons to set the functions
• Graphical effects capabilities • Excess temperature protection
MOVEMENT • Effects can be coupled with beam, wash or matrix • Integrated wireless CRMX TiMo™ RDM receiver from
• Extremely accurate positioning applications LumenRadio™
• Moving-head operated via either 8- or 16-bit resolution • Built-in pattern effects with speed and fade controls for • XLR 5 pin male and female connectors for DMX
• High-resolution stepper motors operated via scenic applications connection
microprocessors ensure extreme accuracy and smooth • Ethercon RJ45 IN / OUT connectors for ArtNet™
movements. DIMMER / STROBE connection
• Pan and tilt with automatic repositioning • Electronic dimmer, allowing perfect light adjustment • PowerCON TRUE1 male and female connectors for
• Moving-head range : 540° (pan), 270° (tilt) from 0 to 100% without colour variation power connection
• White or colour strobe effect, with speed adjustment
from 1 to 25 flashes per secondYou can also read
