BATHROOM DESIGN: Sample design pack Family bathroom t|01242 285886 m|07967 110618 e|caroline@carolinedunndesign.co.uk w|www.carolinedunndesign.co.uk
Wall light
in alcove
Wood shelf over Wood shelves and wall
concealed cistern light in alcove
boxing
Back to wall WC with Freestanding bath and mixer tap
concealed cistern,
centred in alcove
Towel radiator, possibly
with electric element
for summer use
Towel radiator
Position for fixed towel bar
Wood shelf to window cill to
match other shelves
Walk-in shower with
overhead shower,
concealed valve and
diverter, and hand spray
Wall hung tall
storage cabinet
Wall hung basin and pullout
storage cabinet. Illuminated
mirror with shaver socket over.
Design prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk
FAMILY BATHROOM ANNOTATED PLAN 1 1:20 @ A4 01.10.2014 w|www.carolinedunndesign.co.uk
570 570 1685 1145
240 250
435
1075
00
19
955
435
990
565
1345
94
0
1400
695
500
240
PLEASE NOTE: All dimensions are for
900 270 300 200 800 70 990 435 guidance only. A thorough site survey
should be conducted by the installer
before any products are purchased.
Design prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk
FAMILY BATHROOM DIMENSIONED FLOORPLAN 1 1:25 @ A4 01.10.2014 w|www.carolinedunndesign.co.uk
Design prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk

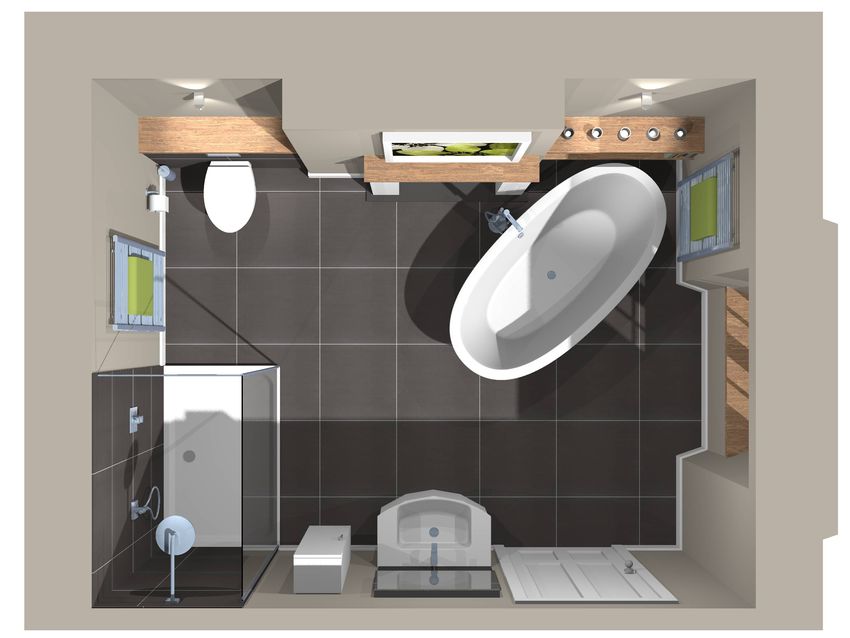

FAMILY BATHROOM BIRDSEYE VISUAL 1 NTS @ A4 01.10.2014 w|www.carolinedunndesign.co.uk
Design prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk

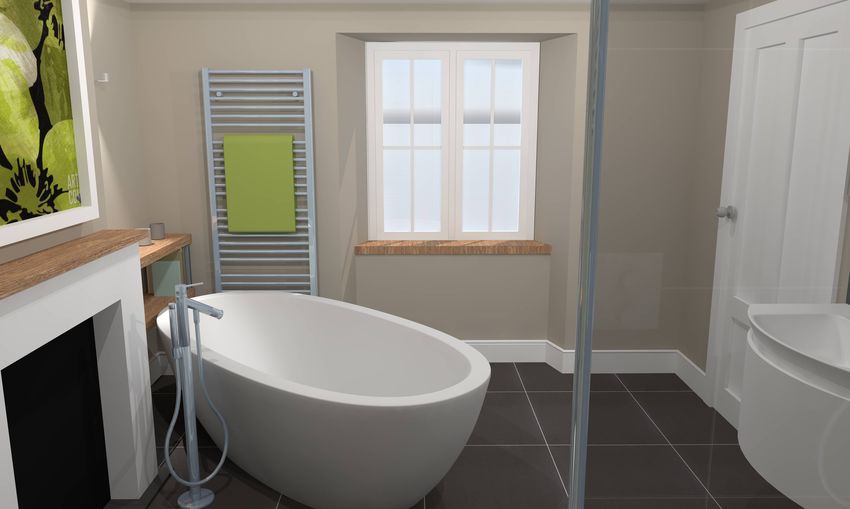

FAMILY BATHROOM VISUAL 1 1 NTS @ A4 01.10.2014 w|www.carolinedunndesign.co.uk
Design prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk

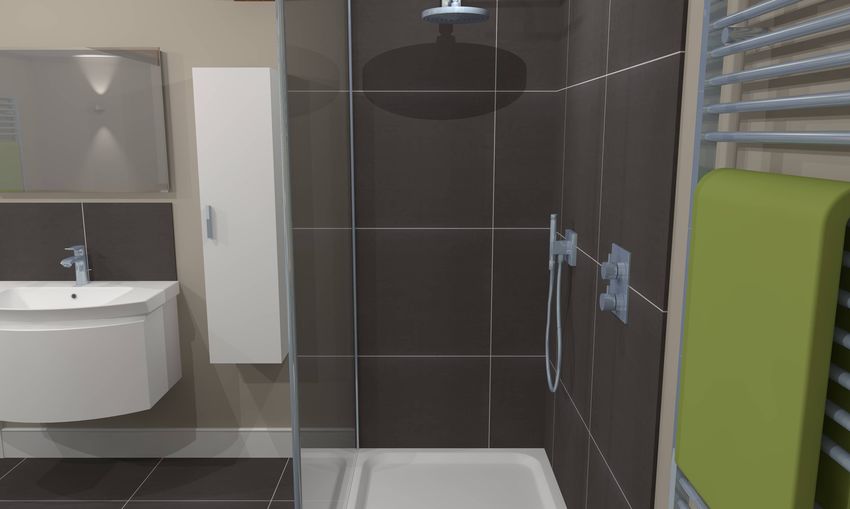

FAMILY BATHROOM VISUAL 2 1 NTS @ A4 01.10.2014 w|www.carolinedunndesign.co.uk
Design prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk

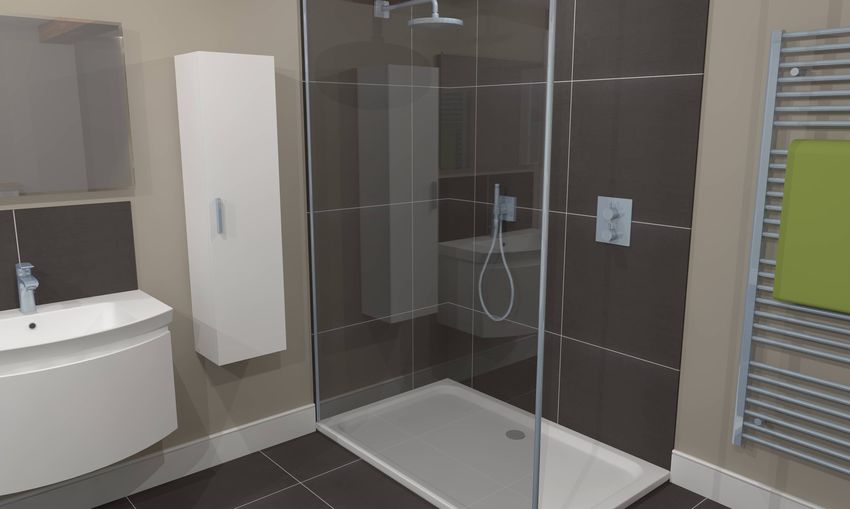

FAMILY BATHROOM VISUAL 3 1 NTS @ A4 01.10.2014 w|www.carolinedunndesign.co.uk
Design prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk
FAMILY BATHROOM VISUAL 4 1 NTS @ A4 01.10.2014 w|www.carolinedunndesign.co.uk
Design prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk
FAMILY BATHROOM VISUAL 5 1 NTS @ A4 01.10.2014 w|www.carolinedunndesign.co.uk
Design prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk
FAMILY BATHROOM VISUAL 6 1 NTS @ A4 01.10.2014 w|www.carolinedunndesign.co.ukDesign prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk
FAMILY BATHROOM VISUAL 7 1 NTS @ A4 01.10.2014 w|www.carolinedunndesign.co.ukTiling based on 600 x 600mm tiles
Design prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk

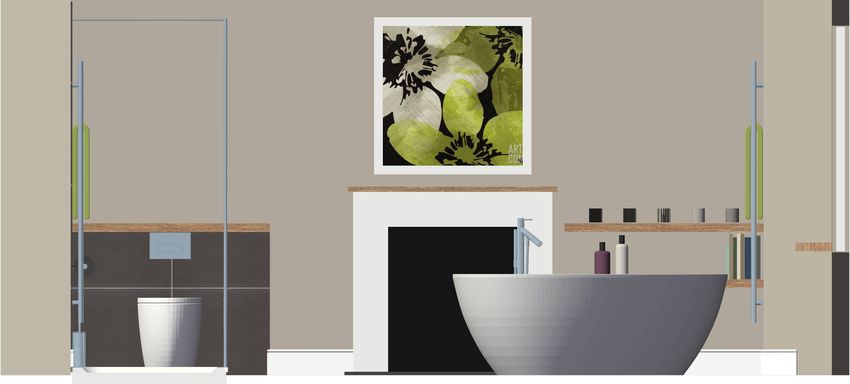

FAMILY BATHROOM ELEVATION A / TILING LAYOUT 1 1:20 @ A4 01.10.2014 w|www.carolinedunndesign.co.ukTiling based on 600 x 600mm tiles
Design prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk
FAMILY BATHROOM ELEVATION B + TILING DESIGN 1 1:20 @ A4 01.10.2014 w|www.carolinedunndesign.co.ukTiling based on 600 x 600mm tiles
Design prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk
FAMILY BATHROOM ELEVATION C + TILING DESIGN 1 1:20 @ A4 01.10.2014 w|www.carolinedunndesign.co.ukDesign prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk
FAMILY BATHROOM ELEVATION D 1 1:20 @ A4 01.10.2014 w|www.carolinedunndesign.co.ukWall hung tall storage cupboard
e.g. Saneux Matteo
Wall mirror over basin,
e.g. HIB Epic, with LED
Walls painted in soft grey tone, lighting, steam free,
e.g. Farrow & Ball Pavilion Gray integrated shaver socket
Back to wall WC,
e.g. Saneux Poppy with
concealed cistern
Large format rectified porcelain
tiles on floor and walls, with 2mm Wall mounted chrome towel radiators.
grout gap in dark grey grout Simple style shown
e.g. Tileworks Turin Grigio Matt, e.g Ultraheat Chelmsford Monobloc basin mixer
Simple glass shower screen, e.g. Aqata Minimalist M200 600x600mm e.g. Grohe Allure
Wall light
e.g. Astro Epsilon
Overhead shower
Freestanding bath and mixer tap e.g. Grohe Rainshower Cosmopolitan 210
Low profile shower tray, e.g. Aqata TR-35/14x9 e.g. Saneux Dolce + Grohe Allure
Handspray shower
e.g. Grohe Euphoria
Cosmopolitan
Thermostatic valve and diverter set Wall hung basin with pullout storage cabinet
e.g. Grohe Allure e.g. Saneux Poppy 800 x 500mm
Design prepared for: Project address: Room: Drawing Title: Revision No: Scale: Date: t|01242 285886
m|07967 110618
e|caroline@carolinedunndesign.co.uk
FAMILY BATHROOM MOOD BOARD 1 1:20 @ A4 01.10.2014 w|www.carolinedunndesign.co.ukSUGGESTED PRODUCT SPECIFICATION - FAMILY BATHROOM
This bathroom design requires the following items.
Suggested products are for guidance only. Similar products from alternative suppliers can be substituted, provided the sizing matches.
All products should be checked for dimensions and technical suitability by the installer before any orders are placed.
ITEM SUGGESTED PRODUCTS SIZE PRODUCT IMAGE NOTES
SANITARYWARE
Basin White ceramic washbasin c. 800 x 500mm
e.g. Saneux Poppy 7722
Matching pull-out under basin cabinet
e.g. Saneux Poppy White Gloss PF2201
WC Back-to-wall WC c. 530 x 385mm
e.g. Saneux Poppy BTW 7713
WC soft close seat
e.g. Saneux Poppy MS7511.C
Concealed cistern, 82cm high
e.g. Geberit Kappa
Flush plate
e.g. Geberit Kappa50
Product Specification - page 1 of 7Bath Freestanding bath tub c.1900 x 940mm
e.g. Saneux Dolce
Bath waste/overflow
FURNITURE
Storage cabinets Wall mounted tall storage cabinet c.1200h x 300w
e.g. Saneux Matteo CF0101 x 240d
Mirrors Wall mirror with integrated lighting and shaver socket c.800w x 600h
e.g. HIB Epic steam free LED illuminated mirror with x 55d
sensor switch
Product Specification - page 2 of 7SHOWER

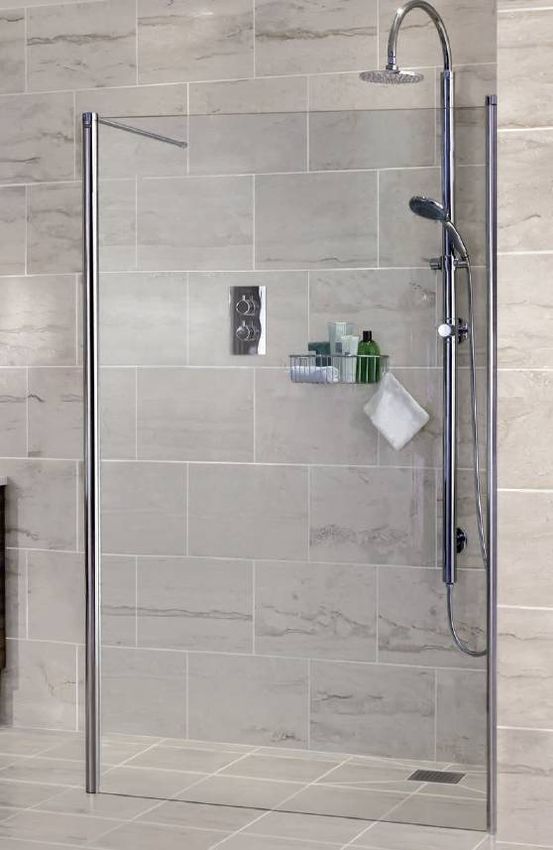

Shower screen Single panel shower screen - RH entry version 1400w x c. 2000h
e.g. Aqata Minimalist M200 - 1400RHE
Shower tray Low profile rectangular shower tray 1400 x 900mm
e.g. Aqata TR-35/14x9
90mm high flow chrome waste to suit chosen tray
Product Specification - page 3 of 7BRASSWARE - N.B. please ensure all products are suitable for your water system
Basin mixer & wastes Basin monobloc mixer with pop-up waste
e.g. Grohe Allure 32146000
Bath mixer & wastes Floorstanding bath filler and hand spray
e.g. Grohe Allure 32754001
Product Specification - page 4 of 7Shower brassware Overhead shower and arm
e.g. Grohe Rainshower Cosmopolitan head shower set
26 052 000
Concealed thermostatic valve and diverter
e.g. Grohe Allure 19 446 000 + 35 500 000
Handspray set
e.g. Grohe Euphoria Cosmopolitan 27 369 000
Accessories Toilet roll holder
e.g. Bathroom Origins Tecno
Product Specification - page 5 of 7 Fixed or swing towel rail
e.g. Bathroom Origins Tecno
Shower basket
e.g. Bathroom Origins Mix Deep Rectangular Basket
TILING, COUNTERTOPS & FLOORING
Wall & Floor tiles Large format dark grey rectified porcelain floor and wall tiles.
Design based on 600x600mm tiles with minimal 2mm grout gap
e.g. Tileworks Turin Grigio Matt
Dark grey tile grout to co-ordinate with tile colour
Countertops & shelves Solid wood (e.g. oak or wenge) used for surface over WC
boxing, shelf over fireplace, wall shelves in bath alcove and
window sill
Product Specification - page 6 of 7HEATING
Towel radiators Wall mounted towel radiators x 2, 500/600mm width c. 600 x 1750mm
e.g. Ultraheat Poplar or Chelmsford
N.B. Please ensure the heat output of your chosen radiators
is adequate for your room.
Angled valves for wall mounting radiator
Summer heating element for towel radiator
LIGHTING & VENTILATION
Decorative lighting Wall lights in alcove (on separate circuit and dimmer switch)
e.g. Astro Epsilon
Ceiling lighting General lighting via recessed ceiling downlights as
recommended by electrician
Extraction Extractor fan as recommended by electrician - if possible
combined fan and light over shower enclosure
Product Specification - page 7 of 7You can also read
