Company and Product
Presentation
2020
COMPANY INFORMATION 3
ANDROID IP INTERCOM AND SMART HOME MANAGEMENT 12
SMART HOME MANAGEMENT 48
LINUX IP İNTERCOM 55
MULTIBUS ANALOG INTERCOM SYSTEM (BUS TYPE) 62
TELEPHONE EXCHANGES 68
CONVENTIONAL FIRE ALARM SYSTEMS 70
2
Multitek drives its strength from R&D passion and quality production
Export Foundation
More than 30 countries in Europe, Middle Multitek was founded in 1989 in İstanbul
East and Africa 30 1989 Turkey
R&D Center Manufacturing Area
Average number of R&D Manufacturing area is based
projects completed each 7 7000 in Istanbul Sancaktepe on
year 7000m2 closed area where
in-house R&D team is present
Dealers and Distribution Channels 400 15 Regional Sales
More than 400 dealers distributed all 15 local sales and after sales teams
around Turkey located in Turkey
3
Our journey is shaped by our passion for R&D and user satisfaction..
Caller ID device and phone Multitek R&D
Telephone device Launch of exchange released for the first time Center certified by
BUS type intercom IP Intercom Systems
development and type video door in the Turkish market by the Ministry of
system developed launched
market entrance phones Multitek Technology
Company Dudullu Kemerdere Video and voice Smart home Wireless smart home
IP Telephone Sancaktepe factory
establishment factory established door phones automation systems devices developed for
Exchanges with smart building
developed and integrated with smart home
presented features established
released intercom systems management
4
Products and Services
✓ IP Exchanges ✓ Smart IP Intercom System
✓ Analog Exchanges (Android)
✓ Specialized solutions for small – ✓ Smart IP Intercom System (Linux)
medium – large enterprises ✓ Analogue (Multibus) System
✓ Villa Sets
✓ APT160 Exchange Type Systems
Multitek
Wired Solutions ✓ Conventional Fire Alarm
✓ All KNX brands are supported Systems (EN-54 certificated)
✓ Relay control
Wireless Solutions
✓ Somfy RTS devices
✓ 868.3 Mhz RF devices
5
Video Door Intercom Systems
Analogue Intercom System Smart IP Intercom (Android) Smart IP Intercom (Linux)
6
Smart Home Management with Smart IP Intercom
1 Wired Smart Home
(KNX, relay)
2 Wireless Smart Home
(Multitek RF, Somfy RTS)
3 Alarm Management
Telephone Exchanges
IP Hibrit Santraller
Analog Santraller
8

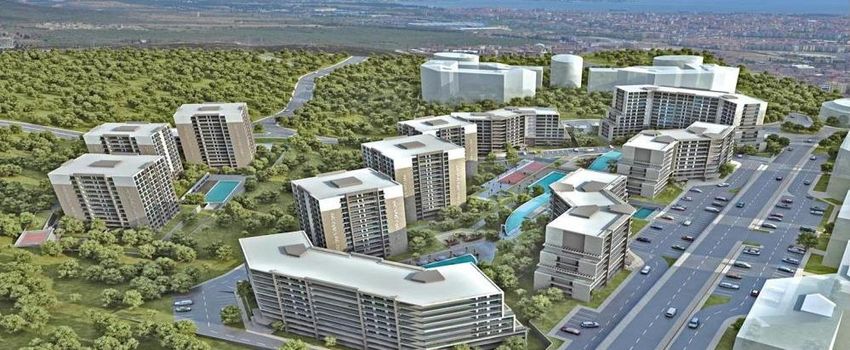

Multitek provides integrated solutions for the most prominent elite
projects in Turkey
VARYAP GAP Emlak Konut Teknik Yapı DAP Yapı Emlak Konut TOKİ
Metropol Istanbul, Atasehir Concord, Fikirtepe ISTMarina, Kartal
1430 Rooms 624 Rooms 1501 Rooms
Android IP Intercom Android IP Intercom Android IP Intercom
TOKİ Emlak Konut Garanti Koza Teknik Yapı
Sarphan Finans Merkezi, Umraniye Garanti Koza Park, Bahçeşehir Evora Istanbul, Tuzla
410 Rooms 4600 Rooms 5013 Rooms
Android IP Intercom APT160 APT160
9
Multitek R&D Center currently focuses on IP intercom systems and
integrated smart home technologies
IP Intercom solution is nominated as a
finalist at XII. Technology Awards* and won
TESID Innovation Award Success
Multitek R&D has built successful
Academy and Industry academy and cross industry
Coorperation partnerships
Competent team of electronics,
computer science and
Resource Capabilities
manufacturing systems
engineers excelled in hardware
and software development
Multitek R&D is focused on building in-house:
• IP Intercom Systems
Future Technologies • Smart Home Management
• PBX Systems
*Technology Awards is Turkey’s most prominent technology award organization held by the partnership of TÜBİTAK, TTGV and TÜSİAD. 10
http://www.teknoloji.org.tr/In-house special design for all products to enhance customer
experience
IP65 Water
and Dust
Resistant
Anodized
Surface
Diamond
Cut
Finishing
7’’ Touch
Screen
Aluminum body
carved from
whole 3 kg
aluminum block

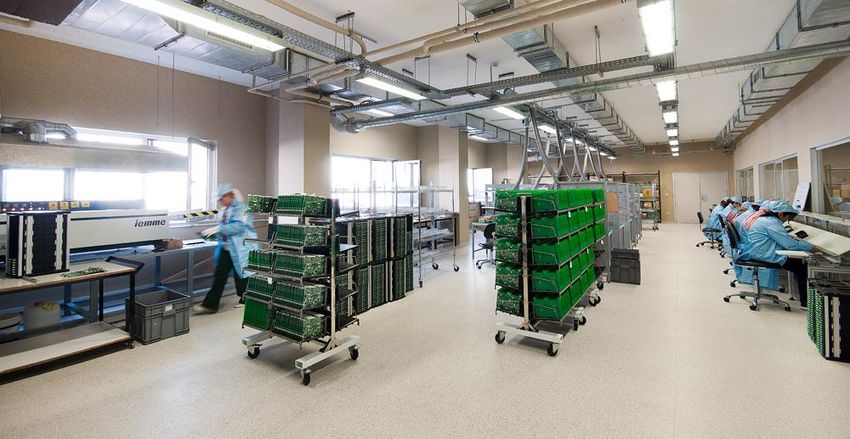

11Multitek manufacturing area is based in central Istanbul with 100%
quality assurance
✓ Multitek products are manufactured in central İstanbul,
on 7000m2 closed area
✓ High technology equipment and machines are used
✓ All products are tested individually and tracked by
unique serial numbers with Microsoft Dynamics AX ERP
✓ Multitek manufacturing plant has smart building
features and respects nature
✓ Multitek always invests on new high technology
machines to increase quality
12ANDROID IP INTERCOM AND SMART HOME MANAGEMENT General View
Intercom, alarm dedectors and smart home management.. Control all
with a single smart device
- Vertical solution: Up to 700 rooms can
be connected in a single building - All smart home devices can be
- Villa sets: Connect up to 4 indoor and 4 controlled from a single
outdoor units for a single villa platfrom
- Extended set of intercom functionalities - KNX, RF, relay or Somfy RTS
options are available!
- All functionalities can be
controlled from mobile
application
- 8 alarm zones with unlimited number of
wired / wireless alarm dedectors
- Immediate notification to security or
predefined computer
- Arm / disarm alarm zones from mobile
application
14Room monitor, door panel, PoE switch and CAT6 cabling.. All you need
for an IP system..
IP Monitor
CAT6 Cable
PoE (Power over
Ethernet)
CAT5
IP Outdoor Panel
Adaptor
151, 2, 3.. allocating IP number is as easy as counting numbers..
16IP Intercom system is easy to implement and use
IP Intercom and Smart Home Management system is a chain of software and hardware products with added value that integrates intercom
systems that use fiber, Ethernet or another type of TCP/IP with smart home, security, IoT devices.
✓ Only energy source is PoE (Power over Ethernet) for all connected items
✓ Low cabling cost
✓ East implementation and maintenance
✓ Simple IP allocation algorithm built-in
✓ A single infrastructure for intercom system and smart home automation
✓ No need for additional IP allocation software
✓ No need for additional infrastructure elements like servers etc.
✓ No limit for number of connected outdoor panels and in-door monitors
✓ Video and voice quality same for all floors regardless of number of floors
✓ Central control and update available for all monitors via service
management software
17IP Intercom and Smart Home Management
✓ Multitek Android IP Intercom system runs on Android OS
✓ Provides an integrated platform for smart home, intercom and
alarm dedectors
✓ Different brand and type of smart home devices can be
connected to the platform
✓ Smart home features can be obtained via KNX, RF, relays or
Somfy RTS
✓ Suitable both for vertical and horizontal buildings
✓ Management from mobile application (Android and IOS)
✓ Easy to implement and use, no need for additional technical
knowledge or infrastructure (no servers)
✓ No need for additional hardware, power supplied by PoE
✓ Already installed in many rooms and 100+ projects (including a
single 600 room building)
✓ Customized solutions for different smart home device
manufacturers
18IP INTERCOM AND SMART HOME MANAGEMENT Selected Monitor Functionalities
Single tap away from home communication, security and comfort
20Language options are available and can be extended
21All rooms can talk to each other.. at the same time!
22Unlimited messaging from room to room and to other units
Guard unit can
broadcast
messages to
all rooms at
the same time
23Screenshot of outdoor panel view is saved when visitor rings
24All room devices can monitor up to 9 CCTV cameras
All rooms can
monitor
different 9
cameras
25Alarm management with 4 wired and 4 wireless alarm zones
26End users can customize settings easily..
27Messaging between compound services and room made easy!
28Compatible with various smart home solutions..
1. KNX Control 2. Relay Control
► Multitek IP intercom monitors can control all ► No limit in number of KNX devices, rooms or
scenarios ► Relays in the room
KNX products regardless of brand and type
monitor are controlled
Reliable devices available from various vendors ► Devices and scenarios can be prepared from
Wired ►
desktop KNX software and transferred to IP ► Easy solution for gas,
► All monitor types can be used for KNX control water, heater and
Solutions monitor
electricity control
► Different scenarios can be introduced (at home, ► Remote controller can be used to control
out of home, cinema etc.) devices and scenarios
► Alarm dedectors can trigger KNX devices (i.e. ► Mobile application available (for IOS and
turn on all lights in case of smoke alarm) Android)
3. Multitek RF 4. Somfy RTS
► Two-way communication, which tracks status changes and ► A brand new VIP70 – Somfy monitor designed and developed
Wireless updates the status for Somfy RTS control, where Somfy hardware and software is
integrated with Multitek IP intercom
Solutions ► No limit in number of connected devices
► Can be used with all type of outdoor panels and peripheral IP
► Working range: 150 meters components
(Plug & Play) ► 868.3 MHz frequency ► Easy to set-up and use
► Easy to set-up and use ► Mobile application control when Connexoon is present
► 433.32 MHx frequency, 200 meters range for open area
29IP INTERCOM AND SMART HOME MANAGEMENT Room Monitors
IP Intercom Components – Room Monitors
All room monitors have optional alarm and smart home features
*Please ask for available colours 31VIP102 Room Monitor – Flush Mount 10" Touch Screen
339 X 206 X 4 mm (Flush mount)
Aluminum and Glass Surface
32VIP101 Room Monitor – Flush Mount 10" Touch Screen
339 X 206 X 4 mm (Flush mount)
Aluminum and Glass Surface
33VIP100 Delux Room Monitor – Flush Mount 10" Touch Screen
339 X 206 X 4 mm (Flush mount)
Aluminum and Glass Surface
34VIP74 Room Monitor – Surface Mount 7" Touch Screen
256 X 147 X 19 mm (Surface Mount)
Aluminum and Glass Surface
35VIP72 Room Monitor – Surface Mount 7" Touch Screen
256 X 147 X 19 mm (Surface Mount)
Aluminum Surface
36VIP71 Room Monitor – Surface Mount 7" Touch Screen
213 X 200 X 22 mm (Surface Mount)
Aluminum Oval Surface
37IP Intercom Components – Room Monitors
Technical Features
Resolution 1024x600 pixel
Back Light LED
Camera 0.3 Mpixel CMOS (front)
Touch-Screen Capacitive
TFT Card Ready
CPU Speed 1.8 GHz
RAM 1 GB
FLASH 4 GB
Operating System Android
Transmission TCP / IP
Connection Protocol SIP
Voice Codec G.711
Video Codec H.264
Network Connection Ethernet (PoE)
Voltage 12-18 VDC (PoE)
Current 250 mA (standby), 300 mA (max)
Working Temperature -20, +55 C°
Humidity %20 – 95 non-condensed
Mounting Wall (surface mount or flush mount)
38ANDROID IP INTERCOM AND SMART HOME MANAGEMENT Outdoor Panels
IP65
IP Intercom Components – Outdoor Panels Protection
Level
DIP70 Aluminum Door Panel with 7" Touch LCD
✓ Aluminum body with IP65 protection for water and dust
✓ 7" touch LCD screen with 1024x600 resolution
✓ Adjustable, wide angle 2 MP camera
✓ Convertible to room button type door panel
✓ Find and call residents from preset phone book
✓ Open building door with a predefined password or a
proximity card
✓ Time and temperature information
✓ Energy-saver, motion sensitive wake-up
✓ User directions with voice command
✓ Connets to internet to retrieve weather forecast
✓ Dimensions: 142x370x1 7 mm
172x403x1 99 mm with LED frame
40IP65
IP Intercom Components – Outdoor Panels Protection
Level
DIP40 Door Panel
✓ IP65 protection for water and dust
✓ User-friendly 4" LCD screen and adjustable 2 MP camera
✓ Find and call residents from preset phone book
✓ Open building door with a unique password or a proximity card
✓ Define up to 5 proximity cards for each room and delete cards when
needed
✓ Name and number of the building shown on the screen
✓ Time and temperature information
✓ LED frame with 7 different colour options
✓ Black or white color options
✓ Dimensions: 141x369x14 mm
172x403x199 mm with LED frame
41IP65
IP Intercom Components – Outdoor Panels Protection
Level
DIP01 Single Button Door Panel
✓ Single-button aluminum product for single rooms / villas
✓ Single touch button
✓ IP65 protection for water and dust
✓ LED lights for night view
✓ Available in dark gray, natural and bronze
✓ Dimensions: 120x1 60x30 mm
42IP Intercom Components – Outdoor Panels
Technical Features
TFT Card Ready
CPU Speed 1.8 GHz
RAM 1 GB
FLASH 4 GB
Operating System Android
Transmission TCP / IP
Connection Protocol SIP
Voice Codec G.711
Video Codec H.264
Network Connection Ethernet (PoE)
Voltage 12-18 VDC (PoE)
Working Temperature -20, +55 C °
Humidity %20 – 95 non-condensed
43Security Console GUV100
No need for additional computer or server, works as access management tool
✓ 10’’ TFT LCD high resolution touch screen
✓ Has all standard intercom features like a IP monitor
✓ Includes a handset
✓ Caller / called room registry
✓ CCTV connection
✓ Message broadcasting
✓ Building access management (including reporting)
✓ Proximity card management
✓ Alarm management and alarm action plan introduction
✓ Dimensions: 343x230x130mm
44IP INTERCOM AND SMART HOME MANAGEMENT Other Components
IP Intercom Components
PoE Switch
Feeds passive Power over Ethernet
Description (PoE) devices and connects them
(available 8, 16, 24 ports)
Working Voltage +18V DC nominal (±6VDC)
Current 0,7A (max), 0,2A (standby)
Working Temperature -5C⁰,+55C⁰
Humidity %90 non-condensed
SWITCH8-PoE
(16, 24 ports also available)
46IP Intercom Components
Adaptor
Working Voltage 100-240V AC
Working Current 1.5A (Max)
Output Voltage +18VDV
Current 3.3A (Max)
Ripple and noise Output voltage max . %1
Working Temperature -5C⁰,+55C⁰
Humidity %90 non-condensed
Note: 18VDC/10A adaptor also available.
47IP Intercom – Accessories
IS-40 DIP40/DIP70 RGB COLOR FRAME (75 RGB LED are programmable)
DIP40/DIP70 WALL MOUNT FRAME
IS-50
It is used to mount DIP40/DIP70 with 30⁰ angle
ACI-30 For turning and adjusting DIP40/ DIP70 angle
50 MICRO INCH GOLD PLEATED RED Colour PLUG for CABLING
RJ-45
(Mandatory for smooth installation)
ELEVATOR CONNECTION MODULE (PAIR)
All type of IP monitors or IP phones can be used as elevator security monitor. With ASN1 connection module,
ASN1 monitor/phone connects to the network without using elevator circuit, which eliminates various problems. Elevator
monitor can be used for emergency or advertisement. Advertisement can be uploaded via SD card or PC. Note: PS-
18E and SWITCH8- PoE should also be added to elevator monitor network.
48ANDROID IP INTERCOM AND SMART HOME MANAGEMENT Smart Home
Every home is not the same, so each smart home solution has to be
customized for needs and capabilities
1. KNX Control 2. Relay Control
► Multitek IP intercom monitors can control all ► No limit in number of KNX devices, rooms or
scenarios ► Relays in the room
KNX products regardless of brand and type
monitor are controlled
Reliable devices available from various vendors ► Devices and scenarios can be prepared from
Wired ►
desktop KNX software and transferred to IP ► Easy solution for gas,
► All monitor types can be used for KNX control water, heater and
Solutions monitor
electricity control
► Different scenarios can be introduced (at home, ► Remote controller can be used to control
out of home, cinema etc.) devices and scenarios
► Alarm dedectors can trigger KNX devices (i.e. ► Mobile application available (for IOS and
turn on all lights in case of smoke alarm) Android)
3. Multitek RF 4. Somfy RTS
► Two-way communication, which tracks status changes and ► A brand new VIP70 – Somfy monitor designed and developed
Wireless updates the status for Somfy RTS control, where Somfy hardware and software is
integrated with Multitek IP intercom
Solutions ► No limit in number of connected devices
► Can be used with all type of outdoor panels and peripheral IP
► Working range: 150 meters components
(Plug & Play) ► 868.3 MHz frequency ► Easy to set-up and use
► Easy to set-up and use ► Mobile application control when Connexoon is present
► 433.32 MHx frequency, 200 meters range for open area
501. KNX Control
All KNX devices can be controlled via Multitek IP room monitors, regardless of their brand, type, etc.
✓ KNX is a home automation and smart home
system protocol defined by Europe's most
reliable EN 50090 standard
✓ KNX devices are currently built by more than 240
leading companies in the world
✓ It is a system that can be integrated with
different building management systems by its
modern, future oriented structure.
✓ System has an independent substructure from
KNX manufacturer, user can supply products
from different manufacturers.
✓ Provides a single substructure and maximum
flexibility for multiple functions
512. Relay Control
Simplest way of smart home control with internal relays
✓ Number of relays vary
accorting to the type of
Multitek room monitor
Diagram: Gas, water, heater, room electricity control
523. Multitek RF
No need to break your walls for smart home.. Just plug and play..
✓ All devices can be converted to smart home
devices by wireless receivers
✓ 150 m range in open area, 30 m in closed are
✓ There is no limit in number connected
wireless receivers
✓ Turn on, turn off, heater control, dimmer, light
control and blind control are available
functions. All can be controlled with remote
controller as well.
534. Somfy RTS
Wireless Somfy RTS receivers are controlled from VIP70 – Somfy monitor, a special product
designed for Somfy
✓ There is no limit in number of receivers in each channel
✓ 5 channels available for each monitor
✓ Includes alarm and intercom features
54Mobile Application
All smart home and alarm functions can be controlled via mobile application
✓ Free mobile application available on App Store and Google
Store
✓ When door bell rings, visitor’s photo is saved to monitor and
sent to mobile app with date & time information
✓ All alarm zones can be armed / disarmed from mobile app
✓ All smart home devices can be controlled via app (KNX, relay
or RF)
✓ Voice command enabled: Google Assistant and Google Home
compatible (all applicable languages)
✓ Customized phrases can be saved for voice command:
«Horror movie mode on!»
55LINUX IP İNTERCOM
Fast and convenient.. Linux IP İntercom
✓ There is no limit in number rooms, floors, door or facilities that can be
connected
✓ Suitable for vertical projects (up to 799 rooms in a single block)
✓ Voice message from door panel to rooms
✓ Different melodies can be set for different calling numbers
✓ Voice assistance (busy, keypad touches etc.)
✓ All received call photos are saved (100 without SD card)
✓ Unique password or proximity card for each room to unlock door
✓ Alarm management with 4 zones and direct report to security
✓ Elevator monitor (standard monitor with special software)
✓ Connected surrounding IP and CCTV cameras
✓ External IP camera view when security calls
571, 2, 3, 4.. Installation is as easy as counting numbers
✓ System requires 4 devices and CAT6 cabling:
• Room monitor
• Outdoor panel
• PoE switch
• Adaptor
✓ Additional training is not required to implement Linux IP
İntercom
✓ There is no additional infrastructure (server etc.) requirement
✓ Crystal clear voice and video quality for all rooms
✓ Network ethernet (PoE) connection with CAT6 cabling
✓ All units can call each other with no additional fee
58Smart intercom for everyone.. Linux IP Intercom offers easy
implementation and user-friendly graphics
LIM70 LIK35 LI-GUV01
7″ LCD Capacitive Touch Room Outdoor Panel Security Console
Monitor
210x140x20mm (Surface Mount) 326x206x56mm
318x130x51mm
59LIM70 has 7″ capacitive touch screen with diversified set of functions
including alarm and limitless room-to-room channels
✓ 7" LCD 800X400 resolution, capacitive touch screen
LIM70
7″ LCD Capacitive Touch Room Monitor ✓ Unlimited channels / calls between rooms
✓ Different ring tones according to call type
✓ Screenshot of door calls (100 pictures)
✓ 3 parallel monitors can be connected to each room
✓ Do not disturb mode
✓ Emergency call button
✓ PoE connection with CAT6 cabling
210x140x20mm (Surface Mount)
✓ Surface mount installation
✓ Dimensions: 210x140x20 mm
✓ Turkish and English language options
60LIK35 Door Panel has special featues such as voice message, unique
door password..
LIK35 ✓ Night view LEDs
Outdoor Panel
✓ Security, gatekeeper and door connection with a
single touch
✓ Phonebook
✓ Unique door password for all rooms
✓ Unique password or proximity card for each room
to unlock door
✓ Voice assistance ( busy, keypad touches etc. )
✓ Built-in proximity sensor
✓ PoE connection with CAT6 cabling
318x130x51mm
✓ Dimensions: 318x130x51 mm
61Security console is used in multi-building living areas to enable
communication between security and residents
LI-GUV01
Security Console
✓ 7"LCD 800X480 resolution, capacitive touch screen
✓ Integrated handset
✓ Calling / called room log
✓ Broadcasting messages to all rooms
✓ CCTV camera connection
✓ PoE connection with CAT6 cabling
326x206x56mm ✓ Standing on desk
✓ Dimensions: 326x206x56 mm
62MULTIBUS ANALOG INTERCOM SYSTEM (BUS TYPE)
Multibus Video Door Intercom
64Analog Intercom Systems
Multibus Room Monitors
MBT-70 MB-73 MB-43
4.3” colour TFT LCD screen, 18mm thickness,
7” touch screen, unique password for all rooms, 7” colour TFT LCD screen, touch button, security
security and gatekeeper buttons, horizontal
optional alarm and smart home management and gatekeeper buttons
positioning
MB-41
4.3” colour TFT LCD screen, 18mm thickness, MB-IF MBA-42
security and gatekeeper buttons, vertical Security and gatekeeper buttons, has handset 4.0” colour TFT LCD screen, has handset
positioning
65All monitors are hands free!
66Multibus Door Panels
MB-03
MB-10
MB-11 MB-DYF40
MB-05 MB-04 MB-02
67Analog BUS type of Systems provide video door intercom for small –
medium buildings
✓ Only 3 cable for audio or 4 cable ✓ Multidoor video camera
for video selection
✓ No exchange ✓ The system may be used for:
✓ No coaxial cable ✓ Up to 256 rooms per
✓ No distance limitation apartment block
✓ No encoder ✓ Up to 32 blocks of
✓ Can be used with existing cabling apartments in a site
of other brands ✓ Up to 4 doors per block
✓ DT8 / DT5 / CAT5 / CAT6 cabling ✓ Up to 8 elevators per block
68TELEPHONE EXCHANGES
Telephone Exchanges
Multitek has started its R&D and manufacturing journey with telephone exchanges and has excelled
in manufacturing processes
IP Hybrid Exchanges
Analog Exchanges
70CONVENTIONAL FIRE ALARM SYSTEMS
Conventional fire alarm system is EN54 certified
✓ Fire alarm panel with 4 zones
✓ Fire alarm panel with 8 zones
✓ Optical smoke detector
✓ Optical heat detector
✓ Optical smoke and heat detector
✓ Detector base
✓ Fire alarm sounder with red flasher
✓ Manual call point
72Thank you..
73You can also read
