Seiler Support Note                                                  February 2009
       Connecting to a CORS VRS/RTN Network with
                   Mapping-Grade GPS
Using Continuously Operating Reference Stations (CORS) for a Real-time differential GPS correction
source (DGPS)

What you need before you start:

       Quality Wireless Internet access- secured or unsecured
       OR
       A Bluetooth enabled mobile phone with DUN (Dial-up Networking) capability
       A digital data-plan with your mobile phone network provider - digital phone coverage is not
       enough.
   •   Your mobile phone network provider should be able to provide you with the specific connection
       details which may include:
              o A mobile phone network provider access username and password
              o The mobile phone network provider access point name (APN)
              o The “Phone Number” required to establish a connection
   •   If the network provider requires a modem “dial string”, user may also require:
              o The Trimble Dial-String Editor application
              o The custom dial string for your phone to access mobile phone network provider

Note: many phones/ network providers do not require a dial string to establish an Internet connection.
Note: the username and password for the Mobile Phone Network Provider are different than those
provided to you by the CORS Network GPS administrator. These are specifically for your mobile phone
connection and are unique to the network provider.
Connecting to a CORS VRS/RTN Network with Mapping-Grade GPS
Setting up a Bluetooth connection from your mobile device to your mobile phone
1) Name your mobile phone
   •   In Setup or Owner Information, set the Name of the phone to something other than the default to
       make sure you are bonding with YOUR device.
2) Make sure that Bluetooth technology is enabled on your mobile phone and that the phone visible or
   discoverable.
   •   Refer to Phone User’s guide to configure phone to set the name and to put it into Bluetooth
       discoverable or visible mode. It is usually under Setup or Settings then Bluetooth- phone must
       have Bluetooth “ON” and be discoverable or visible to complete the bonding process.
   •   For a Mobile 6 phone, on the phone itself, you may have to select Start   Settings      System
          Data Connection and switch data connection to Internal Data Call or USB/Bluetooth modem.
       Select option: as the modem through Bluetooth. If this is not done, DUN option will not appear as
       an option after bonding.
Note: in some cases, when the phone is in this state, no calls or web surfing may occur or if you take a
call, the VRS real-time correction data stream may be interrupted.
3) On the mobile device (Example GeoXH) select Start        Settings     Connections Tab      Bluetooth.
4) Screen tap on the Mode Tab at the bottom and turn ON Bluetooth, mobile device does not need to
   be visible to other devices.
5) Screen tap on the Devices Tab
6) Screen tap Add new device… to search for your mobile phone


                                         7) When the mobile device finishes searching for all available
                                            Bluetooth devices to connect to, screen tap the name of your
                                            device to select it then screen tap Next

                                         8) If no devices appear, check the mobile phone for a Find Me
                                            option in the Bluetooth settings and retry.

                                         9) To securely bond with this device, enter a Passcode, type in a
                                            four digit number 1111 then press Next

                                         Note **** will appear as passcode is secret. This is a one time
                                         bond passcode, user will not need to remember this passcode in
                                         the future.
Connecting to a CORS VRS/RTN Network with Mapping-Grade GPS
10) After pressing Next, look at mobile phone- It should be asking
    to bond with mobile device, on the mobile phone select Yes or
    OK then type in the exact same passcode and press OK
11) Message similar to “Pin verified and saved” should appear
    on phone
12) Partnership settings screen will appear on mobile device, the
    Display Name: Phone name will appear and services list
    should appear.
13) Click on the box to Check ON Dialup Networking
14) Screen tap Finish
NOTE: If Dialup Networking does not appear, the phone may not
be enabled or capable of being used as a Bluetooth Modem and
you cannot continue. Turn phone off and on, reset collector and
try bonding to phone again to be sure.
Connecting to a CORS VRS/RTN Network with Mapping-Grade GPS
Building an Internet connection to your mobile phone

1) Close all open windows and programs on Mobile device.


2) On the mobile device press Start Settings    select the
   Connections tab     double click on Connections icon




   •   Windows Connection Setting Screen will appear




3) Below My ISP, screen tap on Add a new modem connection




                                    Make a New Connection screen will appear

                                    1) Enter a name for your connection. A suggestion would be to fill
                                       in phone type plus mobile phone network provider for easy
                                       identification.
                                    2) Select Modem type then screen tap on Next
                                        •   Bluetooth
                                        •   COM1 if using a cable to the phone




                                   If you have Bluetooth selected as modem, the following screen
                                   will appear: Settings    My Connections screen:



                                   NOTE: If modem was selected to be a COM1 device, this screen
                                    will not appear

                                   1)       Select the Bluetooth device to use to use as a modem to
                                            connect to a mobile network

                                   2)       Screen tap to highlight your newly created Bluetooth
                                            Partnership (no need to press next it will advance
                                            automatically)
Connecting to a CORS VRS/RTN Network with Mapping-Grade GPS

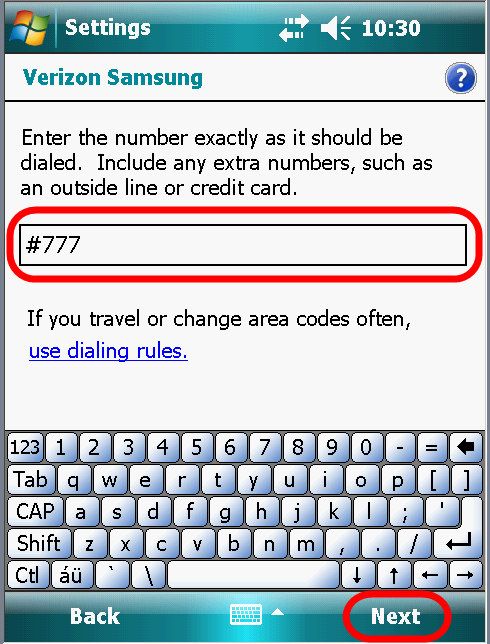

3)    Fill in appropriate mobile network provider access number:

                                          Verizon             #777
                                          Cingular/ ATT       *99***1#
                                          CellCom             #777
                                          US Cellular         #777
                                          Nextel              S=2
                                          Sprint
                                          T-Mobile          *99# or *99***1#
                                               where the red number may be 1 2 or 3

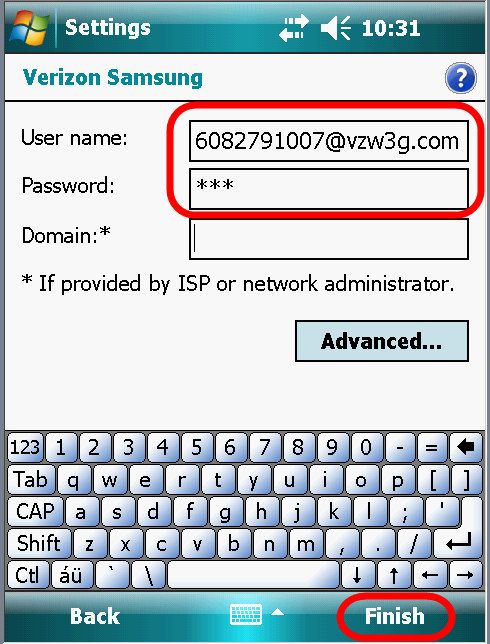

 etwork Settings screen:            4)    Then press Next

                                         Verizon User name:
                                         YOUR MOBILE PHONE NUMBER @ vzw3g.com
                                         Example 6082791007@vzw3g.com
                                         Password:      vzw
                                         CRITICAL: All letters must be LOWERCASE
                                         Leave Domain blank
                                         Cingular/ ATT
                                         User Name: ISP@CINGULARGPRS.COM
                                         Password: CINGULAR1
                                         CRITICAL: All letters must be UPPERCASE
                                         Leave Domain blank
                                         Cingular and ATT require Special Dial String Commands
                                         CellCom
                                         User Name:
                                         YOUR MOBILE PHONE NUMBER @ cellcom3g.com
                                         Password:      1xdata
                                         CRITICAL: All letters must be LOWERCASE
                                         Leave Domain blank
                                          US Cellular, Nextel and Sprint User name:
                                         Leave User Name blank
                                         Leave Password blank
                                         Leave Domain blank

T-Mobile
User Name:
_?_
Password:   _?_
Leave Domain blank

5)     Press Finish to save this setup

Note: Cingular and ATT require a special Dial String Modem Command. Download and install the Dial
String Editor from www.Trimble.com
Connecting to a CORS VRS/RTN Network with Mapping-Grade GPS
Install the Dial String Editor from www.Trimble.com
If your mobile phone carrier does not require a custom dial string, skip this install.
A Dial String is required by some mobile phone network providers access their network. A special
executable program is available from www.Trimble.com for adding a special dial string commands
called: DialStringEditor.CAB For all models prior to the Mobile 6 Operating System, there was as
Advanced tab where the user could enter the dial string. Now a user must download special
executable program to run on the mobile device.
1) Download      http://trimble.com/geoxh_ts.asp?Nav=Collection-57323         (as of 08/08)
2) Look below Dial String Editor (Windows Mobile 6)
3) Download DialStringEditor.CAB
   •   From an office computer with internet access, go to www.trimble.com/support
   •   Click on the name of your device, Example GeoXH
   •   Click Downloads then select your device type again if needed
   •   Scroll down to find the Dial String Editor (Windows Mobile 6) Click on it to download the file
       DialStringEditor.CAB file to your PC
4) Close any applications or files that are running on the mobile device.
5) Using an Activesync connection and Windows Explorer on the PC, copy the file
   DialStringEditor.CAB to the mobile device.
6) On the mobile device, use Windows Explorer to navigate to the newly copied file and double tap
   the file to install the application. The following screen may appear:




7) Screen tap Yes to that the mobile device reboots.
Connecting to a CORS VRS/RTN Network with Mapping-Grade GPS
8) On the Mobile device, run the newly installed program, select Start     Settings     Connections
     Dial String Editor:




9) Fill in the Dial string for your cellular provide EXACTLY as provided to you, strings are case
   sensitive.
       •   Cingular   &f&d2&c1+cgdcont=1,”IP”,”isp.cingular”

       •   ATT        cgdcont=1”IP”.”proxy”

10) Then press Apply and OK to close the Dial String Editor, Close all windows back to the Today
    screen




Test your new connection


   1. Select Start Settings
      Connections Tab    Connections




   2. Screen tap on My ISP       Manage
      existing connections
Connecting to a CORS VRS/RTN Network with Mapping-Grade GPS
3. Click and hold stylus down on the connection you
                                                  just created and screen tap Connect

                                               4. Mobile device should automatically make the
                                                  Bluetooth connection to the phone and make a
                                                  connection to the network allowing internet access.

                                               •    The top status bar Connectivity icon should have
                                                    two arrows with no “x”




                                                                        not


   5. Open an internet session and browse to a page you recognize
           •   Select Start   Programs      Internet Explorer
           •   Browse to a website like www.seilerinst.com

   6. If website appears- you have done everything correctly so far!

   7. Press the “X” to close Internet Explorer and then close all remaining windows to get to the TODAY
      screen of the mobile device.

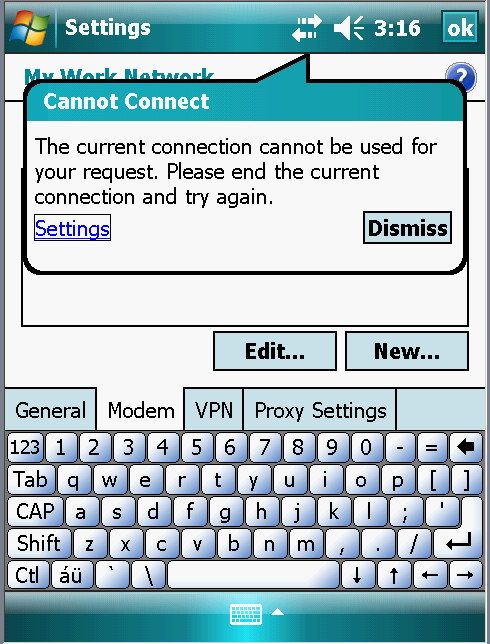

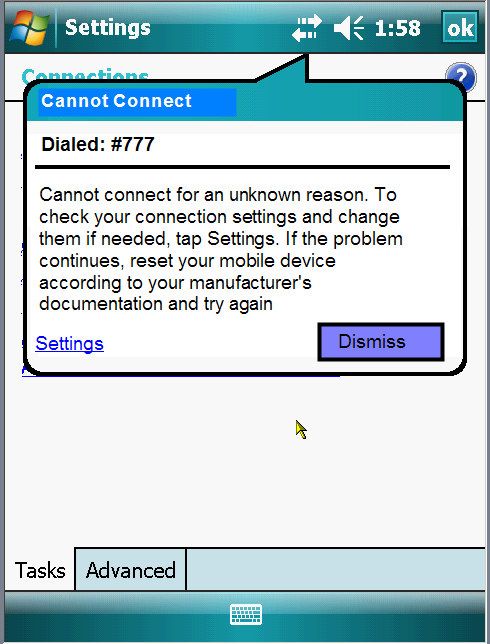

Possible Error messages




If the mobile device or the phone does not have          If you are in a cradle with Activesync attached,
the Bluetooth turned “on”, you will this message.        you will see this message
Connecting to a CORS VRS/RTN Network with Mapping-Grade GPS

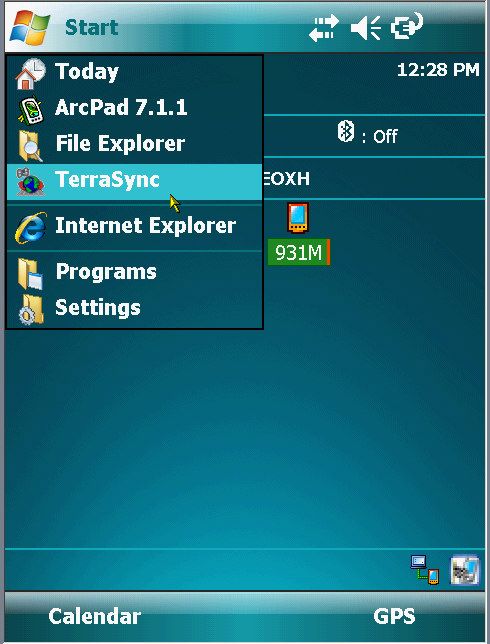

Run TerraSync on your Mobile Device



From “Today” Screen select Start           Programs    Or Screen tap GPS on the screen to run
   TerraSync or if it is in the start list select      TerraSync
from main Start area

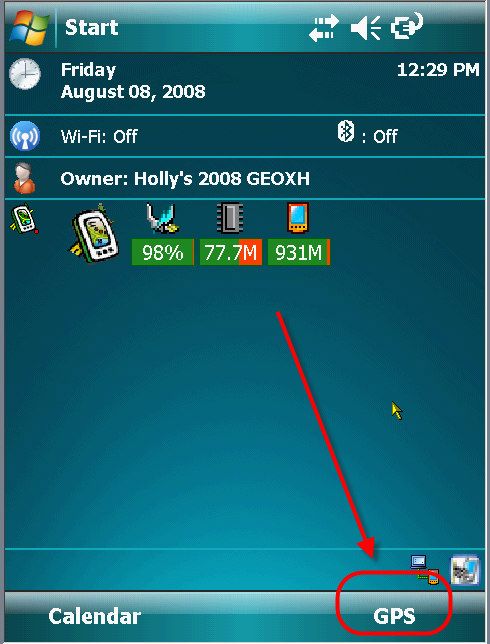

                        Or Press the button below the GPS prompt to run TerraSync.
Connecting to a CORS VRS/RTN Network with Mapping-Grade GPS
Configure TerraSync for Real Time Corrections from a CORS GPS Network Server

1. Change from STATUS
   screen to the SETUP
   screen

   Screen tap on Real-time




   Set Choice 1: to External
   Source

4. Set Choice 2: select use or
   wait- do not select SBAS.

   •   Wait for real-time

Set this if real time results are
required and not post process.

   •   Use Uncorrected GPS

Set this for a mix of real-time and
uncorrected data. Data may have
to be post processed.

   •   Integrated SBAS

Any satellite based augmentation system (SBAS) like the American system of WAAS should NOT be
selected as Choice 2 if External Source is set as Choice 1. This may cause some post processing issues
later.

5. Real-time Age Limit: set to 1min
6. Press wrench symbol next to Choice 1: External
                                               Source to configure External Source




7. Set Correction Datum: to match the datum of the CORS
   Network Adjustment.
   •   Seiler MWRTK port NAD83 (conus) CORS96
   •   WISCORS set to NAD 1983 (conus) CORS96
8. Set Type: VRS
   •   VRS for a network Solution
   •   Single Base to connect to a specific CORS station
Note: MWRTK does, for some stations, have single base data
streams but WISCORS does not have any base solutions
available at this time. (8/2008)
9. Connection Method: Internet
10. Address:
   •   For MWRTK the primary IP is: 64.123.250.18
   •   For WISCORS the primary IP is: 130.47.34.42
   •   For WISCORS the backup server IP is: 130.47.34.45
11. Port: 2101

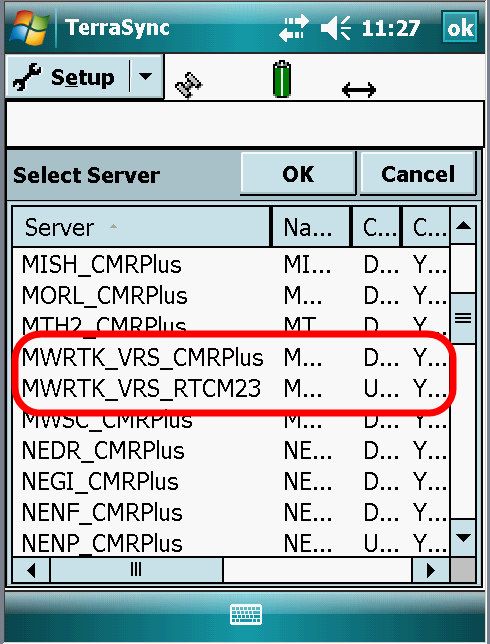

                                              12. Press wrench symbol next to Source: to get list of
                                                  mount points from CORS Network GPS Server.

                                                     •     If IP and Port were entered correctly, CORS
                                                           Network Provider Server mount points will
                                                           appear

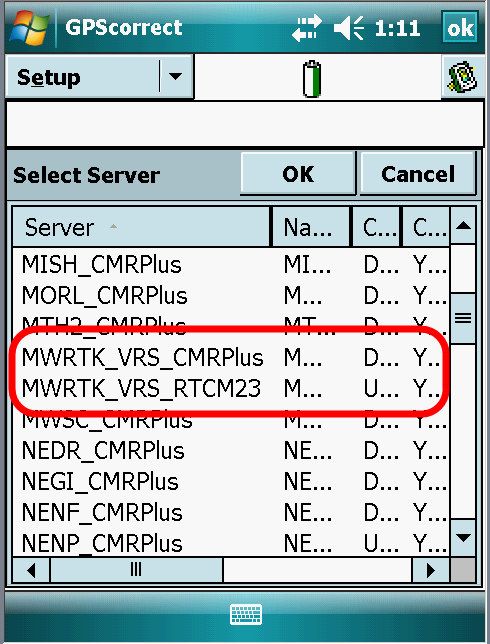

Entire CORS Network Server source list tries to fit on the page
but cannot usually be read, point and hold stylus on the
vertical bar between the S… and the Na… to grab it, then
slide the stylus to the right to expand the column
or double click on the line between the S… and the Na… to
best fit.
User may also screen tap on Server column header to sort
alphabetically.
Seiler’s MWRTK has many mount points for network access
as well as individual stations CMRPlus and RTCM2.3 Network
as well as Single Base station CMRPlus.

WISCORS currently offers two for the network




Seiler’s MWRTK VRS and Single Base Mount points             WISCORS Mount points
13. Screen tap on desired Server mount point and press OK
       •   Seiler MWRTK for carrier data (sub-foot) select MWRTK_VRS_CMRPlus
       •   Seiler MWRTK for carrier (sub-foot) or code (sub-meter) select MWRTK_VRS_RTCM23
       •   WISCORS for carrier (sub-foot) users Select WISCORS_CMRplus
       •   WISCORS for carrier (sub-foot) or code users select WISCORS_RTCM23
OVERVIEW: Differential GPS (DGPS) correction signals are available in a two basic formats: RTCM and
CMR

•   RTCM

       RTCM correction messages are the initial letters of the Radio Technical Commission for Maritime
       Services. This is a commission established to define a differential data link for the real-time
       differential correction of roving GPS receivers. All Trimble GPS receivers use version 2.1 or later
       RTCM protocol. RTCM may be a blend of signals or it may be one or the other of the carrier type
       corrections know as RTK (Real time kinematic) and code type correction signals know as basic
       DGPS.

       MWRTK and WISCORS output all RTK type correction signals.

       An example of RTCM DGPS only would be corrections coming from a Beacon or SBAS/WAAS.
       These sources, while RTCM, do not contain carrier (RTK) corrections and would therefore no
       provide real-time HStar accuracy.

•   CMR

       Compact Measurement Record is a real-time message format developed by Trimble for
       broadcasting corrections to other Trimble receivers. CMR is a more efficient alternative to RTCM
       correction messages, but is not supported by all non-Trimble receivers. All flavors of CMR signals
       are the RTK type message. CMRplus or CMR+ is just another type of CMR.

There are no major differences between RTK styles RTCM and CMR messages. All flavors of RTK
corrections will provide decimeter accuracy.
Type in the unique CORS GPS Network User
name: this is secure User name provided to you
by the CORS GPS Network Provider. Note; this
is NOT the same as the mobile phone user
name.


14. Type in the Password provided by CORS
    GPS Network Provider

!!CRITICAL NOTE: the User name and
Password are CASE SENSITIVE- make sure to
type them in exactly as provided to you. Usually
lower case letters, Check this before typing in the
password as you cannot read the password after
it is entered- it appears as *** to keep is secret.
15. Connection Control:
       •       Set to Auto if you want TerraSync to attempt to connect immediately upon running.
       •       Set to Manual if you want time to get phone ready before TerraSync attempts the modem
               connection.
16. Real time Protocol: cannot be changed, it is set by the Source correction stream selected in Source
    field.
17. Press OK to accept settings and return to main Setup Screen

                                     18. If Connection Control in the Setup was Manual, user must press
                                         the Ext Source button to activate the VRS data stream.

                                      NOTE: TerraSync on the Mobile Device must have sufficient
                                      Satellites before VRS connection will appear connected




                                      Solid Icon          Applying real-time corrections from VRS

                                      Flashing Icon       Waiting for real-time corrections

                                      Possible reasons for flashing icon: GPS receiver not locked on
                                      sufficient satellites or high PDOP, user has no mobile phone
                                      connection, user’s mobile phone has no digital data service in this
                                      area, no Bluetooth connection, Bluetooth OFF on Phone or mobile
                                      device, VRS server is not operational.
Check Status of Real Time Correction signal in TerraSync


                             1. In TerraSync, Select Status Screen then select sub-menu Real-
                                time

                             2. Select Status     Real-time     Summary will either read In use or
                                Waiting.

                             In Use    Receiver is applying real-time corrections from VRS- all is
                                       well!

                             Waiting   Possible reasons for flashing: GPS receiver not locked on
                                       sufficient satellites or high PDOP, user has no mobile phone
                                       connection, user’s mobile phone has no digital data service
                                       in this area, no Bluetooth connection. Bluetooth OFF on
                                       Phone or mobile device, VRS server is not operational.




                             3. Select Status     Real-time      External will either read In use or
                                Waiting.

                             In use will show current connection status in
                             more detail as shown in image on the left.




                             Waiting- something is not working….
Check Real Time and Postprocessed Accuracies in TerraSync


                                        1. Select Setup       Logging Settings
                                        2. User selects the Accuracy Setting to be shown at the top of
                                           the screen above the double arrow:
                                                •   Horizontal in the field
                                                •   Vertical in the field
                                                •   Horizontal postprocessed
                                                •   Vertical postprocessed
                                        3. User also sets the Postprocessing Base Distance and if
                                           Accuracy based Logging is desired.
                                        NOTE: Accuracy based logging is new to TerraSync 3.21 It
                                        allows the user to be confident of achieving required accuracy:
                                        TerraSync will not log a position unless the required accuracy
                                        has been achieved
                                        Either Horizontal or Vertical accuracy can be defined
                                        Either real-time or post-processed accuracy can be defined



User preference is shown on the screen at all
times above the Estimated accuracy double
arrow on top status bar.



A screen tap on the Estimated accuracy double
arrow will show a tooltip pop up for all four
estimated accuracies at any time.
End of Session- Exit TerraSync and Close Real-Time Connection




                                 1. Exit TerraSync as usual



                                 2. Screen tap on Connectivity Icon on the top bar




                                 3. Screen tap Disconnect to end the Bluetooth Modem
                                    connection to the phone.

                                 If you are not going to use the real-time connection all of the
                                 time, turn off Bluetooth to save Mobile Device power
                                 consumption.

                                 On the mobile device select Start     Settings     Connections
                                 Tab Bluetooth.


                                 Screen tap on the Mode Tab at the bottom and turn OFF
                                 Bluetooth.
Run ArcPad with GPS Correct on your Mobile Device

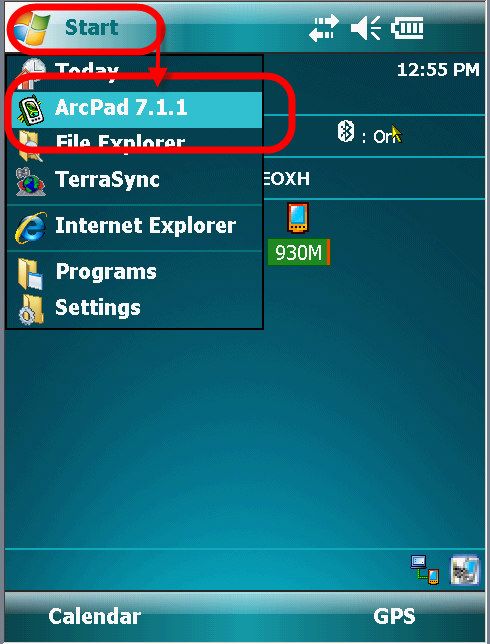

From “Today” Screen select Start    Programs     ArcPad 7.1.1 or if it is in the start list select from main
Start area




Configure GPS Correct for Real Time Corrections from a CORS GPS Network Server

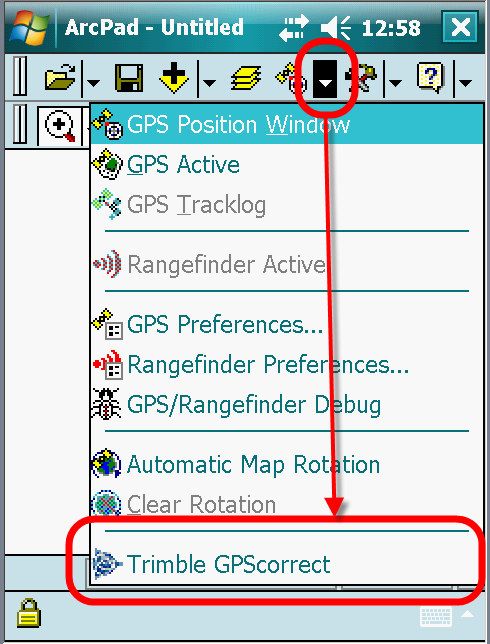

1. In ArcPad, run GPS Correct extension

2. Change from SKYPLOT screen to the SETUP screen

   Screen tap on Real-time




4. Set Choice 1: to External Source

5. Set Choice 2: select use or wait- do not select SBAS.
•   Wait for real-time
Set this if real time results are required and not post process.
   •   Use Uncorrected GPS
Set this for a mix of real-time and uncorrected data. Data may have to be post processed.
   •   Integrated SBAS
Any satellite based augmentation system (SBAS) like the American system of WAAS should NOT be
selected as Choice 2 if External Source is set as Choice 1. This may cause some post processing issues
later.
6. Real-time Age Limit: set to 1mi

                                                                       7. Press wrench symbol next to
                                                                          Choice 1: External Source to
                                                                          configure External Source
                                                                       8. Set Type: VRS
                                                                          •   VRS for a network Solution
                                                                          •   Single Base to connect to a
                                                                              specific CORS station

                                                                          Note: MWRTK does, for some
                                                                          stations, have single base data
                                                                          streams but WISCORS does not
                                                                          have any base solutions available
                                                                          at this time. (8/2008)

9. Connection Method: Internet
10. Address:
   •   For MWRTK the primary IP is: 64.123.250.18
   •   For WISCORS the primary IP is: 130.47.34.42
   •   For WISCORS the backup server IP is: 130.47.34.45
11. Port: 2101
                                                  12. Press wrench symbol next to Source: to get list of
                                                      mount points from CORS Network GPS Server.

                                                          •   If IP and Port were entered correctly, CORS
                                                              Network Provider Server mount points will
                                                              appear
Entire CORS Network Server source list tries to fit on the page
but cannot usually be read, point and hold stylus on the
vertical bar between the S… and the Na… to grab it, then
slide the stylus to the right to expand the column
or double click on the line between the S… and the Na… to
best fit.
User may also screen tap on Server column header to sort
alphabetically.
Seiler’s MWRTK has many mount points for network access
as well as individual stations CMRPlus and RTCM2.3 Network
as well as Single Base station CMRPlus.

WISCORS currently offers two for the network




Seiler’s MWRTK VRS and Single Base Mount points             WISCORS Mount points
13. Screen tap on desired Server mount point and press OK
       •   Seiler MWRTK for carrier data (sub-foot) select MWRTK_VRS_CMRPlus
       •   Seiler MWRTK for carrier (sub-foot) or code (sub-meter) select MWRTK_VRS_RTCM23
       •   WISCORS for carrier (sub-foot) users Select WISCORS_CMRplus
       •   WISCORS for carrier (sub-foot) or code users select WISCORS_RTCM23
OVERVIEW: Differential GPS (DGPS) correction signals are available in a two basic formats: RTCM and
CMR

•   RTCM

       RTCM correction messages are the initial letters of the Radio Technical Commission for Maritime
       Services. This is a commission established to define a differential data link for the real-time
       differential correction of roving GPS receivers. All Trimble GPS receivers use version 2.1 or later
       RTCM protocol. RTCM may be a blend of signals or it may be one or the other of the carrier type
       corrections know as RTK (Real time kinematic) and code type correction signals know as basic
       DGPS.

       MWRTK and WISCORS output all RTK type correction signals.

       An example of RTCM DGPS only would be corrections coming from a Beacon or SBAS/WAAS.
       These sources, while RTCM, do not contain carrier (RTK) corrections and would therefore no
       provide real-time HStar accuracy.

•   CMR

       Compact Measurement Record is a real-time message format developed by Trimble for
       broadcasting corrections to other Trimble receivers. CMR is a more efficient alternative to RTCM
       correction messages, but is not supported by all non-Trimble receivers. All flavors of CMR signals
       are the RTK type message. CMRplus or CMR+ is just another type of CMR.

There are no major differences between RTK styles RTCM and CMR messages. All flavors of RTK
corrections will provide decimeter accuracy.
Type in the unique CORS GPS Network User
name: this is secure User name provided to you
by the CORS GPS Network Provider. Note; this
is NOT the same as the mobile phone user
name.


14. Type in the Password provided by CORS
    GPS Network Provider

!!CRITICAL NOTE: the User name and
Password are CASE SENSITIVE- make sure to
type them in exactly as provided to you. Usually
lower case letters, Check this before typing in the
password as you cannot read the password after
it is entered- it appears as *** to keep is secret.
15. Connection Control:
       •       Set to Auto if you want GPS Correct to attempt to connect immediately upon running.
       •       Set to Manual if you want time to get phone ready before GPS Correct attempts the
               modem connection.
16. Real time Protocol: cannot be changed, it is set by the Source correction stream selected in Source
    field.
17. Press OK to accept settings and press OK to return to main Setup Screen

                                     18. If Connection Control in the Setup was Manual, user must press
                                         the Ext Source button to activate the VRS data stream.

                                      NOTE: GPS must be activated in ArcPad and GPS Correct on the
                                      Mobile Device must have sufficient Satellites before VRS connection
                                      will appear connected




                                      Solid Icon          Applying real-time corrections from VRS

                                      Flashing Icon       Waiting for real-time corrections

                                      .Possible reasons for flashing icon: GPS receiver not locked on
                                      sufficient satellites or high PDOP, user has no mobile phone
                                      connection, user’s mobile phone has no digital data service in this
                                      area, no Bluetooth connection, Bluetooth OFF on Phone or mobile
                                      device, VRS server is not operational.
Check Status of Real Time Correction signal in GPS Correct




                             1. GPS Correct, Select “Current” Screen then select Real-time




                          2. Select Real-time     Summary will either read In use or Waiting.

                            In Use Receiver is applying real-time corrections from VRS- all is well!

                            Waiting Possible reasons for flashing: GPS receiver not locked on
                                    sufficient satellites or high PDOP, user has no mobile phone
                                    connection, user’s mobile phone has no digital data service in
                                    this area, no Bluetooth connection. Bluetooth OFF on Phone or
                                    mobile device, VRS server is not operational.




                          3. Select Real-time      External will either read In use or Waiting.

                             In use will show current connection status in
                             more detail as shown in image on the left.




                             Waiting- something is not working….
Check Real Time and Postprocessed Accuracies in GPS Correct


                                1. Select Setup      GPS Settings
                                2. User selects the Accuracy Setting to be shown at the top of
                                   the screen above the double arrow:
                                       •   Horizontal in the field
                                       •   Vertical in the field
                                       •   Horizontal postprocessed
                                       •   Vertical postprocessed
                                3. User also sets the Postprocessing Base Distance




User preference is shown on
the screen at all times above
the Estimated accuracy double
arrow on top status bar.



A screen tap on the Estimated
accuracy double arrow will
show a tooltip pop up for all
four estimated accuracies at
any time.
End of Session- Exit ArcPad and Close Real-Time Connection




     1. A screen tap on the “X” in the upper right does NOT close ArcPad- it works like a minimize rather than
        a close or exit. Be sure to EXIT and save project..




25
2. Screen tap on Connectivity Icon on the top bar




     3. Screen tap Disconnect to end the Bluetooth Modem connection to the phone.

If you are not going to use the real-time connection all of the time, turn off Bluetooth to save Mobile Device
power consumption.

On the mobile device select Start     Settings     Connections Tab       Bluetooth.


Screen tap on the Mode Tab at the bottom and turn OFF Bluetooth.




Contact Seiler Instrument at 314-218-6321 for details or questions regarding this Support Note
SUP-7.5.1, WI1                                                                           Rev. 1, 3/29/07

26
Next part ... Cancel
