An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
CORK CITY DIVISIONAL
ROADS POLICING
TRAFFIC MANAGEMENT PLAN
Cork Cork
2018 2018
Liam Miller Tribute
Match
Páirc Uí Chaoimh
Tuesday 25 Sept 18 h
Cork City Roads Policing Unit Page 1 of 19 Version: 1:2 20/09/18
An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
TABLE OF CONTENTS
1. RATIONALE …. ............................................................................................................. Page 3
2. MEDIA …. ..................................................................................................................... Page 3
3. INNER CORDON …. ...................................................................................................... Page 4
4. ROAD CLOSURES…................................................................................................. Pages 4-5
5. EMERGENCY ROUTES …. ........................................................................................... Page 5
6. BUS EIREANN …. ..................................................................................................... Pages 5-6
7. IRISH RAIL …................................................................................................................. Page 6
8. PARKING …............................................................................................................... Pages 6-7
9. STEWARDING. …. ......................................................................................................... Page 7
10. V.M.S. ….......................................................................................................................... Page 7
11. BARRIERS …. ................................................................................................................. Page 7
12. SOFT TICKET CHECKS................................................................................................. Page 8
13. BOTTLE CHECKS ......................................................................................................... Page 9
14. RIVER RESCUE ....................................................................................................... Pages 9/10
15. TRAFFIC CONES .......................................................................................................... Page 10
16. CASUAL TRADING ..................................................................................................... Page 10
17. SCHEDULES ............................................................................................................Page 11-17
a. Variable Message Sign Pre-match A ................................................................ Page 11
b. Variable Message Sign Match Day B................................................................ Page 12
c. Variable Message Sign Post-match C ............................................................... Page 13
d. Garda Barrier Locations D.................................................................................. Page 14
e. Garda No-Parking Cones E ................................................................................ Page 15
f. Parking Locations F............................................................................................ Page 16
18. EMERGENCY ROUTE MAPS ................................................................................Page 17-18
Cork City Roads Policing Unit Page 2 of 19 Version: 1:2 20/09/18
An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
1. RATONALE
The Garda Traffic Management Plan is designed to attempt to address the current infrastructural deficits
with the location of the Stadium. Páirc Uí Chaoimh is bounded by the river Lee on the Northern side and
the Atlantic Pond which prevents vehicular access from its Eastern side. The stadium is bordered on the
other two sides by residential and commercial areas. There is inadequate parking around the venue for a
capacity crowd. The vast majority of the crowd is expected to approach from the City (Western) side and
the remainder from Boreenmanna Road on the Southern side. The match egress will also coincide with
Tuesday evening rush hour traffic.
The Traffic Management Plan will depend on the successful implementation of three key media
message strategies.
1. Convincing the vast majority of match goers to walk to the grounds from Cork City centre.
2. Convince members of the public to take the shuttle Bus from Lapps Quay to the grounds
3. Conveying the message to people in the City or planning to travel through Cork City to be gone
by 4.45pm that Tuesday.
The success of the Traffic Management Plan is heavily dependent of the success of the Media Plan.
The message has to be conveyed to all that there is no vehicular access to Centre Park Road, The
Marina, Maryville and Monahan’s Road for the day. Though this is not entirely correct as there will be a
1-way system maintained down Centre Park Road across the Link Road and out Monahan’s Road to
facilitate residents, local businesses, sporting groups, and disabled match ticket holders).
2. MEDIA MESSAGE
THE CORE MEDIA MESSAGE NEEDS TO VERY CLEAR: AND SIMPLY STATE
1 2 3
• Traffic DELAYS • HELD BACK • Disabled Parking
• There are going to be • The closer you park to • If any special request to
long traffic delays to the grounds the longer contact the promoter e.g.
avoid the area you will be held back that ticket holders with
tickets allocated for
afterwards. disabled parking are to
approach via Centre Park
Road and that only limited
number of wheel chair
accessible taxis will be
allowed down to the venue
after the Match.
Cork City Roads Policing Unit Page 3 of 19 Version: 1:2 20/09/18
An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
3. INNER GARDA CORDON
The Traffic Management Plan has to make special arrangements for businesses, sporting groups and
residents within the inner cordon
C.A.B. FORD Motors
There has to be room allocated for employees of C.A.B. to park in the “Marquee” car park from
7.30 am on Tuesday morning for 50 vehicles and for these vehicles to leave by 4.45 pm. C.A.B.
motors customers on Tuesday the 25th of Sept are to be facilitated in a one way in and one way out
system off the Blackrock Road via Park Avenue to their premises.
Tedcastles Fuels Yard
Top Oil have been advised not to have any deliveries between 12pm and 7pm.
Birchgrove/Maryville/Ardfoyle/Park Ave Residents
Access for motorists residing in Birchgrove, Maryville, Ardfoyle and Park Avenue is by the
production of a valid driving licence with their current address as is required by Section 59(2) of
the Road Traffic Act 2010 for anyone driving on public roads. Residents to be advised to expect
delays and avoid vehicular movements between 12:00 hrs – 15:15 hrs and 16:30 hrs – 19:00hrs.
Emergency access will be maintained at all times.
4. ROAD CLOSURES
By Cork City Council statutory signage
Statutory Road Closure signs as per schedule No. 7 (TBC) of Mark O’Leary Executive Engineer,
Roads and Transportation, Cork City Council.
By Stewards / An Garda Síochána
From 9:30 hrs Tuesday 28th Sept 2018 until 19:00 hrs.
Ardfoyle / Park Avenue
Blackrock Road / Maryville
Monahan’s Road / Link Road
From 11.30 hrs Tuesday 28th Sept 2018 until 19:00hrs.
Marina / Church Avenue
Cork City Roads Policing Unit Page 4 of 19 Version: 1:2 20/09/18An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
Centre Park Road Link Road
Churchyard Lane either end / access for residents only.
Clanrickard Estate / Boreenmanna Road access residents only.
Crab Lane / Boreenmanna Road access residents only.
TICKET COLLECTION
Match goers to be advised to approach the ticket collection office at the Marquee Office via Centre Park
Road only.
5. EMERGENCY ROUTES
PRIMARY
The primary Emergency route is Monerea Terrace to Victoria Road Roundabout to Monahan’s Road to
the South Western side sterile barrier entrance to Páirc Uí Chaoimh. SEE SCHEDULE 7
SECONDARY
The secondary Emergency Route is Boreenmanna Road, Churchyard Lane, Blackrock Road, Maryville to
the South Western side sterile barriered entrance to Páirc Uí Chaoimh. SEE SCHEDULE 8
TERTIARY
Eastward along the Marina to Blackrock Village.
6. BUS EIREANN
Details of the Bus Eireann Shuttle Bus Service to Stadium
Bus Eireann are to provide a Shuttle Bus system one way to the grounds only.
DEPART LAPPS QUAY from 12:45 hr start and finish at 15:00
These Shuttle Buses can travel to the stadium and return via the emergency route along Monerea Terrace
to Lapps Quay. A Garda is to be allocated to assist the shuttle buses out onto Clontarf Bridge and a second
Garda at Sutton’s Coal yard entrance allocated to prevent vehicles from parking at the turning point at
Sutton’s front entrance.
DEPART PARK & RIDE from 12:00 hrs –Drop off point on Egilinton St next to City Hall
– every 10 mins
KENT RAIL STATION
Bus Eireann in conjunction with information from Irish Rail will provide a service from Kent Station to
the match grounds at Páirc Uí Chaoimh. There will be no return shuttle bus and match attendees will
have to walk back to Kent Train Station or take 202 Bus from the Blackrock Road.
Cork City Roads Policing Unit Page 5 of 19 Version: 1:2 20/09/18An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
Mahon Point will provide 400 Free Car Parking Spaces at the Ice Rink Venue and from there the patrons
have several options
1. they can walk a short distance to take the 202 Bus at the Mahon Point Omniplex Bus Stop to the
stop on the Blackrock Road by the Temple Inn 5 minutes’ walk from the grounds.
2. They can walk across the road from Mahon Point Shopping Centre and by the Traffic Lights past
the CSPCA Animal Clinic they can access the Blackrock Amenity Walk railway line which will
bring pedestrians out at the stadium.
3. Alternatively, they can walk across the Road from the Mahon Shopping Centre and get the 215 or
219 from outside Johnson & Perrot’s Garage and walk from the Churchyard Lane stop 10 minutes
to the grounds.
Match attendees exiting the stadium (except on River Lee/ Marina side) will be directed via VMS signage
back up Maryville to a supplemented 202 Route City bound route on the Blackrock Road. A Bus Eireann
Inspector with Gardaí to decide when the crowds have sufficiently cleared the Blackrock Road before
these buses depart. Buses may return from the City via the South Ring Road and Mahon Point if the Bus
Inspector has waiting passengers on the Blackrock Road.
7. IRISH RAIL
Irish Rail will provide details of their services to and from Cork City to Bus Eireann and the Gardaí.
They will also provide information regarding Irish Rail car parks available to their users on the routes to
Cork City. This information will be disseminated via social media by the Garda Media Liaison and by
Irish Rail’s own social media presence.
There is free parking at Midleton –Carrigtwohill – Glounthane – Little Island Train stations
Customer Contact Number 1-850-366222 (09:00 to 17:00 Mon to Fri). www.irishrail.ie
8. PARKING
Locations for Disabled Parking
Message to be sent to each issued match disabled ticket holder that they have to approach the match via
Centre Park Road from Cork City Centre. They will park just inside the Marquee car park and can make
their way from there to the grounds.
Cork City Roads Policing Unit Page 6 of 19 Version: 1:2 20/09/18An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
Drop off Points for Taxi’s
Taxis are to drop off at a designated area on the Victoria Road just before Marina Walk unless they are
wheel chair taxi. Taxis may not be allowed down Centre Park Road when the volume of pedestrians is
too large.
Designated Coach Parking
Cork City Council Roads and Transportation to advise the National Transport Authority that all Large
Public Service Vehicles are to set down and pick up on the Boreenmanna Road near the Maxol service
Station.
9. STEWARDING OF ESTATES
Estates around the ground should be stewarded by private security as per GAA Plans for capacity crowds
at Páirc Uí Chaoimh. Stewarding activity will be supported by mobile Garda personnel as required.
10. VARIABLE MESSAGE SIGNS
SEE SCHEDULE A
VMS Signs from 18th of Sept until 25th of Sept 2018 on approach roads.
One week before warning of delays on the 25th of Sept 2018
SEE SCHEDULE B
25th Sept 2018 the Day of the Tribute Match.
SEE SCHEDULE C
Post - Match signs to cater for fans egressing the venue be moved from Schedule 2 Locations.
11. BARRIERS
SEE SCHEDULE NO. D
Section 21 Criminal Justice (Public Order) Act 1994 Order to restrict access by members of the public
to be made by Superintendent John Quilter.
Pedestrian movement will be controlled by Media information, Shuttle Bus, Signage, Barriers, Stewards
and Gardaí.
Cork City Roads Policing Unit Page 7 of 19 Version: 1:2 20/09/18An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
Ticket Collection
*: Ticket collection at the Marquee front entrance. Only approach via Centre Park Rd / Monahan’s Rd
12. SOFT TICKET CHECKS BY STEWARDS
1: Marina / Blackrock Line
2: Monahan’s Road at junction with Link Road
3: Monahan's Road / Birchgrove
4: Centre Park Road / Link Road
5/6: Maryville Road approaching Monahan Road - Left
& Right
RESIDENTS WILL BE
ALLOWED ACCESS
Cork City Roads Policing Unit Page 8 of 19 Version: 1:2 20/09/18An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
13. BOTTLE CHECKS
Will be completed by lanes at the following locations
Marina - Slip to stadium
Bridge near C.A.B. entrance to the Eastern end of
the stadium
Either side of the Barriered Emergency entrance
to the stadium [Plaza Entrance]
14. River Rescue
Mallow Serach & Rescue will be provide boats for emergency cover on the river Lee from 12 pm to 7
pm. River Rescue should cover egress of patrons along Kennedy Quay and the Blackrock end of the
Marina after the area around the stadium is cleared after the tribute match.
River Rescue Units to take possession of a Lee Rowing club key access to the floating river pontoon
from them before Monday 24th of Sept to allow access to the river rescue to the pontoon to land any
casualties. Pontoon to remain closed unless access required.
Cork City Roads Policing Unit Page 9 of 19 Version: 1:2 20/09/18An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
River: High Tide / Low Tide
Tuesday High 06.21
Tuesday LOW 12:46
Tuesday High 18:39
15. GARDA TRAFFIC CONES
1. Garda “No Parking” as per Schedule No. E
2. Meter High Cones Victoria Road Roundabout post-match 12
3. Meter High Cones Albert Street / Albert Road post-match 6
4. Meter High Cones Boreenmanna Road post-match 20
16. CASUAL TRADING
Cork City Council Casual Trading to insist on laminated permits with picture id on the permits. Only
driving licences, public service cards or passports to be accepted in the application process. Casual
Trading to be only allowed on either side of Centre Park Road on marked pitches between Mill Road
and the ESB main entrance. Vehicles trading food to trade onto the footpath side only where possible.
Cork City Roads Policing Unit Page 10 of 19 Version: 1:2 20/09/18An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
Schedule A: Pre-Match
VARIABLE MESSAGE SIGNAGE
VMS Signs from 18th of Sept until 25th of Sept 2018 on approach roads
1 week before warning of delays on the 25th of Sept 2018
Victoria Road Roundabout Dunkettle Interchange
- facing Kennedy Quay Facing North to M8 Traffic
"Marina / Centre Park "25th Sept Liam Miller
Road Closed 12pm - 7pm Match Expect Delays from
Tuesday 25th Sept." 4.45pm "
John Horgan Quay South City Link inbound
Facing East facing South
"Liam Miller Match long " Liam Miller Match
delays from 4.45 pm on Tues 25th from 4.45 pm
Tues 25th Sept" expect long delays."
Cork City Roads Policing Unit Page 11 of 19 Version: 1:2 20/09/18An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
Schedule B: Match Day
VARIABLE MESSAGE SIGNAGE
25TH OF SEPTEMBER 2018 THE DAY OF THE MATCH.
On N25 West well before Slip down to the Tunnel “Miller Tribute MATCH NEXT SLIP ←”
At the Victoria Road Roundabout pointing in the direction of Centre Park Road
“MATCH ↑ ROAD CLOSED to VEHICLES”
At Link Road Centre Park Road. Two Phases
No. 1: NORTH STAND and BLACROCK TCE ↑
No. 2: SOUTH STAND & CITY END TCE → ”
At Link Road/ Monahans Road: Two Phases
No. 1: ← NORTH STAND & BLACKROCK TCE
No. 2: SOUTH STAND & CITY END TCE ↑
Bottom of Maryville facing South two phases " →Blackrock Tce & North Stand" No.2 "←City end Tce & South Stand"
At Dunkettle Roundabout facing approaching Dublin Motorway Traffic directing Match Goers through Tunnel “ MILLER
MATCH ↑ ”
N40 after Tunnel for Mahon Slip “MILLER MATCH ← ” and “USE NEXT SLIP”
Mahon Point 2nd Roundabout Miller Match Parking →
Mahon Point in front of ICE RINK car park " Miller Match Parking →
Mahon Point Liam Miller Shuttle Bus 202 Route Onmiplex Stop →
Cork City Roads Policing Unit Page 12 of 19 Version: 1:2 20/09/18An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
Schedule C: Post-Match
VARIABLE MESSAGE SIGNAGE
AFTER MATCH MOVE SECTION SCHEDULE TO
At Marina exit directing “CITY ←” and “MAHON BLACKROCK → “
At Centre Park Road/ Marina entrance to ESB carpark “CITY ←”
At bottom of Maryville “CITY →” and “Bus Eireann 202 Route ↑”
At the Emergency Exit Route “CITY →”
At Centre Park Road/Link Road facing East “City ↑ “
At Monahan’s Road Link Road facing East “City ↑ “
Cork City Roads Policing Unit Page 13 of 19 Version: 1:2 20/09/18An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
Schedule D
GARDA TRAFFIC BARRIER LOCATIONS
Location Number
Monerea Tce. /Victoria rd., 2
Monerea Tce/Albert St., (both inbounds) 2
Kennedy Quay 6
Victoria Road / Marina Walk 2
Centre Park rd./ Mill Rd., 6
Centre Park Road/ Link Road 8
E.S.B./Marina 2
Church Ave., /Marina 2
Boreenmanna Rd / Crab Lane 2
Blackrock rd/Maryville 6
Monahan rd., / Link rd., 6
Churchyard Lane /Boreenmanna rd., 8
Blackrock Road C / Churchyard Lane 2
Boreenmanna rd/Clanrickard Estate 3
Park Avenue / Blackrock Road 2
Ardfoyle Avenue / Blackrock Road 1
CAB Monahans Road 6
Albert Quay East entrance to Kennedy Quay 10
Blackrock Village at Café 1
These barriers are separate to the list of barriers required for the housing estates and also separate to
1. the barriers to prevent parking along Monahan’s Road from CAB motors to the Link Road.
2. the barriered emergency route into the stadium
3. barriers required to mark as reserved the locations for the 3 outside broadcast radio station units.
4. We need 30 extra barriers at the junction of Kennedy Quay and Albert Quay East.
Cork City Roads Policing Unit Page 14 of 19 Version: 1:2 20/09/18An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
Schedule E
GARDA - NO PARKING CONES
Monahan rd., - Northern side – full distance
(Emergency Route and V.I.P. access)
Both sides of Monahan Road at the Victoria
Road end approaching the business
premises where the road narrows.
Monahan rd SHUTTLE BUS TURNING CIRCLE
(in front of Suttons coal yd).
Monerea Terrace – South side.
Blackrock rd., from Menloe stores to SMA
Churchyard lane- Venue Bar end near the
junction with Blackrock road
Churchyard Lane – Junction with
Boreenmanna Rd East side going south as
far as new Shrewbury Estate.
Cork City Roads Policing Unit Page 15 of 19 Version: 1:2 20/09/18An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
Schedule F
CAR PARKS
Real time parking info
http://data.corkcity.ie/index.html
MAHON POINT ICE RINK
FREE CAR PARK- 400 SPACES
CORK CAMOIGE Grounds 400
Spaces
BLACK ASH PARK AND RIDE
FREE from 12pm 200 spaces. Closed at
20:30 Last bus at 20:10 hrs Patricks St
@ M&S
PATRICKS QUAY MULTI STOREY
car park by the Metropole 187 spaces
Cork City Roads Policing Unit Page 16 of 19 Version: 1:2 20/09/18An Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order
PAUL STREET - 740 spaces
Open till 24:00 hrs
North Main Street 400 spaces -
closed after 21:30 hrs
BESSBORO Car Park
Mahon Industrial Estate Cork City Council 80 spaces
Q CAR PARKS – 24 HOUR ACCESS
CARROLL’S QUAY - 376 spaces
access from North City Link
GRAND PARADE - 352 spaces
St Finbarrs - 230 spaces
access from Wandsford Quay
CITY HALL - 436 spaces
Cork City Roads Policing Unit Page 17 of 19 Version: 1:2 20/09/18Traffic Operation Order
Version: 1:2 20/09/18
BUS EIREANN SHUTTLE BUS – LAPPS QUAY – LIAM MILLER TRIBUTE MATCH 25/09/18
Shuttle Bus The Sextant Marquee
LIAM MILLER TRIBUTE MATCH
STADIUM
Victoria Roundabout
Page 18 of 19
Drop Off
Cork City Roads Policing Unit
An Garda Síochána

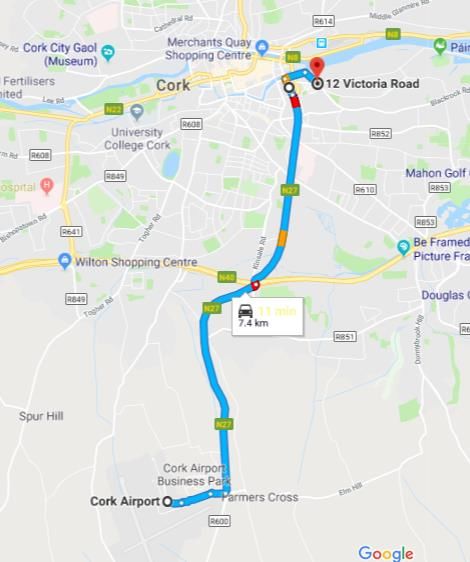

DISTANCE 2 KMSAn Garda Síochána LIAM MILLER TRIBUTE MATCH Traffic Operation Order VEHICLE ROUTE – CORK AIRPORT TO STADIUM TAXI DROP OFF POINT – LIAM MILLER TRIBUTE MATCH Cork City Roads Policing Unit Page 19 of 19 Version: 1:2 20/09/18
You can also read
