1 INTRODUCTION AND SCOPE OF PLAN
1.1                INTRODUCTION
The Water Services Act 2007 provides for the preparation of Water Services Strategic Plans (WSSPs)
by Water Services Authorities and for their review at a minimum every 6 years. The Act provides that,
where appropriate, a number of Water Services Authorities may make a combined Plan for their areas
or parts of their areas where a common approach is required.

In the Dublin Region, the four Dublin Local Authorities (Dublin City Council, Dun Laoghaire-Rathdown,
Fingal and South Dublin County Councils) adopt a co-ordinated approach to the delivery of water
services and this approach also applies to neighbouring areas in Counties Kildare, Meath and Wicklow
(Figure 1.1). It follows that an integrated Dublin Region Water Services Strategic Plan (DR-WSSP) is
appropriate to these areas and services.




         Figure 1.1: Greater Dublin Region


MDW0326Rp0003                                        1                                       REV F02
Dublin Region Water Services - Dublin City Council
Dublin Region Water Services Strategic Plan - 2009



This document details strategic plans in respect of:-

•   Water Supply; where the Dublin Region
    Water Supply Area (DRWSA) is defined by
    the combined areas served by the Dublin
    Region Water Supply Schemes (Figure
    1.2), namely,

            o Liffey Water Treatment Plants at
              Ballymore Eustace (Dublin City
              Council) and Leixlip (Fingal County
              Council)

            o Vartry Plant at Roundwood (Dublin
              City Council)

            o Dodder Plant at Bohernabreena
              (Dublin City Council)

            o Bog of the Ring Groundwater
              (Fingal County Council).




•   Urban Drainage; where the Greater
    Dublin Strategic Drainage Area (Figure
    1.3) is comprising:

            o Ringsend Wastewater Treatment
              Works     (WwTW)       catchment,
              including all of Dublin City and
              South Dublin, significant parts of
              Fingal   and    Dun    Laoghaire-
              Rathdown Counties, and an area
              in South-East Meath including
              Ashbourne, Dunboyne and Clonee

            o Fingal County is also served by
              WwTWs at Swords, Malahide,
              Rush & Lusk, Balbriggan &
              Skerries and Portrane;

            o Southern     Dun      Laoghaire
              Rathdown County and Bray /
              Kilmacanogue in Co. Wicklow are
              served by the Shanganagh-Bray
              Scheme;

            o North and mid-Kildare covered by
              the Osberstown and Leixlip
              Wastewater Treatment Schemes



•   Flood Risk Management; whereby a co-ordinated approach is adopted across the areas
    coinciding with the regional drainage catchment, including common policies for development
    control and sustainable storm water drainage.




MDW0326Rp0003                                        2                                 REV F02
Dublin Region Water Services - Dublin City Council
Dublin Region Water Services Strategic Plan - 2009




Figure 1.2: Greater Dublin Water Supply Area




MDW0326Rp0003                                        3   REV F02
Dublin Region Water Services - Dublin City Council
Dublin Region Water Services Strategic Plan - 2009

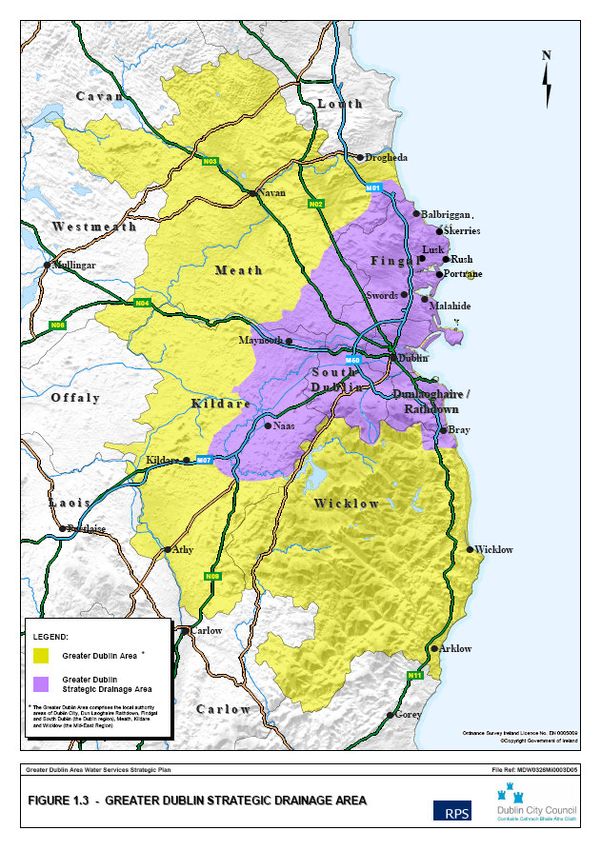

Figure 1.3: Greater Dublin Strategic Drainage Area




MDW0326Rp0003                                        4   REV F02
Dublin Region Water Services - Dublin City Council
Dublin Region Water Services Strategic Plan - 2009



1.2     WATER SERVICES ACT, 2007

The Water Services Act, 2007, provides that each Water Services Authority make a Water Services
Strategic Plan (WSSP) with regard to the provision of water services in its functional area with three
primary objectives;


•     Protection of human health and the environment


•     Provision of sufficient water services


•     Support proper planning and sustainable development.

The major legislative driver for action to improve water quality is the EU Water Framework Directive
(2000/60/EC), being implemented in the Eastern Region (Figure 1.4) by the Eastern River Basin
District (ERBD) Project. This project is developing measures to achieve “good” water quality in its
river, coastal and transitional waters, to be achieved by 2015 at the latest. The River Basin
Management Plans (RBMPs) being developed within the ERBD Project will be reflected in the
WSSPs.

Initially, the WSSP will be developed from available system knowledge, assisted by available technical
studies and having regard to current development policies and plans in the region. Arising from the
adoption of the WSSP, detailed monitoring will improve knowledge of the underlying condition and
performance of water services assets. As a result, periodic reviews of the WSSPs, within a maximum
6 year timeframe, will provide for more detailed “bottom up” assessment of strategic needs to provide;


•     Review of actual versus forecast out-turn costs;

•     Review of changes in standards and levels of service requirements;

•     Review of demand forecasts;

•     Prepare revised WSSP for approval.

In the case of the Dublin Region, this draft WSSP is prepared having regard to relevant major studies
undertaken, in particular the following;

•     Water Supply; the Greater Dublin Water Supply Strategic Study (GDWSSS 1996 and 2000
      Review), including revised assessments carried out in 2006 in the context of the Water Supply
      Project- Dublin Region (WSP-DR), the Dublin Water Strategic Storage Study and other technical
      studies, detailing the status and priority requirements for water supply across the region

•     Urban Drainage; the Greater Dublin Strategic Drainage Study (GDSDS) completed in 2005 which
      examined the foul and storm water drainage systems. The GDSDS outlined policies and future
      requirements of the region for foul and storm water drainage for the medium to long term. One of
      the key strategy recommendations of the GDSDS is the development of a regional wastewater
      treatment plant on the Donabate and Portrane peninsula, along with the development of an orbital
      sewer to transport wastewater to the regional plant. A Strategic Environmental Assessment (SEA)
      on the GDSDS Strategy was completed in 2008, with Fingal County Council as the lead authority

•     Flooding; the report of the Flood Policy Review Group (OPW), recommendations from the EU
      Funded Strategies and Actions for Flood Emergency and Risk Management (SAFER) Project and
      the Dublin Coastal Flooding Protection Project (DCFPP) completed in 2008 and the Catchment
      Flood Risk Assessment and Management Studies (CFRAMS) being carried out for the Dodder
      and Fingal-East Meath area and the INTERREG IVB Flood Resilien Cities (FRC) Project
      addressing the pluvial flooding challenge.



MDW0326Rp0003                                        5                                         REV F02
Dublin Region Water Services - Dublin City Council
Dublin Region Water Services Strategic Plan - 2009




Figure 1.4- Eastern River Basin District




MDW0326Rp0003                                        6   REV F02
Dublin Region Water Services Strategic Plan - 2009



1.3     RELEVANT LEGISLATION

The key legislative provisions that specifically relate to water services strategic planning are as
follows;


        •    The Water Services Act (Act No. 30 of 2007): Sections 36, 37, 38 and 77 of the Act
             legislate for the preparation, development, adoption, implementation and continuing review
             of water services strategic plans


        •    The Water Framework Directive (2000/60/EC): established a framework for the protection
             of all waters and their dependant wildlife/habitats under one piece of environmental
             legislation


        •    The Planning and Development Act (Act No. 30 of 2000): is a major update and
             consolidation of planning and development legislation, which provides for a proper planning
             and sustainable development


        •    Strategic Environmental Assessment Directive (2001/42/EC): requires that the
             environmental consequences of certain plans and programmes are identified and assessed
             during their preparation and before their adoption. Such plans and programmes are those
             that are likely to have significant environmental effects. The relevant arising national
             legislation that impacts on water services strategic plans is the European Communities
             (Environmental Assessment of Certain Plans and Programmes) Regulations, 2004 (S.I. No.
             435 of 2004)


        •    The EU Floods Directive (2007/60/EC): This Directive requires Member States to assess if
             all water courses and coast lines are at risk from flooding, to map the flood extent and
             assets and humans at risk in these areas and to take adequate and coordinated measures
             to reduce this flood risk.

Figure 1.5 outlines all the relevant legislation provisions at EU and National level that also impact on
water services planning in their requirements that have to be taken into account.


       Other Relevant                                                   Main Legislation
        Legislation

    Shellfish
    Shellfish Diirective
              Diirective                                              Water Services Act 2007
    Shellfish Directive
    Groundwater Directive
    Urban Ww Treatment
    Directive
    Nitrates Directive                                                   Water Framework
    Groundwater
    Bio DiversityDirective
    Groundwater   Directives
                 Directive                                                  Directive
    Drinking Water Directive
    Bathing Water Directive
                                            Water Services
    Freshwater Fish Directive               Strategic Plans
    Water Pollution Acts &                                            Planning & Development
    Regs                                                                     Act 2000
    Urban
    Urban     Ww
              Ww     Treatment
                     Treatment
    Waste Management     Acts
    Directive
    Directive
    Phosphorous
    Regulations
                                                                      Strategic Environmental
                                                                            Assessment



Figure 1.5 Relevant Legislation



MDW0326Rp0003                                          7                                        REV F02
Dublin Region Water Services Strategic Plan - 2009



1.4     WATER SERVICES STRATEGIC PLAN – REPORTS

The Water Services Strategic Plan (WSSP) is
covered in the following hierarchy of reports;


•     High Level Executive Summary; summary                                 Executive
      statement for regional adoption and                                   Summary
      national planning

                                                                         Strategic Plan
•     Dublin Region Local Authorities Water
      Services Strategic Plan (this document)-
      Detailed plan for management purposes
      by local authorities
                                                                        Technical Reports
•     Water Services Strategic Plan – Technical
      Background Document; compiled from the
      existing technical reports available for the
      region, together with review and input from                   Support Data & Documentation
      the      individual     Local      Authority
      organisations.


•     Support Data & Documentation- Guidance on the Preparation of WSSPs



1.5     SCOPE OF WATER SERVICES STRATEGIC PLAN

In October 2008, Guidance on the Preparation of WSSPs was published by the Water Services
Network Training Group (WSNTG) and the Department of the Environment, Heritage and Local
Government (DEHLG).

For each of the three disciplines, water supply, drainage and flooding, the WSSP is developed under a
number of headings that correspond to the Guidance areas given, as follows:-

•     Vision


•     Outline Service Standards and Levels of Service


•     Objectives


•     Demand


•     Strategic Measures


•     Plan Implementation and Delivery.

These issues are addressed in the WSSP by reference to available reports and system information. A
key requirement of the WSSP would be for monitoring and reporting on system performance, condition
of the assets and security of the service at each review of the WSSP. In this way, the assumptions
would gradually become more robust, the investment needs would be more accurately defined and
investments prioritised and overall service standards improved.




MDW0326Rp0003                                        8                                        REV F02
Dublin Region Water Services Strategic Plan - 2009



1.6       SYNCHRONISATION                    WITH    OTHER      RELEVANT           PLANS          AND
          PROGRAMMES

Section 36 (6) of the Act identifies the main plans and programmes that water services authorities
should have particular regard to when preparing water services strategic plans (WSSPs). The plans
and programmes to which regard must be given when drafting a WSSP fall under three categories:

      1. Planning and Development

      2. Water Quality

      3. Waste Management



1.6.1     Planning and Development

The relevant plans and strategies in the planning and development area, which should be taken into
consideration, are:


      •   National Plans and Strategies: Including the National Development Plan and the National
          Spatial Strategy


      •   Regional Plans and Strategies: Including the Regional Planning Guidelines (RPGs) and
          Integrated Planning Frameworks


      •   Local Plans and Strategies: Development Plans.

This DR-WSSP details the current City Plans and projects and is based on the Assessment of Needs
Report adopted by Dublin City Council following public consultation. This infrastructure is necessary to
provide for development of Dublin City as set out in the Development Plan and this document will be
incorporated into the SEA being carried out for the City Development Plan.

As soon as the relevant sections of the Water Services Act 2007 are enacted to prepare a Water
Services Strategic Plan a further SEA will be carried out as required for any additional elements not
included in this current plan.

1.6.2     Water and Environmental Quality Plans

The relevant plans include:


      •   Water Quality Management Plans


      •   River Basin District Management Plans and associated Programmes of Measures.



1.6.3     Waste Management Plans

Regard has to be given to the relevant local authority Waste Management Plans and their associated
Sludge Management Plans.




MDW0326Rp0003                                        9                                          REV F02
Dublin Region Water Services Strategic Plan - 2009




2 WATER SUPPLY


2.1     WATER SUPPLY STRATEGIC PLAN - VISION

The vision for water supply services in the Dublin Region is:

         “To supply adequate drinking water to meet present and future demand in a sustainable
         manner to appropriate quality standards to all customers within the region”.

There are three primary objectives to be considered:


         •    Quality; to meet all of the requirements set out in National
              and EU Standards for wholesome safe drinking water


         •    Quantity; To provide sufficient water to meet domestic and
              non-domestic requirements, including allowance for peak
              demand at present and into the future


         •    Sustainability; To be environmentally sustainable such that
              demands can be met without compromising “good” water
              quality of sources while minimising general environmental
              impact.




2.2     WATER SUPPLY - LEVELS OF SERVICE


2.2.1    Statutory, Customer and Other Levels of Service

The principal legislation in Ireland applicable to the delivery of safe drinking water is the European
Communities (Drinking Water) (No. 2) Regulations 2007 - SI No. 278 of 2007. The principal
compliances are that:-




MDW0326Rp0003                                        10                                       REV F02
Dublin Region Water Services Strategic Plan - 2009



    •    Water supplied is wholesome and clean in that it is free from any micro-organisms and
         parasites and from any substance in concentrations that constitute a potential danger to
         human health
    •    It meets the microbiological and chemical water quality parametric value standards set out in
         the Schedule to the Regulations
    •    Parameters are to be analysed and minimum frequency of check and audit monitoring for
         each supply to be carried out in accordance with provisions in the Schedule to the
         Regulations.

While the provision of clean and wholesome water is assured through legislative requirements,
customers also expect a continuous supply at adequate pressures and expect prompt response to
supply interruptions and queries. To ensure customer satisfaction, the following core customer
services standards are identified in the WSSP:-


    •    Capacity
    •    Supply Pressure
    •    Supply Interruptions.



2.2.2    Water Supply - Levels of Service

In developing the WSSP, consideration has been given to current service standards and to good
practice levels of service by reference to international experience. These standards include
fundamental requirements for delivery of quantity and quality but also include reliability of supply,
response time to customer complaints or operational contingency.

The following service standards have been considered in the WSSP together with the levels of service
to be achieved:


         •    Water Quality; Monitoring indicates that the minimum statutory water quality standards
              are generally complied with in the supply. The WSSP requires Local Authorities to aim for
              recommended Guideline Standards set out in the Regulations, representing good practice
              operating standards, which provide an acceptable margin against failure of mandatory
              standards


         •    Capacity; The WSSP envisages target capacity standards to cater for normal operational
              and peak demands. This includes variation over a 24 hour day (morning and afternoon
              peaks), seasonal variations and provision for development. As far as practicable, the
              system should also meet fire flow requirements while maintaining a basic capacity for
              average demand


         •    Supply Pressure; In general, the WSSP targets a minimum pressure at the supply pipe of
              15 metres residual head. It also provides that negative pressures should not occur under
              peak conditions as a protection against groundwater entering the network


         •    Supply Interruptions; Burst rate data is maintained for the network together with other
              unplanned interruptions to supply. The age of the network means that a guaranteed
              minimum frequency of interruptions would be difficult to achieve in the short term.
              However, Local Authorities are using burst rate data to target mains for rehabilitation and
              endeavour to provide a minimum response time and maximum outage period, in response
              to contingencies causing supply failure. Burst data should be maintained by all Local
              Authorities in order to adequately manage supply interruptions.



MDW0326Rp0003                                        11                                          REV F02
Dublin Region Water Services Strategic Plan - 2009



These are the basic service standards targeted by the WSSP. Local Authorities also endeavour to
meet good practice standards in terms of response to consumer complaints, advice to consumers on
water conservation and demand management and advice to householders where chronic service pipe
leakage is identified.

The information systems in place across the Dublin Region should be used to evaluate service
performance against these standards on an ongoing basis as demand increases and the system
evolves. The strategic planning function should analyse and evaluate this performance in the
formulation of strategic measures to be implemented.



2.3     WATER SUPPLY STRATEGIC PLAN - OBJECTIVES

Delivery of water to the levels of service identified will require that a number of objectives are satisfied
in respect of the following:


         •    Water Quality Management (protection of raw water sources)


         •    Sustainable availability of adequate quantity


         •    Management of Water Supply Assets


         •    System Resilience and Operational Flexibility.



2.3.1    Quality Objectives

The management of water quality, for the purposes of meeting drinking water quality standards in a
sustainable manner, requires in the first instance that a holistic catchment based management
approach is taken to protecting water resources, minimising risk of pollution and enforcing appropriate
planning control of development. This requires a coordinated approach between the different local
authorities given that the local authority managing the drinking water facility has little or no control over
the catchment providing the raw water source. This requires that the concept of ‘source to tap’ water
quality management is delivered in terms of:


         •    Best practice water resource management of the catchments as the primary means of
              protecting drinking water quality and reducing risk to public health


         •    Effective treatment of drinking water at each of the region’s drinking water production
              facilities by expanding and operating the facilities in accordance with best practice. This
              requires:

                        o    Liffey works at Ballymore Eustace; To complete the upgrading of this plant to
                             achieve sustainable output of 318Ml/day (at construction stage)

                        o    Liffey works – Leixlip; To upgrade this plant to produce a sustainable
                             215Ml/day (works at tender stage)

                        o    Vartry works at Roundwood; To complete the refurbishment and maintain
                             high-quality operation of these works for the maximum sustainable output of
                             the Vartry source (80Ml/day)



MDW0326Rp0003                                         12                                             REV F02
Dublin Region Water Services Strategic Plan - 2009



                        o    Dodder works – Bohernabreena; To complete the refurbishment of these
                             works and to maintain satisfactory operation for their maximum sustainable
                             output (18Ml/day)

                        o    Groundwater sources; To continue to develop and protect groundwater
                             potential in Fingal and Kildare, including monitoring of water quality and water
                             treatment


         •    Distribution System; To protect water quality in distribution by an extensive ongoing
              monitoring programme and gradual reduction in risk factors in the supply system, in
              particular:

                        o    Eliminating uncovered storage in the supply through the provision of covered
                             reservoirs at Stillorgan and Ballyboden

                        o    Monitoring pressure and avoiding as far as possible low service pressures,
                             particularly where there is significant leakage risk

                        o    Gradual rehabilitation of old cast-iron mains, lead service pipes and antique
                             Victorian mains, prioritising areas where monitoring indicates a risk of
                             pollution to the water, elevated lead or iron concentrations.


         •    Water Safety Plans; in accordance with the World Health Organisation, will be developed.



2.3.2    Capacity Objectives

The provisions of sustainable quantities of water for present and future needs will be delivered through
the following planned objectives:


         •    Promoting     maximum      demand
              management and leakage reduction
              including pressure management,
              leak detection/repairs and priority
              mains    replacement,   allied   to
              practical measures to promote
              demand reduction by consumers


         •    Completion of upgrading of existing
              plants to maximise the sustainable
              yield from existing sources. These
              works are in tandem with the
              upgrading required to ensure
              satisfactory water quality


         •    Strengthening of the distribution network including adequate storage where necessary, to
              ensure that adequate capacity can be delivered to all points in the network, including
              provision for development needs in accordance with the Local Authority Development
              Plans


         •    Identification and advance planning for new water supply resources for the Dublin Region
              to ensure that the medium-to-long term needs of the region can be provided for,
              consistent with the National Spatial Strategy and the Water Framework Directive



MDW0326Rp0003                                          13                                            REV F02
Dublin Region Water Services Strategic Plan - 2009



2.3.3    Asset Management Sustainability Objectives

Achievement of capacity and quality objectives requires satisfactory performance of the water supply
infrastructure. The WSSP objectives, therefore, include proposals with respect to asset infrastructure:


         •    To maintain accurate and up-to-date records of system assets and performance, covering
              the necessary information required to measure services standards and to identify
              deficiencies


         •    To maintain a programme of asset improvements sufficient to ensure the continued
              satisfactory performance including treatment plants, storage reservoirs, trunk and delivery
              mains and public supply pipes


         •    To maintain and update Regional GIS, Regional Telemetry and Regional Water Models to
              ensure most up to date data is used


         •    To provide for effective asset management of water supply infrastructure to include
              maintaining up to date information systems (GIS watermains system records) and system
              models capable of evaluating capacity and performance. To utilise these systems to
              develop asset management plans to maintain satisfactory performance of the assets


         •    To maintain and upgrade the Regional Telemetry System, facilitating better management
              and operation of assets.



2.3.4    Resilient Supply and Operational Flexibility Objectives

The DR-WSSP aims to achieve a level of redundancy within the water supply system whereby an
adequate level of resilience exists to cope with normal operational contingencies. This will be
addressed through:


         •    Adequacy of treatment capacity to cater for water
              source contamination or treatment plant breakdown.


         •    Adequacy of treated water and supply side storage to
              protect against short term interruptions to supply
              (system failure, pump or treatment breakdown) and to
              meet short term peak demands on the system.


         •    To be capable of meeting reasonable requirements for
              fireflows throughout the network, taking account of the
              nature of development and local fire risk categories
              and the need to maintain water supply to customers.



2.4     WATER SUPPLY STRATEGIC PLAN – DEMAND

Predicting growth in the demand for water services is based on how demographic, economic and
social factors change in the forthcoming years.




MDW0326Rp0003                                        14                                          REV F02
Dublin Region Water Services Strategic Plan - 2009



The Greater Dublin Water Supply Strategic Study (GDWSSS) 1996 contained demand projections for
the period 1996 – 2016. Detailed projections for 2000-2021 were prepared during the subsequent
review of GDWSSS96 in 2000. These projections were updated during the Water Supply Project-
Dublin Region (WSP-DR) Feasibility Study in 2004/5 and again as part of the current WSP-DR
(Preliminary Report) studies in 2007/8.

The process for estimation of future potable water demand for the Dublin Region involved:

                   •      Review of all relevant reports

                   •      Analysis of trends over the 1996 to 2007 period

                   •      Local Authority Consultations.

The total demand is arrived at by consideration of a number of sub-components and preparing
projections for each to arrive at an overall total. The demand sub-components are as follows:

               •   Domestic Consumption

               •   Non Domestic Consumption

               •   Customer Side Leakage
               •   Distribution Network Leakage

               •   Headroom (peak/security of supply/contingency/climate change).

Growth in water demand is primarily driven by population increases which result directly in increased
personal consumption and also indirectly in increased industrial / commercial consumption. Economic
growth rates, leakage management performance and water conservation performance are also
contributory factors in demand growth. Average demand in the Dublin Region is expected to increase
from approx 540Mld (2008) to 800Mld (2031). Figure 2.1 summaries demand growth and the Dublin
Regions future needs.




                            Average Demand Growth                         Sustainable Production from Existing Source
         850


         800
                                                            Demand Projections
                                                                                                               Average Demand
         750
                                   New Source Required
         700
  Ml/d




         650
                                                                                            Planned Sustainable Production

         600


         550
                                          Kildare
                                          (Barrow)
         500


         450
           2003    2005     2007   2009   2011       2013   2015   2017     2019   2021   2023   2025   2027     2029   2031    2033
                                                                      Year

Figure 2.1: Future Need Demand Review




MDW0326Rp0003                                                         15                                                        REV F02
Dublin Region Water Services Strategic Plan - 2009



Demand figures have been revisited due to the current economic slowdown and the possible effects
on population growth. The overall trend in the forecasting is not thought to be significant. However it
could result in the timeframe for implementing the new water source being extended by one or two
years.



2.5       WATER SUPPLY - STRATEGIC MEASURES


2.5.1     Asset Assessment and Options

In order to plan for the delivery of a water supply, water services authorities shall identify when
infrastructure has to be renewed, replaced or upgraded to meet existing and future customer demands
to the levels of service outlined previously. Asset capacity assessment needs can then be carried out,
i.e. assessing the potable water capacity and any shortfalls in, for example, the:-

              o    Source and intake
              o    Raw water mains
              o    Treatment plants
              o    Pumping stations
              o    Trunk/rising mains
              o    Storage reservoirs

In addition to capacity shortfalls, future changes to legislation relating to water supply (eg. more
stringent drinking water regulations) may generate other shortfalls. Planning for future legislation is
difficult to take account of until such time as the legislation is enacted, whereas higher levels of
customer service expectation can be dealt with through review of the WSSP.

In the case of the Dublin Region, the WSSP is prepared having regard to the aforementioned Greater
Dublin Water Supply Strategic Study (GDWSSS 1996 and 2000 Review), including revised
assessments carried out in 2006 in the context of the ongoing Water Supply Project – Dublin Region
and other technical studies, detailing the status and priority requirements for water supply across the
region.

The options available to deal with asset capacity shortfalls and to deliver the required capacity are
summarised as follows:-

      •   Adjust current operational practice
          of the existing asset

      •   Rehabilitate or renew the asset

      •   Upgrade or replace the existing
          asset

      •   Augment the existing capacity to
          the required level.

A more detailed methodology on the assessment of assets and identifying options, to solve emerging
shortfalls is given in section 4 of the Guidance on the Preparation of Water Services Strategic Plans,
WSNTG and DEHLG, October 2008.




MDW0326Rp0003                                        16                                        REV F02
Dublin Region Water Services Strategic Plan - 2009



2.5.2    Water Services Operations – Strategic Measures

The measures proposed in this WSSP involve a combination of capital and operational steps.

In terms of operations, Water Services Authorities shall provide for the following:


         •    Effective monitoring and management of water supply operations to verify compliance with
              the specified standards of service and progress towards achieving overall objectives of the
              WSSP

         •    Promotion of demand management to encourage best practice water management in new
              development and optimum water conservation among existing domestic and non-domestic
              users. This involves the provision of information and appropriate technical assistance for
              consumers, based on best practice. Pilot projects shall be promoted to target grey water
              re-use, use of water saving devices and rainwater recovery reducing water demand by
              consumers. Water Conservation Bye-Laws are in place in Dublin City Council, Fingal
              County Council and South Dublin County Council

         •    Maintenance and where necessary upgrading of water conservation and leakage control
              systems and resources towards achievement of the medium-term goal of overall regional
              water losses of 25% (of water into supply) and long-term 20 year goal (from now) of
              achieving a 20% maximum rate of losses across the region

         •    Promotion of cost effective management of all aspects of the water supply service, from
              source to tap, through appropriate input to the Development Planning Process and the
              River Basin Management Plans (RBMPs), a representative sampling and analytical
              programme, constant review and where appropriate, improvements in the management
              and resourcing of water services

         •    Maintain and upgrade the existing Regional Telemetry, GIS and Network Modelling
              Systems.



2.5.3    Water Services Capital Investment – Strategic Measures

Measures involving capital investment are required in accordance with current plans and programmes.
These include:


         •    Current and planned projects to upgrade water abstraction and treatment, upgrading of
              storage, transmission and distribution systems to meet short and medium term supply
              needs. This includes projects to upgrade existing treatment, covered reservoir and new
              reservoir storage


         •    Major investment in water mains renewal (€108
              million in current contracts) focussed on leakage
              reduction as a priority using the most cost-effective
              means to upgrade leaking pipes, optimise supply
              pressures and reduce unnecessary water use.
              There comes a point where reducing leakage below
              a certain level (approx 20%) is not economically
              viable for networks of this nature – this is known as
              the “economic level of leakage” below which
              increasing levels of expenditures are required for
              ever decreasing leakage reductions




MDW0326Rp0003                                        17                                          REV F02
Dublin Region Water Services Strategic Plan - 2009



         •    Upgrading of Regional Telemetry, GIS and Network Modelling Systems to keep them in
              line with modern standards.

In addition to delivering this programme of works targeted at short to medium term needs, the Dublin
Region Water Services Authorities will expedite the planning of new major water resources for the
Dublin Region to meet the long term needs (20 to 25 years and beyond). This involves technical,
environmental and socio-economic assessment of long terms strategic options including possible
abstractions from the River Shannon, in conjunction with dry weather storage options, sea water
abstraction and treatment by desalination and/or measures having regard to development
requirements and climate change. These options are currently being examined through Strategic
Environmental Assessment (SEA).



2.6    WATER SUPPLY                      –     WSSP    IMPLEMENTATION           &    INVESTMENT
       PROGRAMME

The delivery of the objectives of the DR-WSSP requires a coordinated approach by the Dublin Region
Water Services Authorities.       This is achieved through strategic management and technical
committees, coordinating delivery of capital and operational programmes, subject to the overall
approval of the Department of the Environment, Heritage and Local Government (DEHLG). This
includes:

         •    Integrated laboratory analysis, flow and pressure measurement and asset management
              information systems on behalf of the Authorities in the Region

         •    Delivery of a capital programme of works estimated to cost approx €500 million during the
              lifetime of the WSSP, covering the investment needs for the short to medium term
              together with essential planning of long term strategic measures required to meet the
              needs beyond the period of the WSSP.

More detailed information on capital expenditure for Water Services within the four Dublin Local
Authorities (Dublin City Council, Dun Laoghaire-Rathdown, Fingal and South Dublin County Councils)
is contained in Section 5 of this WSSP.




MDW0326Rp0003                                         18                                       REV F02
Dublin Region Water Services Strategic Plan - 2009




3 DRAINAGE
3.1       STRATEGIC DRAINAGE PLAN - VISION

The vision for drainage services for the Dublin Region is to provide adequate drainage collection and
treatment facilities to meet the present and future demands, while ensuring and maintaining “good
status” of all receiving waters in the Dublin Region into the future.

This is consistent with the objectives of the Water Framework Directive and requires that the
collection, transport and disposal of both foul and stormwater drainage flows are managed effectively
to achieve this purpose.



3.2       STRATEGIC DRAINAGE PLAN - LEVELS OF SERVICE


3.2.1      Statutory, Customer and Other Levels of Service

The principal legislation in Ireland applicable to discharge standards for wastewater schemes is the
Waste Water Discharge (Authorisation) Regulations 2007 – S.I. No. 684 of 2007. Also applicable are
any requirements included in the Programme of Measures within the River Basin Management Plan
for the River Basin to which the waste water scheme discharges – arising from the EU Water
Framework Directive. The compliance requirements will vary depending on the overall impact on, and
the designation of, the water body and the specific requirements of the licensing authority - the
Environmental Protection Agency (EPA).

While the provision is made for the environment with regard
to allowable waste water discharges through legislative
requirements, customers also expect prompt response to
(for example) sewer flooding, environmental concerns and
queries. To ensure customer satisfaction, the following core
customer services standards are identified in the WSSP:-


      •    Waste Water Treatment Capacity
      •    Asset Condition
      •    Sewer Network Capacity/Flooding Risk
      •    Sewer Infiltration
      •    Overflows to Receiving Waters




3.2.2      Foul, Combined and Stormwater Drainage

The existing drainage infrastructure comprises foul sewerage infrastructure (Figure 3.1 and Figure
3.2) including pipe network, pumping stations, treatment plants and overflow structures which relieve
overloading in times of heavy rainfall.

In older areas, combined sewers collect both stormwater and foul flows in a common pipe and rely on
combined sewer overflows (CSO’s) to divert excess flows to receiving rivers and streams when the




MDW0326Rp0003                                        19                                      REV F02
Dublin Region Water Services Strategic Plan - 2009



downstream capacity of the pipe system is exceeded. Where such systems have become overloaded,
there is a potential for pollution at CSO’s.

 At treatment plants, foul flows are treated having regard to prescribed effluent standards, while
additional stormwater flows due to rainfall in the first instance overflow to storage for later treatment or
when they exceed the storage capacity discharge directly to receiving waters.

Stormwater drainage provides for the collection of stormwater flows primarily from paved areas (roofs,
roadways, paths etc) and these are generally conveyed to streams, rivers or coastal waters. Such
systems have the potential to collect significant polluting matter which, when discharged, can cause
environmental degradation in the receiving water environment.



3.2.3    Foul Sewerage Systems - Levels of Service

Detailed studies of the existing Dublin region foul sewerage systems have highlighted a number of
difficulties in terms of service standards. These include:


    •    Quality; all existing treatment plants are undergoing or will require upgrading to provide
         adequate capacity for medium term development needs. While most plants are operating
         satisfactorily, there is generally a capacity shortfall for projected short term needs and in some
         instances tighter effluent standards are required to meet water quality objectives, for example
         at Osberstown (Naas). In addition, excessive overflows are occurring in the combined sewer
         systems (city and town centres and older urban areas) which result in occasional pollution of
         the receiving environment


    •    Capacity; the foul sewer network modelling has indicated significant surcharge and localised
         flood risk on a number of trunk sewers. When additional development is considered in the
         models, additional flood risk potential has been identified, generally associated with rainfall
         events and associated runoff to the sewer system. In addition, most of the treatment plants will
         require capacity upgrading for the additional volumes of sewage arriving at the works, in
         addition to treatment of organic and nutrient loadings


    •    Asset Condition; sewer surveys have identified areas of operational deficiency in the network
         in terms of;

              -    Limited sections of sewers and culverts which are considered structurally deficient.
                   These can be verified by CCTV surveys and analysis

              -    Localised blockages and accumulation of sediment debris in foul sewers as identified
                   by CCTV and hydraulic surveys is prevalent in many areas of the network and reflects
                   unsatisfactory pipe gradients, artificial obstructions or inadequate maintenance. A
                   continuing programme of CCTV surveys is required in order to maintain up to date
                   asset condition records.

Level of service standards have been identified in the GDSDS studies and form the basis of this Water
Services Strategic Plan for foul drainage systems. Key levels of services criteria are:

    •    Wastewater discharge standards to comply with the requirements
         of the Water Framework Directive (WFD) and the specific
         requirements of the licensing authorities (EPA)




MDW0326Rp0003                                        20                                             REV F02
Dublin Region Water Services Strategic Plan - 2009



    •    All new non domestic discharges to the foul sewer network to be pre-treated where necessary
         to characteristics similar to or less than normal domestic sewage


    •    For overflows to the receiving water, standards are required to be site specific and involve the
         following criteria:

                                               - to provide for a minimum retained flow in the foul sewer to
                                               ensure that any discharges are sufficiently diluted

                                               - to provide a minimum standard of screening to prevent an
                                               aesthetic nuisance (typically 6mm)

                                               - to provide a maximum predicted frequency of spill
                                               appropriate to the receiving waters (for example, 3 times in a
                                               bathing season for bathing waters)

                                               - to provide for appropriate limitations on spill volume and
                                               associated organic and nutrient loadings for discharges to
                                               sensitive waters



    •    Flooding risk from foul or combined sewers should be extremely low, not less than once in 20
         years for on- street flooding and once in 30 years for property flooding


    •    Maintenance of sewerage systems to avoid excessive silt and debris retention, avoid stagnant
         flows and provide for acceptable health and safety conditions for maintenance


    •    For pumping stations, to ensure appropriate standby equipment, ensure adequate wet well
         capacity, control and automation to protect performance in the event of an item of plant failure
         and for emergency call-out response in appropriate circumstances.

The information systems in place across the Dublin region should be used to evaluate service
performance against these standards on an ongoing basis as demand increases and the system
evolves. The strategic planning function should analyse and evaluate this performance in the
formulation of strategic measures to be implemented.




MDW0326Rp0003                                            21                                          REV F02
Dublin Region Water Services Strategic Plan - 2009




Figure 3.1: Existing Foul Sewer Treatment WWTW



 MDW0326Rp0003                                        22   REV F02
Dublin Region Water Services Strategic Plan - 2009




Figure 3.2: Foul/ Combined Sewer Systems




MDW0326Rp0003                                        23   REV F02
Dublin Region Water Services Strategic Plan - 2009




3.2.4    Stormwater System – Levels of Service

Stormwater drainage comprises pipe networks, culverts and open channels required to convey runoff
principally from paved areas to local watercourses following rainfall. Historically, such systems were
designed for efficient transfer of rainfall runoff to the receiving environment by the shortest route.
However, they suffer a number of disadvantages:


    •    As development extends, the rate of runoff from paved areas is generally much greater than
         from undeveloped lands with the result that downstream flows increase and flooding can
         occur. This phenomenon is evident throughout the network


    •    Storm drainage systems have often developed in an adhoc fashion, with the result that pipe
         and culvert sizes may be inadequate for the ultimate extent of the development. This can give
         rise to local obstructions and blockage risks which can increase flooding


    •    High intensity storm events following a dry spell result in suspension and transport of detritus
         and floating debris in pipes, culverts and channels. This gives rise to blockages particularly at
         screens or entrances to culverts and bridges, causing flooding. These historic stormwater
         systems convey significant polluting matter from streets and other pavements to the
         watercourses. As a result, all of the streams in the Dublin conurbation exhibit disimprovement
         of quality from undeveloped catchment to developed catchment. This is evident in:

              -    sediment covering the stream bed, causing loss of ecology

              -    limited ecological species in the water environment indicative of occasional pollution
                   shock loadings. This is indicated by the quality “Q” rating system of the EPA whereby
                   Q1 is highly polluted and Q5 is pristine. In general, urban streams receiving significant
                   stormwater drainage discharges are Q2 or Q3 at best. These fall well short of the
                   “good” water quality target set by the Water Framework Directive

              -    As flows increase, it becomes necessary to upgrade the hydraulic capacity of stream
                   channels with the result that they are frequently canalised or culverted, with complete
                   loss of riparian ecology.

In respect of existing storm drainage systems, the criteria for flood risk management are similar to
those applicable to foul sewer systems, namely a minimum of 1 in 20 year protection from street
flooding and 1 in 30 year protection from property flooding. The modelling studies carried out in the
GDSDS study demonstrated local areas at risk throughout the catchments. Site specific risk
assessments are required at these locations to determine the likely risk to property and the
corresponding need for relief measures. In all cases the design criteria should future proof for climate
change and the latest predictions.

The storm sewerage system data is to be accommodated in the same regional information system
(GIS) containing foul sewerage data. The WSSP supports a common database and strategic
evaluation of this information to assess performance and determine priority measures to meet the
objective service standards.




MDW0326Rp0003                                         24                                            REV F02
Dublin Region Water Services Strategic Plan - 2009



3.3        STRATEGIC DRAINAGE PLAN - OBJECTIVES

The principal objectives for drainage services can be summarised as follows:


      •      To provide and maintain satisfactory drainage infrastructure having regard to new
             development. This requires that drainage system capacity is provided to meet future
             development needs while catering satisfactorily for existing load conditions


      •      To ensure that planning policies are adopted which are consistent with the WSSP. These
             policies provide for best practise design, management and operation of drainage services as
             developed in the Greater Dublin Strategic Drainage Study (GDSDS) and adopted in the
             Development Plans for the Dublin Region Local Authorities (Figure 3.3)


      •      To provide for effective wastewater treatment for present and future needs, to comply with
             requirements of the licensing authorities and in accordance with the water quality criteria set
             for the receiving waters. As part of this objective, to provide that new non domestic discharges
             (following appropriate treatment at source where necessary) should be at or below the
             standard equivalent to domestic sewage


      •      To provide for sustainable urban drainage systems (SuDs) for all future stormwater drainage
             for new development with the objective of ensuring that stormwater discharges from such
             developments correspond in respect of both quality and quantity with the equivalent values
             from the undeveloped greenfield site


      •      To provide for effective asset management of drainage infrastructure to include maintaining up
             to date information systems (GIS sewerage system records) and system models capable of
             evaluating capacity and performance. To utilise these systems to develop asset management
             plans to maintain satisfactory performance of the assets


      •      To maintain and upgrade the Regional Telementry System, facilitating better management
             and operation of assets.


           New Development

                                                                 Environmental Management of
                   SuDS
                                                                       Receiving Waters




                                    Climate Change


                                  Rising Sea Water Levels




                                                                 Existing Drainage Infrastructure
          Basements
                                                                        Continuous Discharges
           At Risk from
          Sewer Flooding                                                        Overflows

                                                                     Inflow / Infiltration / Exfiltration



Figure 3.3: Regional Policies –GDSDS



MDW0326Rp0003                                               25                                              REV F02
Dublin Region Water Services Strategic Plan - 2009



3.4     DRAINAGE - DEMAND FOR WATER SERVICES

Predicting growth in the demand for water services is based on how demographic, economic and
social factors change in the forthcoming years.

The GDSDS Final Strategy Report 2005 defined the existing and future drainage requirements of the
Dublin Region using three planning scenarios: years 2001, 2011 and 2031. The 2002 scenario
represented the existing situation during the study, incorporating the 2002 Census results. The 2011
scenario corresponds to the planning horizon of the Regional Planning Guidelines (incorporating the
National Spatial Strategy), which have been reflected by local authorities in their current Development
Plans. The 2031 scenario is a long-term horizon reflecting regional planning policy and drivers.

The GDSDS proposed that the combination of increasing population and decreasing household size
will give rise to a significant increase in numbers of household units in the long term. The increase in
population predicted for the Dublin Region to 2011 has been witnessed over recent years and has
confirmed the urgent need for new drainage infrastructure. The increasing demand places greater
pressure on Dublin’s existing drainage and treatment systems, and in turn has resulted in a drainage
and waste water treatment arrangement in the Dublin Region that is not sustainable.



3.5     DRAINAGE SERVICES – STRATEGIC MEASURES


3.5.1    Asset Assessment and Options

In order to plan for the delivery of a sustainable drainage system, water services authorities shall
identify when infrastructure has to be renewed, replaced or upgraded to meet existing and future
customer demands to the levels of service outlined previously. Asset capacity assessment can then be
carried out, i.e. assessing the drainage network and wastewater treatment capacity and any shortfalls
in, for example, the:-

              o    Sewers
              o    Sewer structures
              o    Sewage pumping stations
              o    Rising mains
              o    Waste water treatment plants
              o    Sea Outfalls
              o    Sludge Treatment
              o    Management systems.



In addition to capacity shortfalls, future changes to legislation relating to waste water discharges and
environmental quality of receiving waters may generate other shortfalls. Planning for future legislation
is difficult to plan for until such time as the legislation is enacted, whereas higher levels of customer
service expectation will be dealt with through review of the WSSP.

In the case of the Dublin Region, the DR-WSSP is prepared having regard to the Greater Dublin
Strategic Drainage Study 2005 and other technical studies, detailing the status and priority
requirements for drainage across the region.




MDW0326Rp0003                                        26                                          REV F02
Next part ... Cancel
